Sealey PDM170F Premier Floor Pillar Drill 16-Speed 370W 230V
SKU PDM170F Barcode 5054511285451
Pay in 3 interest-free with shopPay or PayPal
- Expert UK product support
- Authorised Sealey Tools UK distributor
- 30 day returns
Delivery & returns
Order by 4pm for next-working-day delivery on items marked Next day. Free UK delivery on orders over £75 inc VAT. Larger items may ship on a pallet — we confirm by email.
30 day returns on unused items in original packaging.
Description
Description

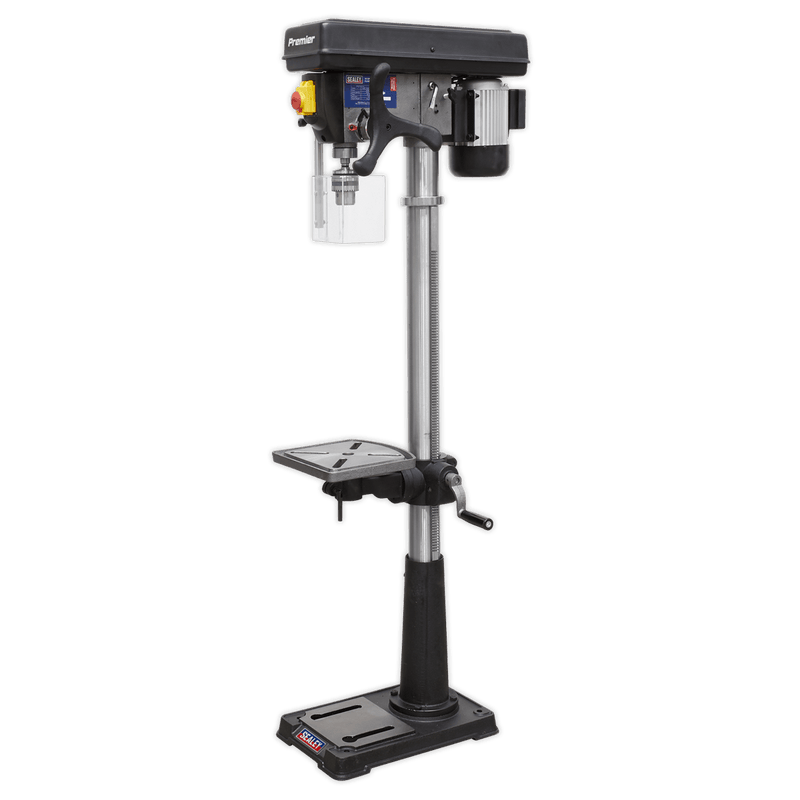

Sealey PDM170F Premier Floor Pillar Drill 16-Speed 370W 230V
One of a comprehensive range of Premier floor standing pillar drills for the professional workshop. Features heavy-duty aluminium-bodied motor for long and reliable performance. No-volt release switch to prevent inadvertent start-up and pulley cover protected by microswitch to prevent drill operating when cover is open. Supplied with an electrically inter-locked chuck guard. Large sized square table fitted with precision rack and pinion height adjustment.
Features and Benefits
- One of a comprehensive range of Premier floor standing pillar drills for the professional workshop.
- Features heavy-duty aluminium-bodied motor for long and reliable performance.

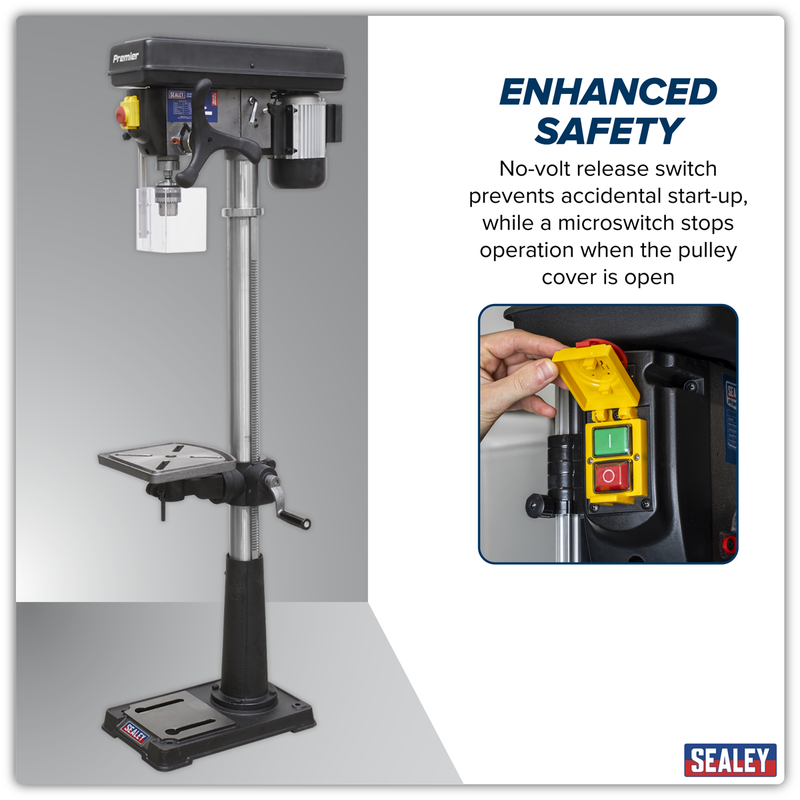

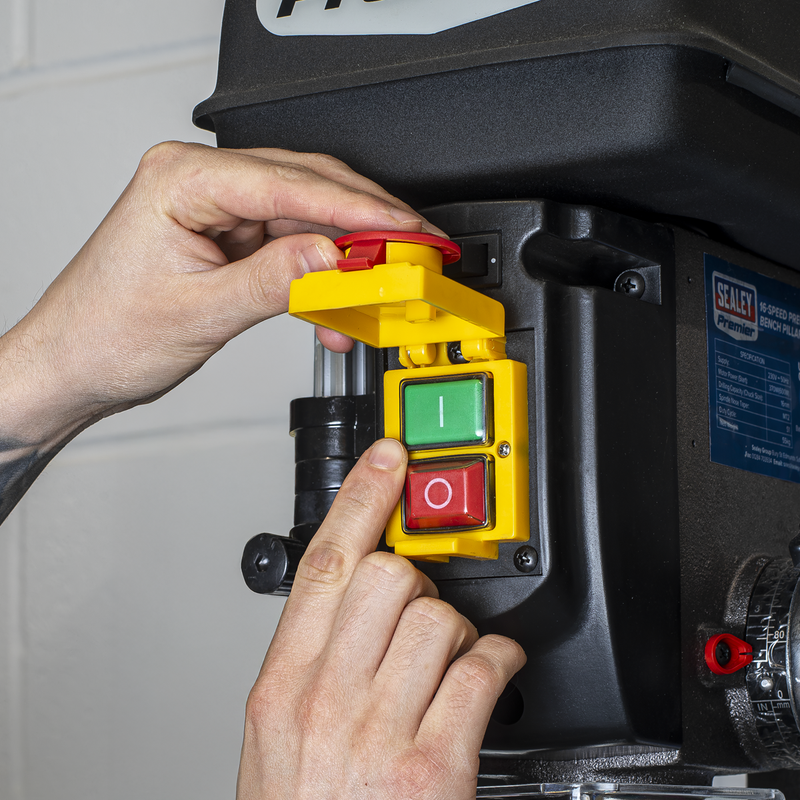

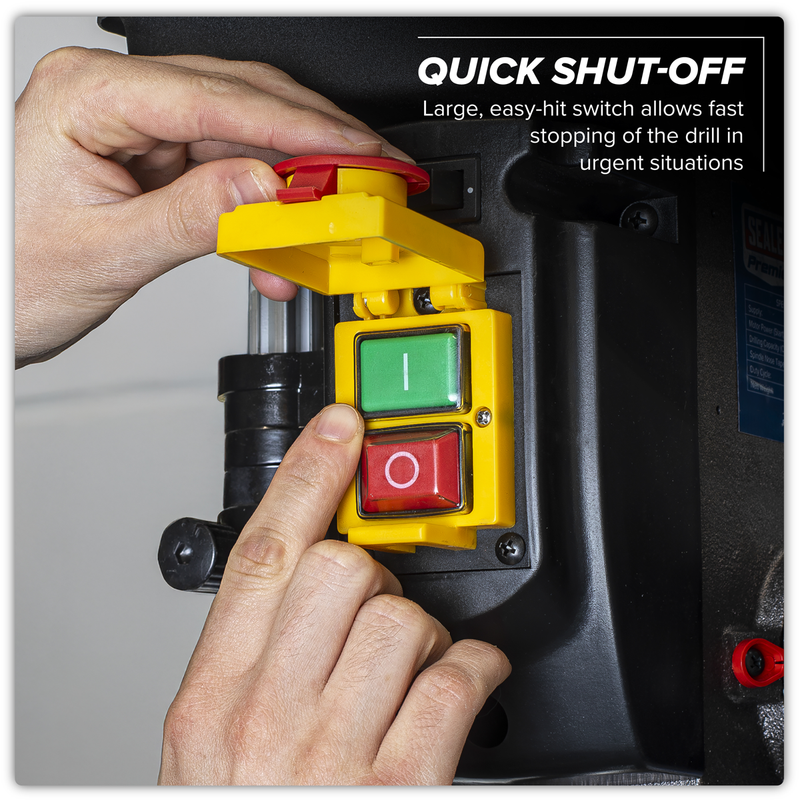

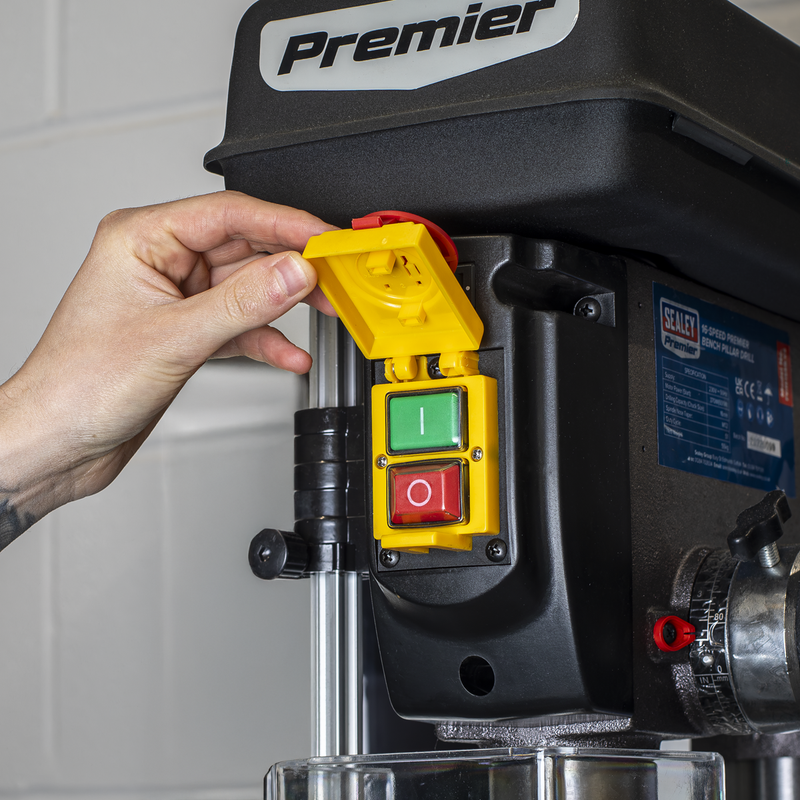

- No-volt release switch to prevent inadvertent start-up and pulley cover protected by microswitch to prevent drill operating when cover is open.
- Supplied with an electrically inter-locked chuck guard.

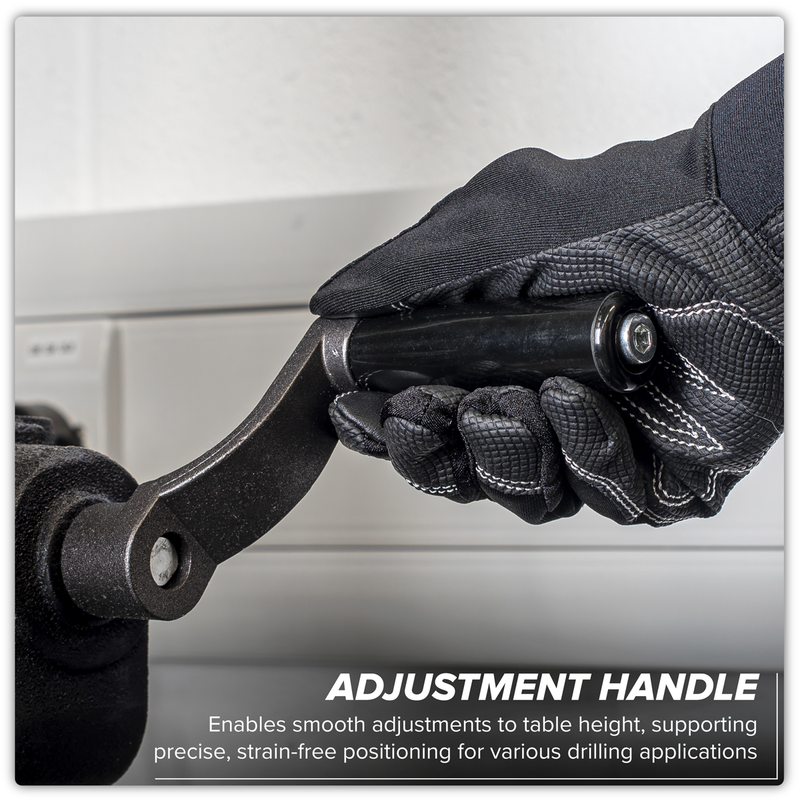

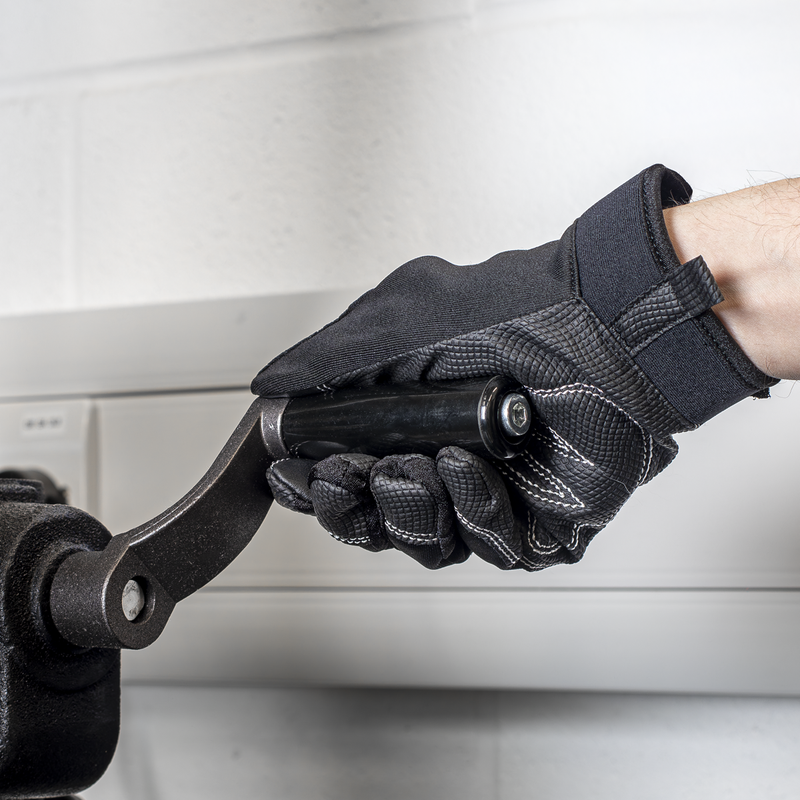

- Large sized square table fitted with precision rack and pinion height adjustment.
- 16mm(5/8") Capacity chuck, MT2.
- Height: 1610mm.
- Spindle Centre to Column: 170mm.
- Motor Power: 370W.
- Column Diameter: Ø73mm.
- Spindle Travel: 80mm.
- Weight: 52kg.
- 3 Year guarantee*.
Technical Specification
| Brand | Premier |
|---|---|
| Model No. | PDM170F |
| Barcode | 5054511285451 |
| Warranty | 3 years |
| Commodity Code | 8459290000 |
| Country of Origin | CHN |
| Pack Dimensions | H 0.255m × W 1.42m × D 0.5m |
| Gross Weight | 54kg |
| Base Size | 450 x 270mm |
| Collar Diameter | Ø55mm |
| Column Diameter | Ø73mm |
| Drilling Capacity (Chuck Size) | 16mm |
| Integral Work Light | No |
| Maximum Distance Spindle to Base | 1255mm |
| Maximum Distance Spindle to Table | 770mm |
| Motor Power (Start) | 370W(600W) |
| Nett Weight | 47kg |
| Number of Speeds | 16 |
| Optional Accessories | PDM/KC - Keyless Pillar Drill Chuck 16mm |
| Overall Height | 1610mm |
| Speed Range | 190-3000rpm |
| Spindle Centre to Column | 170mm |
| Spindle Nose Taper | MT2 |
| Spindle Travel | 80mm |
| Supply | 230V |
| Swing | 340mm |
| Working Base Surface Size | 205 x 200mm |
| Working Table Surface Size | 254 x 254mm |
