Sealey PFC101S Viking Industrial Engine Crane 1 Tonne
SKU PFC101S Barcode 5054630400810
Available to order from our supplier. Contact us to confirm quantities and lead times.
Pay in 3 interest-free with shopPay or PayPal
- Expert UK product support
- Authorised distributor
- 30 day returns
Delivery & returns
Despatch times vary by item. Check the product-specific lead time shown on this page. Supplier-shipped and larger items may take longer.
Delivery options and transit times are shown at checkout. Transit time starts after despatch and excludes weekends and bank holidays unless the selected service states otherwise. Tracking is provided when available.
30 day returns on unused items in original packaging.
Description
Description

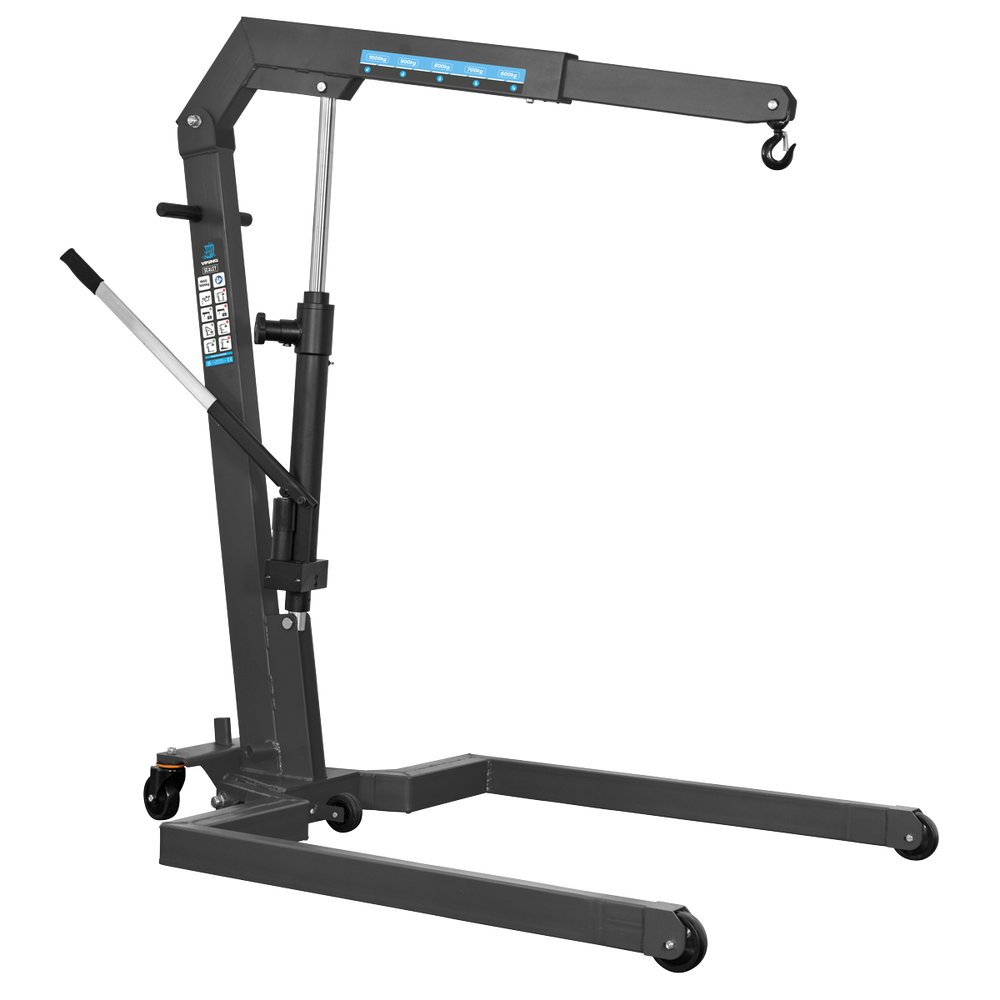

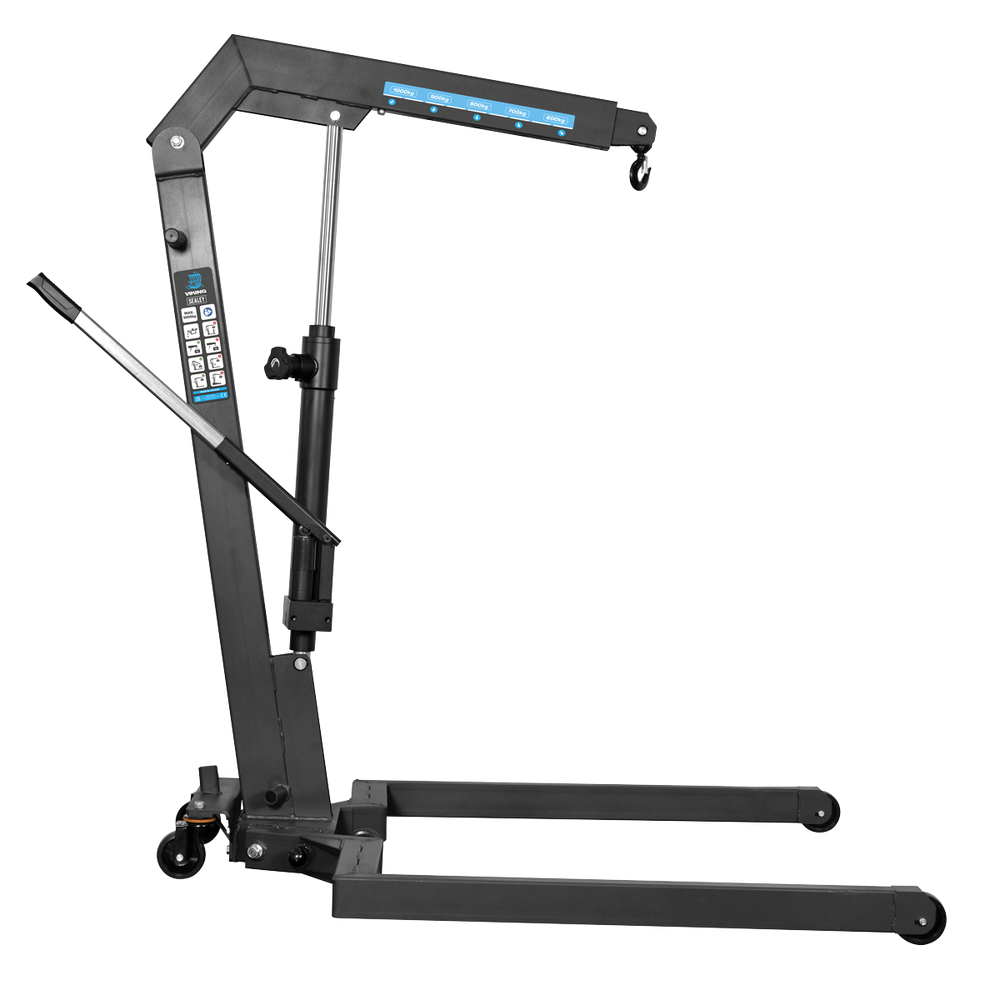

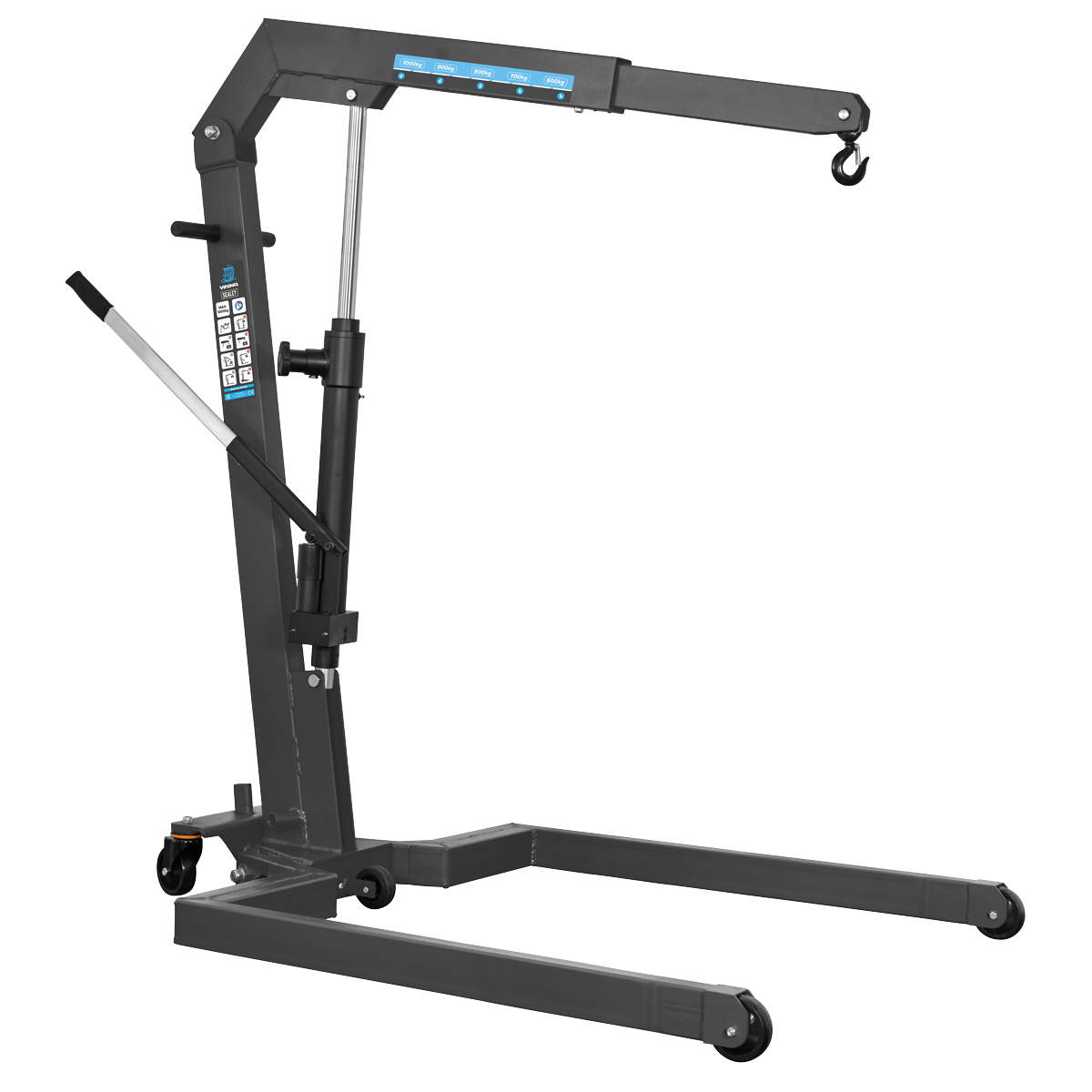

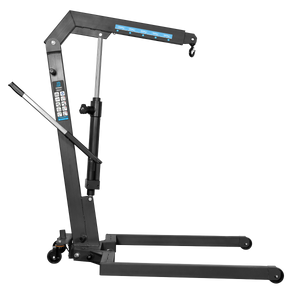

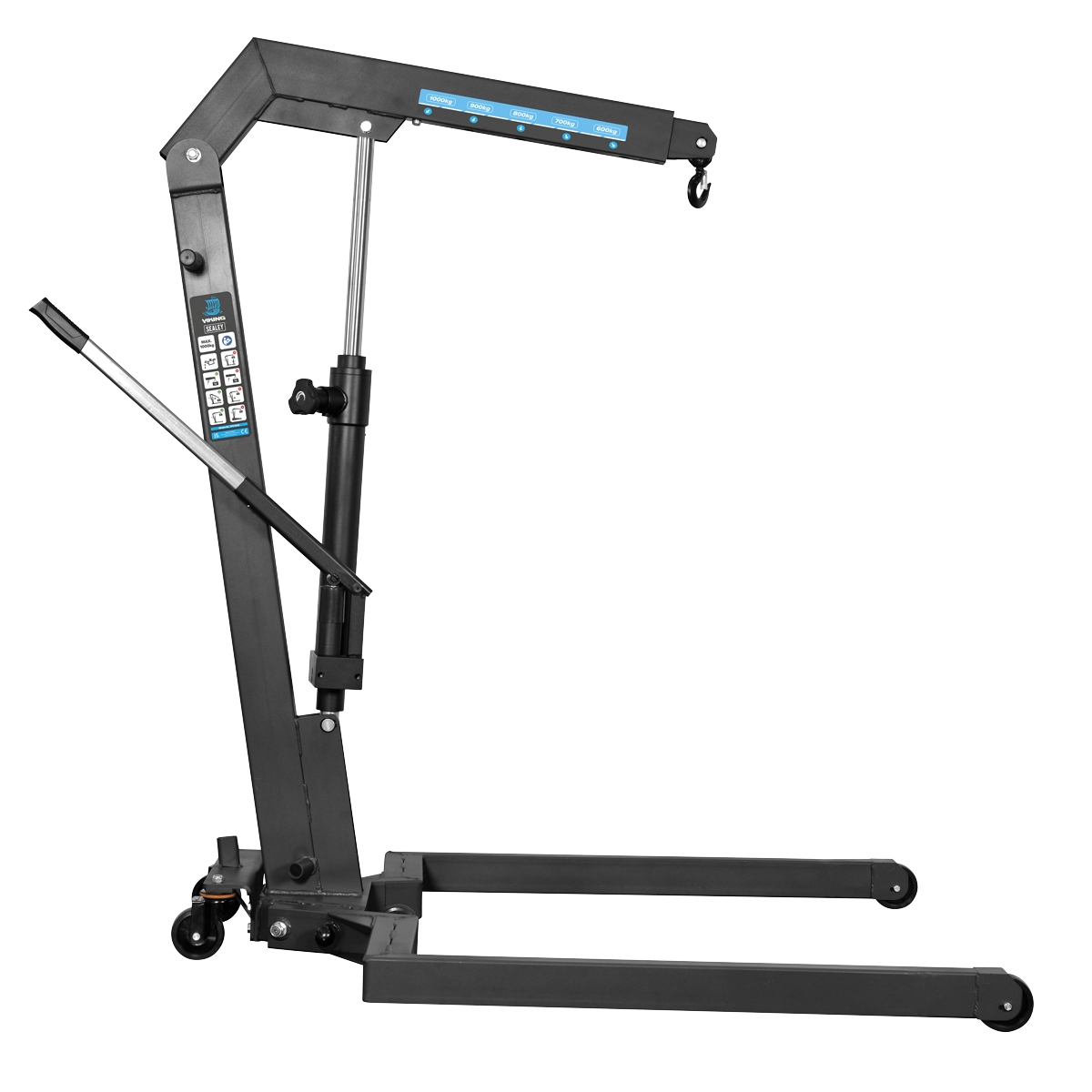

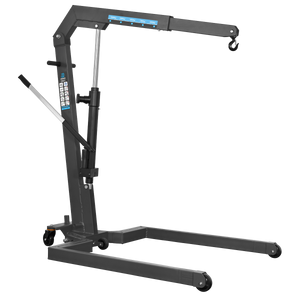

Sealey PFC101S Viking Industrial Engine Crane 1 Tonne
The legs fold away for storage and transportation and extend parallel to fit around various obstructions like pallets, boxes, etc. Hand operated dead man's control to prevent accidental lowering. Manually controlled descent speed. The jib can be extended and locks in five positions between 960-1350mm. The hydraulic unit and handle rotates by 200° aiding use where space is limited. Strong non-marking, nylon and fibreglass wheels front and rear. Rear castor wheels fitted with brakes. An additional wheel is also fitted for ease of movement when folded.

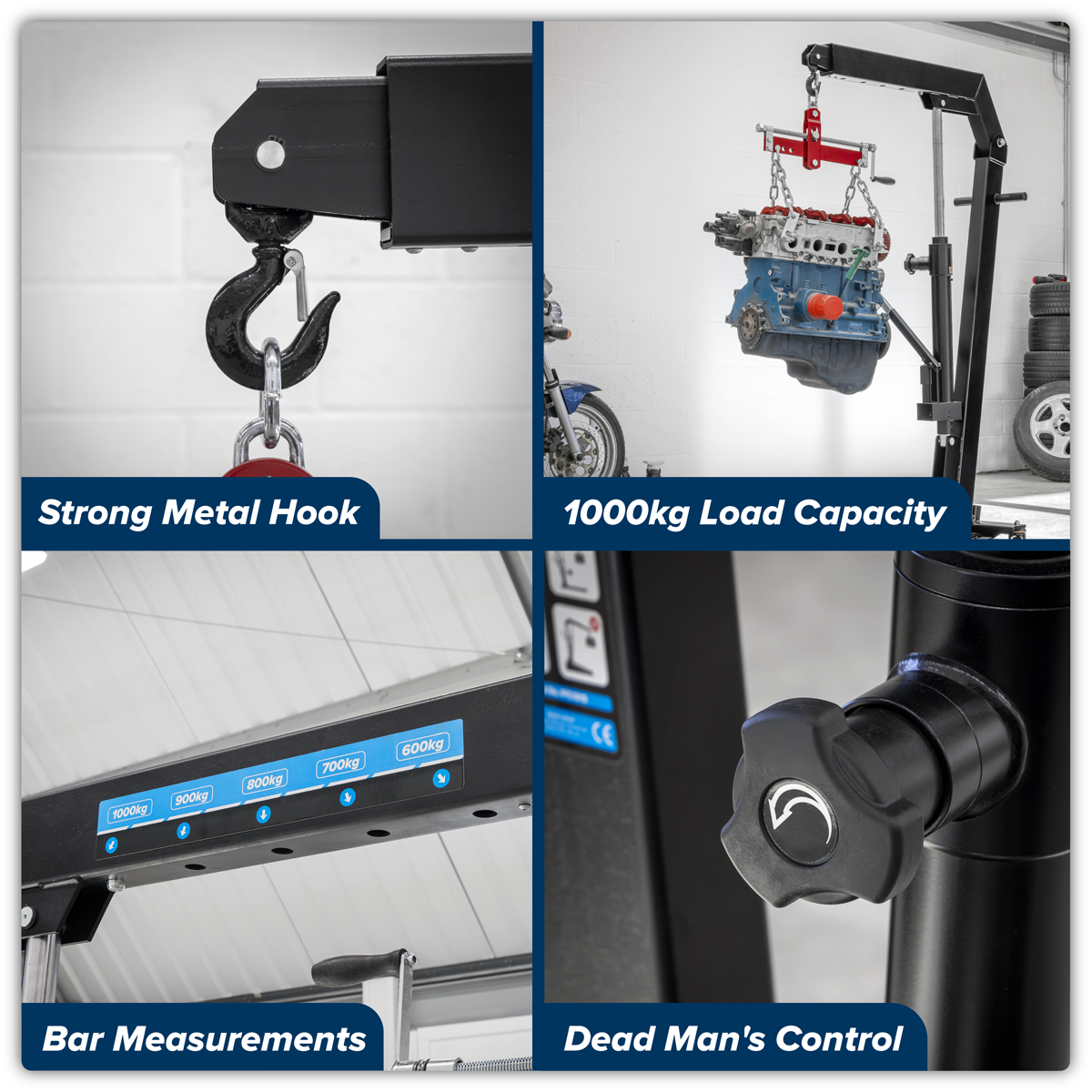

Features and Benefits

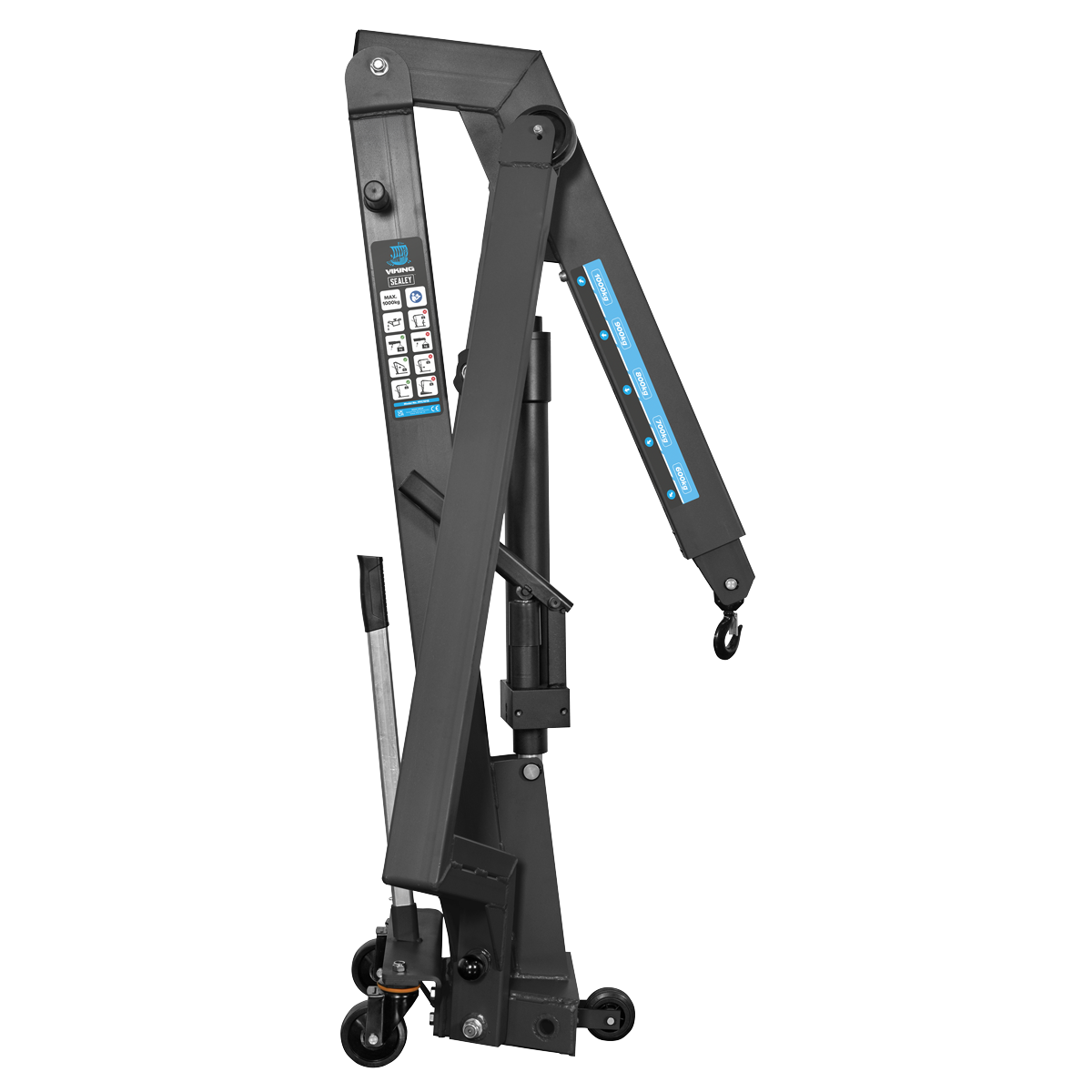

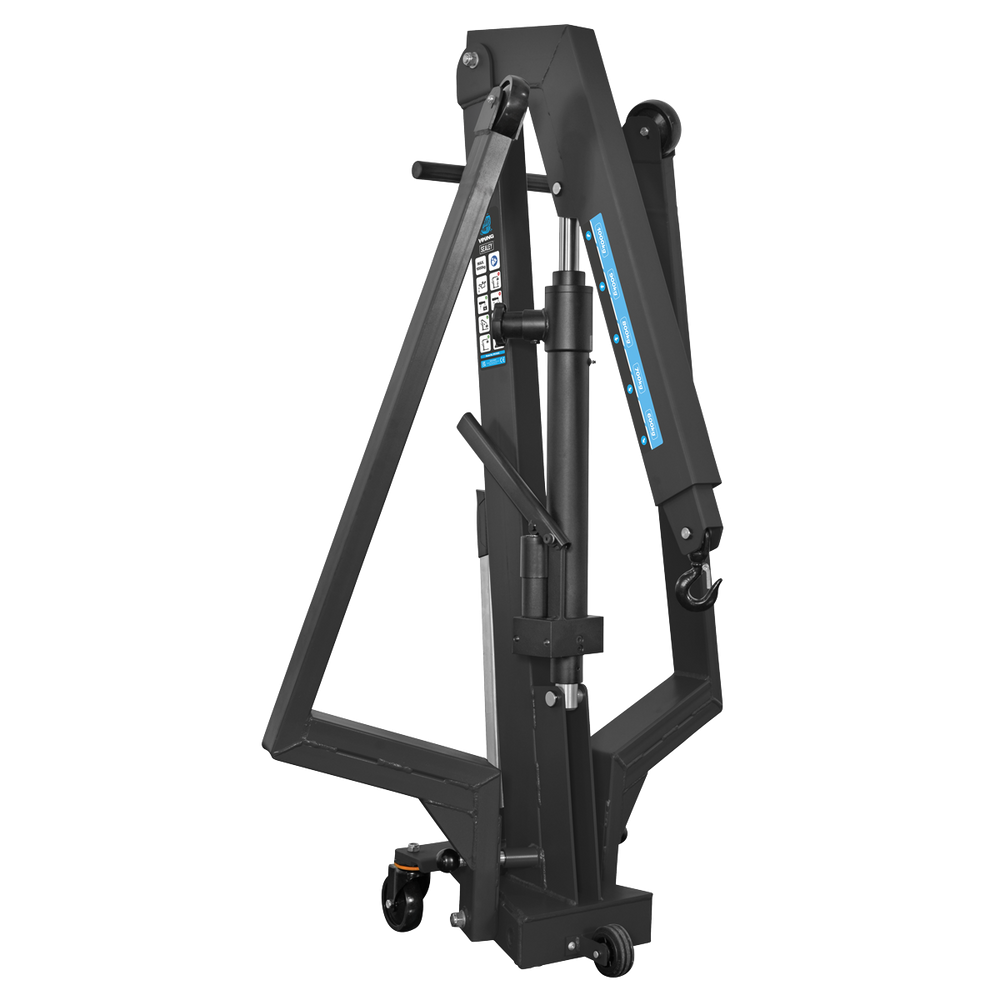

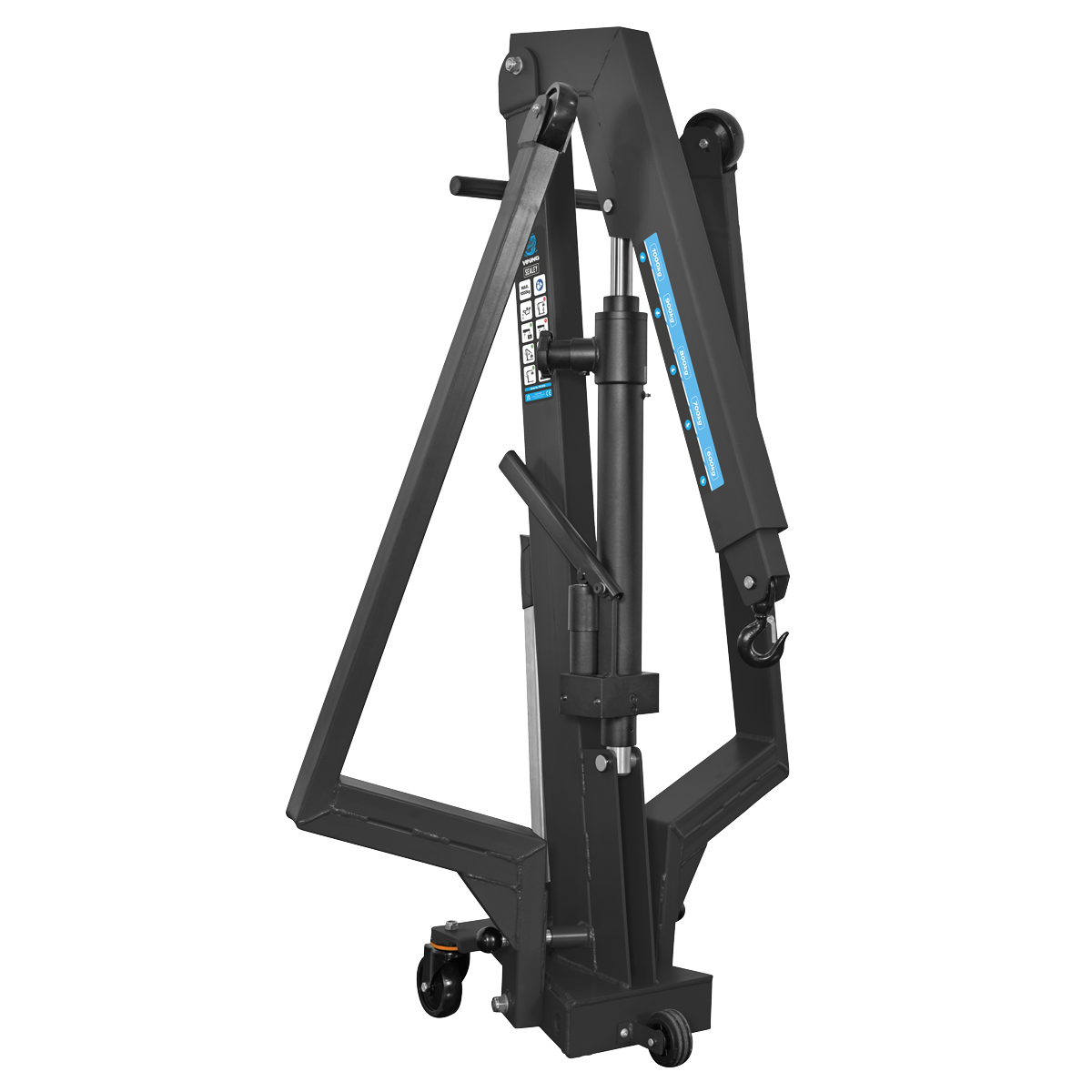

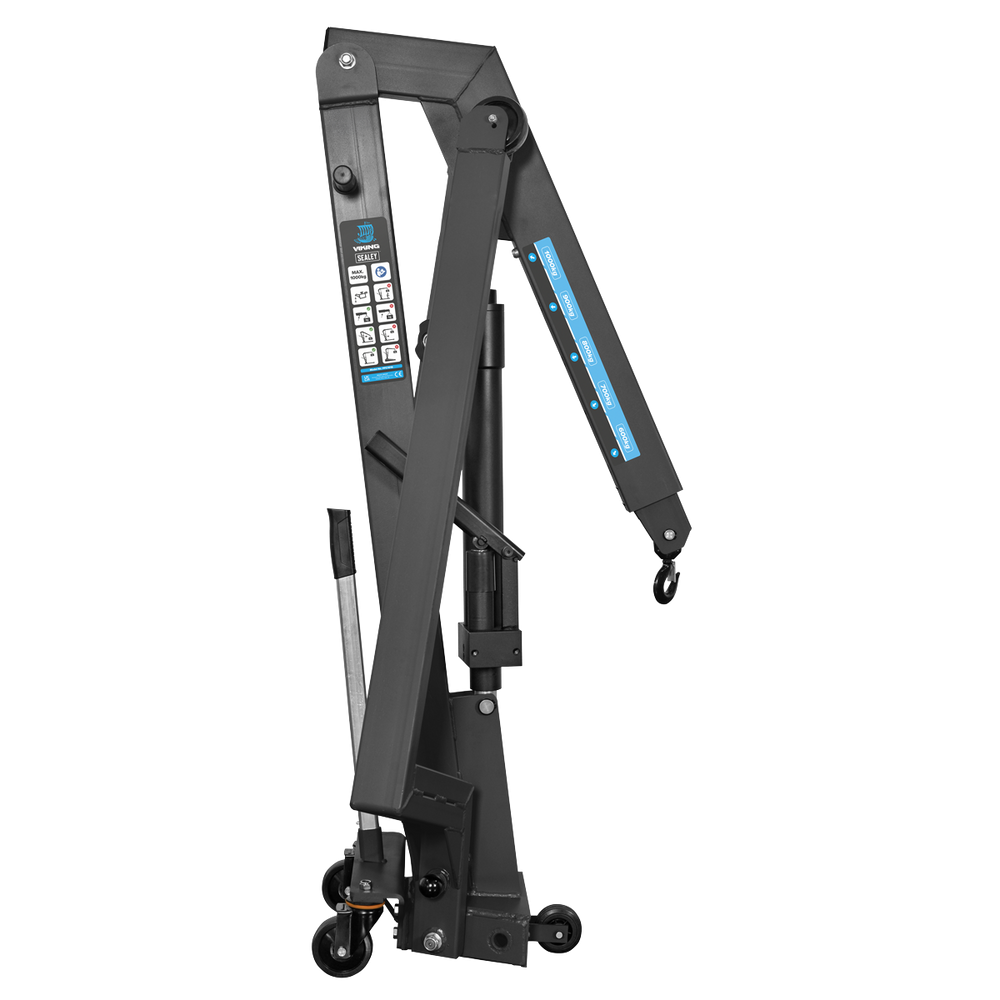

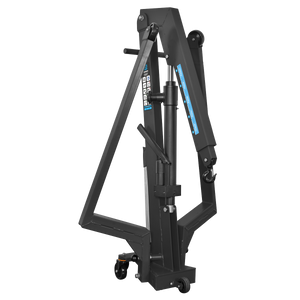

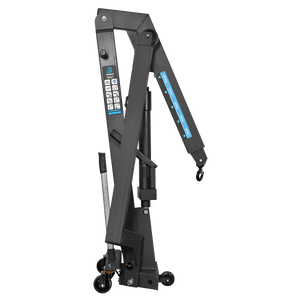

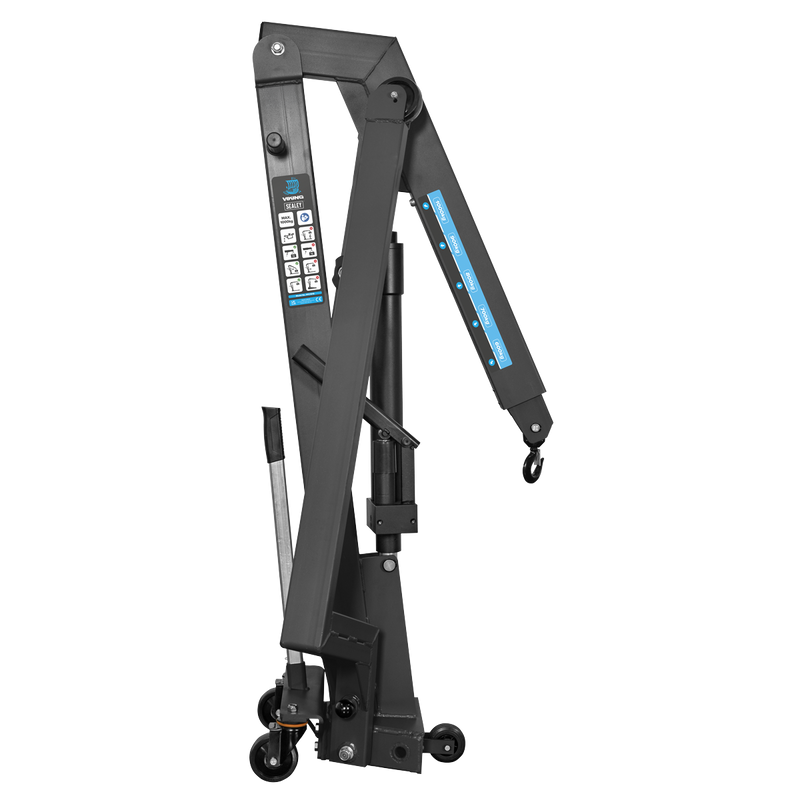

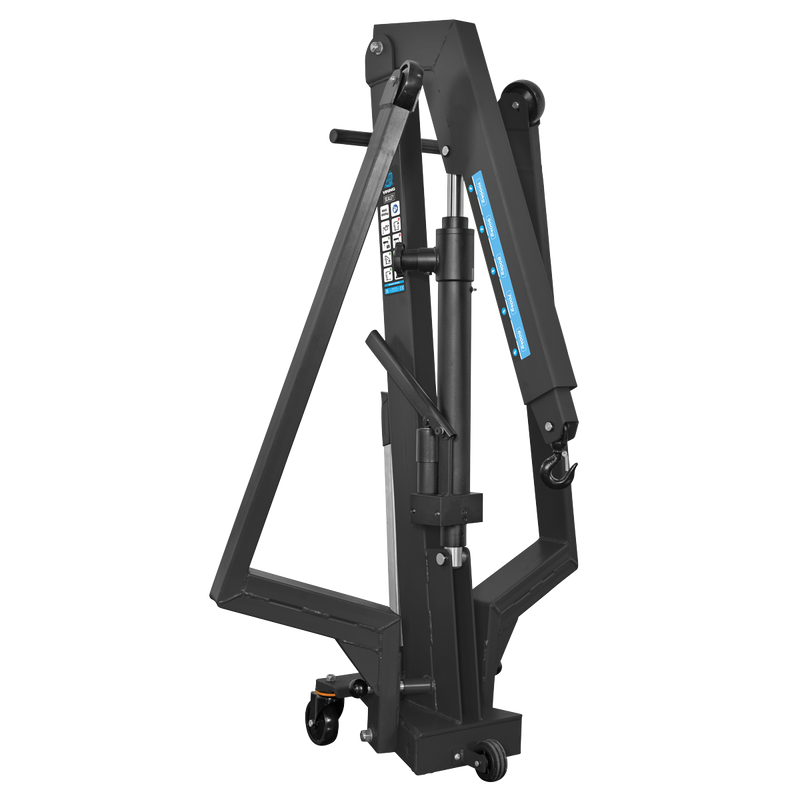

- FOLDING PARALLEL LEGS - The legs fold away for storage and transportation and extend parallel to fit around various obstructions like pallets, boxes, etc.

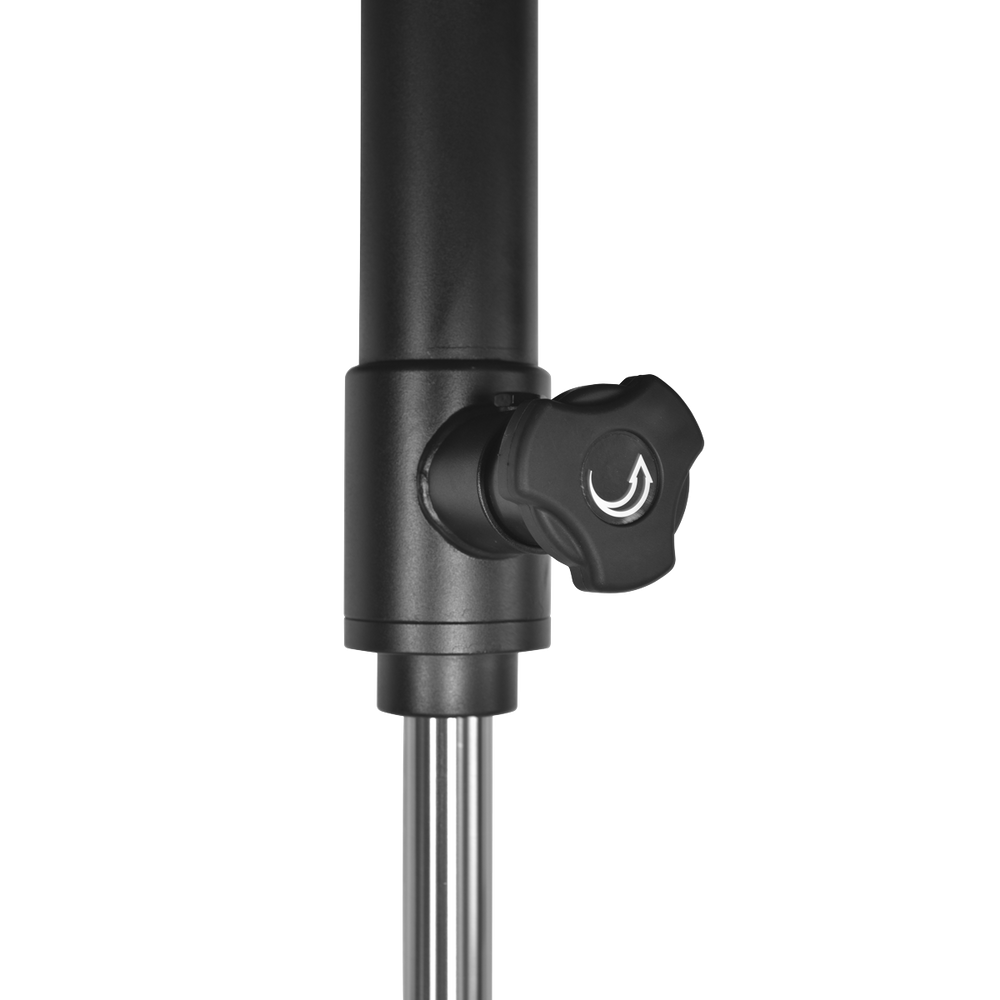

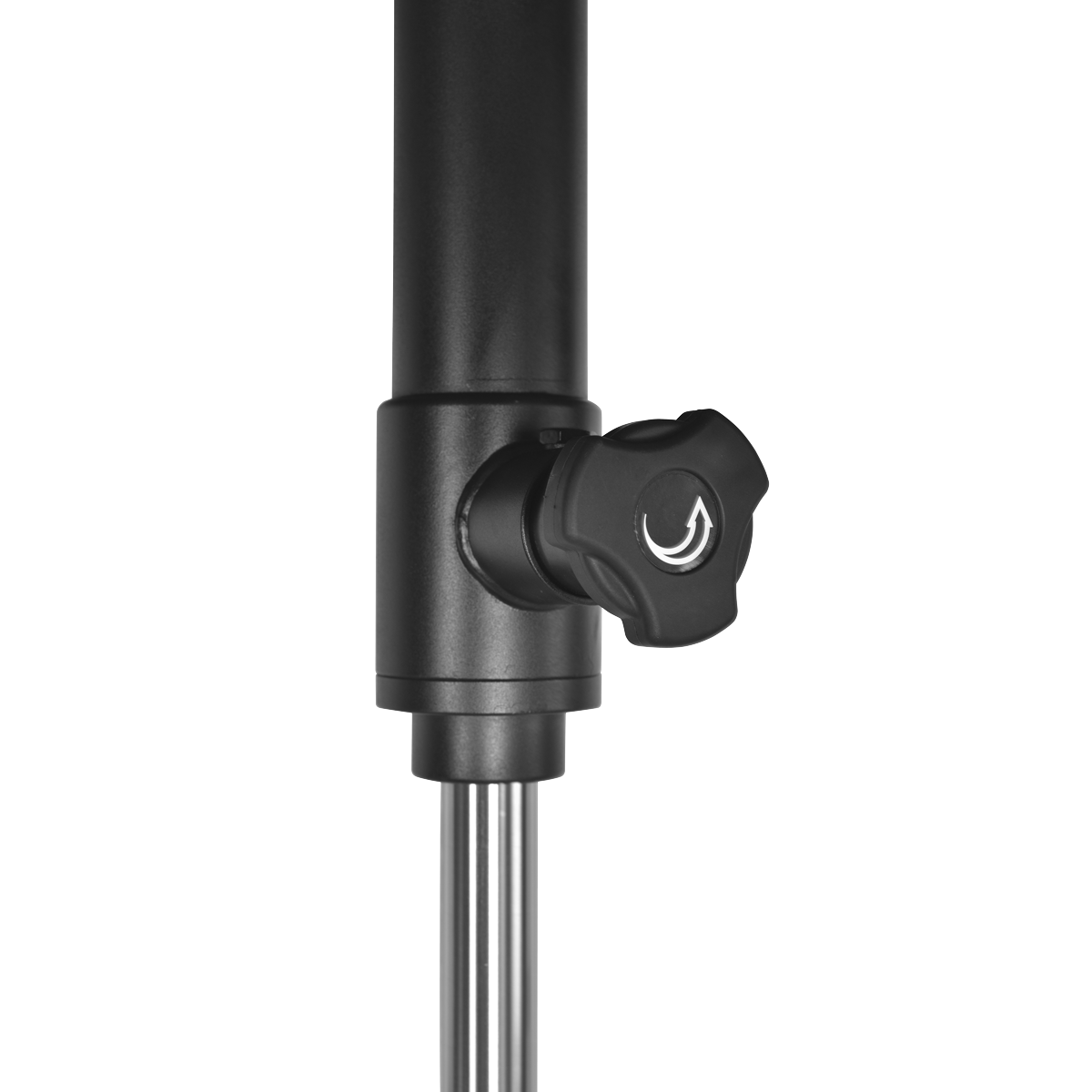

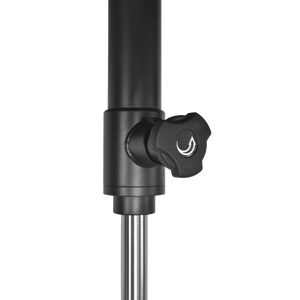

- SAFETY RELEASE - Hand operated dead man's control to prevent accidental lowering.

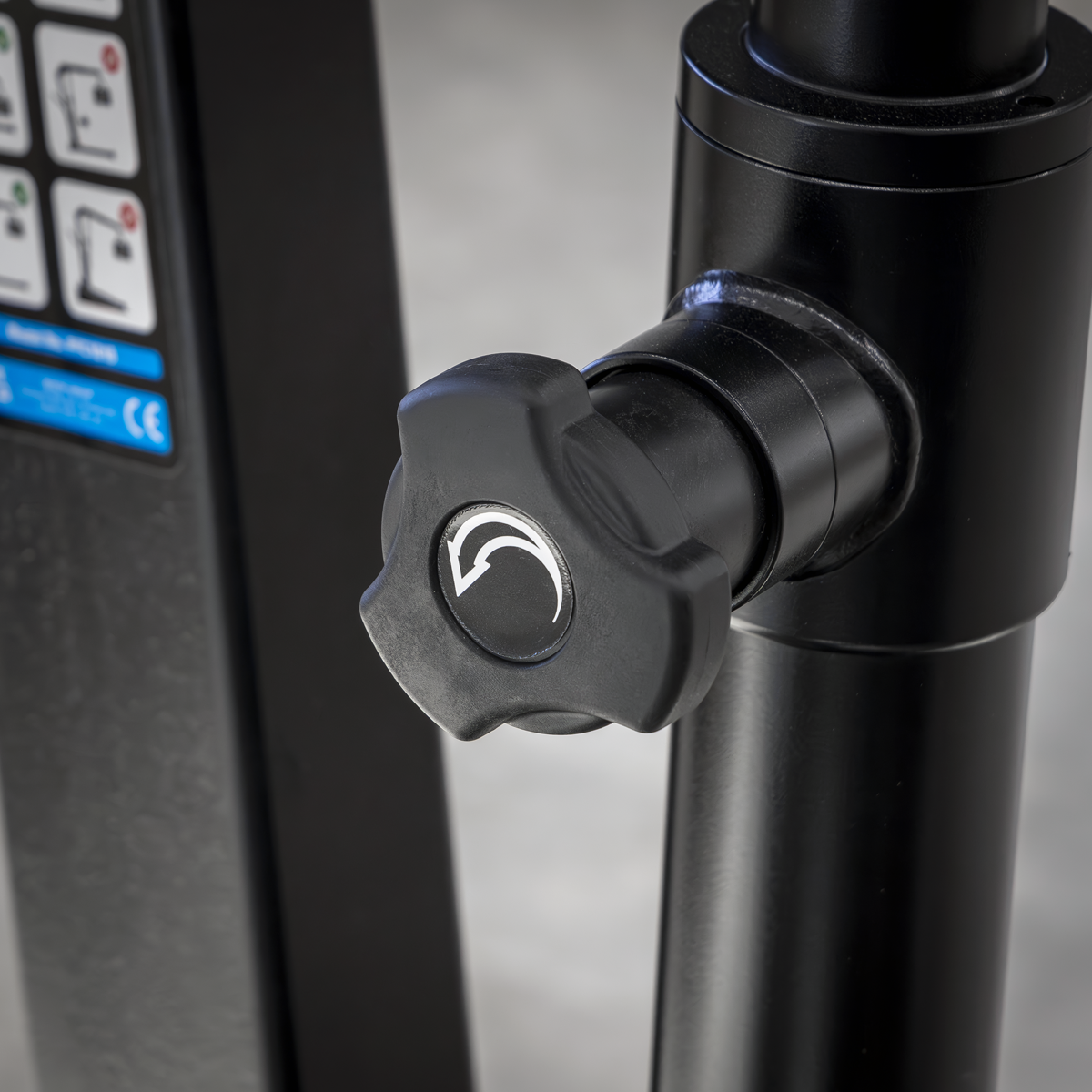

- CONTROLLABLE RELEASE - Manually controlled descent speed.

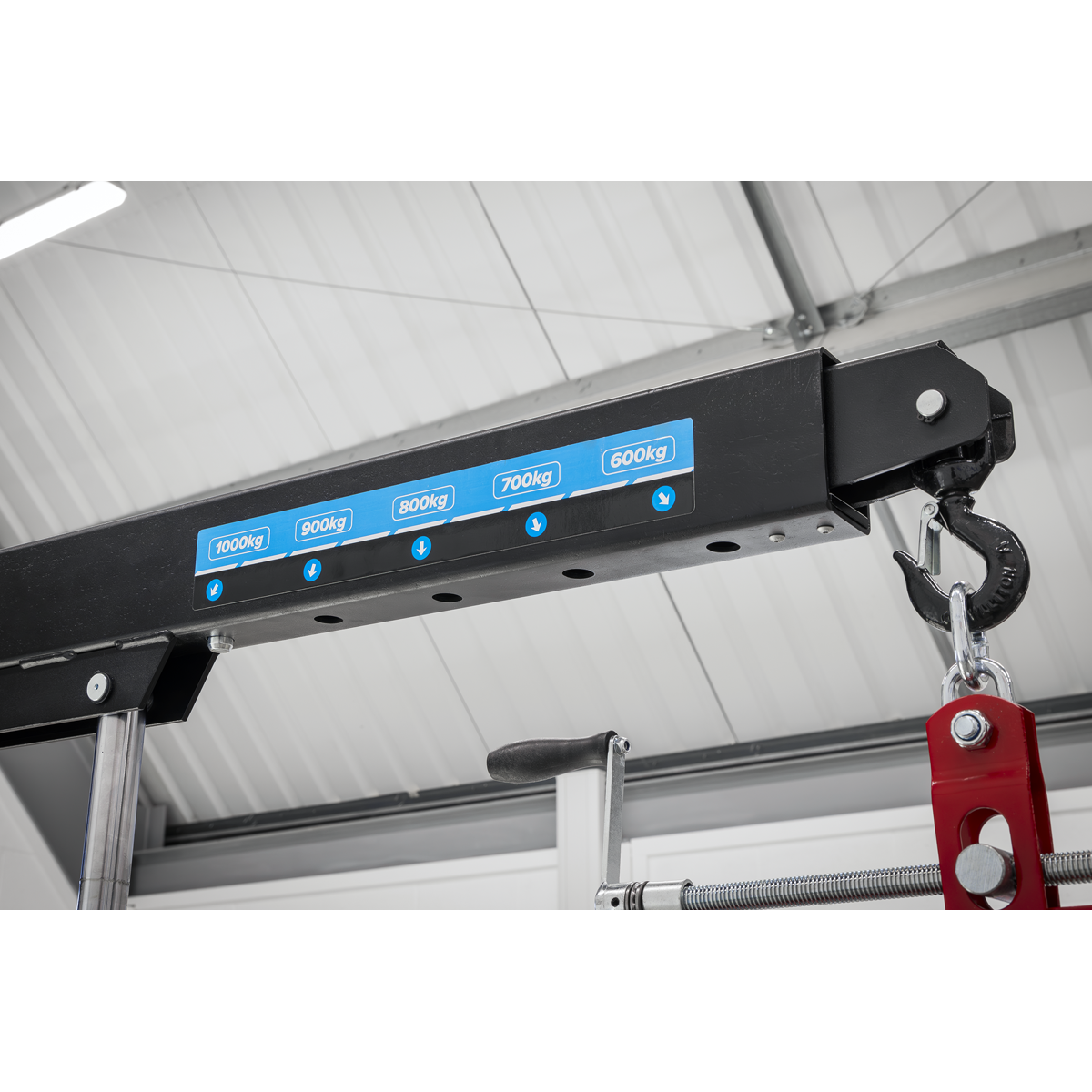

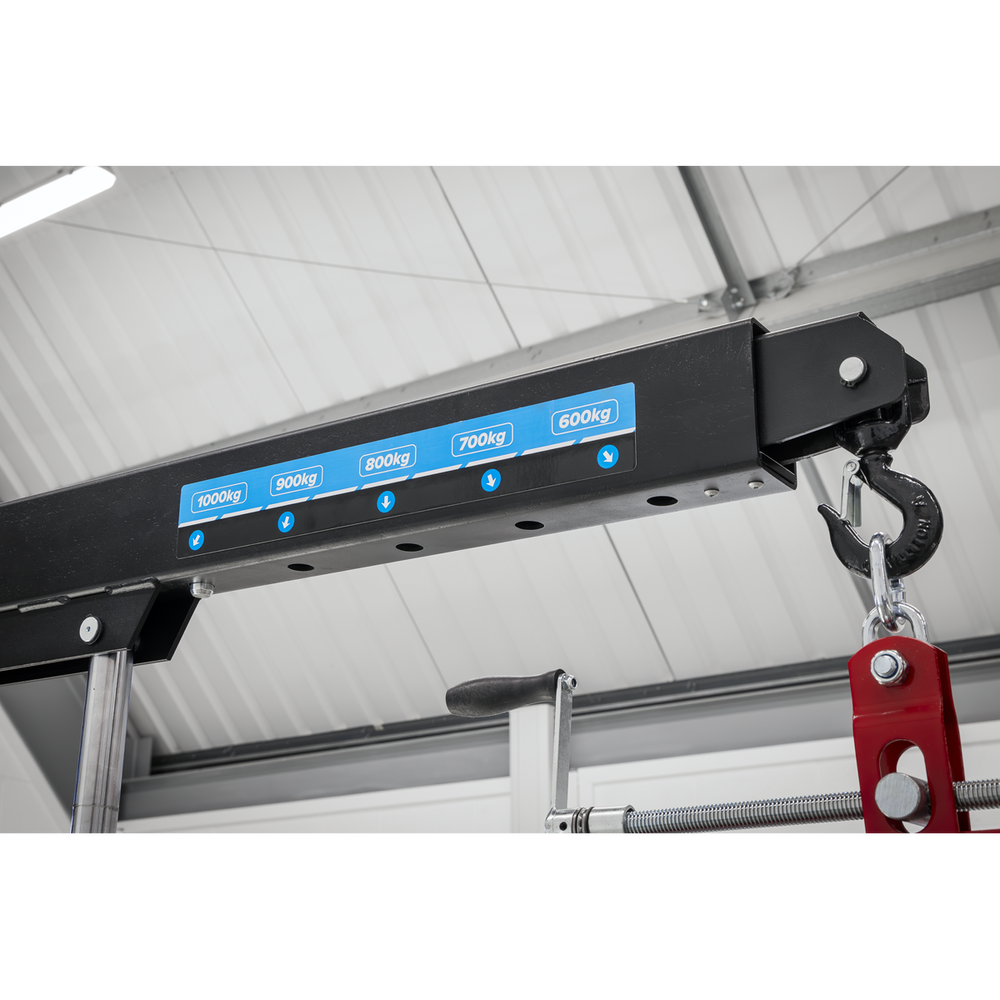

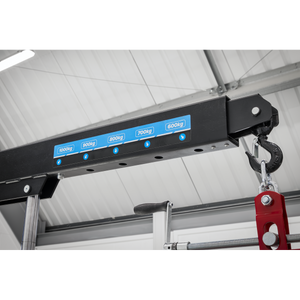

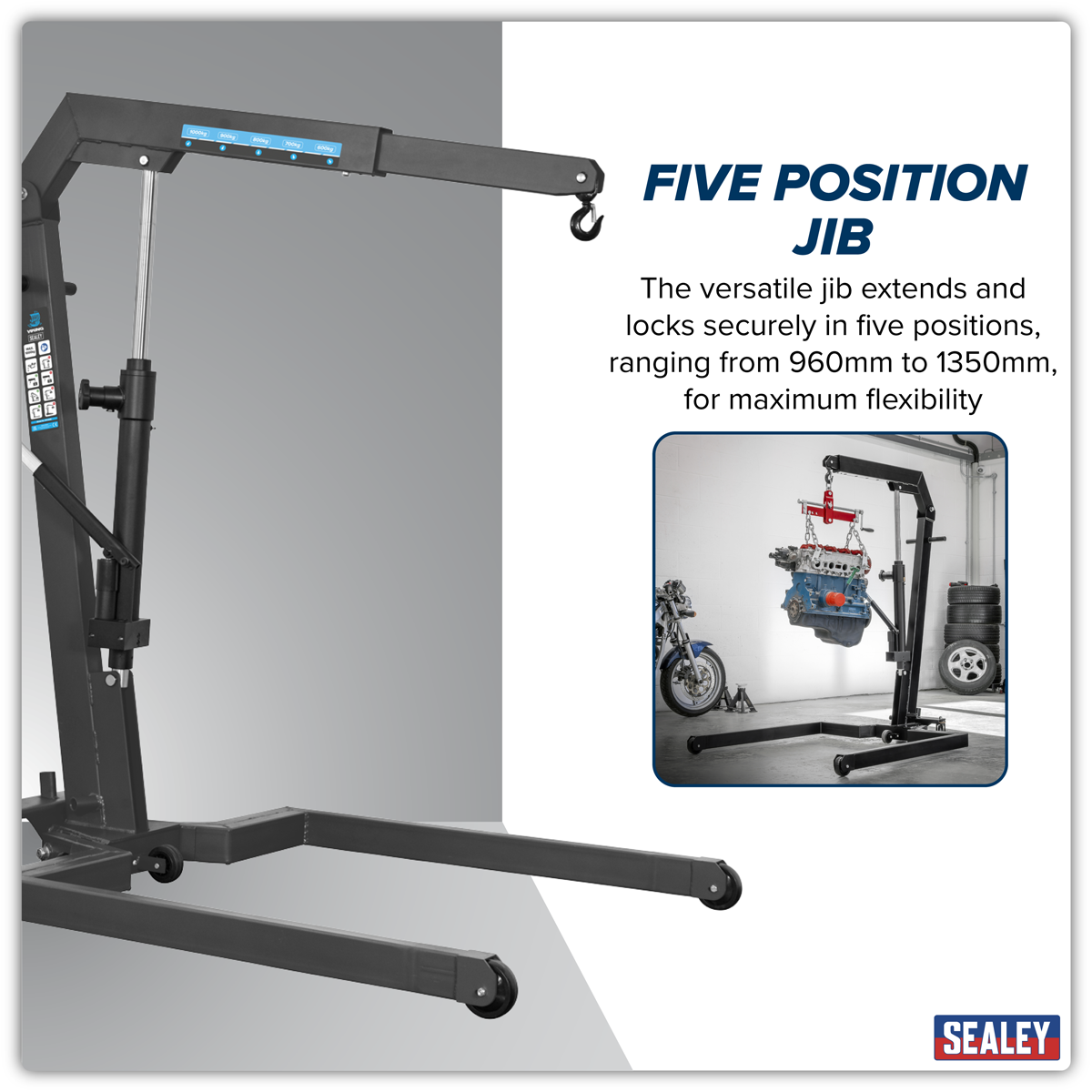

- FIVE POSITION JIB - The jib can be extended and locks in five positions between 960-1350mm.

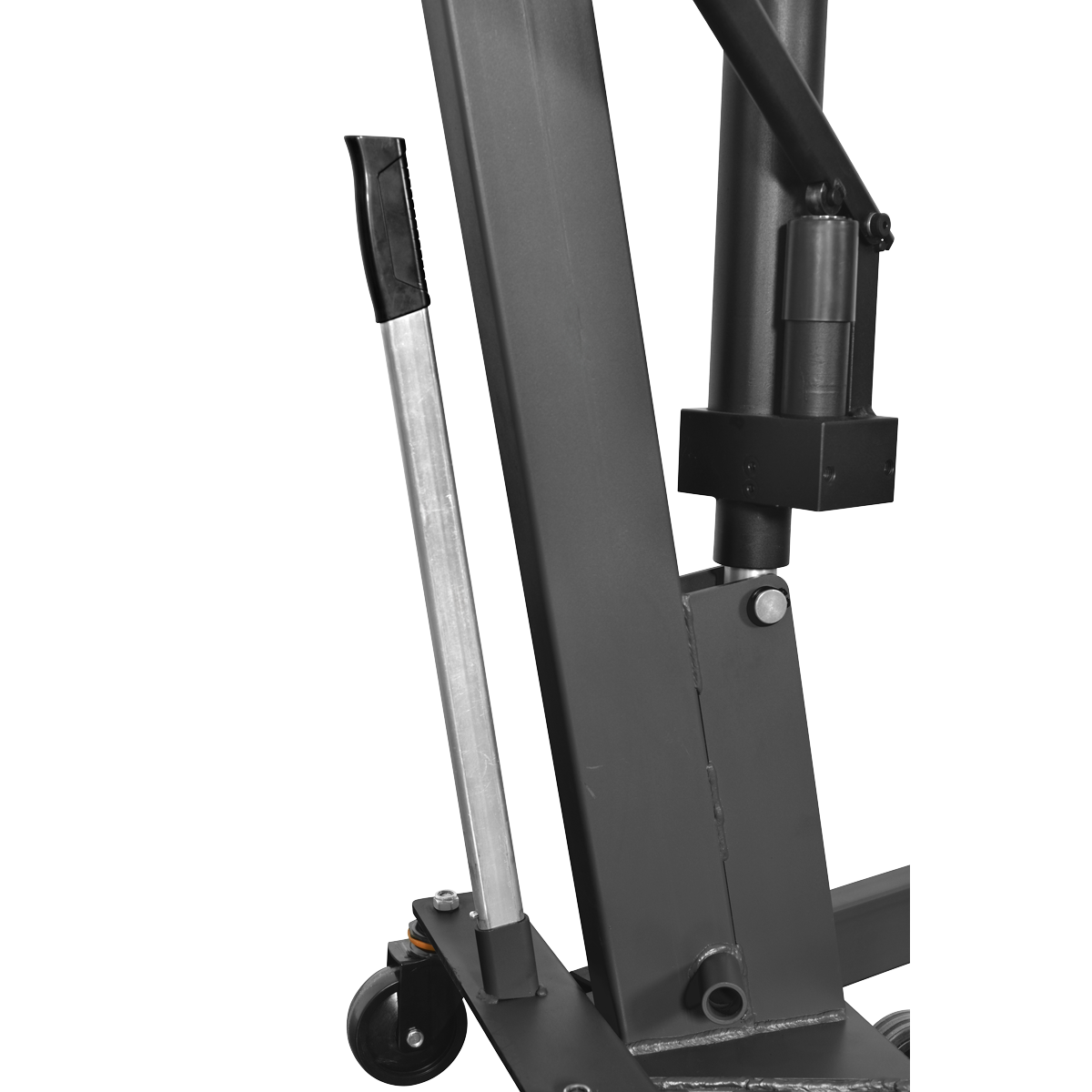

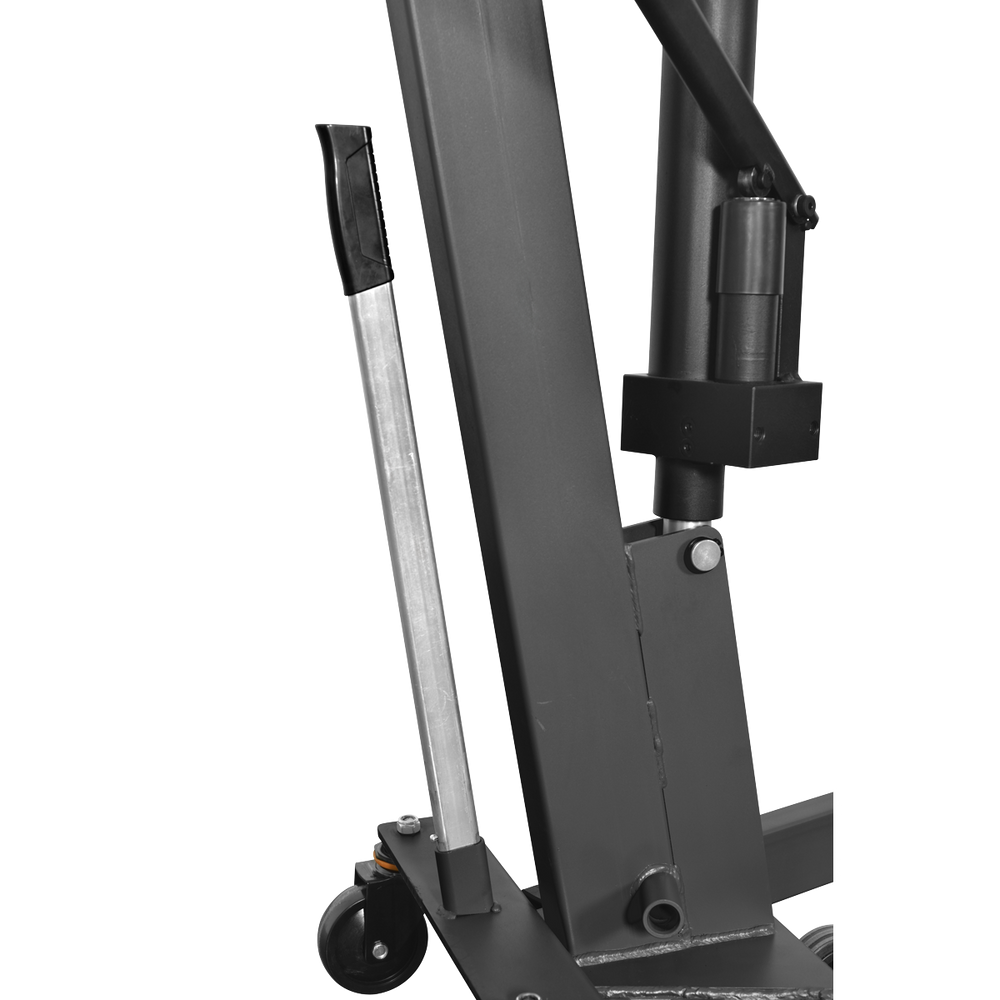

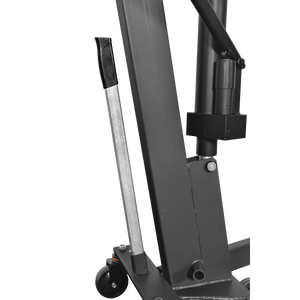

- TURNING PUMP HANDLE - The hydraulic unit and handle rotates by 200° aiding use where space is limited.

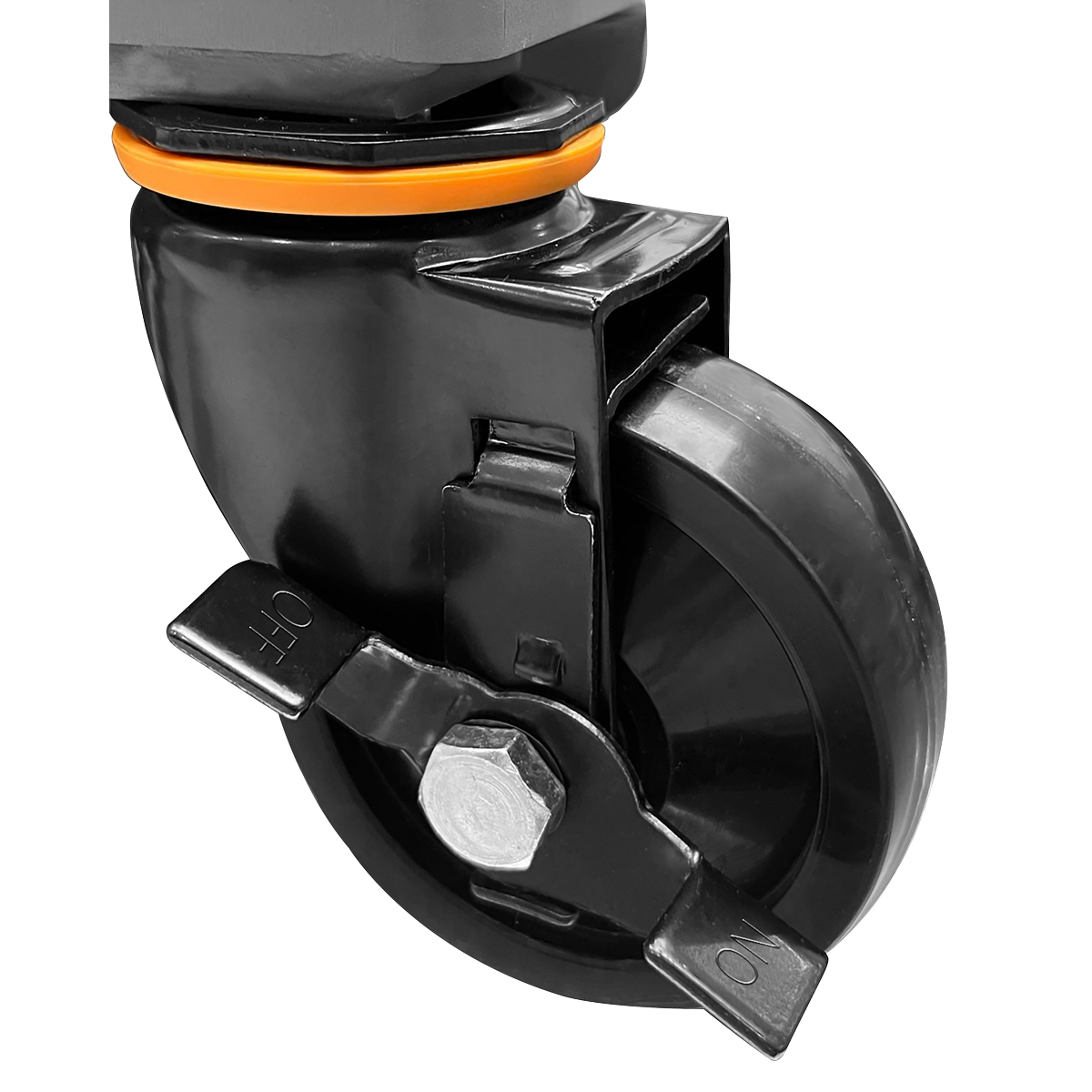

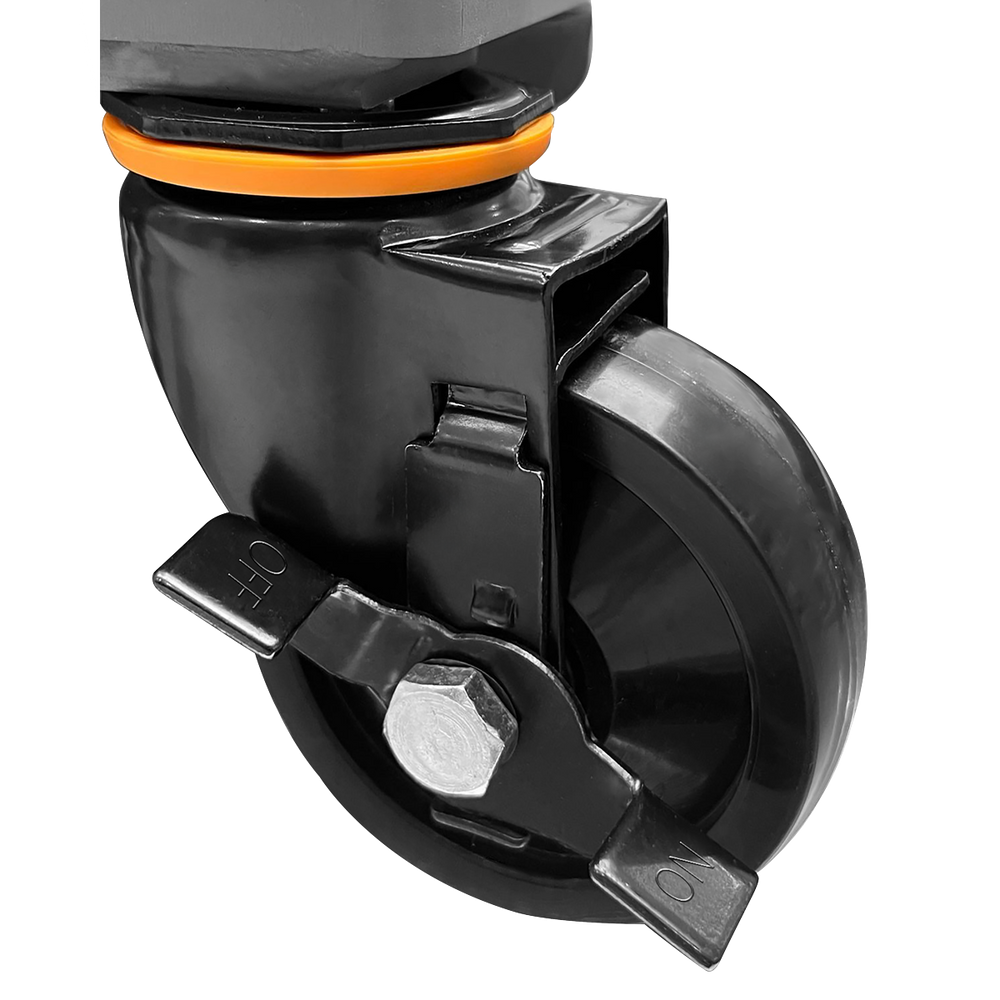

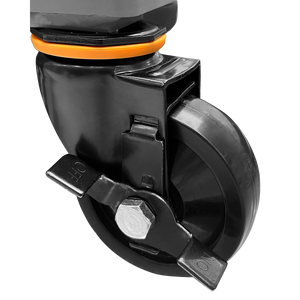

- NON FLOOR MARKING WHEELS - Strong non-marking, nylon and fibreglass wheels front and rear. Rear castor wheels fitted with brakes. An additional wheel is also fitted for ease of movement when folded.
- 3 Year guarantee*.
- This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
Technical Specification
| Brand | Viking |
|---|---|
| Model No. | PFC101S |
| Barcode | 5054630400810 |
| Warranty | 3 years |
| Commodity Code | 8426190000 |
| Country of Origin | CHN |
| Pack Dimensions | H 0.265m — W 1.59m — D 0.59m |
| Gross Weight | 120kg |
| Height Jib Down | n/a |
| Height Legs Folded | 1550mm |
| Height of Frame | 105mm |
| Length Legs Extended | n/a |
| Length of Jib Position 1 | 960mm |
| Length of Jib Position 2 | 1053mm |
| Length of Jib Position 3 | 1152mm |
| Length of Jib Position 4 | 1250mm |
| Length of Jib Position 5 | 1350mm |
| Length | 1600mm |
| Lifting Capacity in Position 1 | 1000kg |
| Lifting Capacity in Position 2 | 900kg |
| Lifting Capacity in Position 3 | 800kg |
| Lifting Capacity in Position 4 | 700kg |
| Lifting Capacity in Position 5 | 600kg |
| Max. Lift Ht at Jib Position 1 | 2080mm |
| Max. Lift Ht at Jib Position 2 | 2140mm |
| Max. Lift Ht at Jib Position 3 | 2190mm |
| Max. Lift Ht at Jib Position 4 | 2250mm |
| Max. Lift Ht at Jib Position 5 | 2300mm |
| Nett Weight | 96kg |
| Note | n/a |
| Rear Width | 390mm |
| Width Front Frame | 1129mm |
| Width Inside Front Frame | 1025mm |
