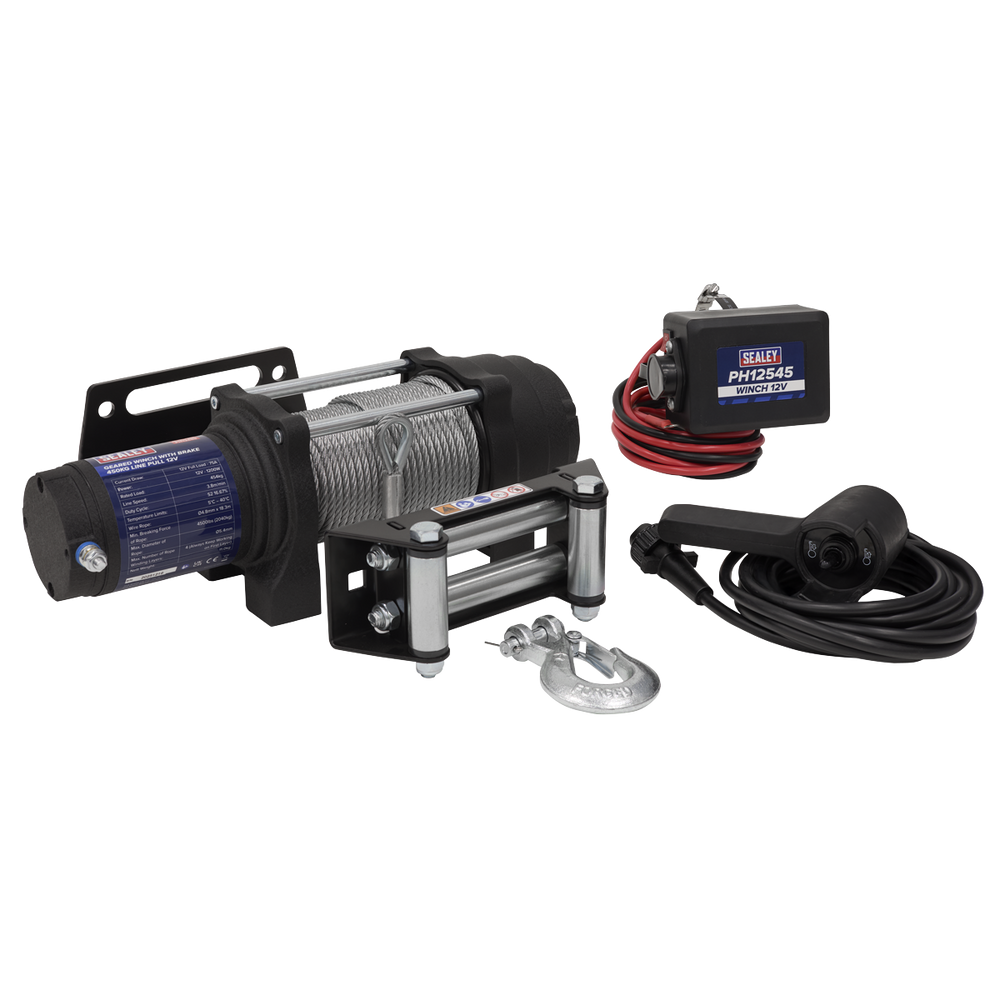

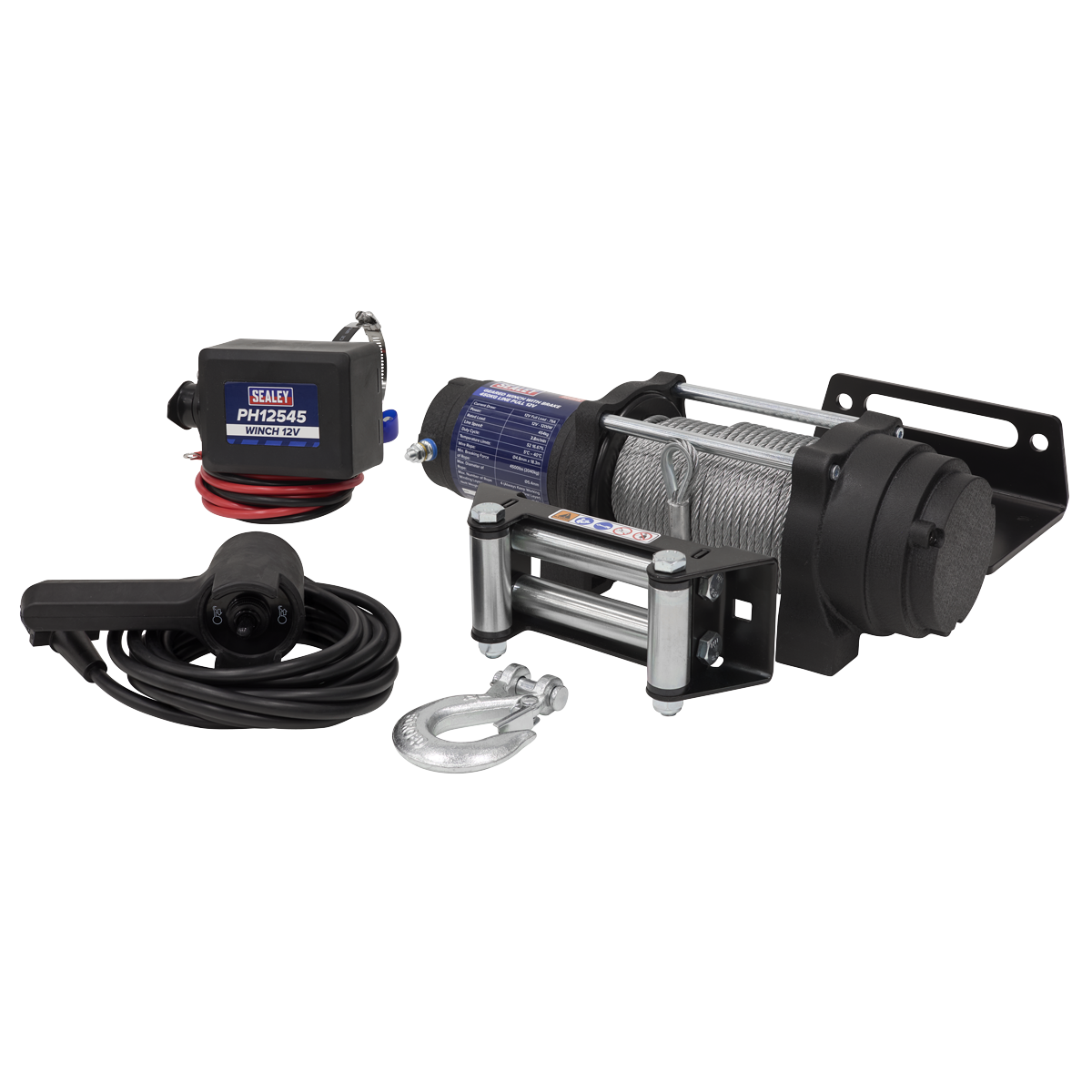

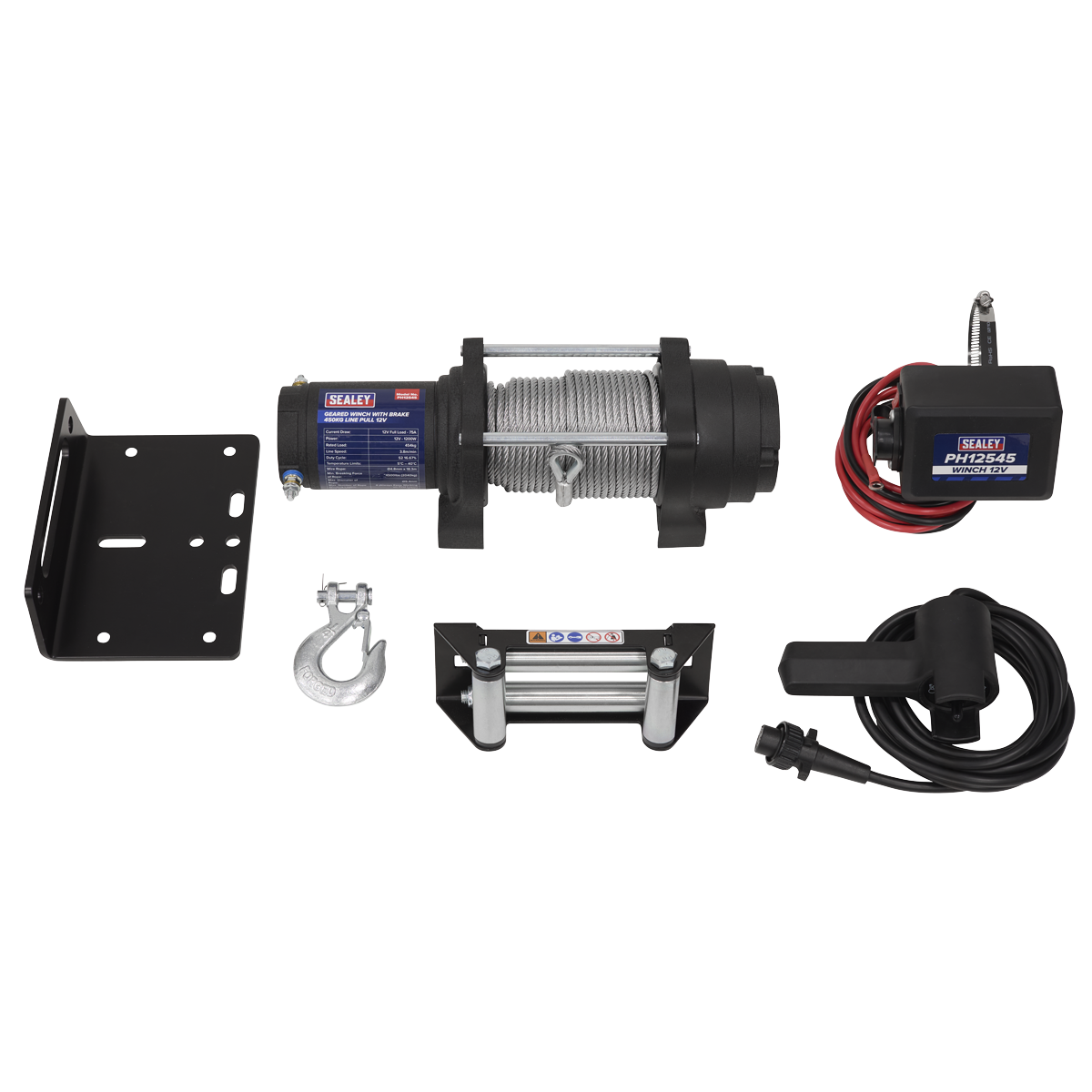

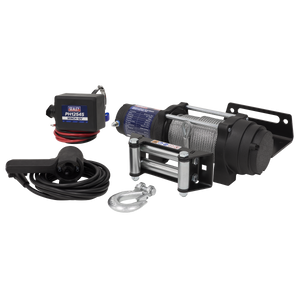

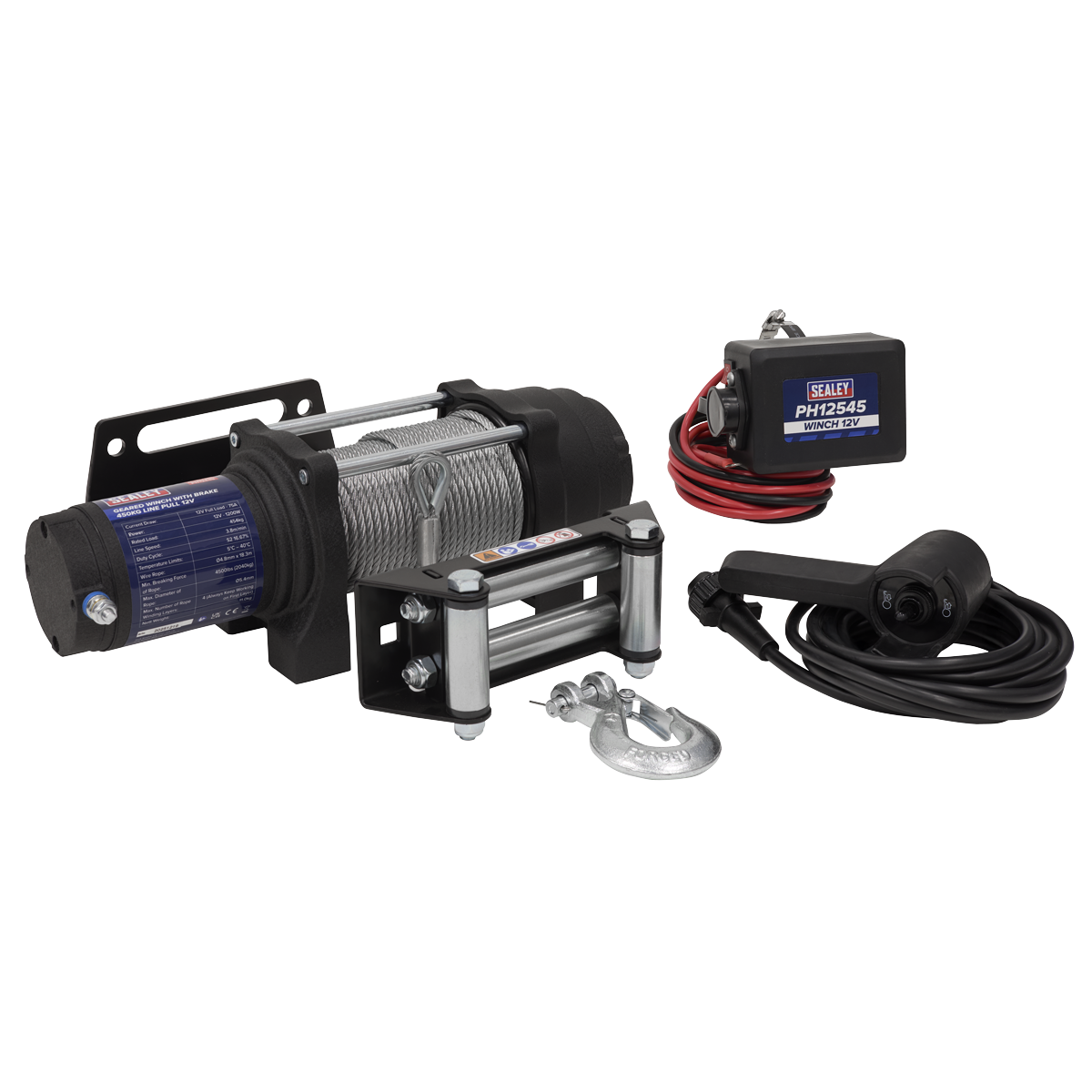

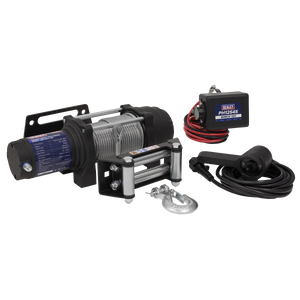

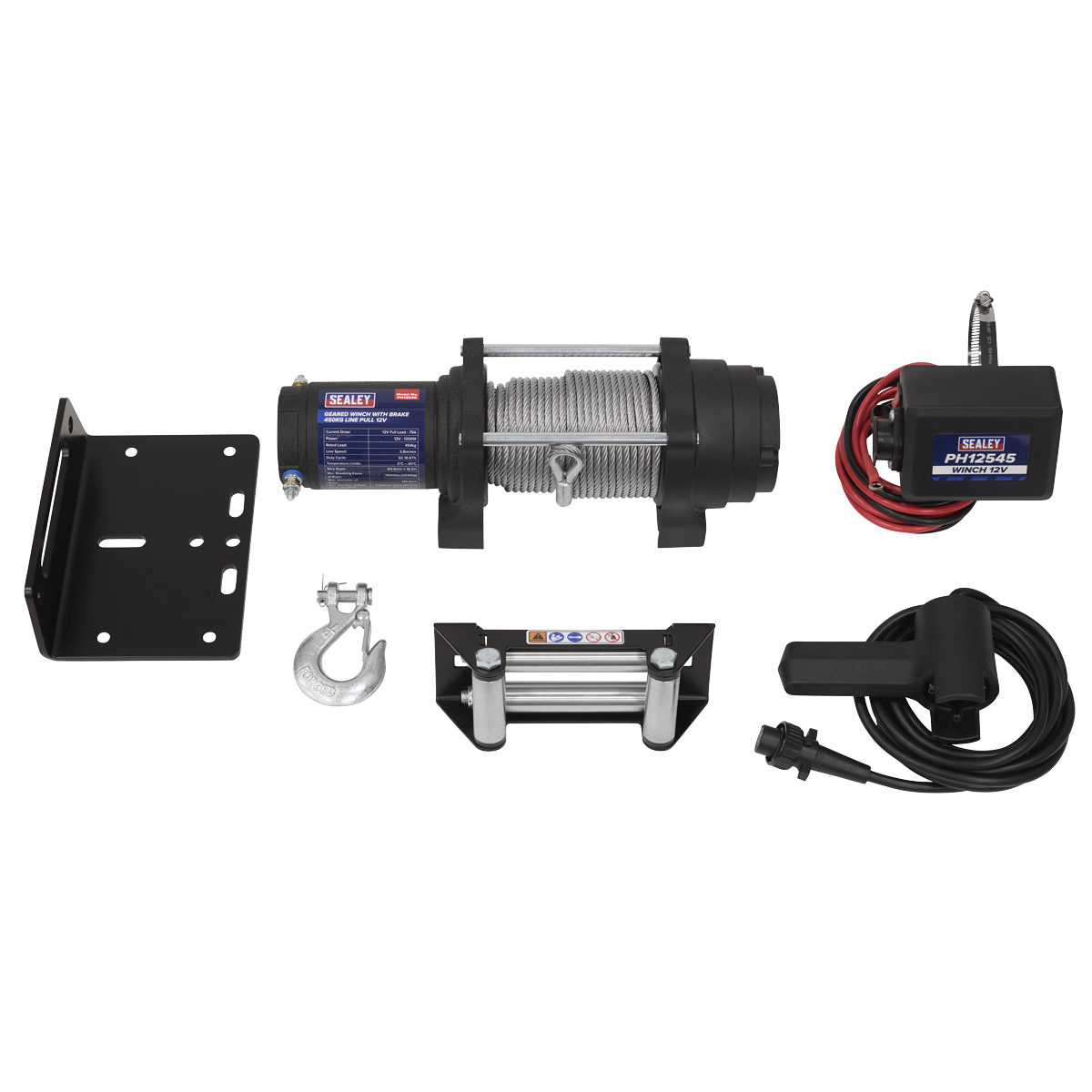

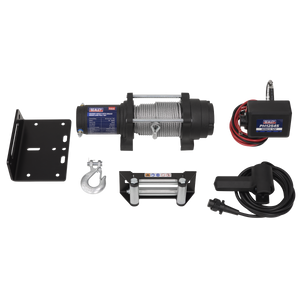

Sealey PH12545 Geared Winch with Brake 450kg Line Pull 12V
SKU PH12545 Barcode 5054630632662
Available to order from our supplier. Contact us to confirm quantities and lead times.
Pay in 3 interest-free with shopPay or PayPal
- Expert UK product support
- Authorised distributor
- 30 day returns
Delivery & returns
Despatch times vary by item. Check the product-specific lead time shown on this page. Supplier-shipped and larger items may take longer.
Delivery options and transit times are shown at checkout. Transit time starts after despatch and excludes weekends and bank holidays unless the selected service states otherwise. Tracking is provided when available.
30 day returns on unused items in original packaging.
Description
Description

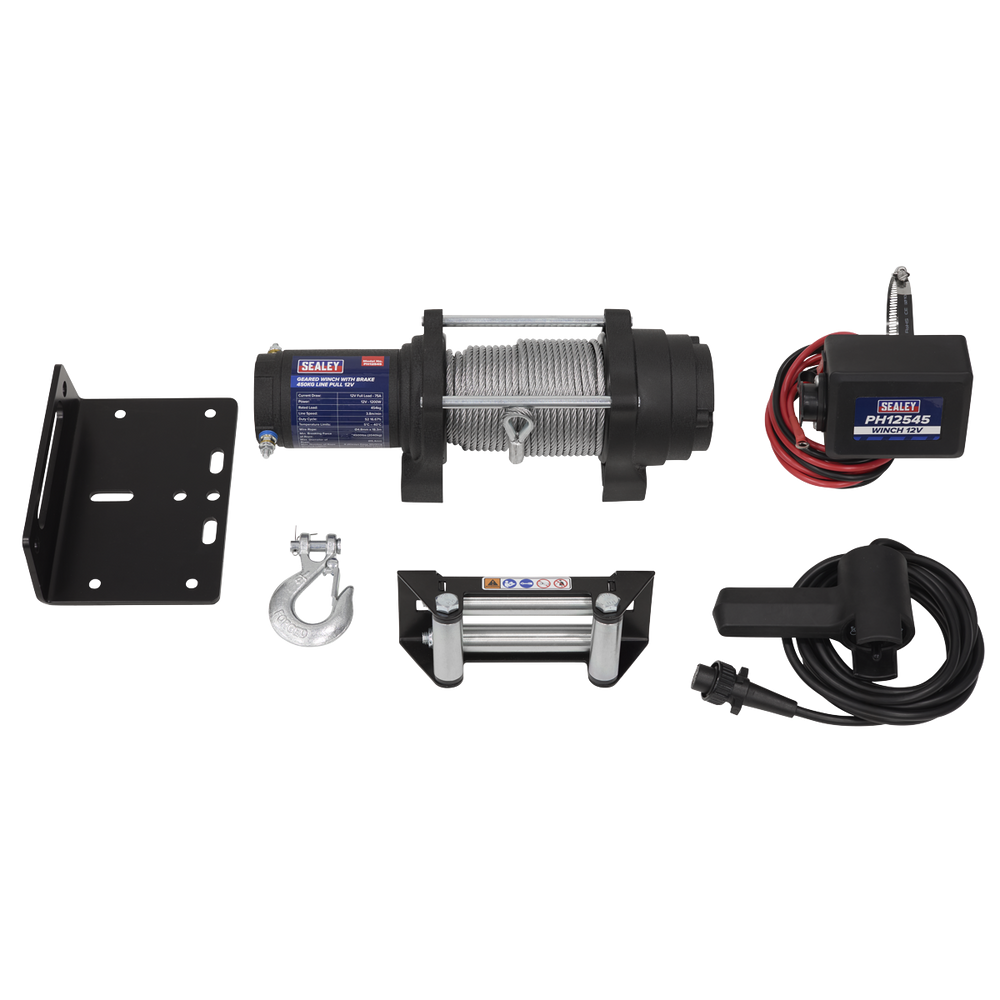

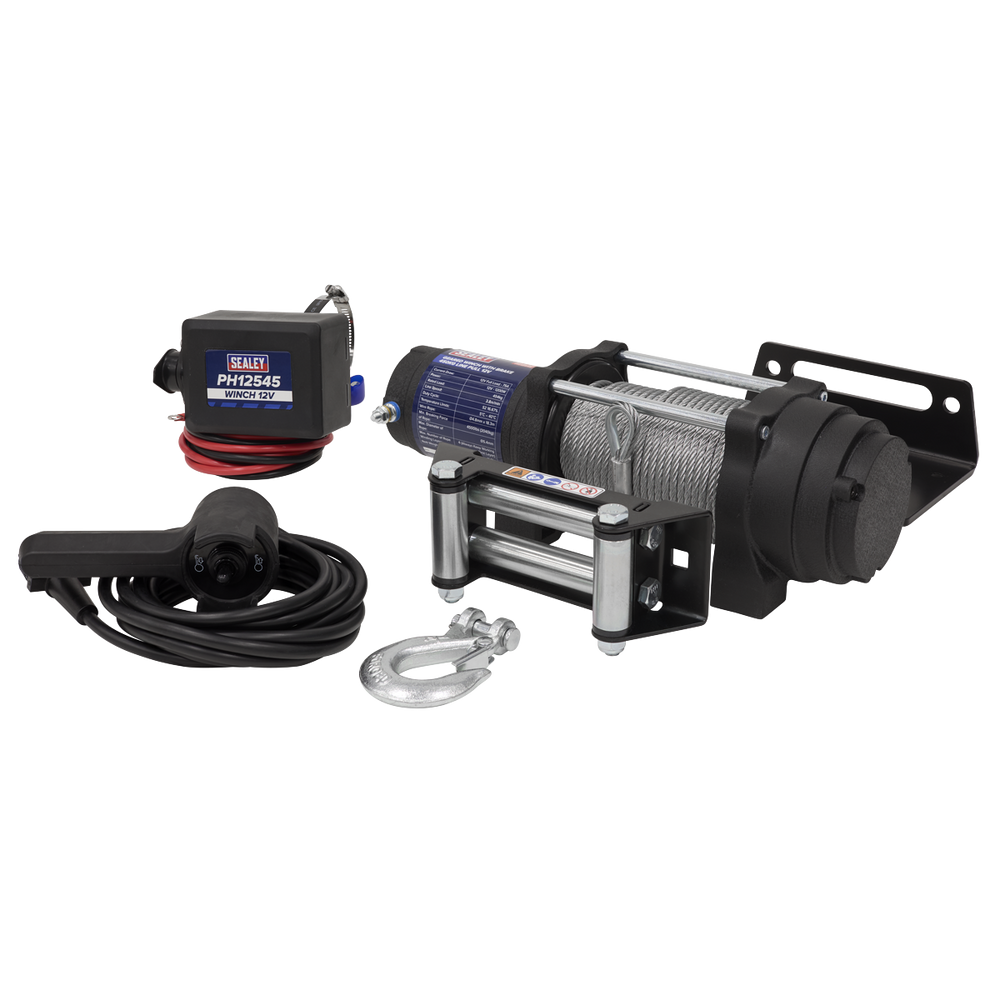

Sealey PH12545 Geared Winch with Brake 450kg Line Pull 12V
Steel drum is reinforced to make the product strong and durable. Rated IP68 weatherproof this winch will withstand any weather conditions. 3-Stage planetary gear train increased pull generated. 2-Brake system with a mechanical cone brake and a permanent motor dynamic brake work together to keep the load stable and protect the user.
Features and Benefits
- REINFORCED - Steel drum is reinforced to make the product strong and durable.
- WEATHERPROOF - Rated IP68 this winch will withstand any weather conditions.
- 3-STAGE PLANETARY GEARS - Increased pull generated by the gear train.
- 2-BRAKE SYSTEM - Mechanical cone brake and a permanent motor dynamic brake work together to keep the load stable and protect the user.
- WIRE LENGTH - 18m.
- MOTOR - Permanent magnet motor 12V - 1.6HP/1.2KW.
- MAXIMUM WEIGHT - 450kg(1000lbs).
Technical Specification
| Brand | Sealey |
|---|---|
| Model No. | PH12545 |
| Barcode | 5054630632662 |
| Warranty | 1 year |
| Commodity Code | 8425390000 |
| Country of Origin | CHN |
| Pack Dimensions | H 0.195m × W 0.41m × D 0.32m |
| Gross Weight | 15.5kg |
| Current Draw | 12V Full Load - 75A |
| Gear Ratio | 140:1 |
| Line Pull* | 454kg 1000lbs |
| Line Speed* | Full Load - 3.8m/min |
| Motor Power | 12V - 1200W |
| Nett Weight | 11kg |
| Rated Capacity | 454kg 1000lbs |
| Min. Breaking Rope Force | 4500lbs (2040kg) |
| Max. Rope Diameter | Ø5.4mm |
| Max. No. of Rope Winding Layers | 4 (Always Keep Working on First Layer) |
| Wire Rope Diameter | Ø4.8mm |
| Wire Rope Length | 18.3m |
