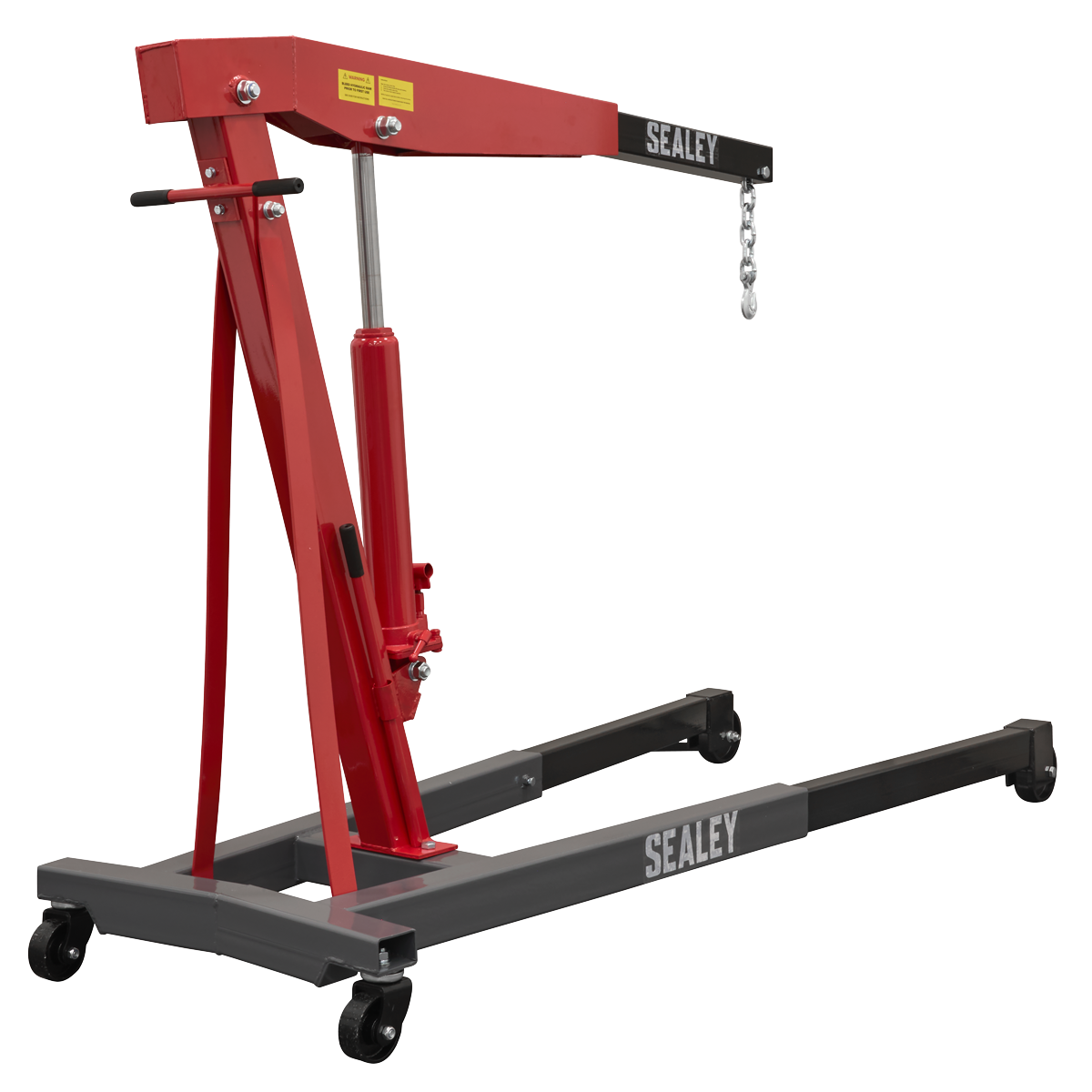

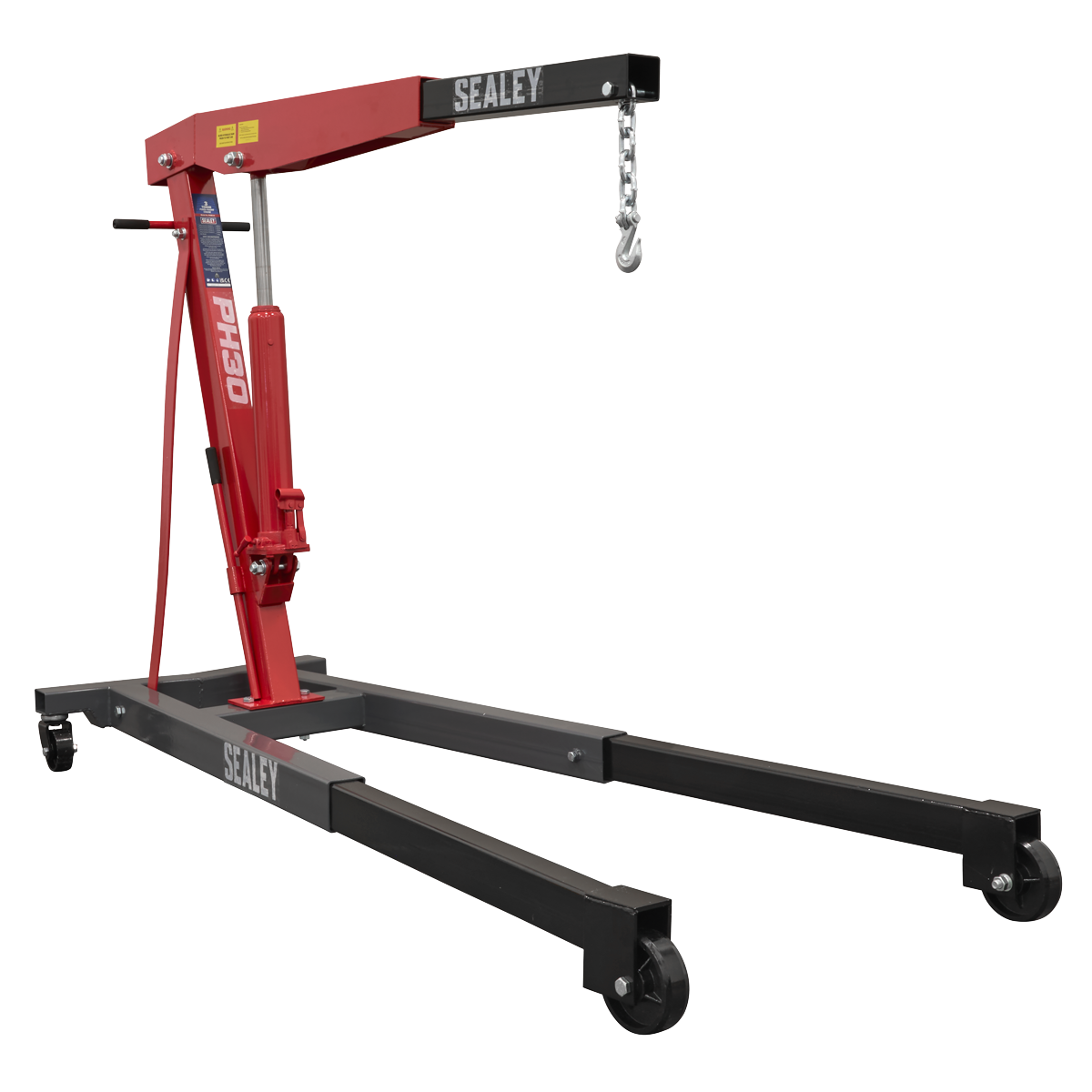

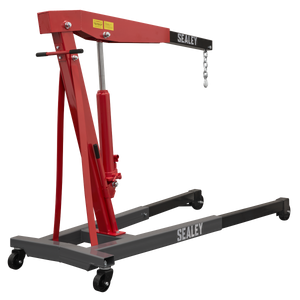

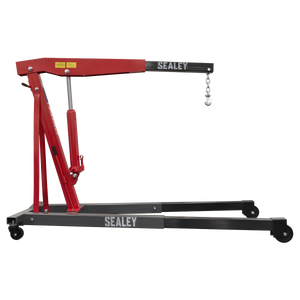

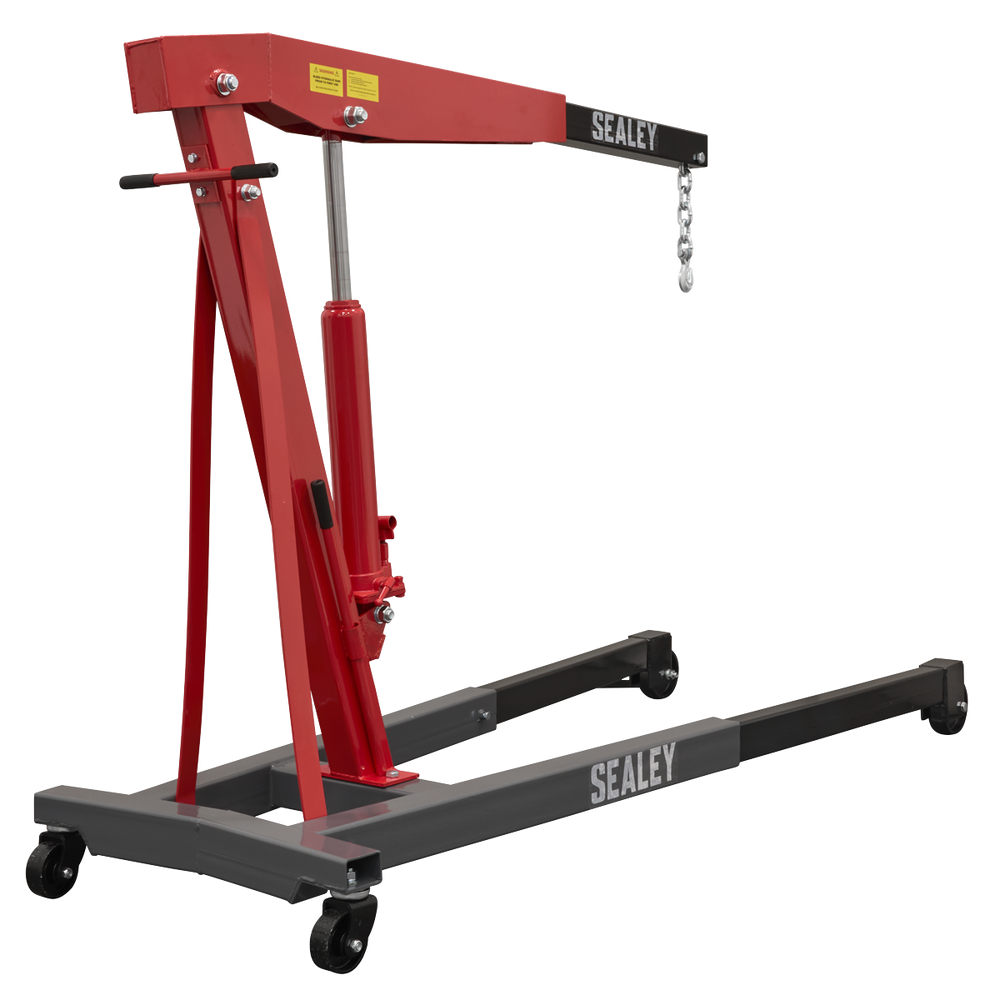

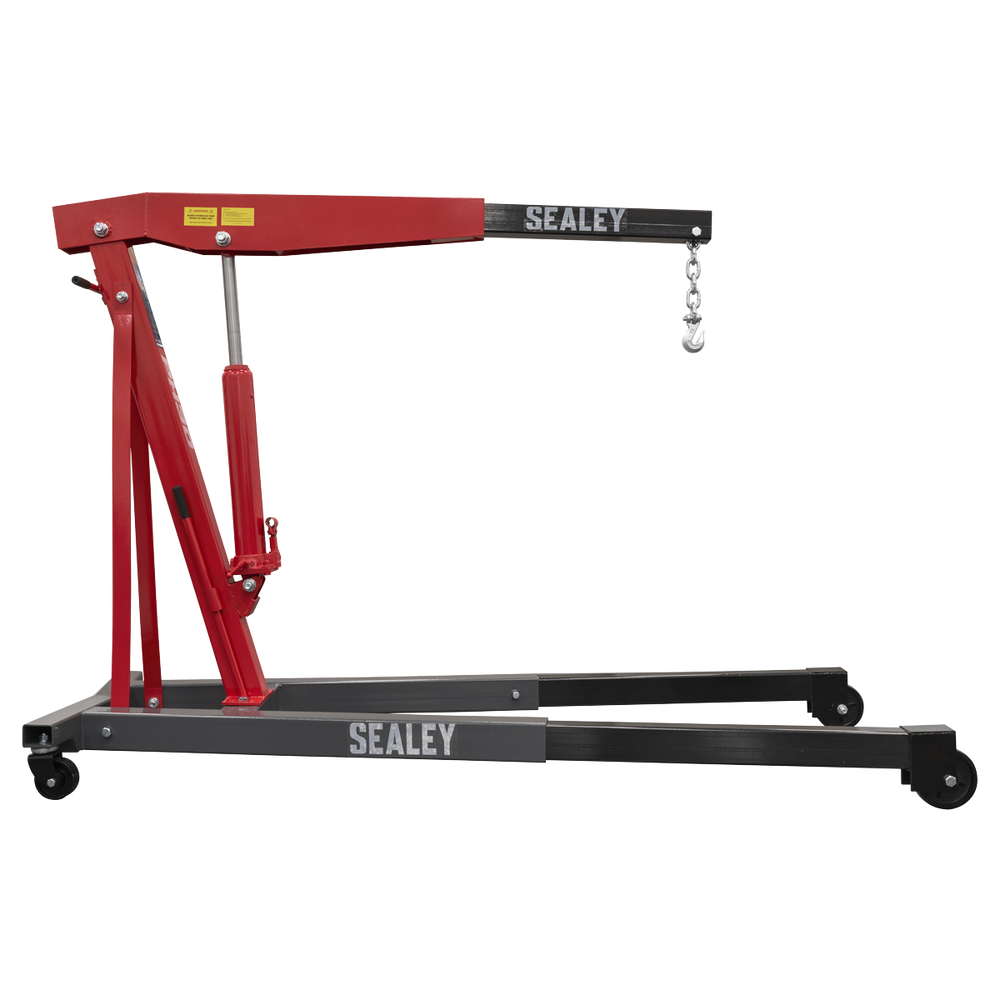

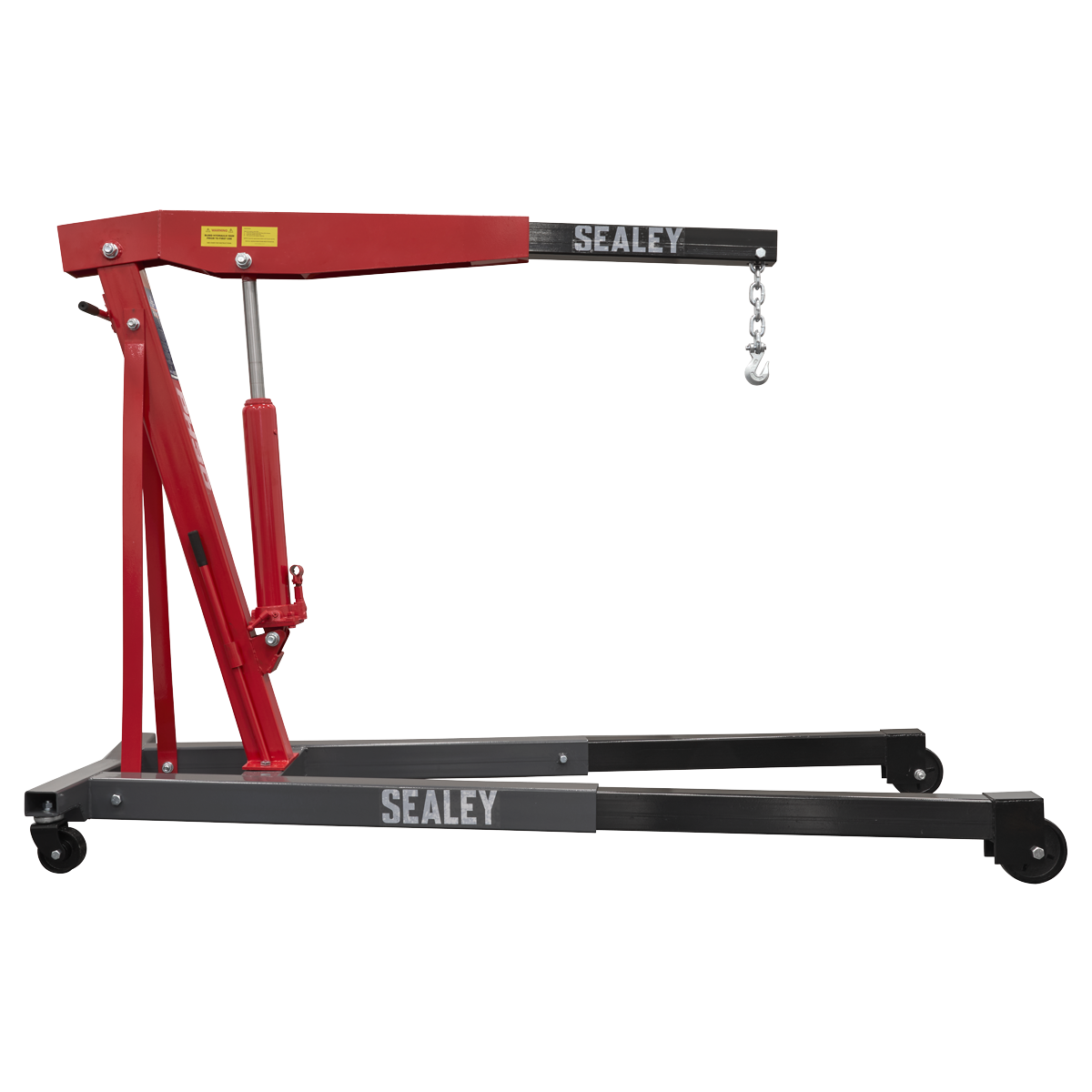

Sealey PH30 Fixed Frame Engine Crane with Extendable Legs 3 Tonne

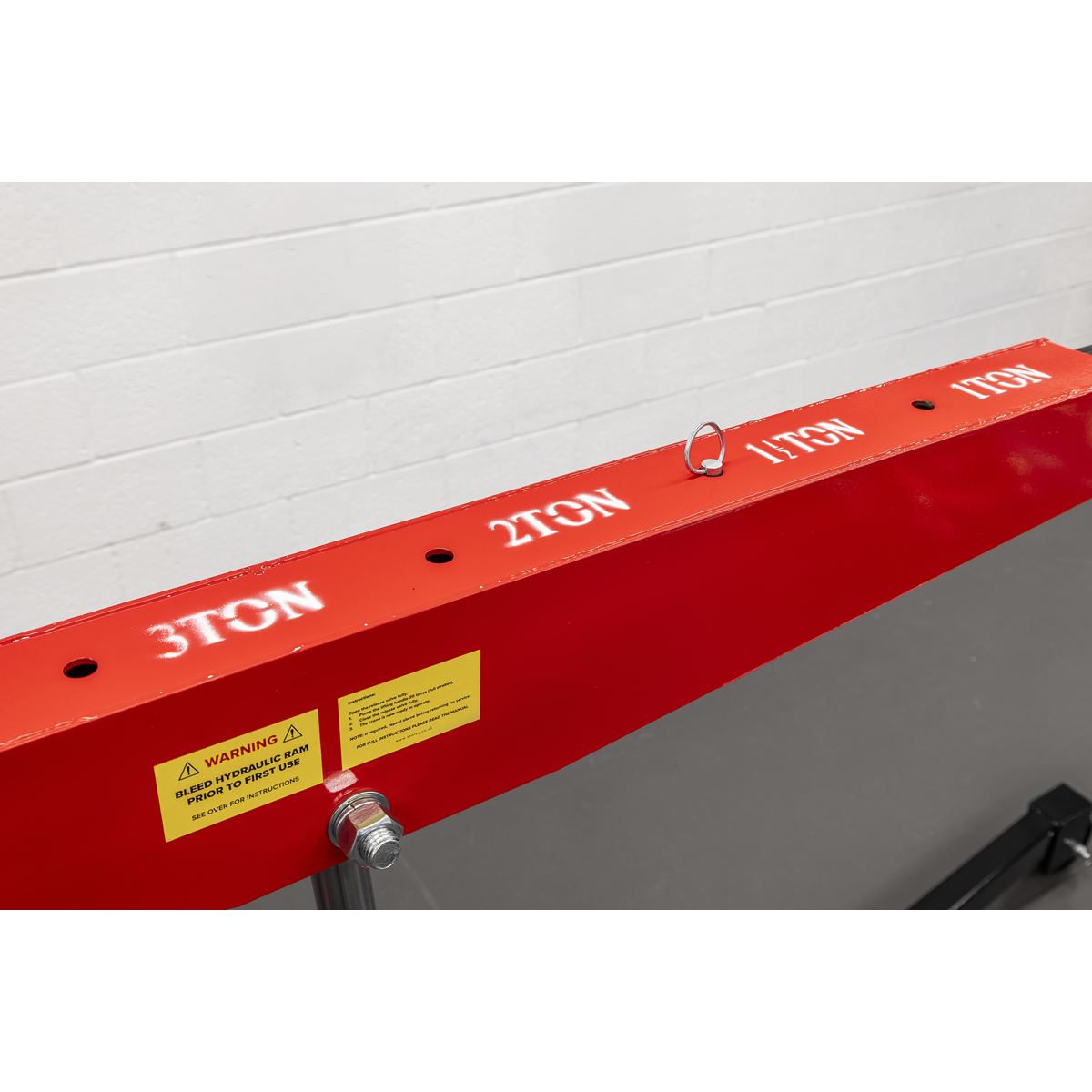

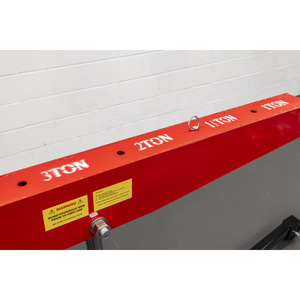

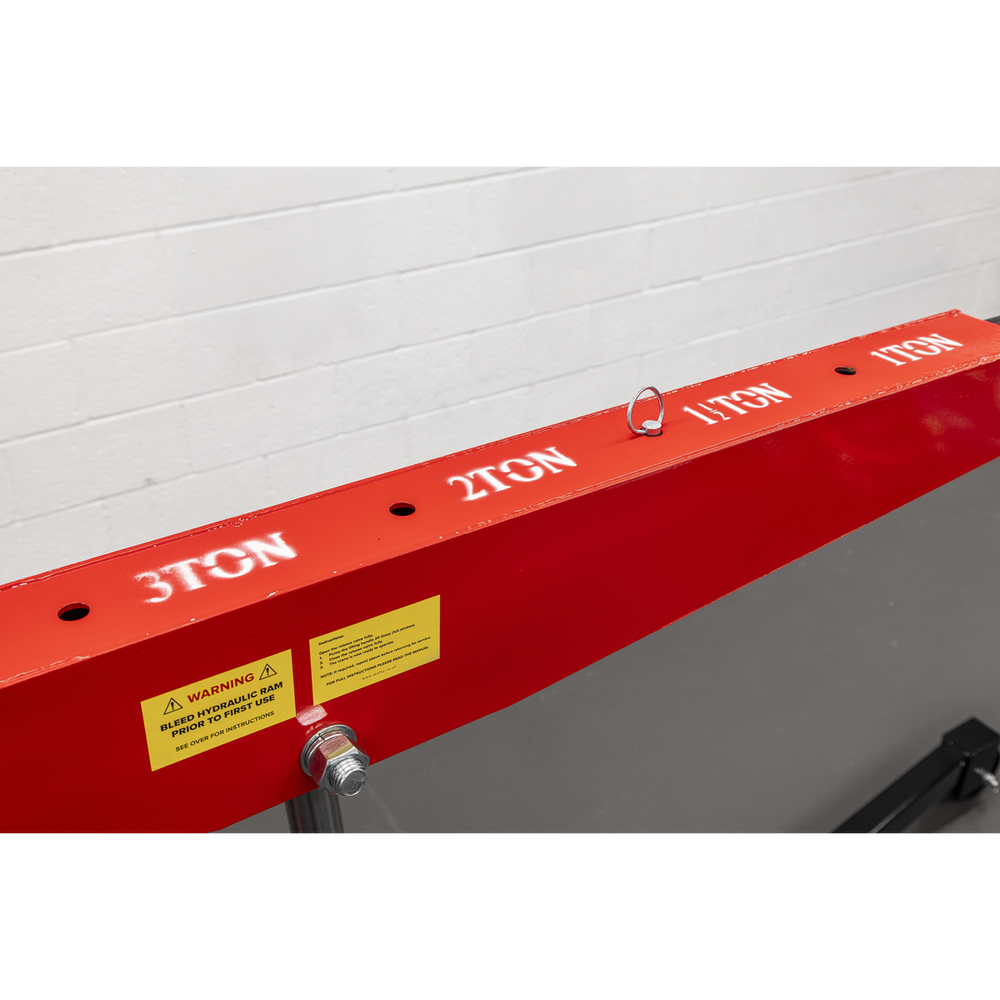

Weighs 155kg and is perfect for heavy commercial, industrial and workshop use. Extendable heavy-duty legs for improved stability, particularly when operating at maximum jib extensions. Beam can be set in 4-positions with a capacity of 1000kg at its full extension of 1820mm. Heavy-duty castors and pump access from side, for safe handling of heavy loads. Delivered in knock-down form for reduced freight cost. Some self-assembly required.
Features and Benefits

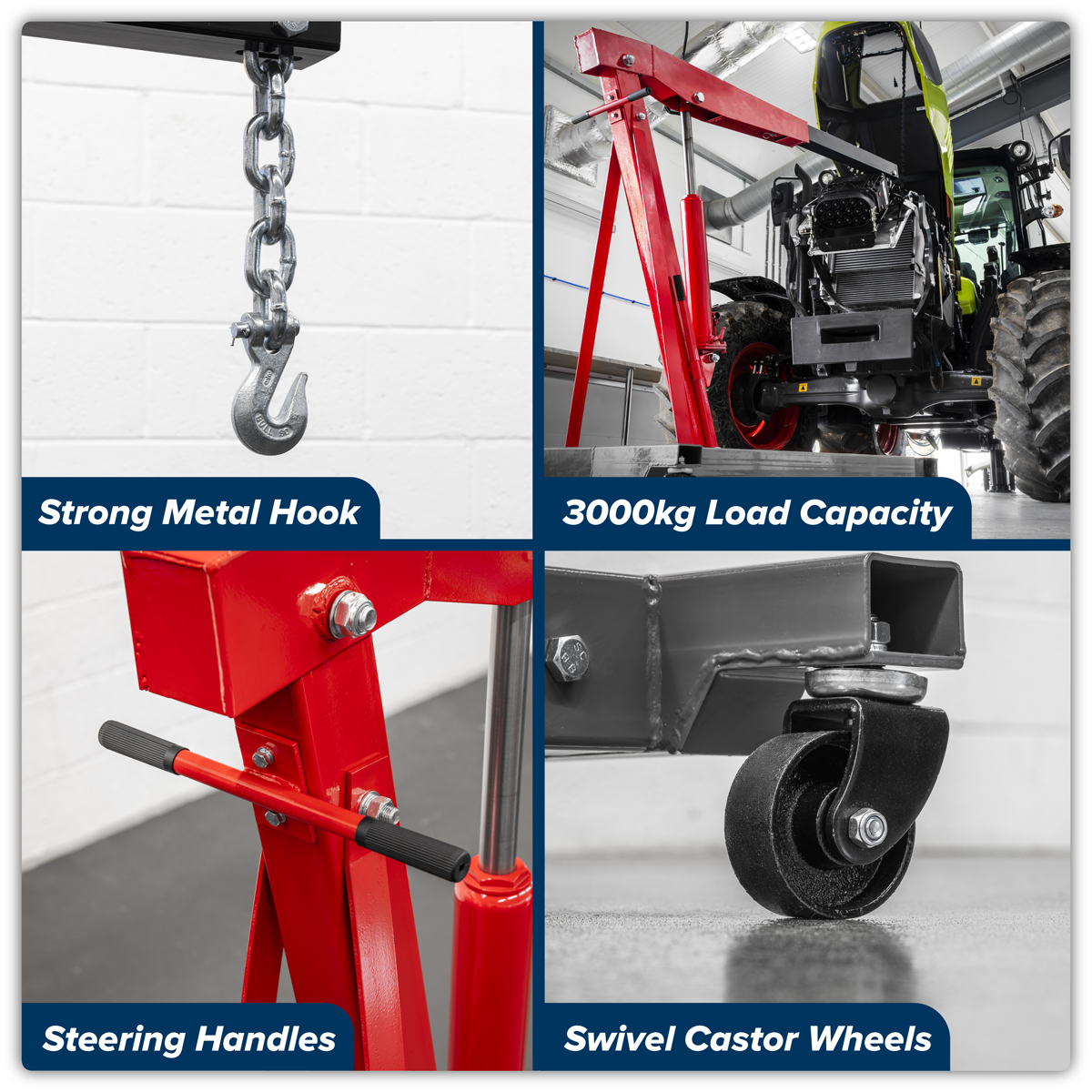

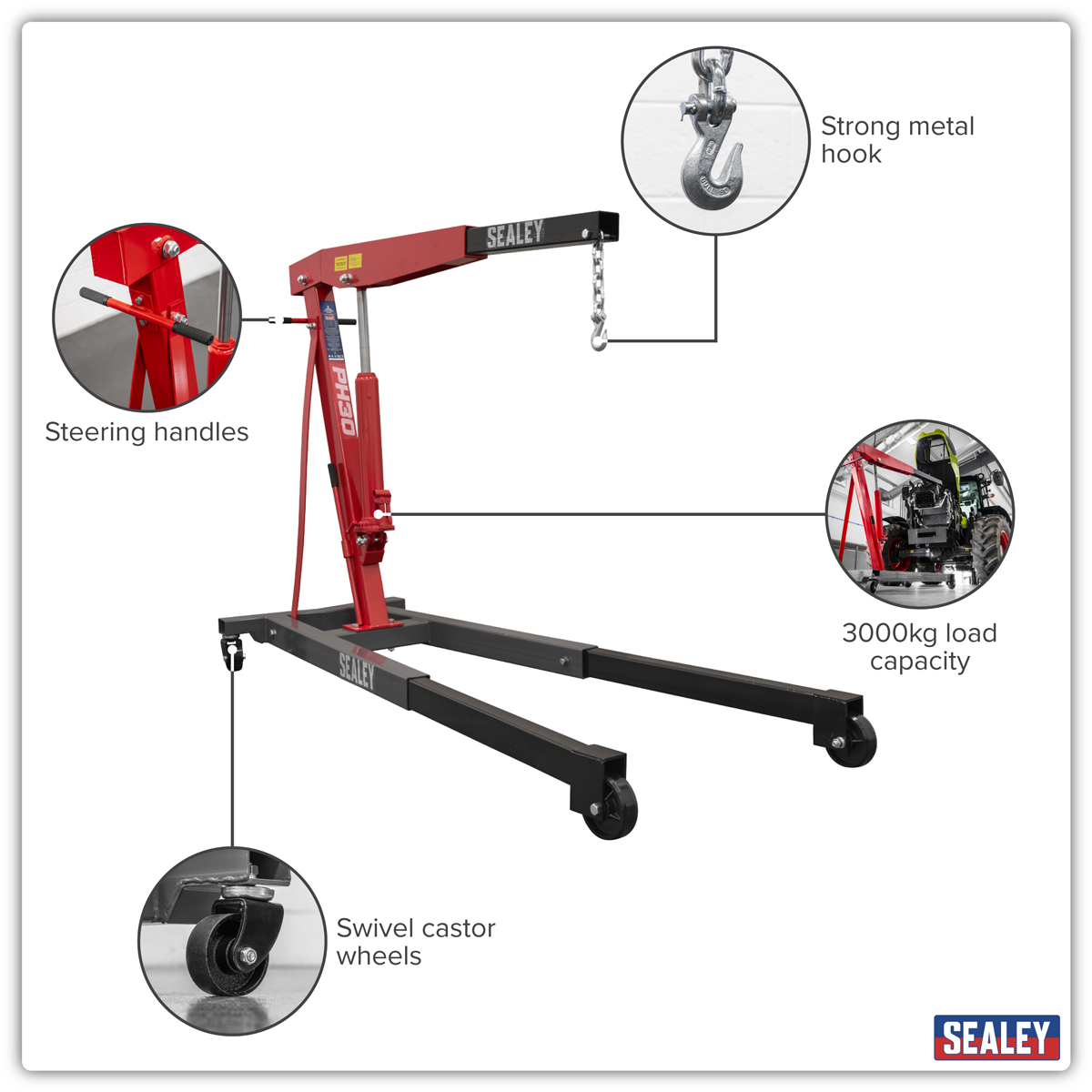

- HIGH CAPACITY - Lifts 3000kg at 1200mm jib extension.

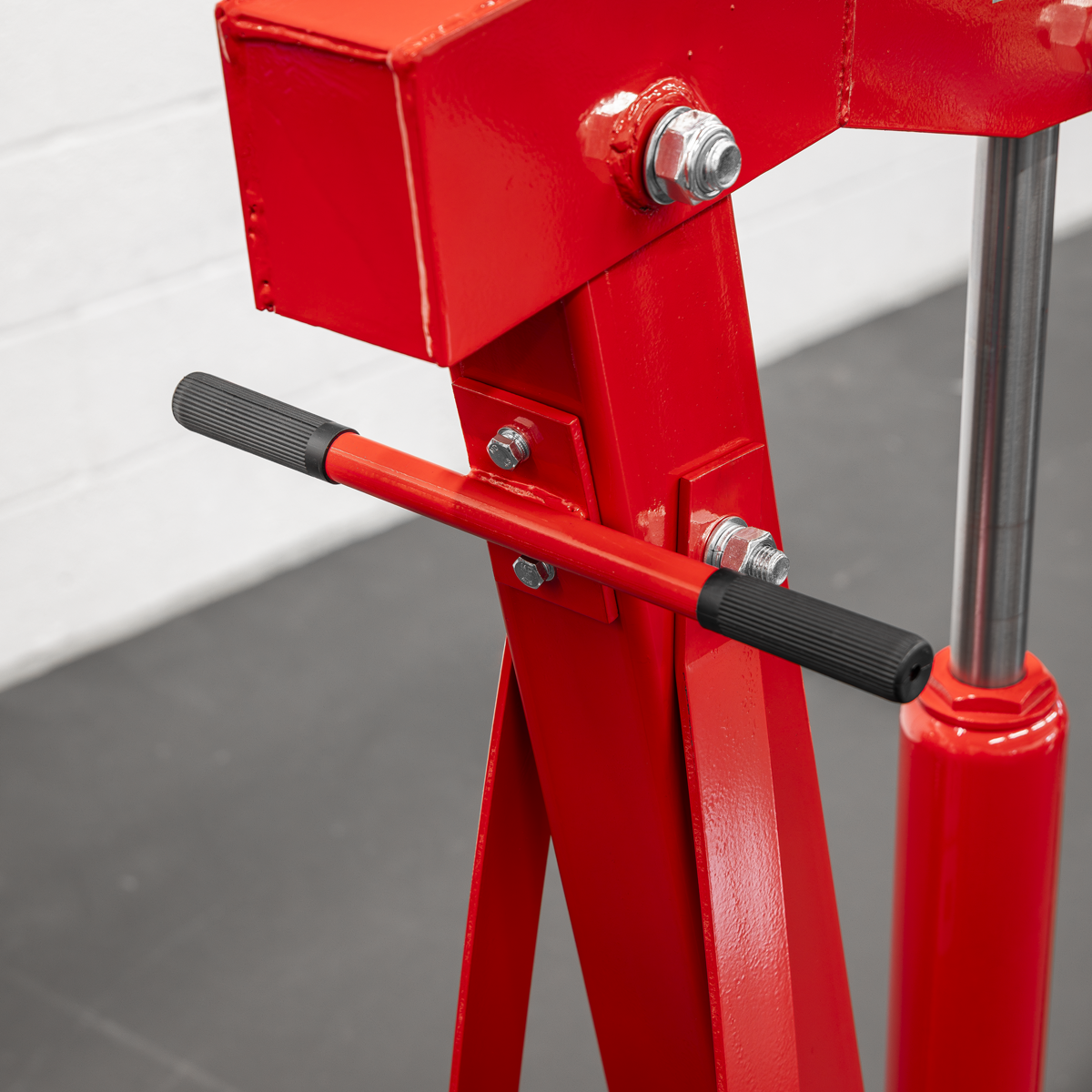

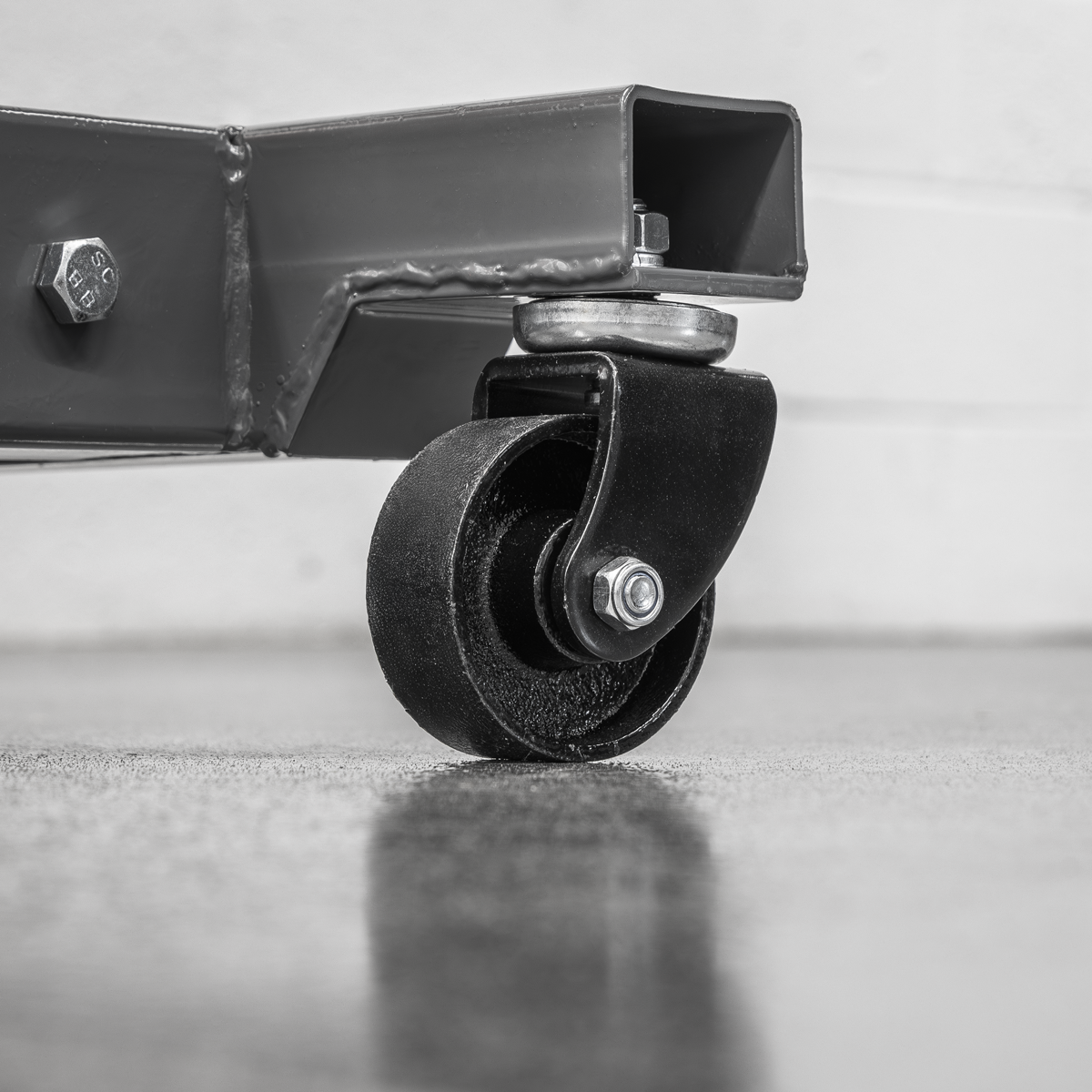

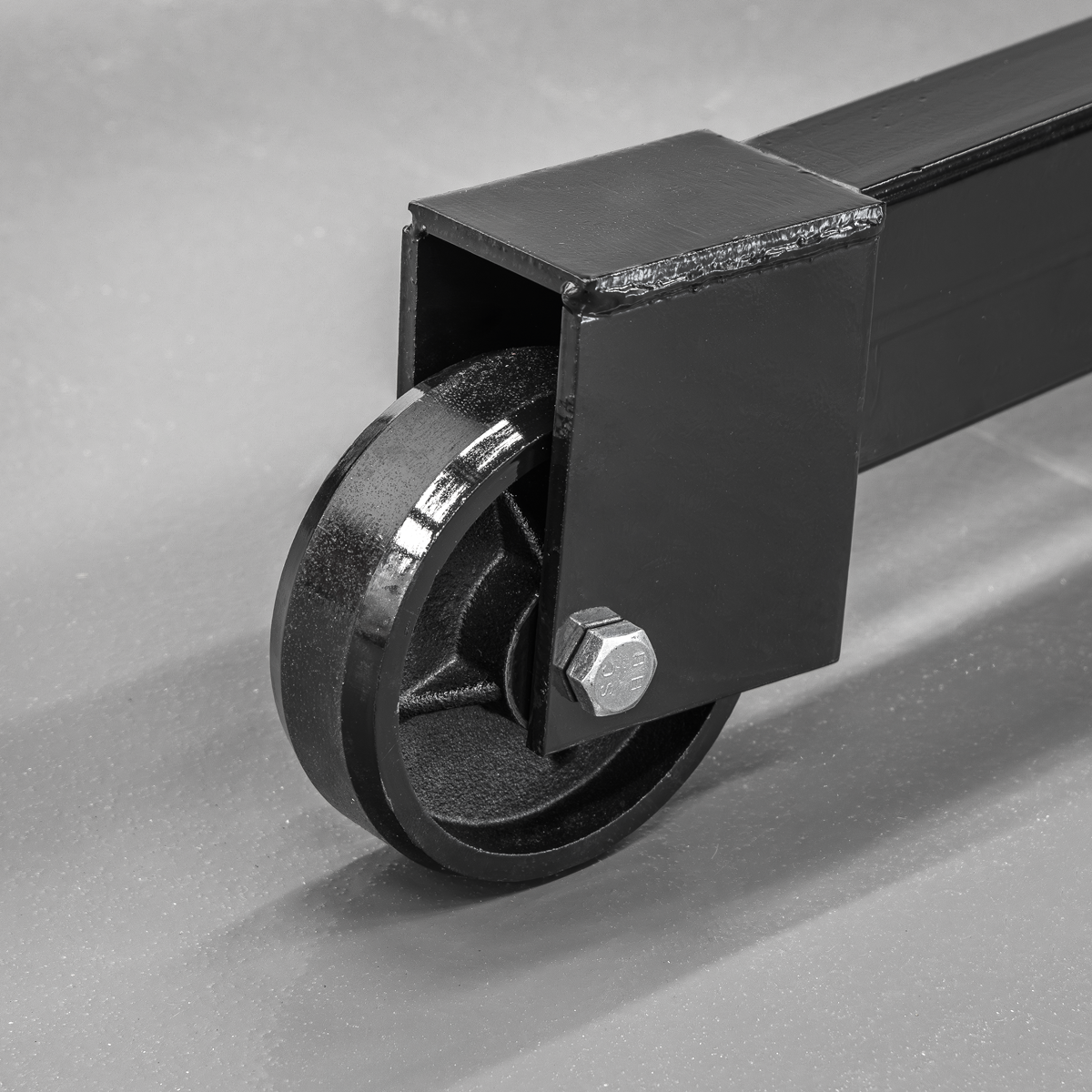

- EASY MANOEUVRABILITY - Heavy-duty fixed front wheels and rear castors.

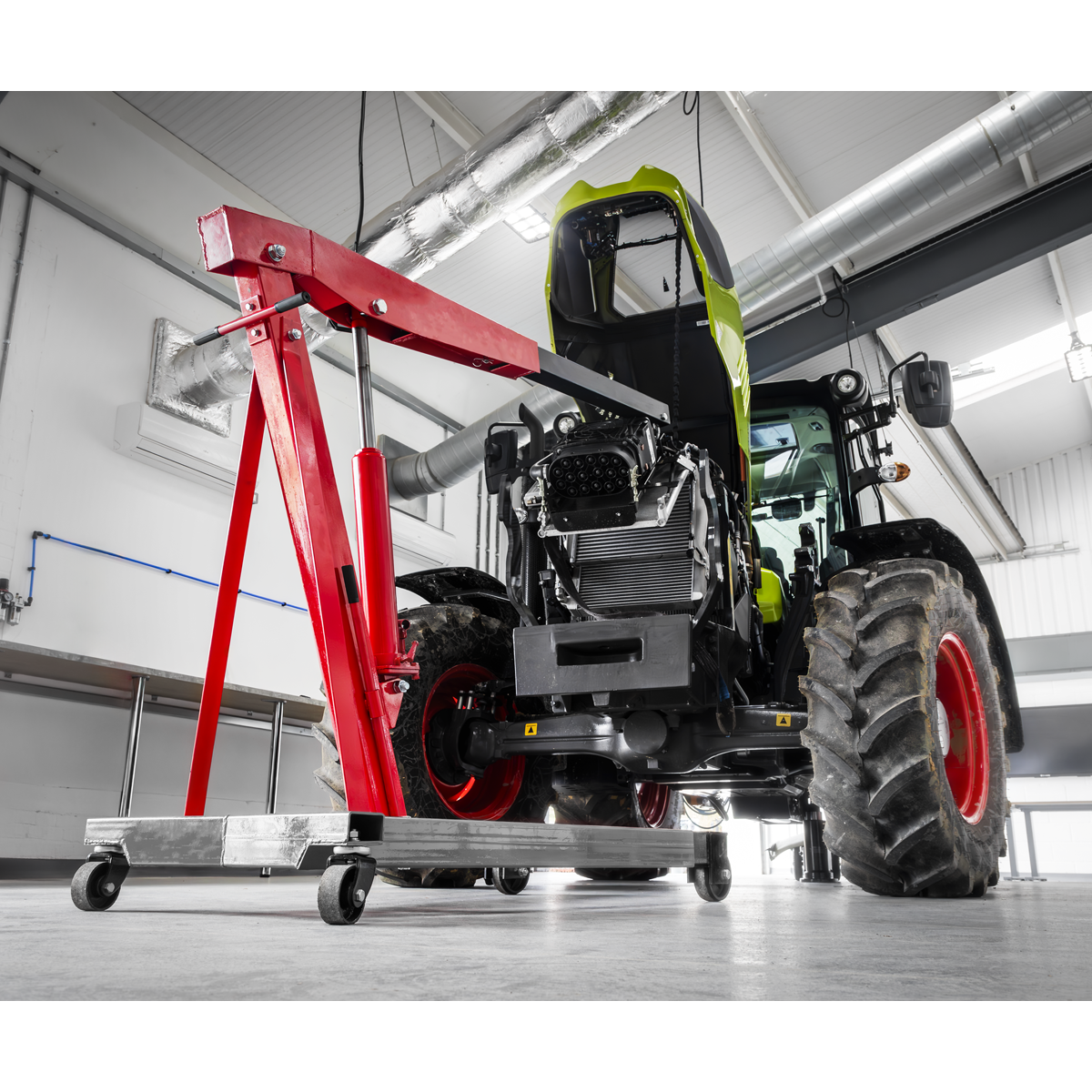

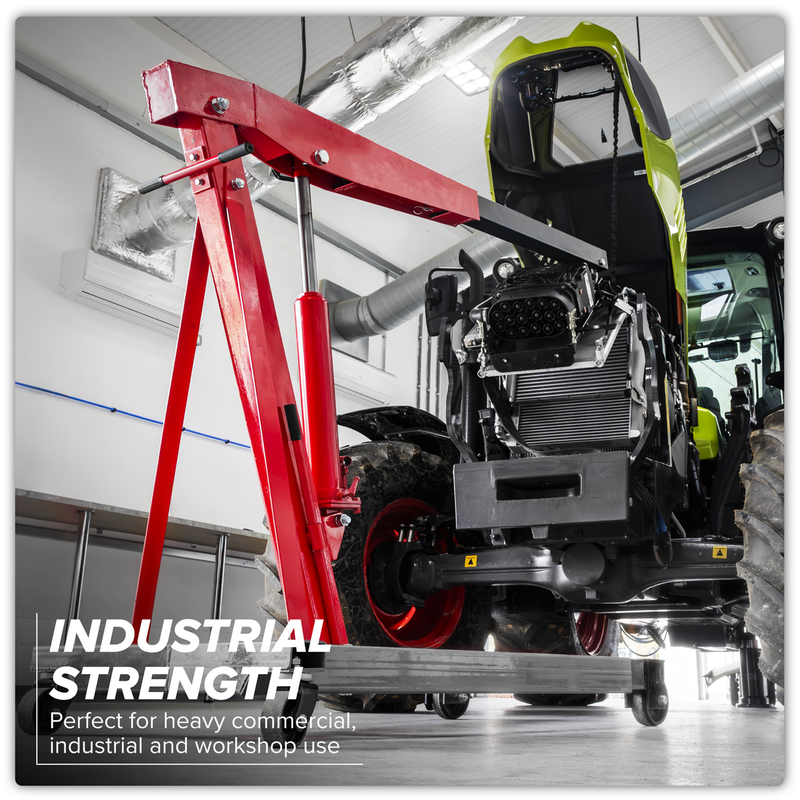

- INDUSTRIAL STRENGTH - Perfect for heavy commercial, industrial and workshop use.

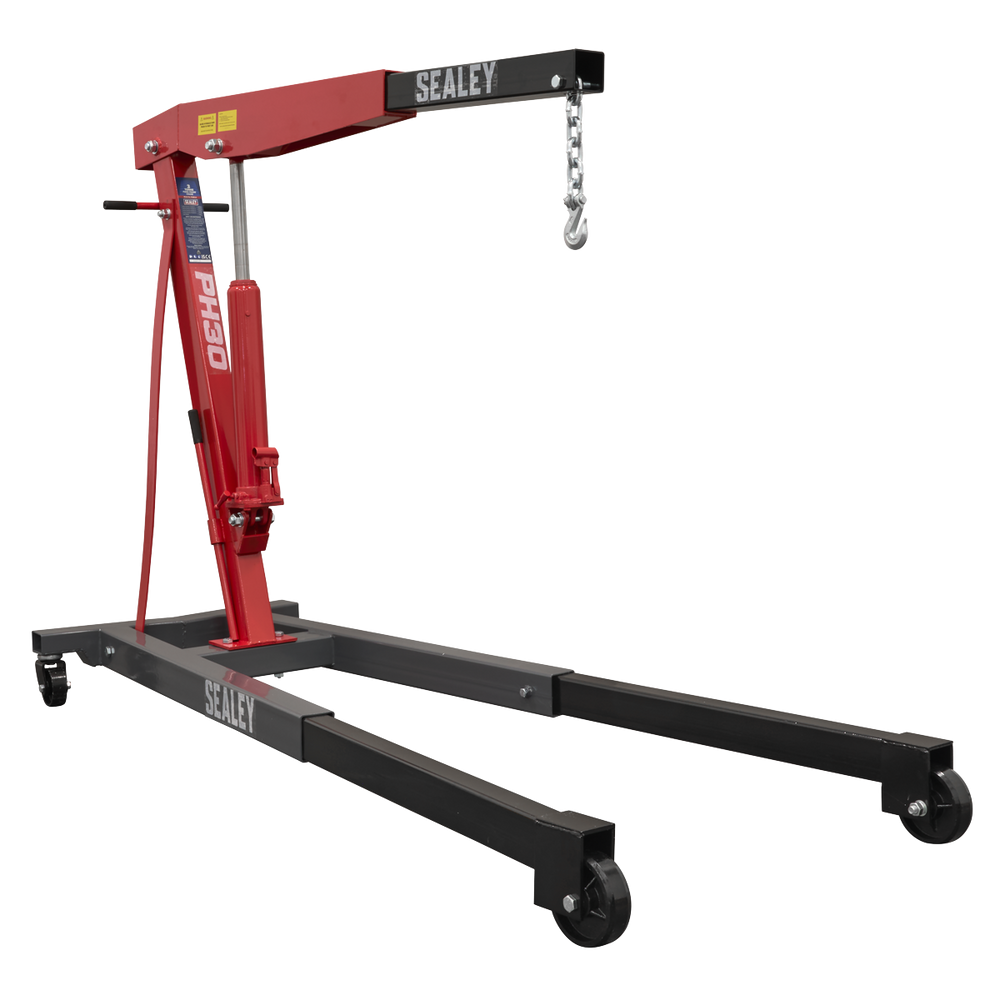

- STABLE - Extendable legs for improved stability, particularly when operating at maximum jib extensions.

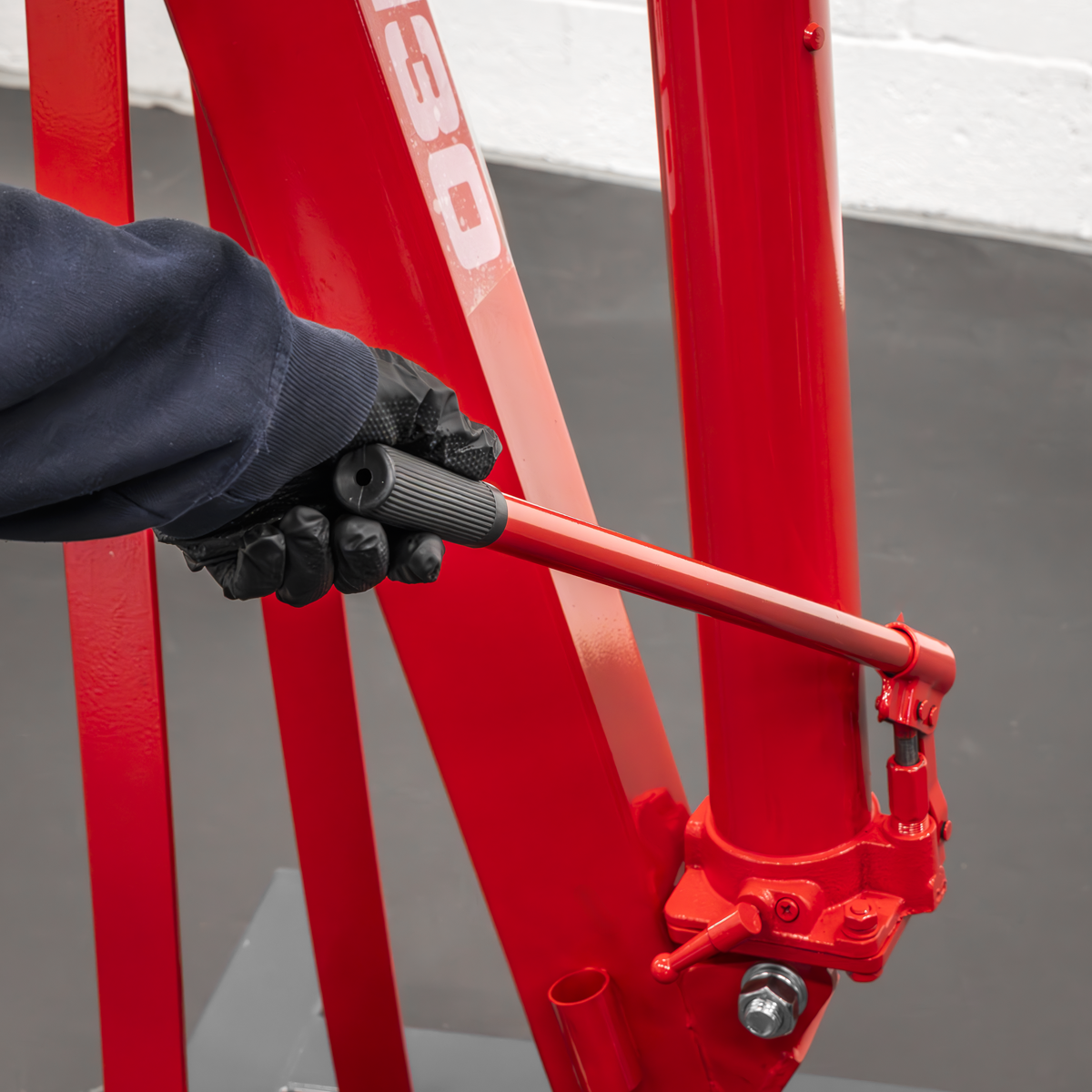

- SIMPLE ACCESS - Pump access from the side for safe handling of heavy loads.
- Delivered in knock-down form for reduced freight cost.
- This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
Technical Specification
| Brand | Sealey |
|---|---|
| Model No. | PH30 |
| Barcode | 5054630451256 |
| Warranty | 1 year |
| Commodity Code | 8426190000 |
| Country of Origin | CHN |
| Pack Dimensions | H 0.32m — W 1.445m — D 0.835m |
| Gross Weight | 165kg |
| Height Jib Down | 1610mm |
| Height Legs Folded | N/A |
| Height of Frame | 195mm |
| Length Legs Extended | 950mm |
| Length of Jib Position 1 | 1200mm |
| Length of Jib Position 2 | 1400mm |
| Length of Jib Position 3 | 1610mm |
| Length of Jib Position 4 | 1820mm |
| Length of Jib Position 5 | n/a |
| Length | 1555mm |
| Lifting Capacity in Position 1 | 3000kg |
| Lifting Capacity in Position 2 | 2000kg |
| Lifting Capacity in Position 3 | 1500kg |
| Lifting Capacity in Position 4 | 1000kg |
| Lifting Capacity in Position 5 | n/a |
| Max. Lift Ht at Jib Position 1 | 1880mm |
| Max. Lift Ht at Jib Position 2 | 1970mm |
| Max. Lift Ht at Jib Position 3 | 2010mm |
| Max. Lift Ht at Jib Position 4 | 2220mm |
| Max. Lift Ht at Jib Position 5 | n/a |
| Nett Weight | 155kg |
| Note | *Legs Extended |
| Rear Width | 780mm |
| Width Front Frame | 855mm* |
| Width Inside Front Frame | 700mm* |
