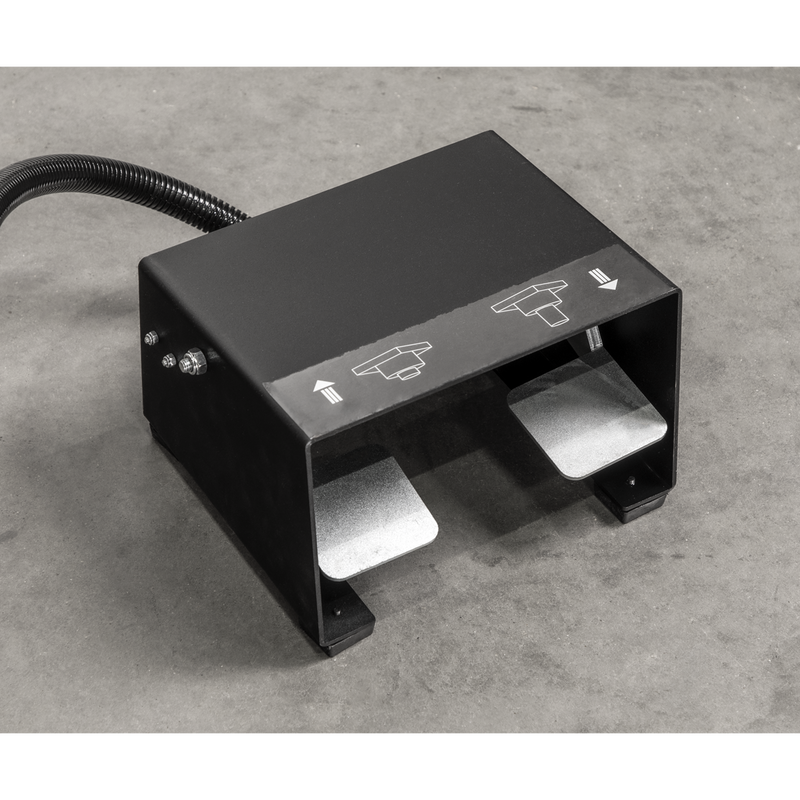

Sealey PPF100S Viking Floor Type Air/Hydraulic Press with Sliding Ram & Foot Pedal 100 Tonne
SKU PPF100S Barcode 5054630135484
Available to order from our supplier. Contact us to confirm quantities and lead times.
Pay in 3 interest-free with shopPay or PayPal
- Expert UK product support
- Authorised distributor
- 30 day returns
Delivery & returns
Despatch times vary by item. Check the product-specific lead time shown on this page. Supplier-shipped and larger items may take longer.
Delivery options and transit times are shown at checkout. Transit time starts after despatch and excludes weekends and bank holidays unless the selected service states otherwise. Tracking is provided when available.
30 day returns on unused items in original packaging.
Description
Description

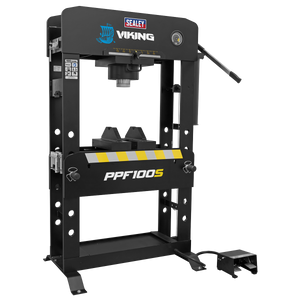

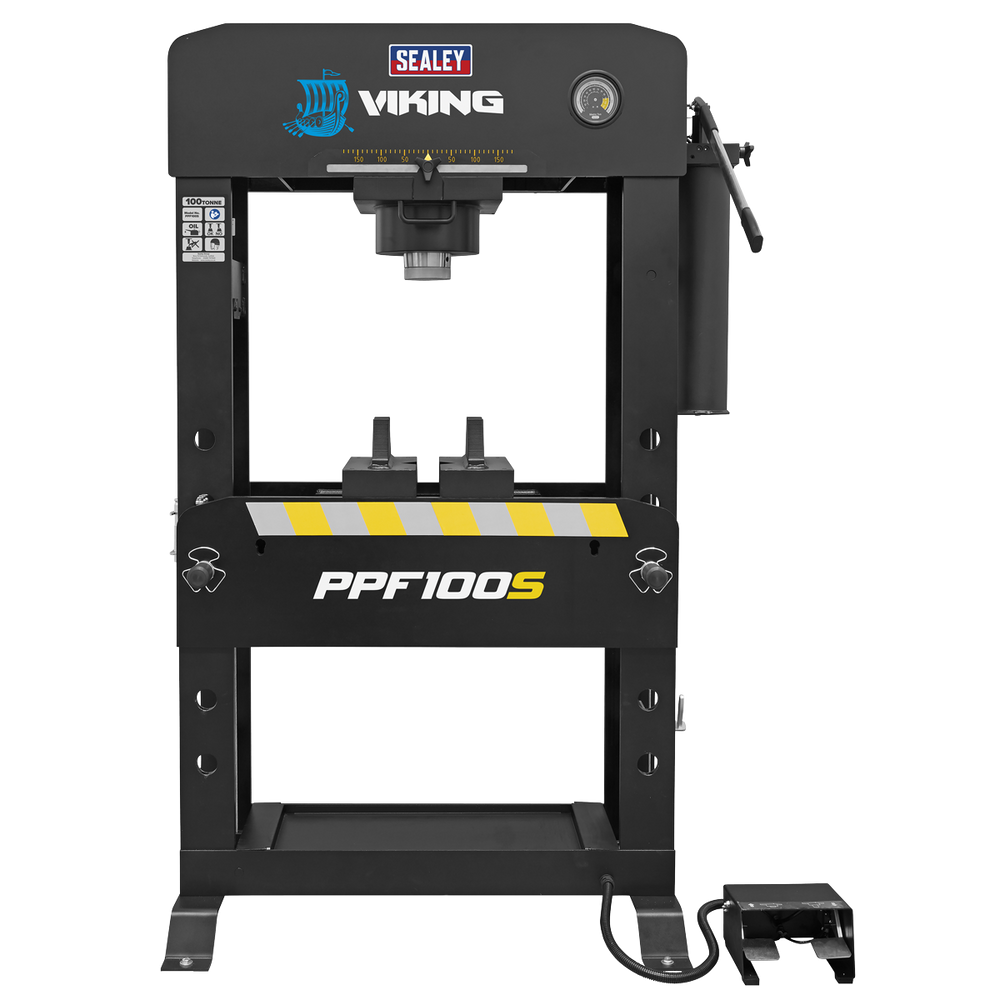

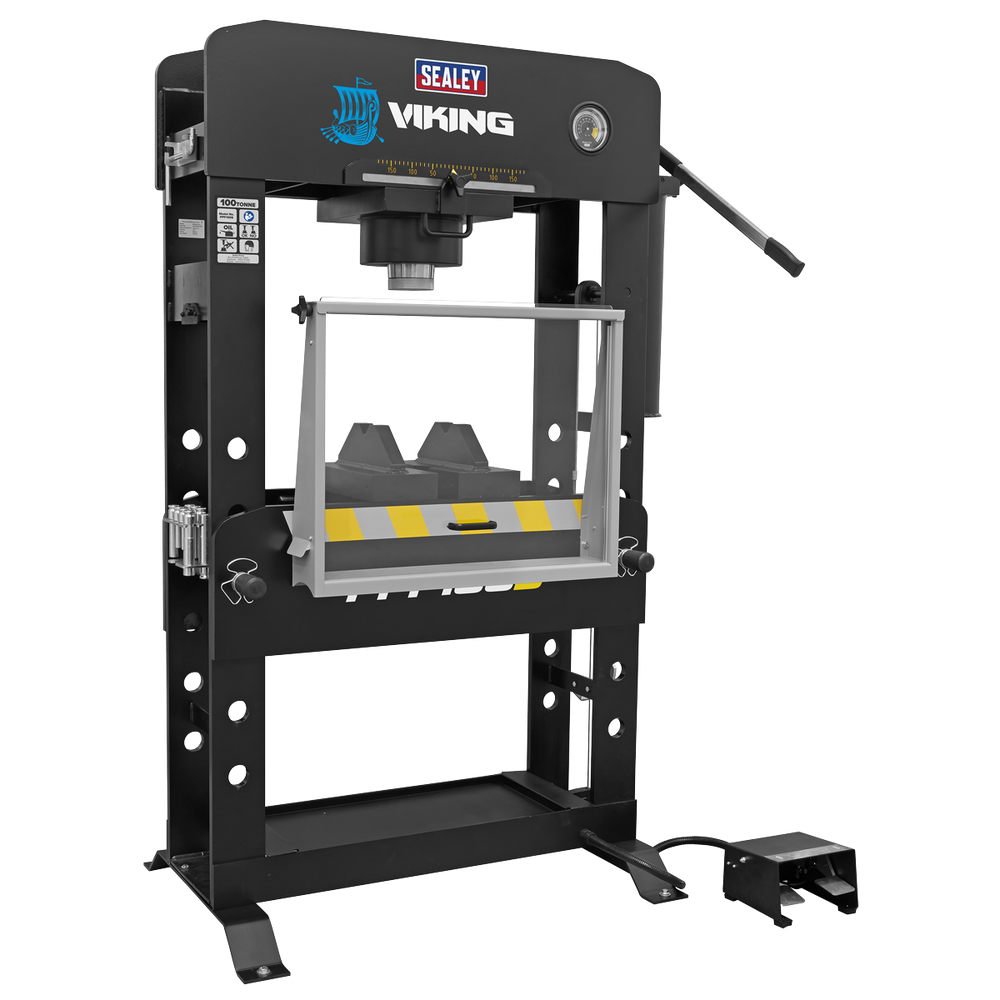

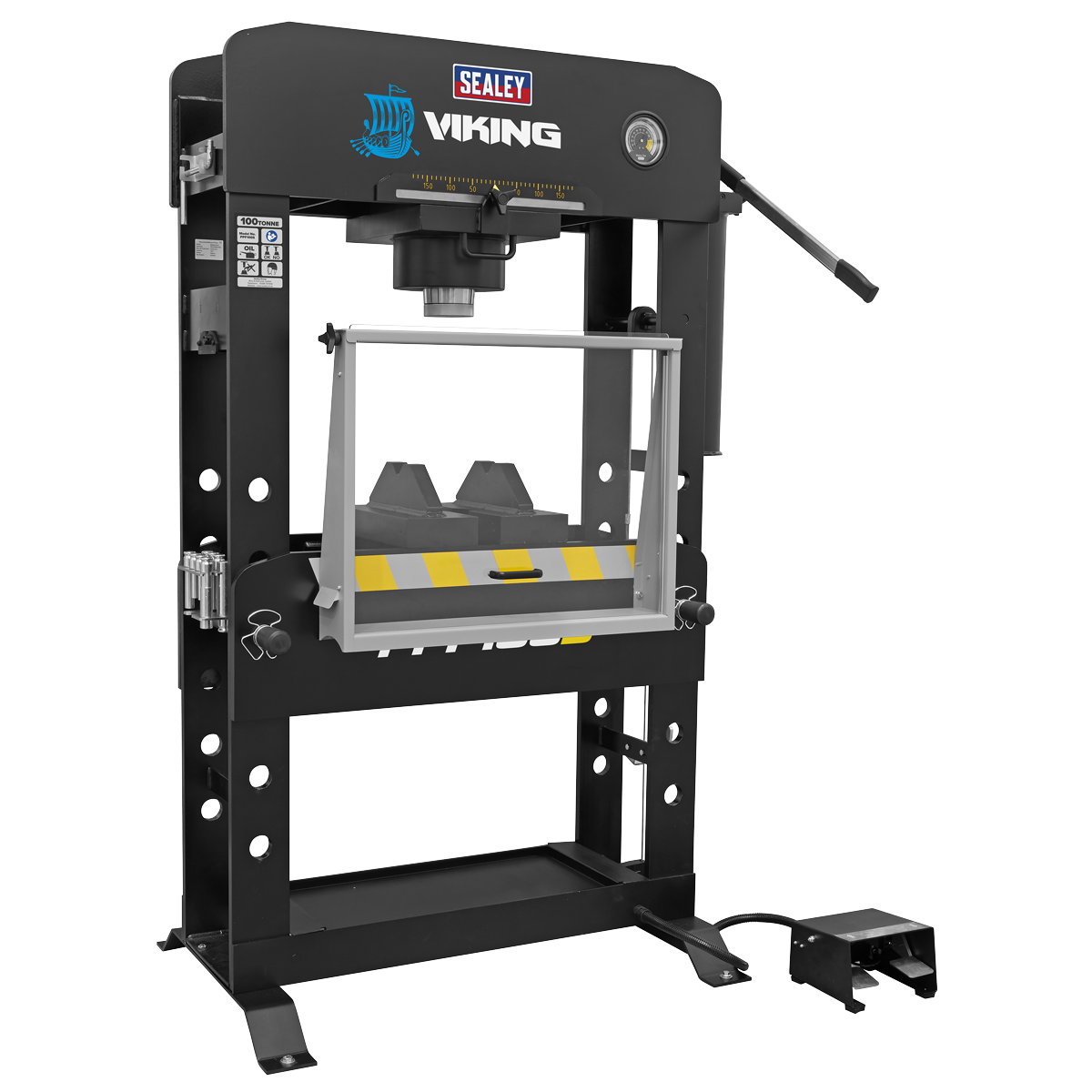

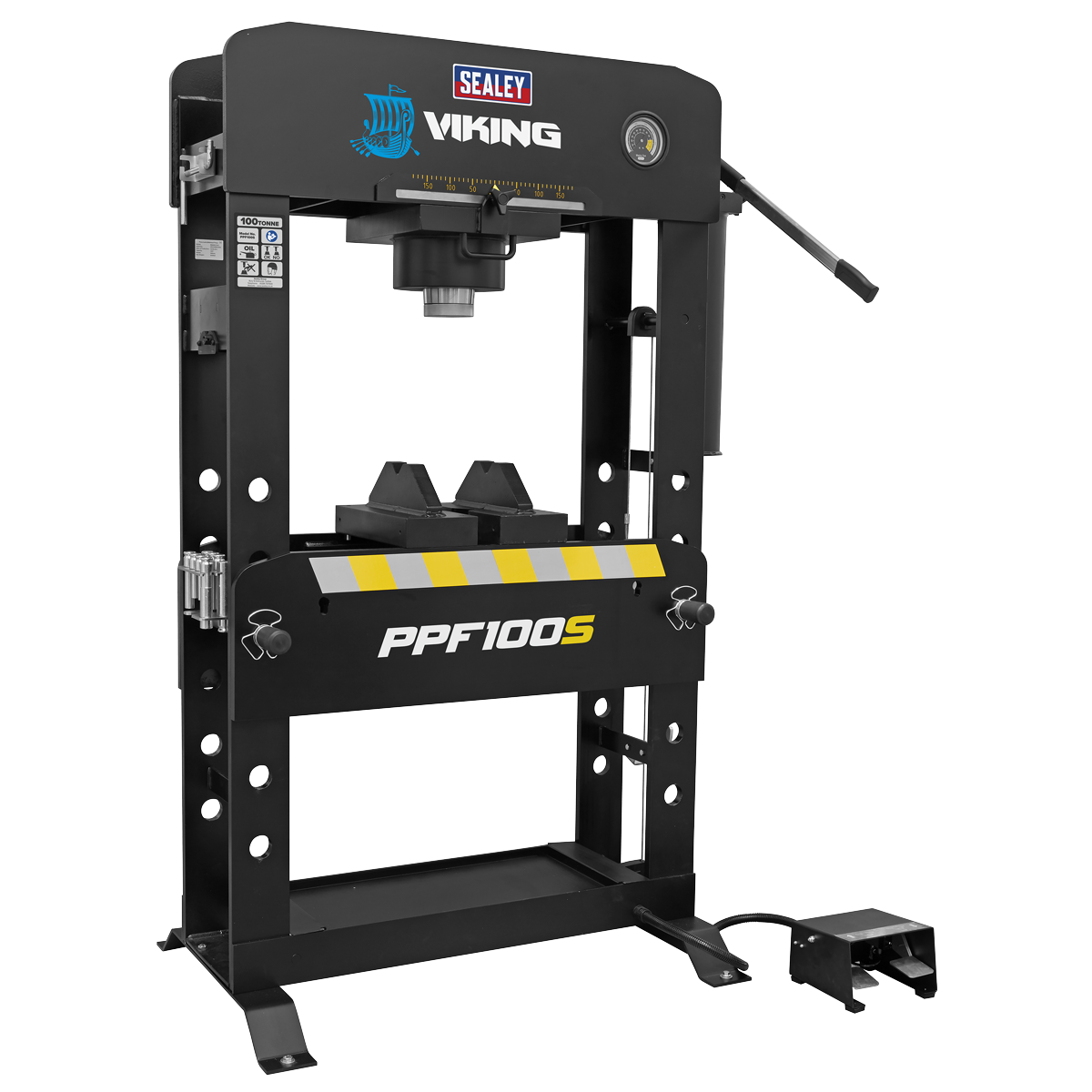

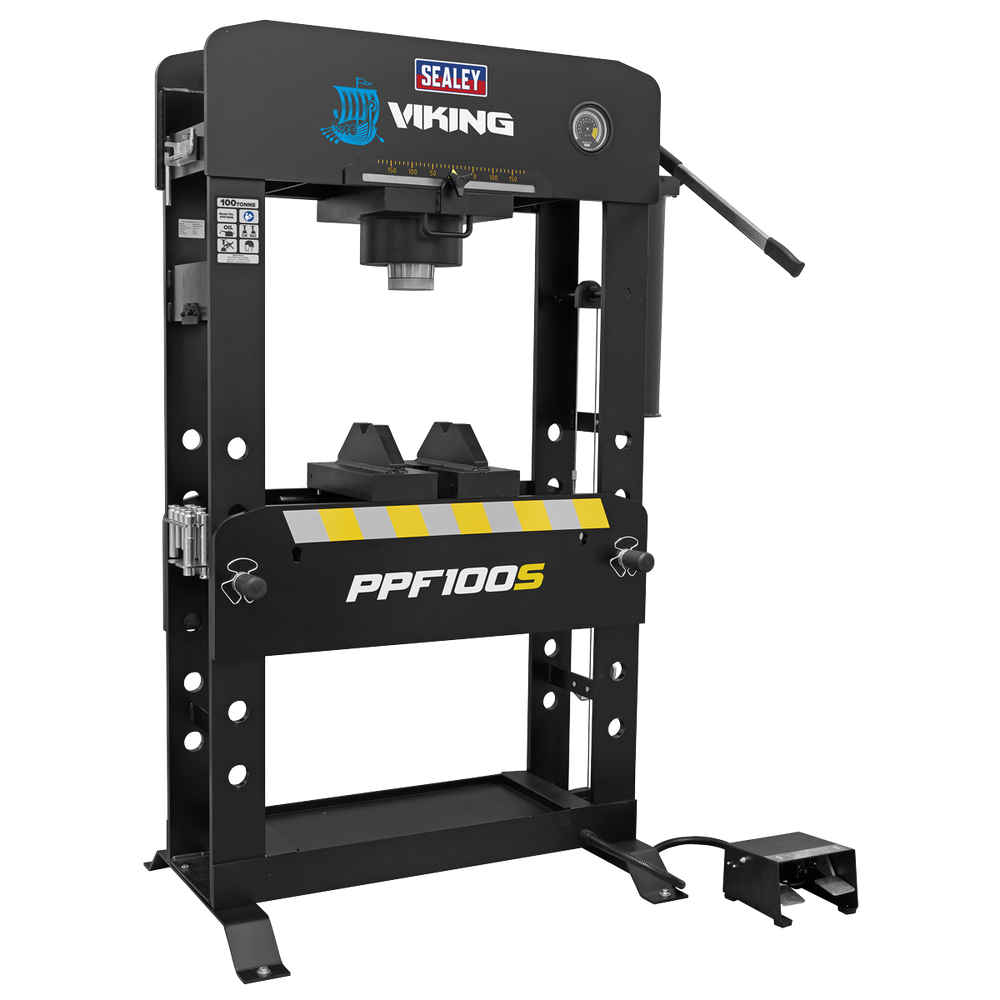

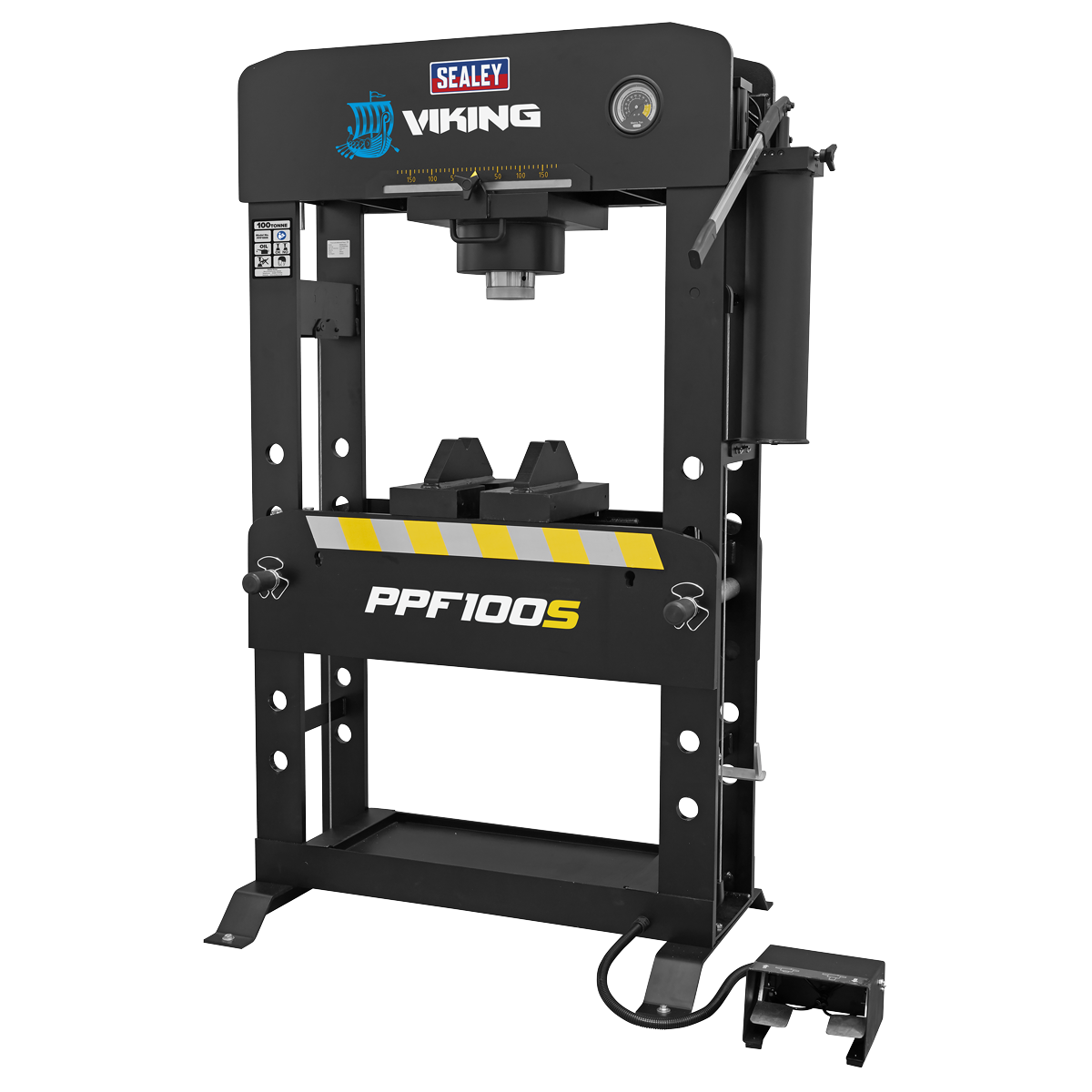

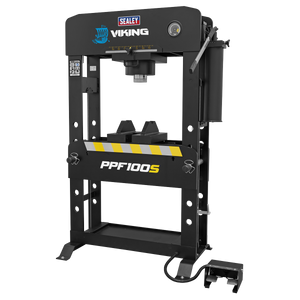

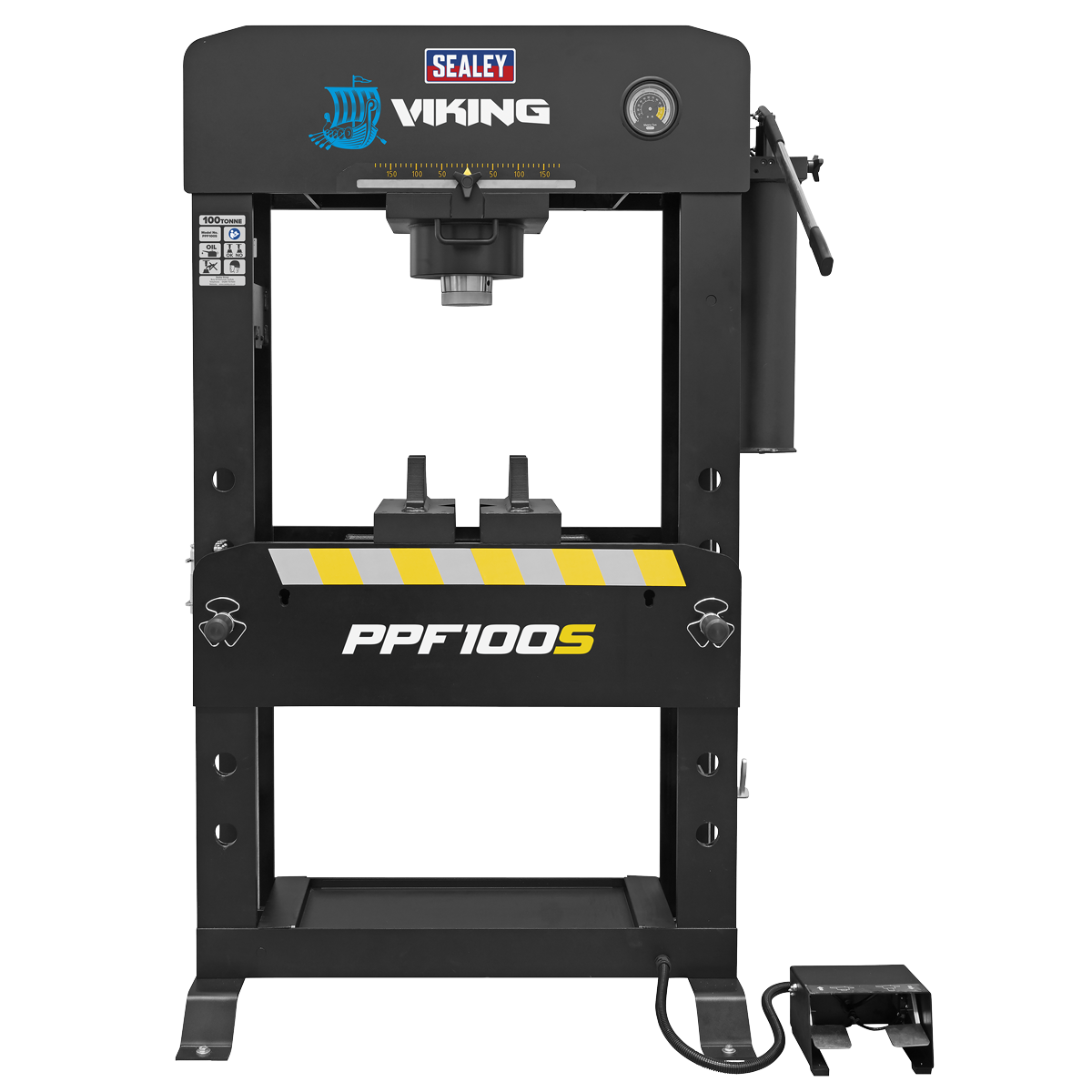

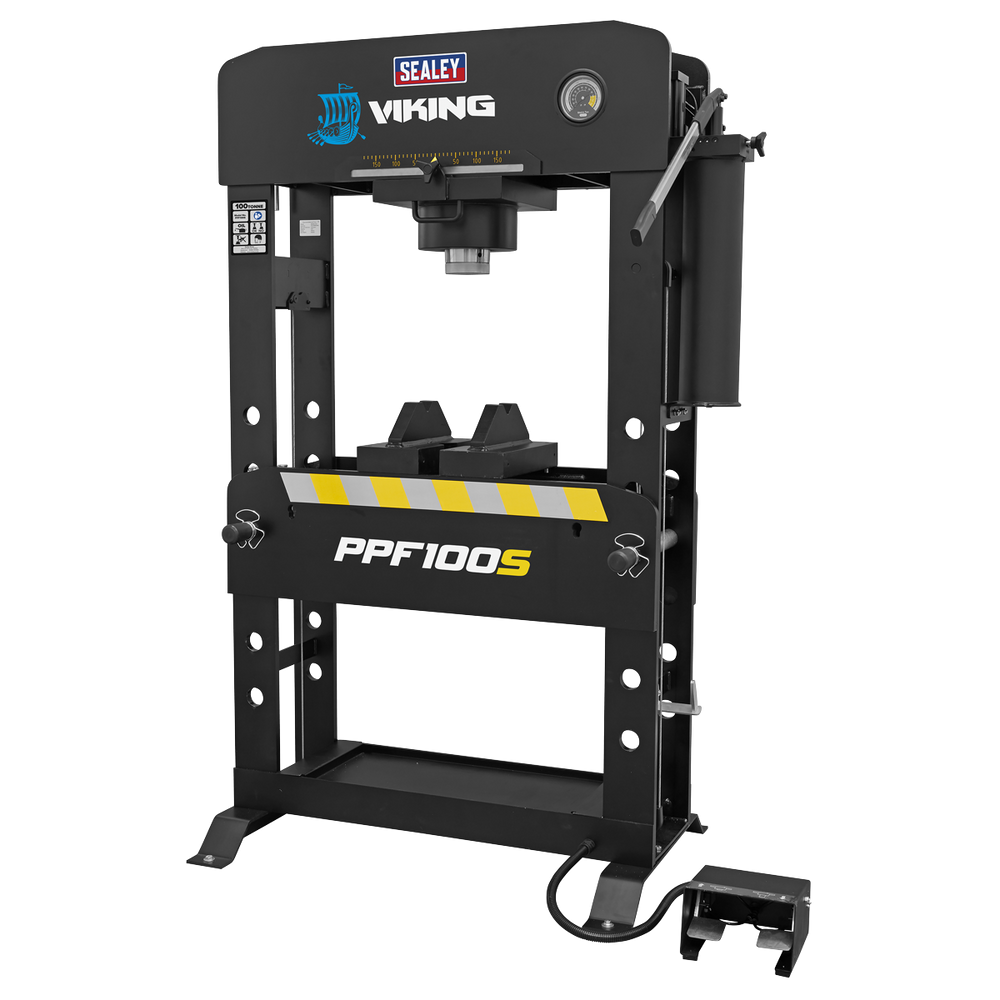

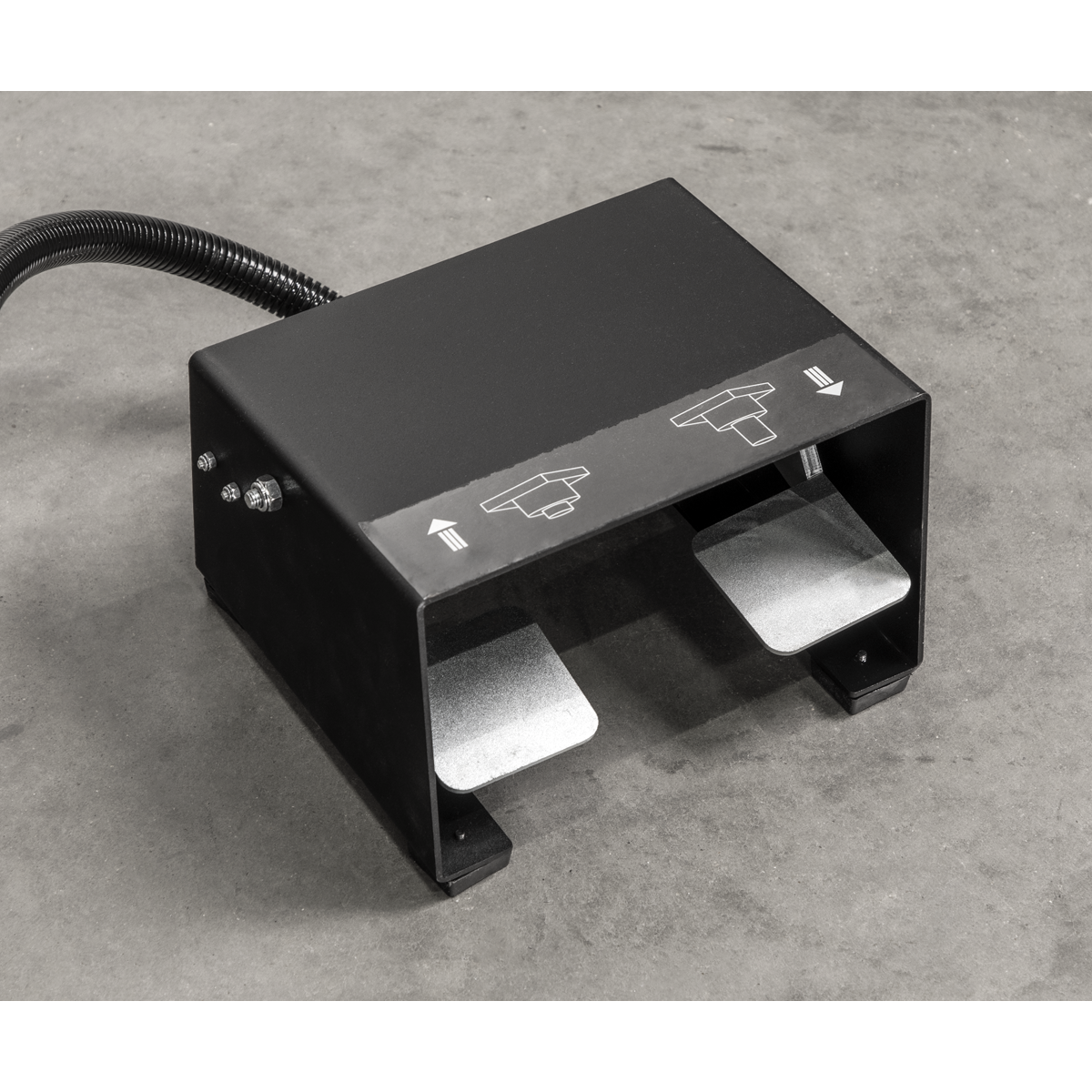

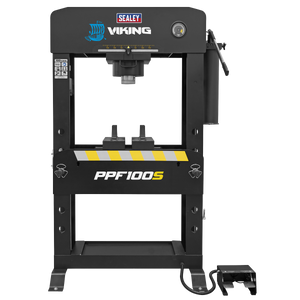

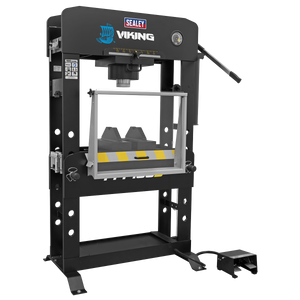

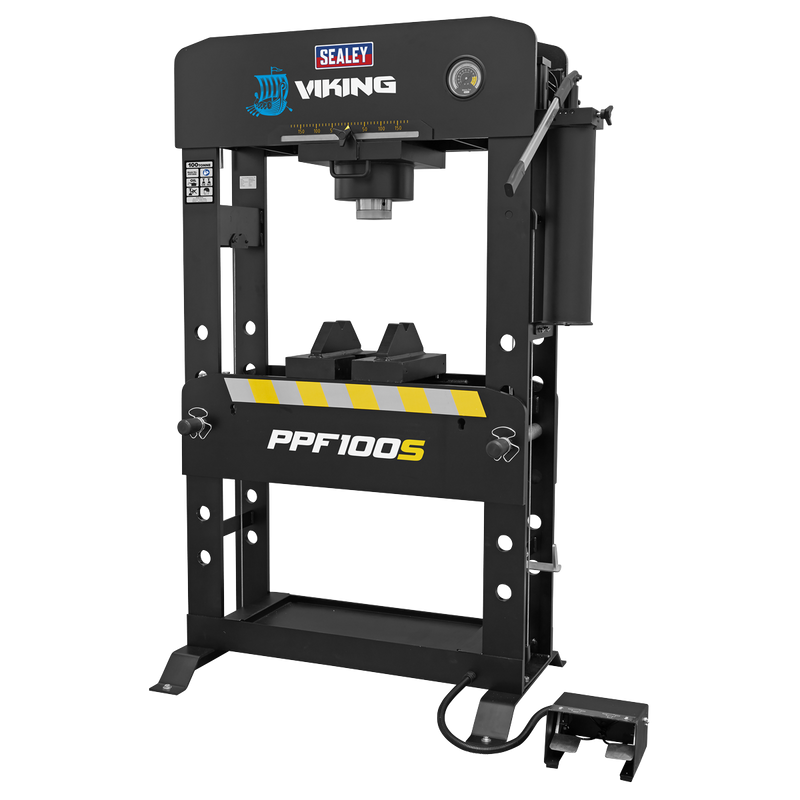

Sealey PPF100S Viking Floor Type Air/Hydraulic Press with Sliding Ram & Foot Pedal 100 Tonne
Heavy-duty steel frame construction with integral air motor powering hydraulic pump unit. Adjustable work area with removable tray. Sliding hydraulic ram assembly giving 360mm of lateral travel for off-centre pressing applications. Frame head fitted with ram pressure gauge. Winch assisted press table adjustment. Storage for press pins included in frame (pins not included). Supplied with flat pressing plate/V-blocks. This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
Features and Benefits
- Heavy-duty steel frame construction with integral air motor powering hydraulic pump unit.
- Adjustable work area with removable tray.

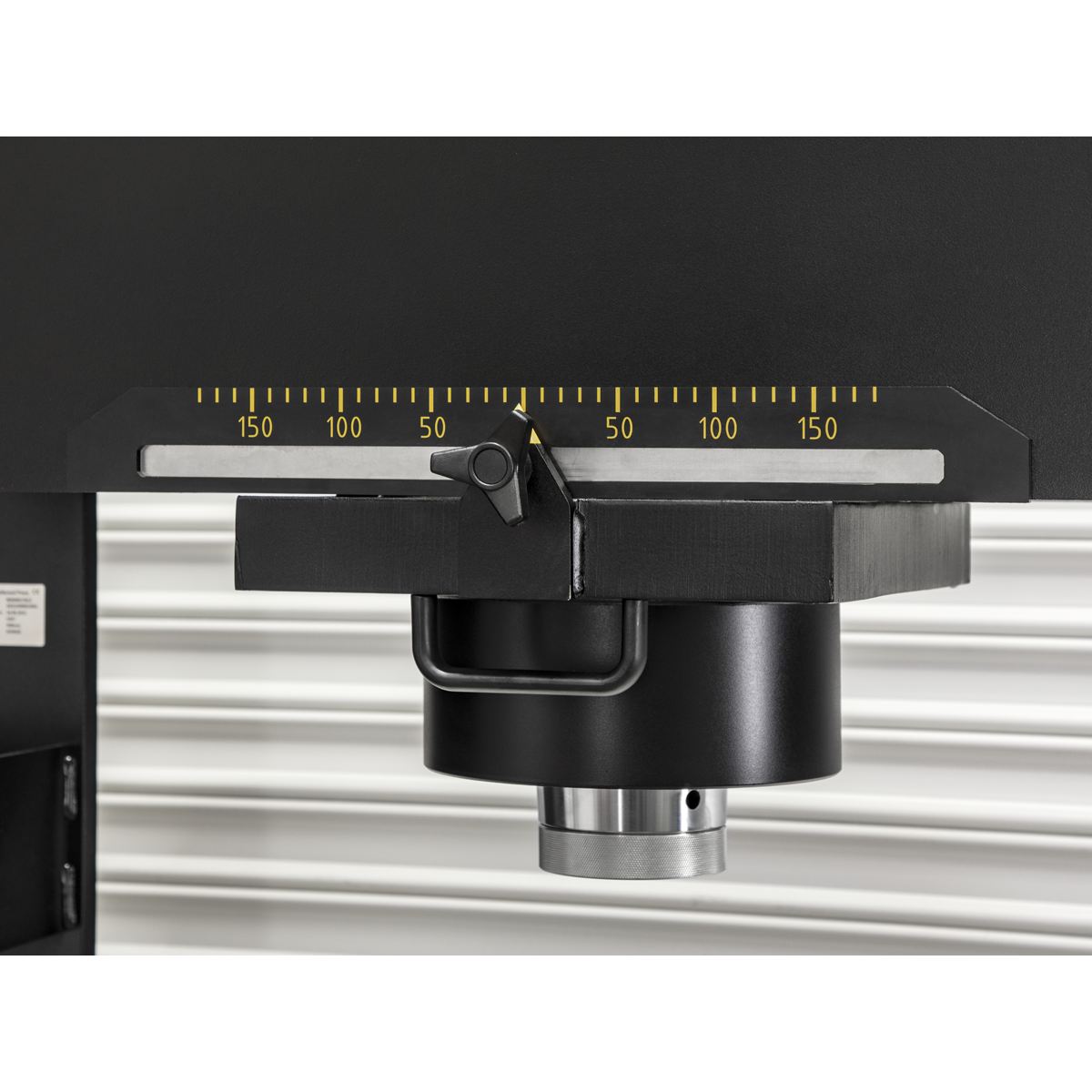

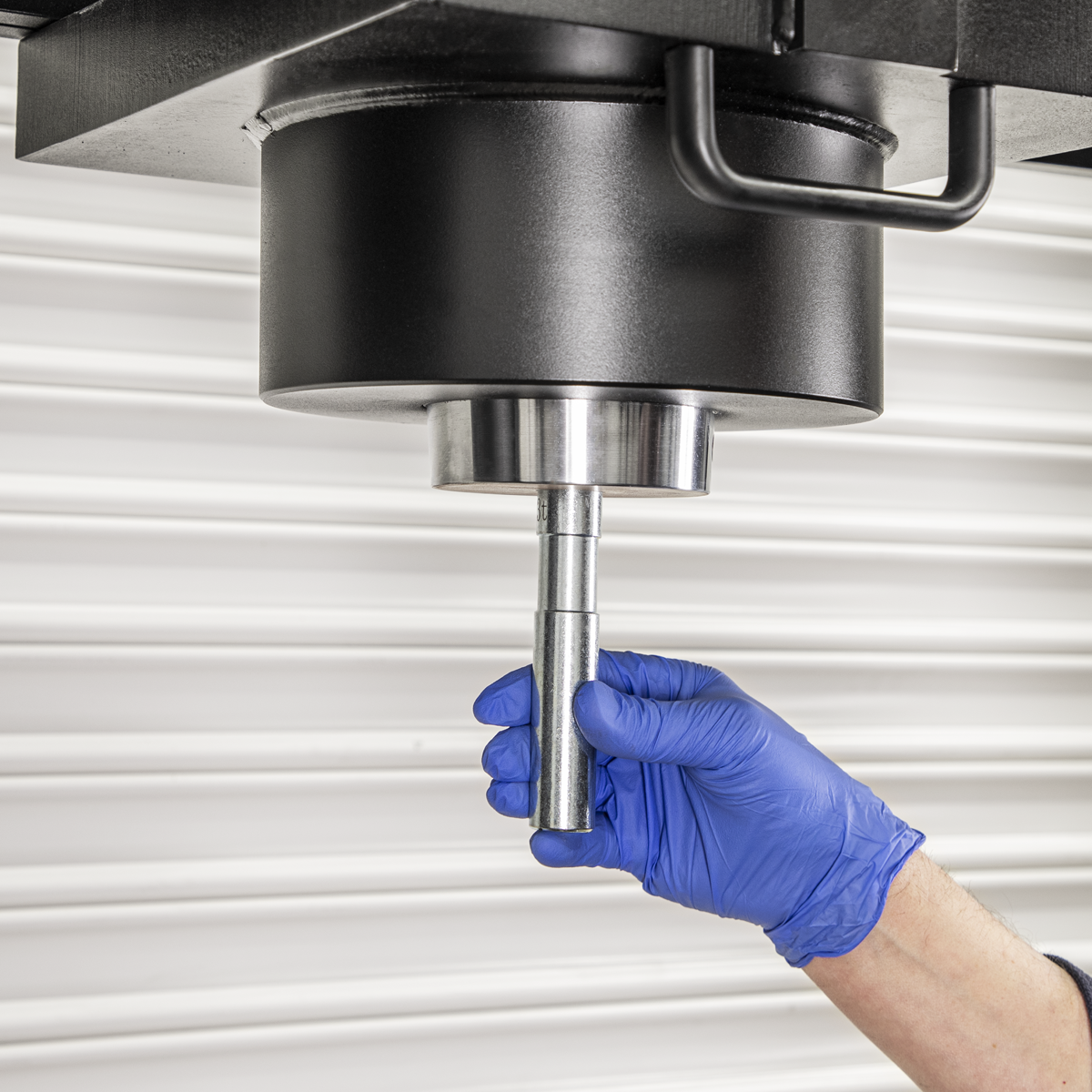

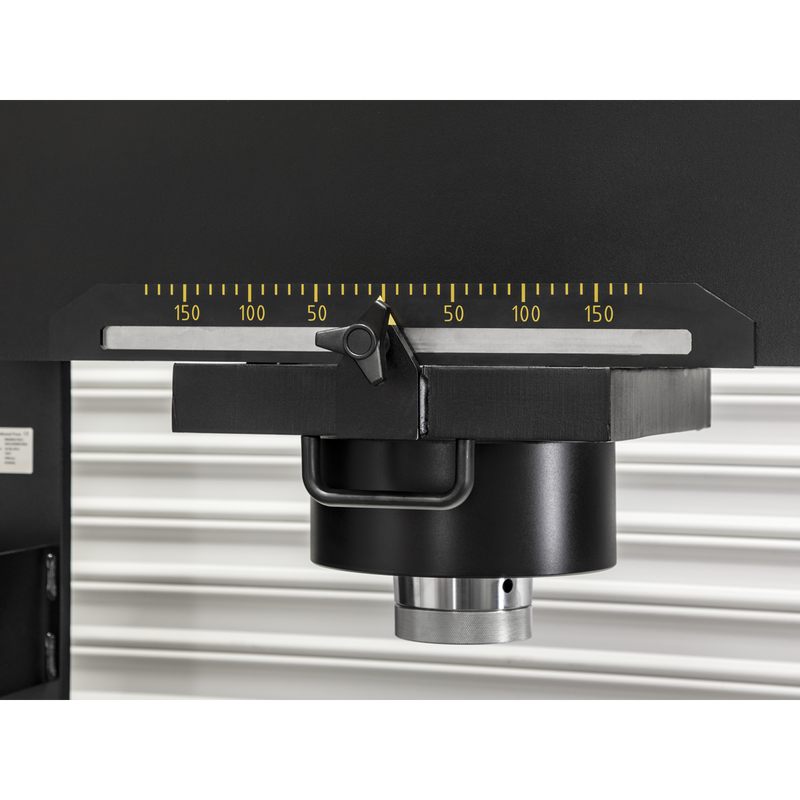

- Sliding hydraulic ram assembly giving 360mm of lateral travel for off-centre pressing applications.

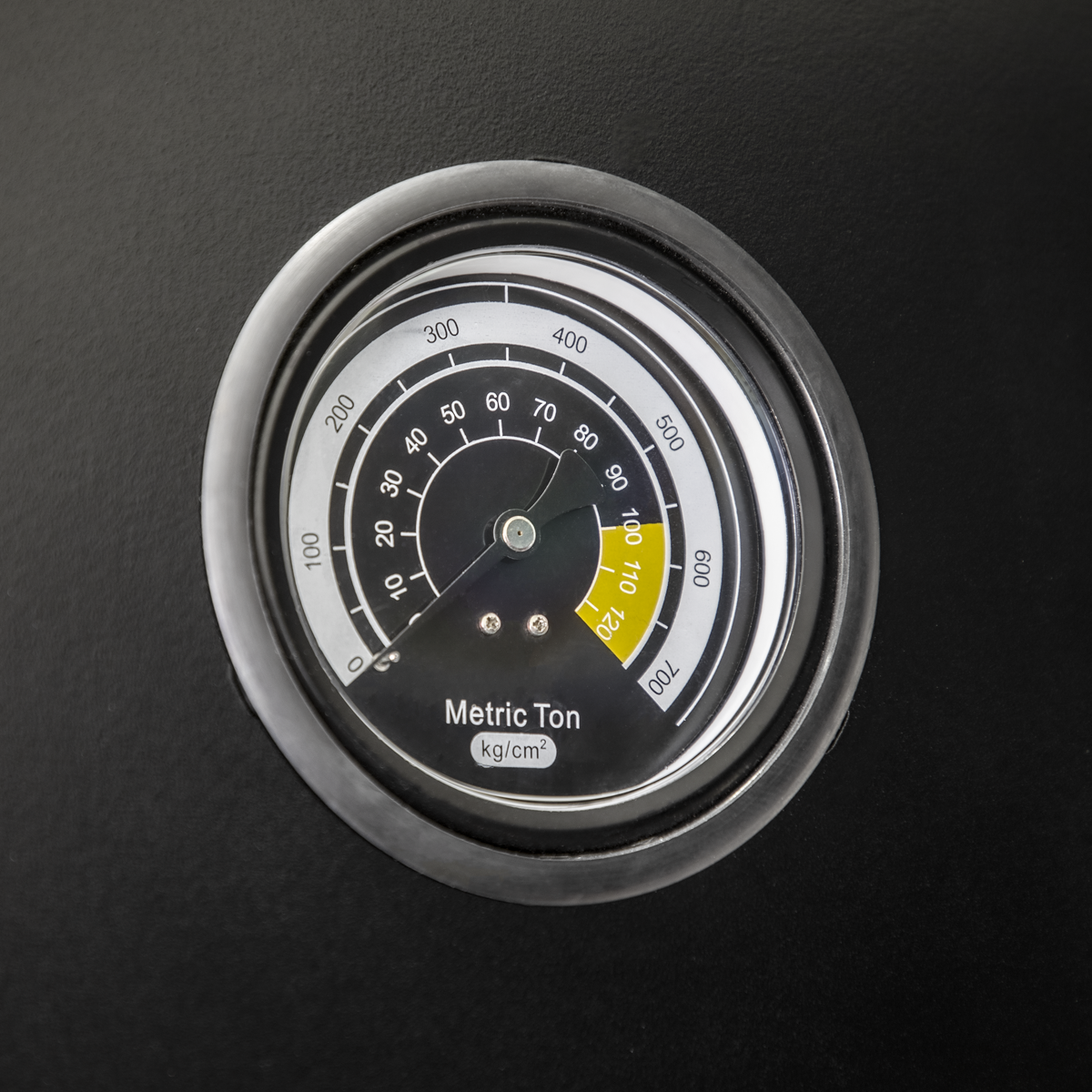

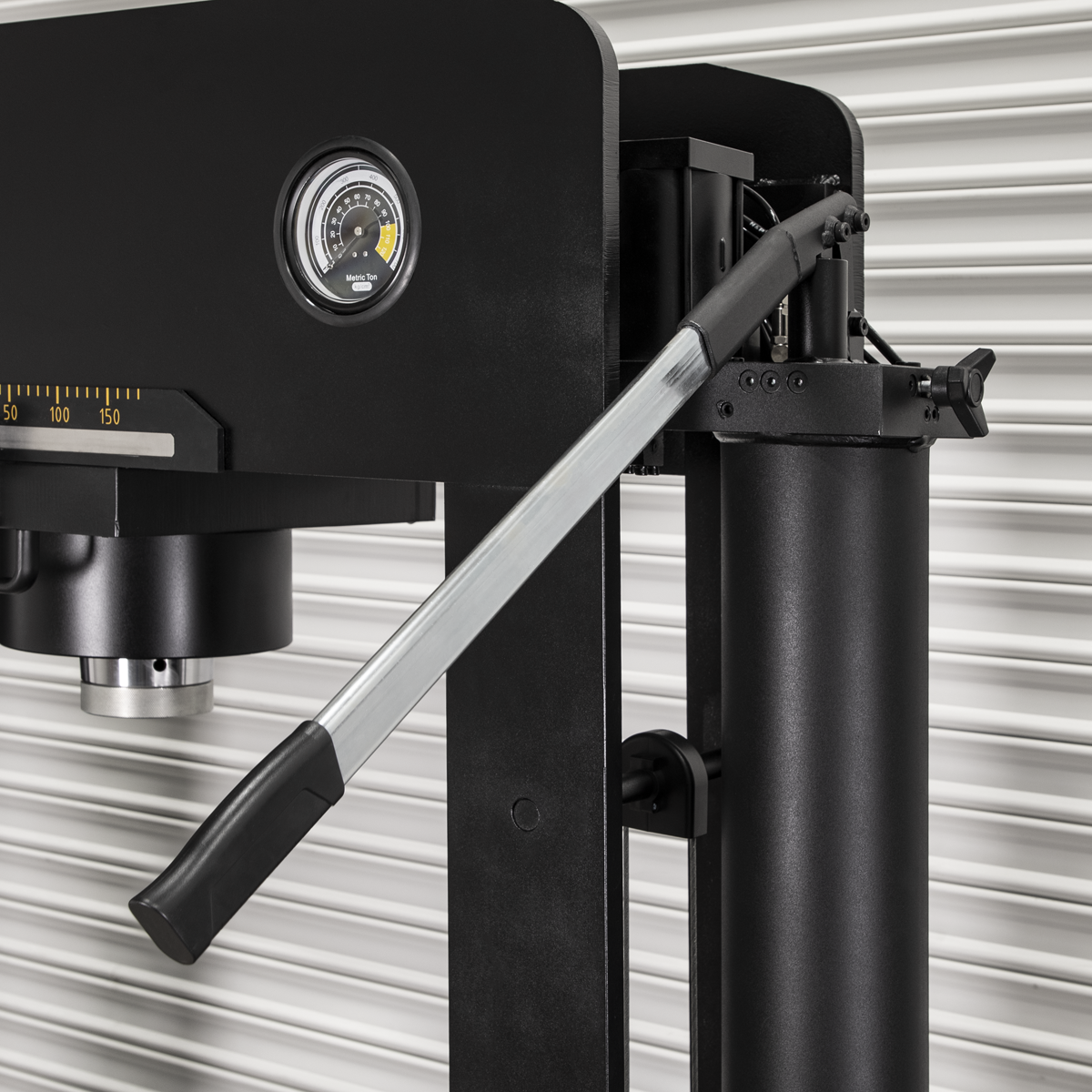

- Frame head fitted with ram pressure gauge.

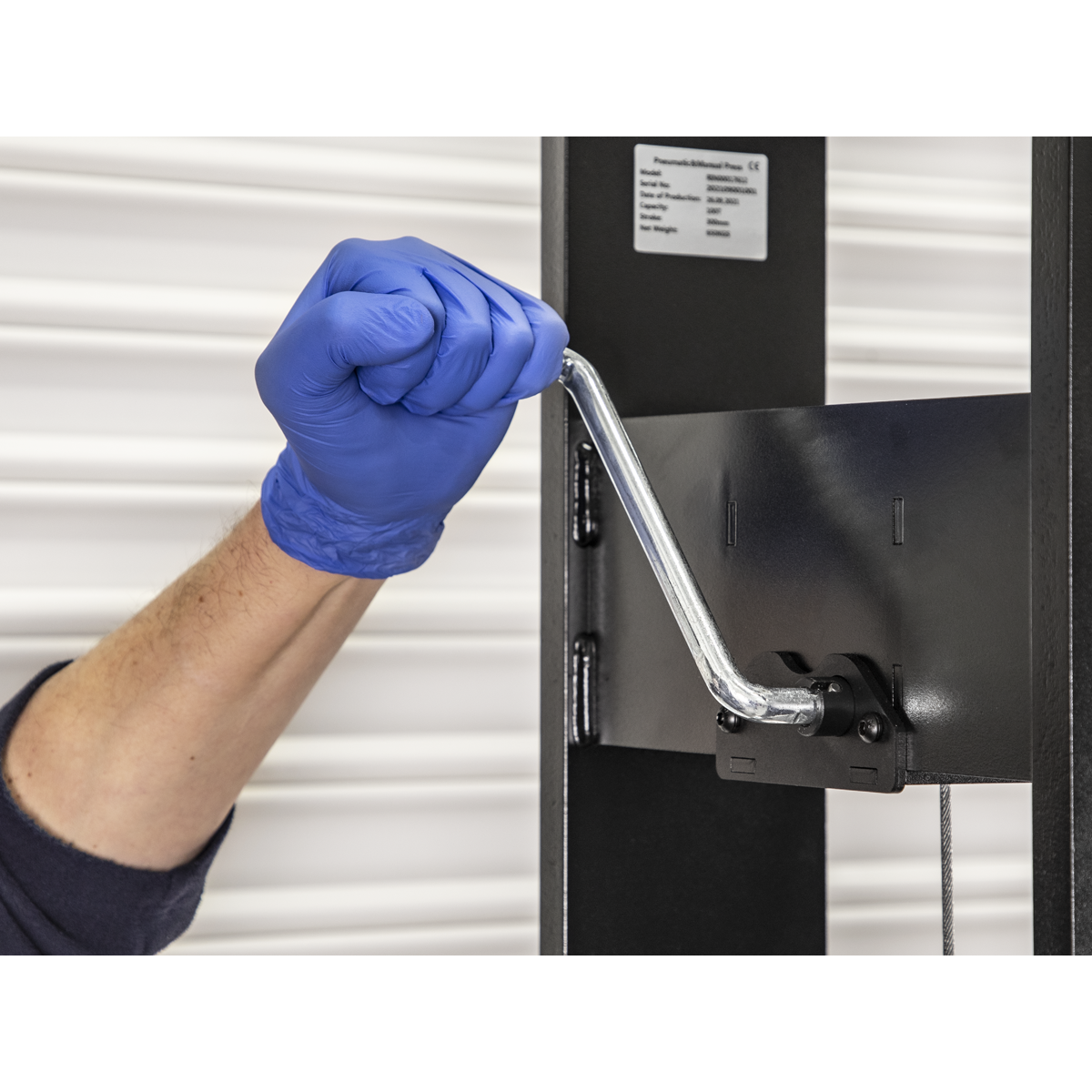

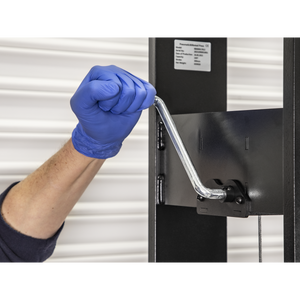

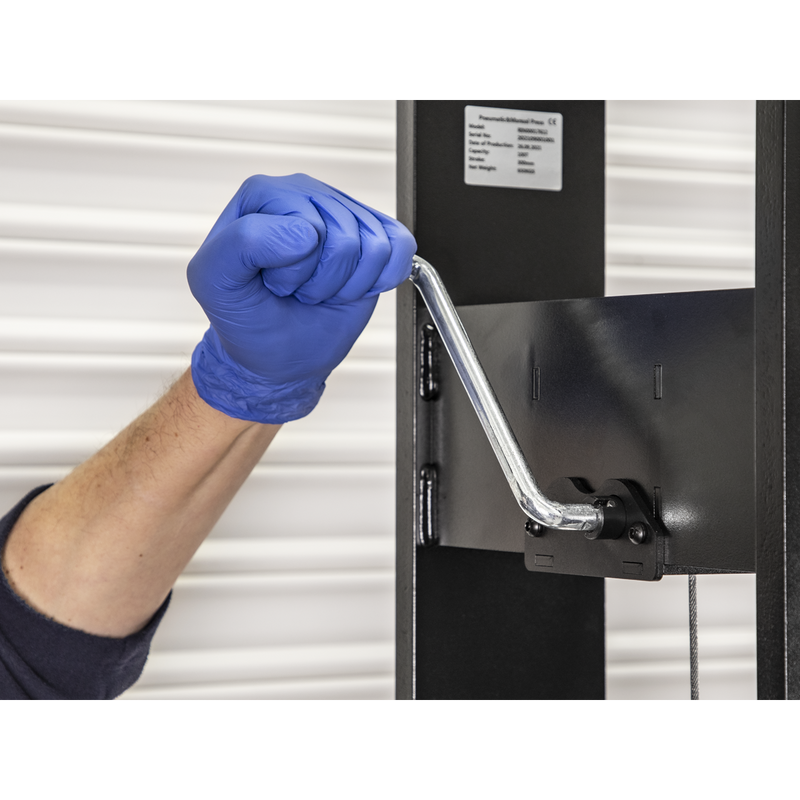

- Winch assisted press table adjustment.

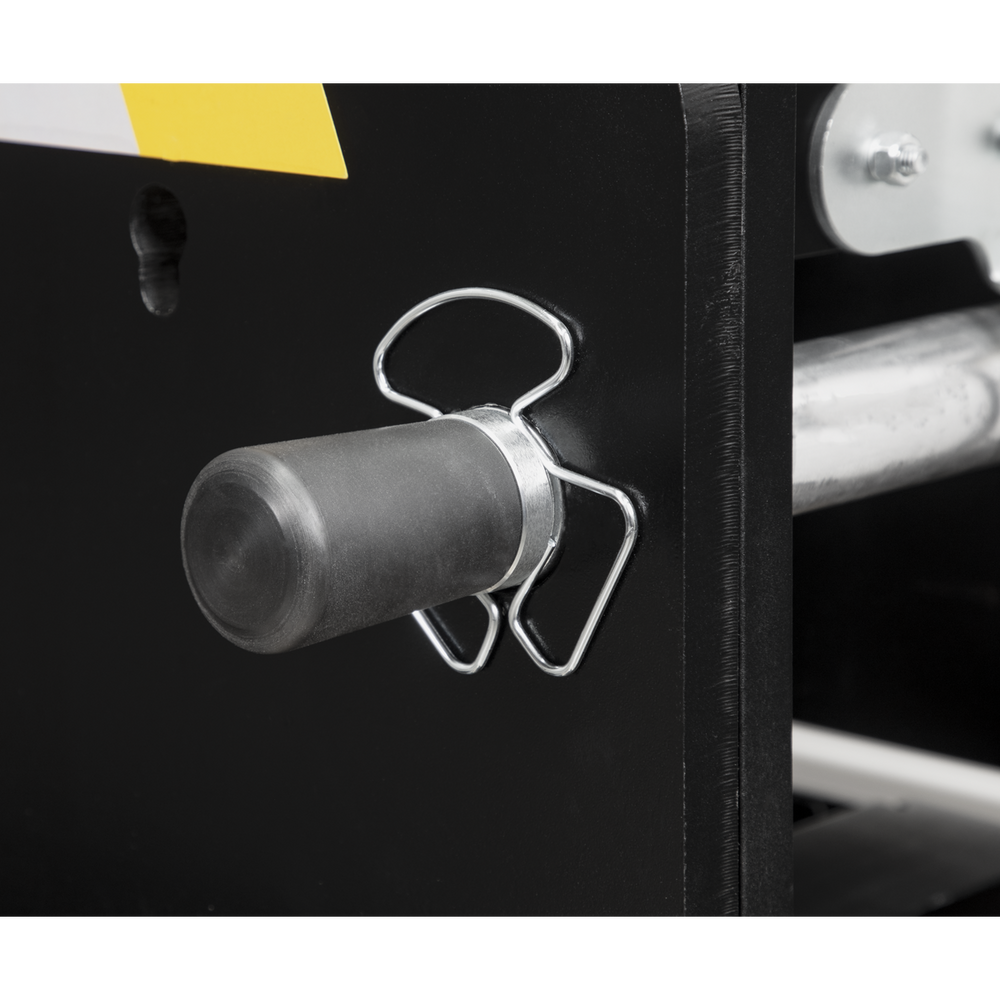

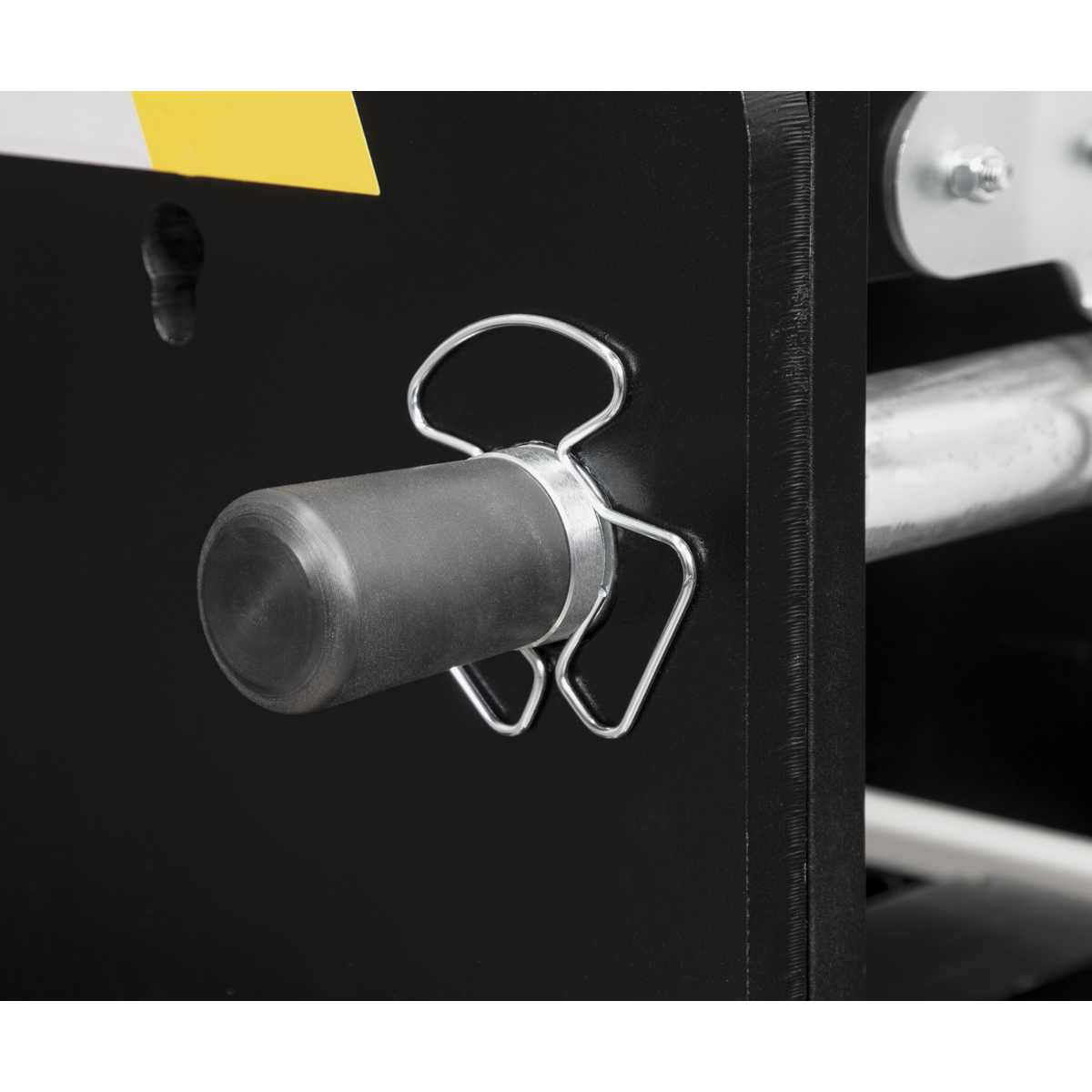

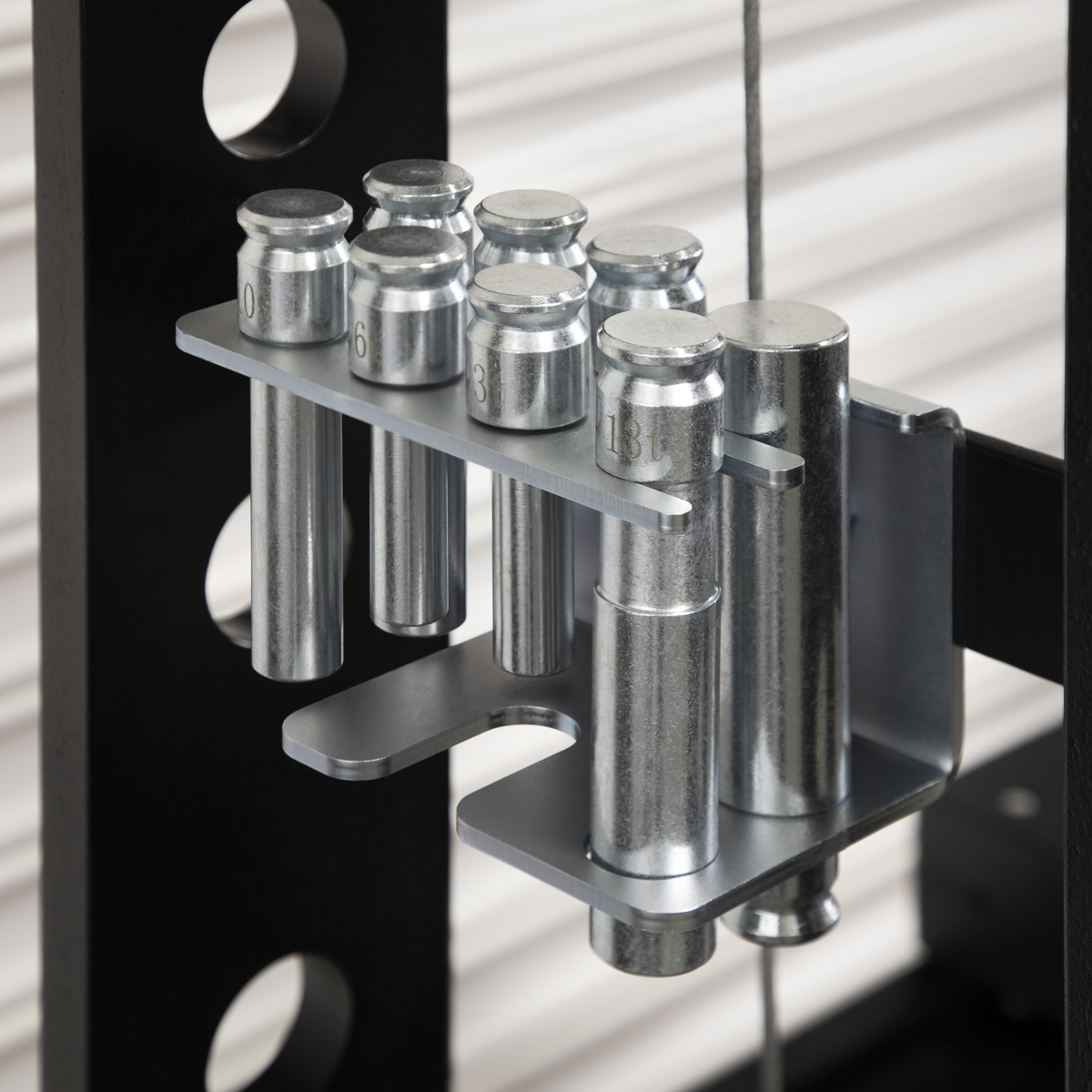

- Storage for press pins included in frame (pins not included).

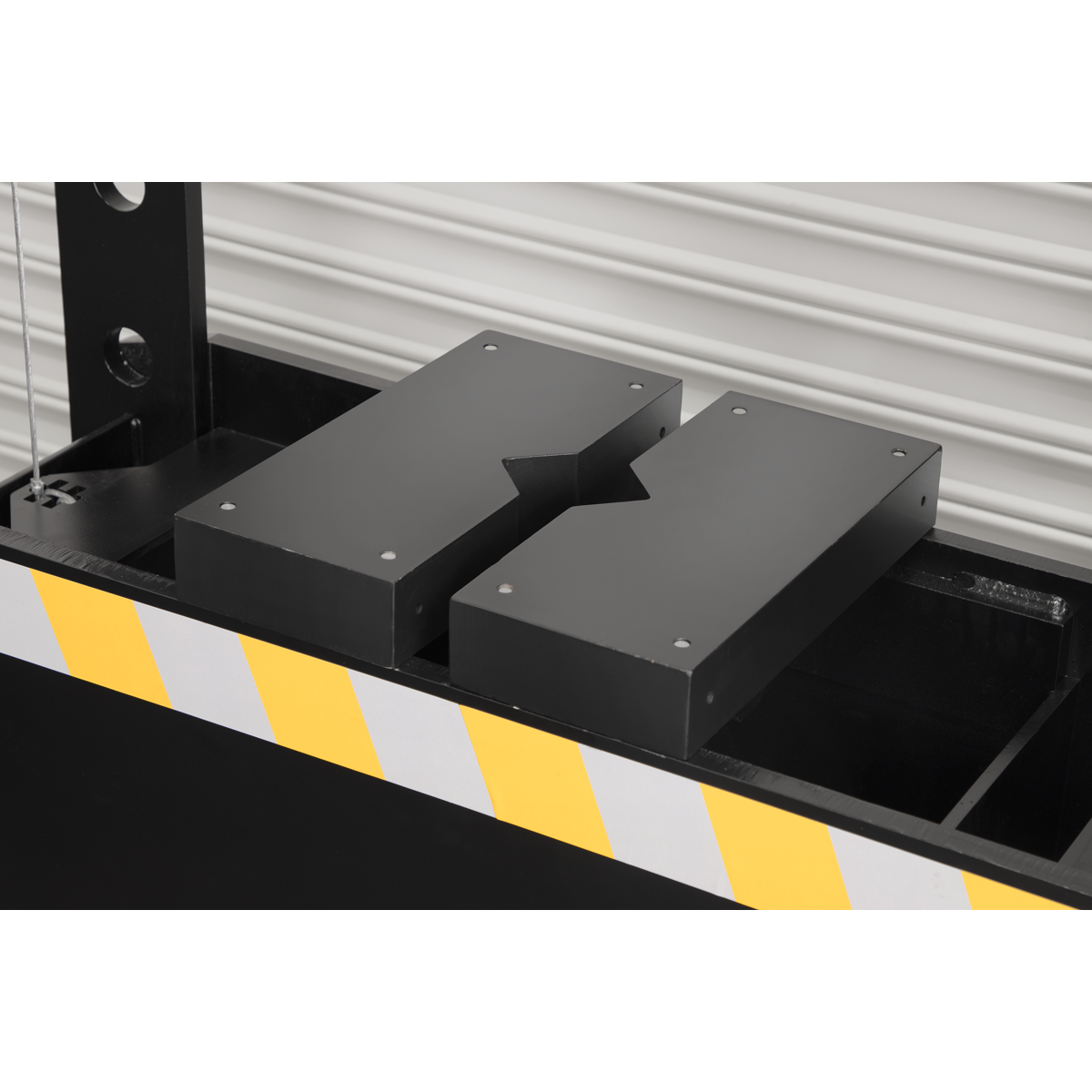

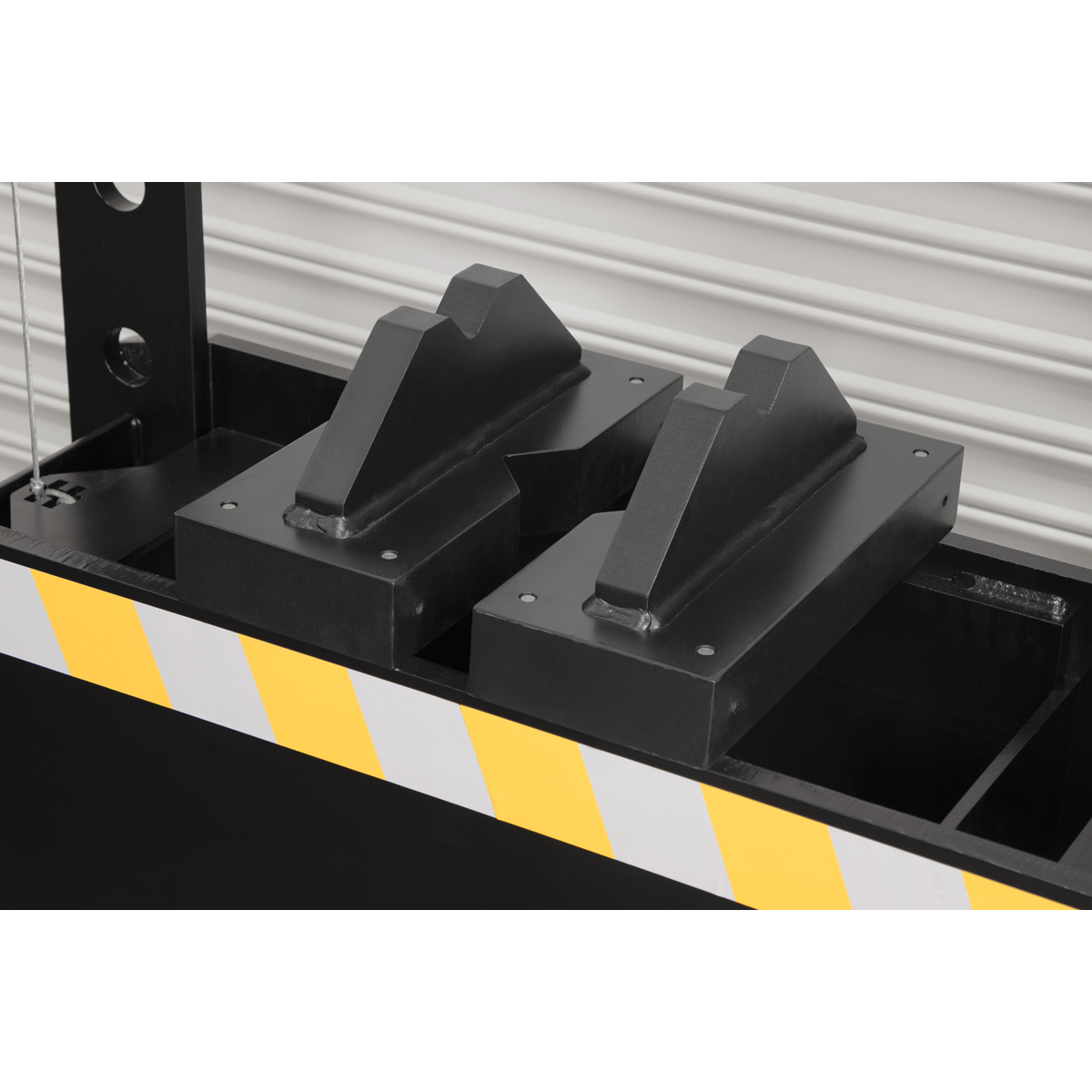

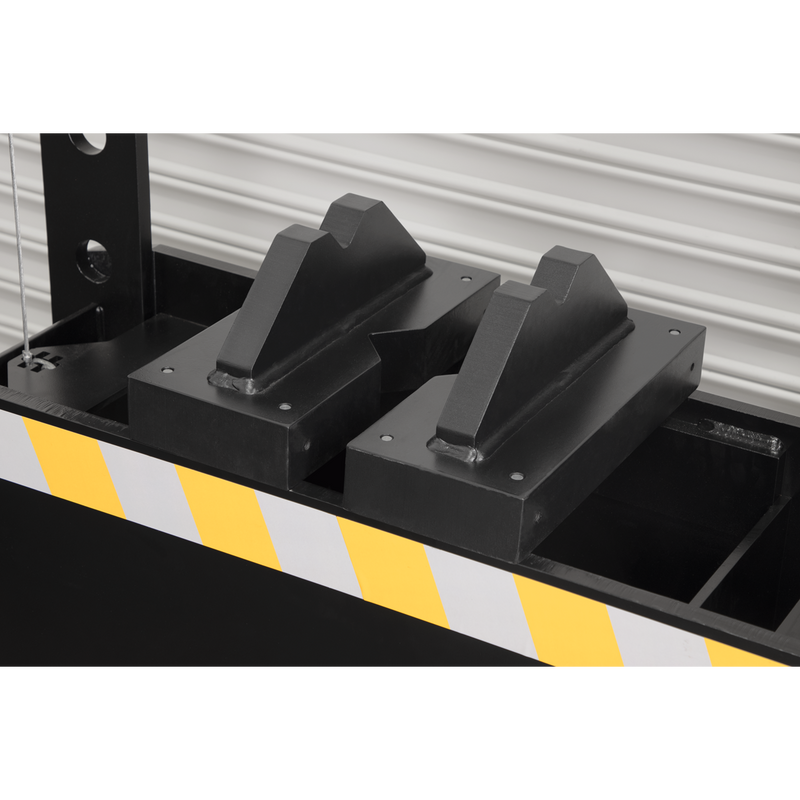

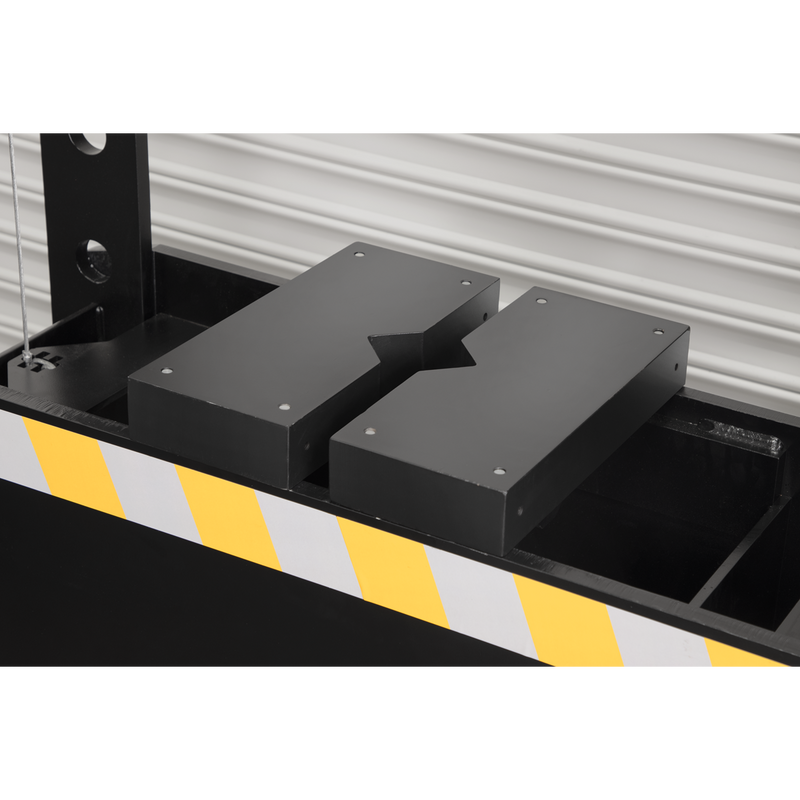

- Supplied with flat pressing plate/V-blocks.
- This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
- A forklift must be available at the delivery point to unload this item.
- 5 Year guarantee*.
Technical Specification
| Brand | Viking |
|---|---|
| Model No. | PPF100S |
| Barcode | 5054630135484 |
| Warranty | 5 years |
| Commodity Code | 8462619000 |
| Country of Origin | CHN |
| Pack Dimensions | H 1.91m — W 1.34m — D 0.57m |
| Gross Weight | 767kg |
| Air Consumption | 6.5cfm |
| Bench or Floor Mounting | Floor |
| Capacity | 100 Tonne |
| Gauge Included | Yes |
| Lateral Ram Travel | 360mm |

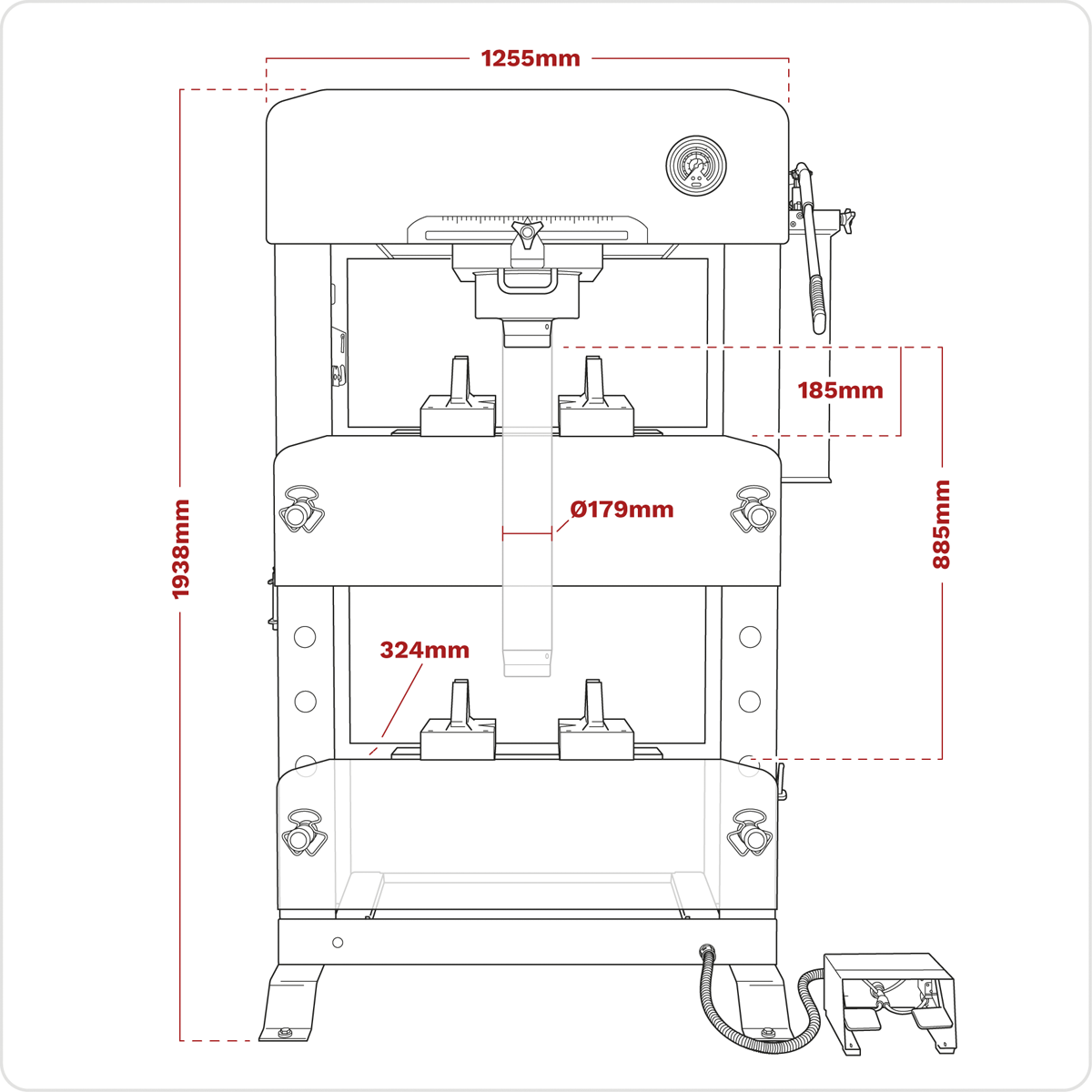

| Maximum Height - Ram to Table | 885mm |
| Minimum Height - Ram to Table | 185mm |
| Nett Weight | 682kg |
| Operating Table Width | 850mm |
| Overall Height | 1938mm |
| Ram Diameter | ˜179mm |
| Ram Stroke | 300mm |
| Screw Extension | n/a |
| Table Aperture | 324mm |
| Type | Air/Hydraulic |
| Working Table Depth | 364mm |
| Working Table Width | 1090mm |
