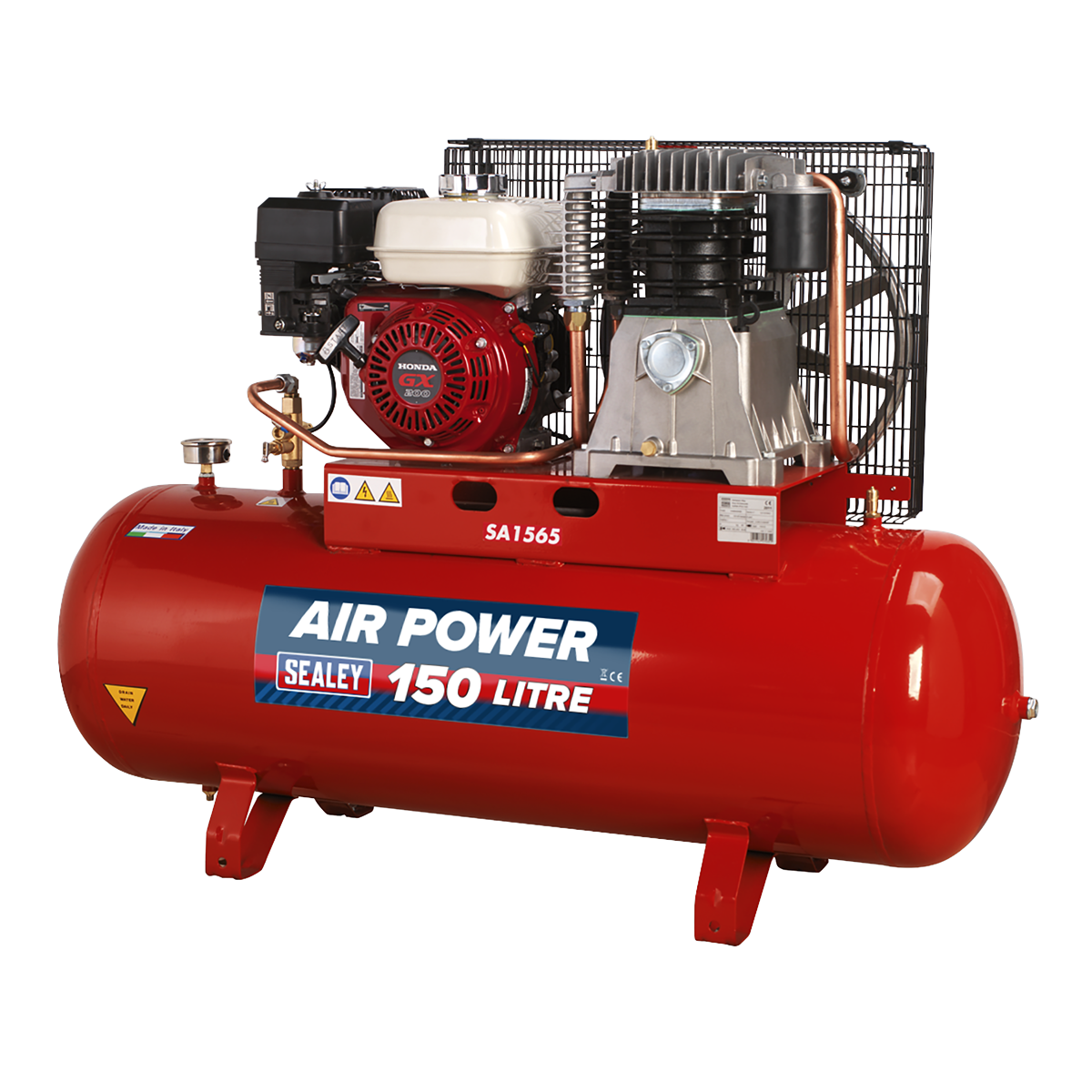

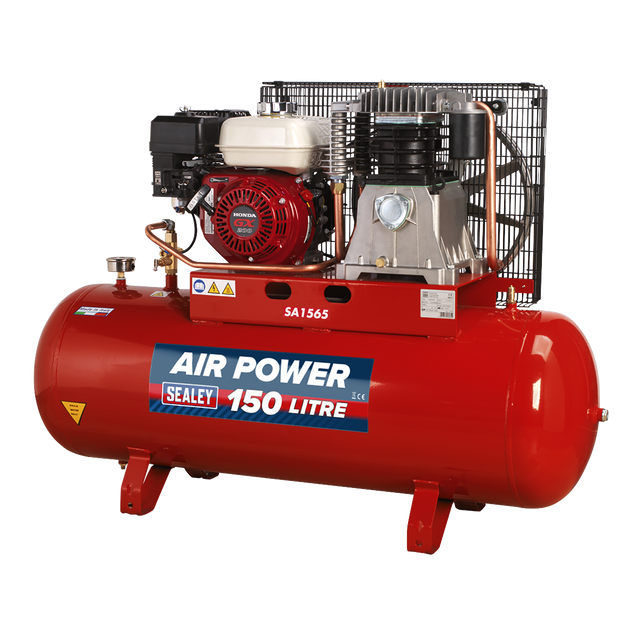

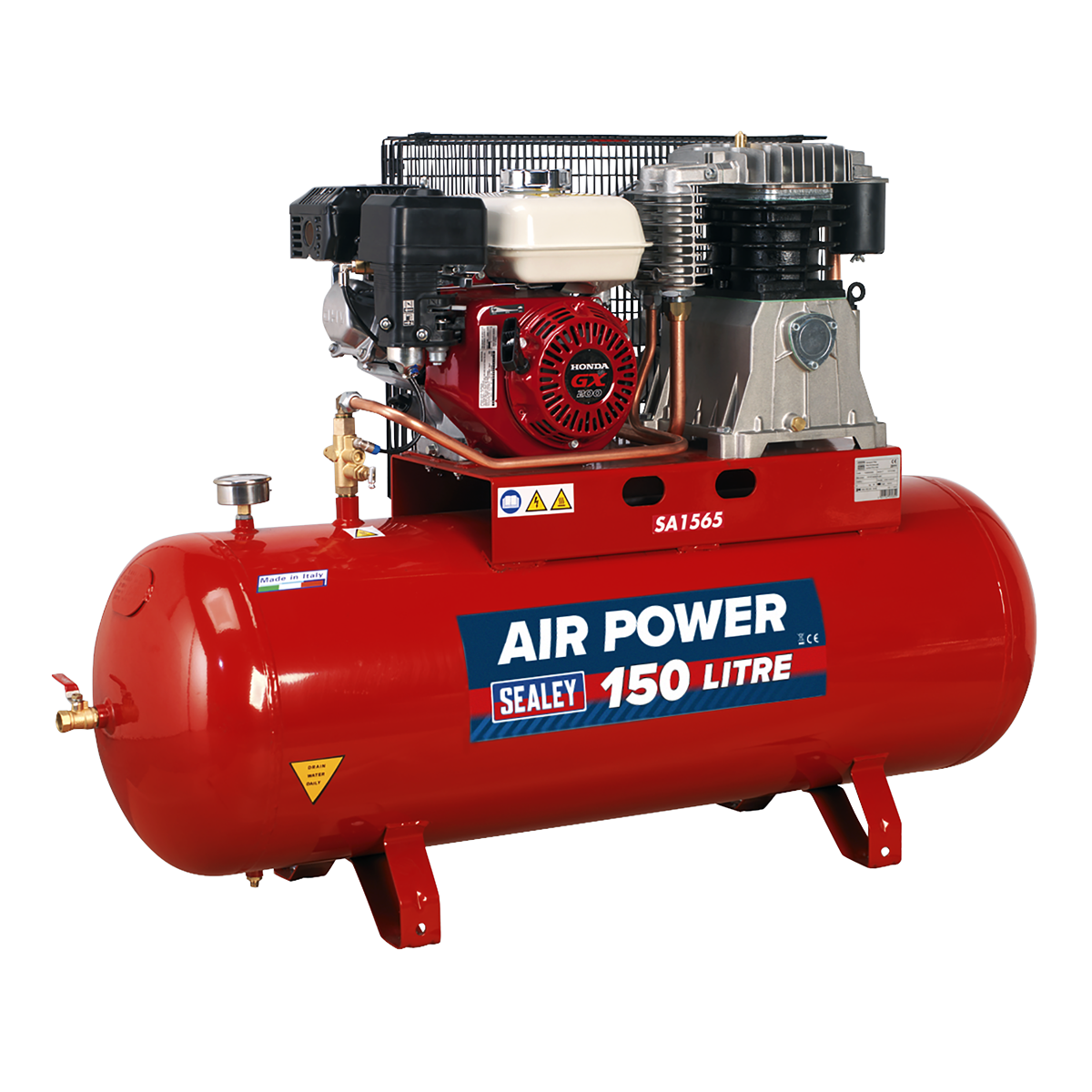

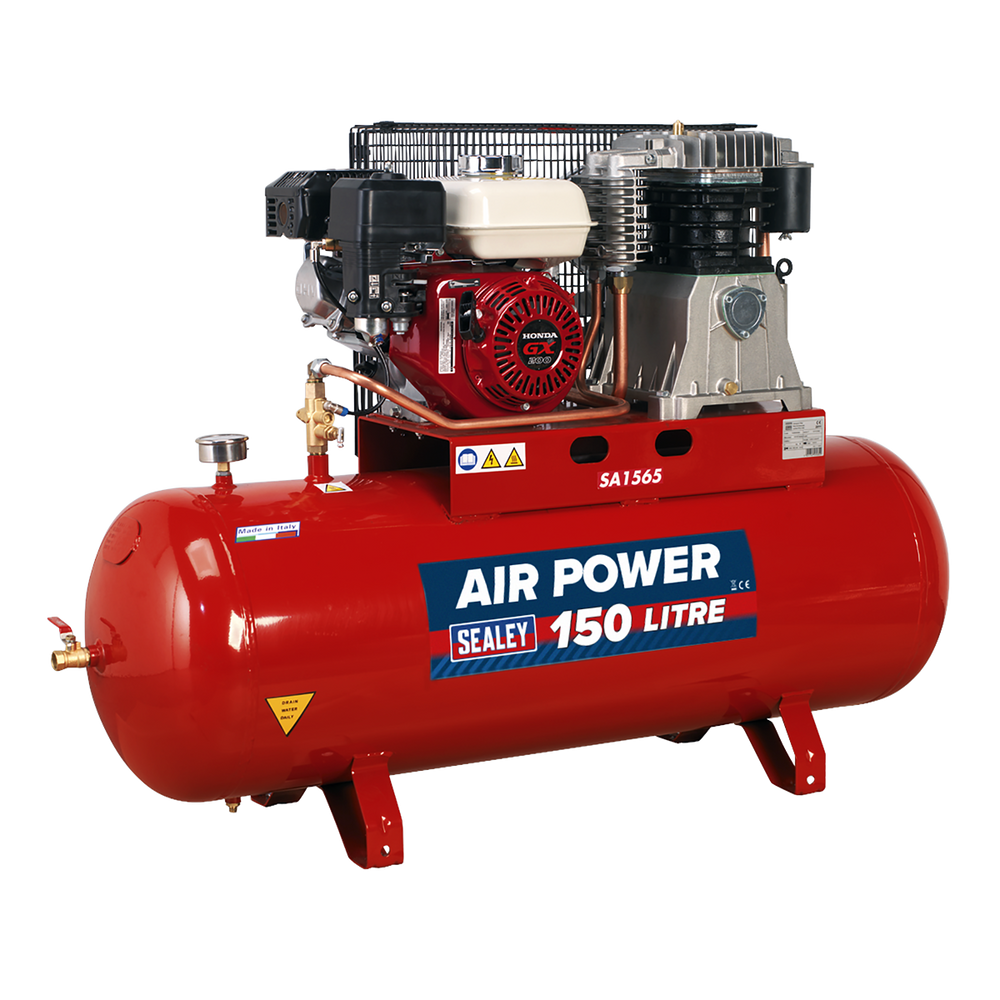

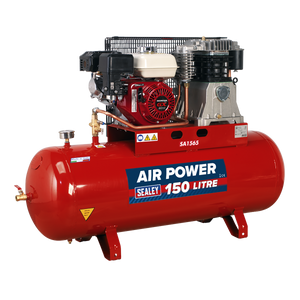

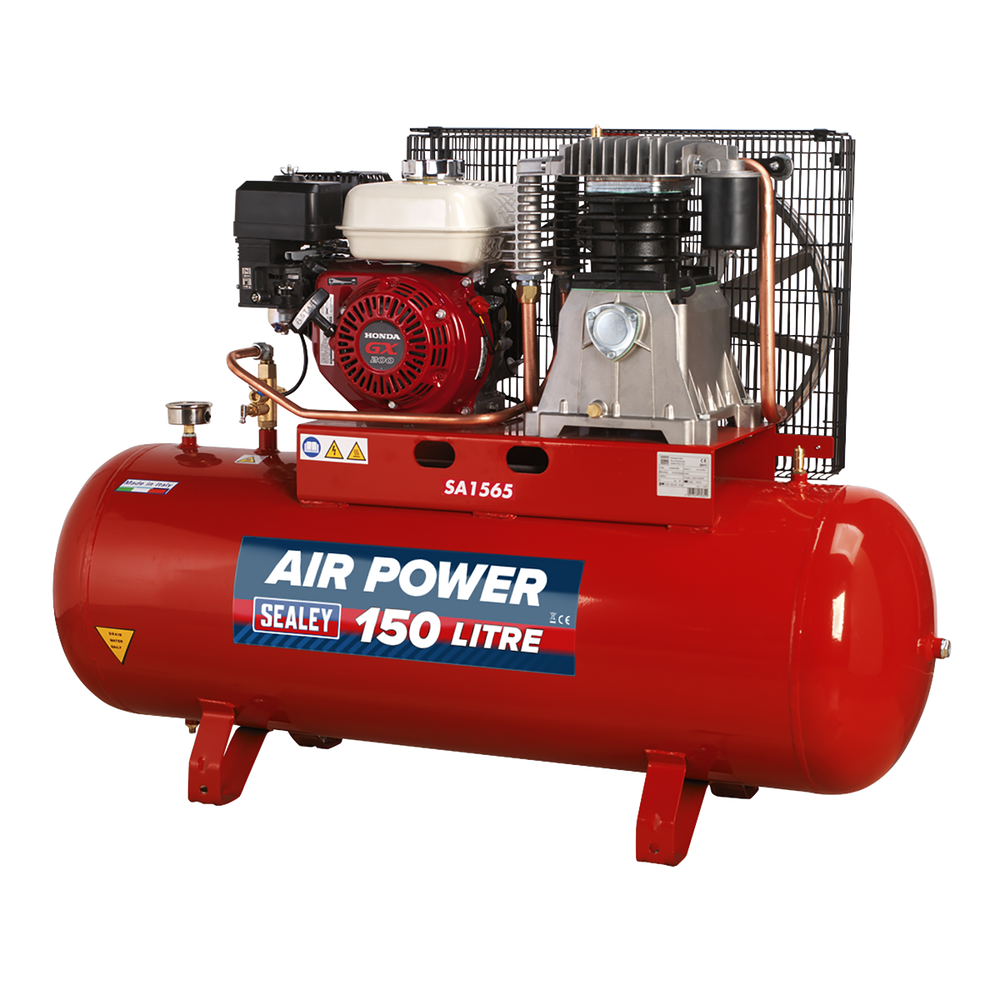

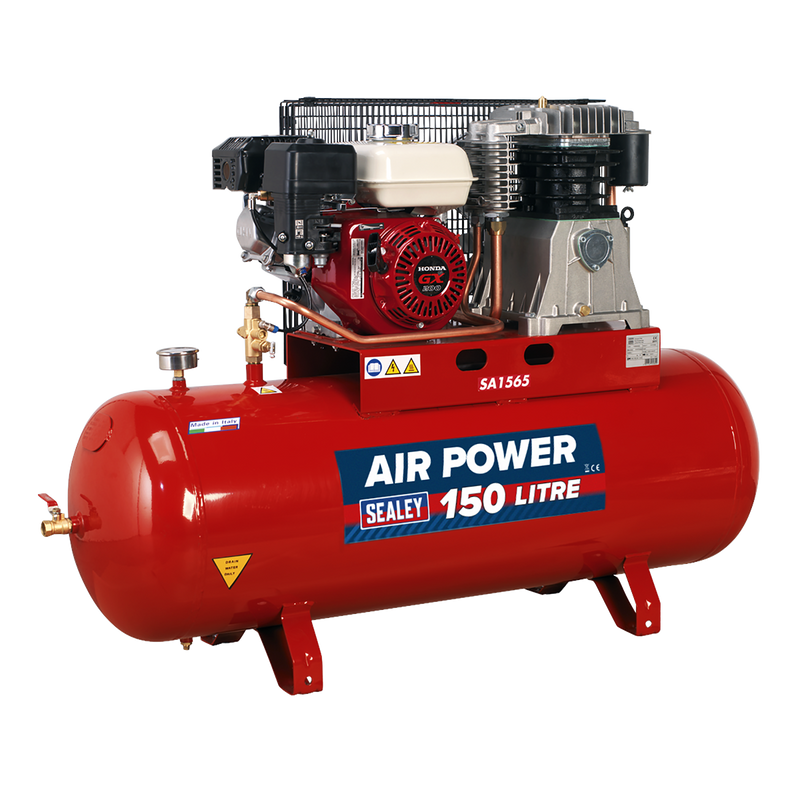

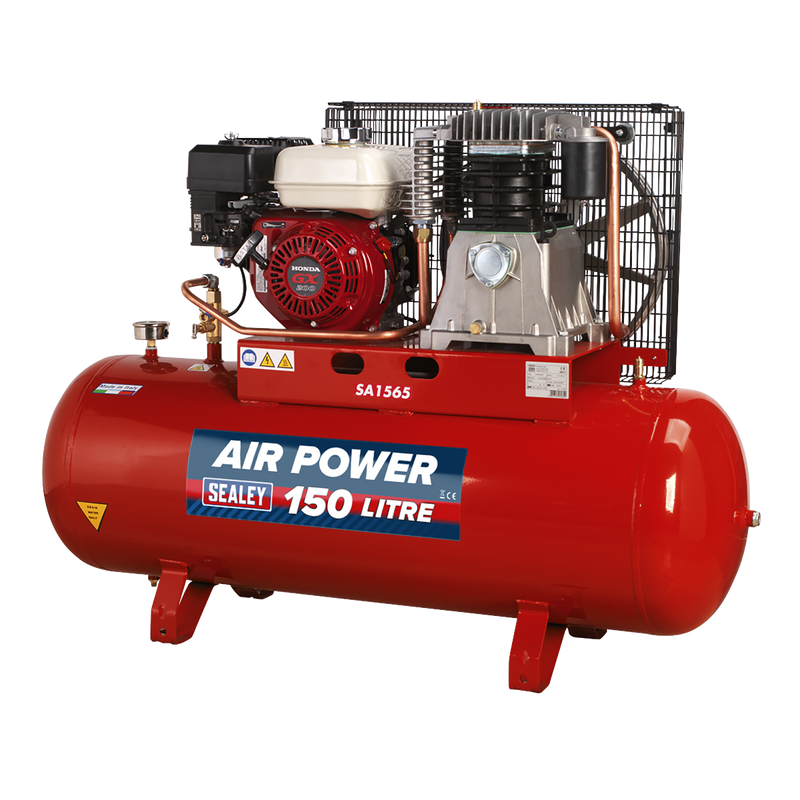

Sealey SA1565 150L Belt Drive Air Compressor with Petrol Engine 6.5hp
SKU SA1565 Barcode 5051747570351
Available to order from our supplier. Contact us to confirm quantities and lead times.
Pay in 3 interest-free with shopPay or PayPal
- Expert UK product support
- Authorised distributor
- 30 day returns
Delivery & returns
Despatch times vary by item. Check the product-specific lead time shown on this page. Supplier-shipped and larger items may take longer.
Delivery options and transit times are shown at checkout. Transit time starts after despatch and excludes weekends and bank holidays unless the selected service states otherwise. Tracking is provided when available.
30 day returns on unused items in original packaging.
Description
Description
Sealey SA1565 150L Belt Drive Air Compressor with Petrol Engine 6.5hp
Static compressor with Honda GX200 6.5hp power unit coupled to heavy-duty, 2-stage twin piston, cast iron pump. Pump has heavy-duty full cast cylinders, capped by alloy heads for improved heat dissipation and long-life. Heavy-duty drive guard protects belt and flywheel that is designed to also force air over the pump to aid cooling. Features twin gauges and air outlet regulator. Runs on unleaded fuel.
Features and Benefits
- Air Displacement: 20.9cfm(591L/min).
- Maximum Free Air Delivery: 15.2cfm(430L/min).
- Maximum Pressure: 145psi(10bar).
- Static compressor with Honda GX200 6.5hp unit coupled to heavy-duty, 2-stage twin piston, cast iron pump.
- Pump has heavy-duty full cast cylinders, capped by alloy heads for improved heat dissipation and long-life.
- Heavy-duty drive guard protects belt and flywheel that is designed to also force air over the pump to aid cooling.
- Supplied with full CE certification, test certificates and operating/maintenance manual.
- Features gauge and air outlet.
- Runs on unleaded fuel.
- This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
Technical Specification
| Brand | Sealey |
|---|---|
| Model No. | SA1565 |
| Barcode | 5051747570351 |
| Warranty | 1 year |
| Commodity Code | 8414802290 |
| Country of Origin | ITA |
| Pack Dimensions | H 1.13m — W 1.56m — D 0.49m |
| Gross Weight | 110kg |
| Air Displacement cfm(L/min) | 20.9(591) |
| Maximum Free Air Delivery cfm(L/min) | 15.2(430) |
| Maximum Pressure | 145psi(10bar) |
| Motor Output | 6.5hp |
| Motor Type | Honda GX200 Petrol |
| Nett Weight | 103kg |
| Noise Level | 97dB(A) |
| Oil Capacity | 1.2L |
| Outlet | 1/2"BSP Female Tap |
| Receiver Capacity | 150L |

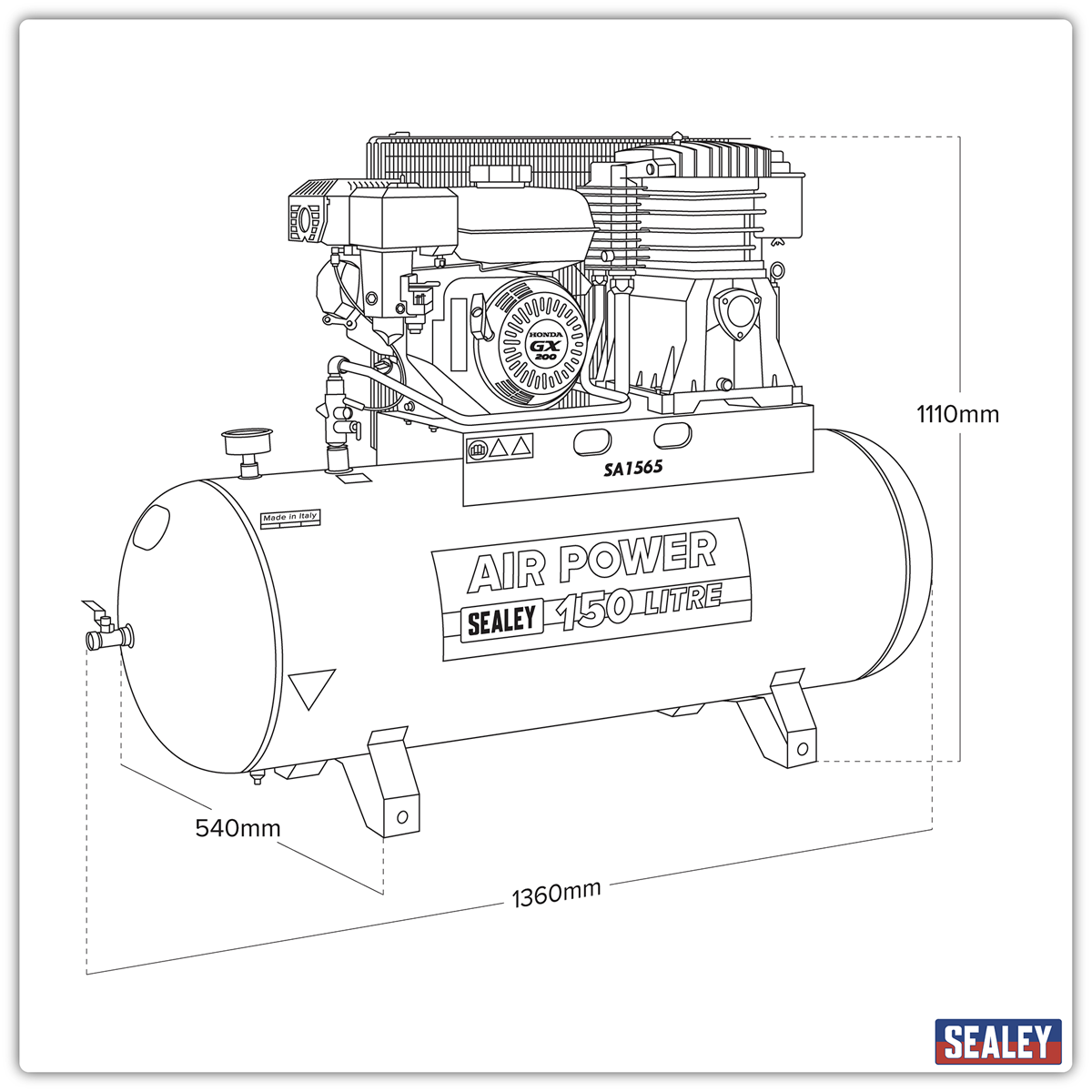

| Size (W x D x H) | 1360 x 540 x 1110mm |
