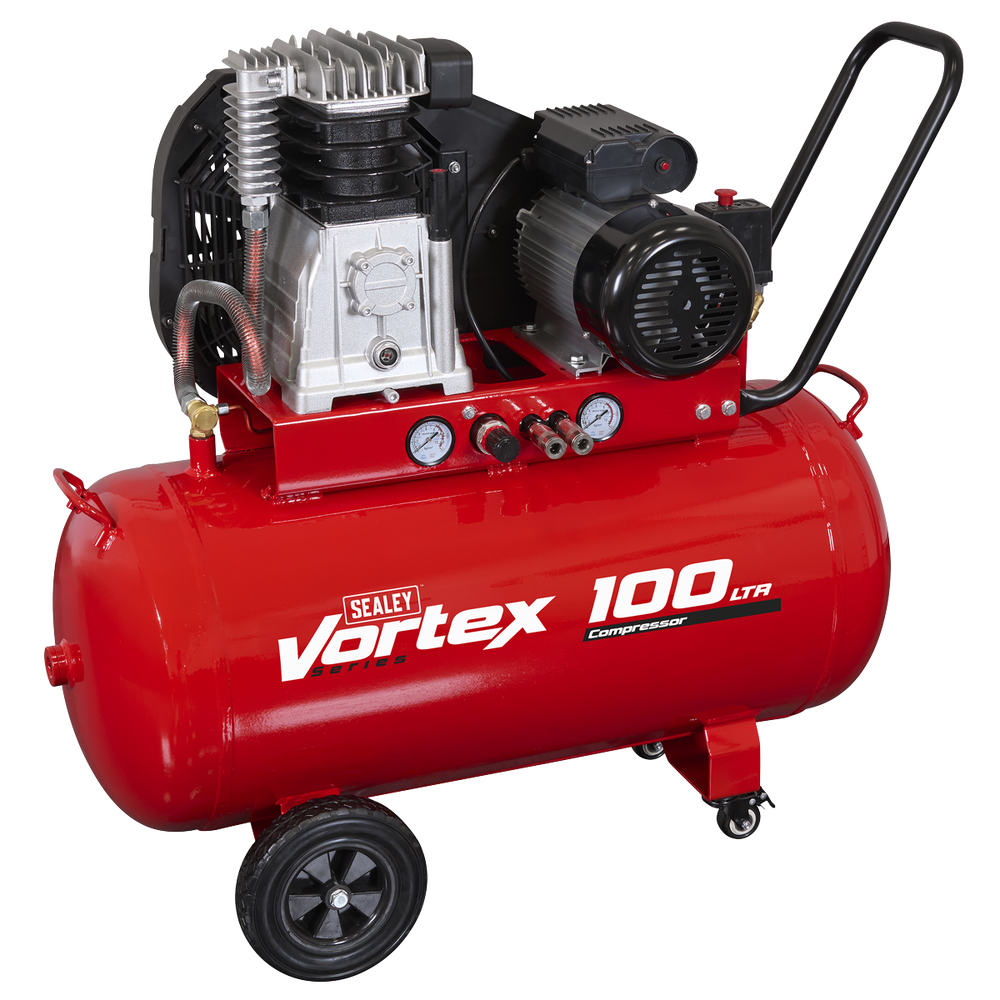

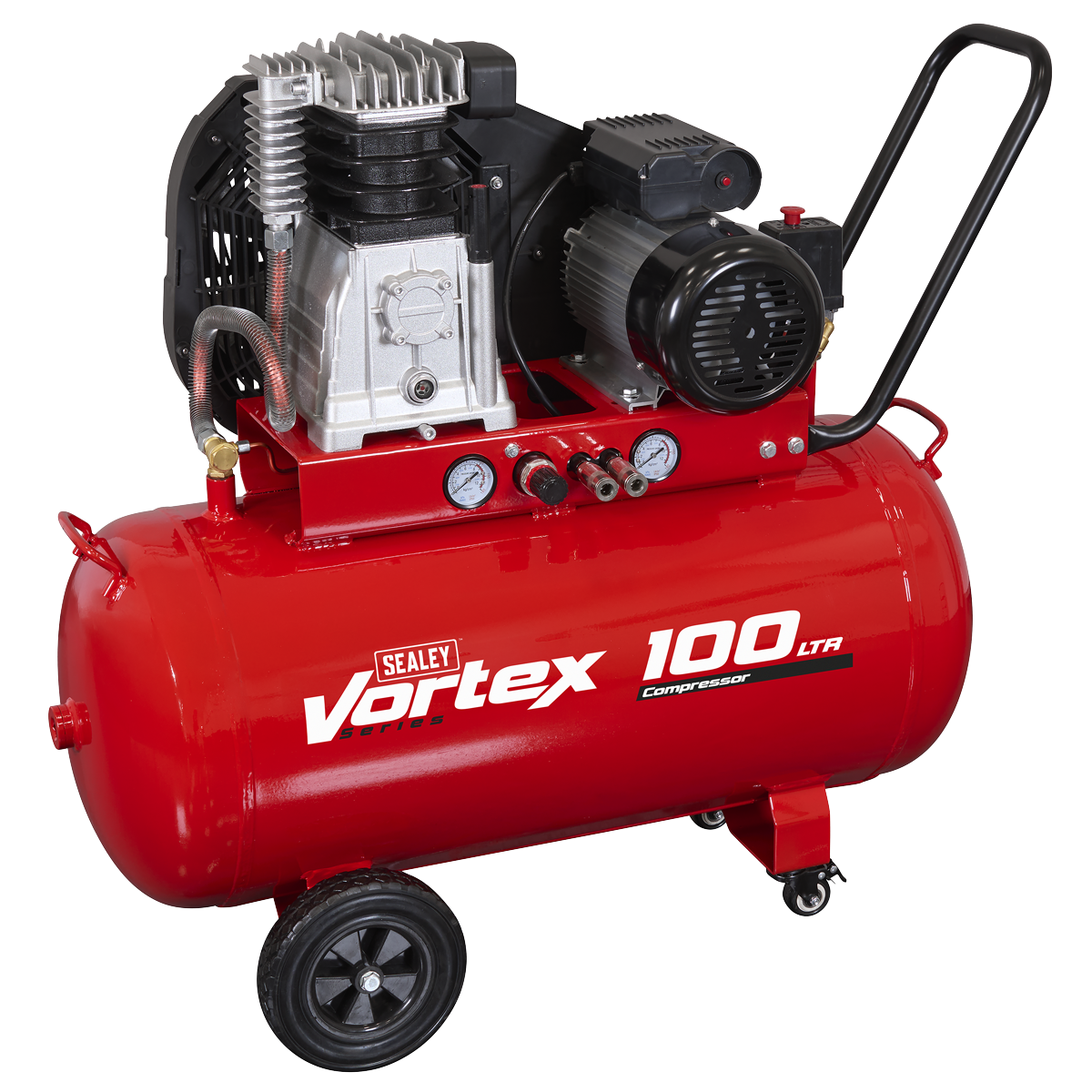

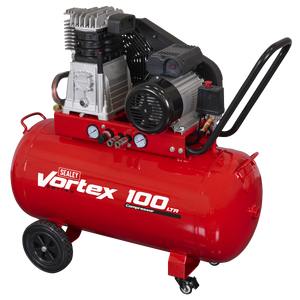

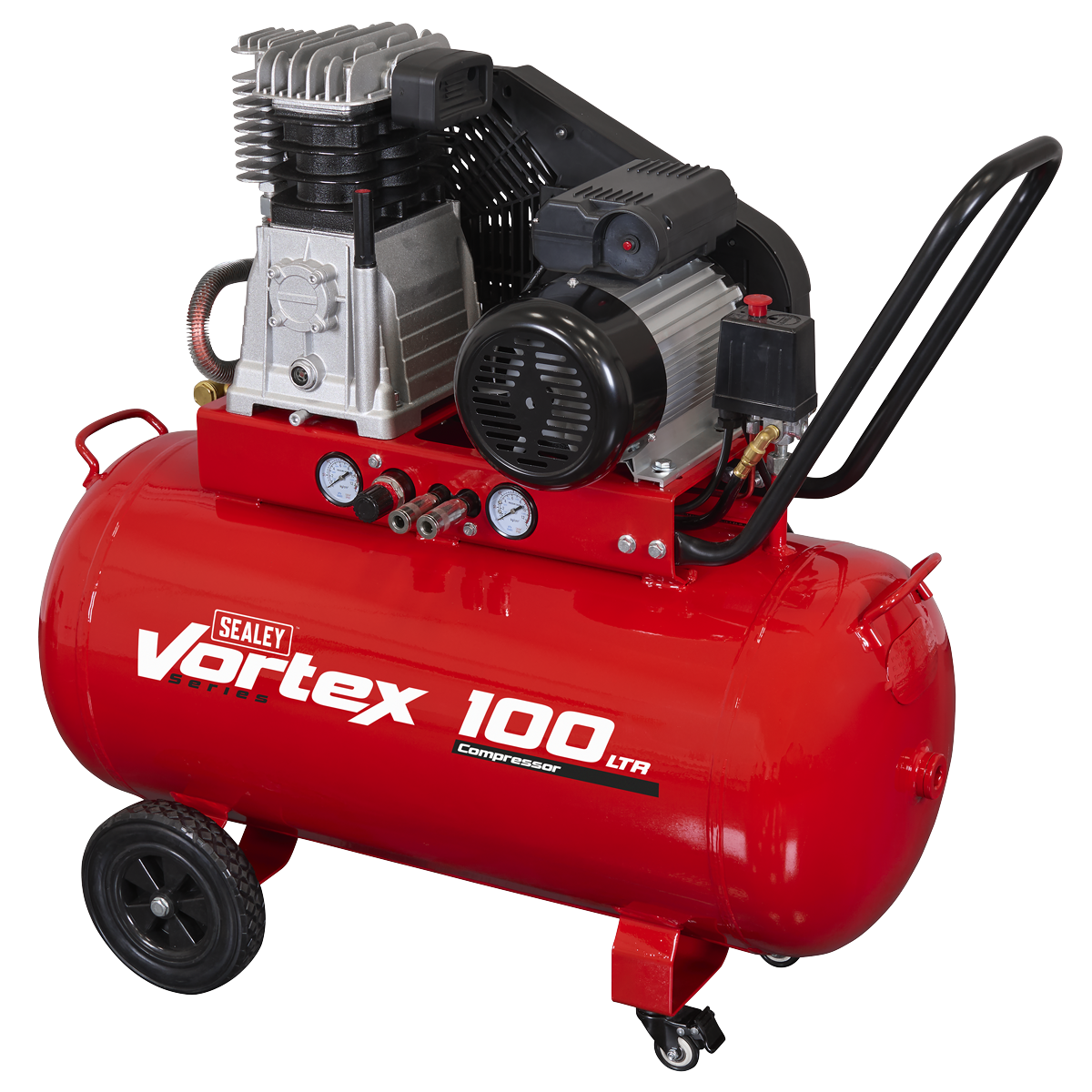

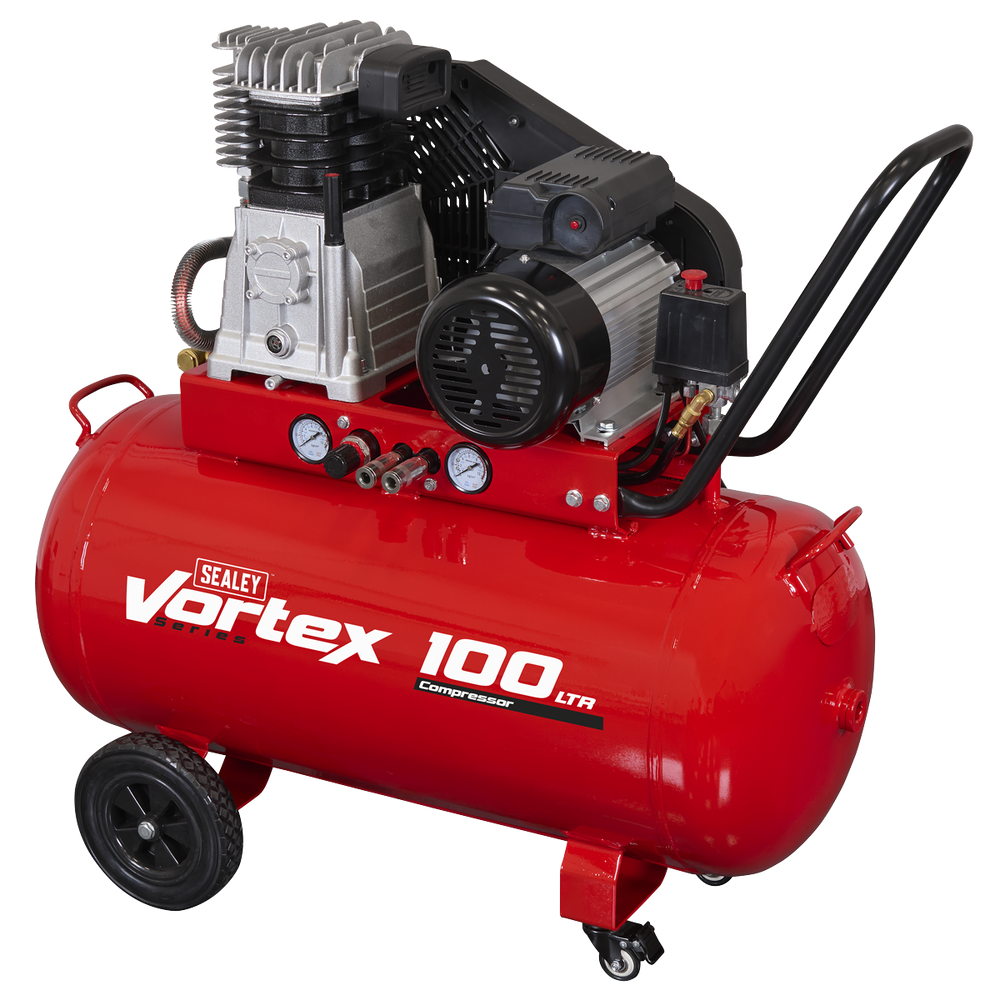

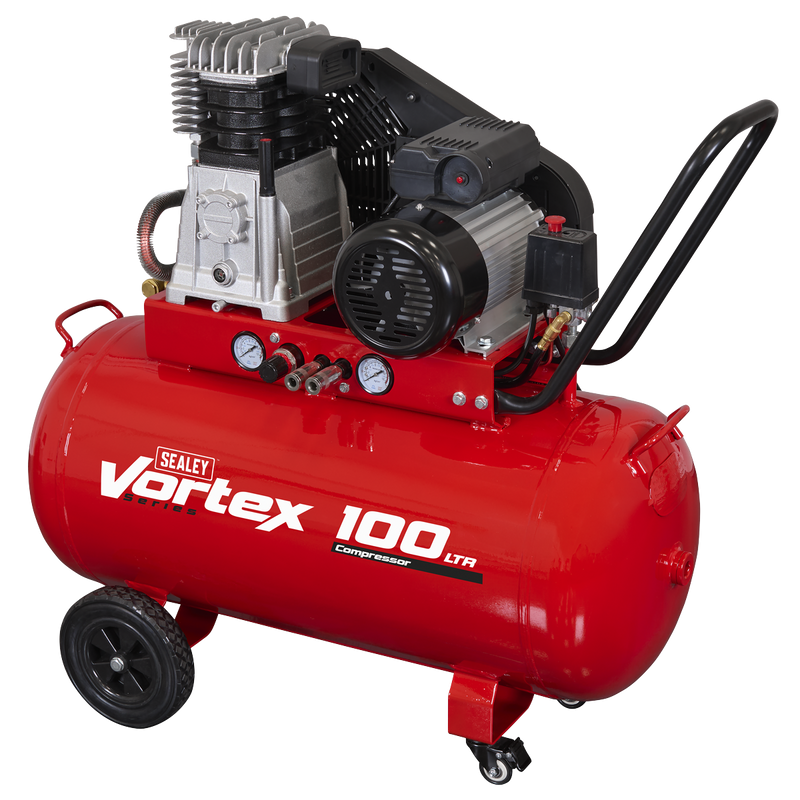

Sealey SAC1103B 100L Belt Drive Air Compressor with Cast Cylinders & Wheels 3.5hp
SKU SAC1103B Barcode 5054630497452
Pay in 3 interest-free with shopPay or PayPal
- Expert UK product support
- Authorised Sealey Tools UK distributor
- 30 day returns
Delivery & returns
Order by 4pm for next-working-day delivery on items marked Next day. Free UK delivery on orders over £75 inc VAT. Larger items may ship on a pallet — we confirm by email.
30 day returns on unused items in original packaging.
Description
Description
Sealey SAC1103B 100L Belt Drive Air Compressor with Cast Cylinders & Wheels 3.5hp
Suitable for the professional workshop, this unit is fitted with a genuine 3.5hp motor. Twin capacitors and a centrifugal switch aid trouble-free start-up on a 13A supply. Pumps feature heavy-duty full cast cylinders, capped by alloy heads for improved heat dissipation and long-life. Heavy-duty drive guards protect belt and flywheel that is designed to force air over the pump to aid cooling. Equipped with rear wheels and two castors at the front, along with a sturdy front handle, for effortless movement and positioning in the workshop.
Features and Benefits
- PROFESSIONAL - Suitable for the professional workshop, this unit is fitted with a genuine 3.5hp motor.
- EASY START - Twin capacitors and a centrifugal switch aid trouble-free start-up.
- HEAVY-DUTY FULL CAST CYLINDERS WITH ALLOY HEADS - For improved heat dissipation and long-life.
- HEAVY-DUTY DRIVE GUARDS - Protect belt and flywheel, that is designed to force air over the pump to aid cooling.
- MANOEUVRABILITY - Equipped with rear wheels and two castors at the front, along with a sturdy front handle, for effortless movement and positioning in the workshop.
Technical Specification
| Brand | Sealey |
|---|---|
| Model No. | SAC1103B |
| Barcode | 5054630497452 |
| Warranty | 1 year |
| Commodity Code | 8414802290 |
| Country of Origin | CHN |
| Pack Dimensions | H 1m — W 0.99m — D 0.44m |
| Gross Weight | 90kg |
| Air Displacement cfm(L/min) | 15cfm(425L/min) |
| Maximum Free Air Delivery cfm(L/min) | 10.59cfm(300L/min) |
| Maximum Pressure | 116psi(8bar) |
| Minimum Rated Supply | 13A |
| Motor Output | 3.5hp |
| Nett Weight | 74kg |
| Noise Level | 90dB |
| Oil Capacity | 1000ml |
| Outlet | Quick release coupling |
| Phase | 1ph |
| Receiver Capacity | 100L |

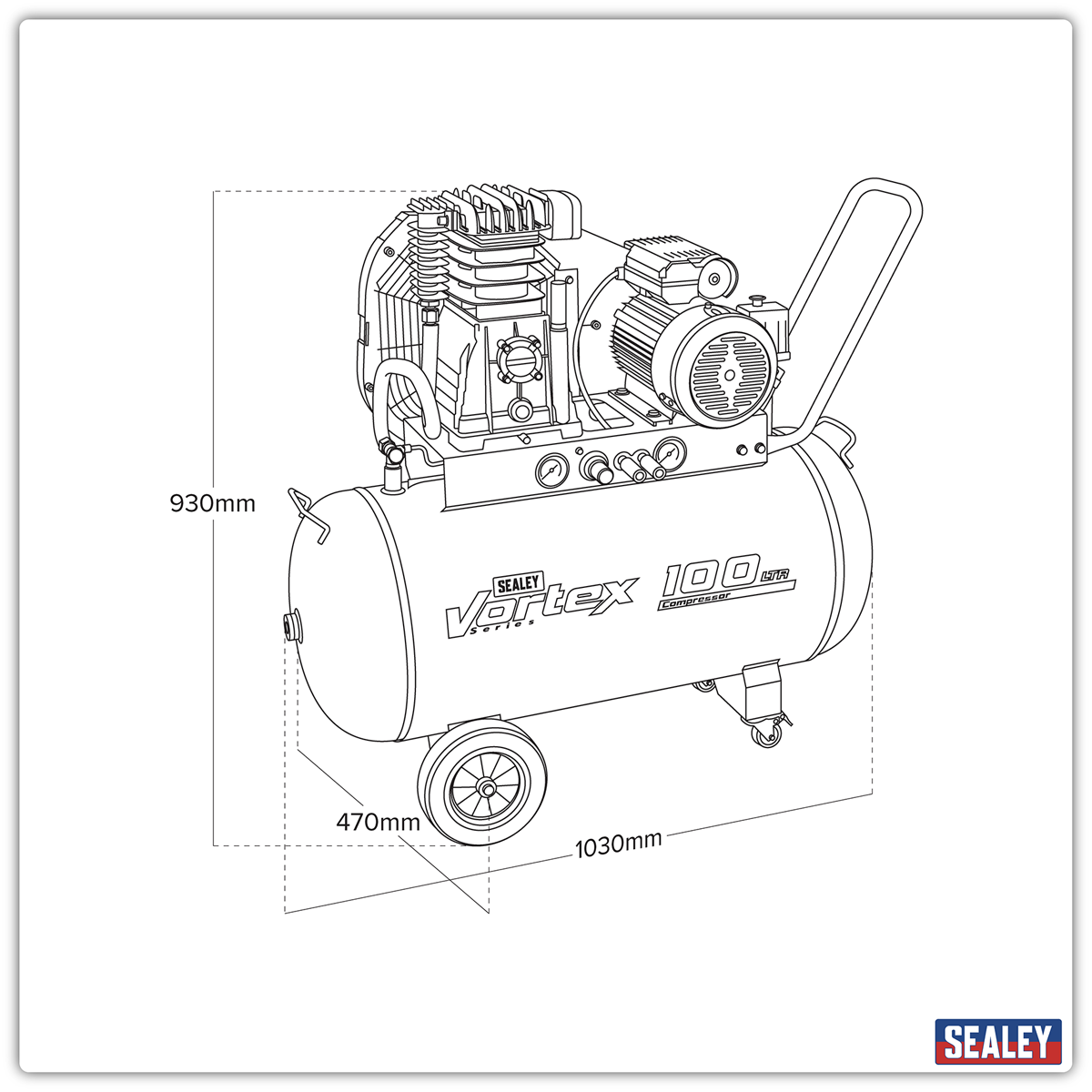

| Size (W x D x H) | 1030 x 470 x 930mm |
| Speed | 1100rpm |
| Supply | 230V/13A |
