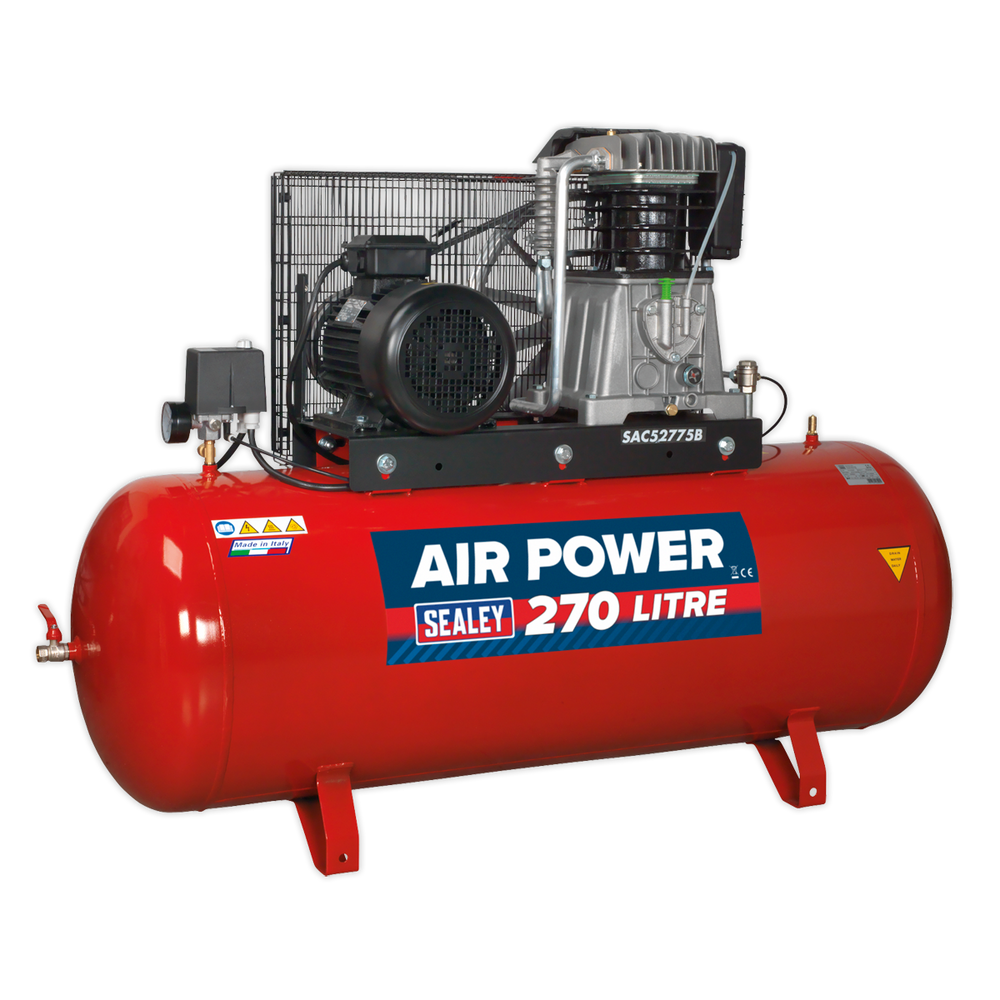

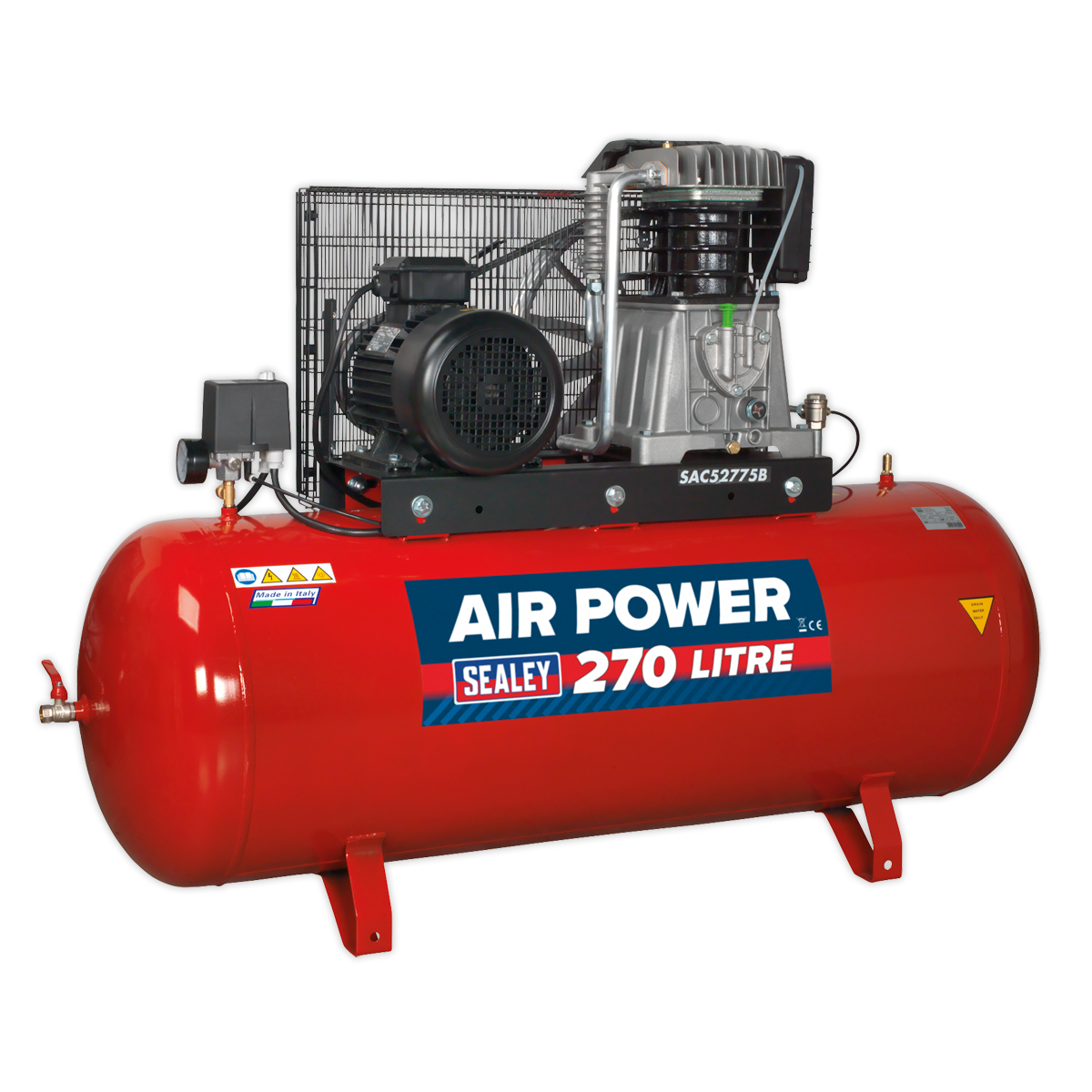

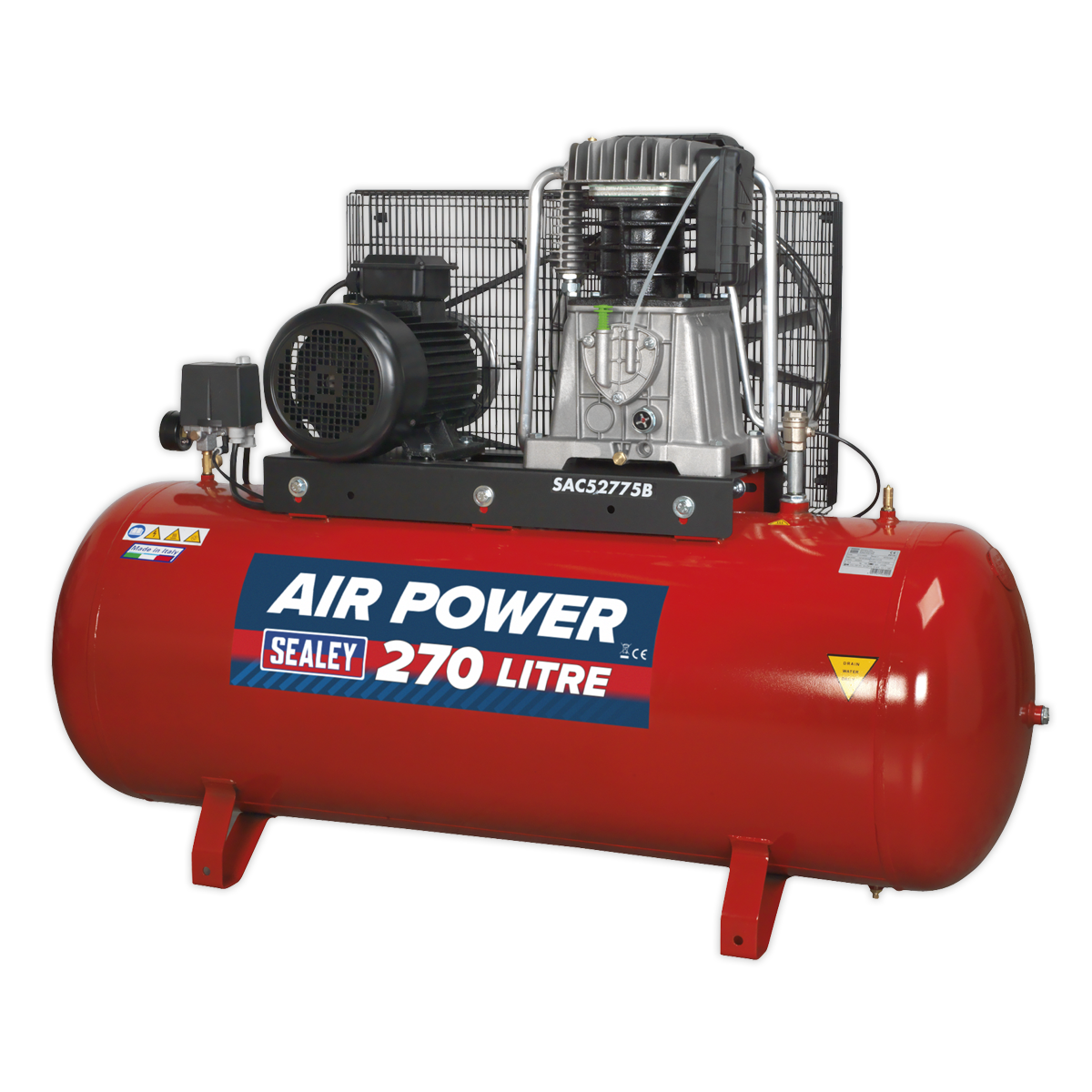

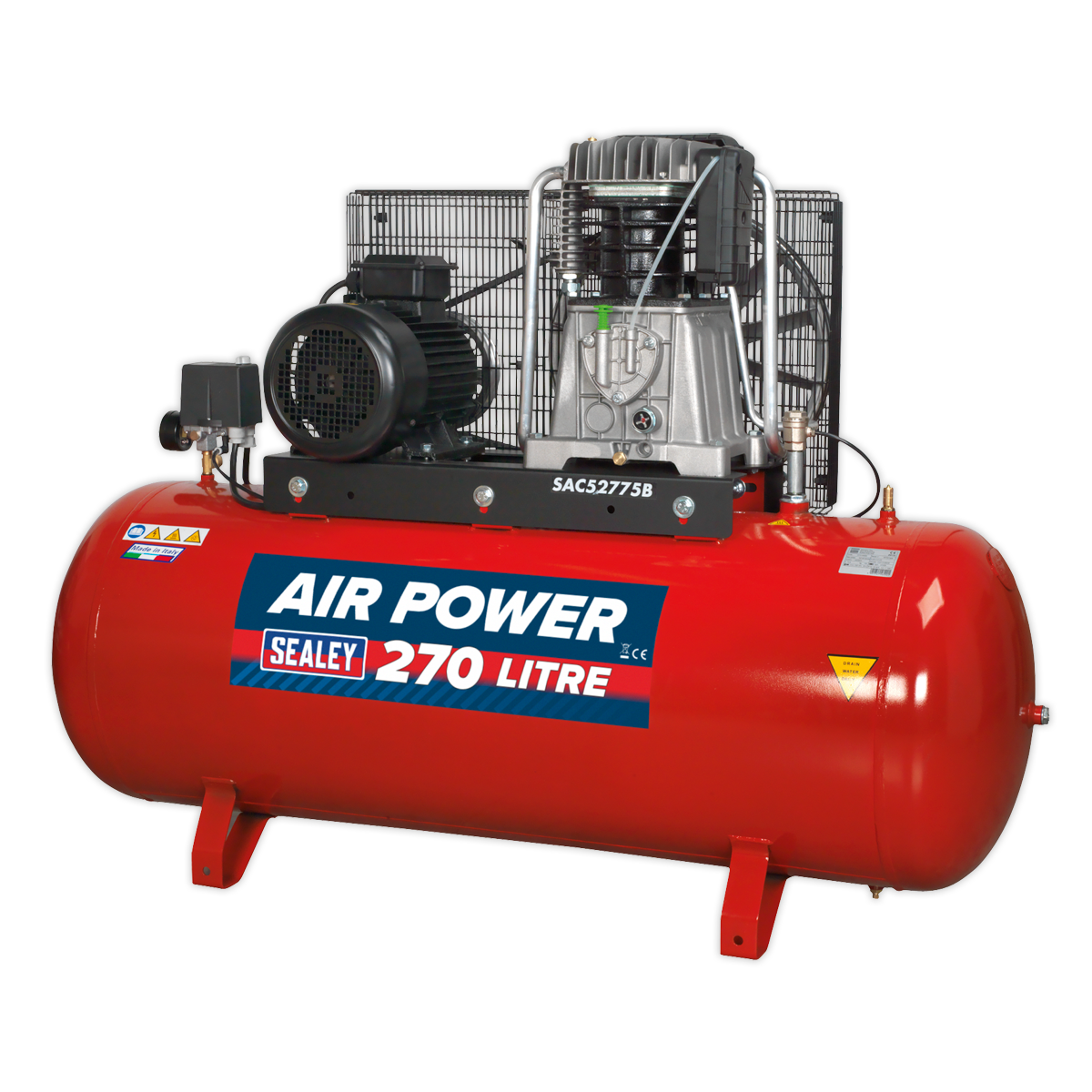

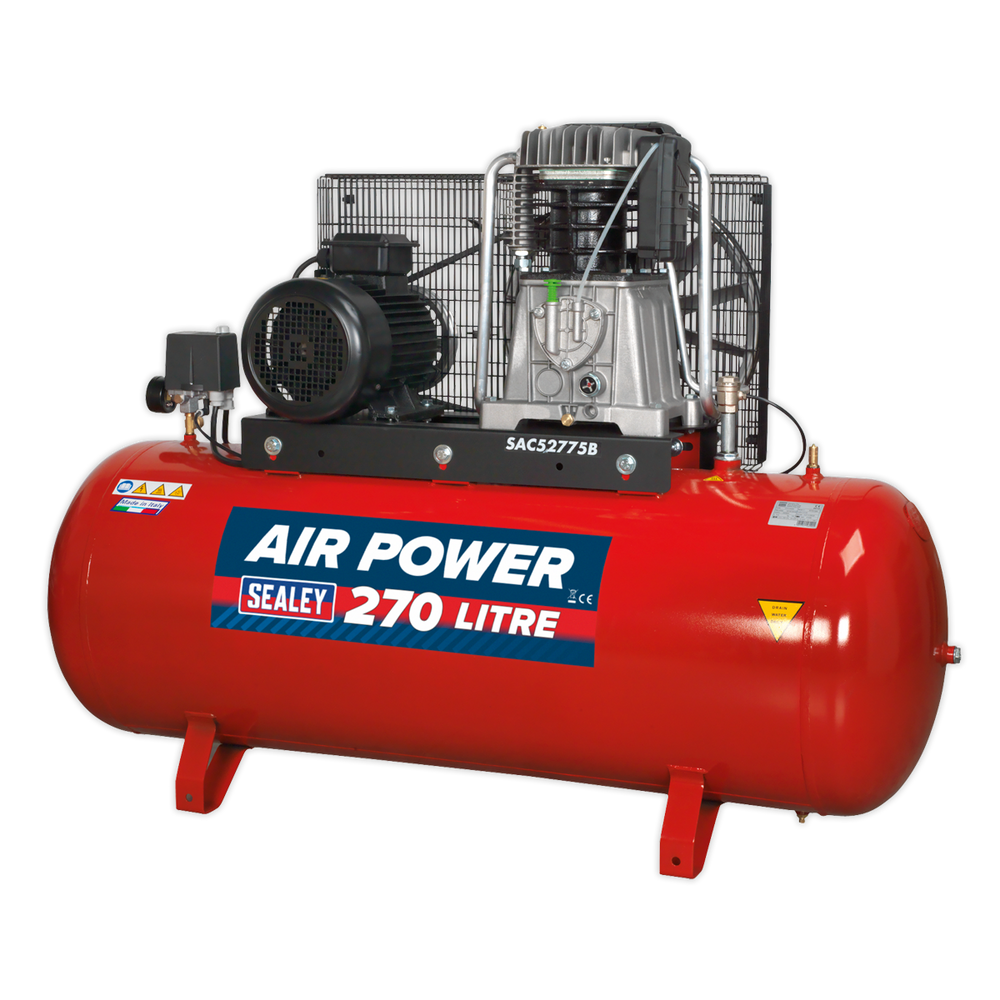

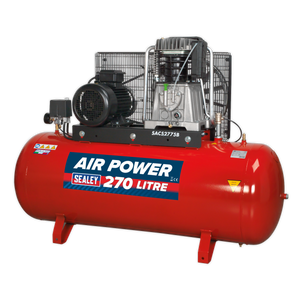

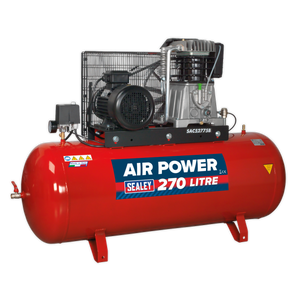

Sealey SAC52775B 270L Belt Drive Air Compressor with Cast Cylinders 7.5hp 2-Stage
SKU SAC52775B Barcode 5051747560901
Notify me when back in stock
- Expert UK product support
- Authorised Sealey Tools UK distributor
- 30 day returns
Delivery & returns
Order by 4pm for next-working-day delivery on items marked Next day. Free UK delivery on orders over £75 inc VAT. Larger items may ship on a pallet — we confirm by email.
30 day returns on unused items in original packaging.
Description
Description
Sealey SAC52775B 270L Belt Drive Air Compressor with Cast Cylinders 7.5hp 2-Stage
Heavy-duty 3-phase compressor suitable for the professional workshop. 2-Stage pump system coupled with a 7.5hp motor maximizes performance to keep running costs low compared to single stage, single phase model. Pump features heavy-duty full cast cylinders, capped by an alloy head for improved heat dissipation and long-life. Heavy-duty drive guards protect belt and flywheel that is designed to force air over the pump to aid cooling. Supplied with full CE certification, test certificates and operating/maintenance manual.
Features and Benefits

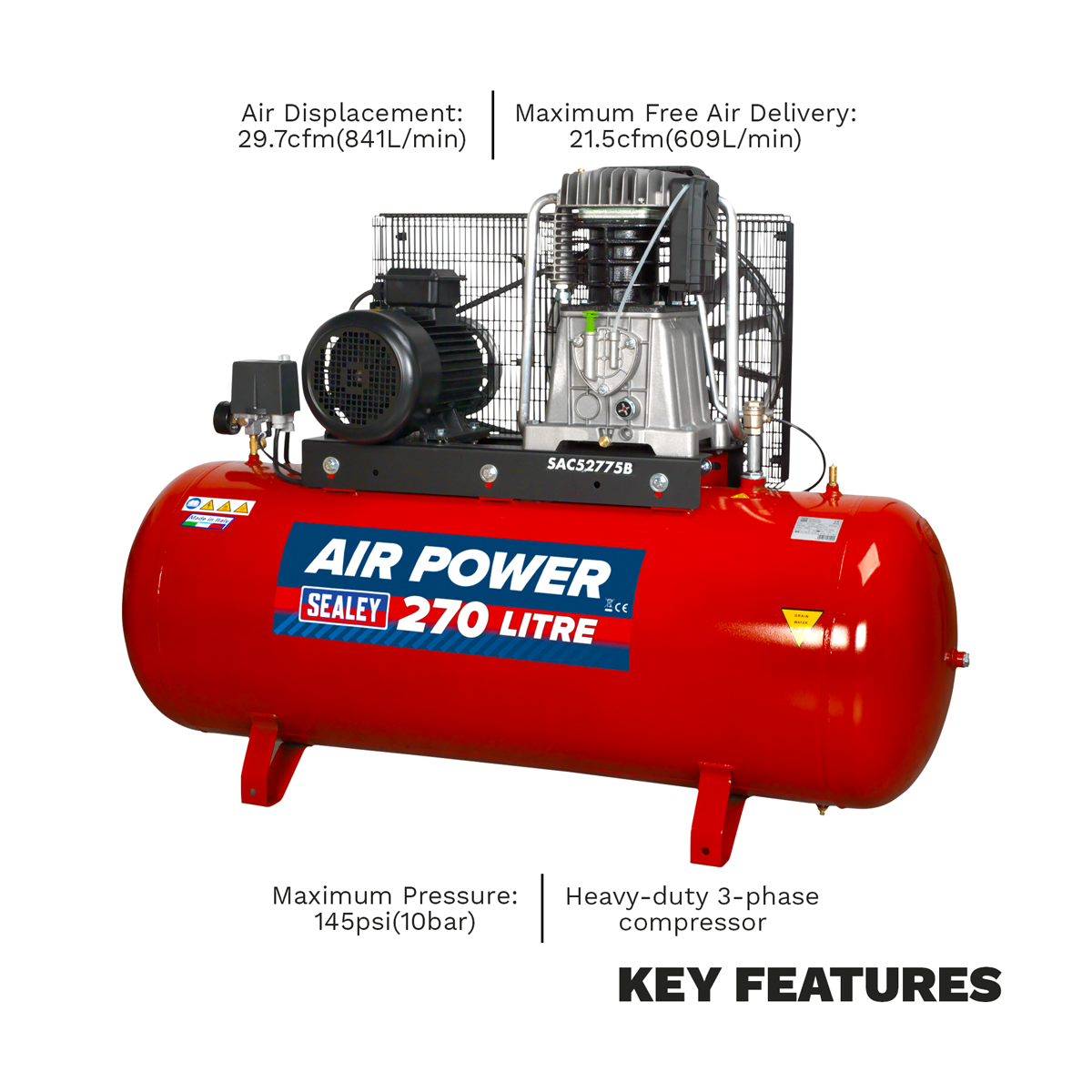

- Air Displacement: 29.7cfm(841L/min).
- Maximum Free Air Delivery: 21.5cfm(609L/min).
- Maximum Pressure: 145psi(10bar).
- Heavy-duty 3-phase compressor suitable for the professional workshop.

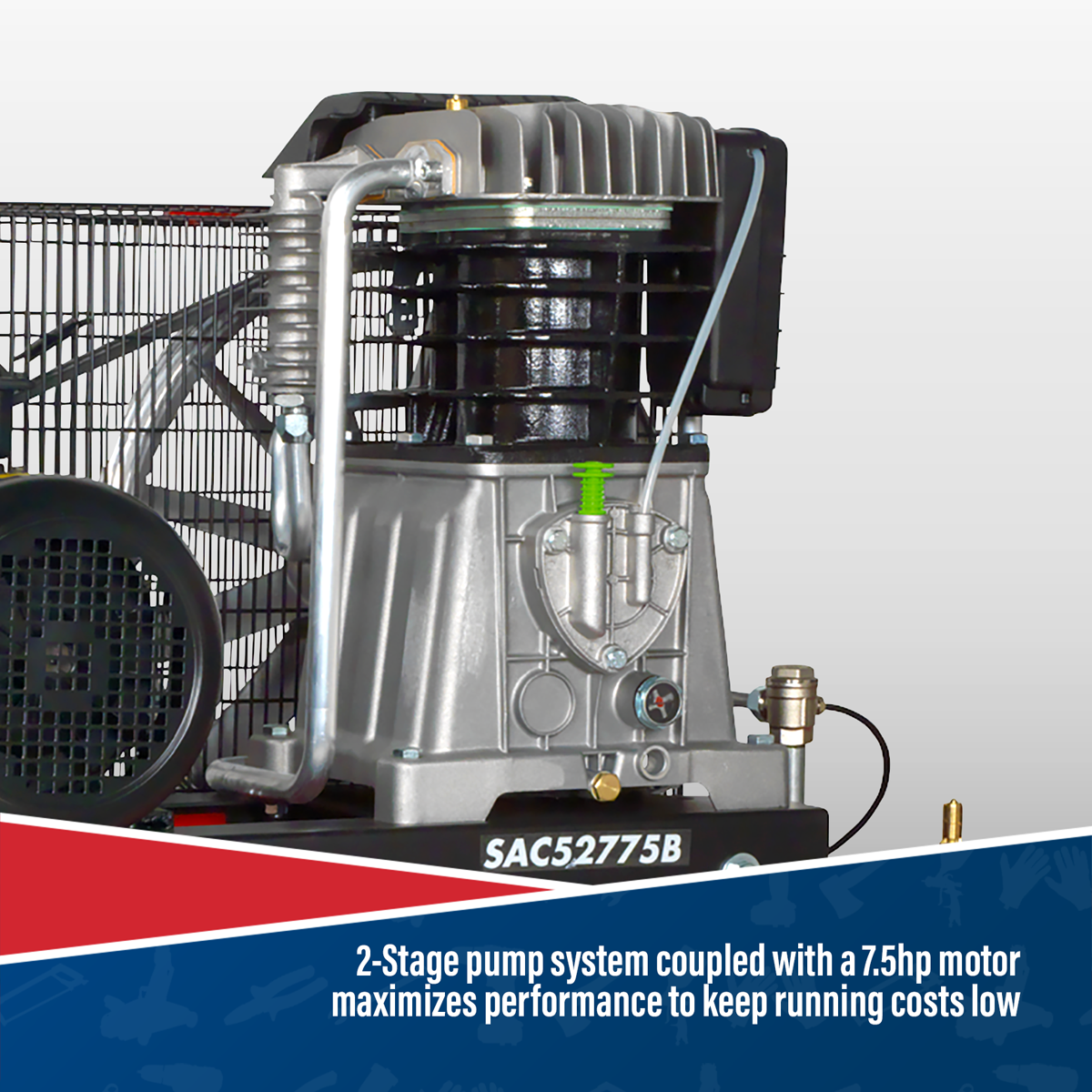

- 2-Stage pump system coupled with a 7.5hp motor maximizes performance to keep running costs low compared to single stage, single phase model.

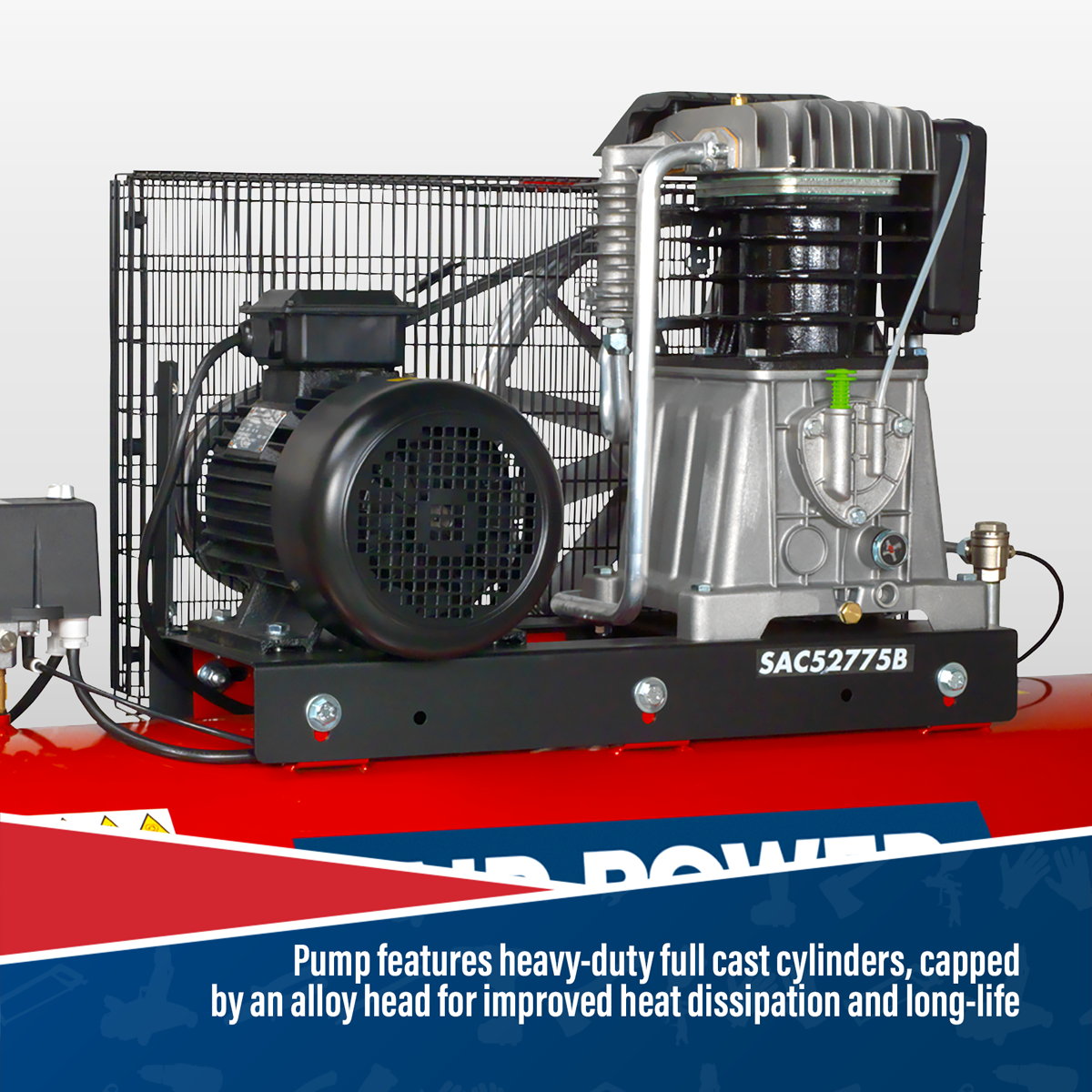

- Pump features heavy-duty full cast cylinders, capped by an alloy head for improved heat dissipation and long-life.

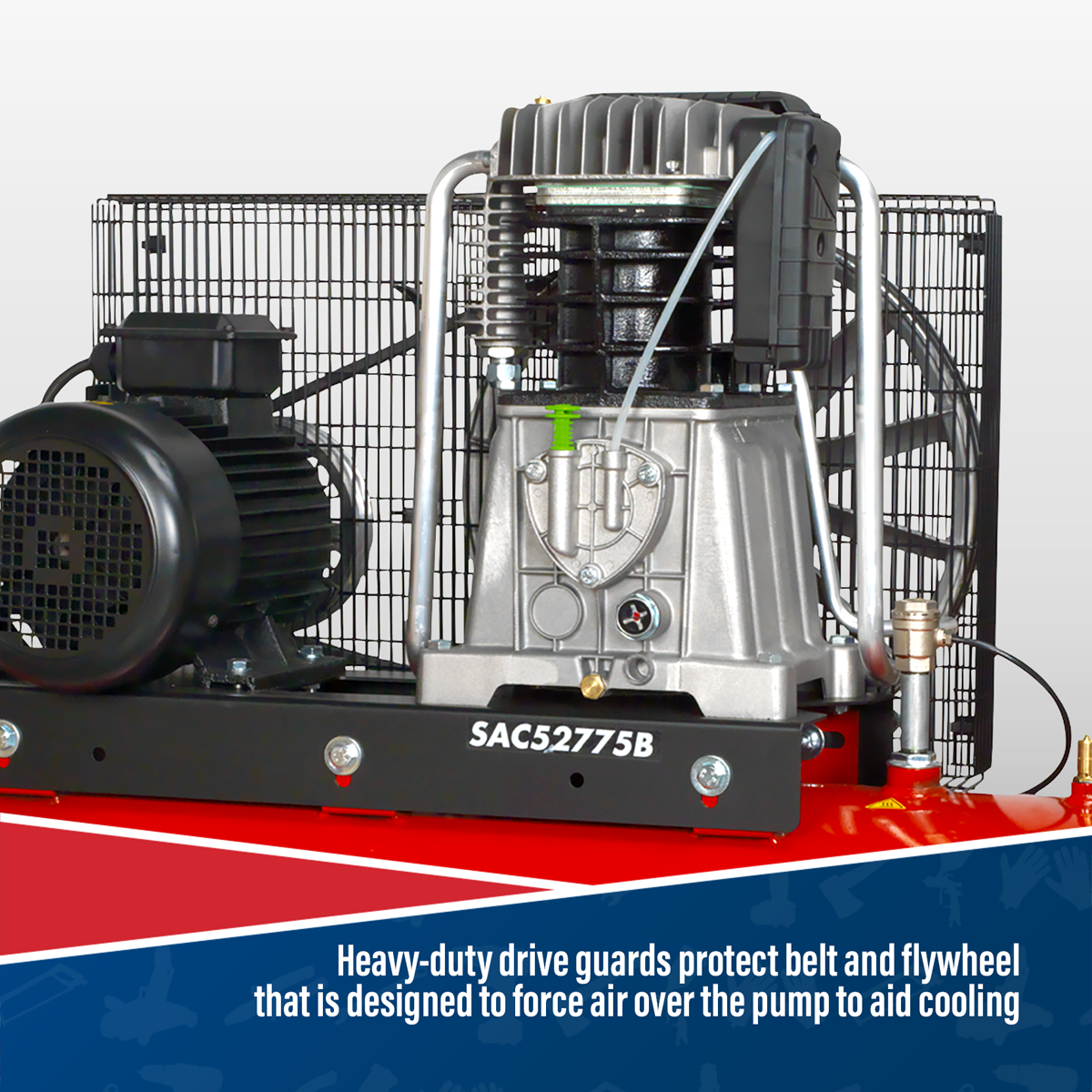

- Heavy-duty drive guards protect belt and flywheel that is designed to force air over the pump to aid cooling.
- Supplied with full CE certification, test certificates and operating/maintenance manual.
- This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
Technical Specification
| Brand | Sealey |
|---|---|
| Model No. | SAC52775B |
| Barcode | 5051747560901 |
| Warranty | 1 year |
| Commodity Code | 8414802290 |
| Country of Origin | ITA |
| Pack Dimensions | H 1.25m — W 1.77m — D 0.6m |
| Gross Weight | 164kg |
| Air Displacement cfm(L/min) | 29.7(841) |
| Maximum Free Air Delivery cfm(L/min) | 21.5(609) |
| Maximum Pressure | 145psi(10bar) |
| Minimum Rated Supply | 32A |
| Motor Output | 7.5hp |
| Nett Weight | 143kg |
| Oil Capacity | 1.57L |
| Outlet | 1/2"BSP Female Tap |
| Phase | 3ph |
| Receiver Capacity | 270L |
| Size (W x D x H) | 1550 x 510 x 1070mm |
| Speed | 1280rpm |
| Supply | 400V/32A |
