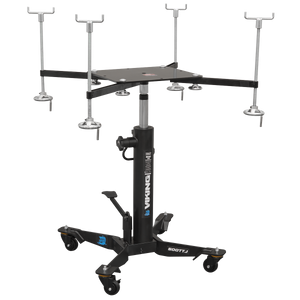

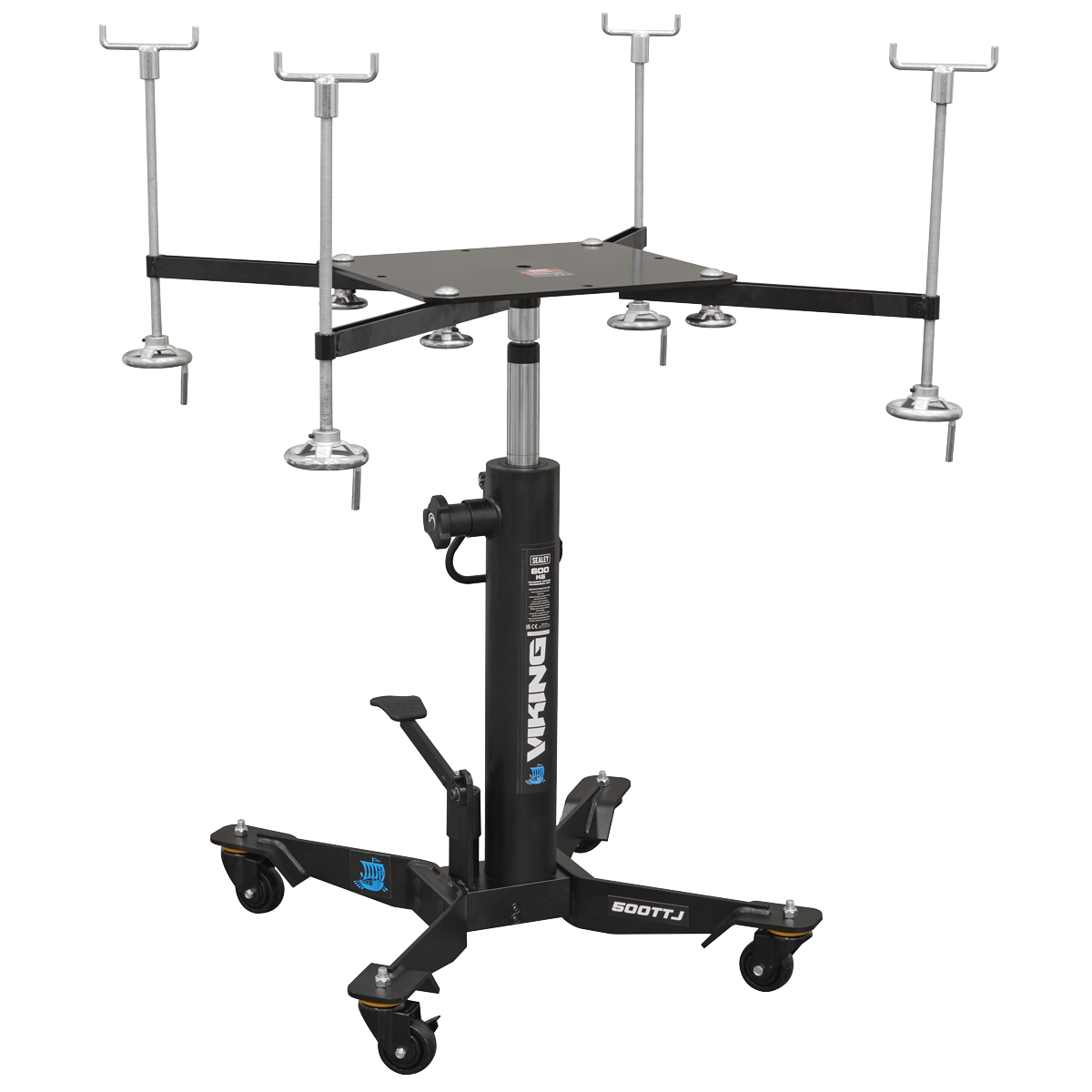

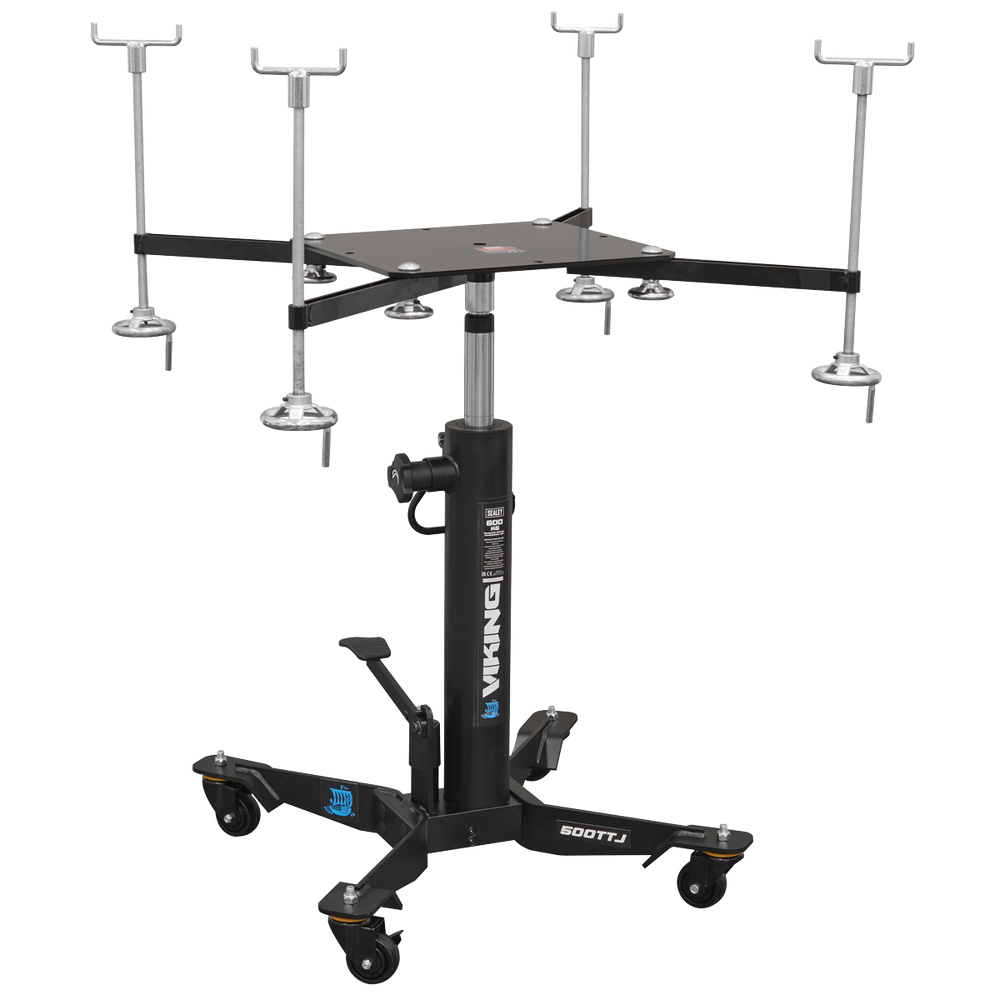

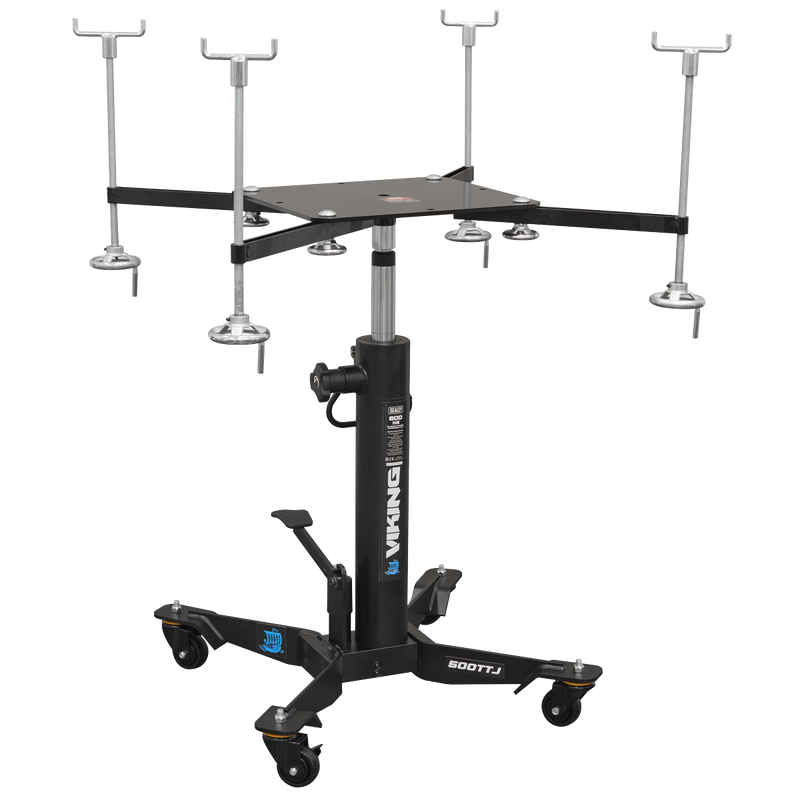

Sealey SFC500COMBO Subframe Cradle and 500kg Transmission Jack Combo
Package Includes: 500TTJ - 0.5 Tonne Vertical Telescopic Transmission Jack. SFC01 - Subframe/Engine Load Adaptor for TTJ Transmission Jacks. These items are heavy. Extra assistance must be provided at the delivery point to help safe delivery.
Features and Benefits
- TELESCOPIC RAM - A two-stage ram reduces the clearance.
- HIGH SPEED LIFT - Quick lift, when unladen, reducing the foot pumps required to meet the load. But when laden slows to give control and accuracy.
- FOOT PEDAL OPERATION - Keeping hands free for fixings and adjustments.
- SAFE - Spring loaded dead man's safety release control reduces the risk of inadvertent lowering.
- HIGHLY MANOEUVRABLE - Large, smooth running castors, make positioning quick and easy.

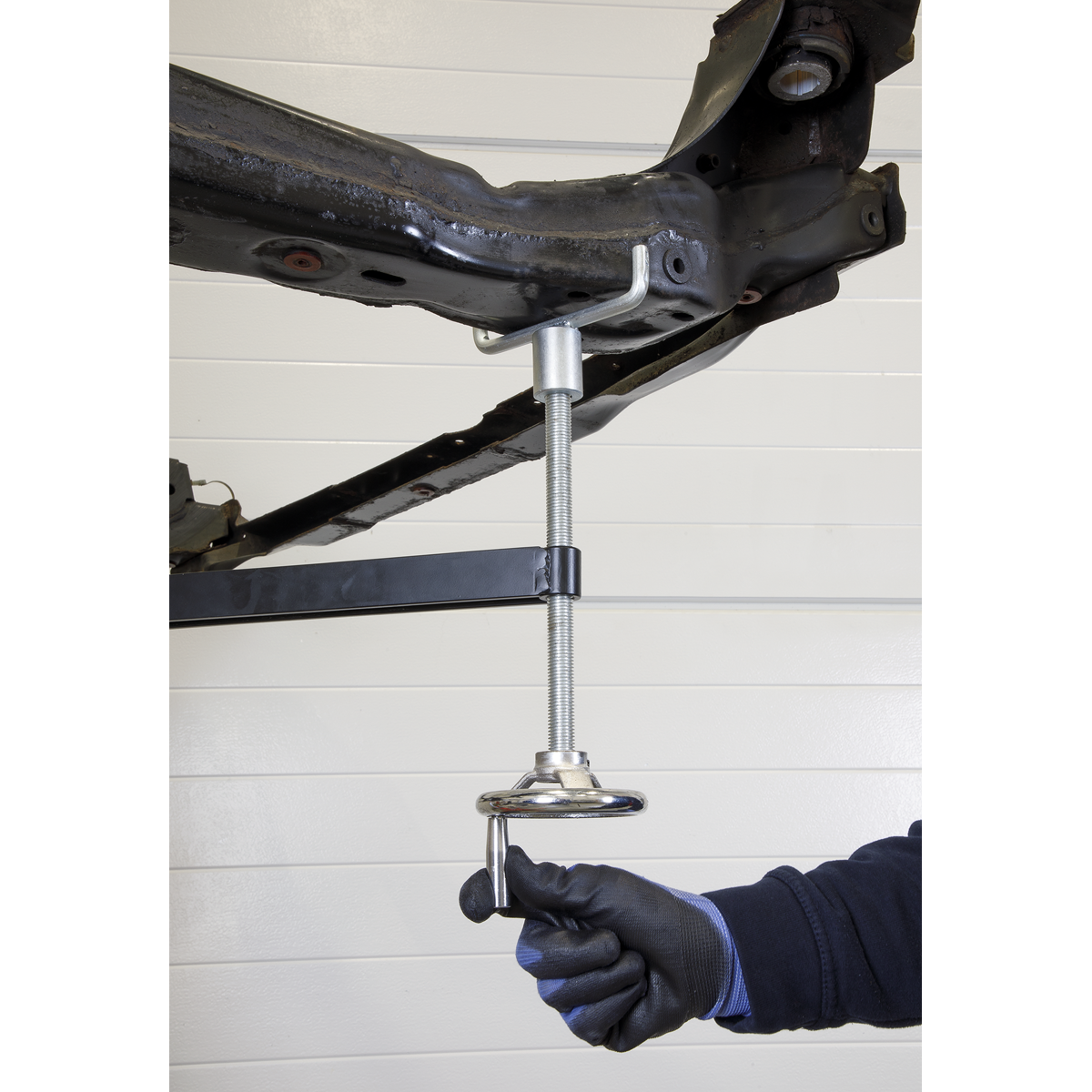

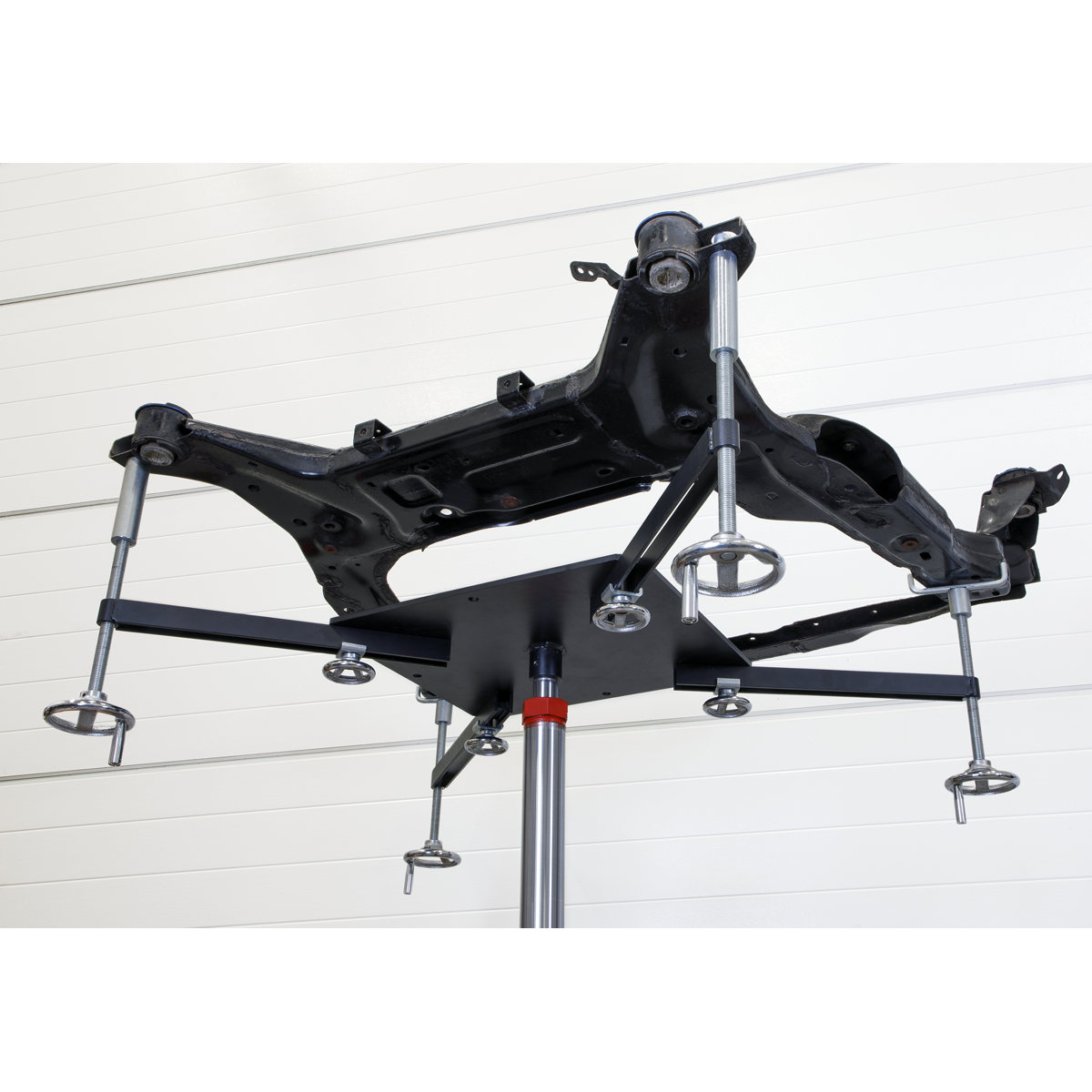

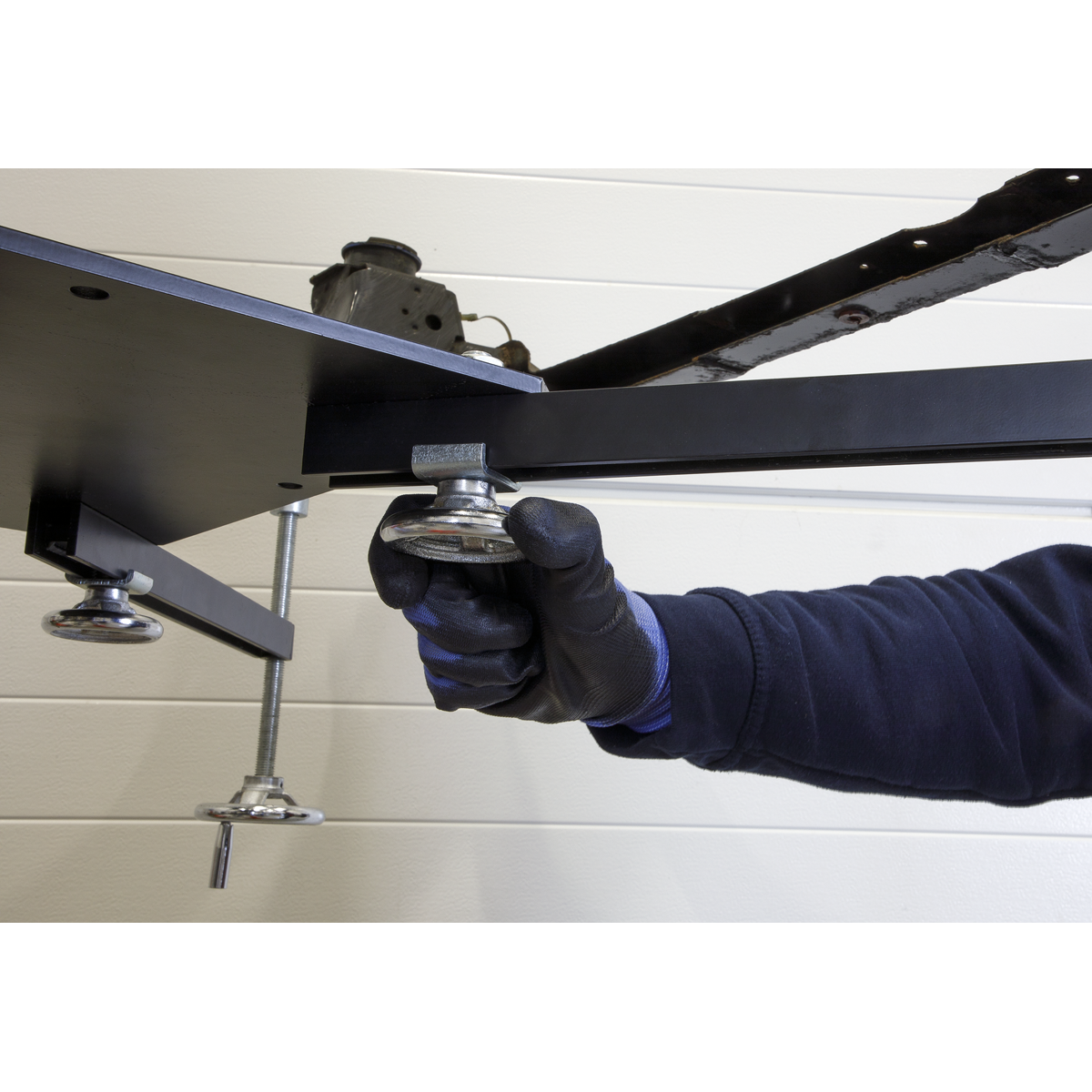

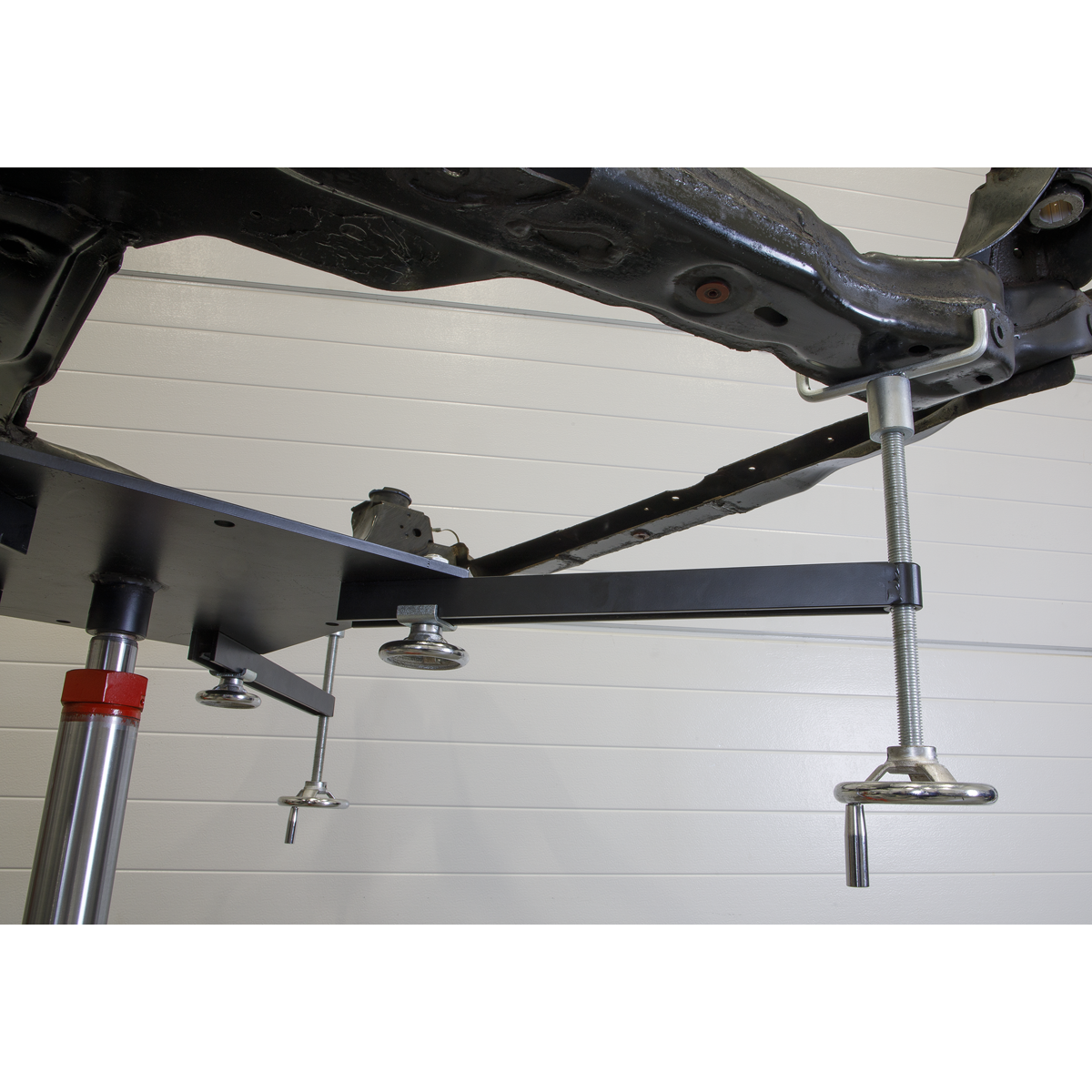

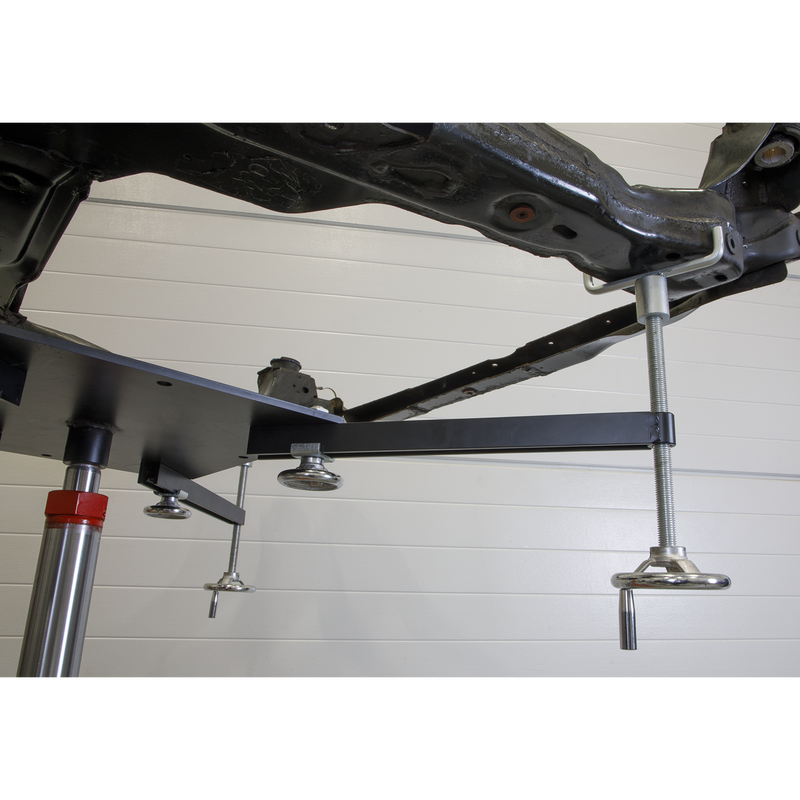

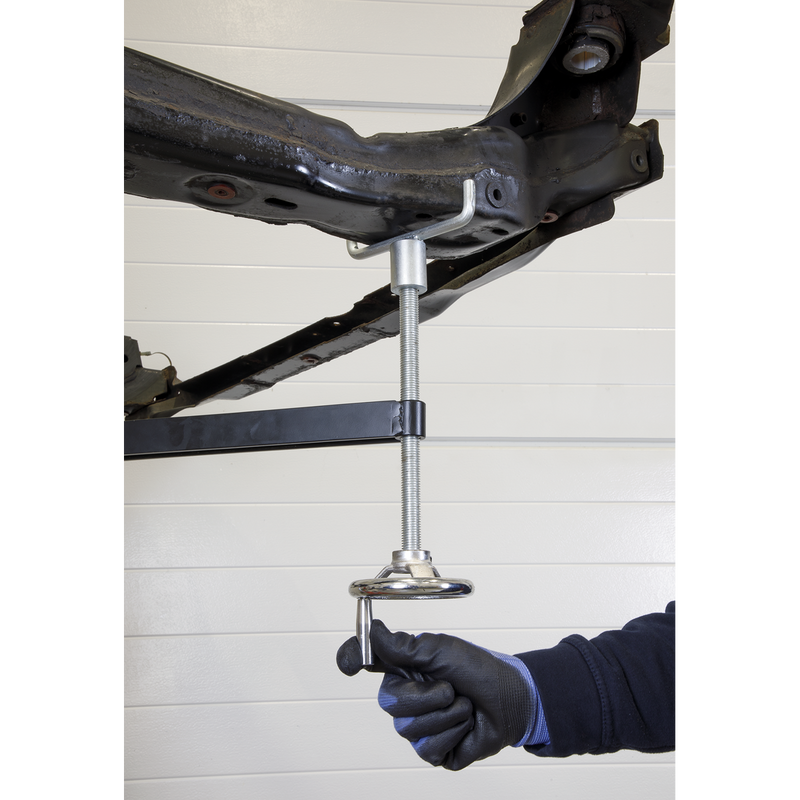

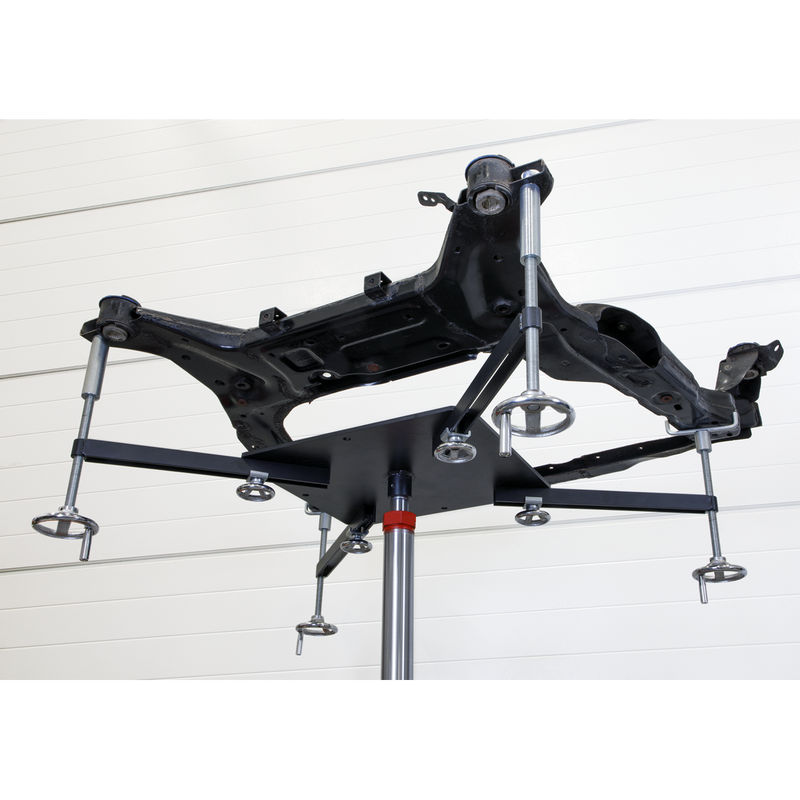

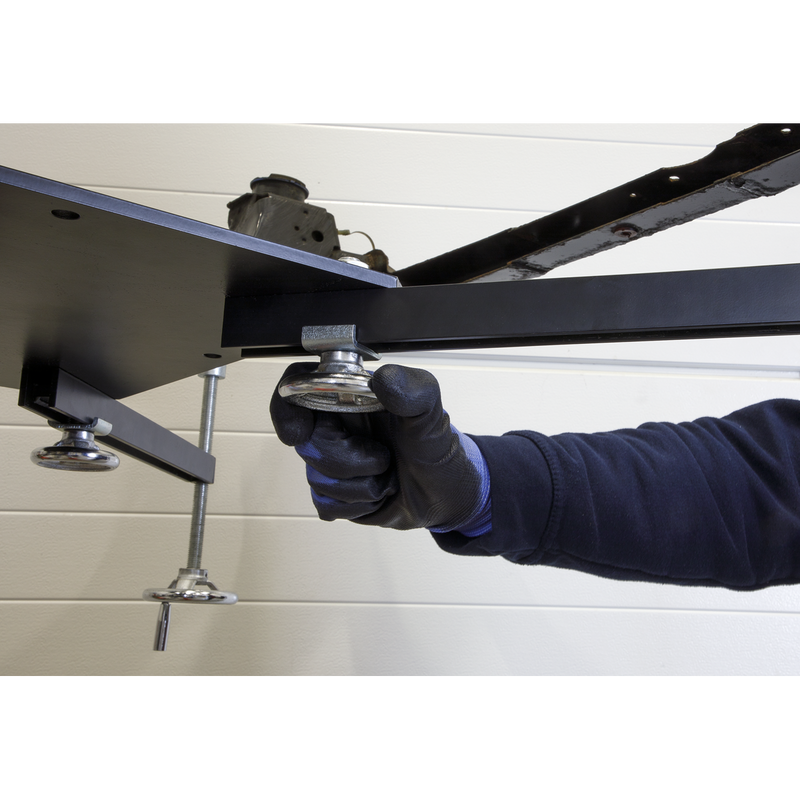

- VERSATILE ADAPTOR - Fully adjustable Subframe/Engine support and supplied with various designs of fittings to suit different applications.
- WILL ASSIST - In the removal and fitting of complete engine assemblies, rear axles, gearboxes, fuel tanks, exhaust systems and other awkward loads.
- LABOUR SAVING DESIGN - Allows many jobs to be carried out by one person.
- EASY ASSEMBLY - The adaptor can be fitted and removed from the transmission jack with ease as required.
Technical Specification
| Brand | Sealey |
|---|---|
| Model No. | SFC500COMBO |
| Barcode | 5054630284083 |
| Warranty | 1 year |
| Commodity Code | 8425410000 |
| Country of Origin | CHN |
| Pack Dimensions | H 1.16m — W 0.8m — D 0.65m |
| Gross Weight | 115kg |
| Base Size | 1000 x 1000mm |
| Capacity | 500TTJ - 500kg and SFC01 - 450kg |
| Fixed/Adjustable Saddle | Adjustable |
| Maximum Saddle Height | 1875mm |
| Minimum Saddle Height | 890mm |
| Nett Weight | 95.5kg |
| Optional Accessories | N/A |
| Pump Strokes to Maximum Height | N/A |
| Ram Extensions | 2 |
| Saddle Adjustment - Left-to-Right | 65mm |
| Saddle Tilt - Backward | 22° |
| Saddle Tilt - Forward | 28° |
