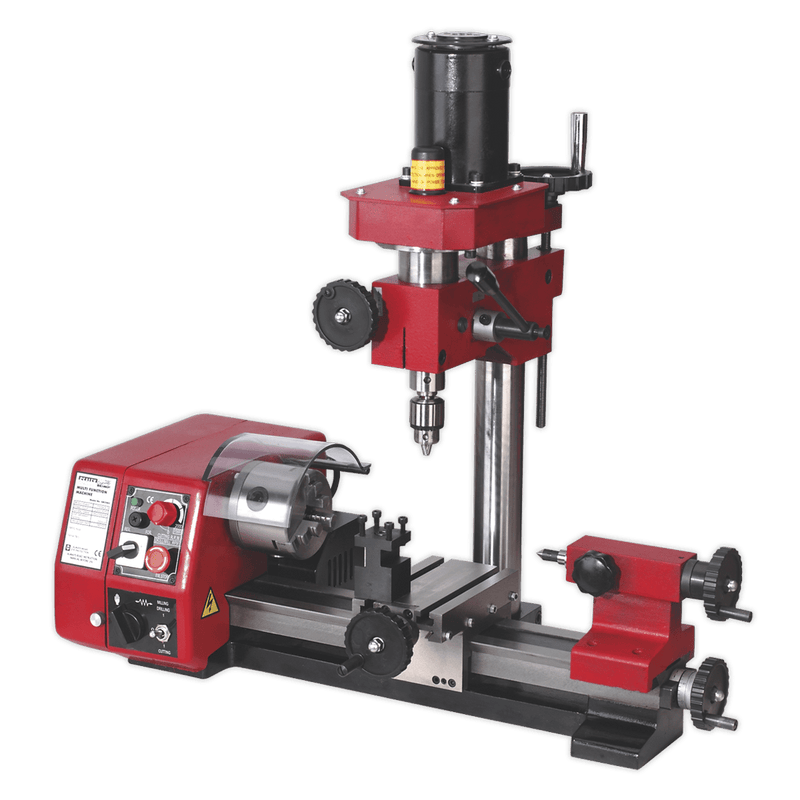

Sealey SM2503 Mini Lathe & Drilling Machine
The Sealey SM2503 Mini Lathe & Drilling Machine, available from Trade Counter Direct, is a versatile bench-mounted multifunction tool designed for precision drilling, milling, and turning. Engineered for flexibility, it features variable speed control and robust construction, making it suitable for a wide range of materials and applications in workshops or educational settings.
Powered by two dedicated 150W motors, one for the drill/mill and the other for the lathe, this machine offers both manual and power-driven feed options. With metric graduated scales and all essential setup tools included, the SM2503 ensures accuracy and ease of use straight out of the box. An optional stand (Model No. SM3002ST) is also available to further enhance your workspace.
Features
- Bench-mounted multifunction mini drill, mill, and lathe with variable speed control
- Equipped with two 150W motors for independent operation of drill/mill and lathe
- Lathe cutting feed can be power driven or manually advanced
- Thread cutting capability with optional thread cutting kit
- Supplied with metric graduated scales for precise measurements
- Includes all necessary tools for setting and adjustment
- Complies with Machinery Directive and fully CE approved
- Optional stand available (Model No. SM3002ST)
Specifications
| SKU / Model No. | SM2503 |
|---|---|
| Brand | Sealey |
| Motor Power | 2 x 150 W (230 V) |
| Nett Weight | 39.2 kg |
| Swing Over Bed | 140 mm |
| Distance Between Centres | 250 mm |
| Spindle Hole Taper | MT2 |
| Cross Slide Travel | 61 mm |
| Tailstock Taper | MT1 |
| Lathe Spindle Speed (Variable) | 100–2000 rpm |
| Range of Metric Threads | 5 pitches (0.5–1.25 mm) |
| Maximum Drilling/Milling Capacity | 10 mm |
| Drilling/Milling Spindle Travel | 30 mm |
| Drilling/Milling Spindle Speed | 100–1300 rpm |
| T-Slot | 8 mm |
| Distance from Spindle to Table | 180 mm |
| Distance from Spindle Centre to Column | 100 mm |
| Optional Stand | Model No. SM3002ST (sold separately) |
| Compliance | Machinery Directive, CE approved |
