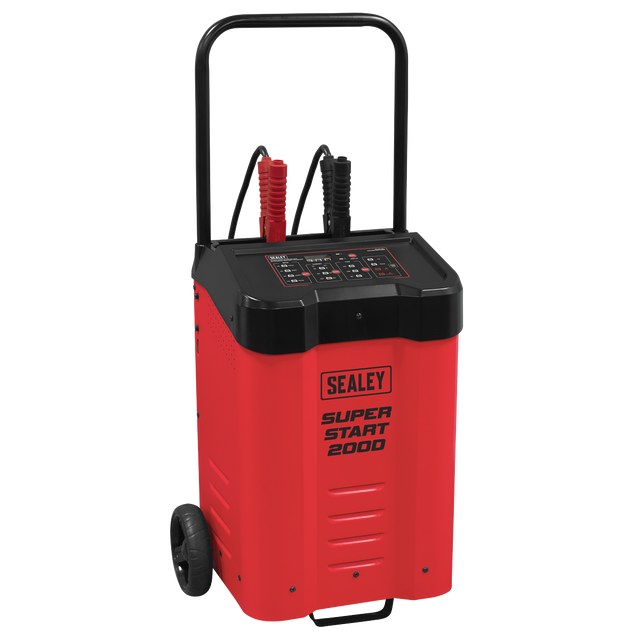

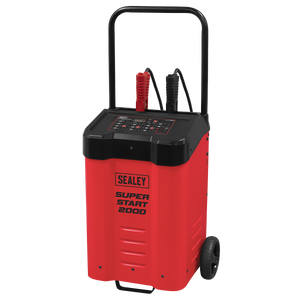

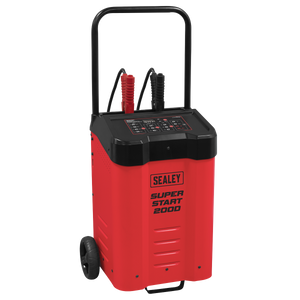

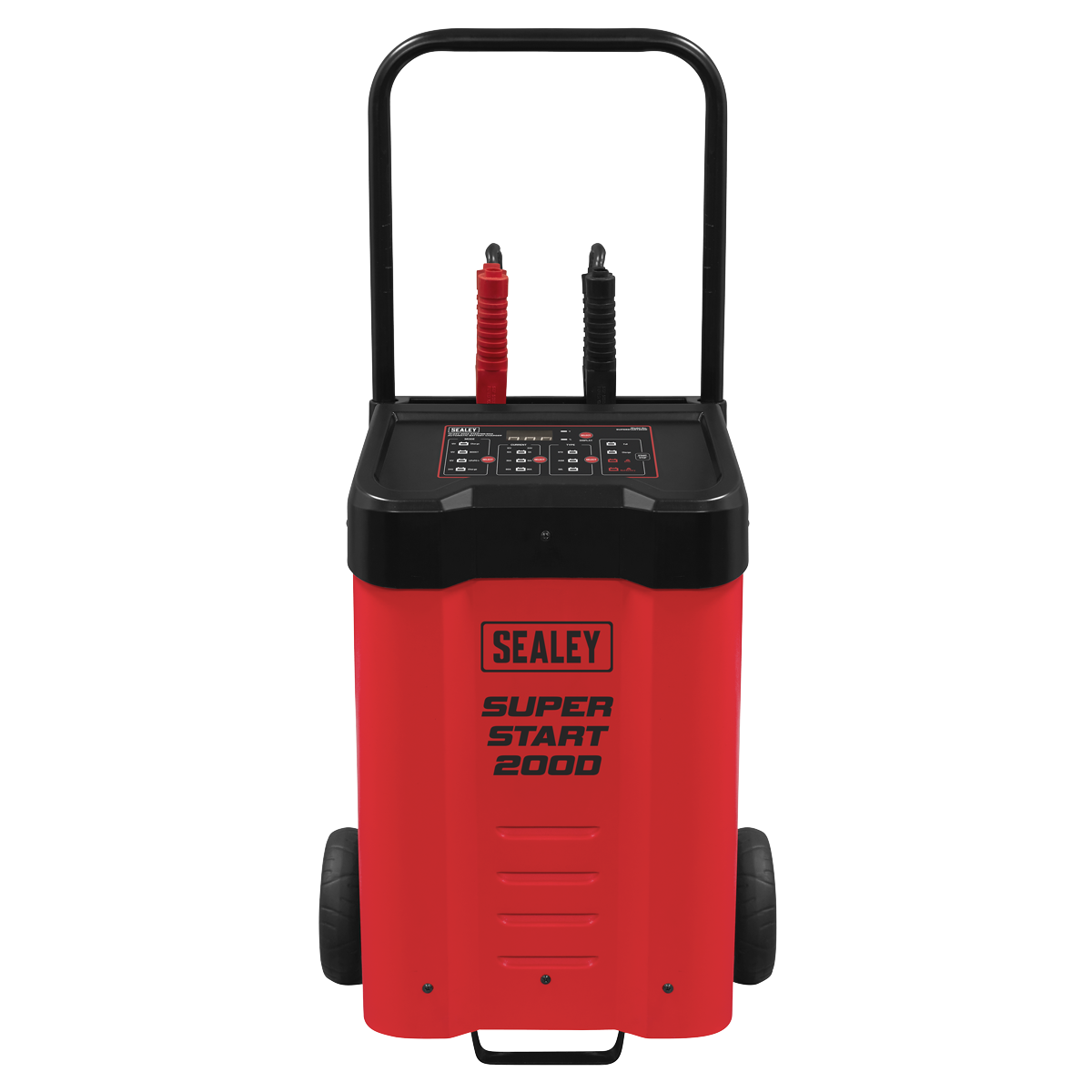

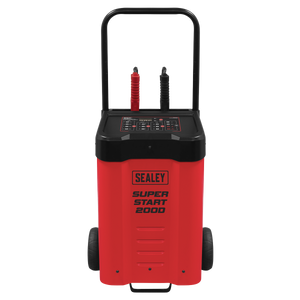

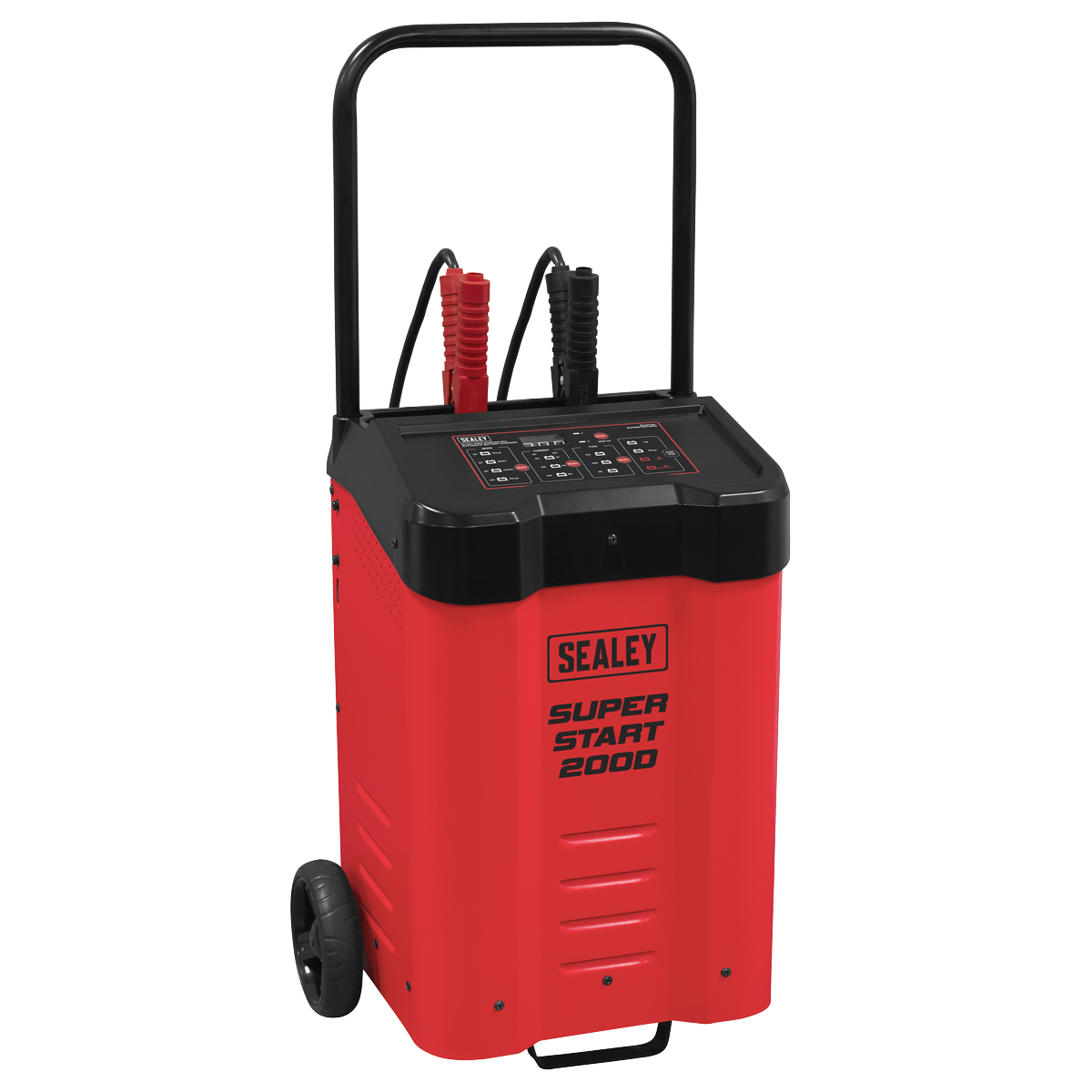

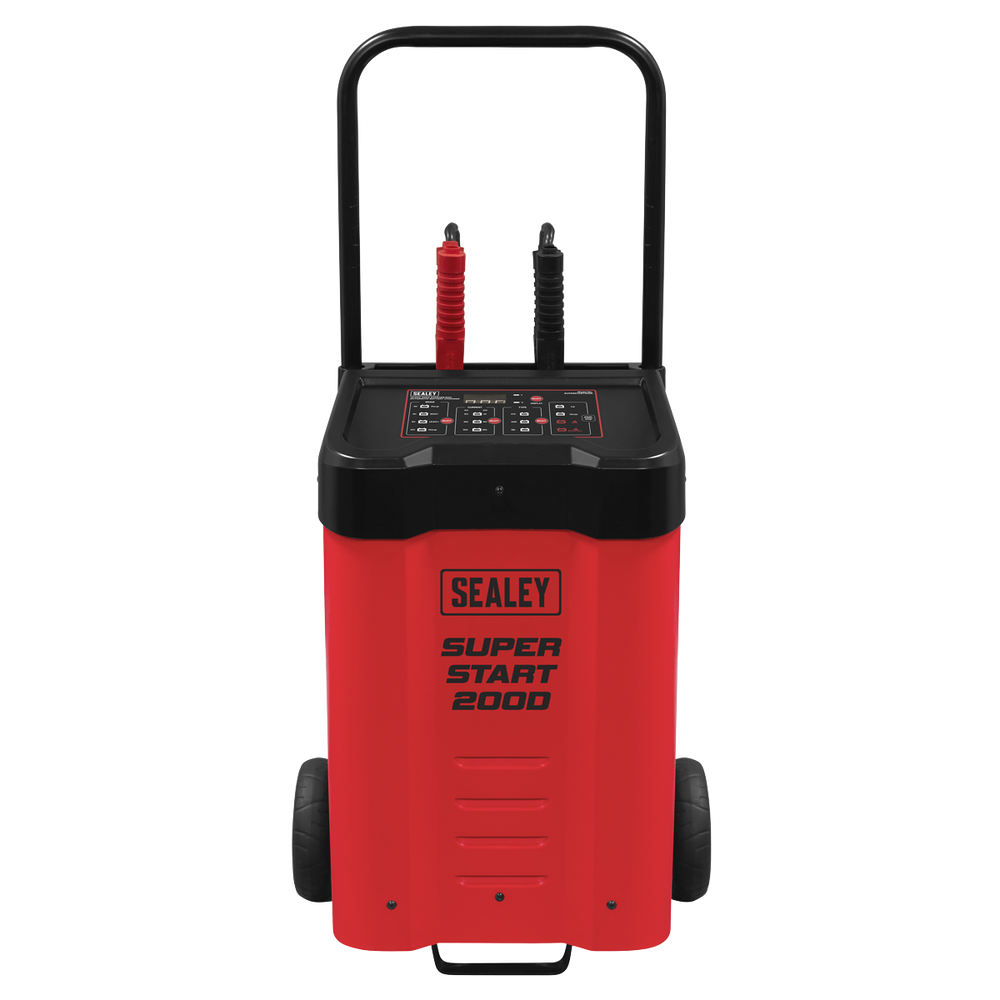

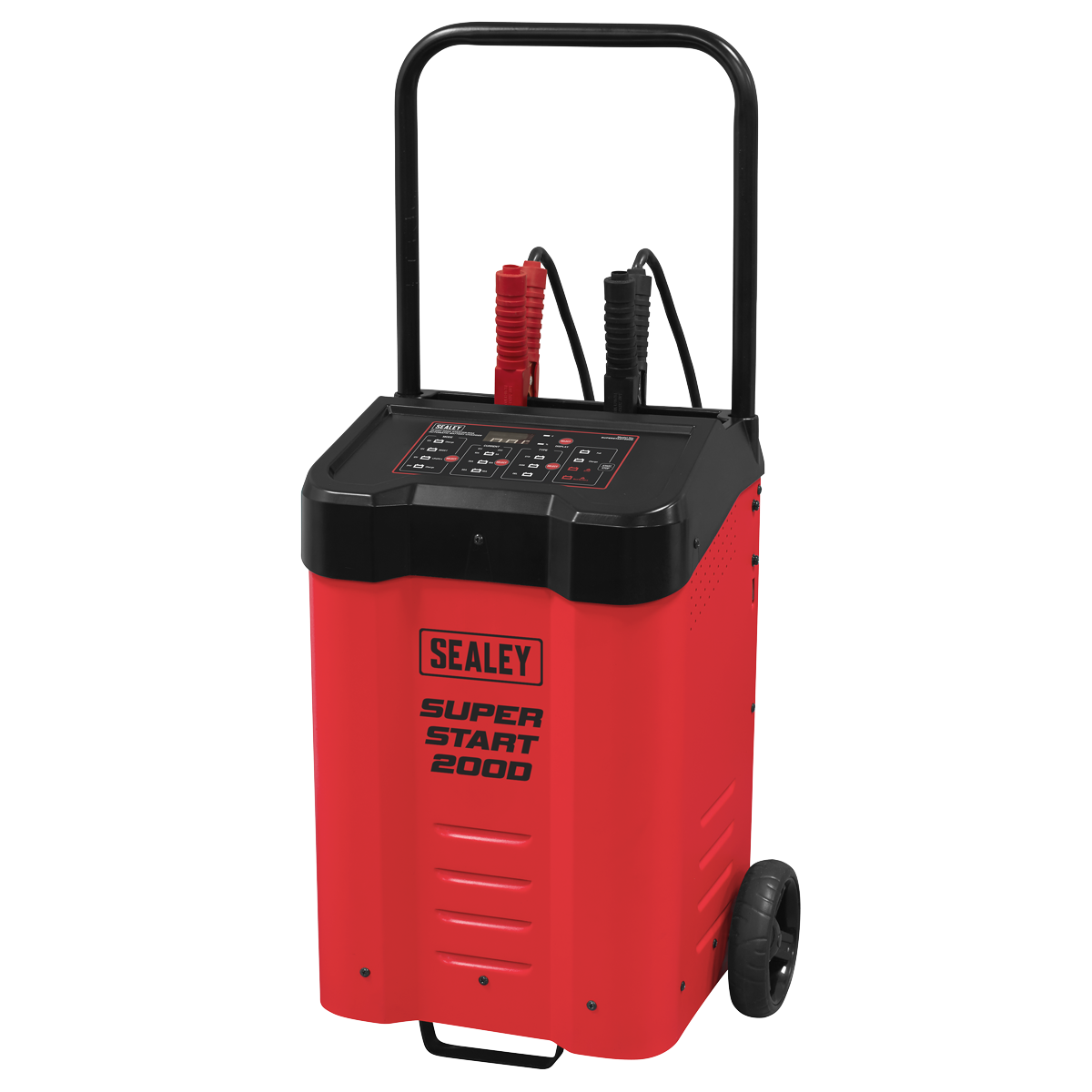

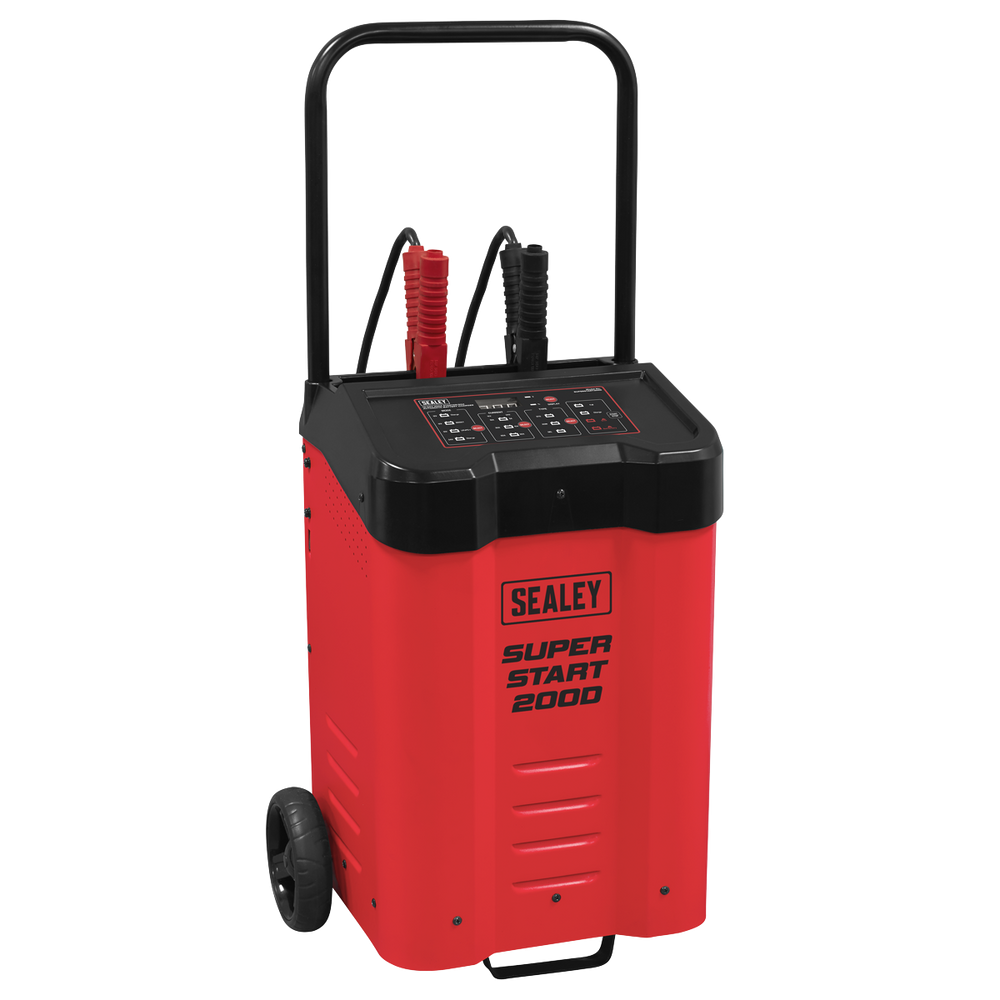

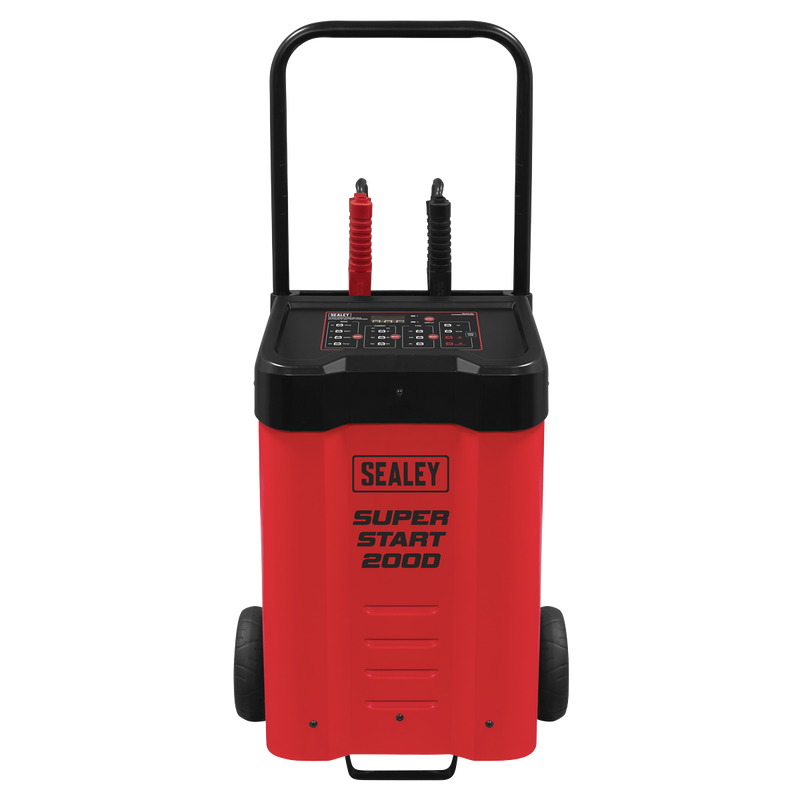

Sealey SUPERSTART200D 12/24V Starter 200A/Automatic Battery Charger 60A

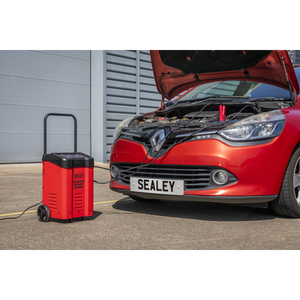

Automatic battery charger and starter designed for charging and boosting a variety of AGM (stop/start), GEL, Lead Acid and lithium LiFePo4 batteries up to 600Ah. Intuitive digital display and 200A peak engine start function, makes this unit ideal for every workshop. Features overcharge, short circuit, and reverse polarity protection. Dedicated charging programs for AGM, GEL, conventional Lead Acid and Lithium batteries with fully automated charging algorithms. Three charging rates for both 12V and 24V systems. Portable design with handle for easy manoeuvrability around the workshop.
Features and Benefits
- AUTOMATIC BATTERY CHARGER AND STARTER - Designed for charging, and boosting a variety of AGM (stop/start), GEL, lead acid and Lithium batteries up to 600Ah.

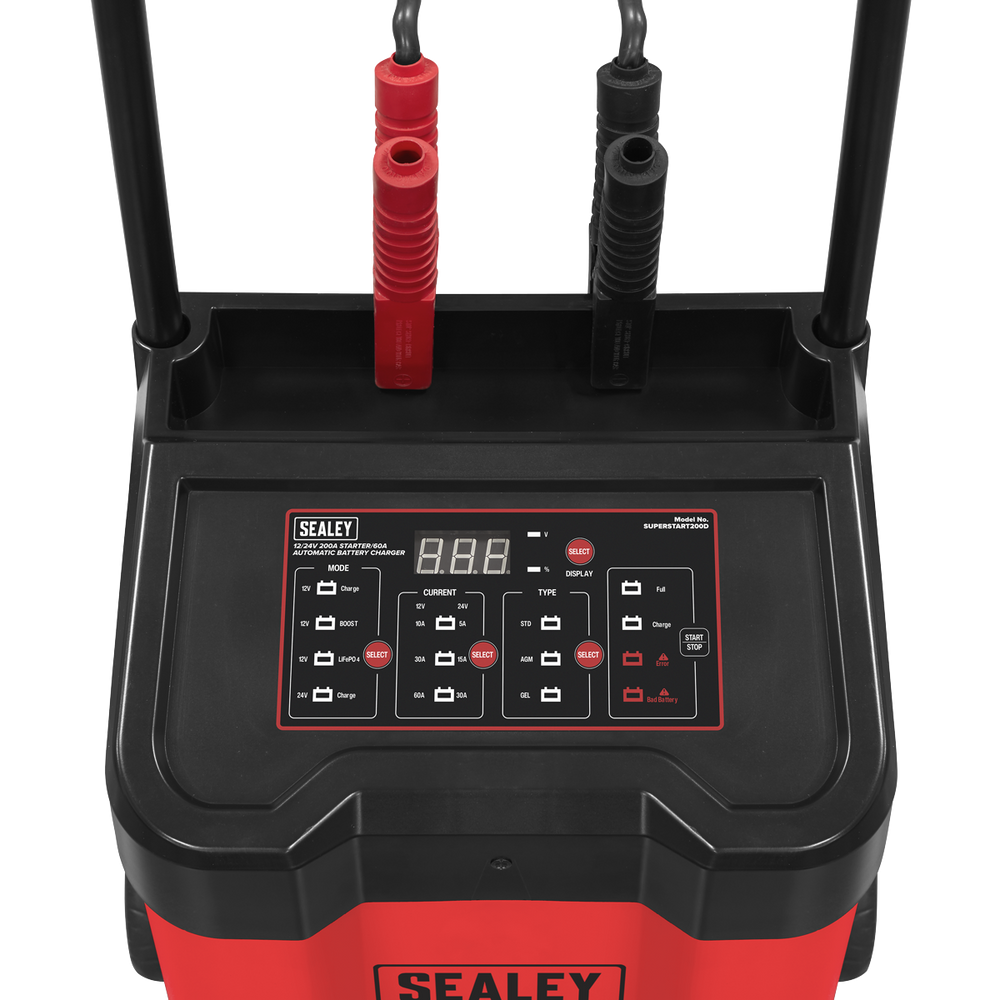

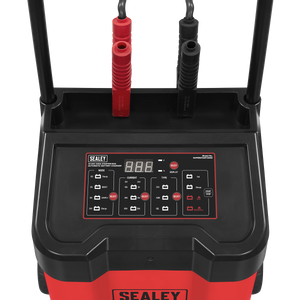

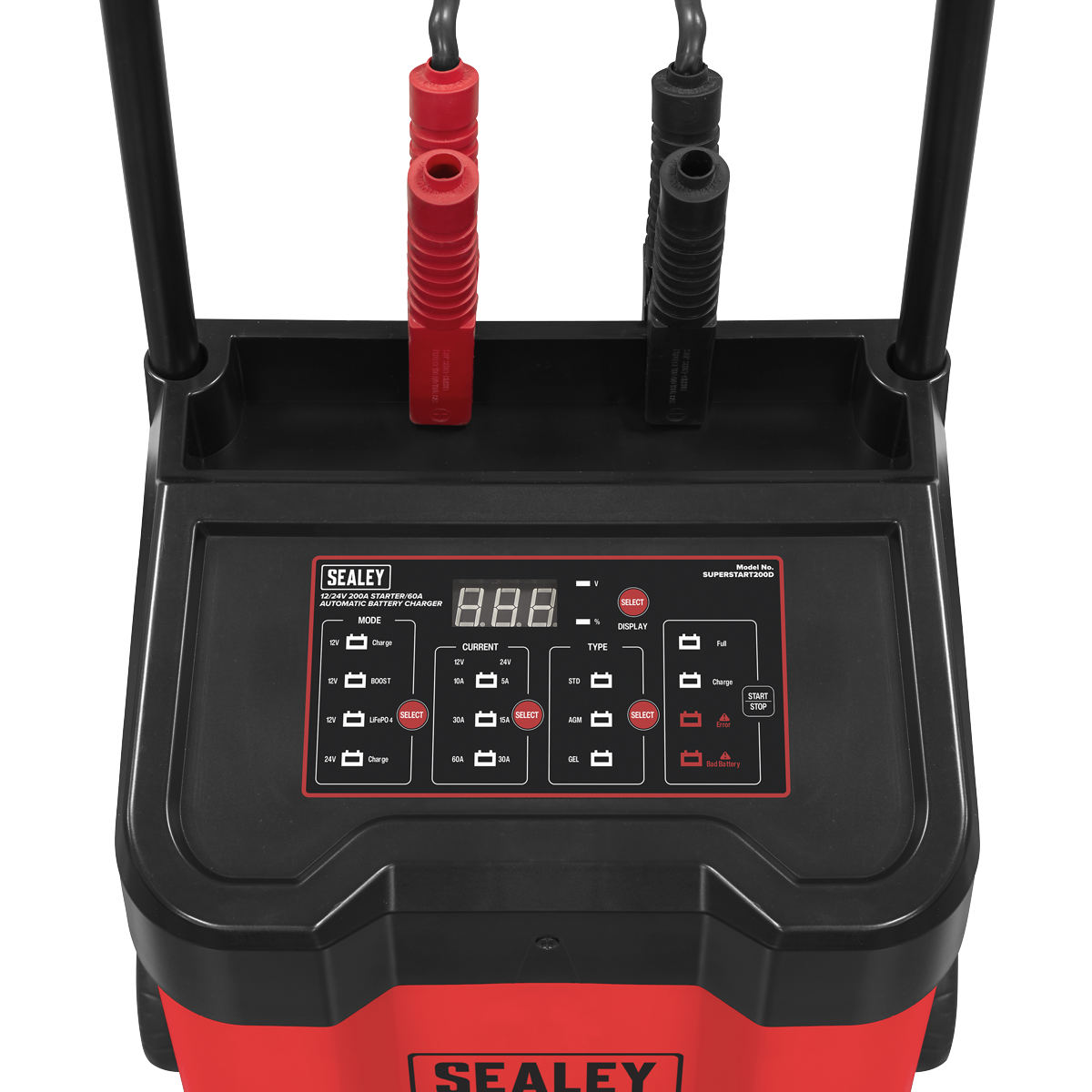

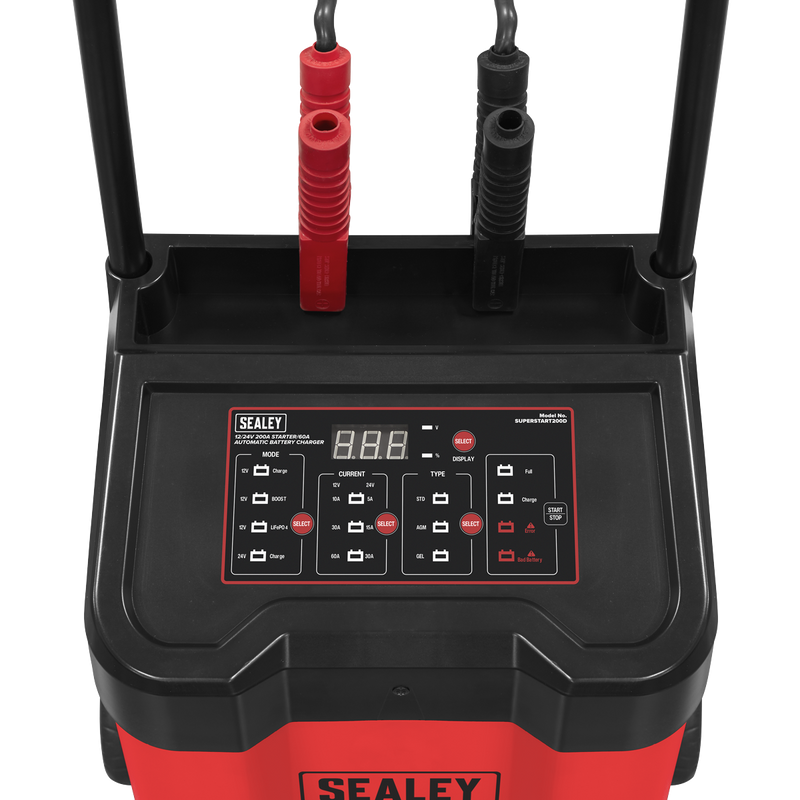

- INTUITIVE - Digital display and 200A peak engine start function, makes this unit ideal for every workshop.

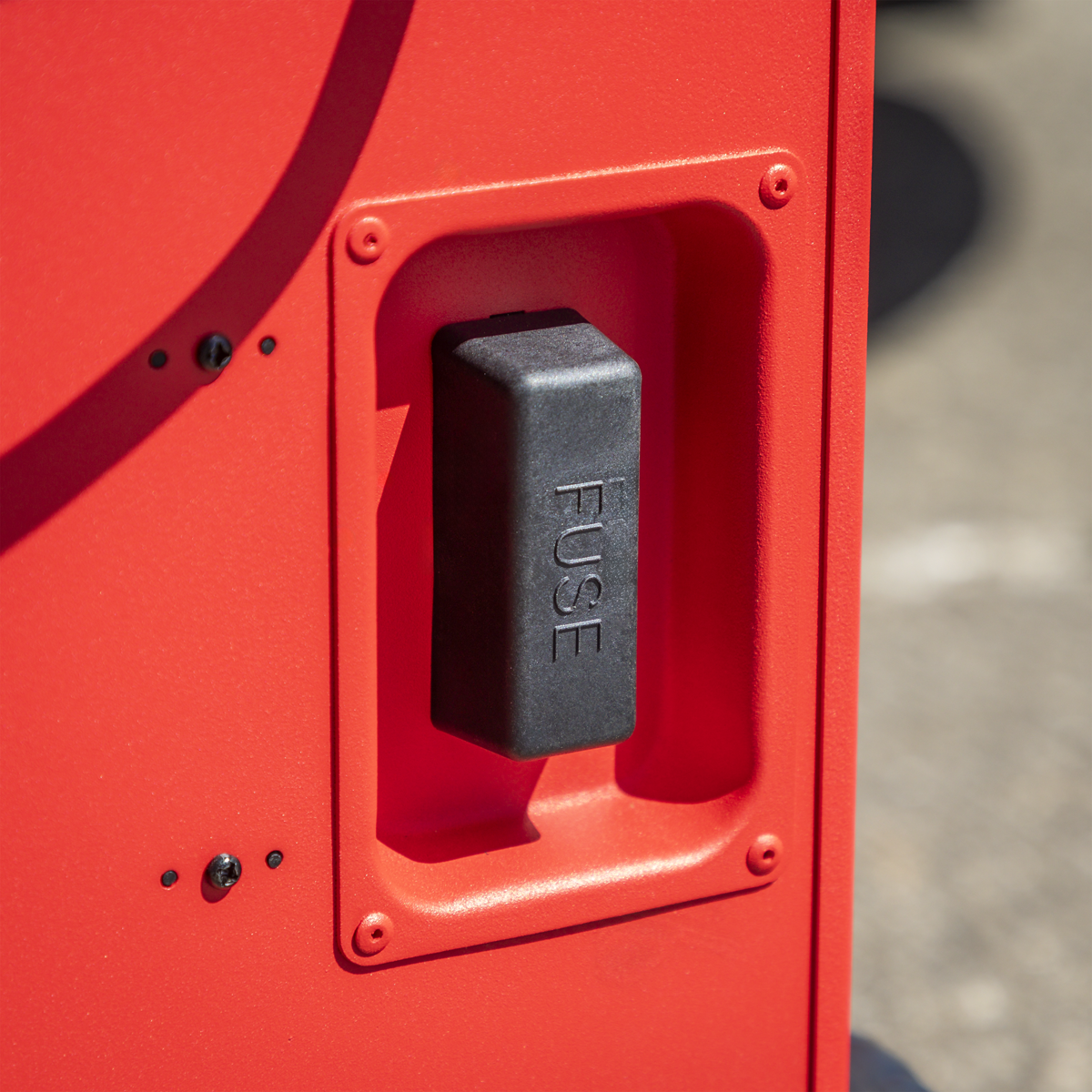

- SAFETY FEATURES - Overcharge, short circuit, and reverse polarity protection.
- DEDICATED CHARGING PROGRAMMES - Suitable for AGM, GEL, conventional Lead Acid and lithium batteries with fully automated charging algorithms.
- MULTIPLE CHARGING PROGRAMMES – Three charging rates for both 12V and 24V systems.

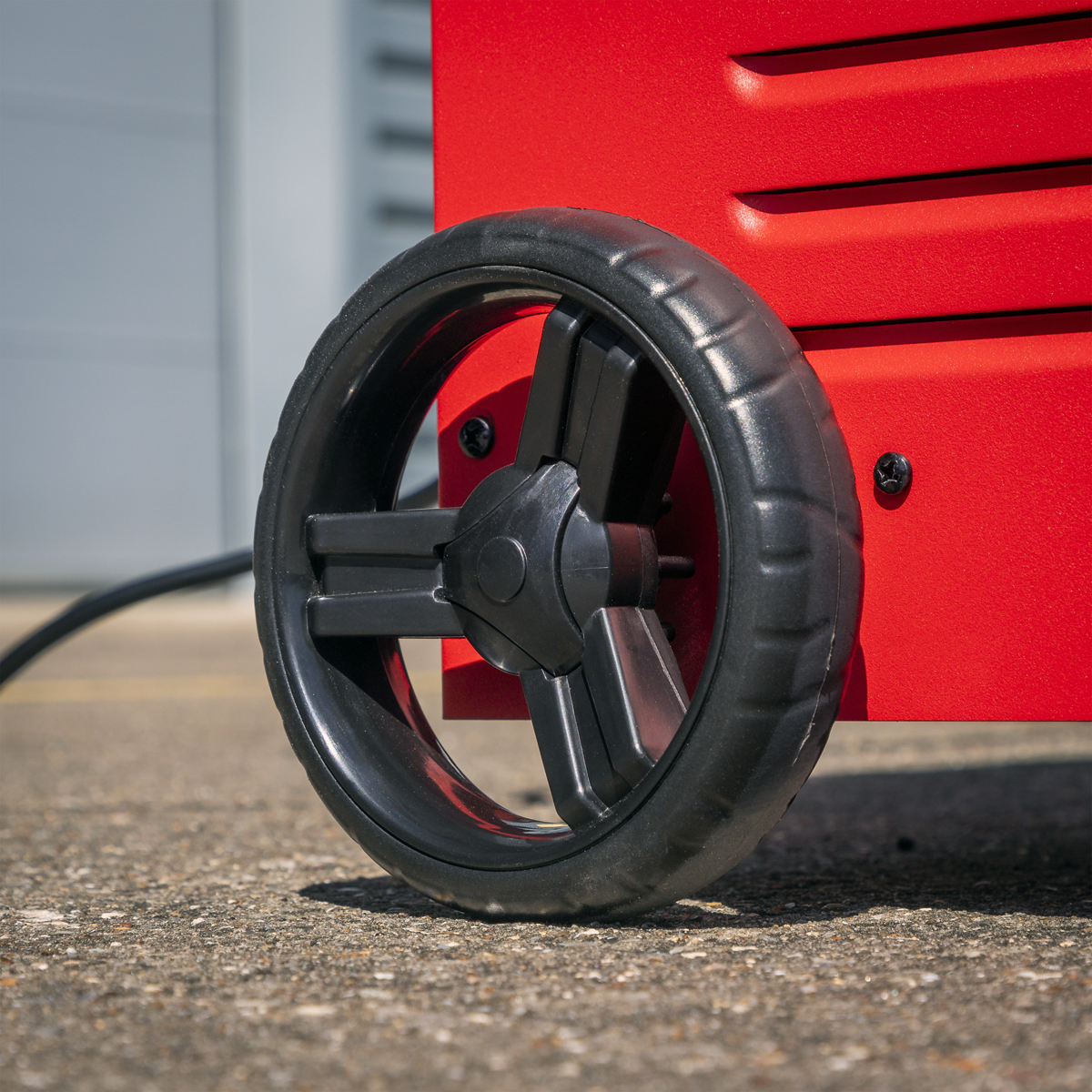

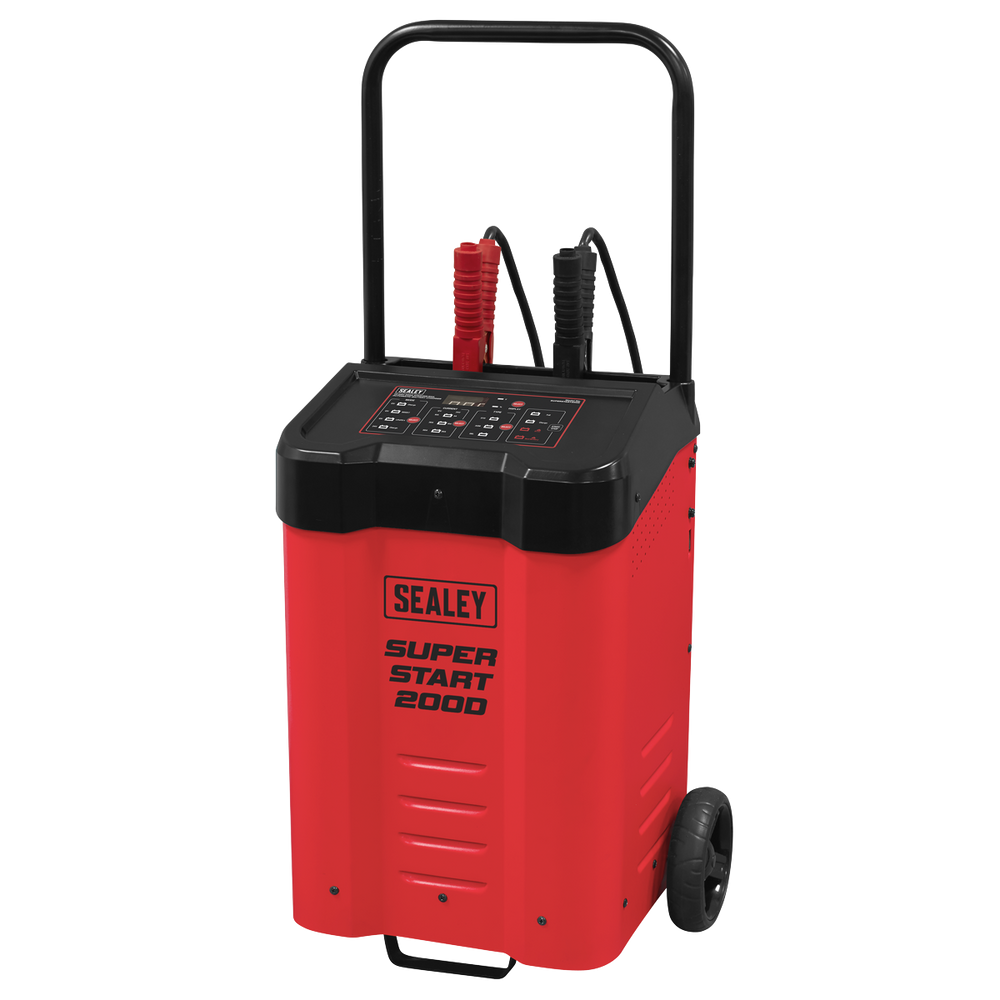

- PORTABLE DESIGN – Portable design with handle means you can easily manoeuvre the unit around the workshop.
Technical Specification
| Brand | Sealey |
|---|---|
| Model No. | SUPERSTART200D |
| Barcode | 5054630399190 |
| Warranty | 1 year |
| Commodity Code | 8504409590 |
| Country of Origin | CHN |
| Pack Dimensions | H 0.33m — W 0.33m — D 0.32m |
| Gross Weight | 17kg |
| Cable & Clamp Length | 2m |
| Nett Weight | 16kg |
| Output | 12/24V |
| Zero Voltage Charging | No |
| Battery Support/DC Supply Mode | No |
| Supply Current | 13A |
| Supply Voltage | 230V ~ 50Hz 13A (Max) |
| Plug Type | 3-Pin |
| Power Supply Cable Length | 1.9m |
| Charger Type: Traditional (T) or Intelligent (HF) | HF |
| Battery Range | 10Ah - 600Ah |
| Max. Size Battery (AH) Full Charge in 12hrs from Discharged | 600Ah |
| Output Charge Peak | 60A - 12V, 30A - 24V |
| Output Charge Rates | 12V - 60A, 30A, 10A 24V - 30A, 15A, 5A 12V 10A LiFePo4 |
| Start Peak | 200A (12V only) (5s on, 180 off) |
| Battery Type | GEL, AGM, STD, LITHIUM (12V ONLY), LEISURE |
| Working Temp | (-10°C - 40°C) |
| Housing Protection | IP20 |
| Max Charging Volts 12V (24V) Lead Acid Batteries | AGM, 14.7V (29.4V), GEL, 14.1V (28.2V), STD, 14.4V (28.8V) |
| Max Charging Volts 12V LifeP04 | 14.5V |
