Description
Description

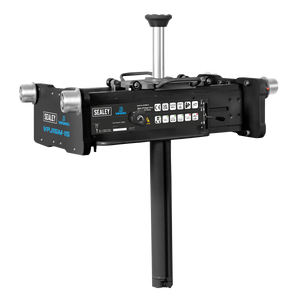

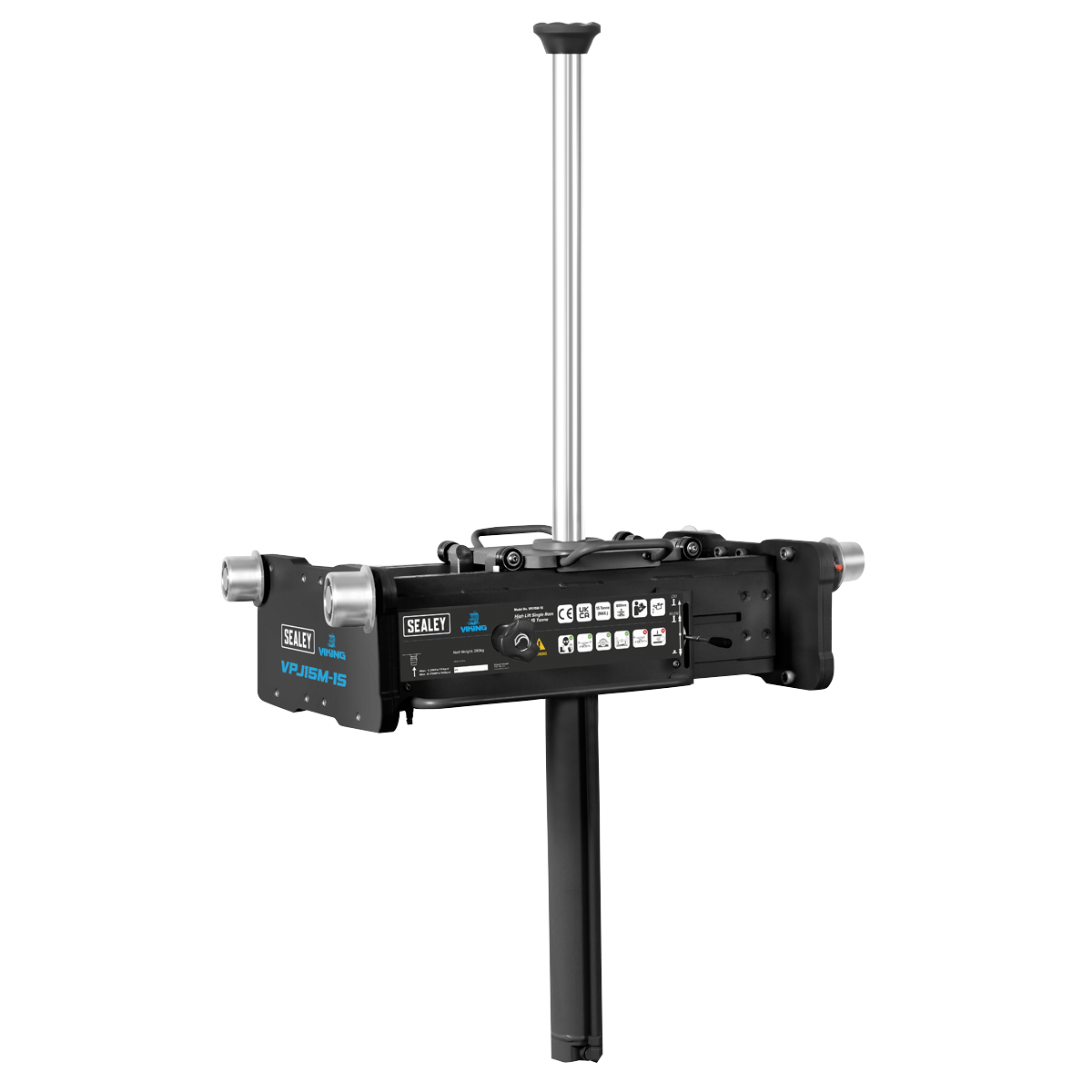

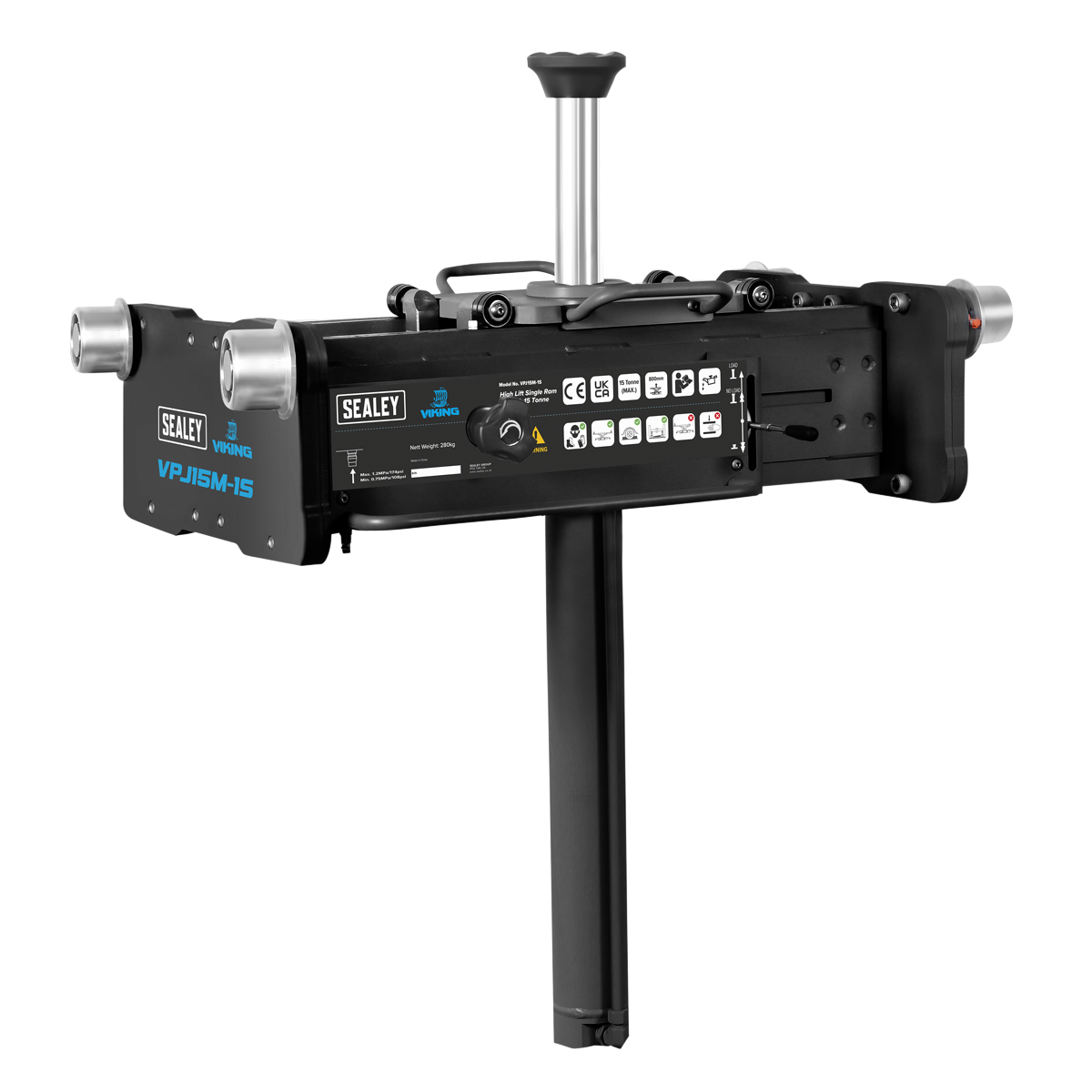

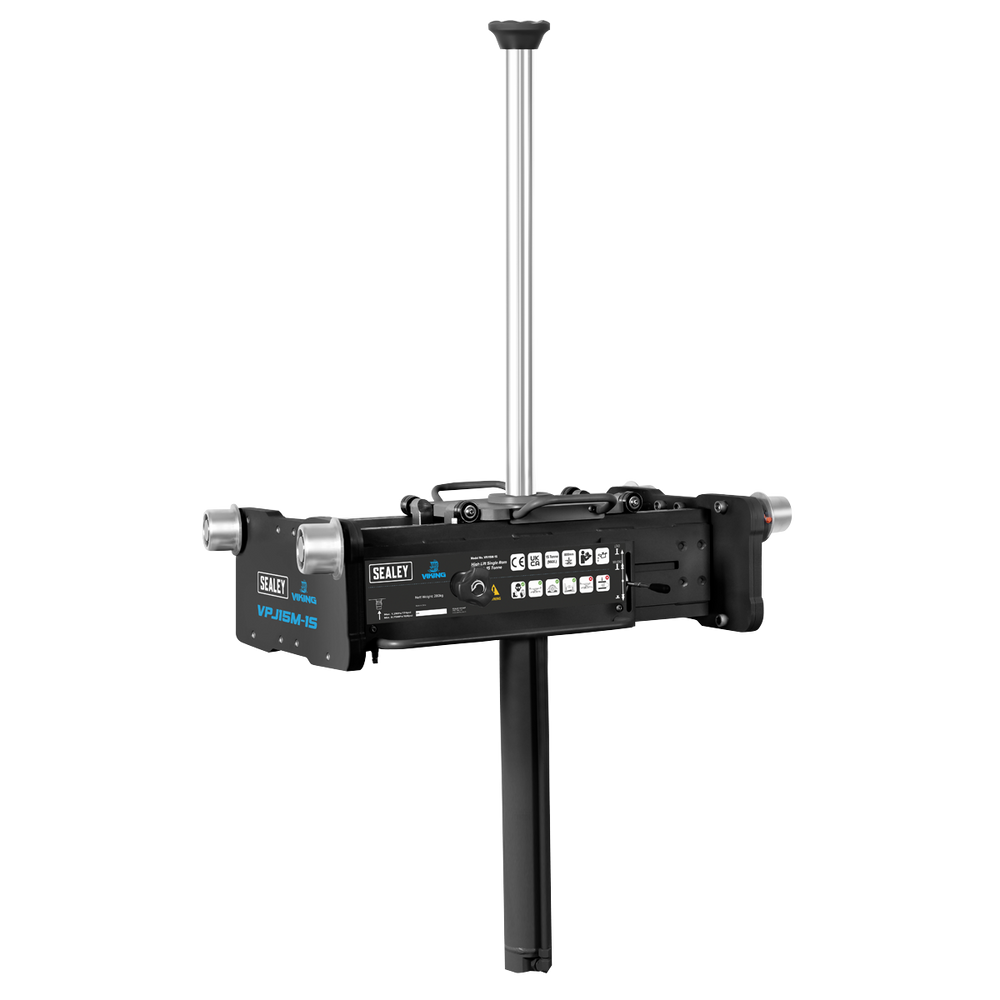

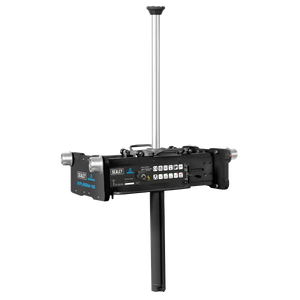

Sealey VPJ15M-1S High Lift Single Ram Pit Jack 15 Tonne
Fitted with leaf spring support bearings for easy glide transversing the ram. Full 800mm lifting stroke for high axled vehicles. Air operation takes the effort out of lifting heavy plant, tractors and commercial vehicles. Rocket lift feature brings the saddle into contact with the jacking point quickly and slows once under load for a controlled lift. Adjustable to suit different pit widths.
Features and Benefits
- EASY GLIDE - Fitted with leaf spring support bearings for easy glide transversing the ram.
- HIGH LIFT - Full 800mm lifting stroke for high axled vehicles.
- PNEUMATIC CONTROL - Air operation takes the effort out of lifting heavy plant, tractors and commercial vehicles.
- QUICK LIFT - Rocket lift feature brings the saddle into contact with the jacking point quickly and slows once under load for a controlled lift.
- SAFE DESCENT - Fitted with deadman controls and a limited descent control valve.
- ADJUSTABLE FIT - Manufactured to suit pit widths between 920 - 1220mm.
- CONVENIENCE - Large handle for moving the frame, air coupling and water separator and spare parts tray/tool tray with rubber mat insert.
- 3 YEAR GUARANTEE*.
Technical Specification
| Brand | Viking |
|---|---|
| Model No. | VPJ15M-1S |
| Barcode | 5054630520648 |
| Warranty | 3 years |
| Commodity Code | 8425410000 |
| Country of Origin | CHN |
| Pack Dimensions | H 0.56m — W 1.035m — D 0.63m |
| Gross Weight | 315kg |
| Beam Lift | 800mm |
| Capacity | 15 Tonne |
| Load Arm Reach | N/A |
| Nett Weight | 280kg |
| Optional Accessories | VPJ15MCBA - Single Ram Cross Beam Adaptor, VJP15M2CBA - Single Ram Cross Beam Adaptor Extendable, VPJ-VA - V-Adaptor, VJP-UA - U-Adaptor, VPJ-A7 - Extension For Pit Jacks 100mm, VPJ-A8 - Extension For Pit Jacks 200mm, VPJ15SS - Integrated Safety Stand |
| Support Arm Reach | N/A |
