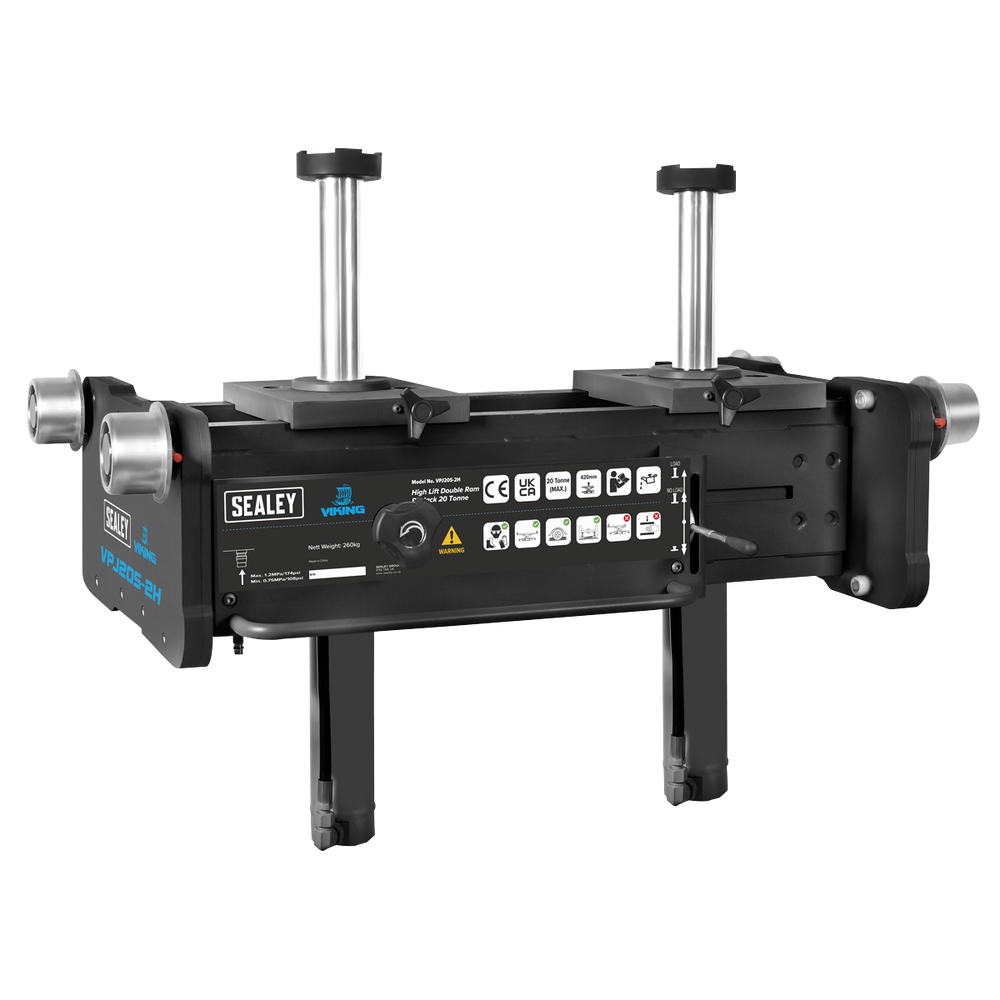

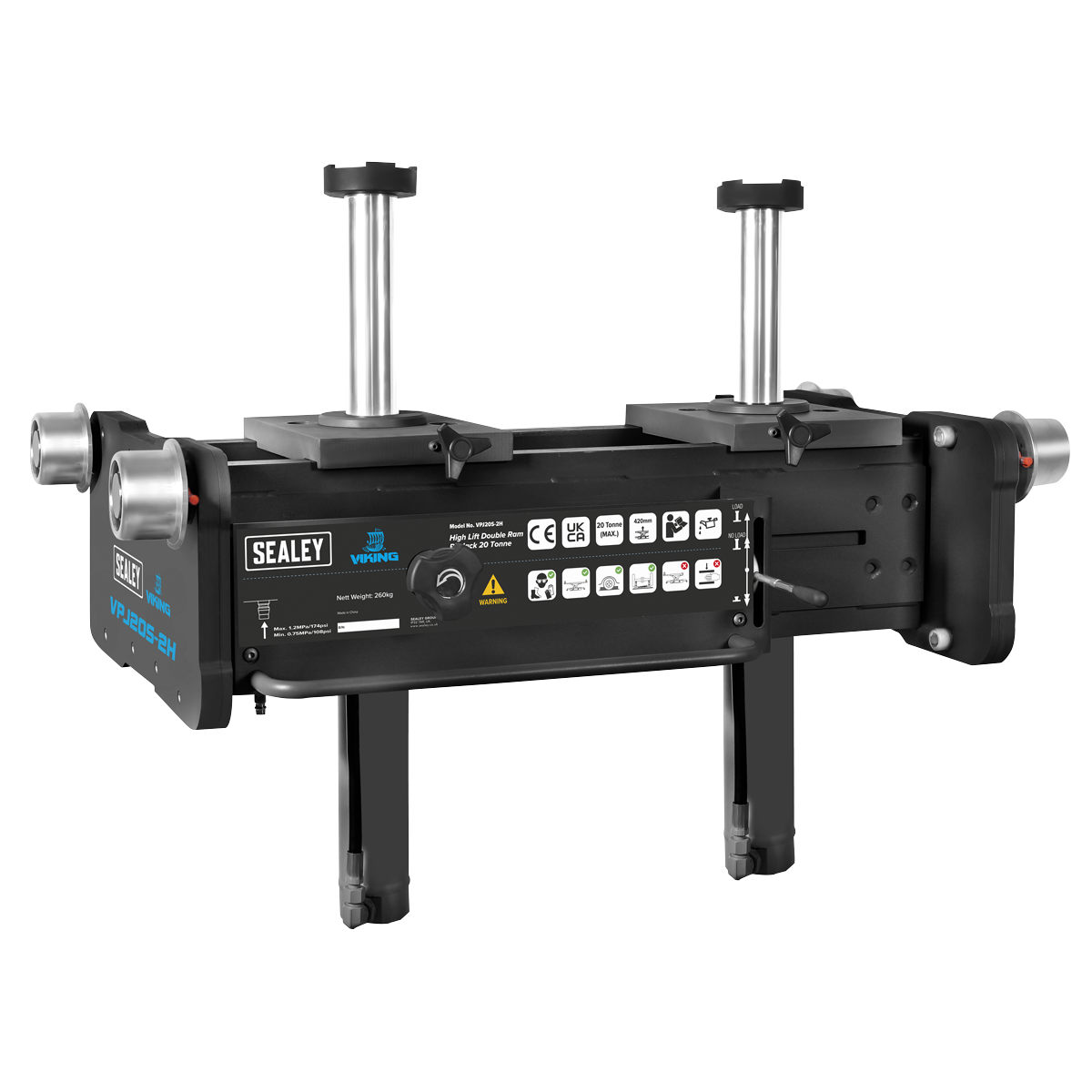

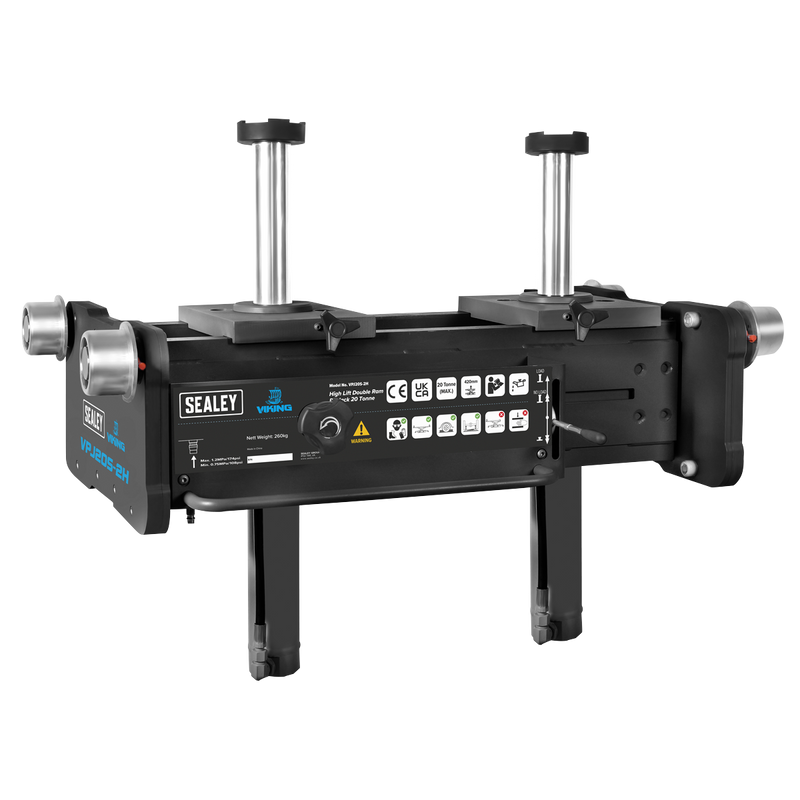

Sealey VPJ20S-2H Viking Pit Jack 20 Tonne High Lift Double Ram
SKU VPJ20S-2H Barcode 5054630519796
Available to order from our supplier. Contact us to confirm quantities and lead times.
Pay in 3 interest-free with shopPay or PayPal
- Expert UK product support
- Authorised distributor
- 30 day returns
Delivery & returns
Despatch times vary by item. Check the product-specific lead time shown on this page. Supplier-shipped and larger items may take longer.
Delivery options and transit times are shown at checkout. Transit time starts after despatch and excludes weekends and bank holidays unless the selected service states otherwise. Tracking is provided when available.
30 day returns on unused items in original packaging.
Description
Description
Sealey VPJ20S-2H Viking Pit Jack 20 Tonne High Lift Double Ram
Fitted with leaf spring support bearings for easy glide transversing the ram. Full 420mm lifting stroke for high axled vehicles. Shut off valves allow twin or single ram lifts. Air operation takes the effort out of lifting heavy plant, tractors and commercial vehicles. Rocket lift feature brings the saddle into contact with the jacking point quickly and slows once under load for a controlled lift. Fitted with deadman controls and a limited descent control valve. Manufactured to suit pit widths between 680-960mm. Large handle for moving the frame, air coupling and water separator and spare parts tray/tool tray with rubber mat insert.
Features and Benefits
- EASY GLIDE - Fitted with leaf spring support bearings for easy glide transversing the ram.
- HIGH LIFT - Full 420mm lifting stroke for high axled vehicles.
- INDEPENDENT RAM LIFT - Shut off valves allow twin or single ram lifts.
- PNEUMATIC CONTROL - Air operation takes the effort out of lifting heavy plant, tractors and commercial vehicles.
- QUICK LIFT - Rocket lift feature brings the saddle into contact with the jacking point quickly and slows once under load for a controlled lift.
- SAFE DESCENT - Fitted with deadman controls and a limited descent control valve.
- ADJUSTABLE FIT - Manufactured to suit pit widths between 680-960mm.
- CONVENIENCE - Large handle for moving the frame, air coupling and water separator and spare parts tray/tool tray with rubber mat insert.
- 3 YEAR GUARANTEE*.
Technical Specification
| Brand | Viking |
|---|---|
| Model No. | VPJ20S-2H |
| Barcode | 5054630519796 |
| Warranty | 3 years |
| Commodity Code | 8425410000 |
| Country of Origin | CHN |
| Pack Dimensions | H 0.463m — W 1.035m — D 0.63m |
| Gross Weight | 295kg |
| Beam Lift | 420mm |
| Capacity | 20 Tonne |
| Load Arm Reach | N/A |
| Nett Weight | 260kg |
| Optional Accessories | VPJ20MCBA - Twin Ram Cross Beam Adaptor, VJP20M2CBA - Twin Ram Cross Beam Adaptor Extendable, VPJ-VA - V-Adaptor, VJP-UA - U-Adaptor, VPJ-A7 - Extension For Pit Jacks 100mm, VPJ-A8 - Extension For Pit Jacks 200mm, VPJ20S-2HSS - Integrated Safety Stand. |
| Support Arm Reach | N/A |
