Sealey VS5339 Camshaft Carrier Alignment Pin Set For PSA 1.4/1.5D/1.6D Belt Drive
SKU VS5339 Barcode 5054630735547
Available to order from our supplier. Contact us to confirm quantities and lead times.
- Expert UK product support
- Authorised distributor
- 30 day returns
Delivery & returns
Despatch times vary by item. Check the product-specific lead time shown on this page. Supplier-shipped and larger items may take longer.
Delivery options and transit times are shown at checkout. Transit time starts after despatch and excludes weekends and bank holidays unless the selected service states otherwise. Tracking is provided when available.
30 day returns on unused items in original packaging.
Description
Description

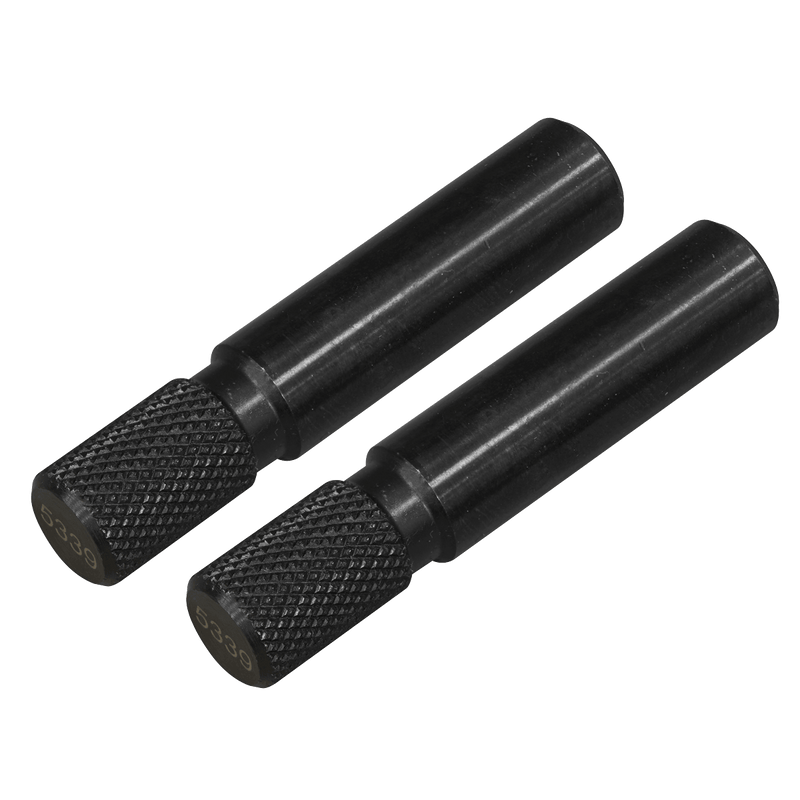

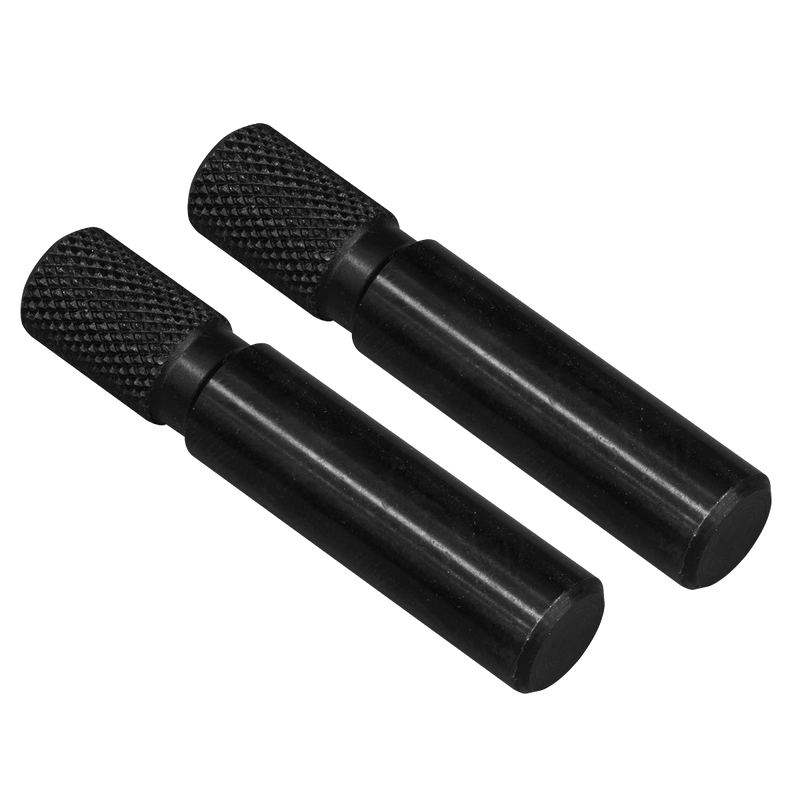

Sealey VS5339 Camshaft Carrier Alignment Pin Set For PSA 1.4/1.5D/1.6D Belt Drive
Suitable for use with 1.4 (DV4), 1.5 (DV5) and 1.6 (DV6) HDi diesel engines. Used for correct alignment of the camshaft carrier during timing chain-in-head replacement procedures. Makes assembly a simpler and more accurate process.
Features and Benefits
- PSA DIESEL ENGINE - Suitable for use with 1.4 (DV4), 1.5 (DV5) and 1.6 (DV6) HDi diesel engines.
- ALIGNMENT PINS - Used for correct alignment of the camshaft carrier during timing chain-in-head replacement procedures.
- CAMSHAFT CARRIER - Ensures correct location of the camshaft carrier during reassembly of the engine.
- OEM TOOLS - Equivalent to 0194-N, 2.000.022.900, 303-245, 303-034, EN-52146, T9997170
- TIME SAVING - Makes assembly a simpler and more accurate process.
Technical Specification
| Brand | Sealey |
|---|---|
| Model No. | VS5339 |
| Barcode | 5054630735547 |
| Warranty | 1 year |
| Commodity Code | 8409990090 |
| Country of Origin | GBR |
| Pack Dimensions | H 0.015m × W 0.023m × D 0.06m |
| Gross Weight | 0.105kg |
| Citroen | C1 (05-10), C2 (02-10), C3 (02-10), C3 1 (02-10), C3 II (02-10), C3 III (04-18), C3 Pluriel (2012), C3 Classic (02-10), C3 Aircross (18-21), C3 Picasso (04-17), C4 (07-11), C4 II (11-18), C4 III (00-04), C4X (02-26), C4 Picasso (00-18), C4 Grand Picasso (06-18), C4 Cactus (18-21), C4 Aircross (07-10), C4 Sports Tourer (18-24), C4 Grand Sports Tourer (18-25), C5 Aircross (19-25) C5 II (04-08), C5 III (04-15), C-Elysee (14-21) |
| Fiat | Scudo (07-16); 2.000.022.900 |
| Ford | B-Max (12-15), C-Max (11-20), Grand C-Max (10-19), Ecoboost (13-23), Fiesta (02-13), Fusion (02-11), Focus (04-25), Galaxy (11-15), Kuga (20-23), Puma (20-23), S-Max (10-15), Tourneo Connect (13-24), Grand Tourneo Connect (15-24), Transit Connect (13-24), Transit Courier (20-26); 303-245 |
| Mazda | 2 (02-10), 3 (03-14); 303-034 |
| Peugeot | 107 (05-10), 1007 (05-10), 206 (01-09), 206 + (10-13), 206 CC (05-07), 207 (06-13), 207CC (07-15), 208 (13-23), 2008 (13-20), 308 (01-26), 308 CC (06-15), 308 SW (21-26), 3008 (09-18), 407 (05-15), 4008 (99-02), 508 (09-24), 5008 (02-15), Bipper (08-10), Rifter (18-24), Partner (05-11), Partner II (05-11), Partner III (02-17), Partner IV (18-24), Expert III (07-12) |
| Mini | Mini (06-15), Clubman (07-14) |
| Suzuki | Liana (04-08), SX4 (07-11) |
| Vauxhall | Combo E (18-21), Crossland (17-21), Grandland (17-21); EN-52146 |
| Associated tools | VSE5846, VSE5930, VSE5941 |
| 1.4D | 8HT (DV4TD), 8HW (DV4TD), 8HX (DV4TD), 8HV (DV4TED4), 8HX (DV4TD), 8HV (DV4TED4), 8HX (DV4TED4), 8HZ (DV4TD), 8HY (DV4TED4) |
| 1.4D DDiS | DV4(8HY) |
| 1.4D HDi | DV4C(8HP), DV4C(8HR), DV4TD(8HX), DV4TD(8HZ), DV4TD(8HW), DV4TD(8HZ), DV4TED4(8HX), DV4TD(8HZ), DVTED4(8HV), DV4TED4(8HY), DV4TED(8HS), DV4TD(8HT) |
| 1.4D TDCi | F6JA, F6JB, F6JD |
| 1.5D HDi | YHX(DV5RCD), YHY(DV5RD), YHT(DV5RCF), YHY(DV5RD), YHS(DV5RCE), YHX(DV5RCD), YHZ(DV5RC), YHW(DV5RE), YHT(DV5RCF), YHZ(DV5RC), YHR(DV5RUCD), YHV(DV5RUC), DV5RC(YHZ) |
| 1.5D TDCi | UGJE, XXDD, XWDD, XWDE, XWDG, XVGA, XUGA, XWGA |
| 1.5D ecoBlue | ZTDA, ZTJA, ZTJB, ZTJC, ZTJD, ZTJE, Z2GA |
| 1.5D | LQJ/D15T, LQJ/D15H |
| 1.6D Blue-HDi | DV6C(BHX), DV6C(BHZ) |
| 1.6D DDiS | DV6(9HX) |
| 1.6D e-HDi | DV6FE(BHW), DV6FE(BHY), DV6FE(BXZ), DV6FD(BHY), DV6C(9HR), DV6C(9HD), DV6TED(9HD), DV6FC(BHW), DV6FC(BHX), DV6FC(BHY), DV6FC(BHZ) |
| 1.6D HDi Airdream | DV6C(9HL), DV6C(9HR), DV6C(9HD) |
| 1.6D HDi | DV6UTED4(9HX), DV6TED4(9HZ), DV6FD(BHY), DV6UTED4(9HU), DV6C(9HL), DV6C(9HR), DV6TED4(9HY), DV6C(9HD), DV6(9HR), DV6BTED4(9HW), DV6ATED4(9HX), DV6DTED(9HJ), DV6ETED(9HN), DV6DTED(9HP), DV6TED4BU(9HS), DV6FE(BHW), DV6BUTED4(9HT), DV6TED4B(9HV), DV6BTED4(9HT), DV6D(9HP), DV6TED4(9HV), DV6ETEDM(9HK), DV6C(9HC), DV6CM(9HG), DV6C(9HG), DV6C (9HD), DV6TED4(9HW), DV6TED4(9HX), DV6AT(9HX), DV6ATED(9HX), DV6CTED(9HC), DV6DTED(9HC), DV6DTED(9HJ), DV6DTED(9HH), DV6TEDB4(9HV), DV6TEDB4(9HS), DV6ETED(9HK), DV6AUTED4(9HX), DV6TED4B, DV6DTED(9HF) |
| 1.6D TDCi | T3JB, T1WA, T1WB, G8DF, T1DA, T1DB, T3DB, UBGA, T1GA |
| 1.6 JTD | 9H07 |
| Nett Weight | 0.105kg |
| PSA | 0194-N |
