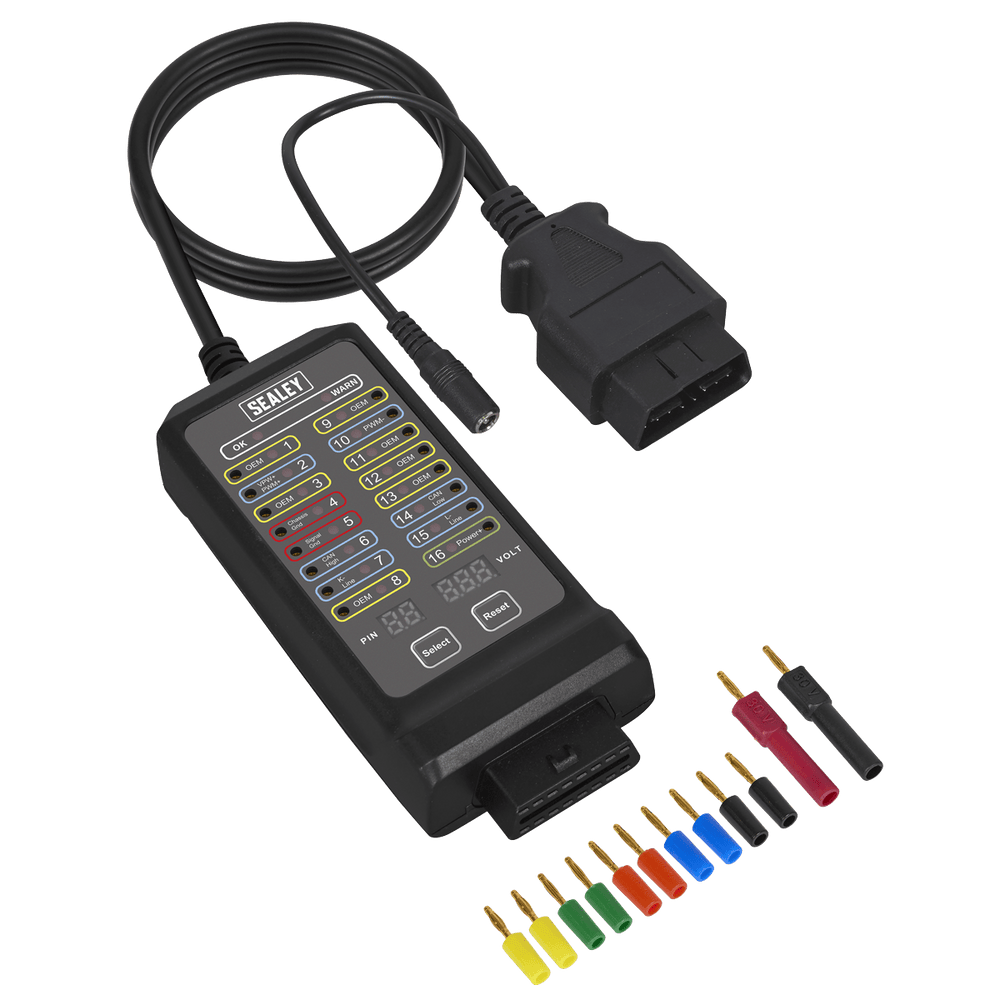

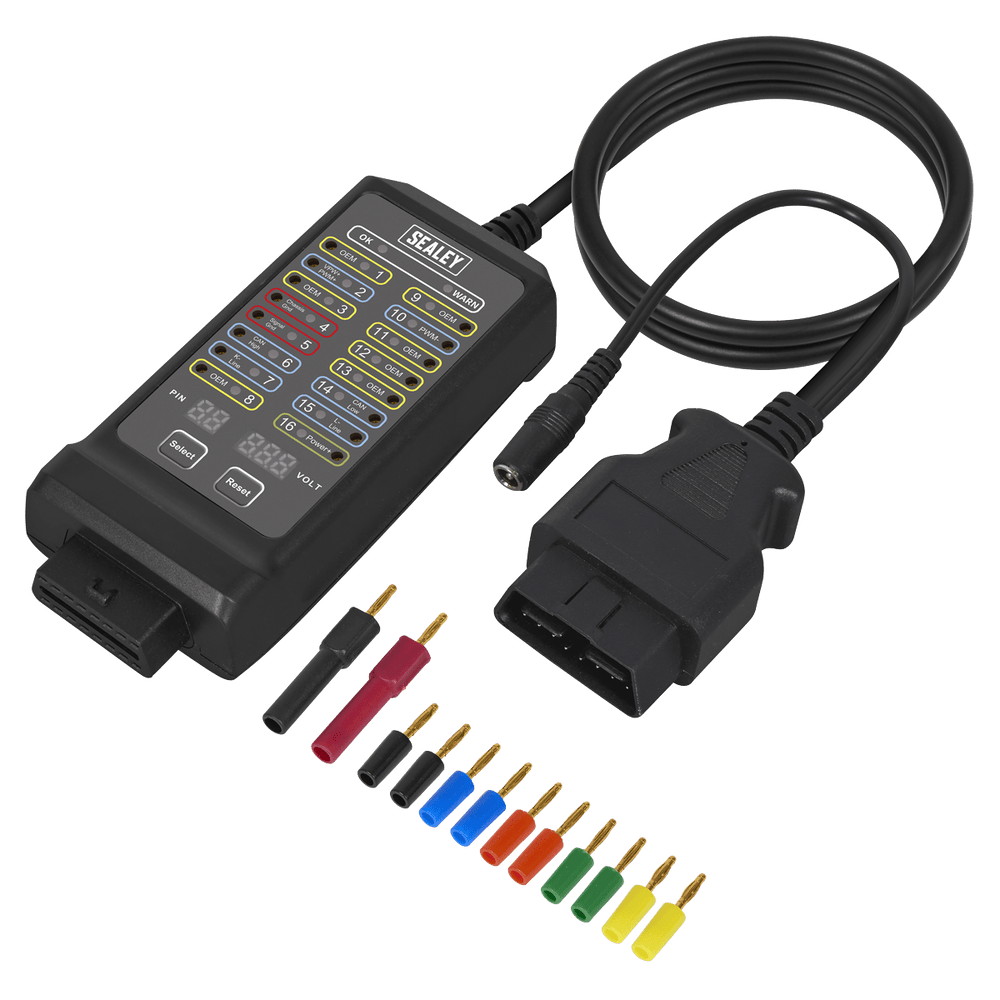

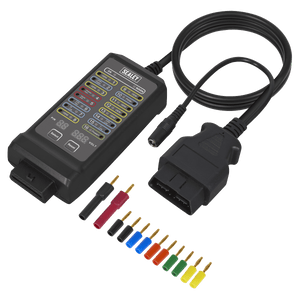

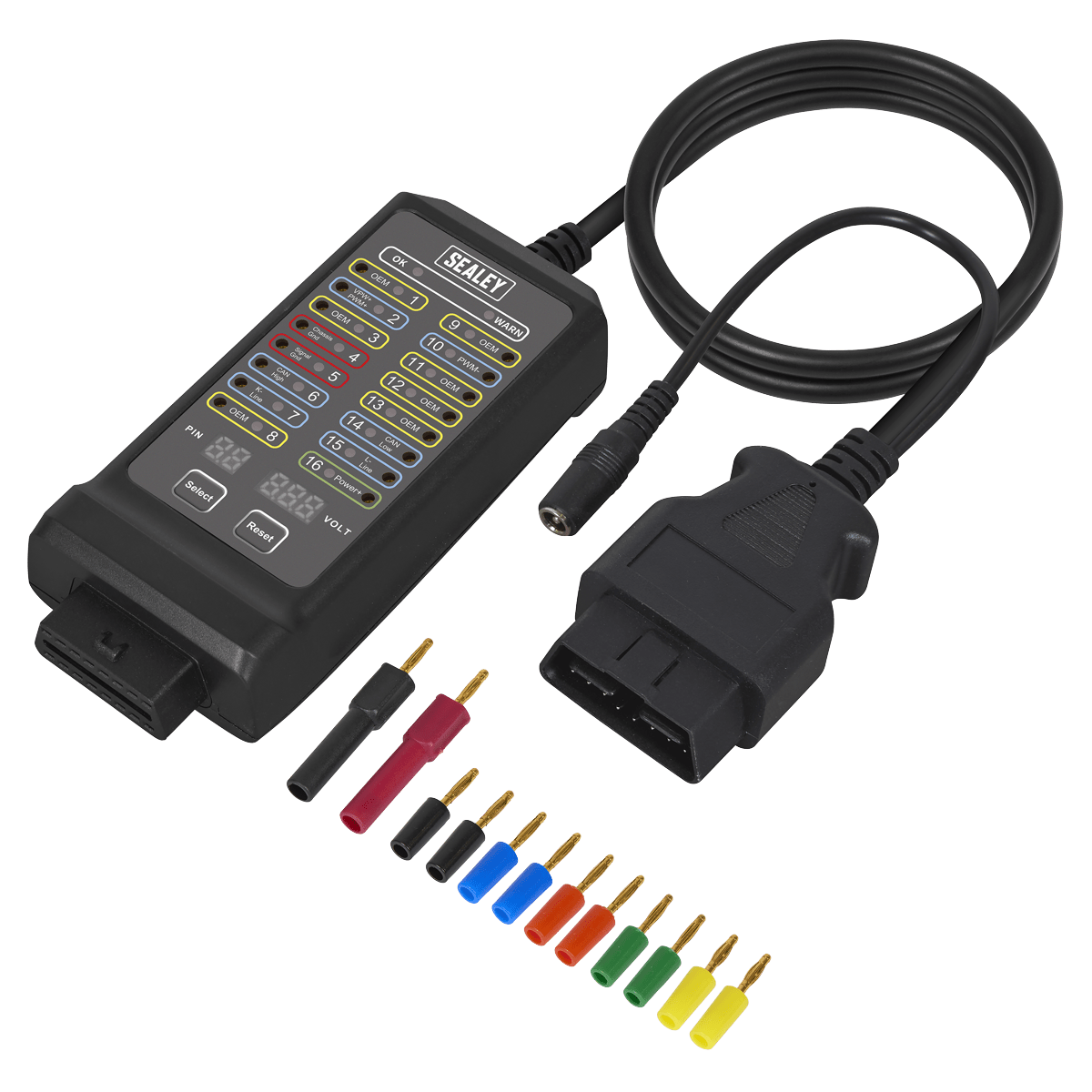

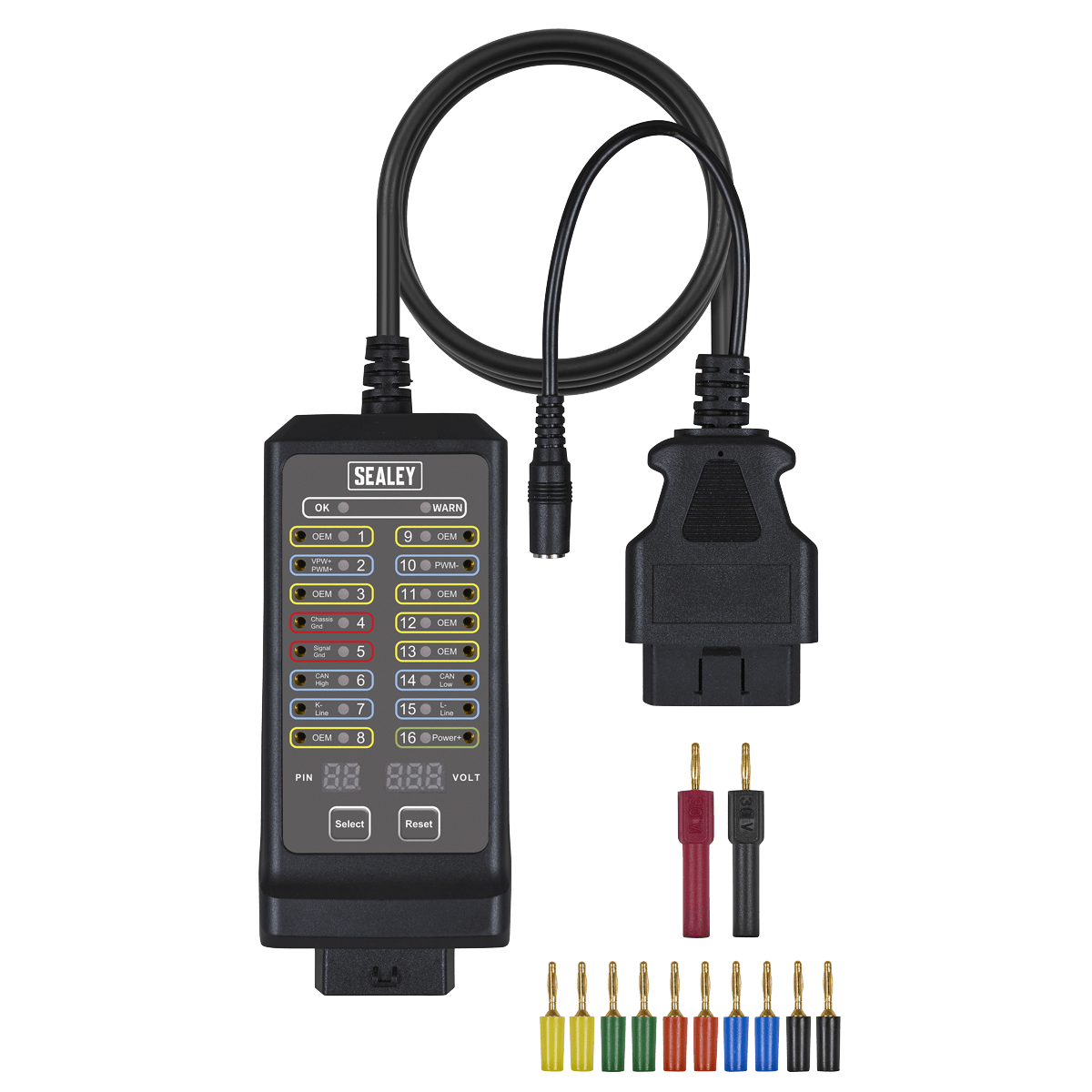

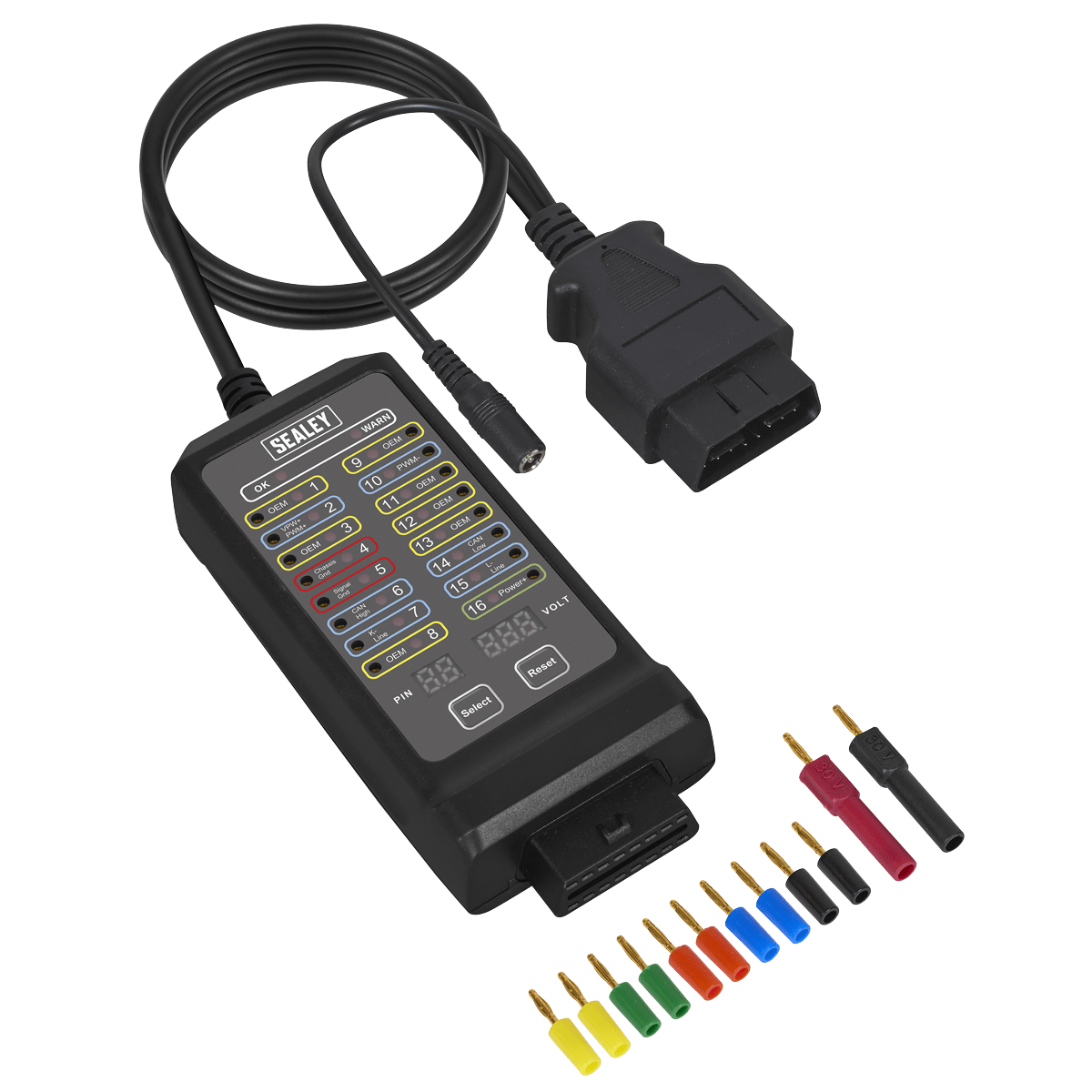

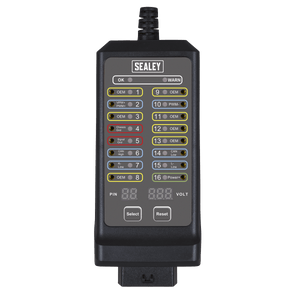

Sealey VS8813 OBD Breakout Box 16-Pin 12V/24V

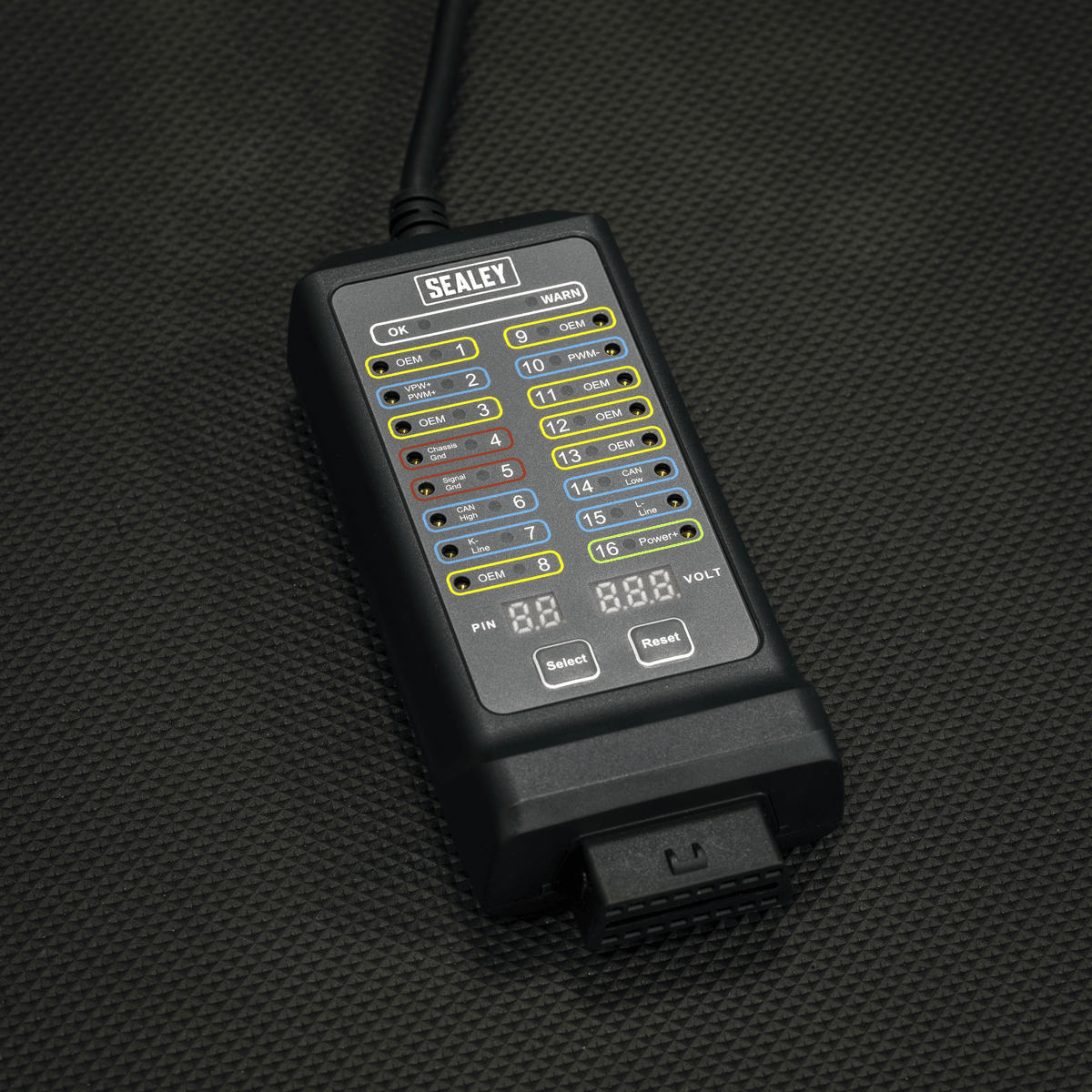

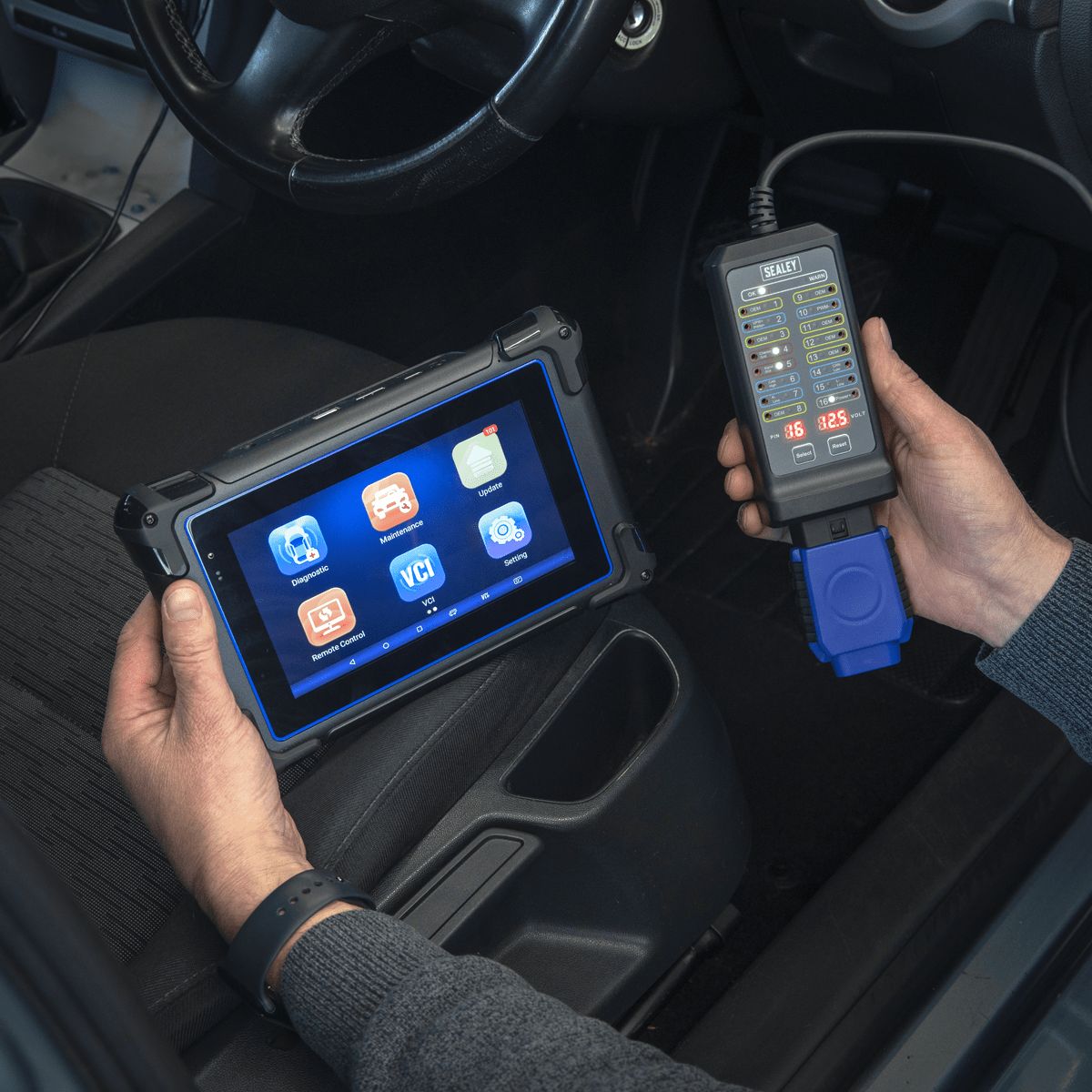

Test the onboard diagnostics port for any faults before connecting other diagnostic devices to the DLC. The breakout box is designed to be connected in series with 16-pin OBDII/EOBDII diagnostic equipment. It can also be connected to multimeters and oscilloscopes. Compatible with 12 and 24V systems. The selectable pin voltage indicator shows the real-time voltage of the selected pin. Communication Protocol Indicator - Pin 6 = CAN H, Pin 14 = CAN L, Pin 2 = VPW+, PWM+, Pin 10 = PWM-, Pin 7 = K_LINE and Pin 15 = L_LINE. Overload protection protects any connected diagnostic equipment from damage.
Features and Benefits
- TESTS THE ON-BOARD DIAGNOSTOC PORT - For any faults before connecting other diagnostic devices to the DLC.
- UNIQUE DESIGN – The breakout box can be connected in series with 16-pin OBDII/EOBDII diagnostic equipment.
- CONNECTS TO MULTIMETERS AND OSCILLOSCOPES – To enable further testing.
- COMPATIBLE - With 12 and 24V systems.

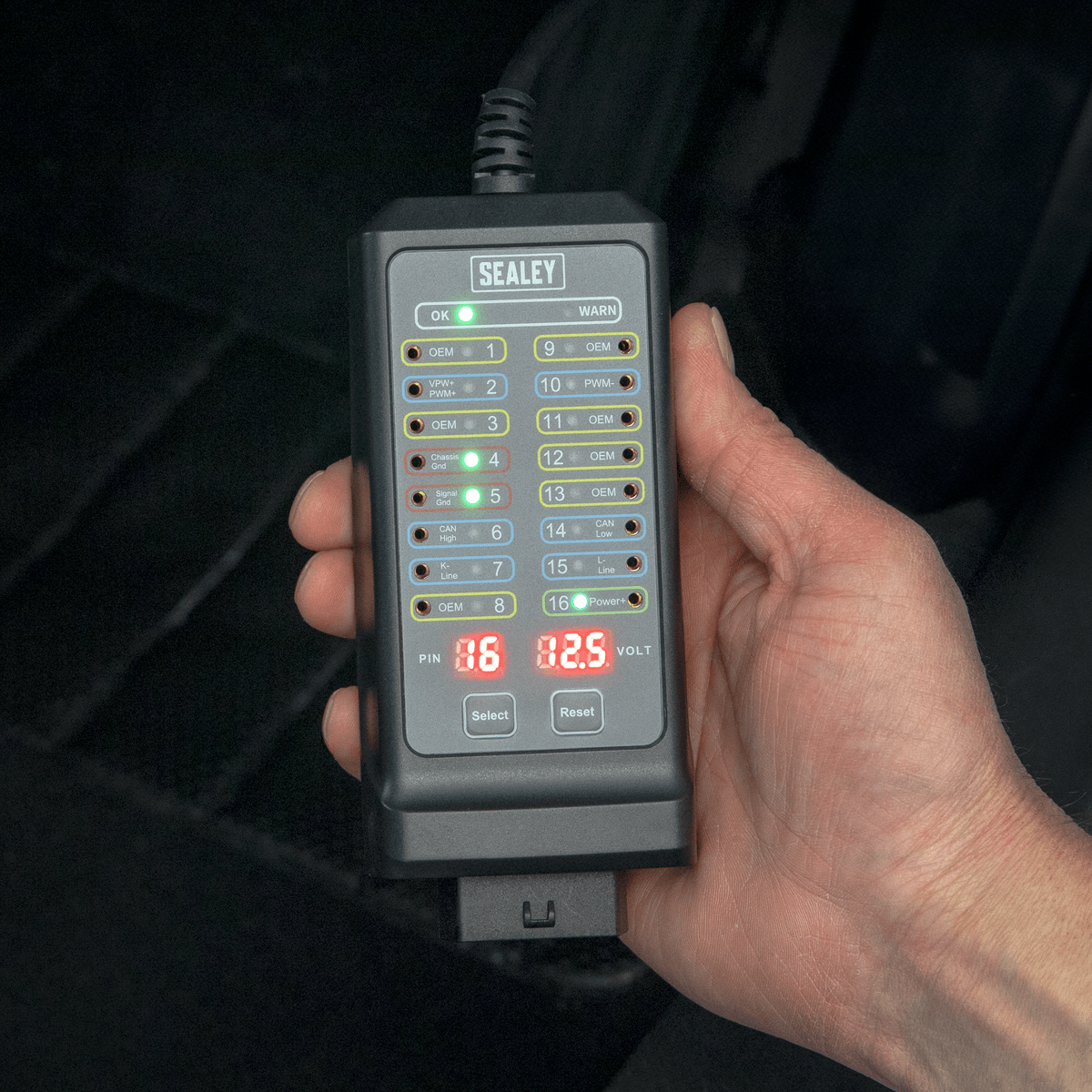

- SELECTABLE PIN VOLTAGE INDICATOR - Shows the real-time voltage of the selected pin.

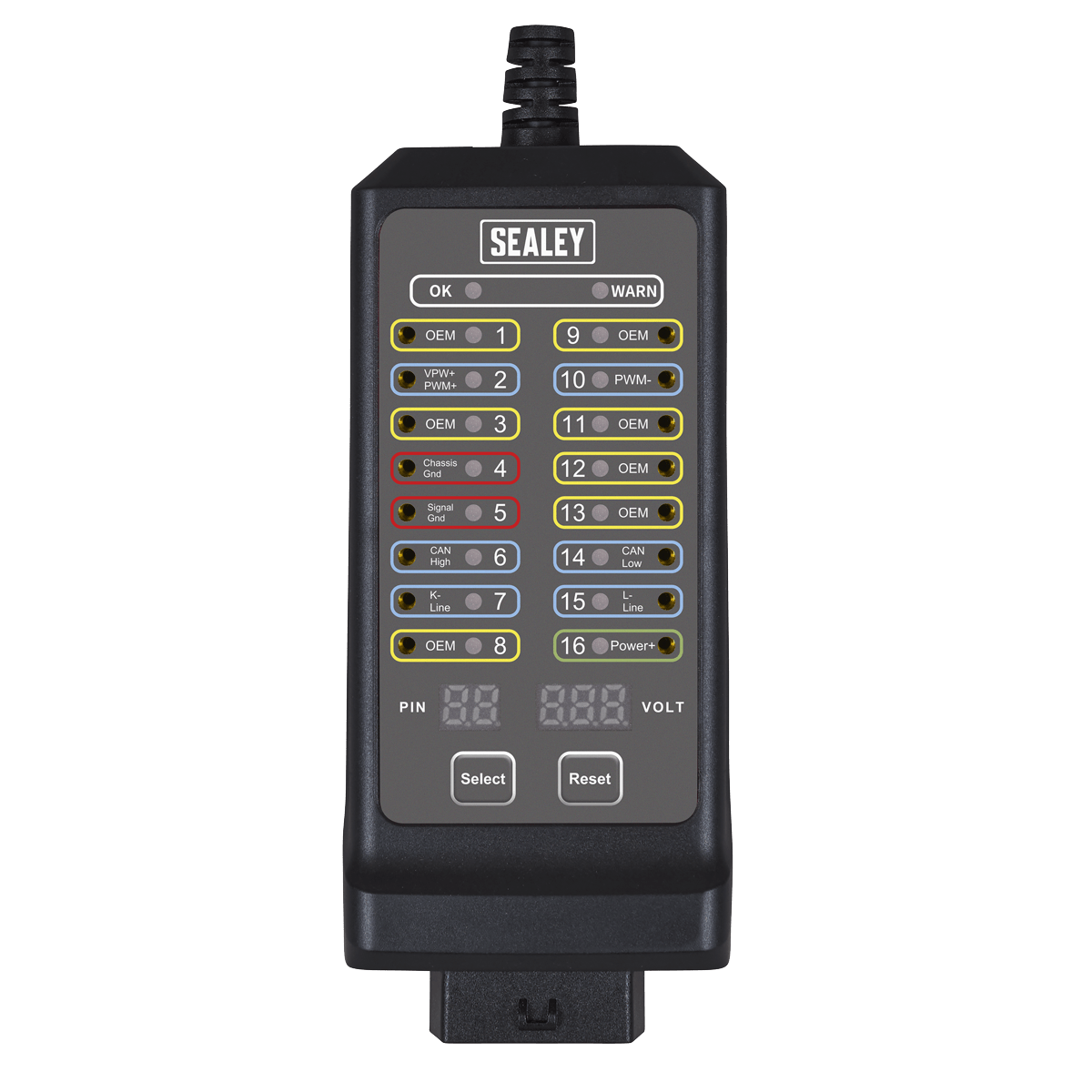

- COMMUNICCATION PROTOCOL INDICATOR - Pin 6 = CAN H, Pin 14 = CAN L, Pin 2 = VPW+, PWM+, Pin 10 = PWM-, Pin 7 = K_LINE and Pin 15 = L_LINE.
- OVERLOAD PROTECTION - Protects any connected diagnostic equipment from damage.
Technical Specification
| Brand | Sealey |
|---|---|
| Model No. | VS8813 |
| Barcode | 5054630471650 |
| Warranty | 1 year |
| Commodity Code | 9030337000 |
| Country of Origin | CHN |
| Pack Dimensions | H 0.05m × W 0.185m × D 0.13m |
| Gross Weight | 0.354kg |
| Nett Weight | 0.24kg |
| Input Voltage DC | 9-32V |
| Maximum Load | 2.0A |
| Resolution | : 0.1V |
| Overload Protection | Yes |
| Reverse Polarity Protection | Yes |
| Operating Temperature | 0℃-50℃ |
| Cable Length | 700mm |
