Sealey VSE5846 Diesel Engine Timing Tool Kit for PSA, Ford, Volvo 1.4D/1.5D/1.6D HDi/TDCi - Belt Drive
SKU VSE5846 Barcode 5051747473430
Available to order from our supplier. Contact us to confirm quantities and lead times.
- Expert UK product support
- Authorised distributor
- 30 day returns
Delivery & returns
Despatch times vary by item. Check the product-specific lead time shown on this page. Supplier-shipped and larger items may take longer.
Delivery options and transit times are shown at checkout. Transit time starts after despatch and excludes weekends and bank holidays unless the selected service states otherwise. Tracking is provided when available.
30 day returns on unused items in original packaging.
Description
Description
Sealey VSE5846 Diesel Engine Timing Tool Kit for PSA, Ford, Volvo 1.4D/1.5D/1.6D HDi/TDCi - Belt Drive

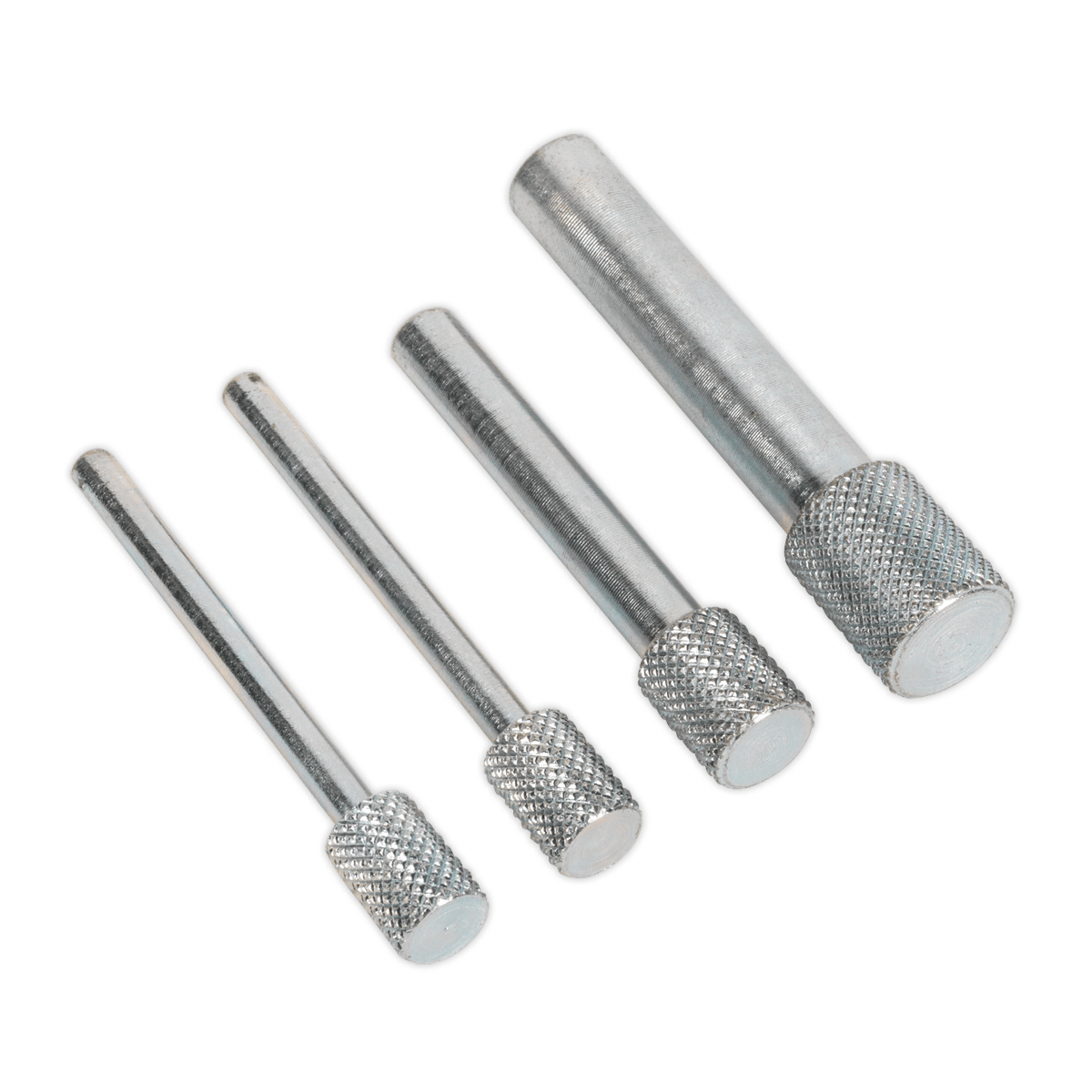

Set of locking pins for timing belt replacement on Ford 1.5, PSA 1.4 (DV4) and 1.6 (DV6) diesel engines fitted in Citroen, Peugeot, Ford, Mazda, Suzuki, Toyota and Volvo models. These timing pins lock and hold the camshaft, crankshaft, flywheel and HP pump in the timed position.
Features and Benefits
- Set of locking pins for timing belt replacement on Ford 1.5, PSA 1.4 (DV4) and 1.6 (DV6) diesel engines fitted in Citroen, Peugeot, Ford, Mazda, Suzuki, Toyota and Volvo models.
- OEM Tools, 0194-A, 0194-B, 0194-C

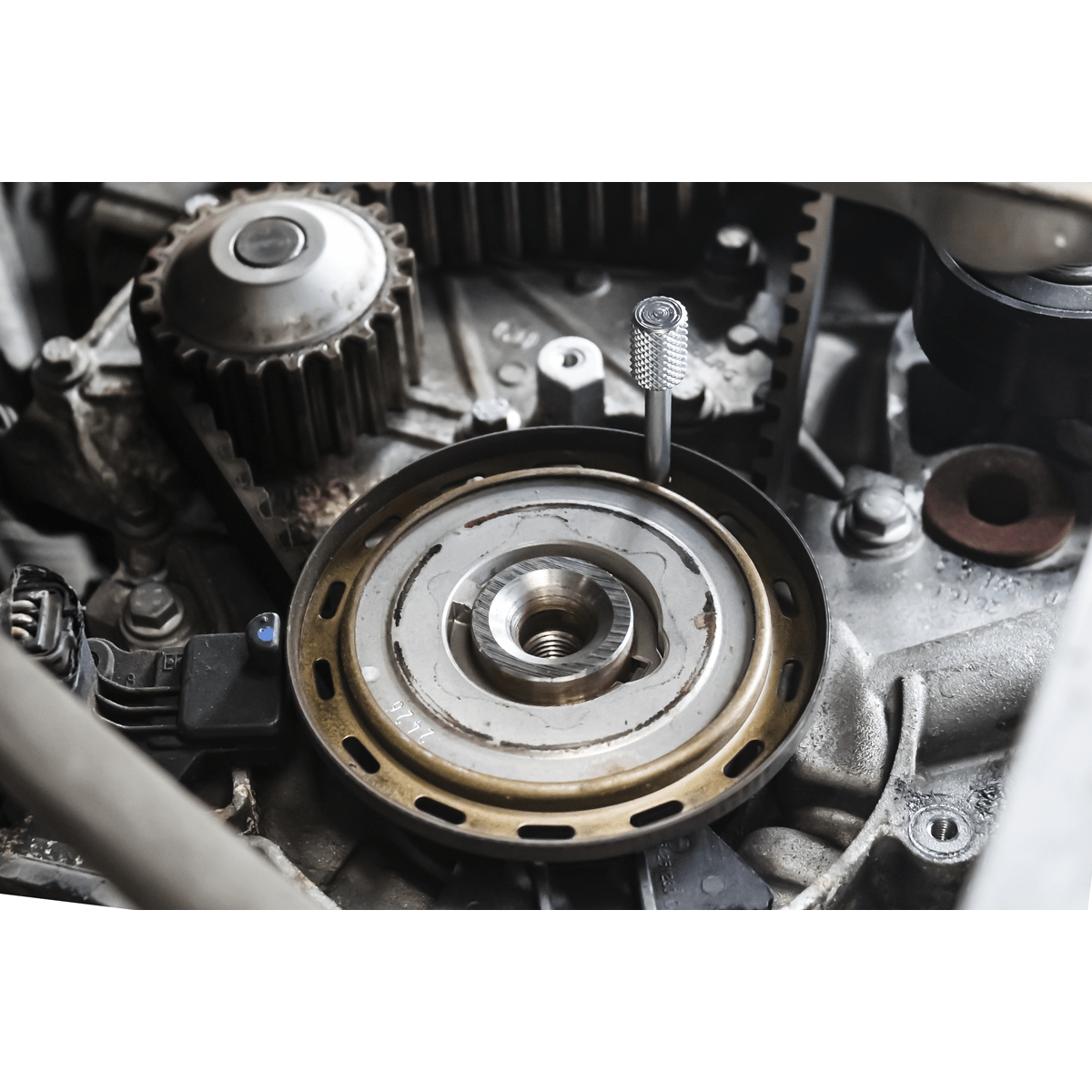

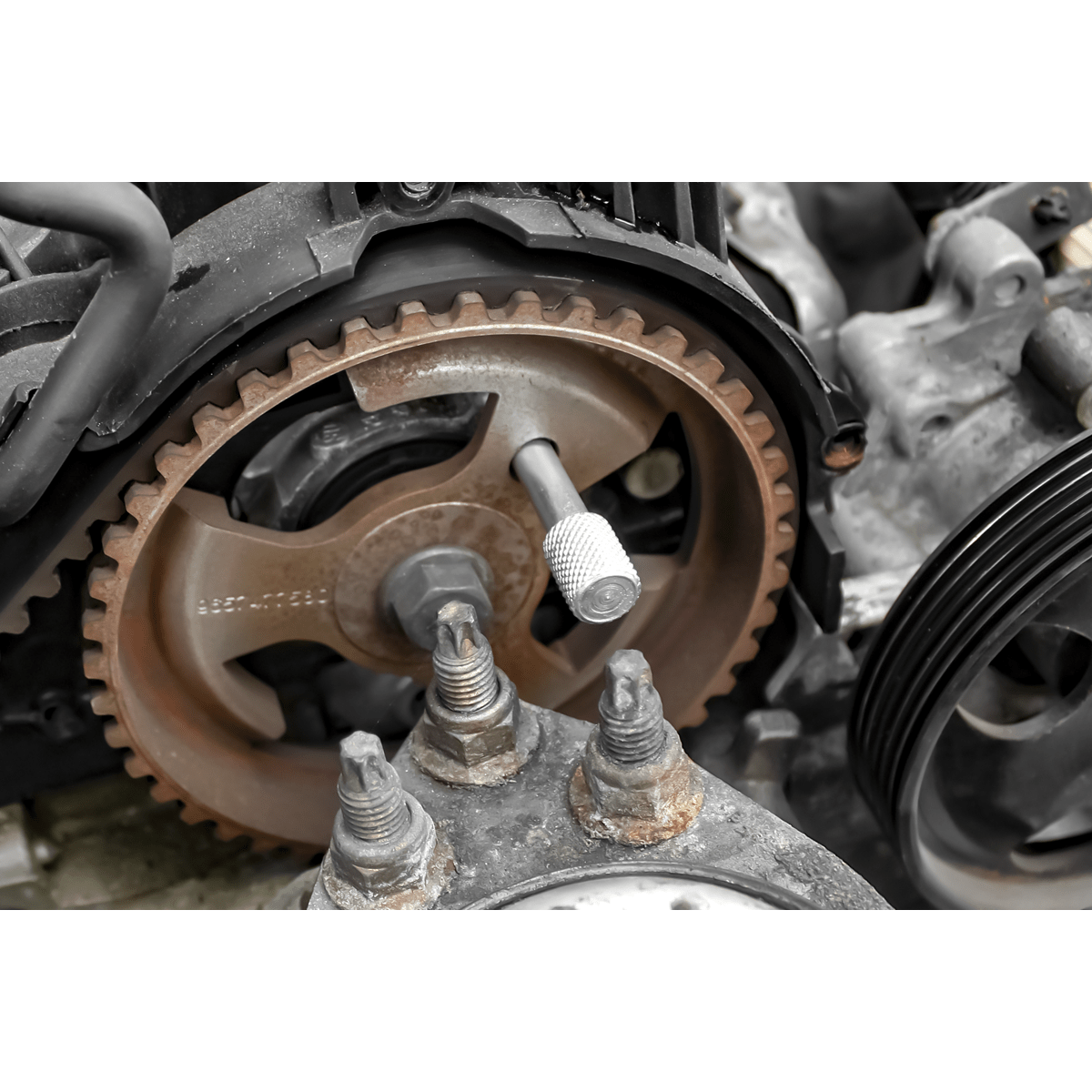

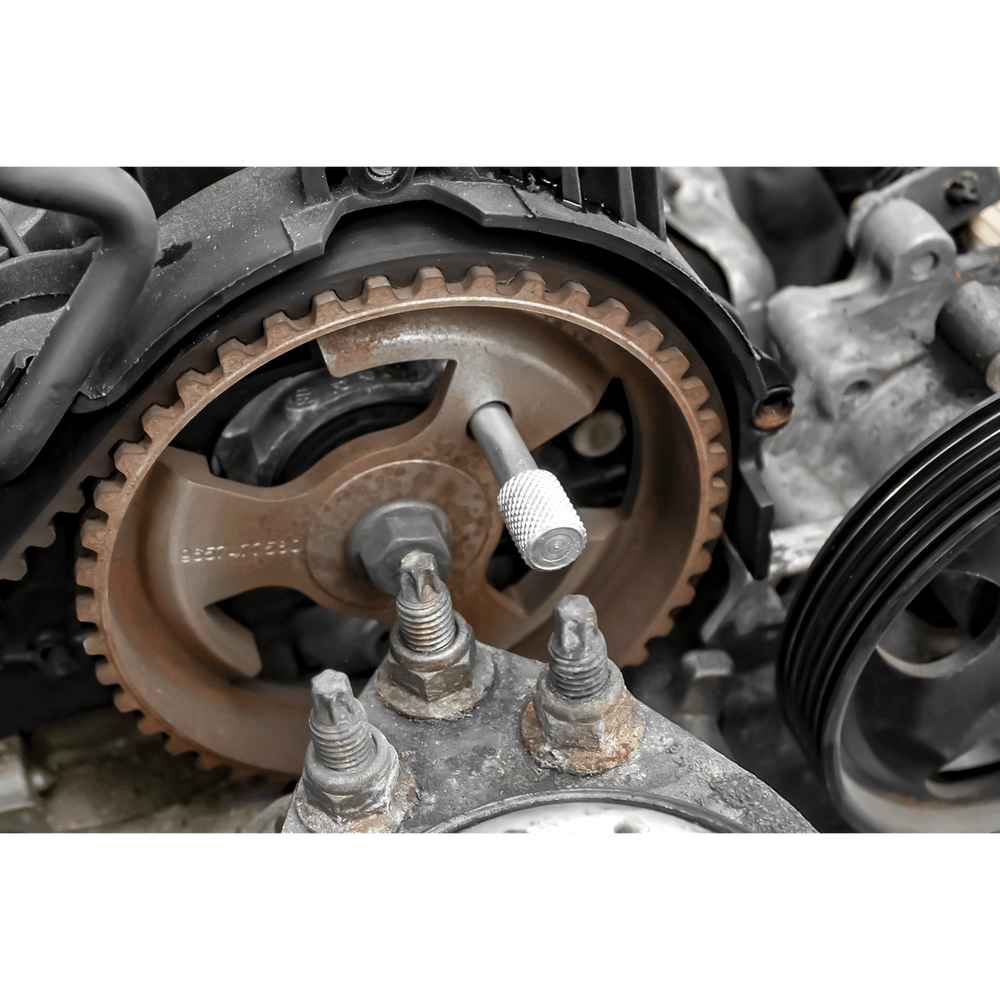

- These timing pins lock and hold the camshaft, crankshaft, flywheel and HP pump in the timed position.
Technical Specification
| Brand | Sealey |
|---|---|
| Model No. | VSE5846 |
| Barcode | 5051747473430 |
| Warranty | 1 year |
| Commodity Code | 8205598000 |
| Country of Origin | CHN |
| Pack Dimensions | H 0.147m × W 0.092m × D 0.02m |
| Gross Weight | 0.158kg |
| Citroen | Berlingo I/II (05-11), Berlingo III (08-18), Berlingo IV (14-19), C1 (05-10), C2 (03-10), C3 I/II (02-10), C3 III (10-18), C III IV (16-18), C3 Picasso (09-12), C3 Pluriel (04-10), DS3 (09-12), C4 (04-11), C4 II (11-18), C4 Picasso/Grand Picasso (06-18), C5 II (04-08), C5 III (07-12), DS4 (11-12), Nemo (08-10), Xsara II (04-08), Xsara Picasso (04-10) |
| Ford | B-Max (12-18), C-Max (07-15), EcoSport (13-18), Fiesta (02-21), Focus (04-18), Focus C-Max (03-18), Fusion (04-11), Grand C-Max (10-18), Tourneo Courier (14-16) |
| Mazda | 2 (02-10), 3 (04-12), 5 (10-12) |
| Peugeot | 107 (05-10), 1007 (05-10), 206 (01-12), 206+ (10-13), 206CC (05-07), 207 (06-13), 207CC (07-15), 208 (12-18), 2008 (12-17), 307 (01-08), 308 (07-18), 308CC (09-17), 3008 (09-18), 407 (04-11), 4008 (12-15), 508 (11-18), 5008 (09-18), Bipper (08-10), Expert (10-12), Partner I/II (05-11), Partner III (08-18), Rifter (18-19). Traveller (16-20) |
| Suzuki | Liana (04-08), SX4 (07-11) |
| Toyota | Aygo (05-10) |
| Volvo | C30 (06-13), S40 (04-12), S60 (11-15), S80 (09-15), V40 (12-15), V50 (04-12), V60 (11-15), V70 (11-15) |
| 1.4D | F6JA, F6JB |
| 1.4D D-4D | ZWZ-TV |
| 1.4D DDiS | (DV4)8HY |
| 1.4D HDi | DV4C(8HR), DV4TD(8HT), DV4TD(8HW), DV4TD(8HX), DV4TD(8HZ), DV4TED(8HS), DV4TED4(8HX), DV4TED4(8HY), DVTED4(8HV) |
| 1.4D TDCi | F6JA, F6JB, F6JC, F6JD, KVJA |
| 1.5D TDCi | ENUG, UGCA, UGJC, XUJA, XUJB, XUJC, XUJF, XUJG, XUJH, XUJK, XUJL, XUJN, XUJM, XWDA, XWDB, XWDC, XWDD, XWDE, XWJB, XWJC, XXDA, XXDB, XXDC, XXDD |
| 1.6D | Y6, MZ-CD(Y6) |
| 1.6D DDiS | DV6(9HX) |
| 1.6D eDrive | D4162T, D4164T |
| 1.6D eHDi | DV6C(9HR), DV6FC(BHW), DV6FC(BHX), DV6FC(BHY), DV6FC(BHZ), DV6FDU(BHV), DV6FCU(BHX), DV6FDU(BHS) |
| 1.6D HDi | DV6(9HR), DV6ATED(9HX), DV6ATED(9HY), DV6ATED4(9HX), DV6AUTED4(9HX), DV6BTED4(9HT), DV6BTED4(9HW), DV6BUTED4(9HT), DV6C(9HL), DV6C(9HR), DV6C9(HR), DV6CATED(9HX), DV6D(9HP), DV6DTED(9HJ), DV6DTED(9HP), DV6ETED(9HN), DV6DTED(9HF), DV6FD (BHY), DV6FE (BHW), DV6TED(9HP), DV6TED4(9HV), DV6TED4(9HW), DV6TED4(9HX), DV6TED4(9HY), DV6TED4(9HZ), DV6TED4B, DV6TED4B(9HV), DV6TED4BU(9HS), DV6UTED4(9HU), DV6UTED4(9HX), DVTED4(9HV) |
| 1.6D TDCi | G8DA, G8DB, G8DD, G8DE, G8DF, GPDA, GPDC, HHDA, HHDB, HHJA, HHJB, HHJC, HHJD, HHJE, HHJF, MTDA, NGDA, T1DA, T1DB, T3DA, T3DB, T3JA, T3JB, TZJA, TZJB, UBJA |
| 1.6D TDCI ECOnetic | G8DD, GPDA, HHJD, TZJA, TZJB |
| 2.0D HDi | DW10FC(AHH), DW10FD(AHX) |
| Nett Weight | 0.15kg |
| Flywheel Locking Pin (VSE5846.01) | 303-734 (21-262) (Ford), 49JE02-020 (Mazda), 0194-C (PSA), 09910-05410 (Suzuki), 999-7169 (Volvo) |
| Camshaft/HP Fuel Pump Locking Pins (VSE5846.02) | 11-0-790 (BMW), 303-735 (212-263) (Ford), 49JE02-021 (Mazda), 0194-B (PSA), 09910-05410 Suzuki, 999-7122 (Volvo) |
| Crankshaft Locking Pin (VSE5846.03) | 11-0-300 (BMW), 303-732 (21-260) (Ford), 49JE02-018 (Mazda), 0194-A (PSA), 09910-05410 (Suzuki), 999-7121 (Volvo) |
