Description
Description

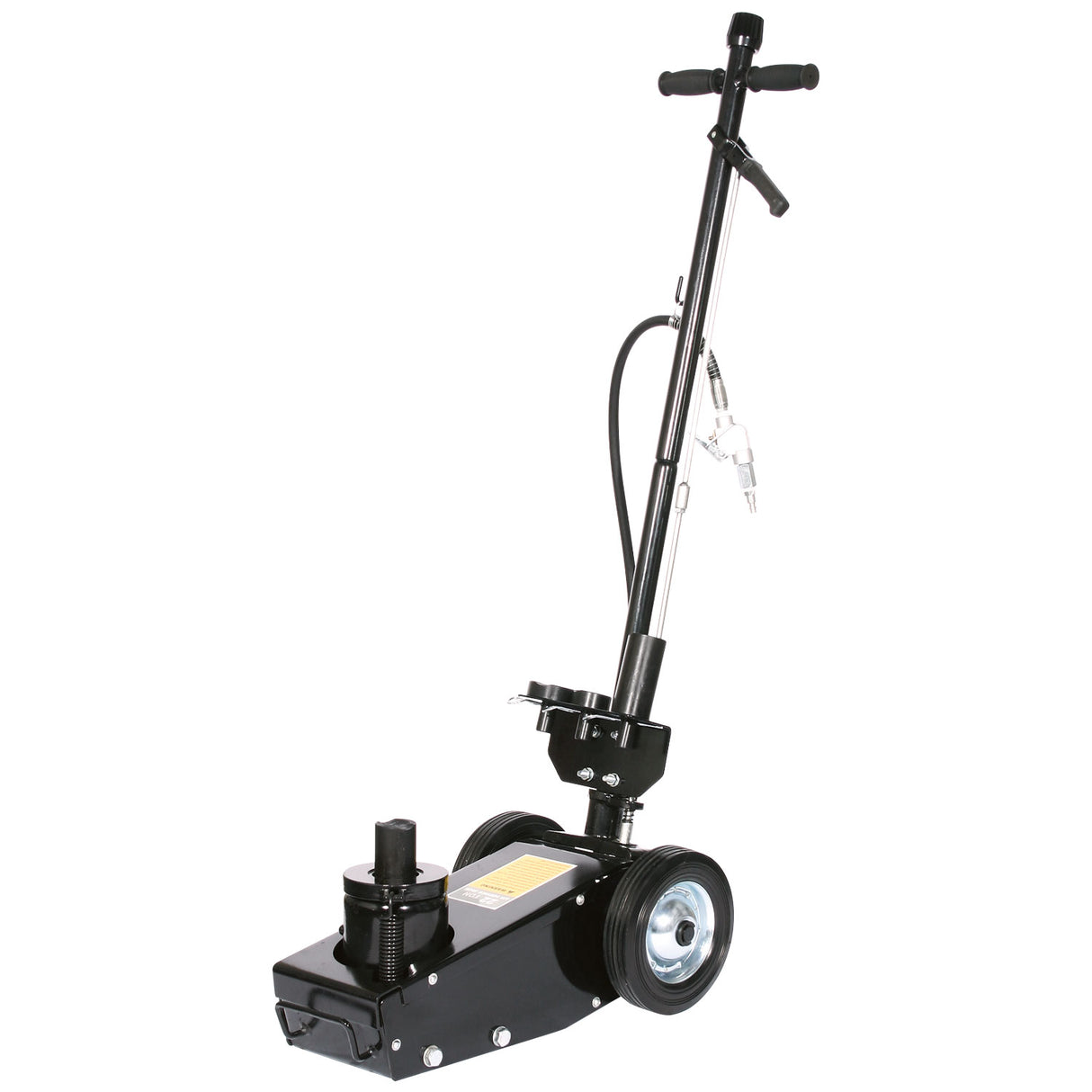

The SIP 22 TON Air Floor Jack is built for heavy-duty lifting of a range of vehicle types, including vans, trucks, buses, construction equipment and agricultural machinery. A low-profile design ensures it can be easily positioned under vehicles with lower clearances.
This compressed air-controlled jack is ideal for demanding applications in professional garages and workshops handling a variety of larger and heavier vehicles.
Key Features
- 230mm to 555mm adjustable lifting height
- 115mm screw extension for added versatility
- Manufactured from heavy-duty and durable steel
- Low-profile design for easier under-vehicle access
- Large non-marking rubber wheels for added durability
- Built-in release knob and integrated handle lock
Technical Specification
| Weight Capacity | 22 TON |
|---|---|
| Min. Lifting Height | 230mm |
| Max. Lifting Height | 555mm |
| Ram Stroke | 120mm |
| Screw Extension | 115mm |
| Working Pressure | 102psi (7bar) - 145psi (10bar) |
| Av. Air Consumption | 9.50CFM (269ltr/min) |
| Adaptor Size | Ø 110mm x 50mm / Ø 50mm x 50mm / Ø 20mm x 50mm / Ø 20mm x 70mm |
Warranty: SIP 2-YEAR
