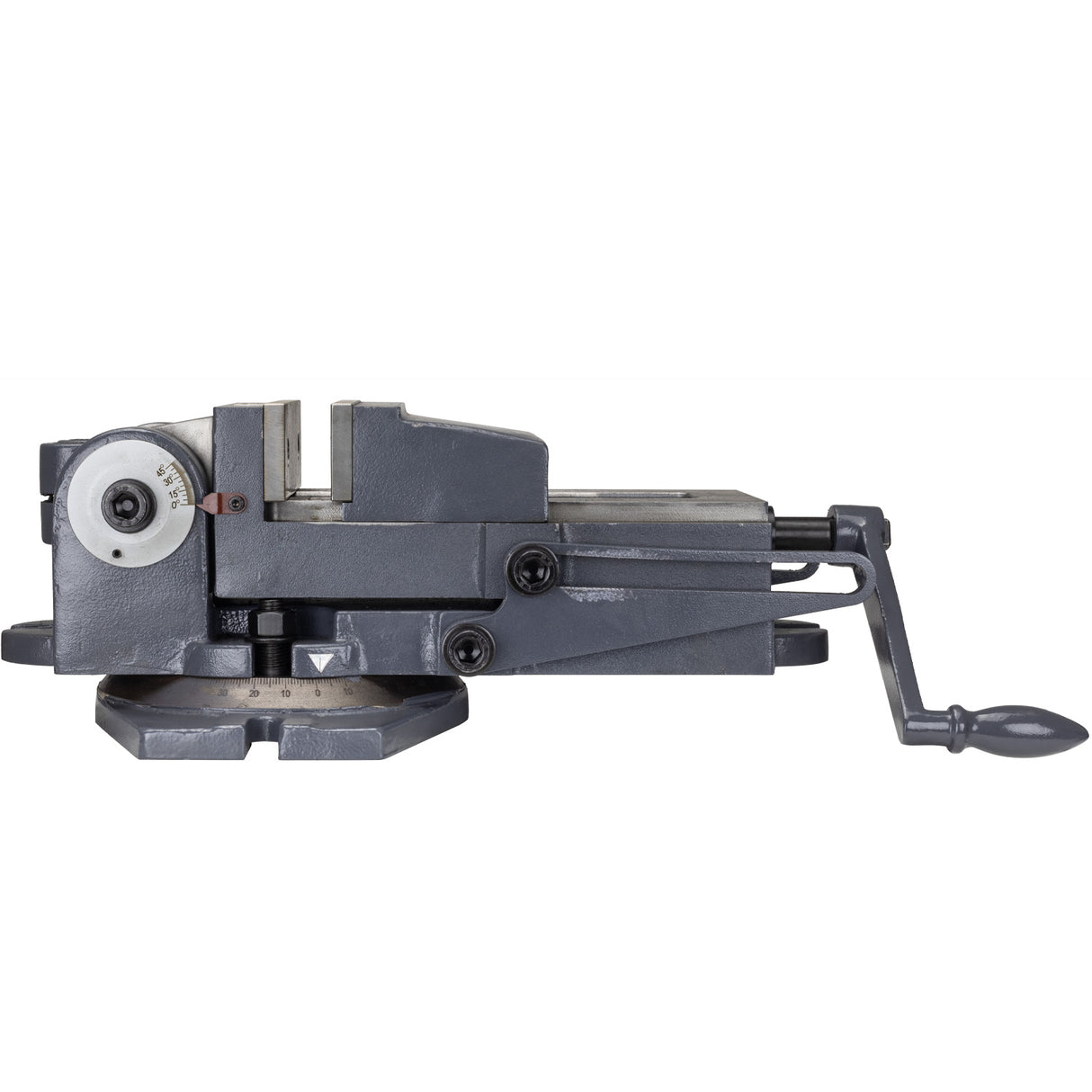

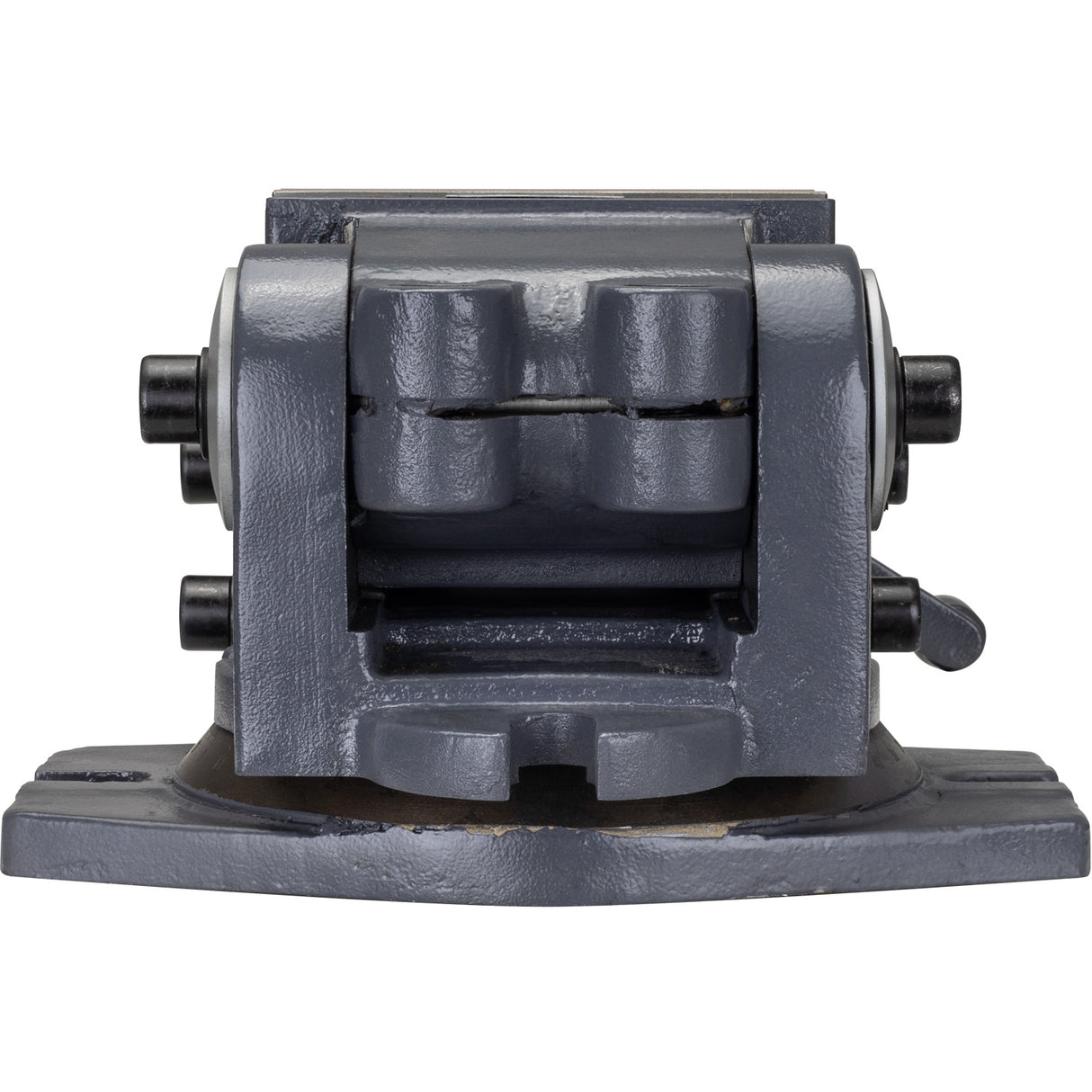

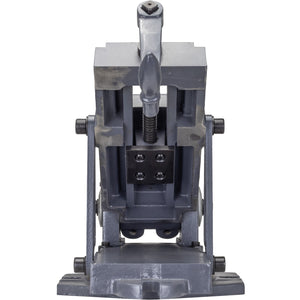

SIP 6" Swivel & Tilt Machine Vice

Name: SIP 6" Swivel & Tilt Machine Vice
Brand: SIP Tools UK
Price: 373.99 GBP
Availability: OutOfStock

SIP Tools UK | SKU: SIP-01727 | Barcode: 5012713010004

Sold out

New arrival

£373.99

(£448.79 inc VAT )

Delivery and Shipping

Orders are typically despatched within 3–5 working days unless Next Working Day Delivery is selected at checkout.

Some items are shipped directly from suppliers and may require additional despatch time. Extended lead times will be shown on the product page.

Delivery times shown at checkout apply after your order has been despatched. Tracking information will be emailed once available.

Larger or specialist items may incur additional delivery charges, which will be shown at checkout where applicable.

Please note that batteries (unless part of a kit) and gas canisters cannot be shipped outside the UK mainland.

30 Day Money Back Guarantee

We hope that you won’t need to return anything to TCD, but if you do, we aim to make the process quick, easy and efficient, so you can exchange or refund your purchase with confidence.
Here are some helpful points to make your returns/exchange a smooth process, please note your statutory rights are not affected by this guidance:

Contact us via email sales@tradecounterdirect.com with your order details and reason for the return, we will check the items were purchased in the last 30 days
An exchange can then be made or a refund issued against the original method of payment

We are also able to accept returns by post to our warehouse, but unfortunately, we are not able to arrange or pay for postage, and this would be at your own expense.

The address to return to is:

Trade Counter Direct - Returns, Loribon House, Yalberton Industrial Estate, Paignton, Devon, TQ4 7QR.

Original packaging and order details must be included. Our terms exclude the collection of unwanted goods.

Description

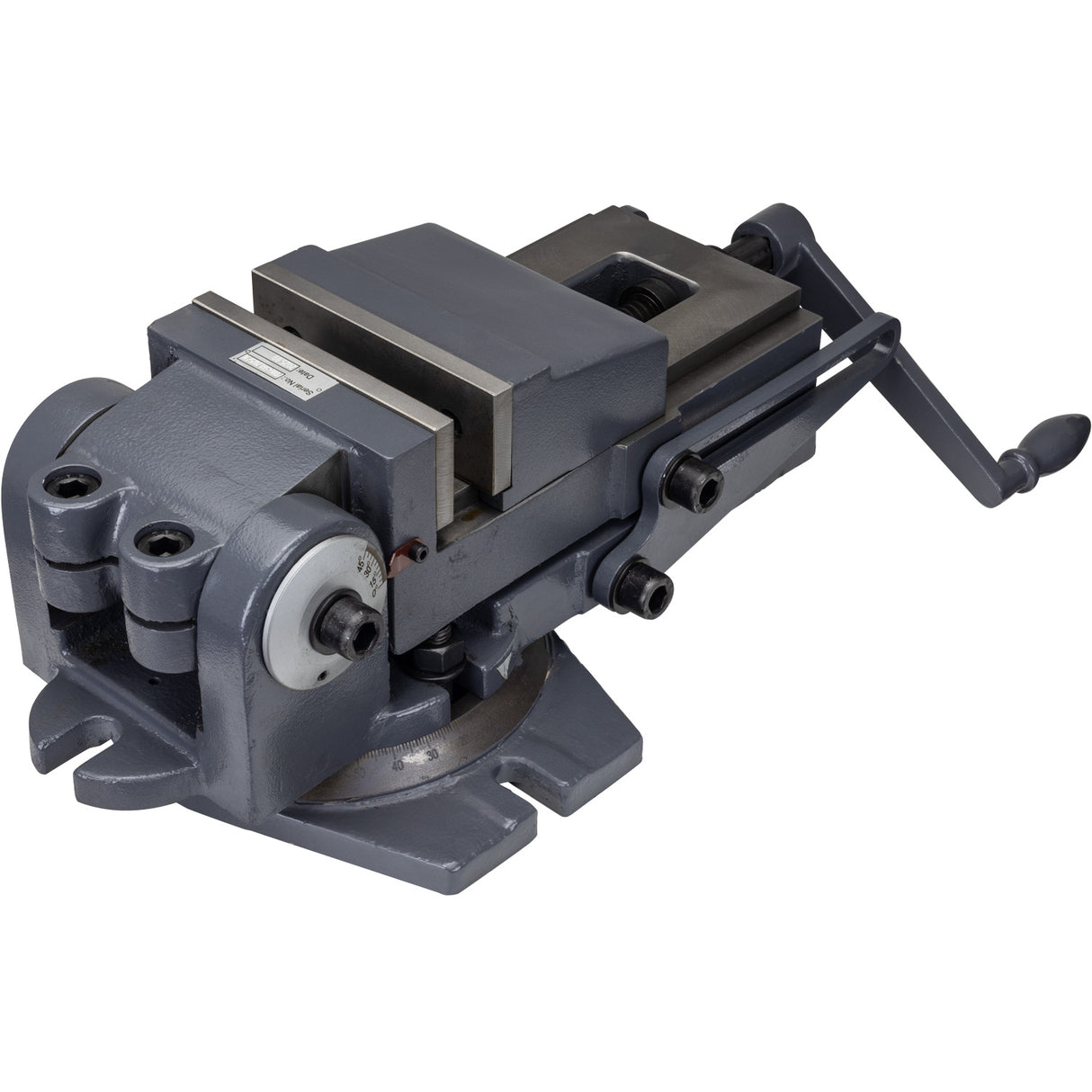

The SIP 6" Swivel & Tilt Machine Vice enables horizontal rotation and vertical inclination for precise multi-angle machining. This helps reduce set-up time and eliminates need for additional fixtures while ensuring accuracy in complex drilling, plus improved tool access.

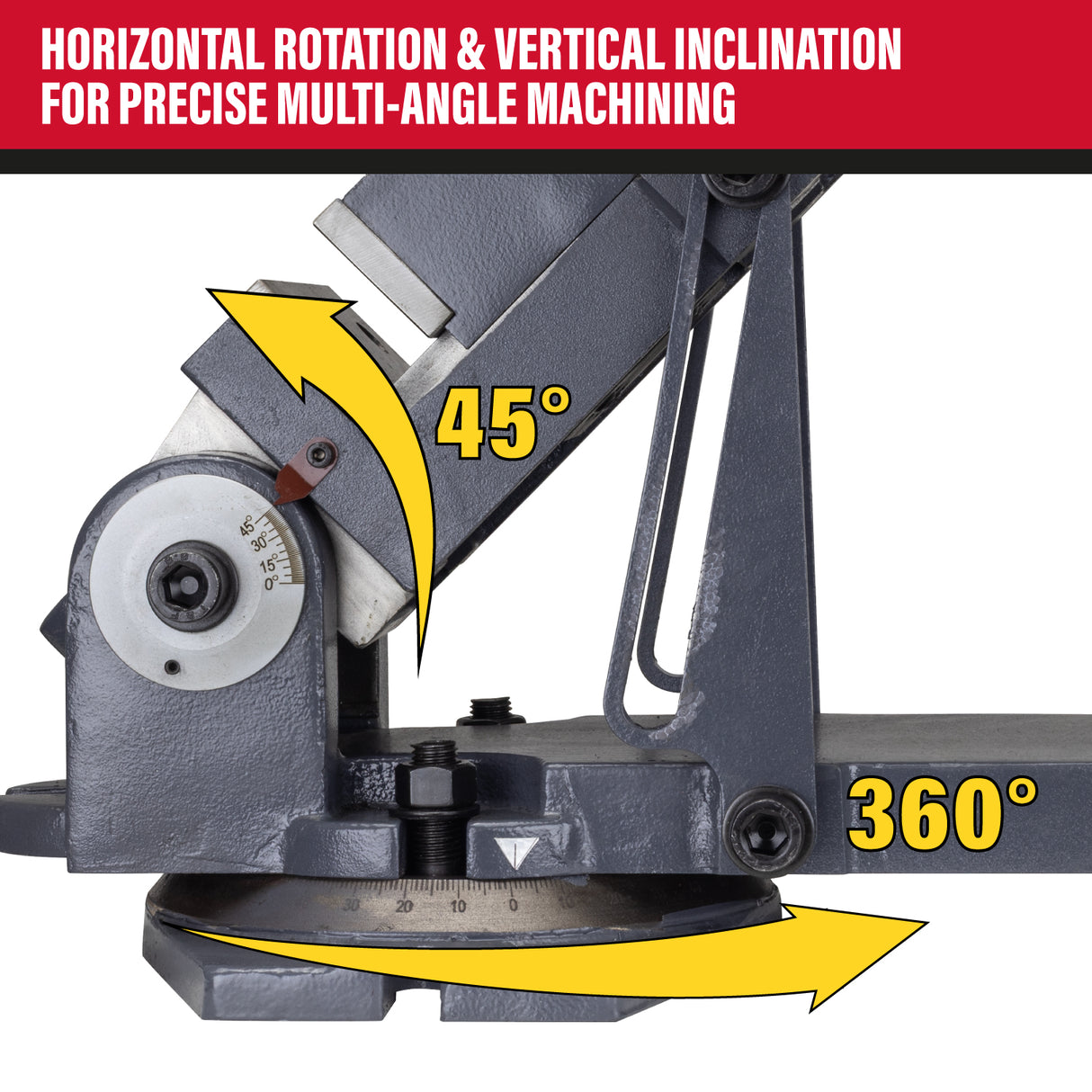

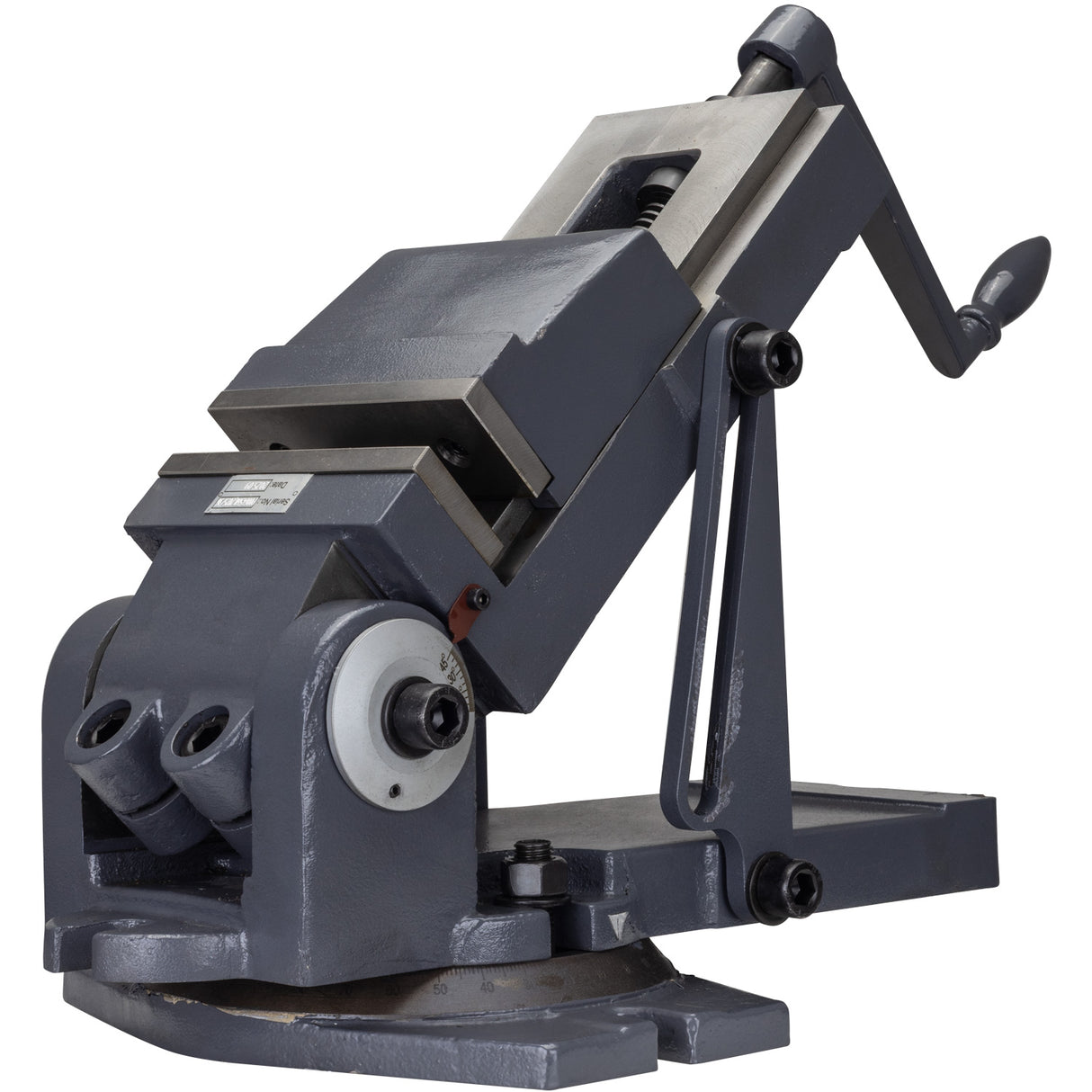

With a swivel base that allows the operator to rotate workpieces from 0° to 360° without unclamping, and a 0° to 45° tilting mechanism for additional flexibility when machining at an angle, this vice offers maximum versatility in professional metalworking and fabrication.

Compatible with the SIP F25-GB 8-Speed (01719), SIP F32-ID Vari-Speed (01720) and SIP F40-IDA Vari-Speed (01721) Industrial Floor Pillar Drills.

Key Features

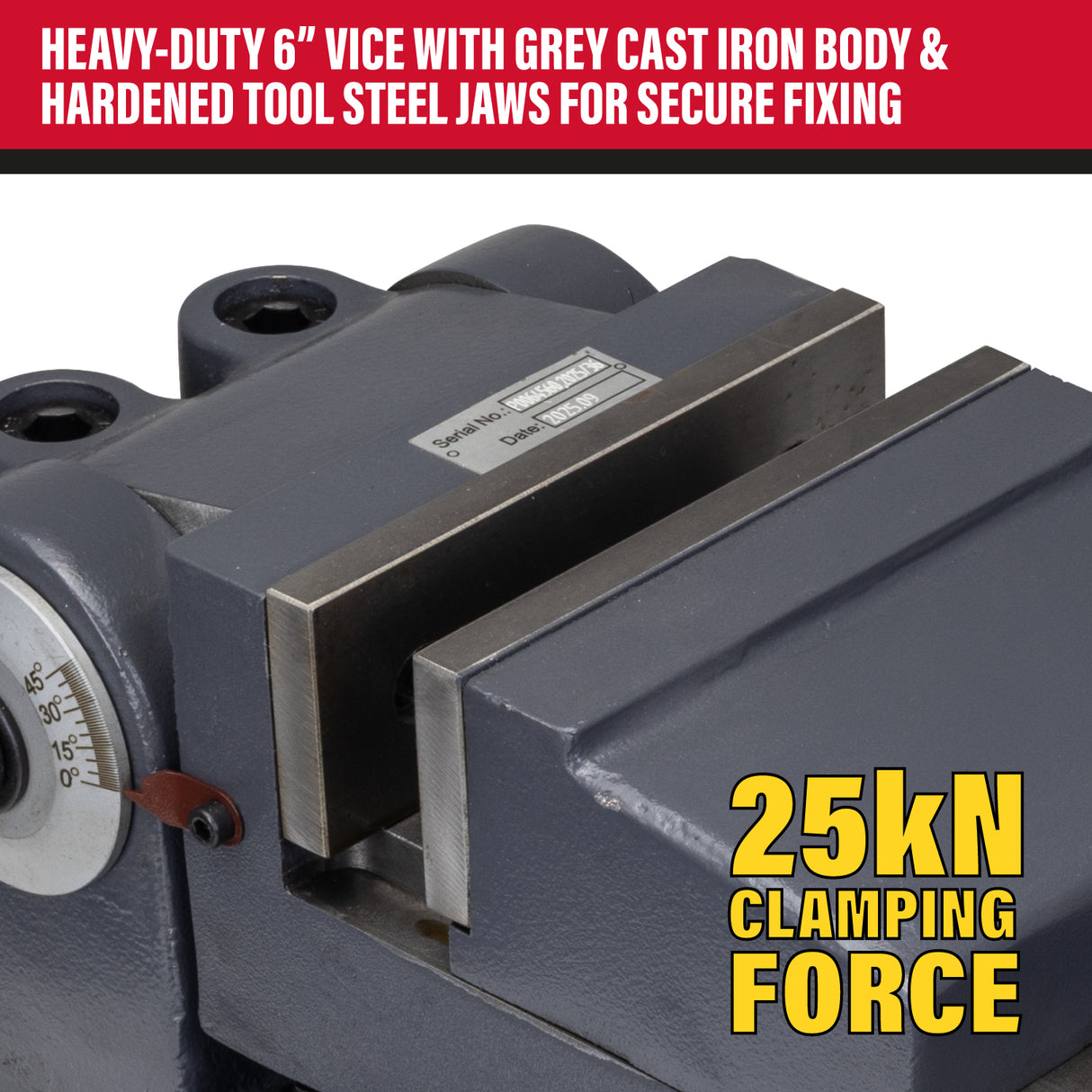

Heavy-duty 6" machine vice with grey cast iron body and hardened tool steel jaws
Designed for maximum versatility in horizontal rotation and vertical inclination

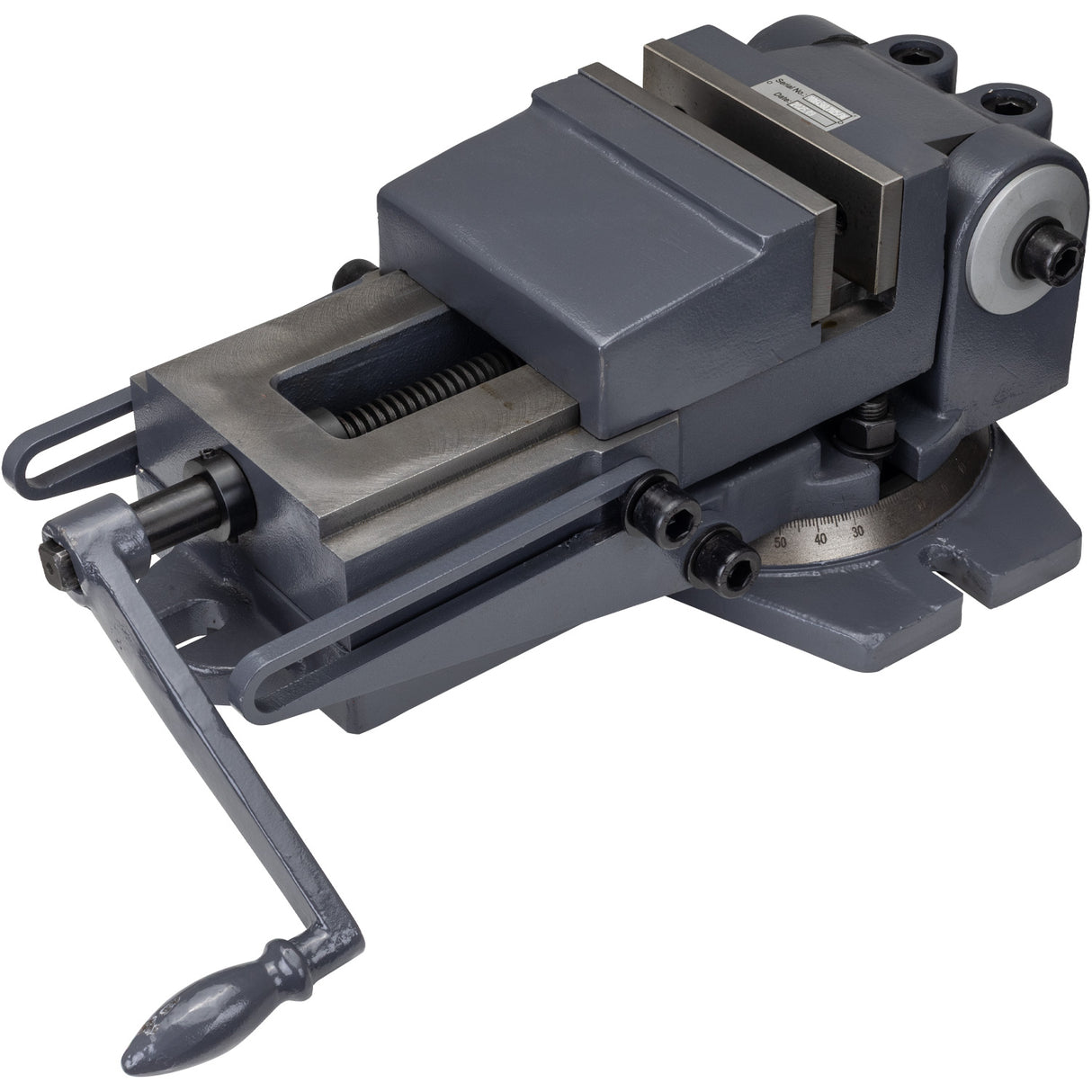

Swivel base allows 0° to 360° rotation without unclamping the workpiece

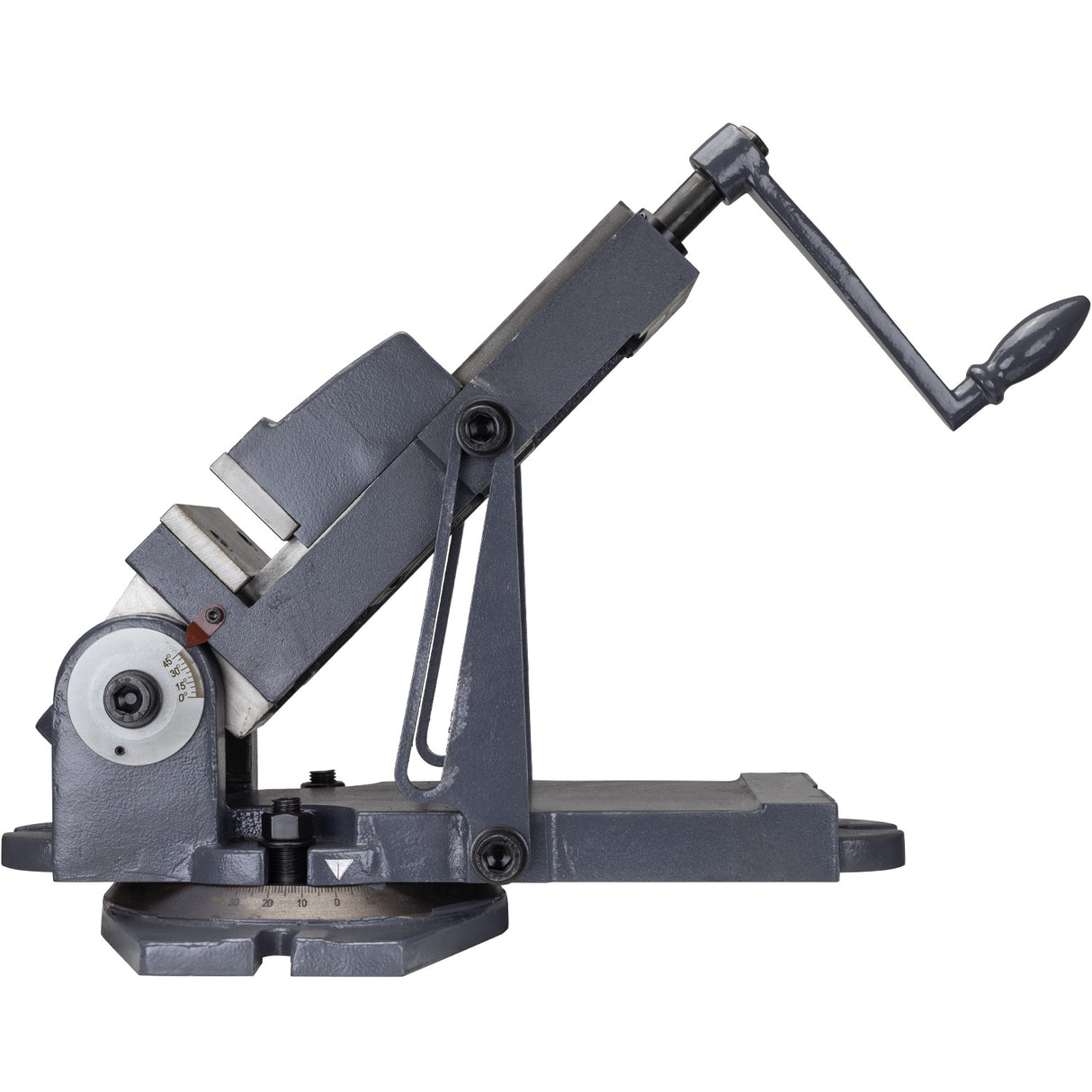

Tilting design offers multi-angle machining ability to reduce set-up time needed
Angle gauges for precise set-up for accuracy in complex or repetitive machining
Compatible with complete SIP Industrial Floor Pillar Drills (01719, 01720, 01721)

Applications & Uses

Ideal for professional metalwork and fabrication workshops. Ideal for drilling ferrous and non-ferrous metals including mild steel, aluminium, copper, brass, stainless steel, cast iron and wrought iron. Metal Fabrication: drilling holes in steel plates and box sections. General Engineering: creating precise holes for bolts, pins and shafts in various metal components. Production & Assembly: suitable for milling, grinding and light machining, slotting and face or end milling.

Technical Specification

Jaw Width	6" (152mm)
Jaw Opening	6" (152mm)
Jaw Depth	2" (51mm)
Clamping Force	25kN

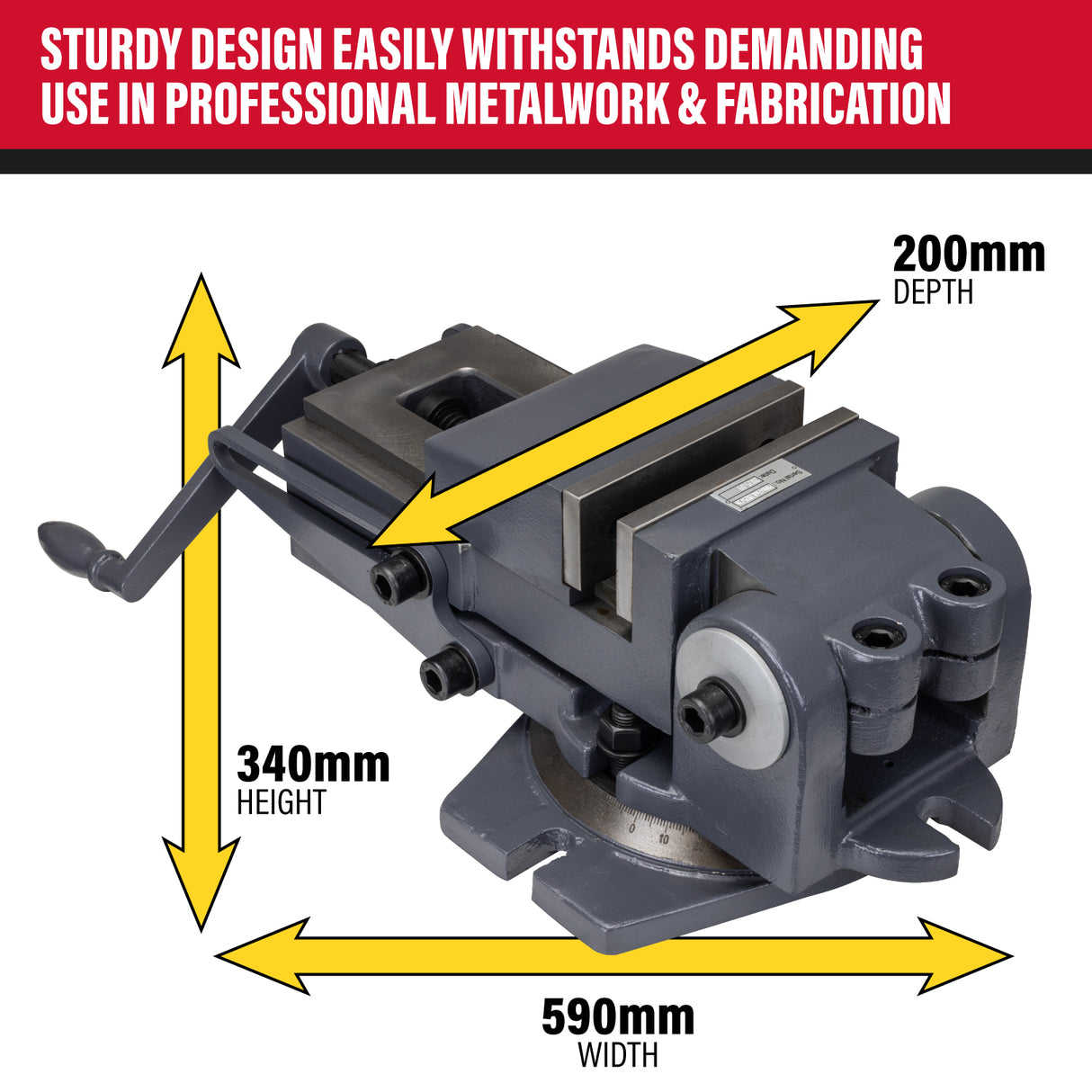

Vice Height	7.25" (184mm)
Base Type	Swivel and tilt
Base Size	9" (229mm) x 11.5" (292mm)
Composition	Grey cast iron (body), hardened tool steel (jaws)
Mounting Hole Size	17mm
Accuracy / Parallelism	0.05mm / 100mm
