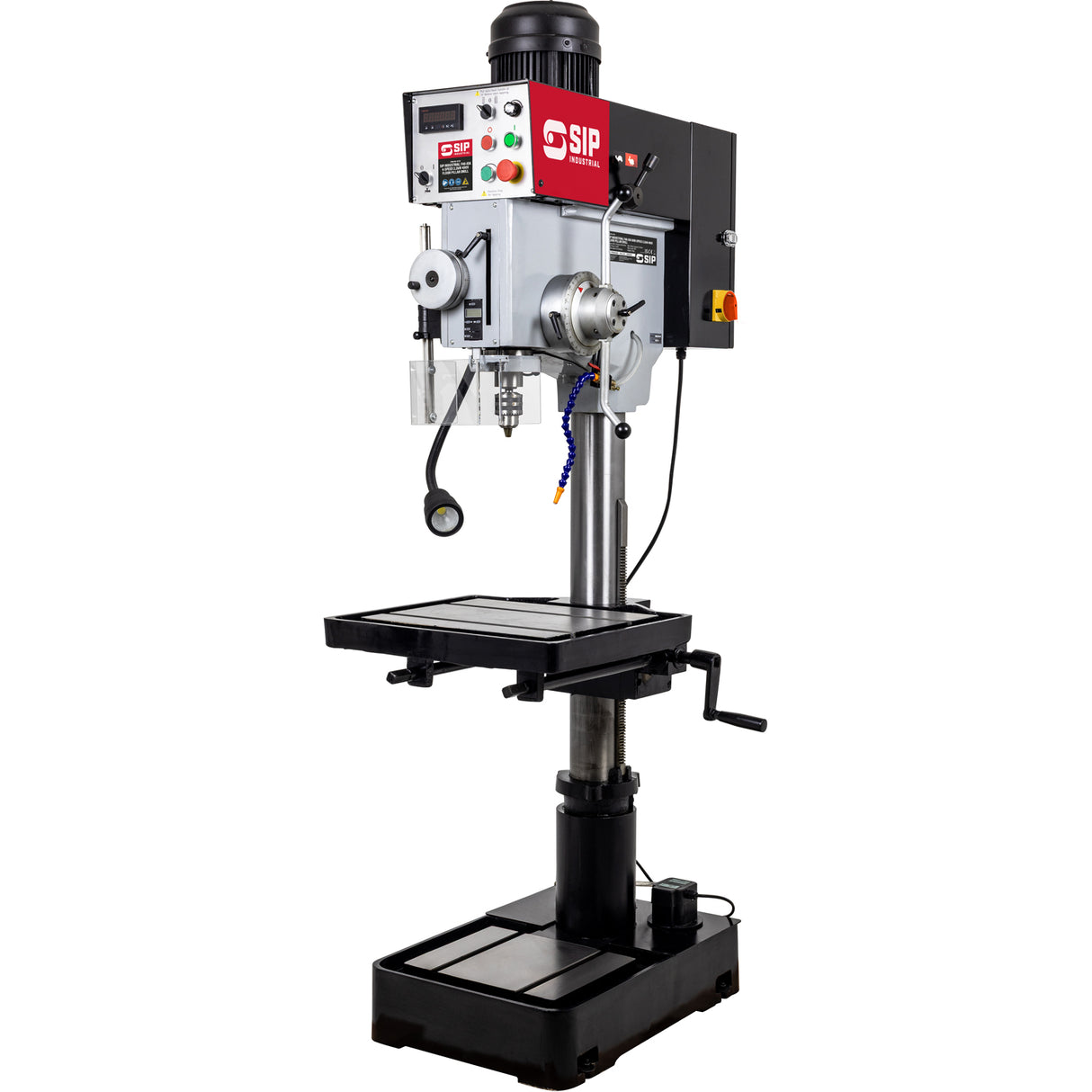

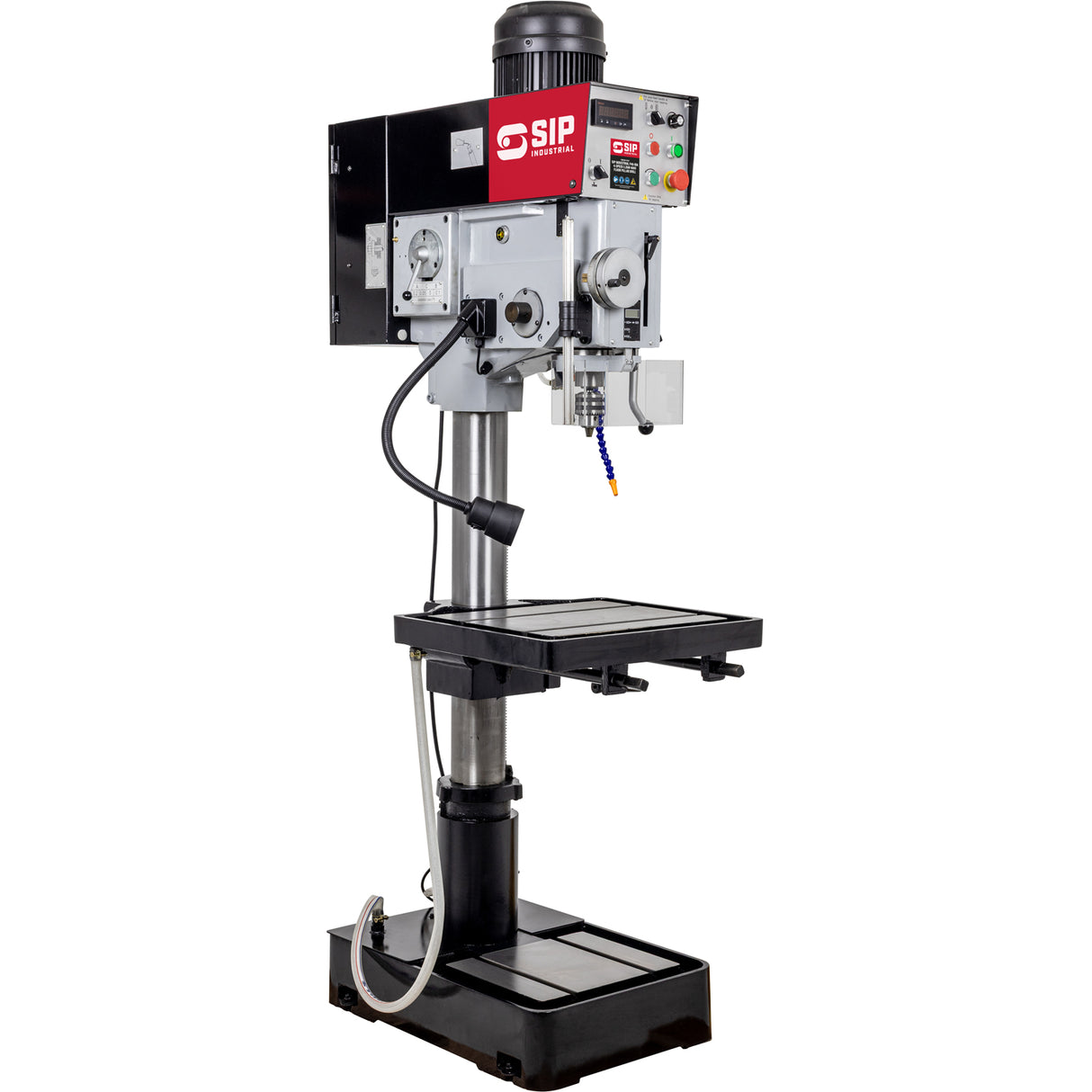

SIP Industrial F40-IDA Vari-Speed 2.2kW 400v Floor Pillar Drill
SKU SIP-01721 Barcode 5012713009862
1 available from our warehouse. Despatch times vary.
Order soonPay in 3 interest-free with shopPay or PayPal
- Expert UK product support
- Authorised distributor
- 30 day returns
Delivery & returns
Despatch times vary by item. Check the product-specific lead time shown on this page. Supplier-shipped and larger items may take longer.
Delivery options and transit times are shown at checkout. Transit time starts after despatch and excludes weekends and bank holidays unless the selected service states otherwise. Tracking is provided when available.
30 day returns on unused items in original packaging.
Description
Description

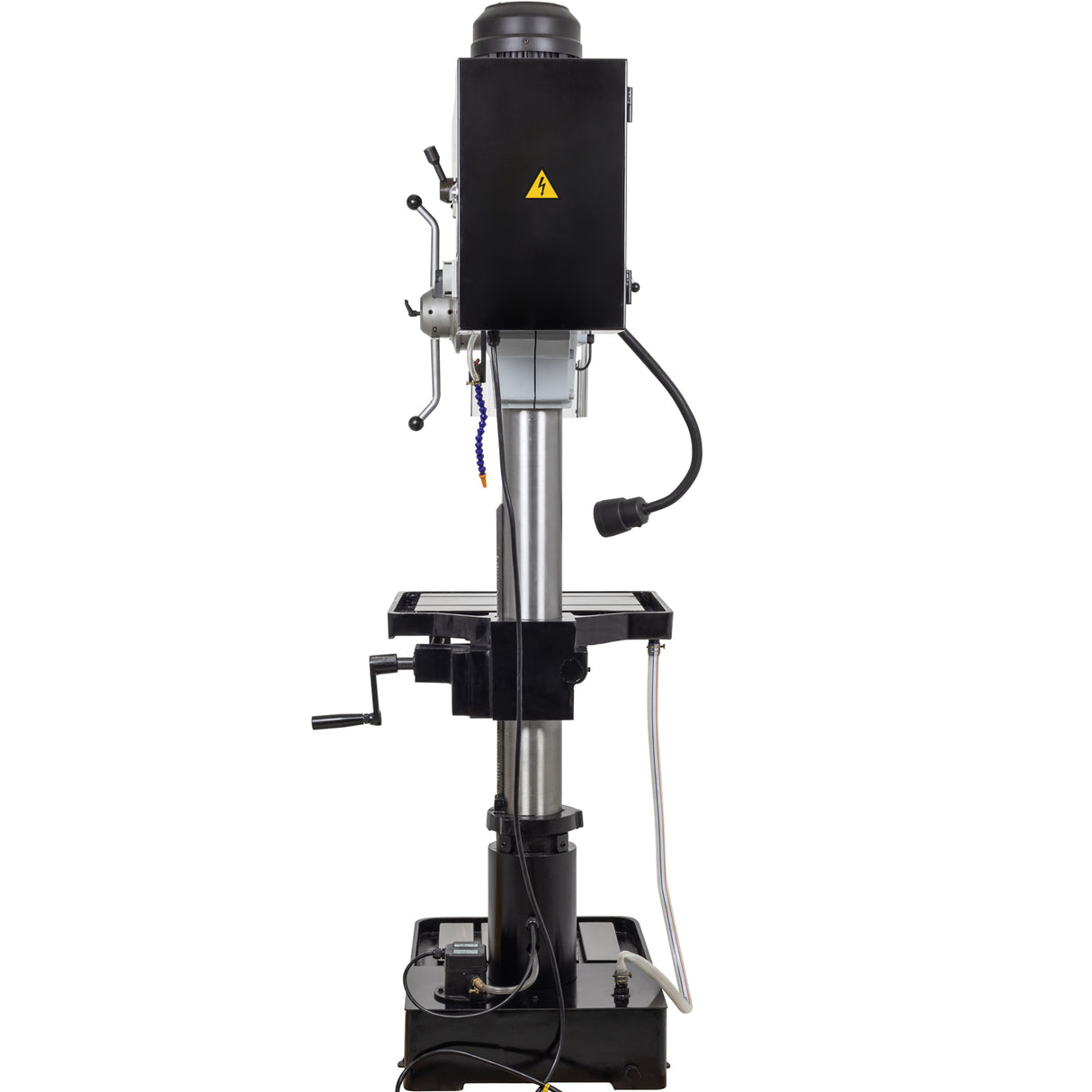

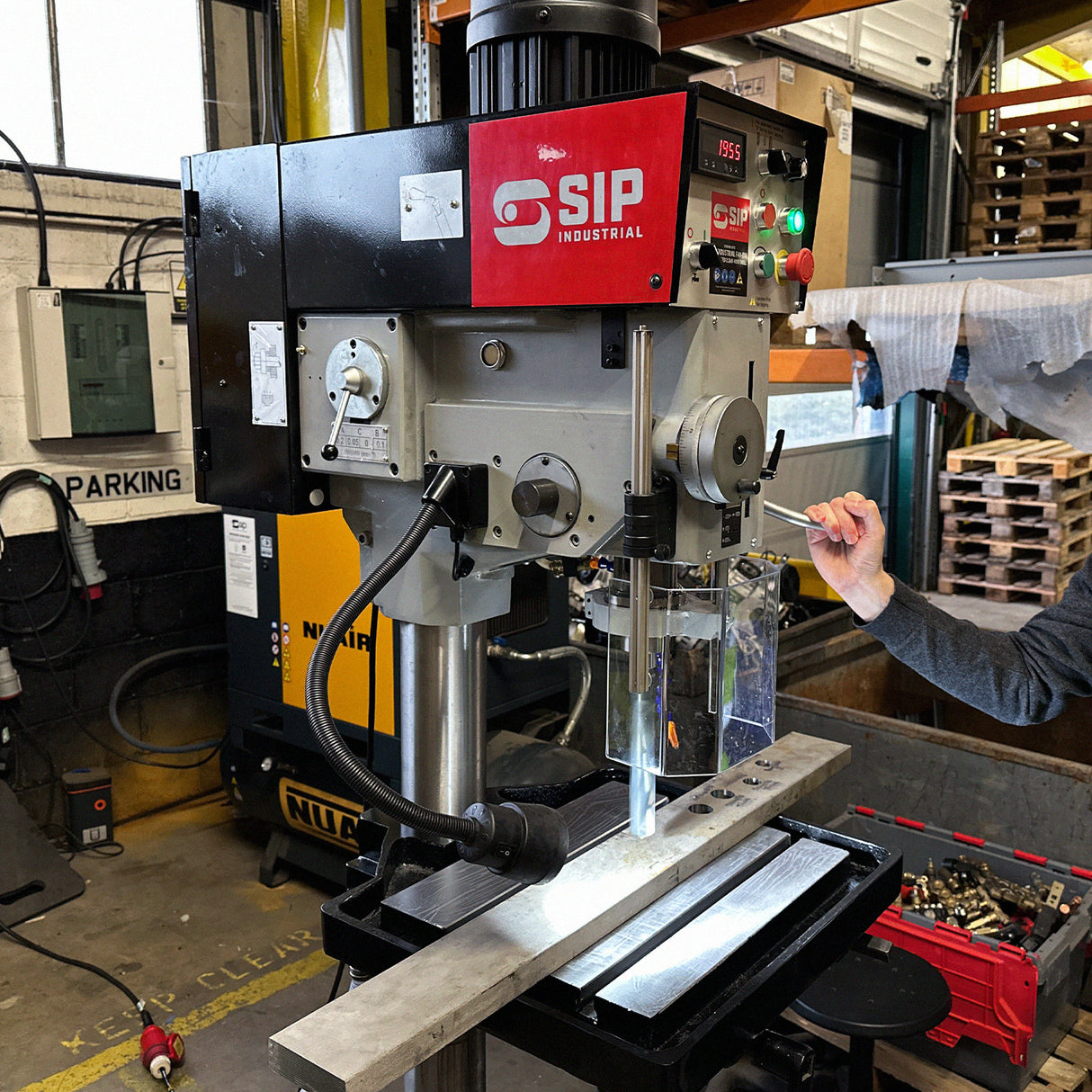

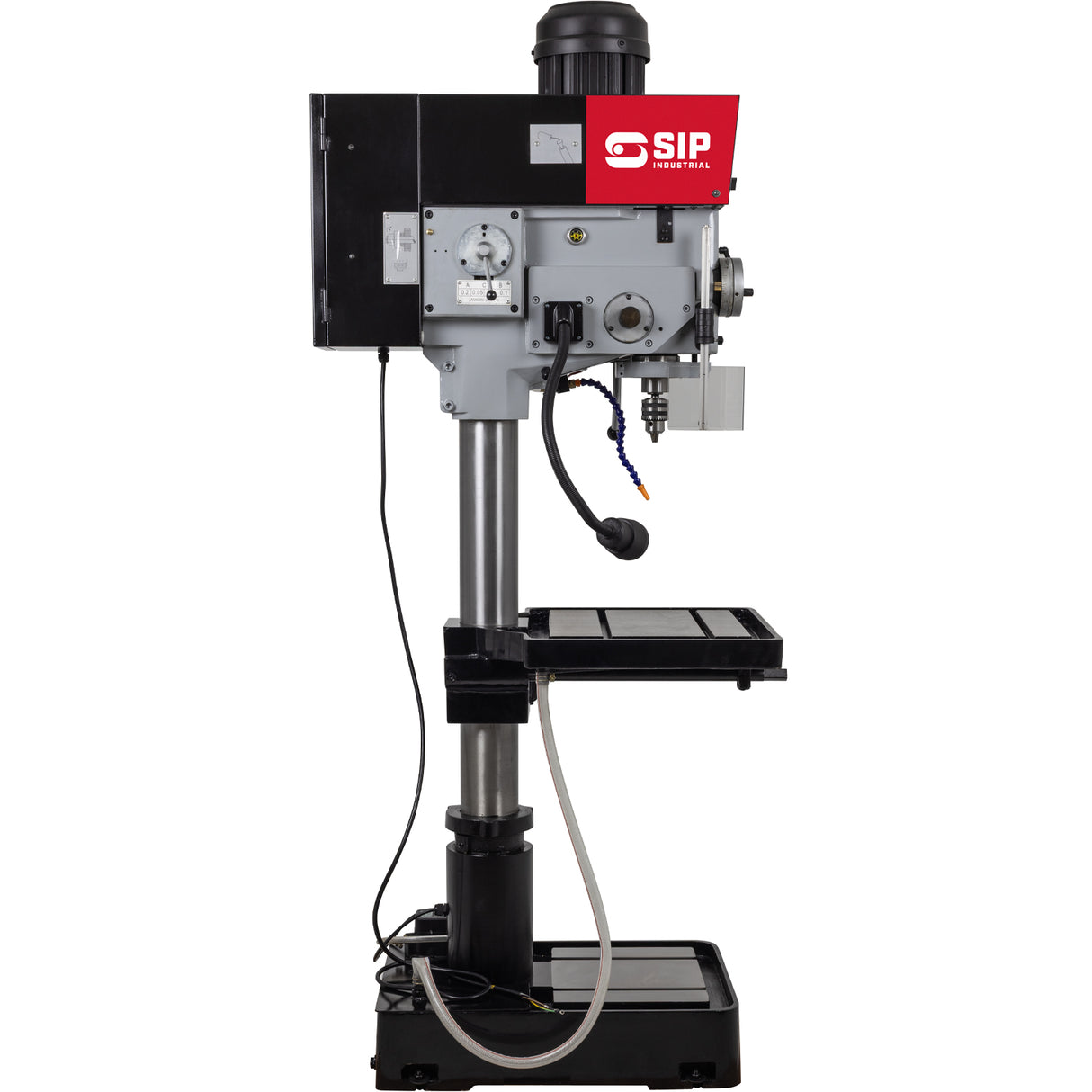

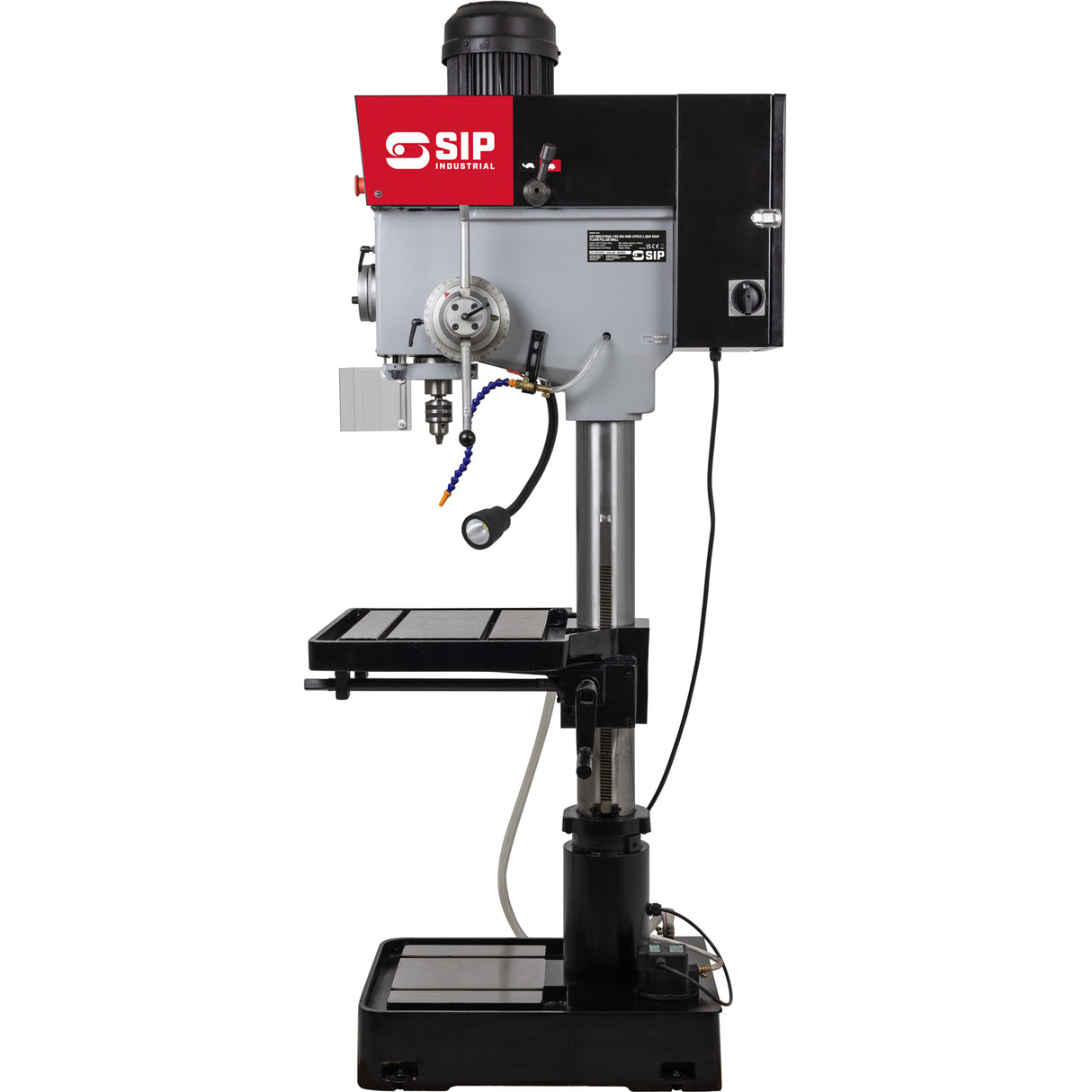

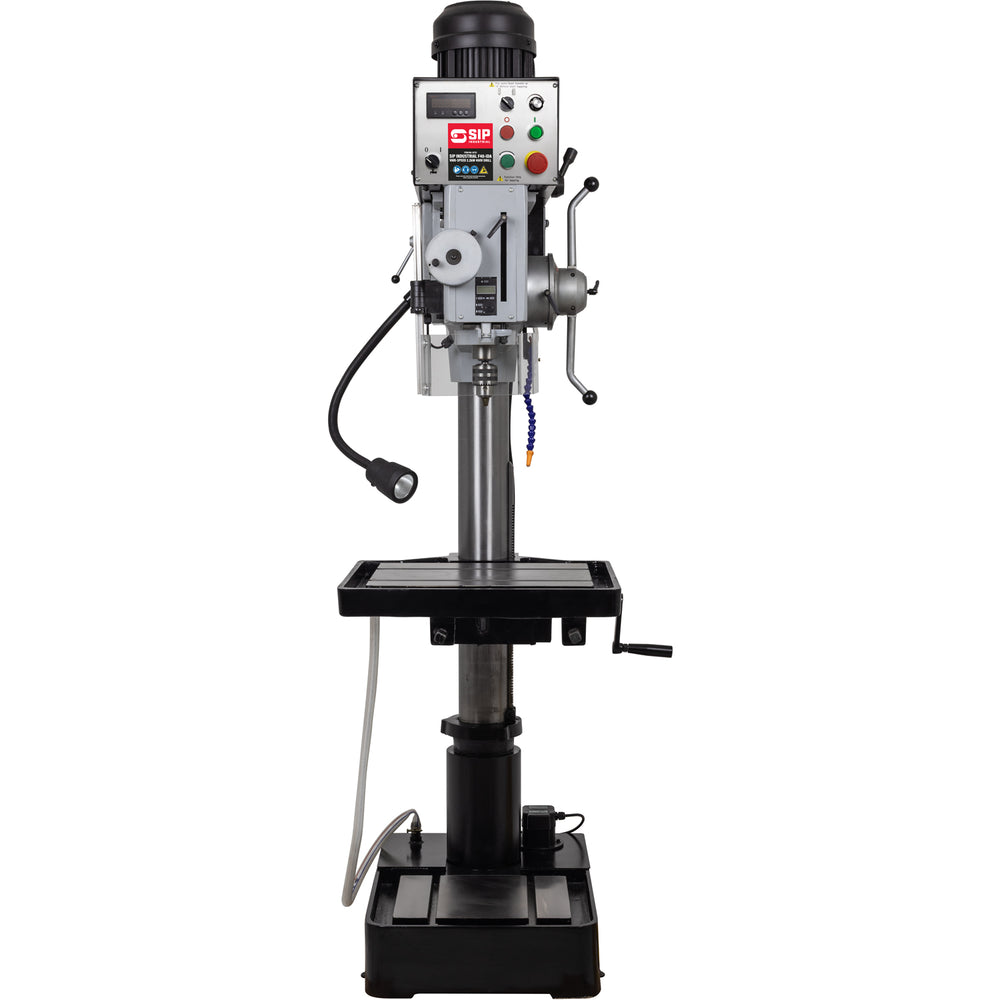

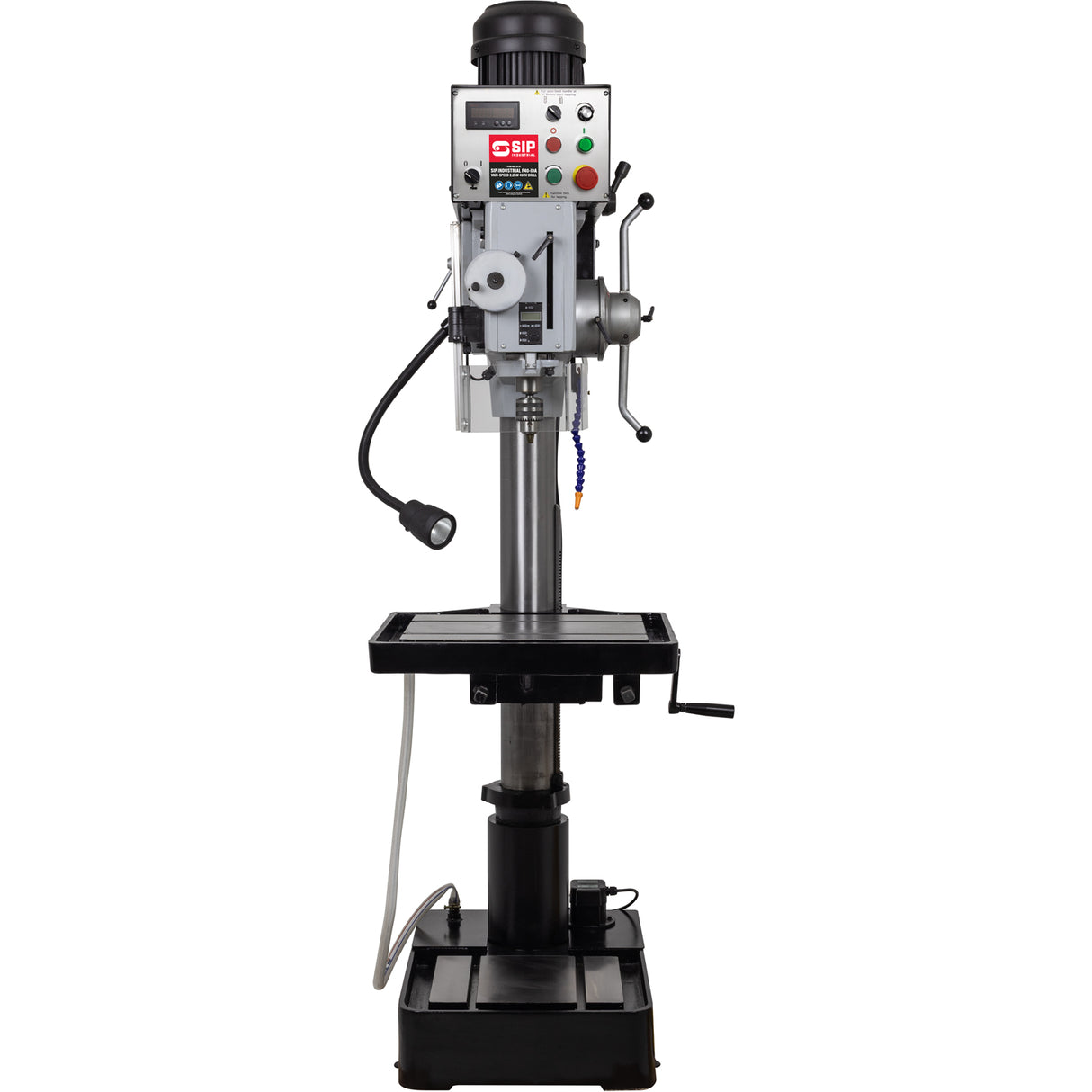

The SIP Industrial F40-IDA 2.2kW 400v Floor Pillar Drill is a heavy-duty pillar drill specifically designed for professional metalwork and fabrication workshops.

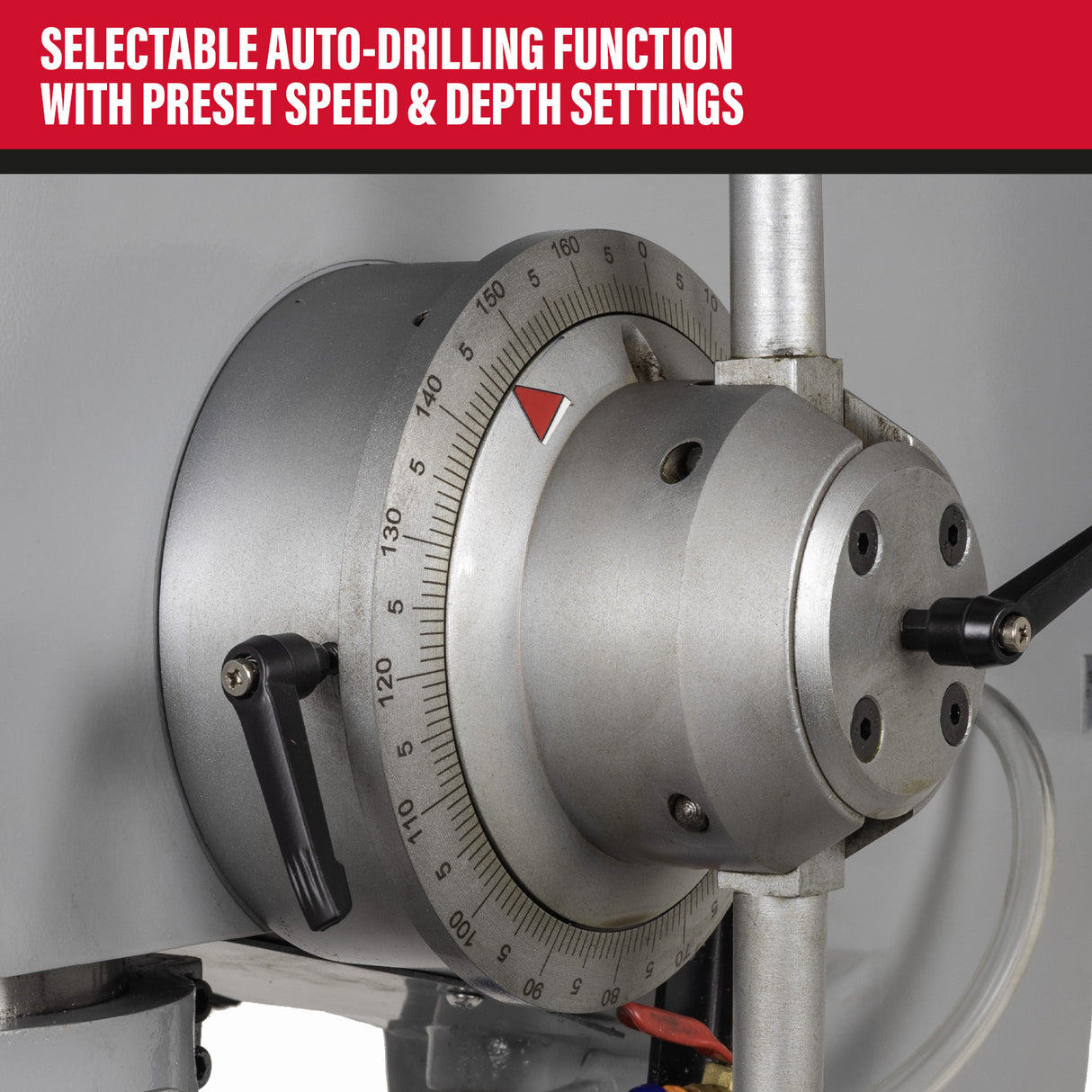

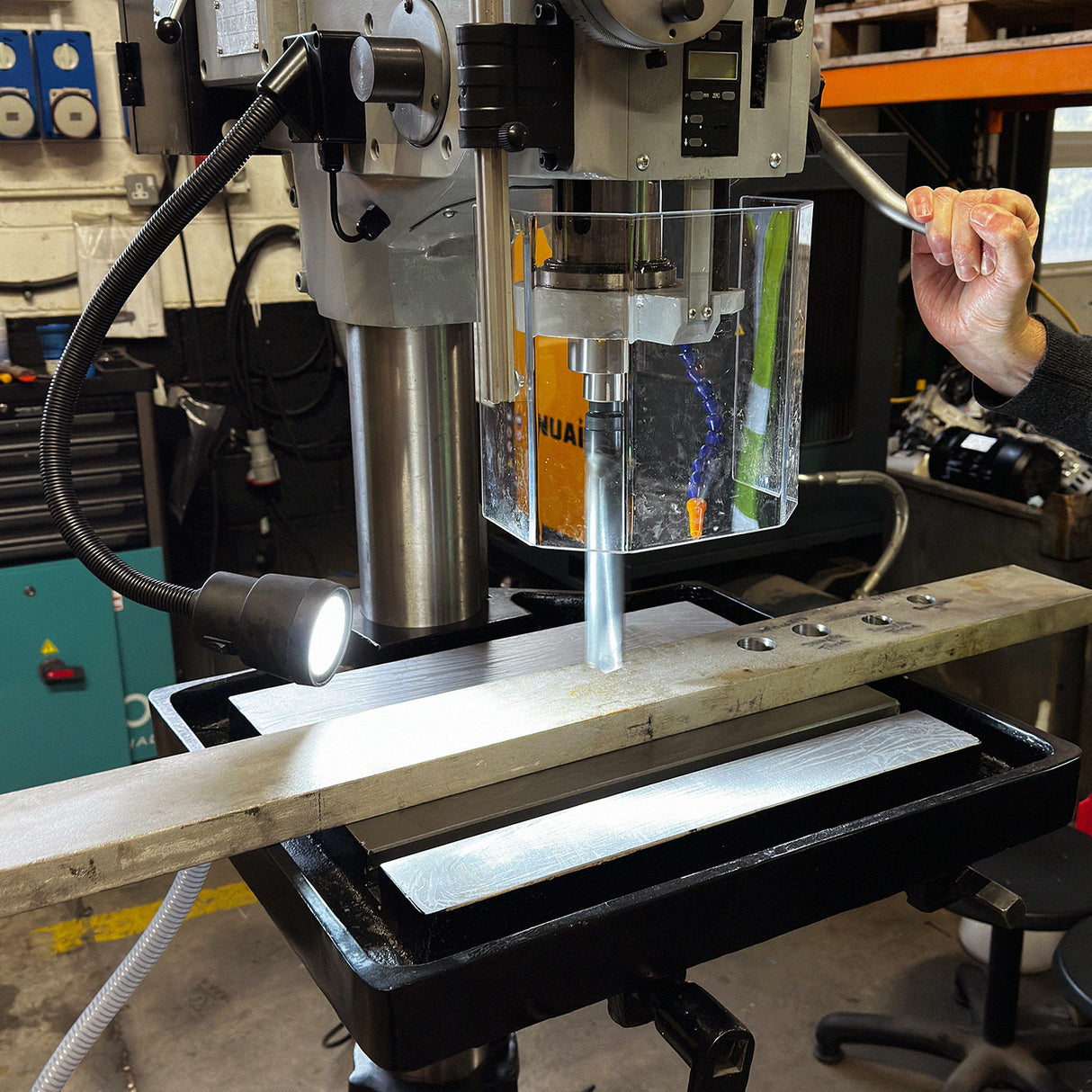

Featuring a variable frequency drive inverter transmission, the drill delivers high torque output across a consistent 65rpm to 2000rpm spindle speed for powerful and precise drilling of up to max. ⌀ 40mm. An integrated auto-drilling function also increases workshop efficiency, particularly during repetitive tasks.
Engineered for demanding production environments, this adjustable and heavy-duty drill also features enhanced safety features to protect operators.
Key Features

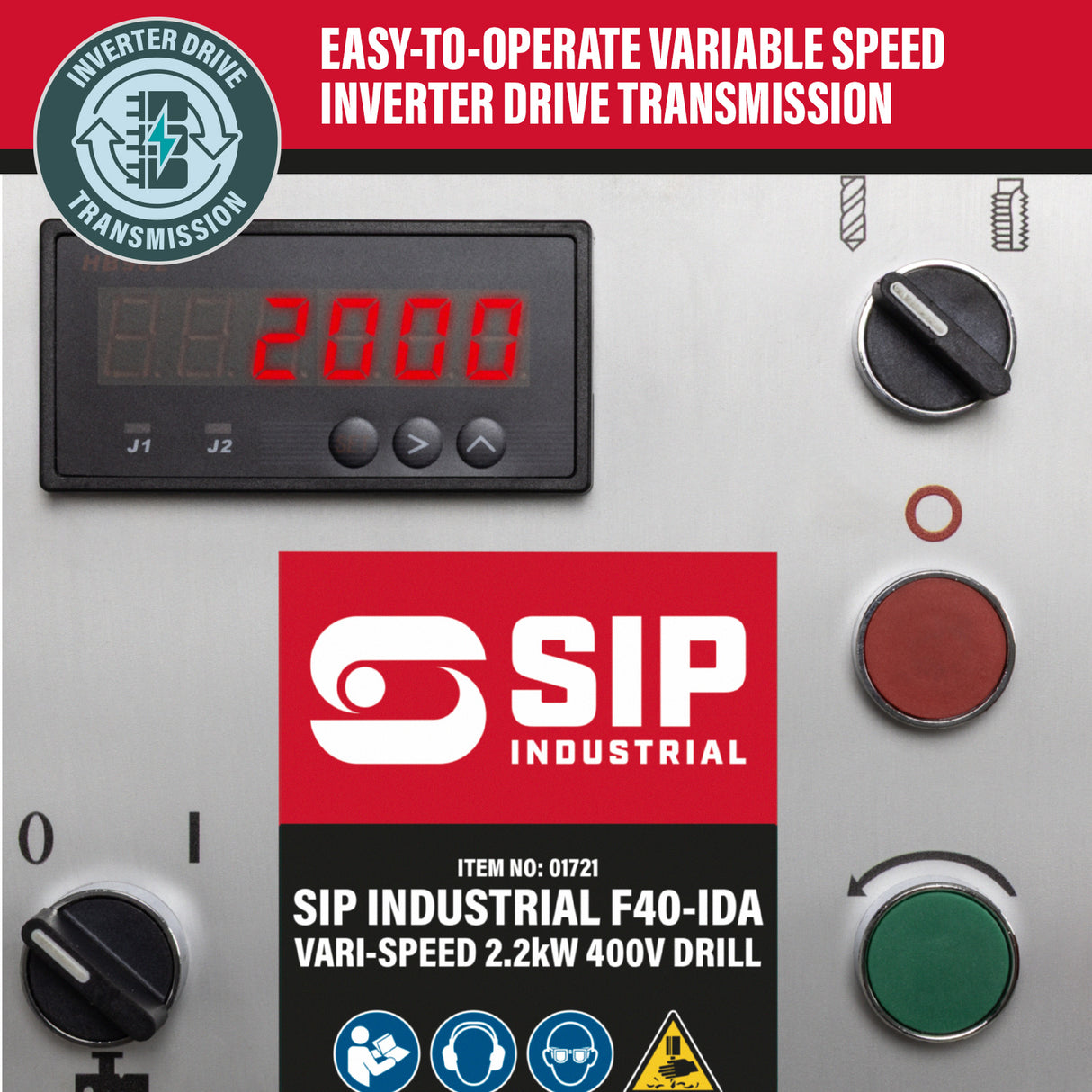

- Variable frequency inverter drive transmission with wide 65-2000rpm speed range
- Infinitely variable control dial for precise spindle speed setting
- High torque output for consistent drilling power of up to max. ⌀ 40mm

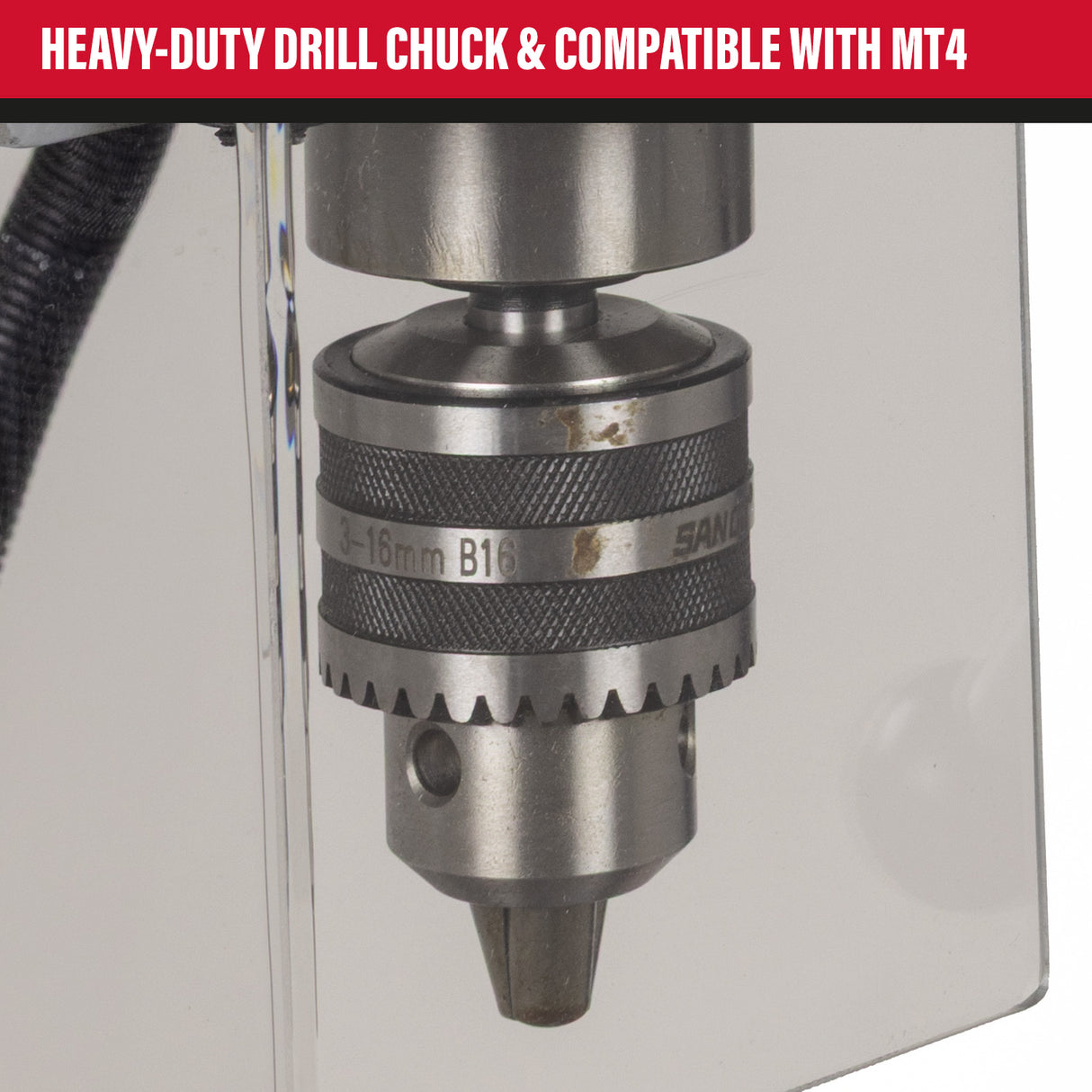

- Fitted with heavy-duty drill chuck and compatible with MT3 (Morse Taper 4)
- Tapping function for threading high-quality screw holes up to max. ⌀ 25mm

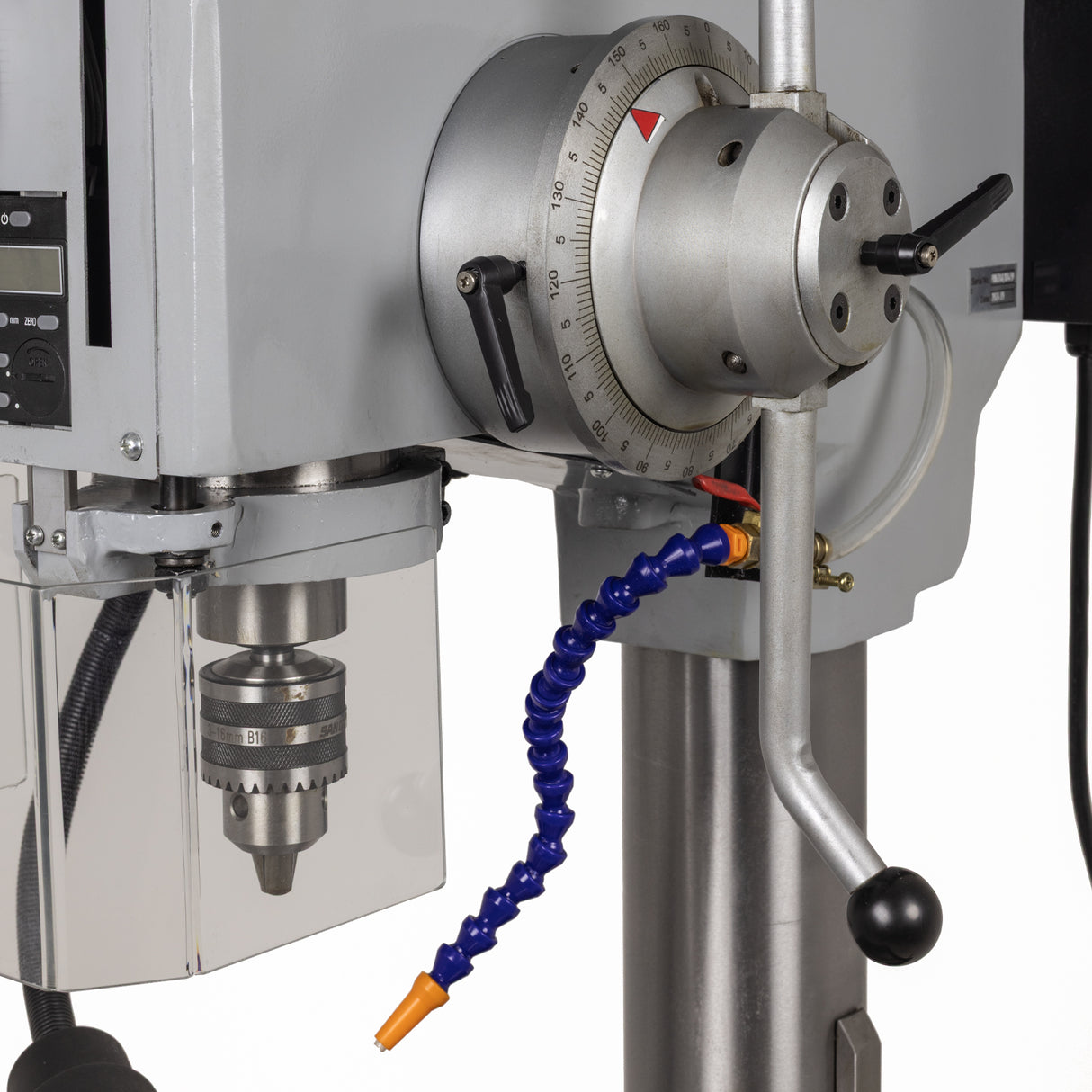

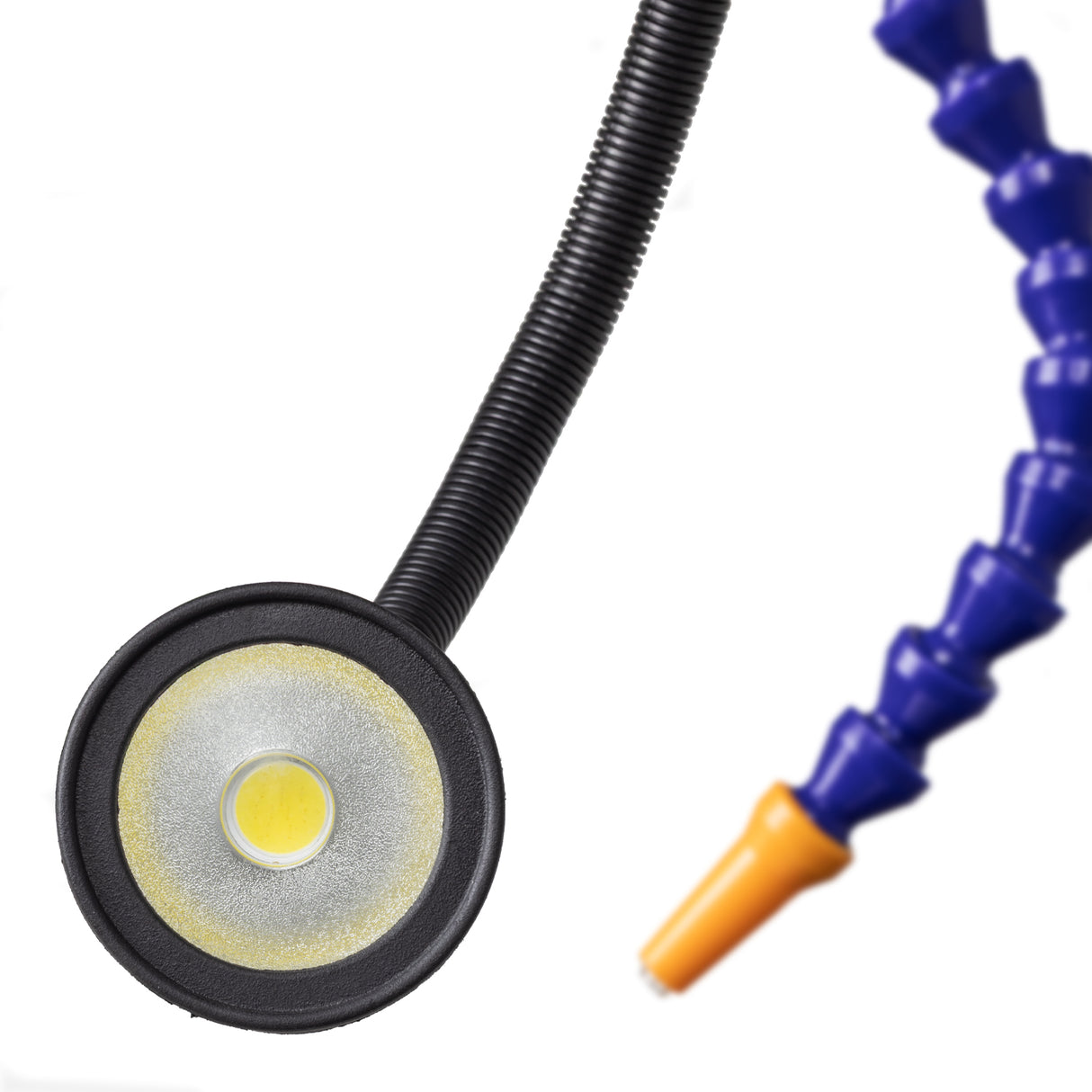

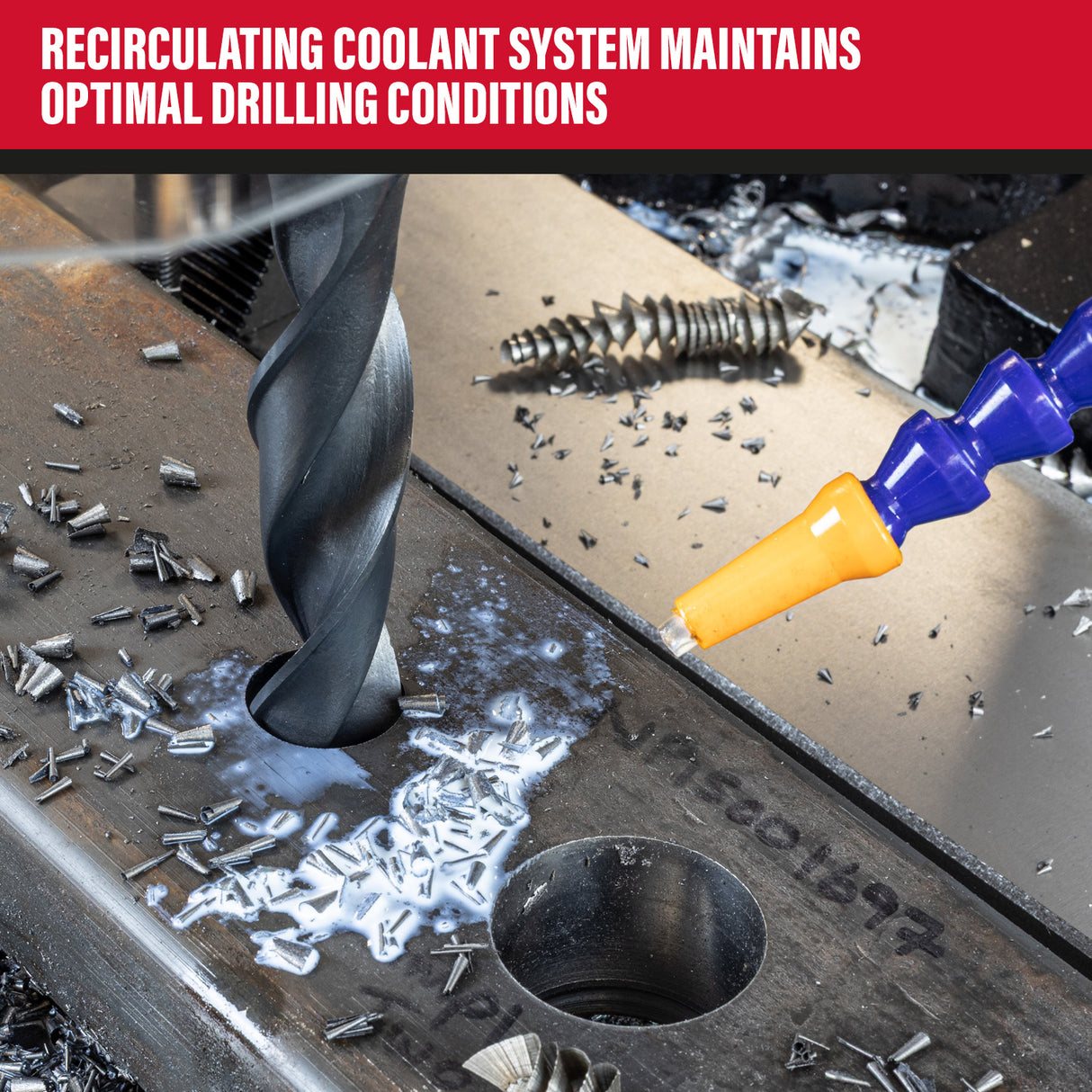

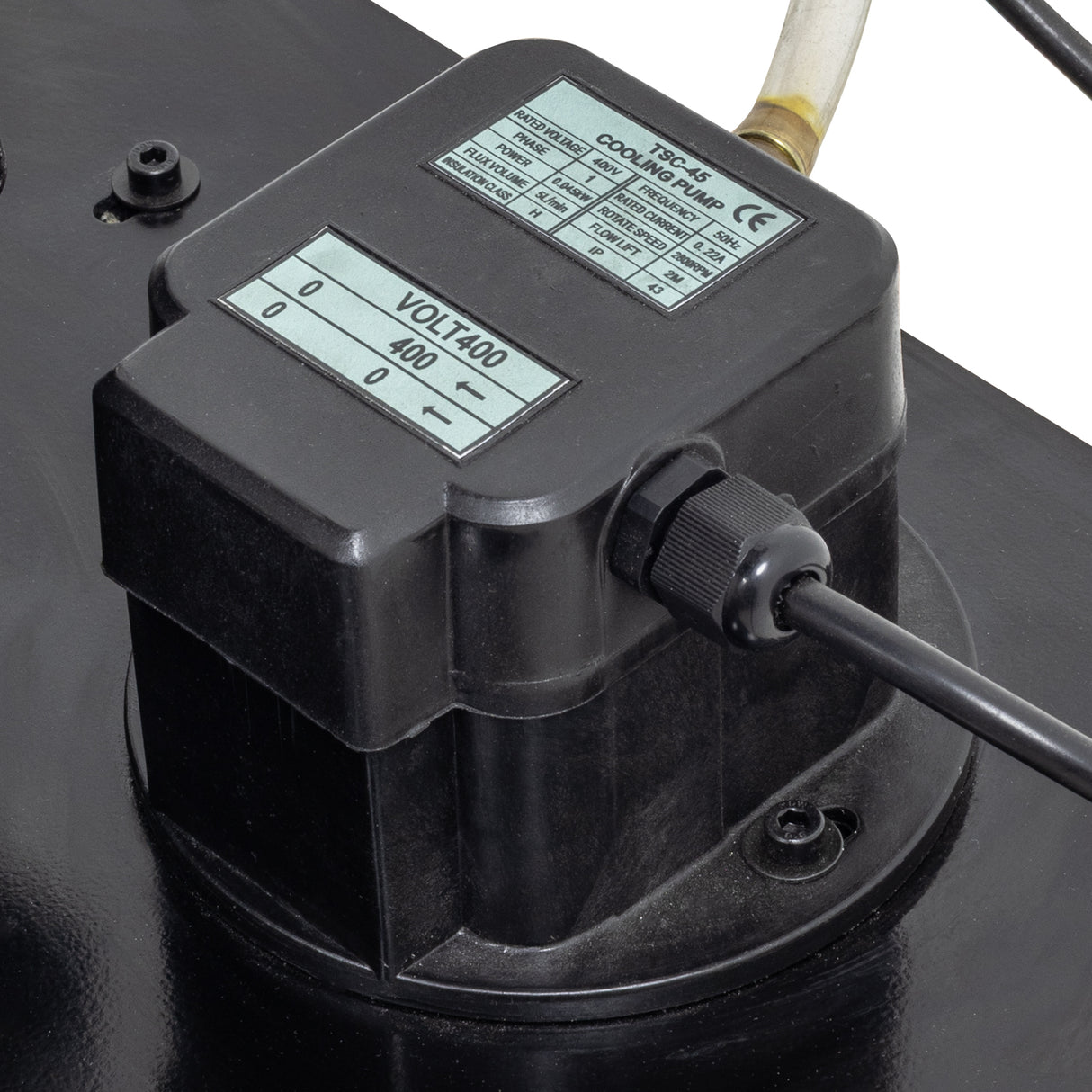

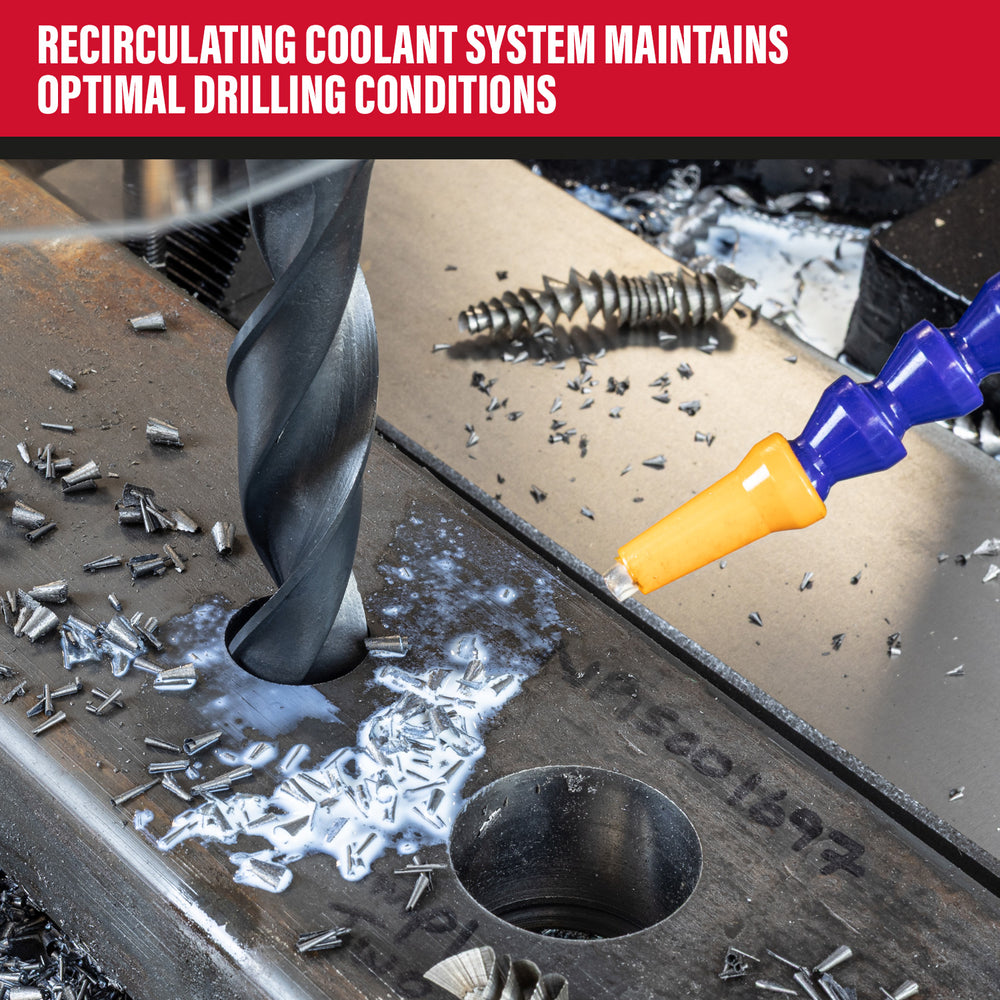

- Recirculating coolant system maintains optimal drilling conditions
Applications & Uses

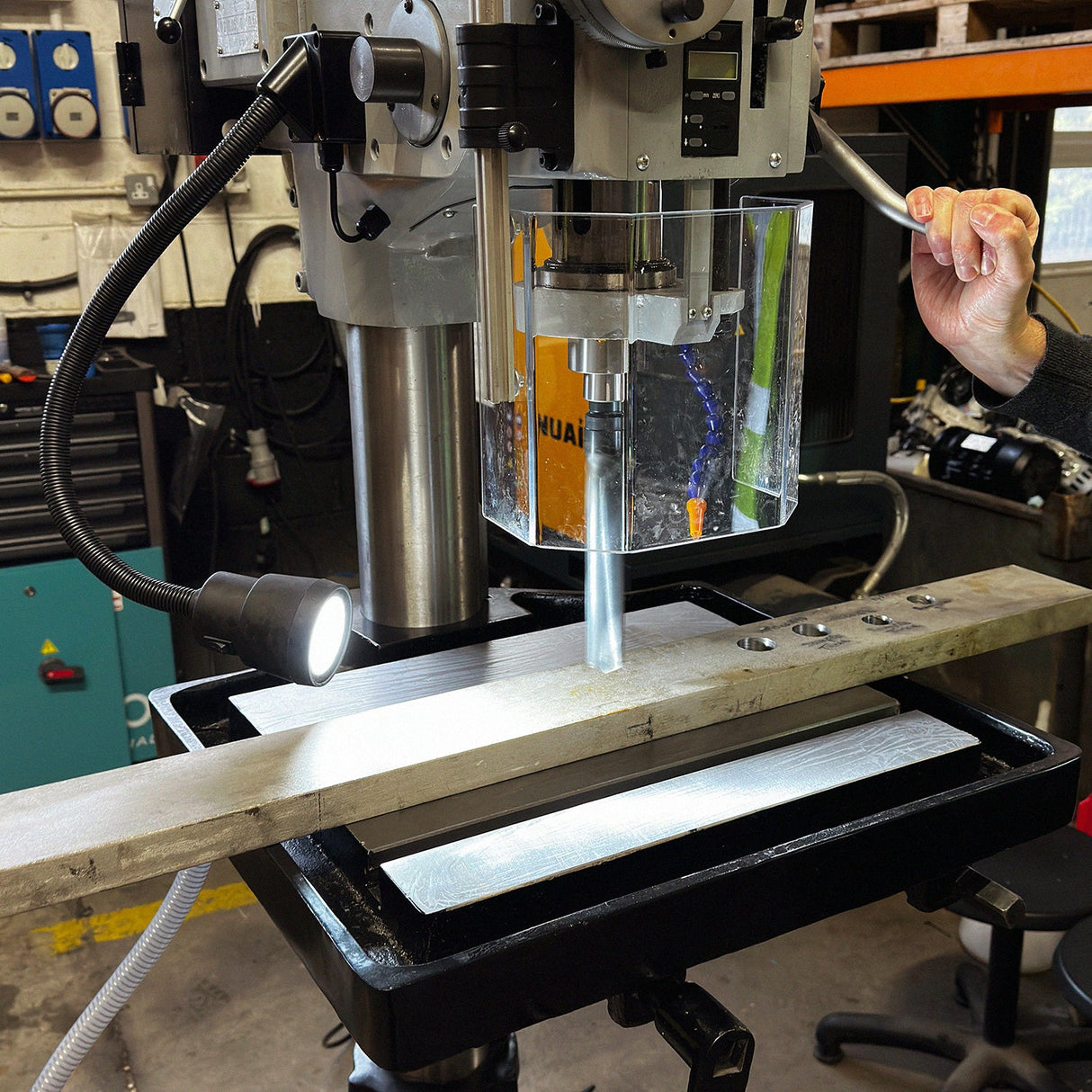

Designed for professional metalworking and fabrication workshops. Ideal for drilling ferrous and non-ferrous metals including mild steel, aluminium, copper, brass, stainless steel, cast iron and wrought iron. Metal Fabrication: drilling holes in steel plates and box sections. General Engineering: creating precise holes for bolts, pins and shafts in various metal components. Production & Assembly: panels for machinery, motor mounts or bearing housing, metal beams, gates, railings and enclosures.
Technical Specification
| Input Supply | 400v (16A) |
|---|---|
| Motor Power | 2.2kW |
| No. of Speeds | 65rpm - 540rpm (low) / 245rpm - 2000rpm (high) |
| Max. Drilling Capacity | 40mm |
| Max. Tapping Capacity | 25mm |
| Spindle Taper | MT4 |

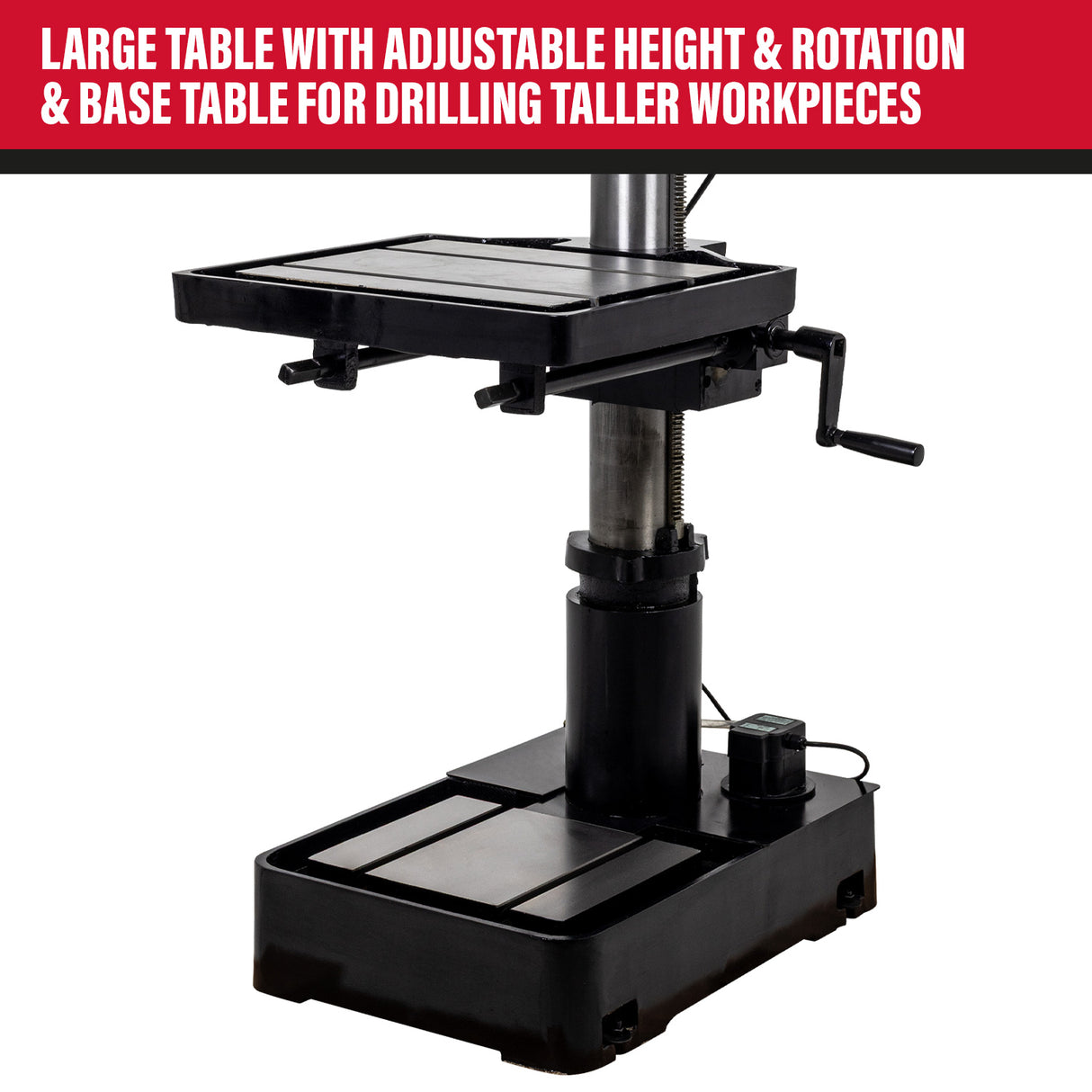

| Table Size | 560mm x 475mm |
| Base Size | 688mm x 486mm |
| Column Diameter ⌀ 115mm | |
| Swing | 530mm |
| Height | 2040mm |

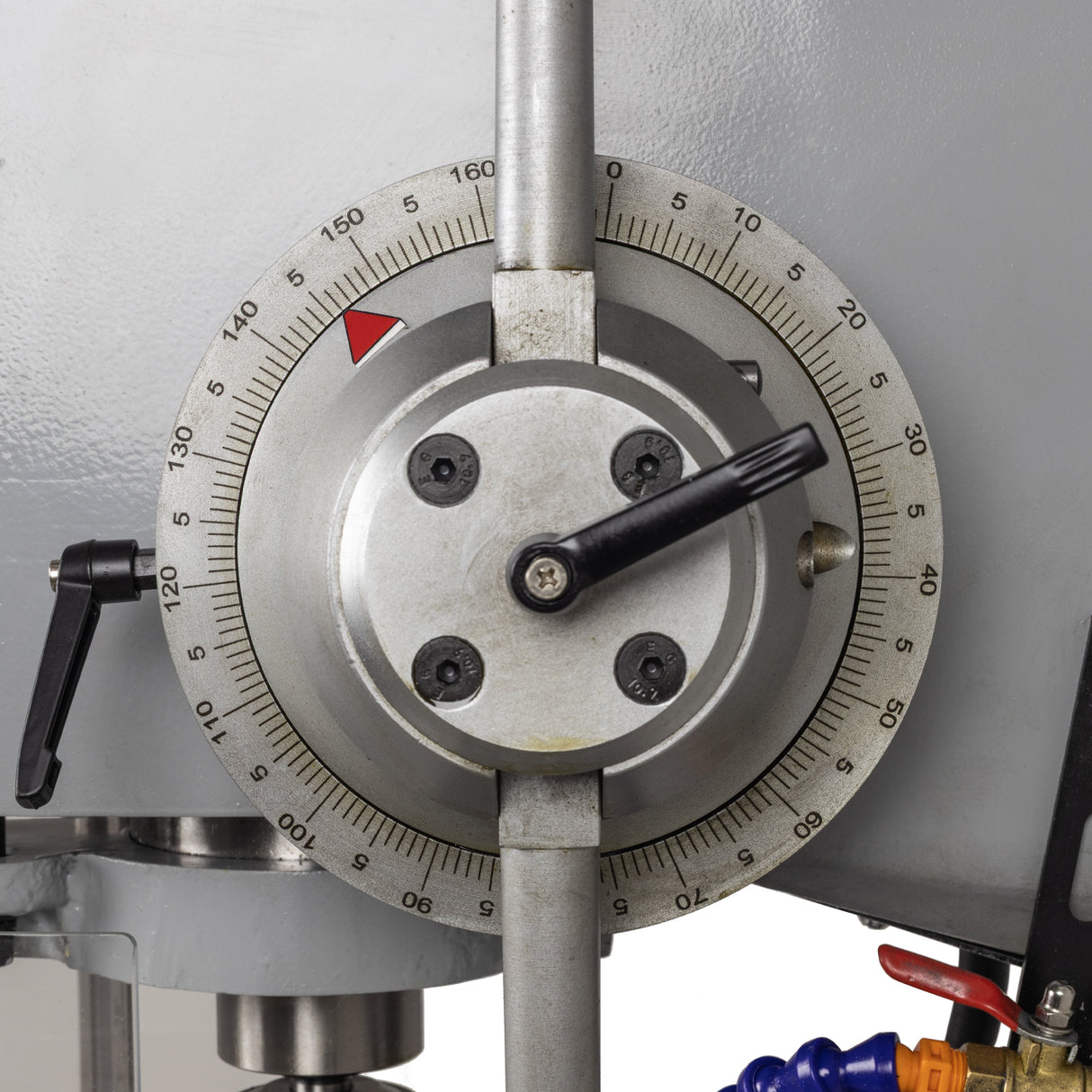

| Spindle Travel | 150mm |
| Collar Diameter | ⌀ 174mm |
| Max. Distance | 605mm (spindle to table) / 1150mm (spindle to base) |
What's in the Box
1x SIP Industrial F40-IDA Vari-Speed 2.2kW 400v Floor Pillar Drill (400v/16A), 1x drill chuck (compatible with Morse Taper 4), 1x drill drift, 1x chuck key, 1x, cranking handle, 1x Y-type socket wrench and 2x handles for headstock and table.
Warranty: SIP 2-YEAR
