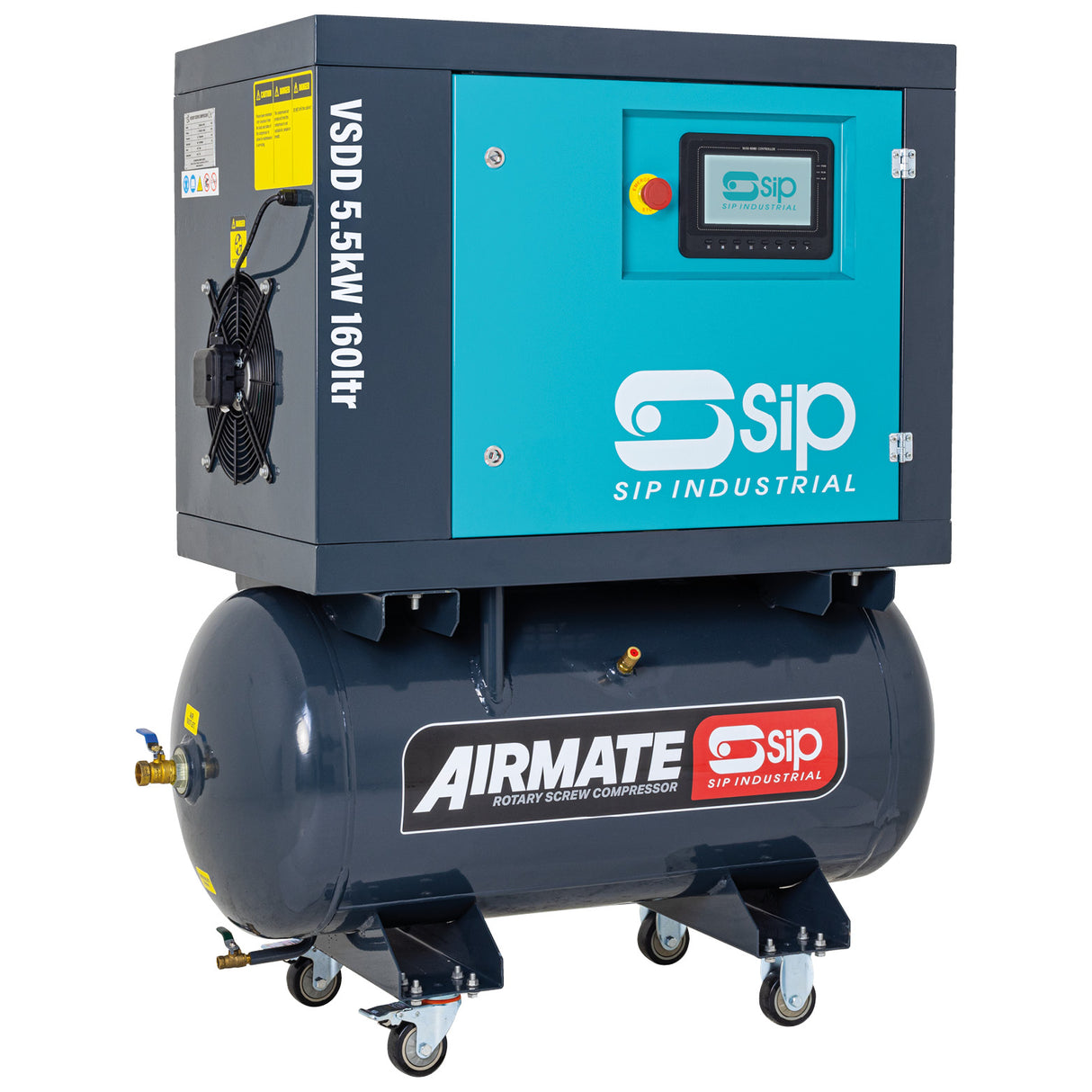

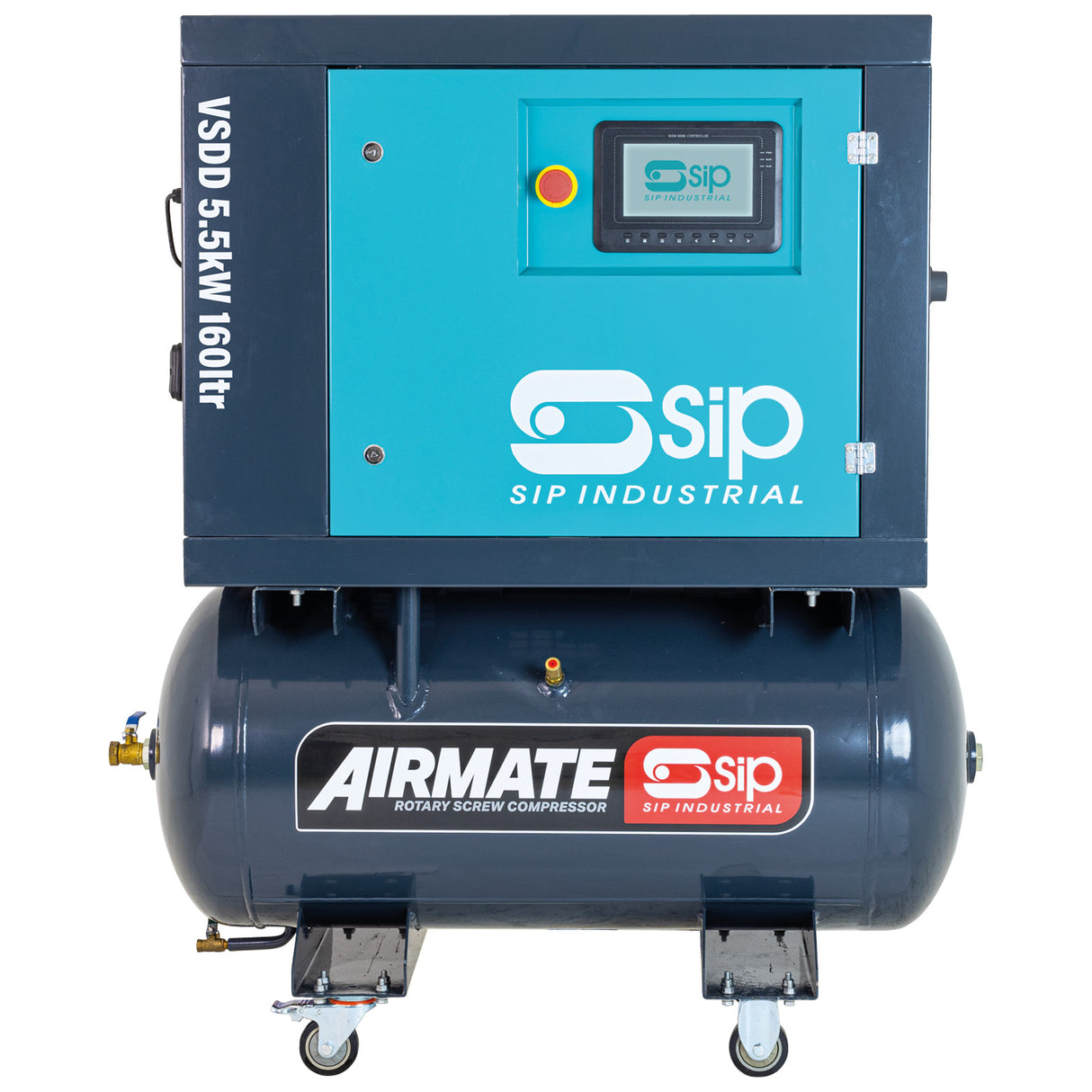

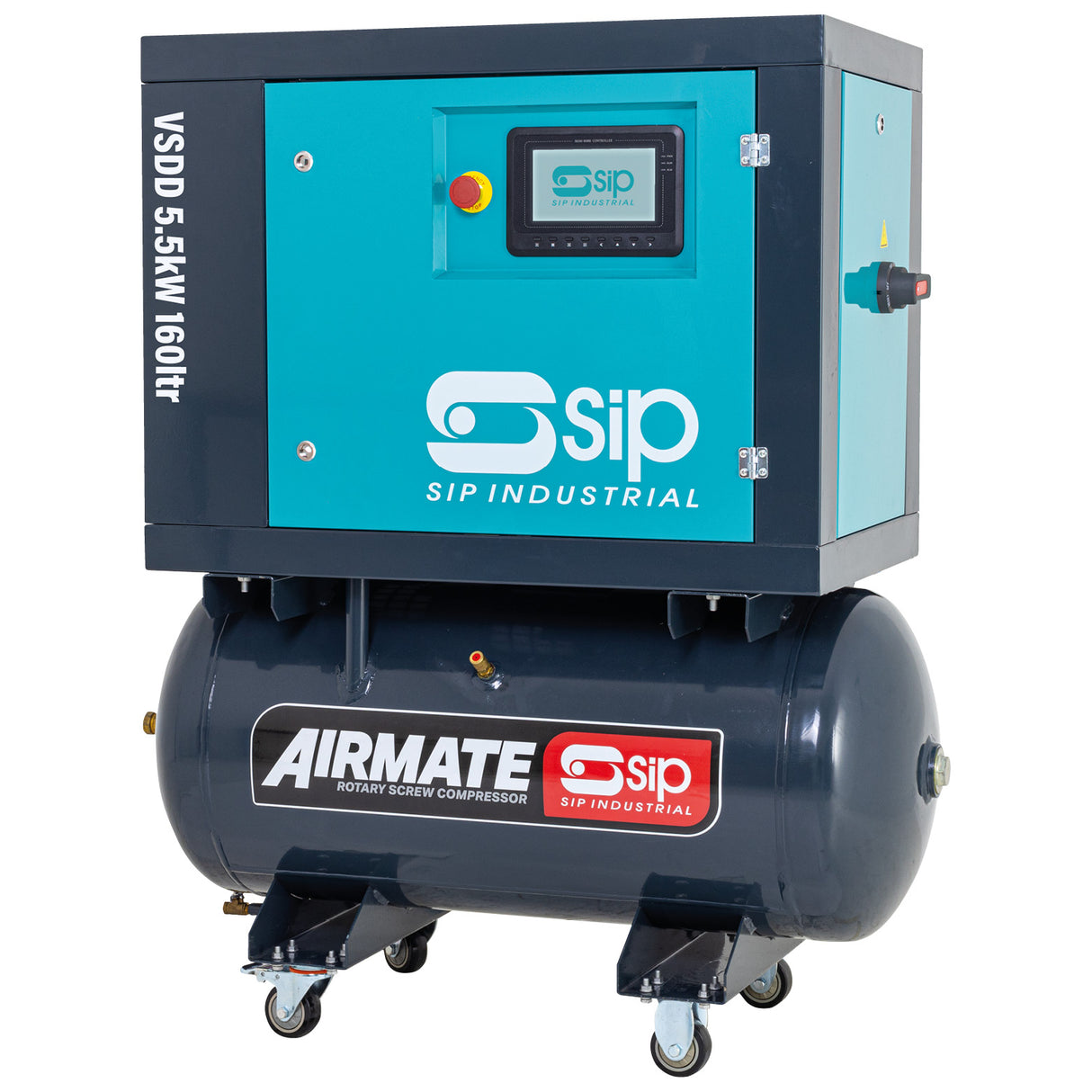

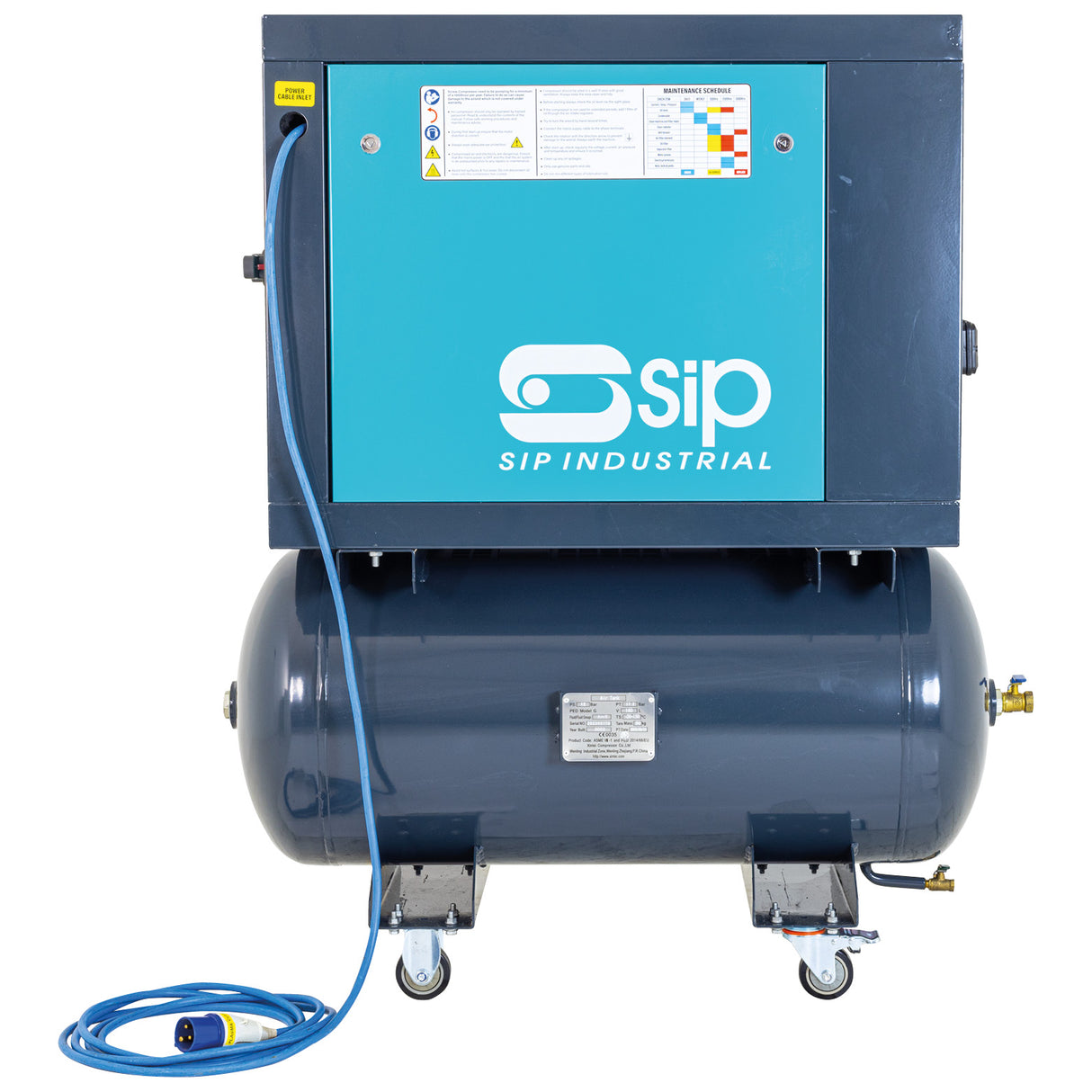

SIP VSDD 5.5kW 8bar 160ltr 230v Rotary Screw Compressor
SKU SIP-08257 Barcode 5012713082575
6 available from our warehouse. Despatch times vary.
Pay in 3 interest-free with shopPay or PayPal
- Expert UK product support
- Authorised distributor
- 30 day returns
Delivery & returns
Despatch times vary by item. Check the product-specific lead time shown on this page. Supplier-shipped and larger items may take longer.
Delivery options and transit times are shown at checkout. Transit time starts after despatch and excludes weekends and bank holidays unless the selected service states otherwise. Tracking is provided when available.
30 day returns on unused items in original packaging.
Description
Description
The SIP VSDD 5.5kW 8bar 160ltr 230v Rotary Screw Compressor is a variable speed, direct drive rotary screw compressor. This 4th generation compressor is designed for continuous use applications or where multiple operators require compressed air at one time.
With a motor output of 5.5kW, this compressor can meet high-demand air requirements and optimise energy usage. Fitted with a 160ltr receiver tank.
Key Features
- Direct drive transmission for improved power transfer
- Variable speed 5.5kW motor delivers even power distribution
- Heavy-duty silenced cabinet ensures reduced noise operation

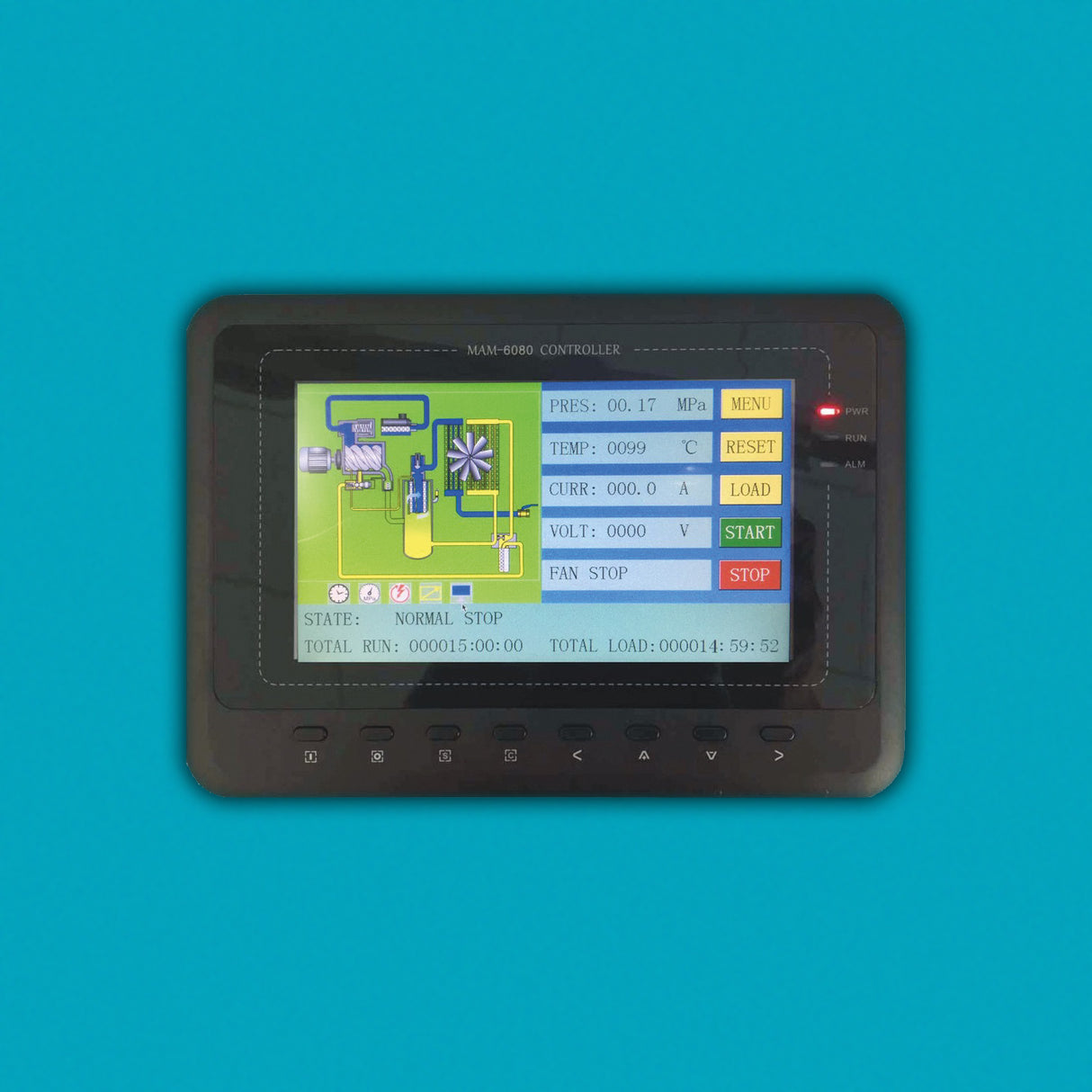

- Colour touchscreen for real-time diagnostic information

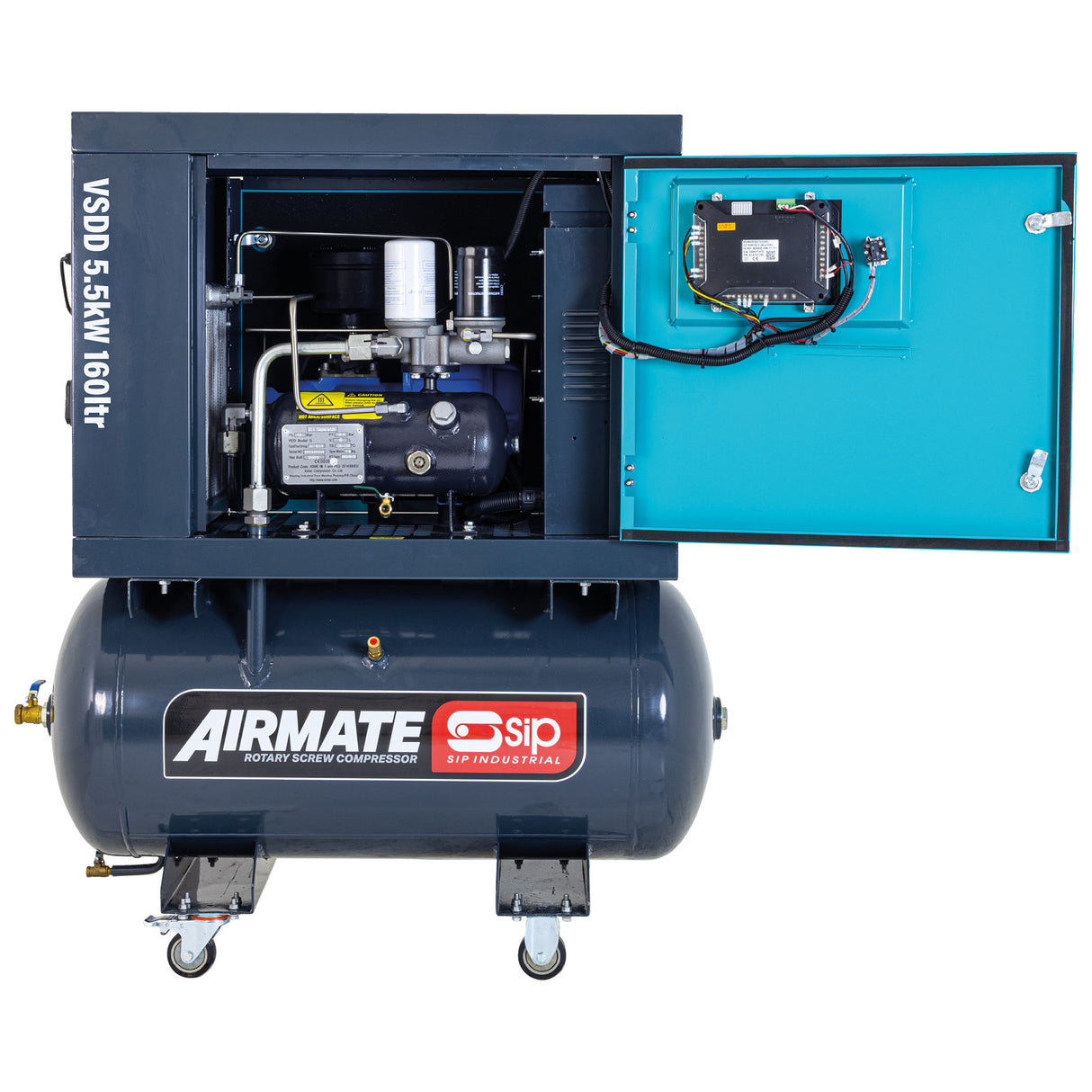

- Easy access cabinet panel for maintenance and service
- Wheel-mounted all-in-one design for added mobility
Technical Specification
| Input Supply 230v (64a) | |
| Rated Input | 7kW |
|---|---|
| Motor Power | 5.5kW (7hp) |
| IE4 Motor | Yes |
| Max. Pressure | 116psi (8bar) |
| Free Air Delivery (FAD) | 25CFM (720ltr/min) |
| Receiver Size | 160ltr |
| Cooling Type | Fan Cooled |
| Transmission Type | Direct Drive |
| Start-Up Mode | Inverter Soft Start |
| Refrigerated Dryer | N/A |
| Outlet Connector | 3/4" BSPP |
| Noise Level | 65dB(A) |
Warranty: SIP 2-YEAR
