SIP WELDMATE® AUTOPLUS 200A MIG/ARC/TIG Synergic Inverter Welder with Trolley Package
SKU SIP-05740TROLLEY Barcode 5012713004331
51 available from our warehouse. Despatch times vary.
Pay in 3 interest-free with shopPay or PayPal
- Expert UK product support
- Authorised distributor
- 30 day returns
Delivery & returns
Despatch times vary by item. Check the product-specific lead time shown on this page. Supplier-shipped and larger items may take longer.
Delivery options and transit times are shown at checkout. Transit time starts after despatch and excludes weekends and bank holidays unless the selected service states otherwise. Tracking is provided when available.
30 day returns on unused items in original packaging.
Description
Description

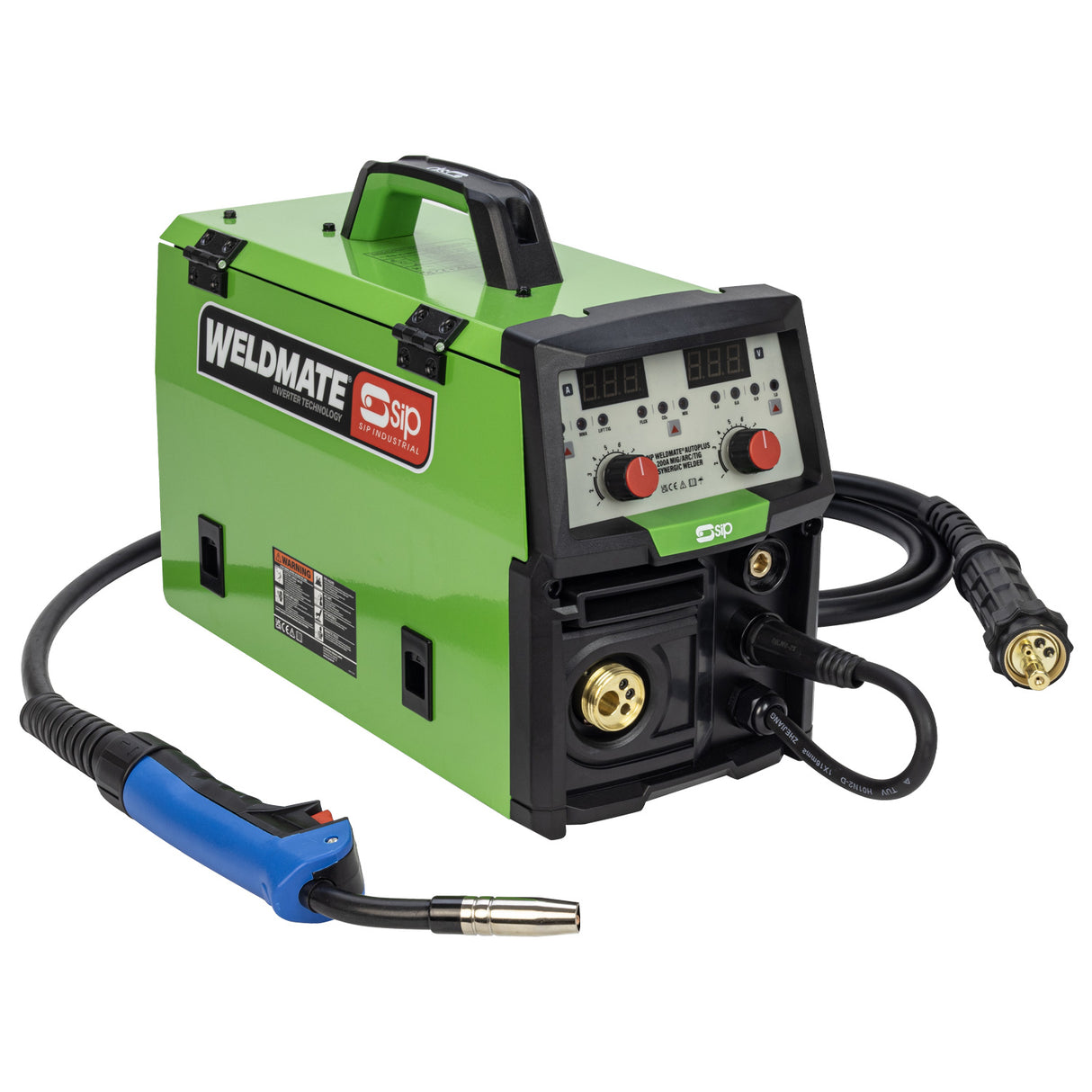

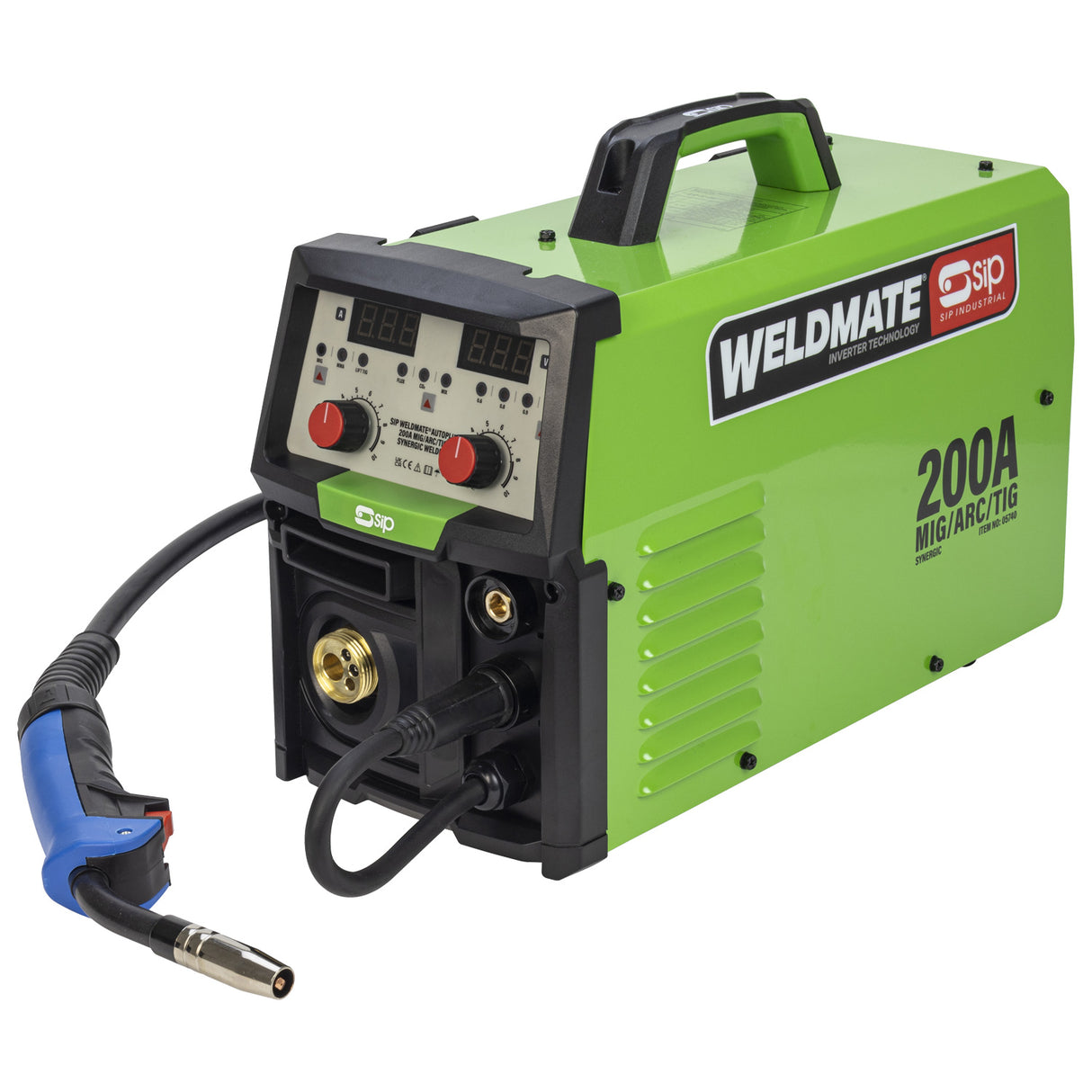

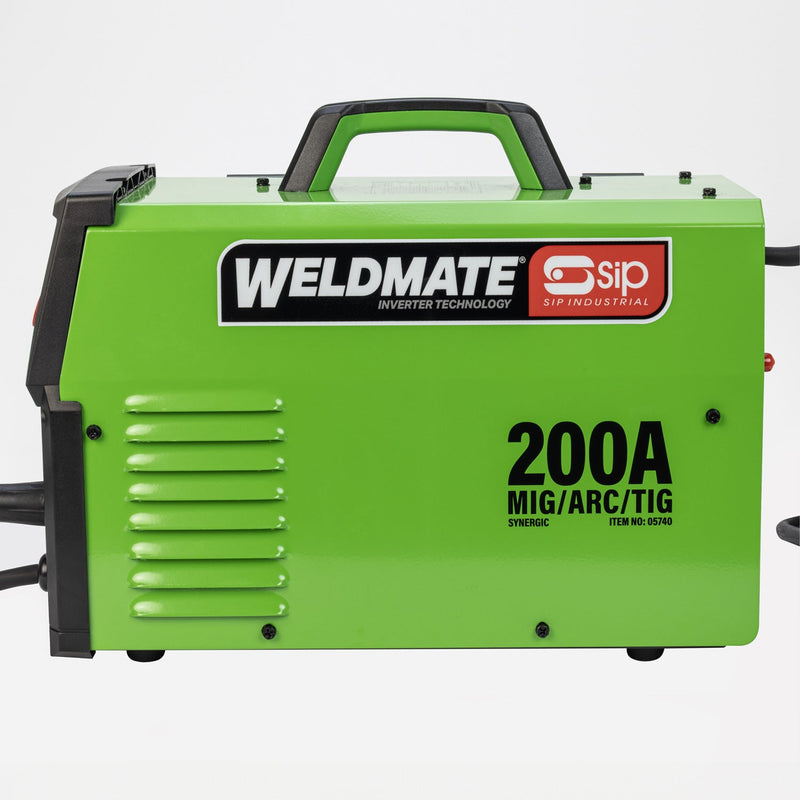

The SIP WELDMATE® AUTOPLUS 200A MIG/ARC/TIG Synergic Inverter Welder with Trolley is a multi-process inverter welder specifically designed for use in automotive and garage environments.
Fully compliant with Reg EU 2019/1784 (Eco Design for Welding Equipment), this welder features a 4th generation inverter which is above 80% energy efficient. This means it uses less power at the same output as older inverters, helping to lower operating costs.
It also includes Pure Synergic Control, which allows users to adjust welding voltage and wire feed speed autonomously. This simplifies the welding process at all skill levels and helps to achieve more consistent and higher quality welds.

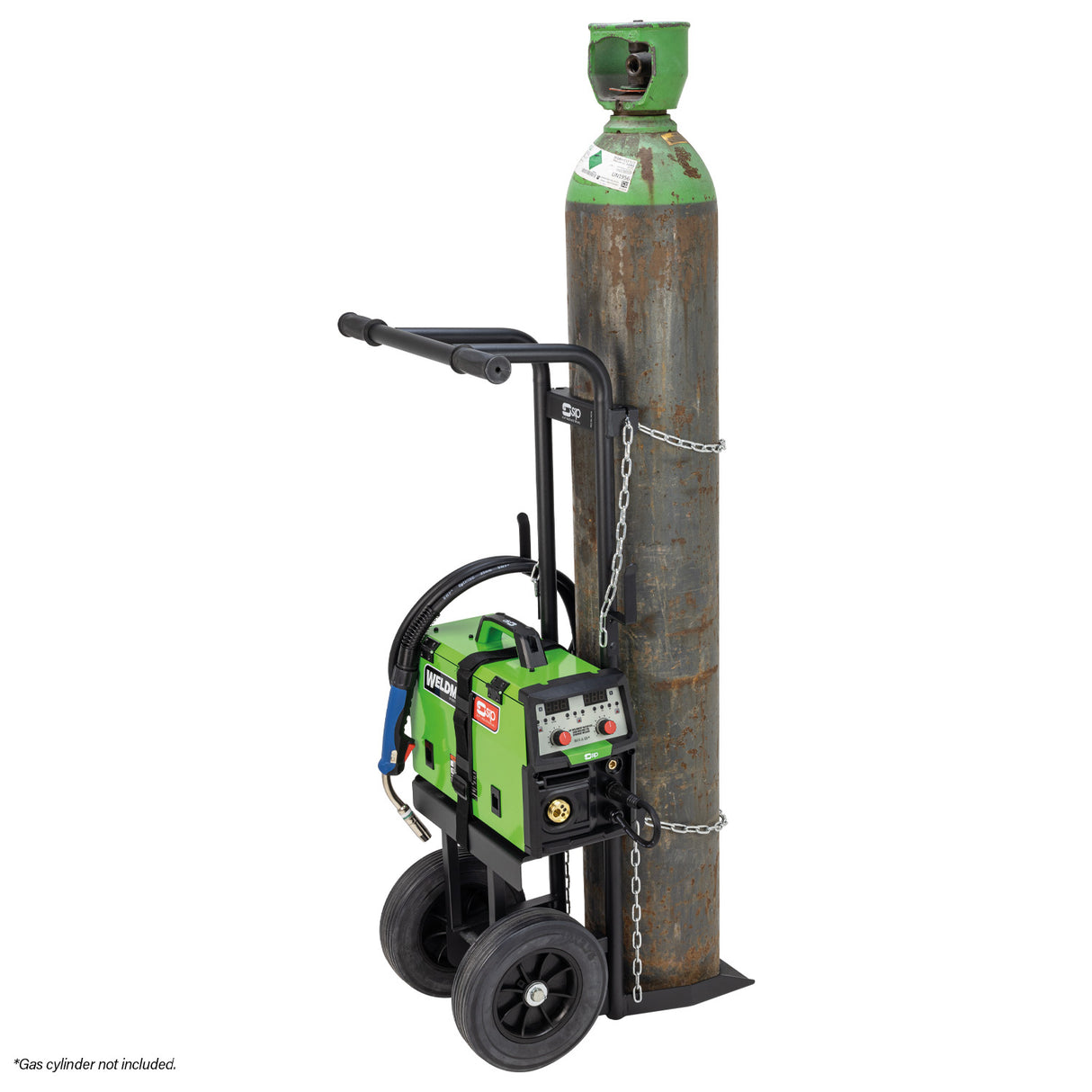

This package is complete with the 05719 SIP Large Cylinder Welding Trolley, which is suitable for gas cylinders up to 99kg.
Key Features
- Multi-process MIG/ARC/TIG welder for greater flexibility
- Pure Synergic Control for more consistent and higher quality welds
- Fully compliant with EU 2019/1784 (Eco Design for Welding Equipment)

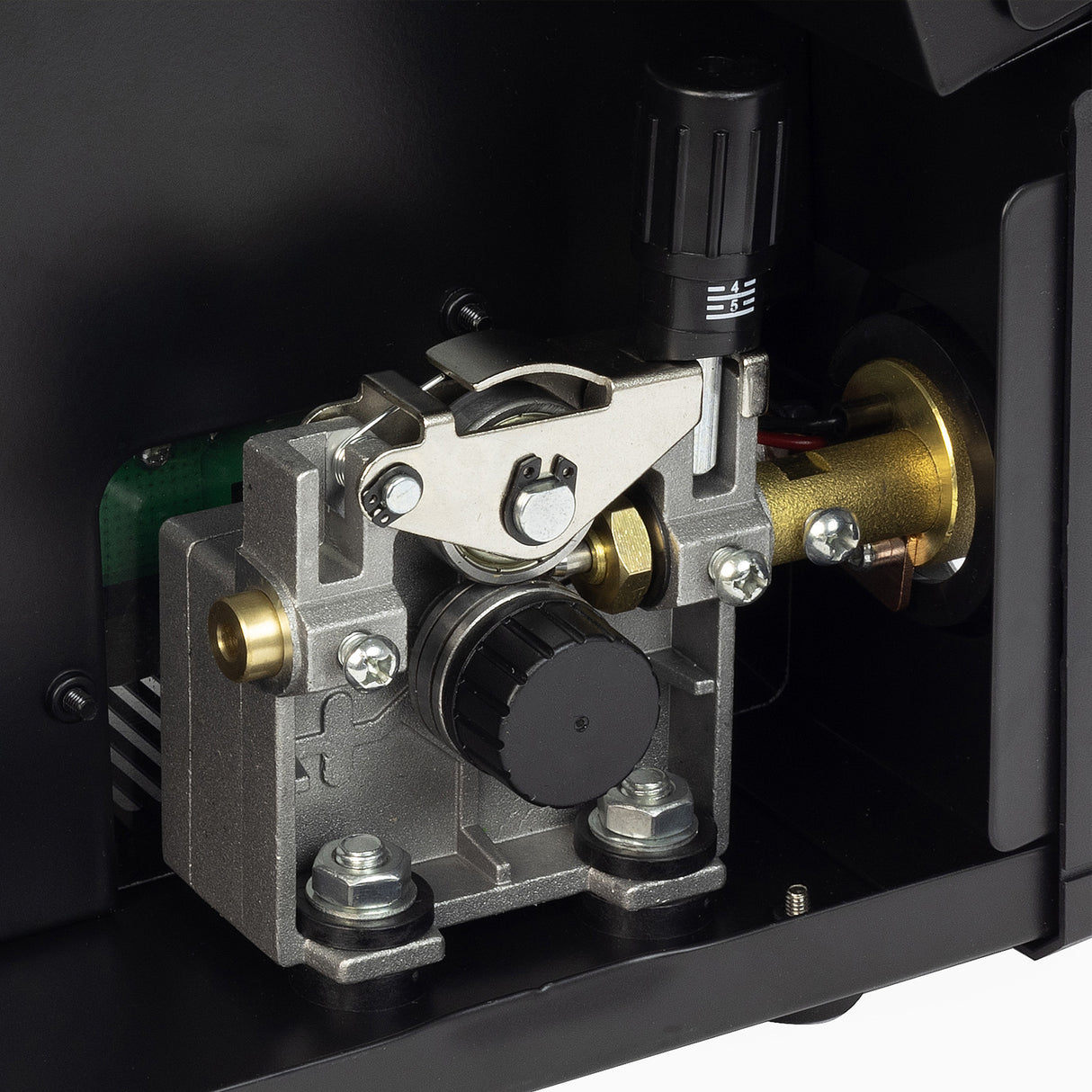

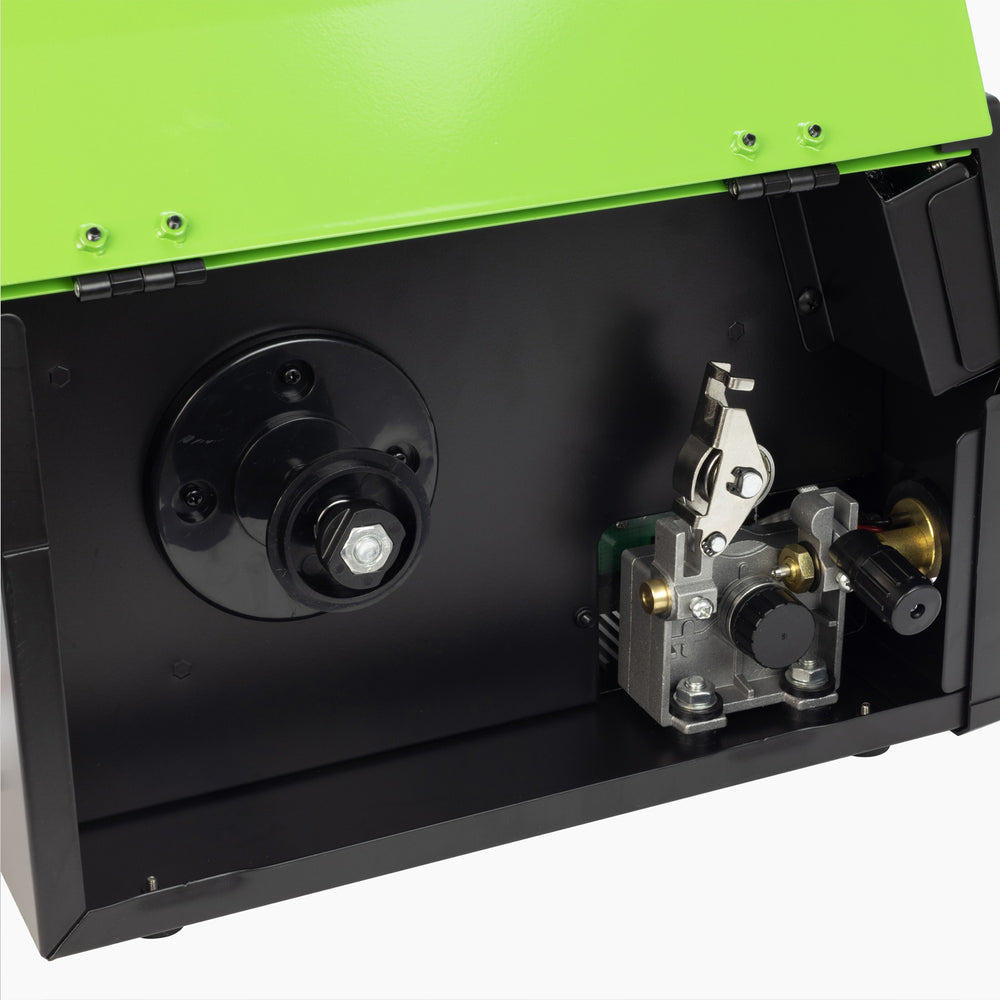

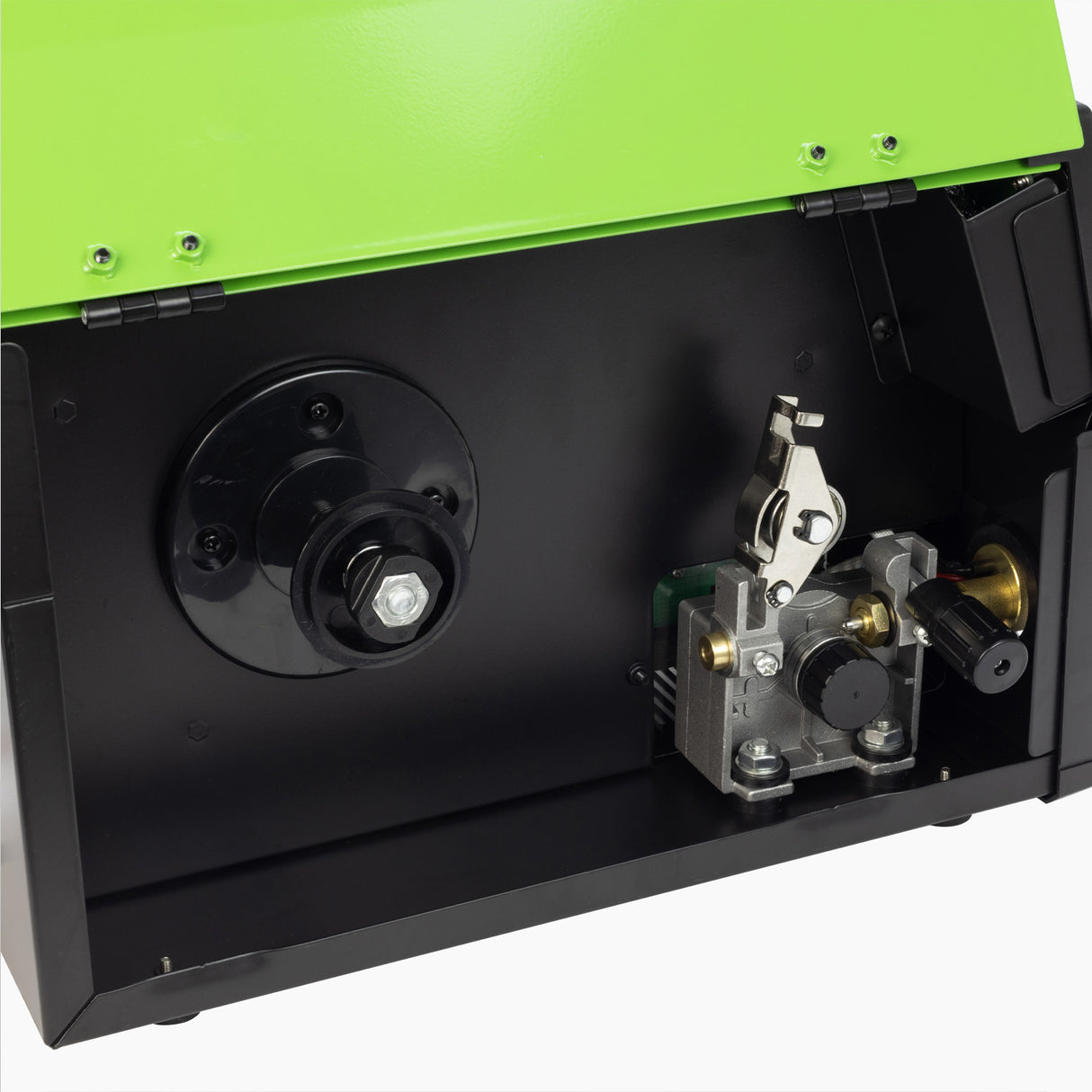

- Heavy-duty aluminium wire feeder for smooth consistent flow of wire

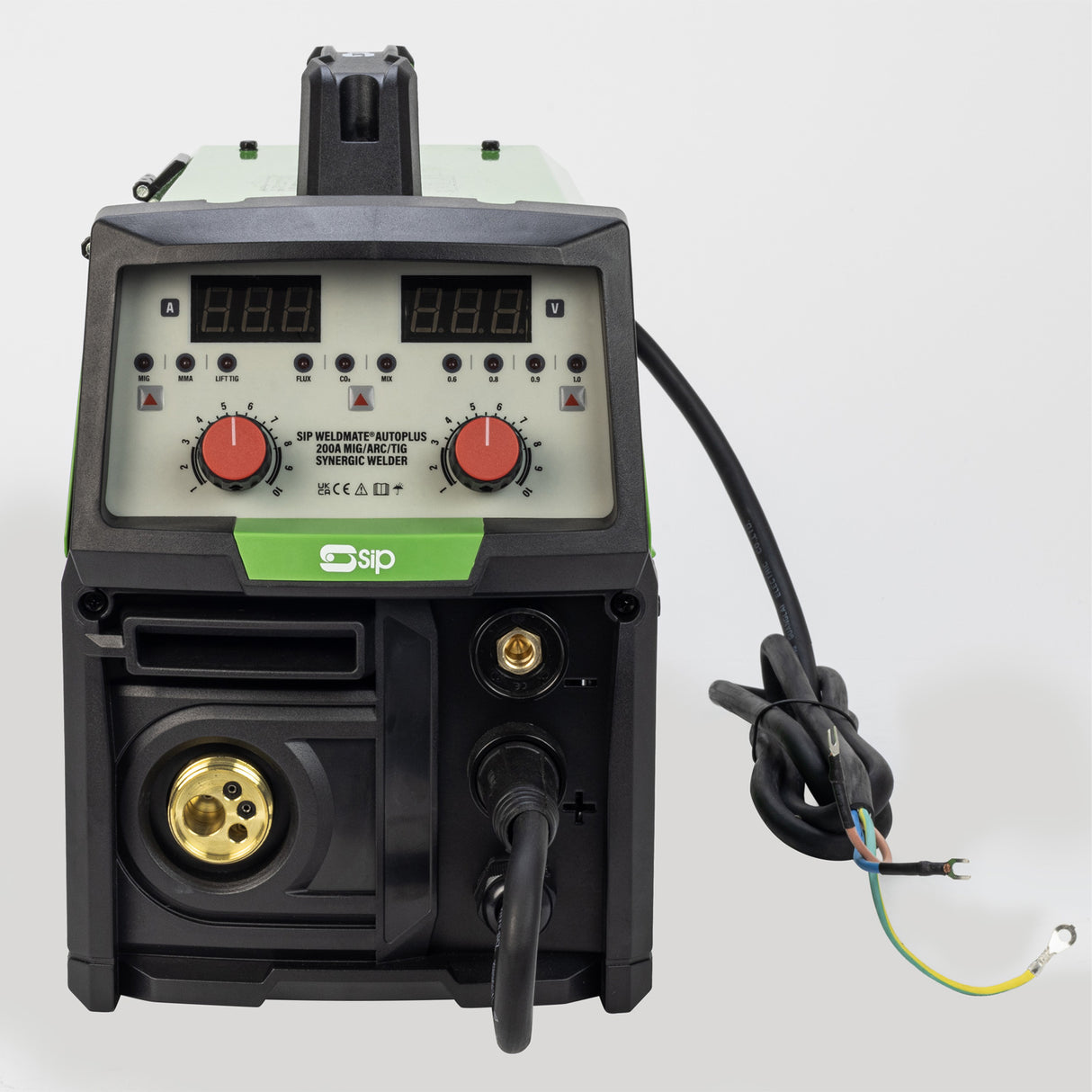

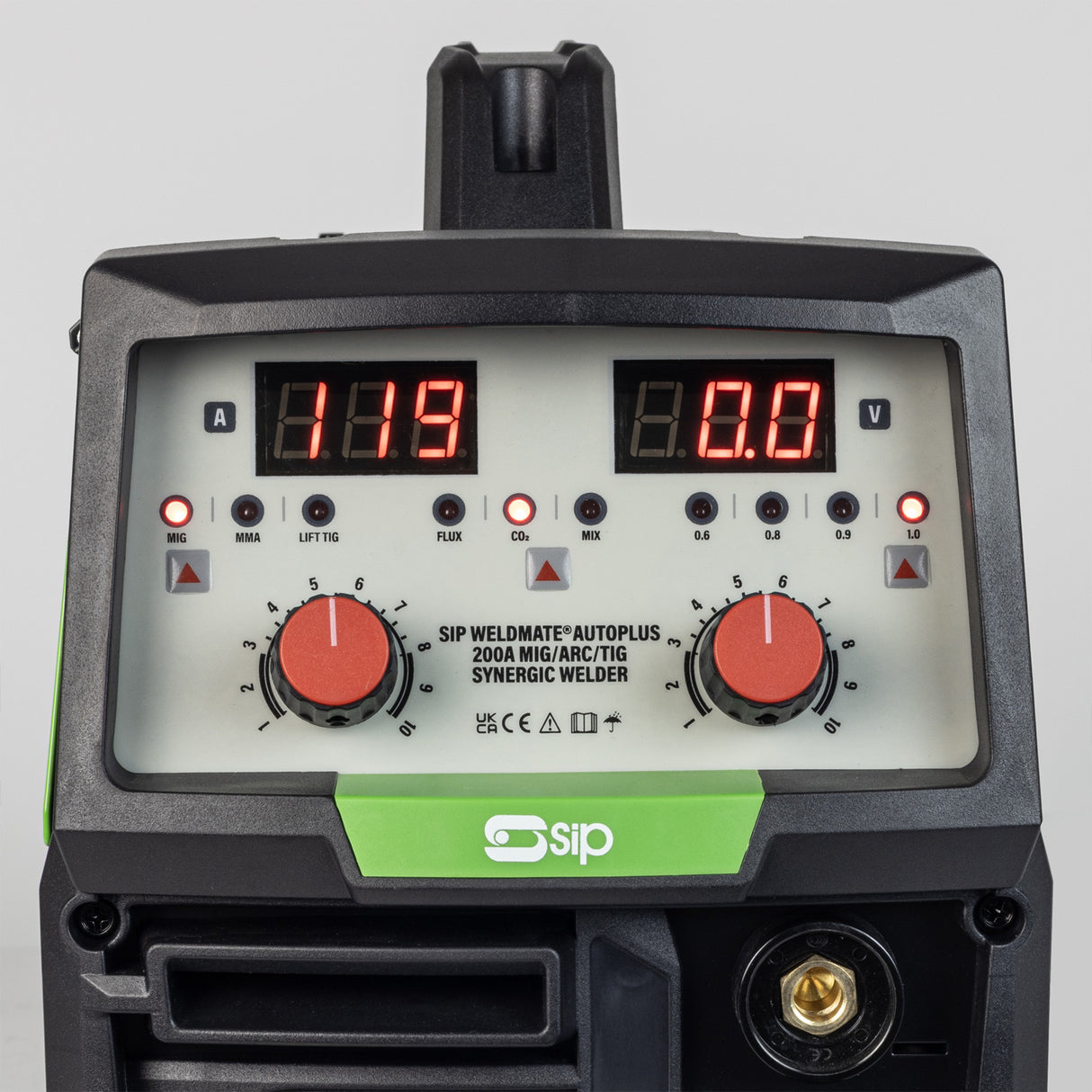

- Intuitive control panel to select between process, gas and wire size

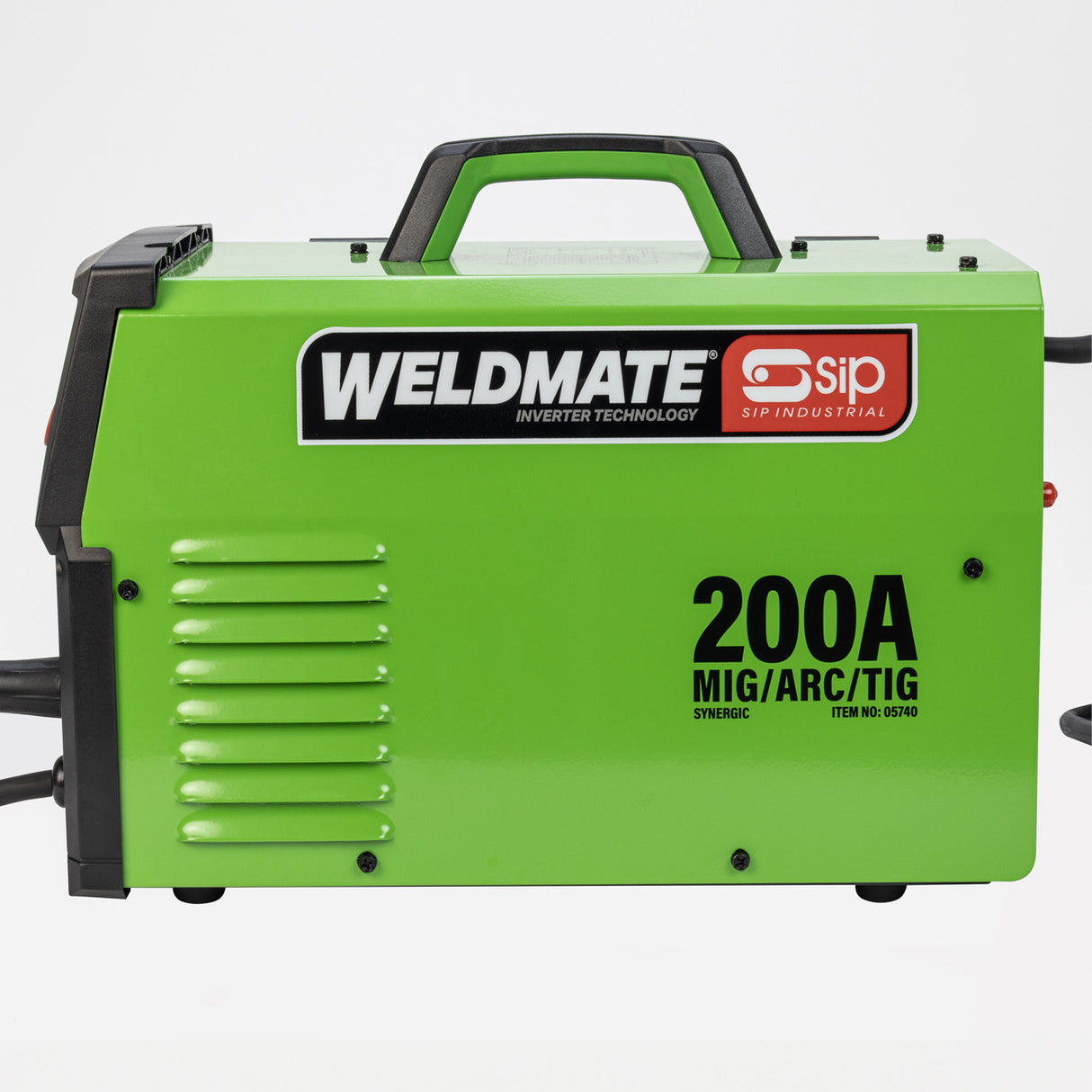

- Metal casing with strong-grip carry handle for long life use
Applications & Uses
Ideal for use in automotive and garage environments. Perfect for sheet metal applications. Suitable for MIG/ARC/TIG welding, and performs gasless MIG welding. Ideal for mild steels and welds *stainless steel and **aluminium. *Using stainless steel welding wire. **Using aluminium welding wire and pure Argon gas.
Technical Specification
| Input Supply | 230v (16A) |
|---|---|
| Output Voltage | 16.5v - 24v (MIG) / 20.8v - 28v (ARC) / 10.8v - 18v (TIG) |
| Output Current | 20A - 200A (MIG) / 20A - 200A (ARC) / 20A - 200A (TIG) |
| Duty Cycle @ 20°C | 200A @ 30% (MIG) / 200A @ 30% (ARC) / 200A @ 30% (TIG) |
| Wire Diameter | ⌀ 0.6mm, 0.8mm, 1mm (solid), 0.8mm and 0.9mm (flux-cored) |
| Wire Spool Size | 0.7kg, 5kg |
| Welding Material Thickness | 0.8mm - 7mm (mild steel) |
| Protection / Insulation 21S / H | |
What's in the Box

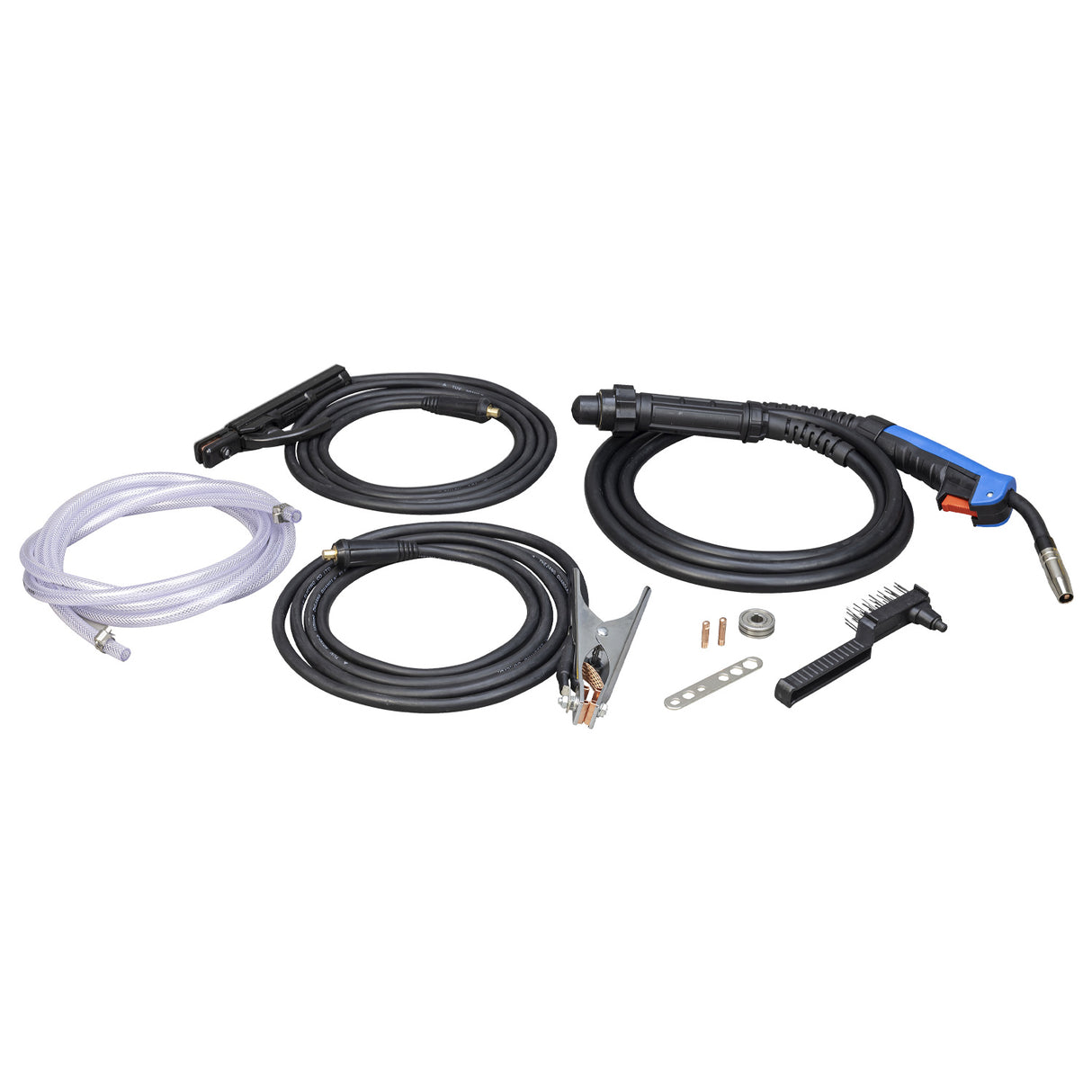

1x SIP WELDMATE® AUTOPLUS 200A MIG/ARC/TIG Synergic Inverter Welder (230v/16A), 1x SIP Large Cylinder Welding Trolley, 1x 3mtr Euro MIG torch, 1x 3mtr electrode lead, 1x 3mtr earth lead, 1x 3mtr gas hose with clamps, 2x feed rollers, 2x contact tips, 1x torch spanner and 1x chipping hammer/brush. TIG torch sold separately (Item 08206A recommended).
Warranty: SIP 2-YEAR
