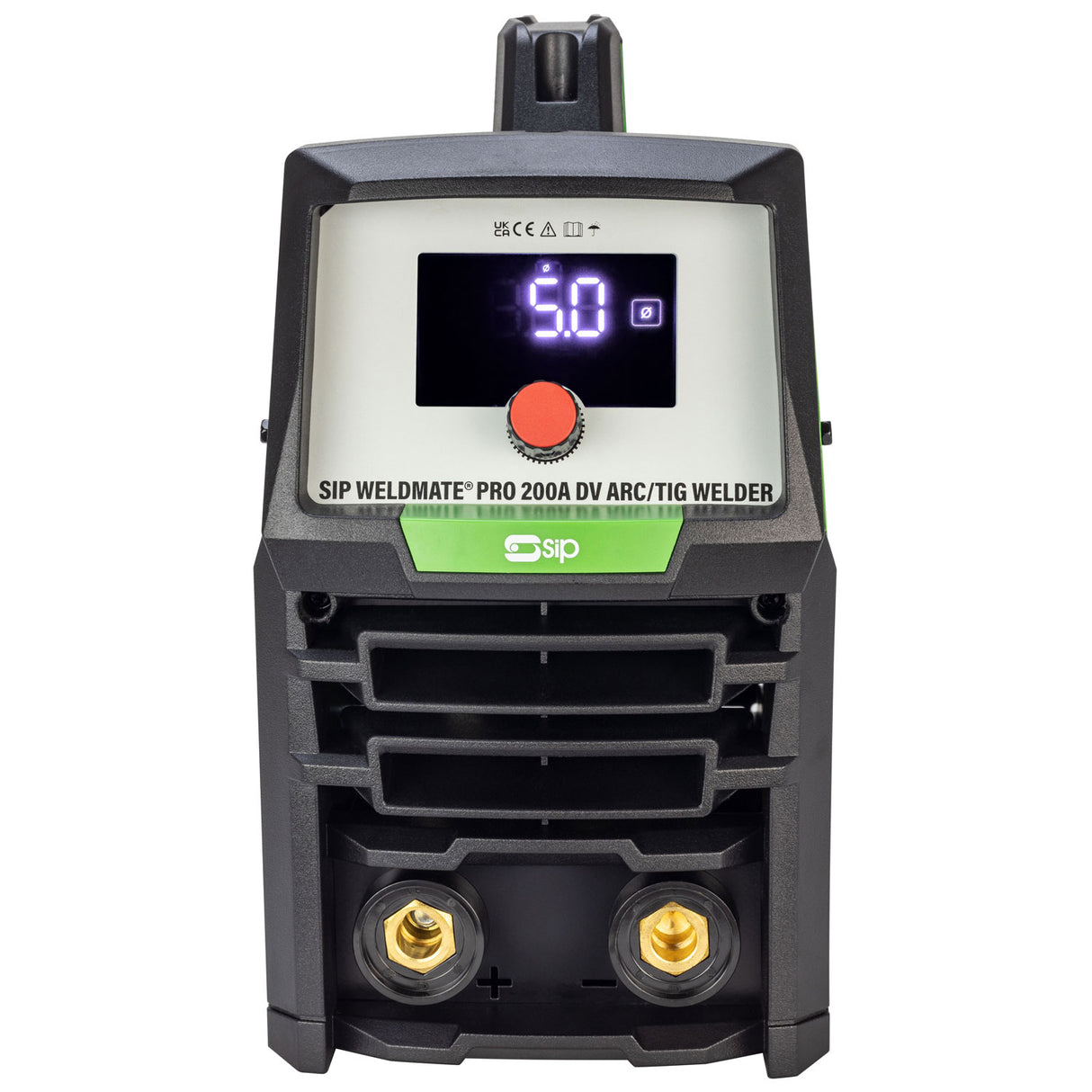

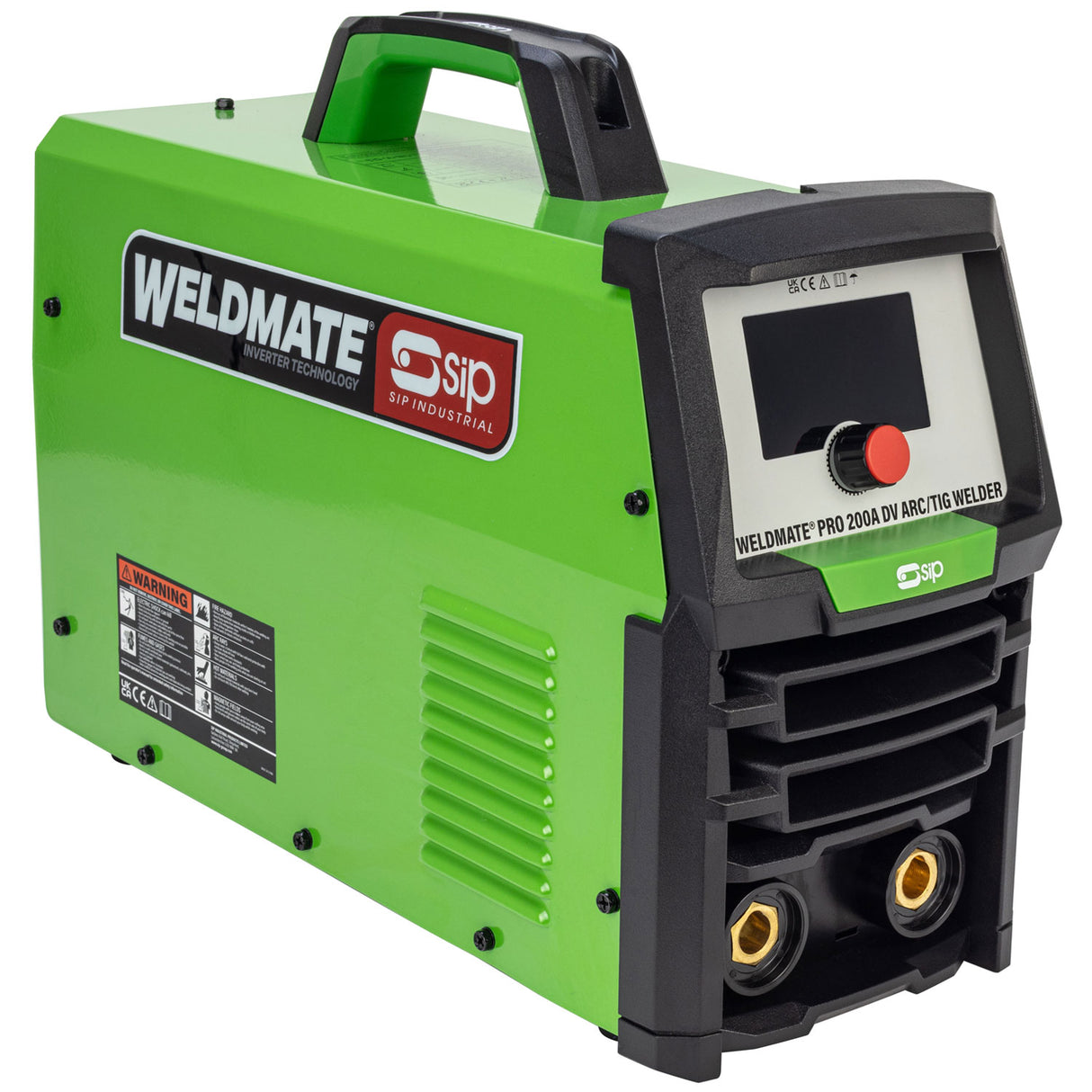

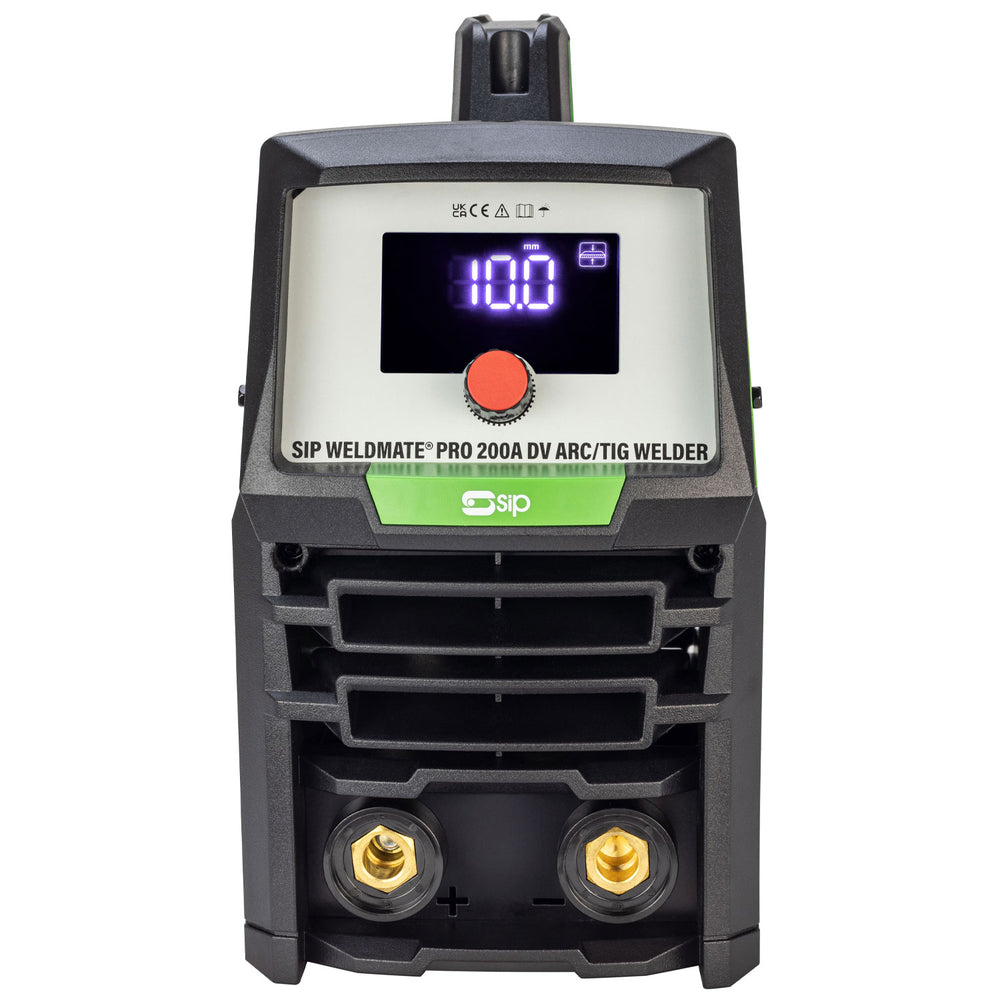

SIP WELDMATE® PRO 200A DV ARC/TIG Inverter Welder
SKU SIP-05691 Barcode 5012713006076
91 available from our warehouse. Despatch times vary.
Pay in 3 interest-free with shopPay or PayPal
- Expert UK product support
- Authorised distributor
- 30 day returns
Delivery & returns
Despatch times vary by item. Check the product-specific lead time shown on this page. Supplier-shipped and larger items may take longer.
Delivery options and transit times are shown at checkout. Transit time starts after despatch and excludes weekends and bank holidays unless the selected service states otherwise. Tracking is provided when available.
30 day returns on unused items in original packaging.
Description
Description

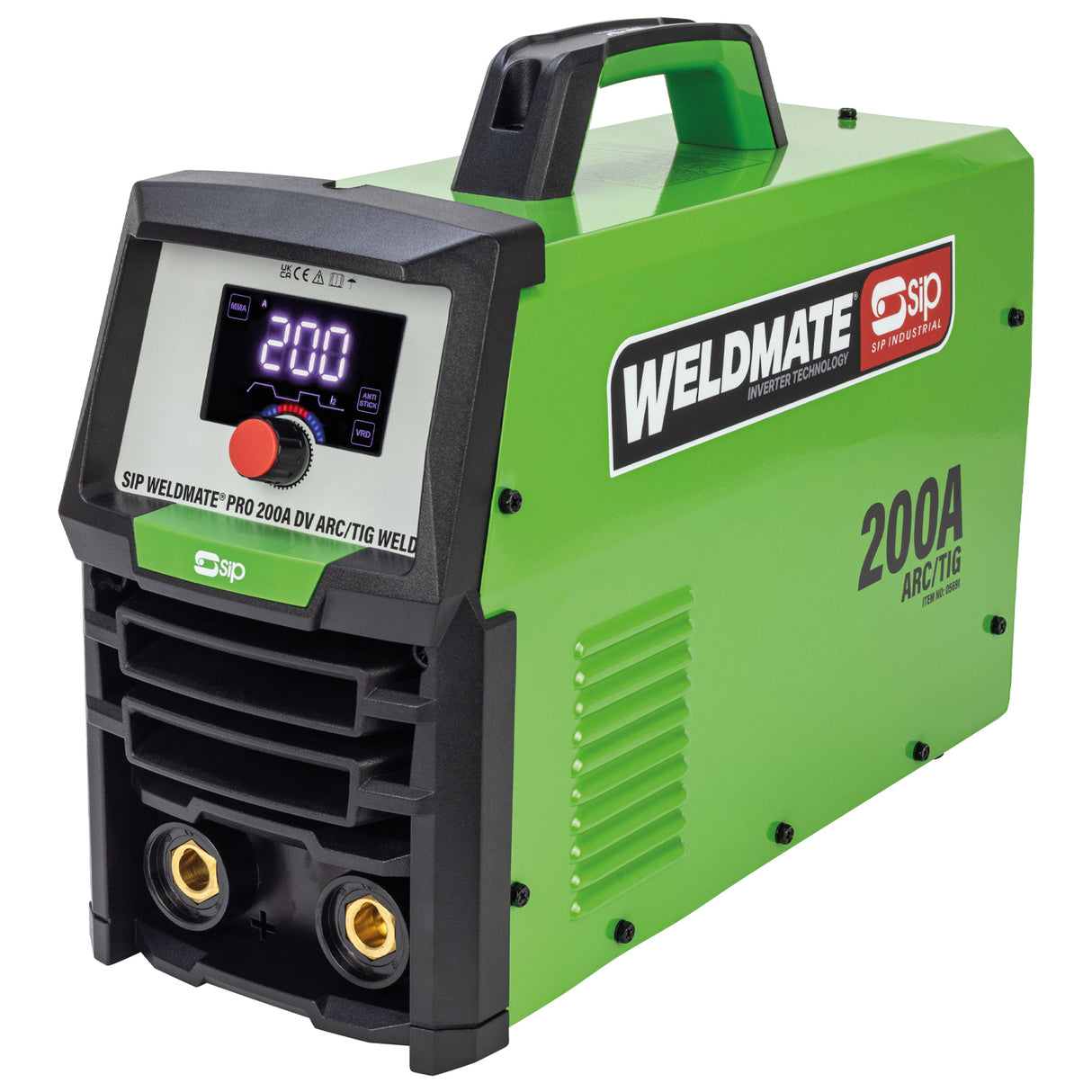

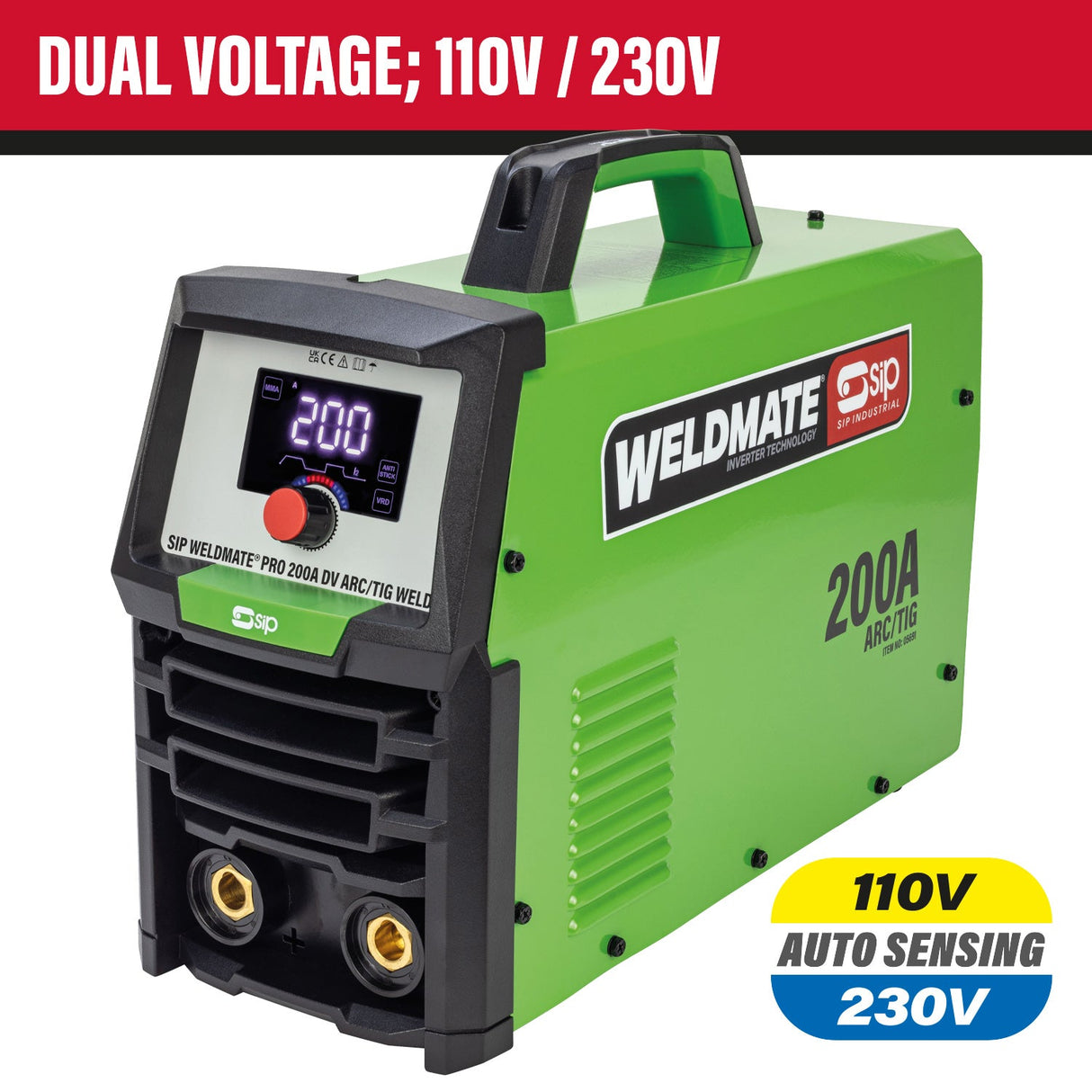

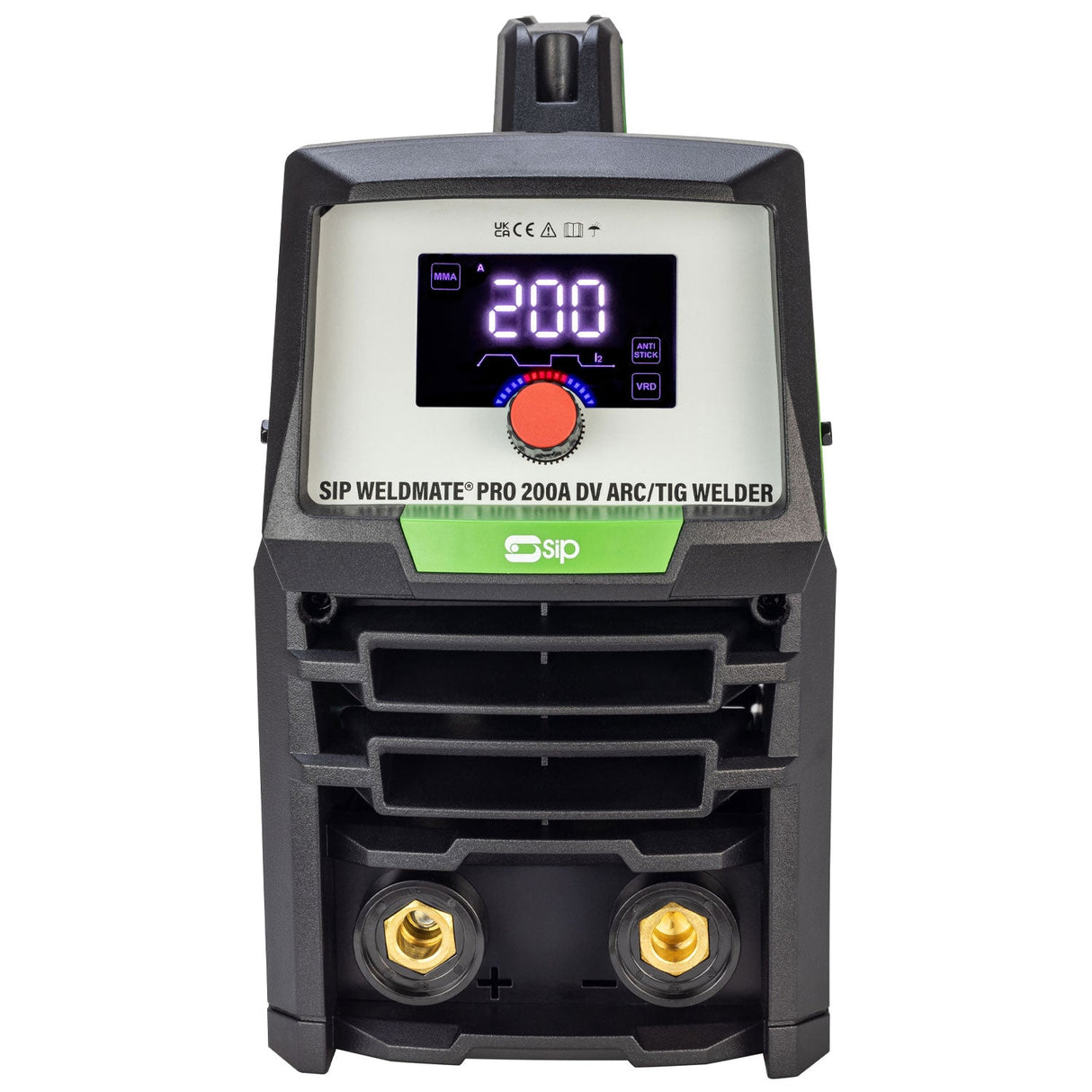

The SIP WELDMATE® PRO 200A DV ARC/TIG Inverter Welder is a dual process inverter welder with dual voltage functionality. Ideal for use in professional fabrication workshops and onsite environments, this welder can be powered from either a 230v/16A or 110v/16A supply.
Powerful, compact and lightweight, this inverter welder also features Synergic Control which adjusts the welding current output according to the electrode diameter or welding material thickness selected for optimal penetration and bead formation.
Fully compliant with Reg EU 2019/1784 (Eco Design for Welding Equipment), this welder features a 4th generation inverter which is above 80% energy efficient. This means it uses less power at the same output as older inverters, helping to lower operating costs.
Key Features

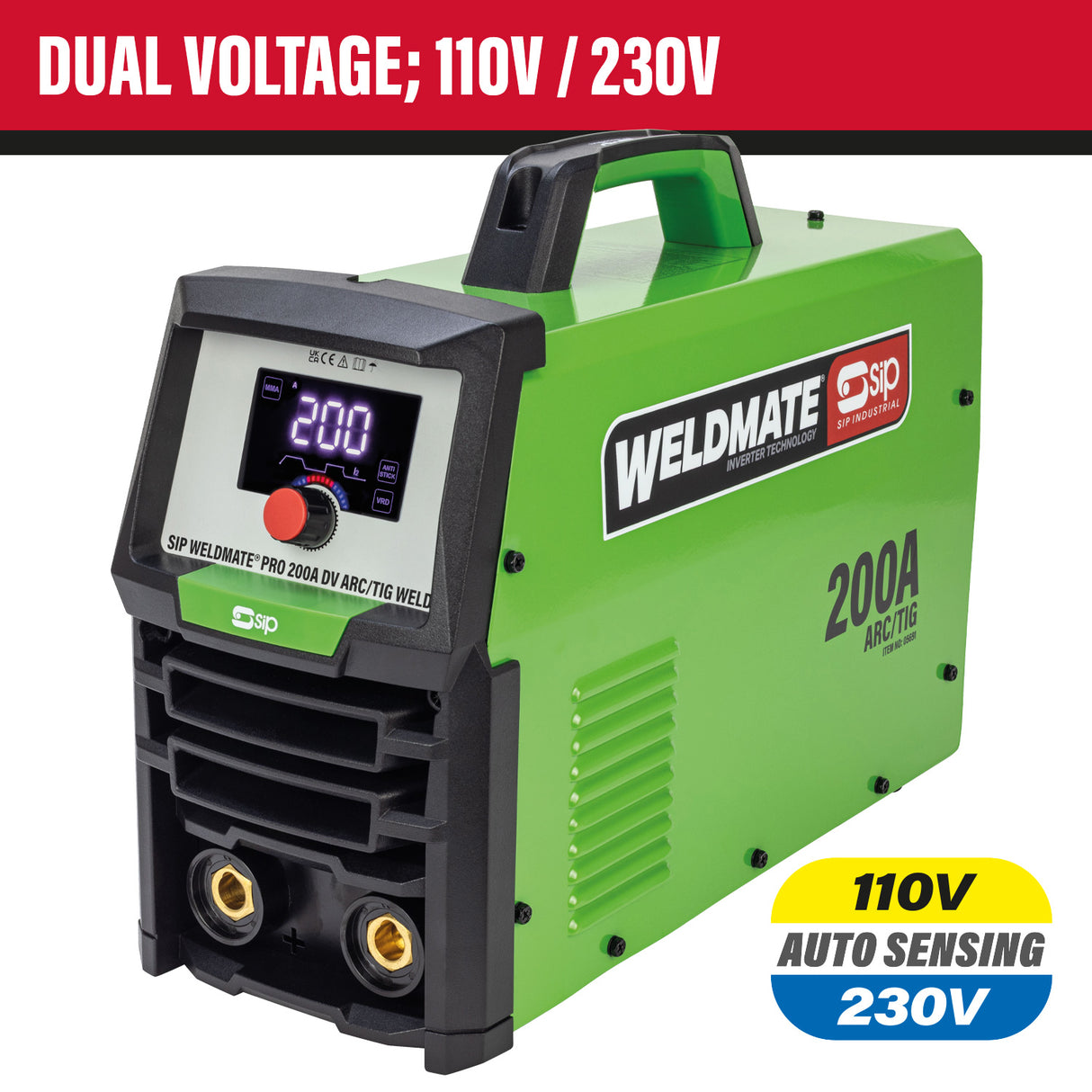

- Dual process ARC/TIG welder with 230v and 110v supply outputs
- Fully compliant with Reg EU 2019/1784 (Eco Design for Welding Equipment)

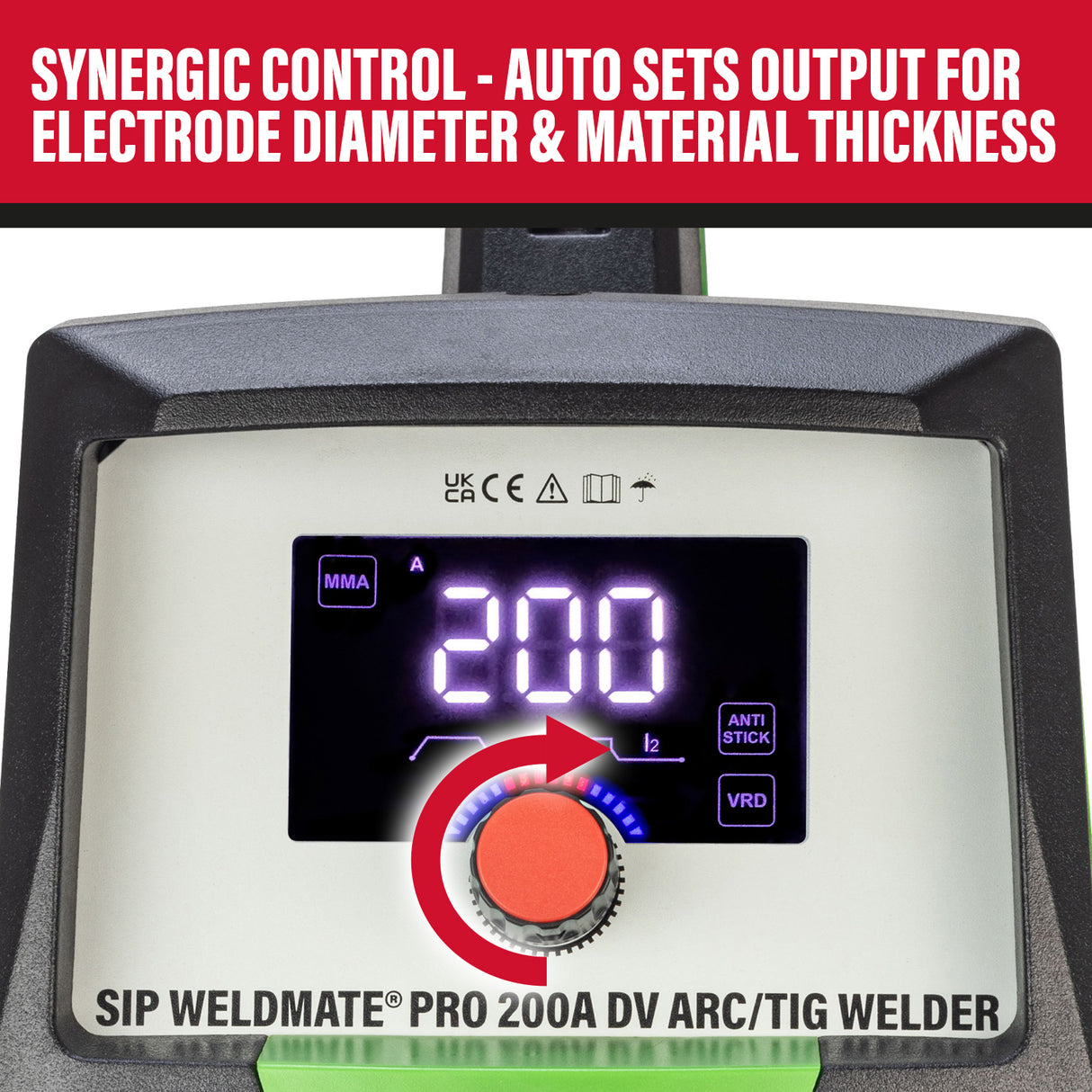

- Synergic control auto sets output for electrode diameter and material thickness
- Infinitely variable dial offers a smoother stepless output adjustment

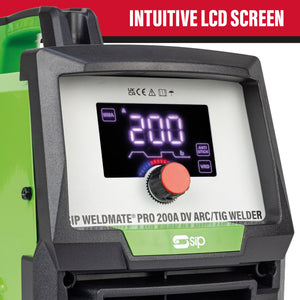

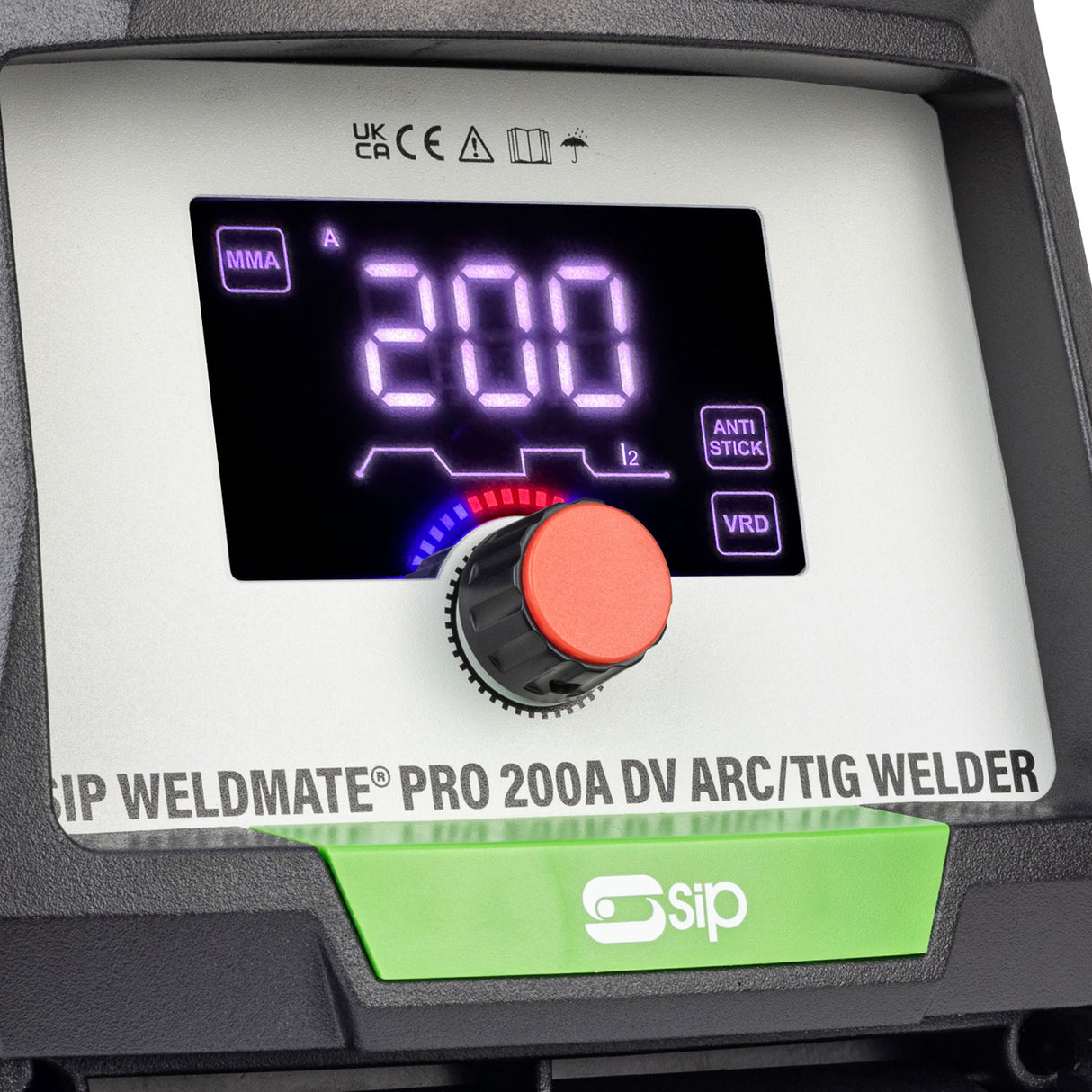

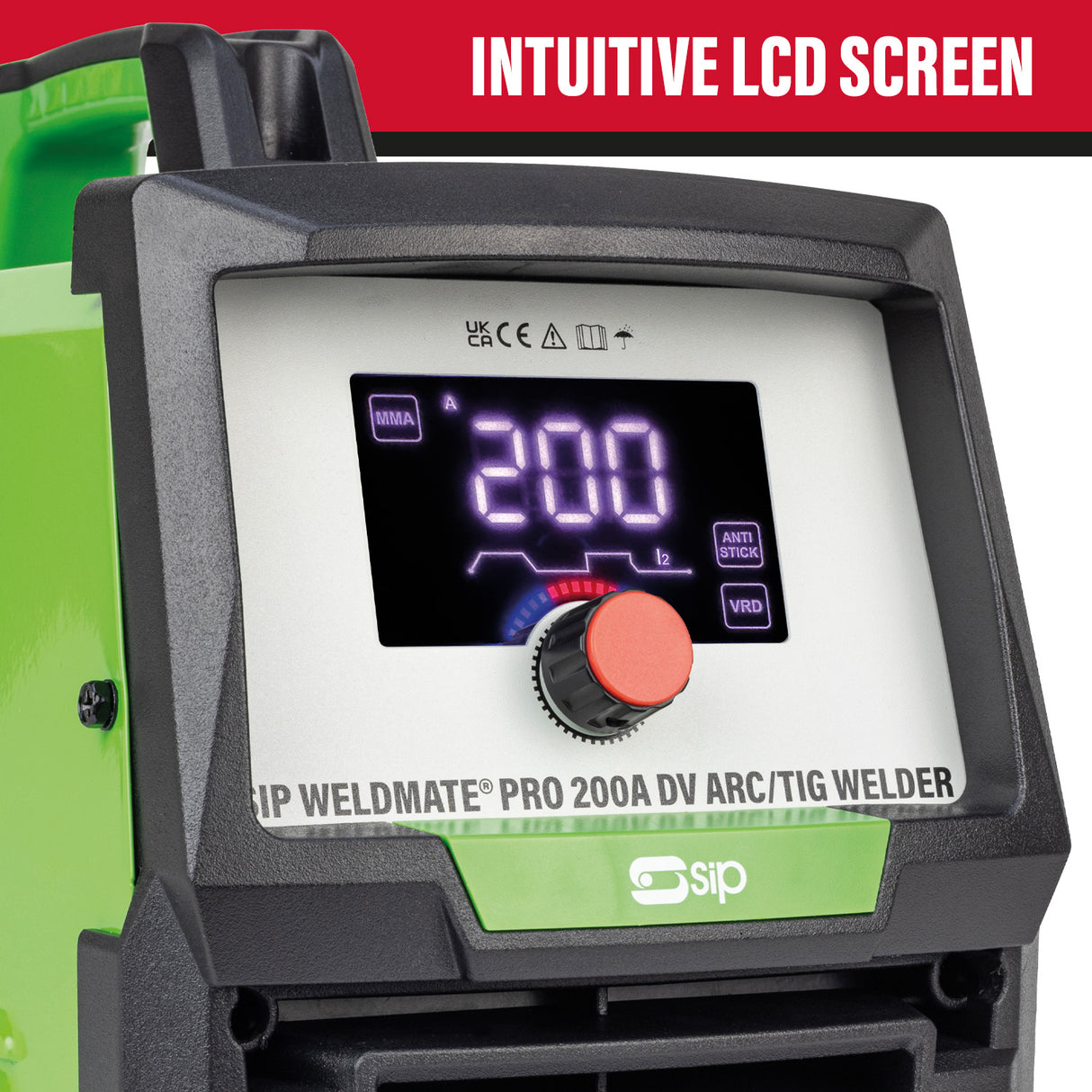

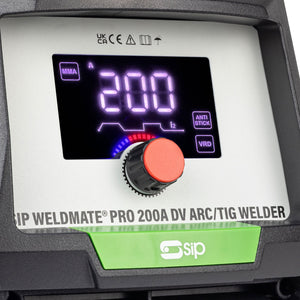

- Intuitive LCD screen for setting output and selecting welding functions

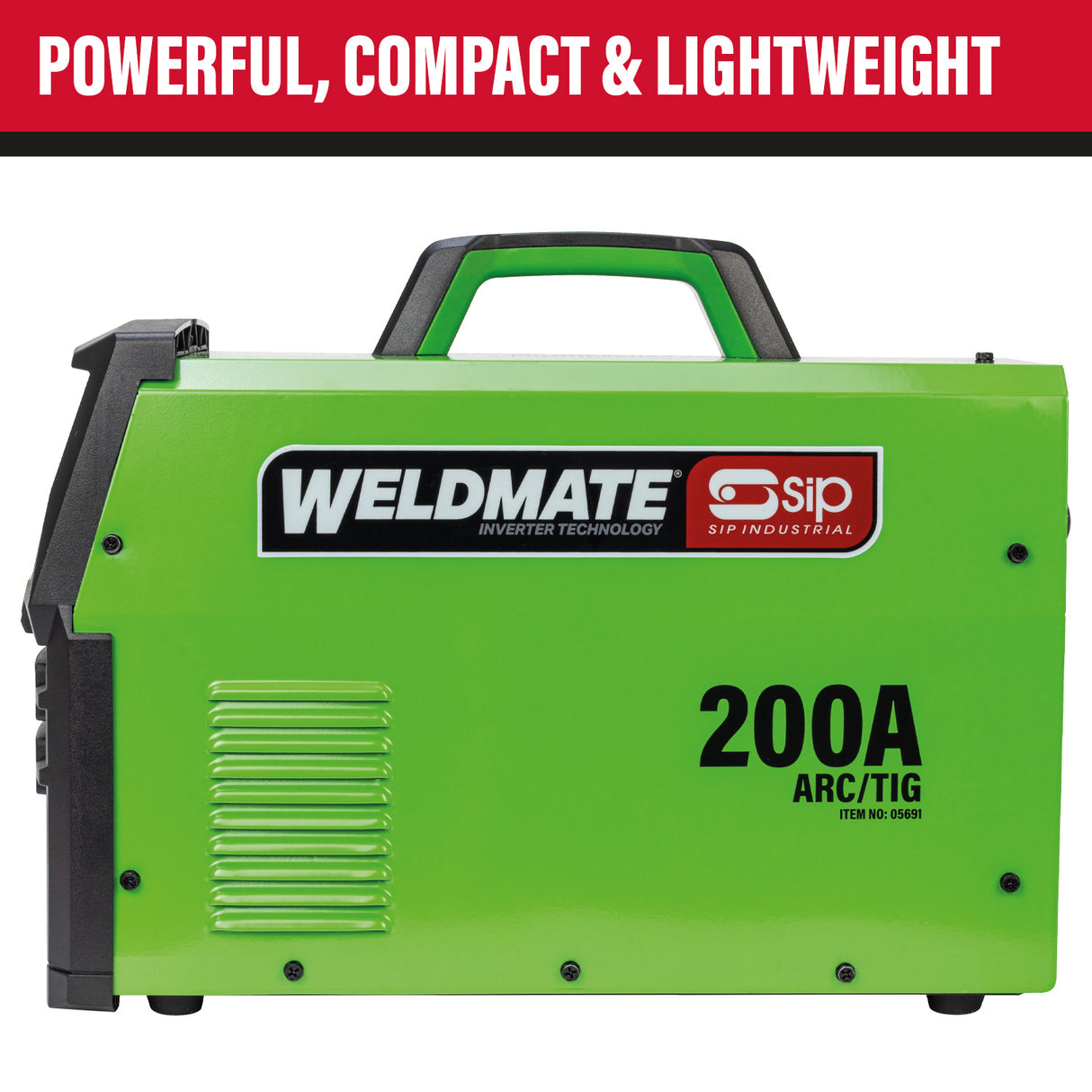

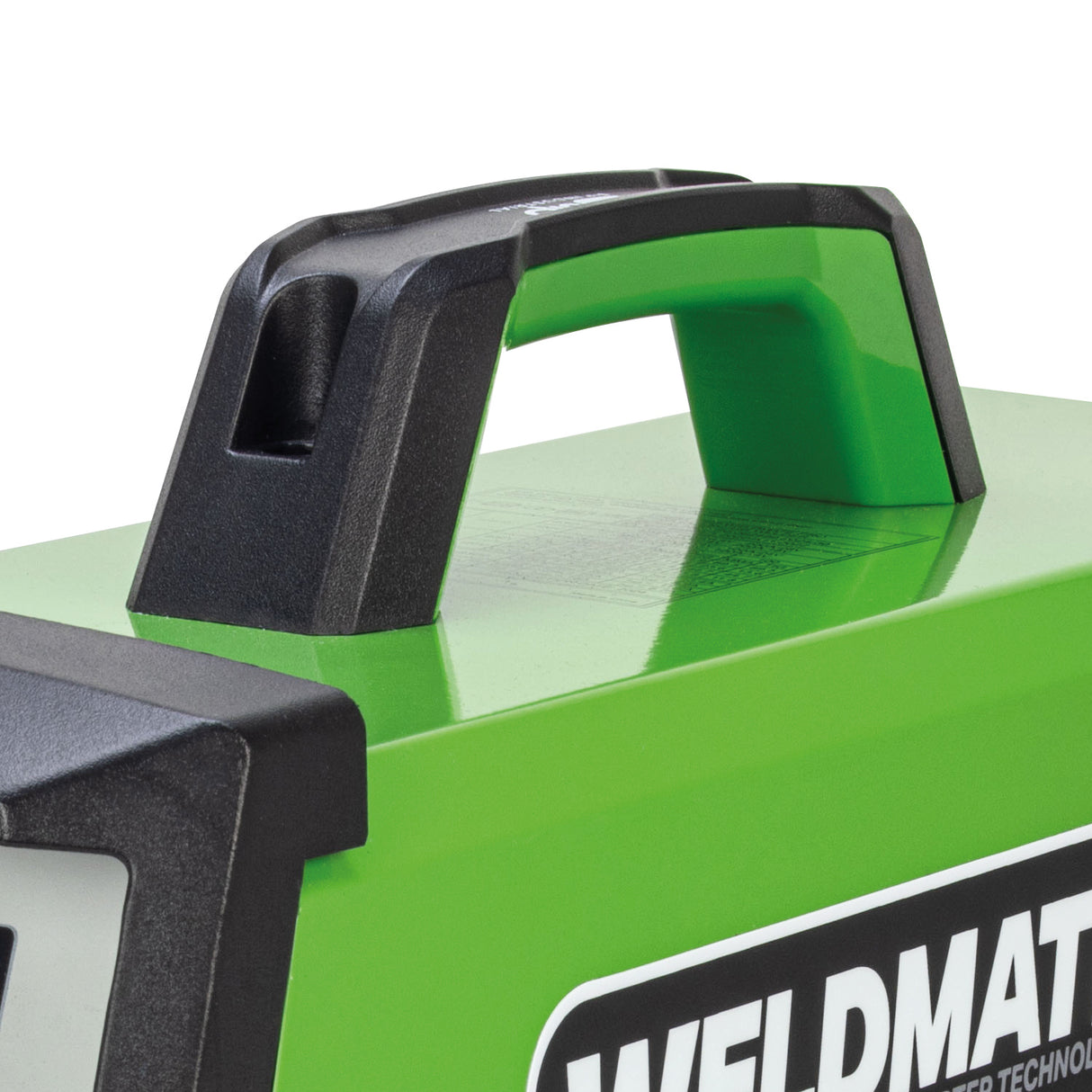

- Compact and lightweight design for easy work area movement
Applications & Uses

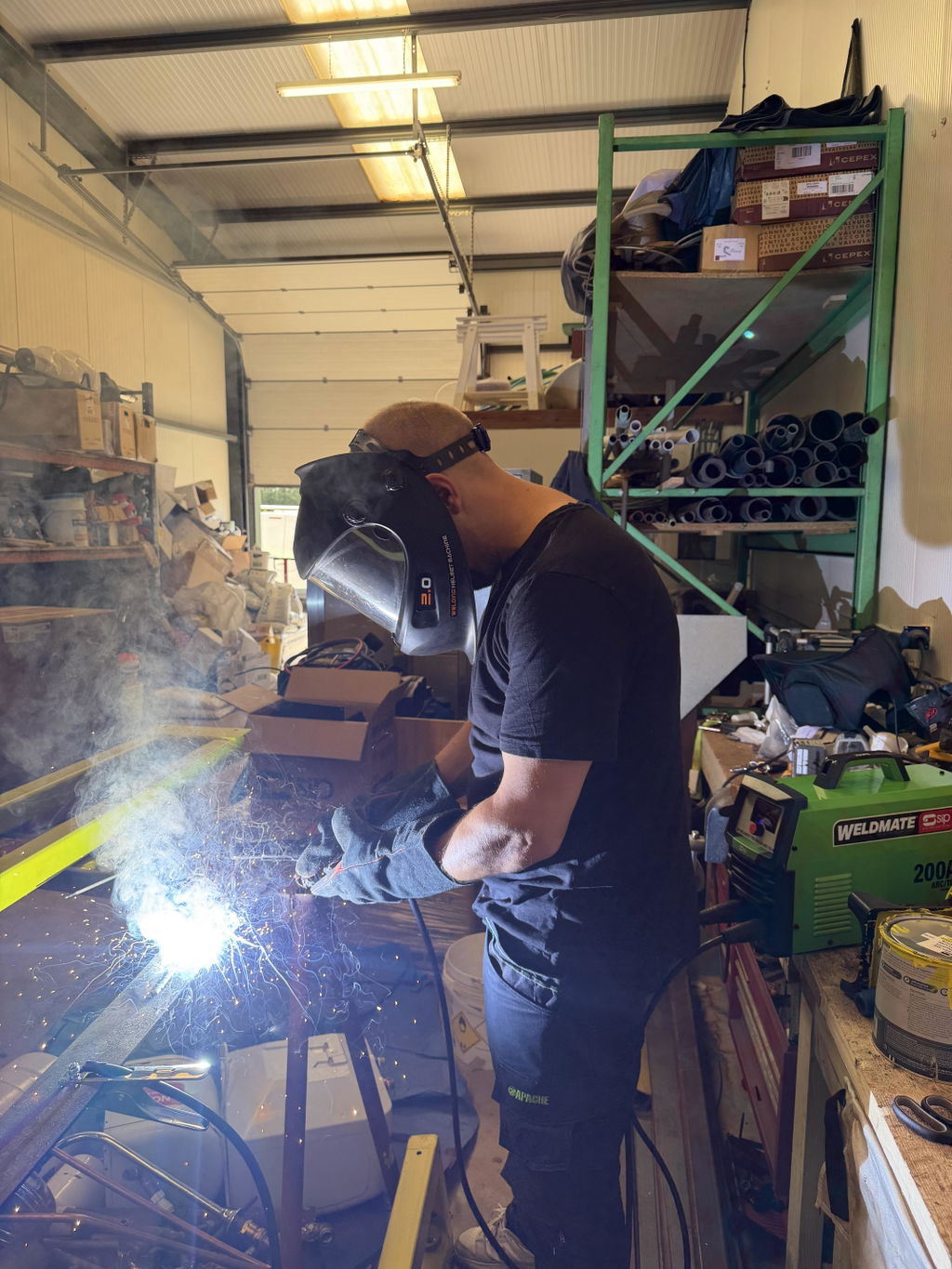

Ideal for use in professional fabrication workshops and onsite environments. Suitable for ARC/TIG welding. Ideal for mild steel, stainless steels and dissimilar steels.
Technical Specification
| Input Supply | 230v (16A) / 110v (16A) |
|---|---|
| Output Current | ARC; 10A - 200A (230v) / 10A - 100A (110v) / TIG; 10A - 200A (230v) / 10A - 100A (110v) |
| Output Voltage | ARC; 20.4v - 28v (230v) / 20.4v - 24v (110v) / TIG; 20.4v - 28v (230v) / 20.4v - 24v (110v) |
| Duty Cycle @ 20°C | ARC; 200A @ 40% (230v) / 100A @ 20% (110v) / TIG; 200A @ 40% (230v) / 100A @ 20% (110v) |
| Welding Material Thickness | 1.5mm - 10.5mm (mild steel) (230v) / 1.5mm - 5.5mm (mild steel) (110v) |
| Protection / Insulation F | |
What's in the Box

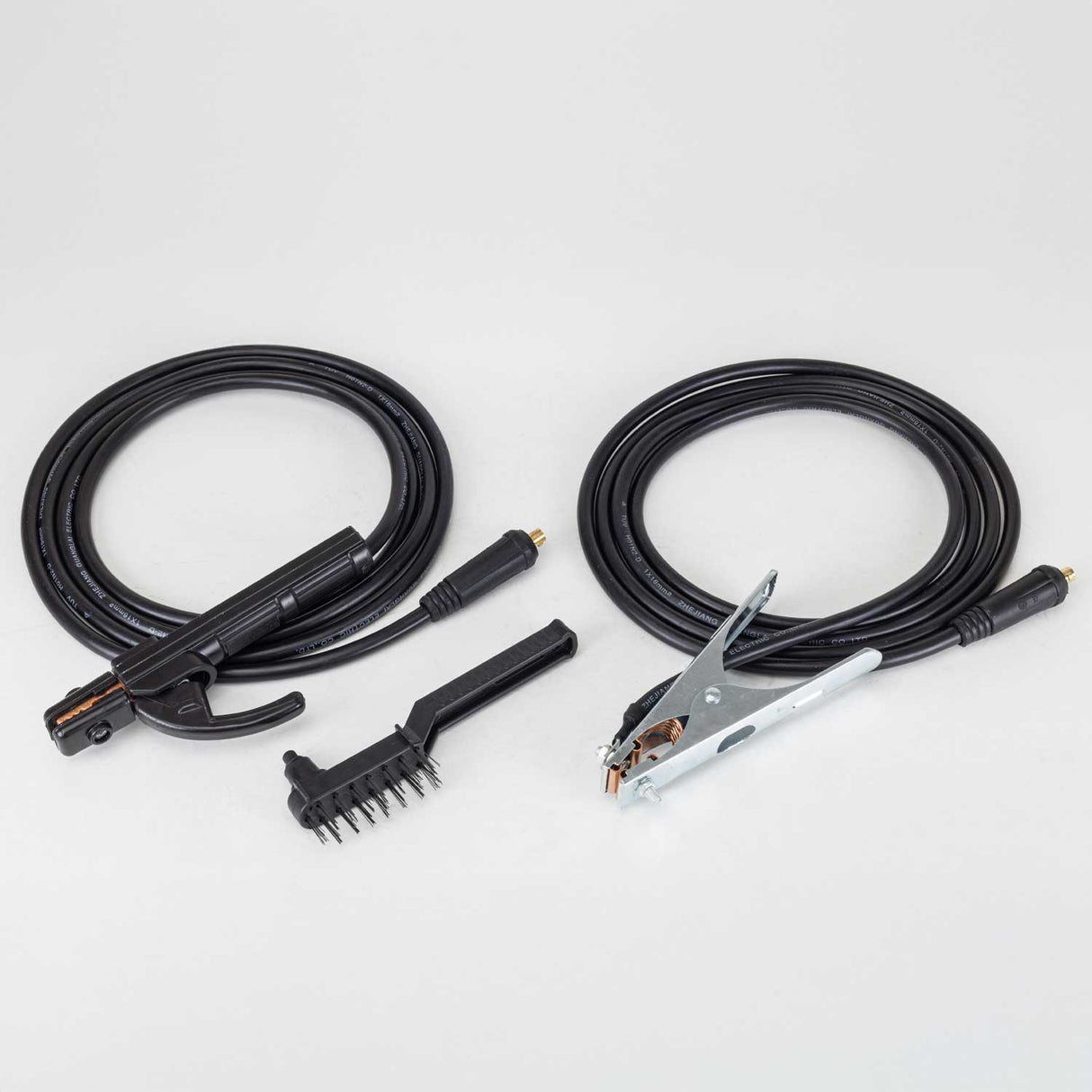

1x SIP WELDMATE® PRO 200A DV ARC/TIG Inverter Welder (230v/16A, 110v/16A), 1x 3mtr electrode lead, 1x 3mtr earth lead, 1x welding hammer/brush. TIG torch sold separately (Item 08206A recommended).
Warranty: SIP 2-YEAR
