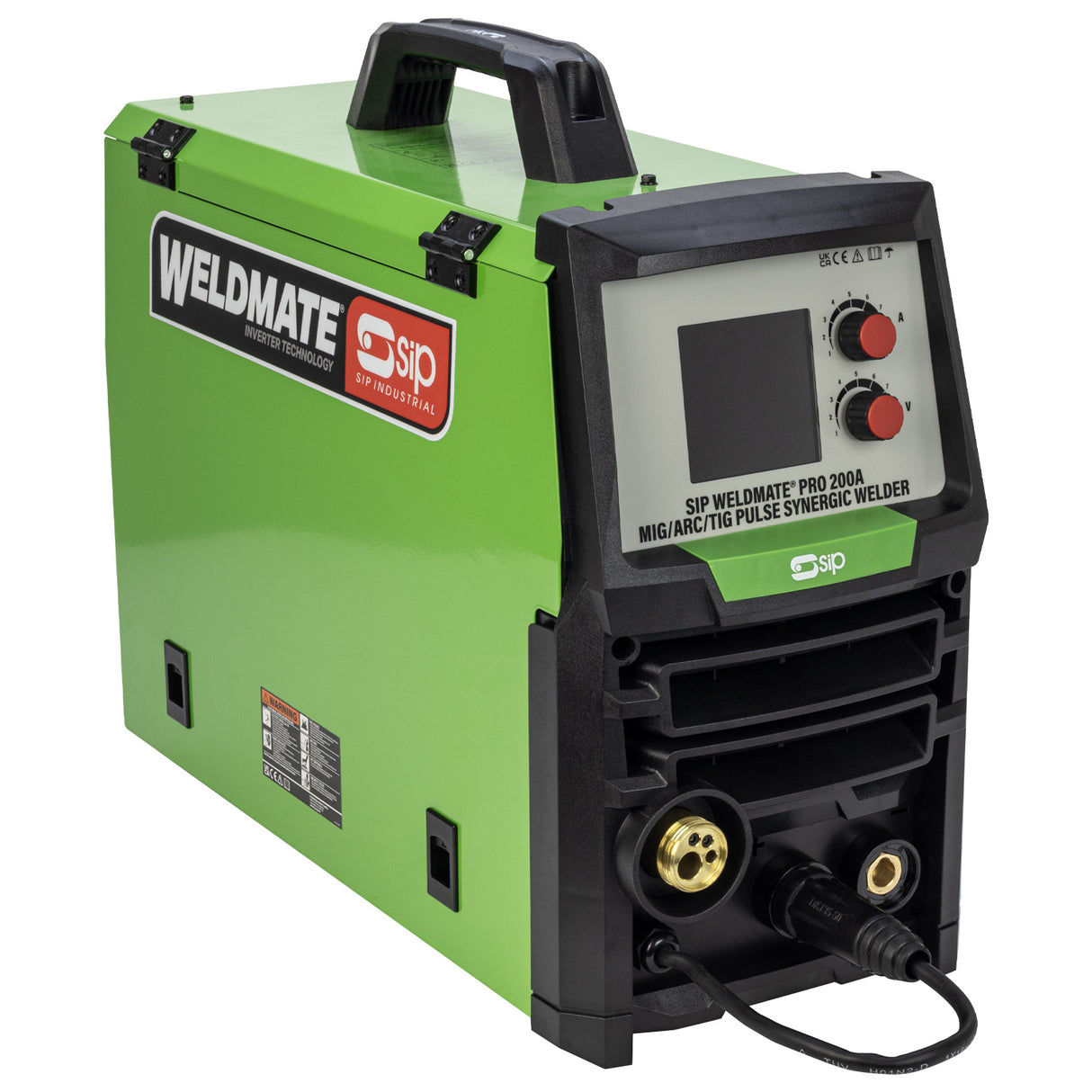

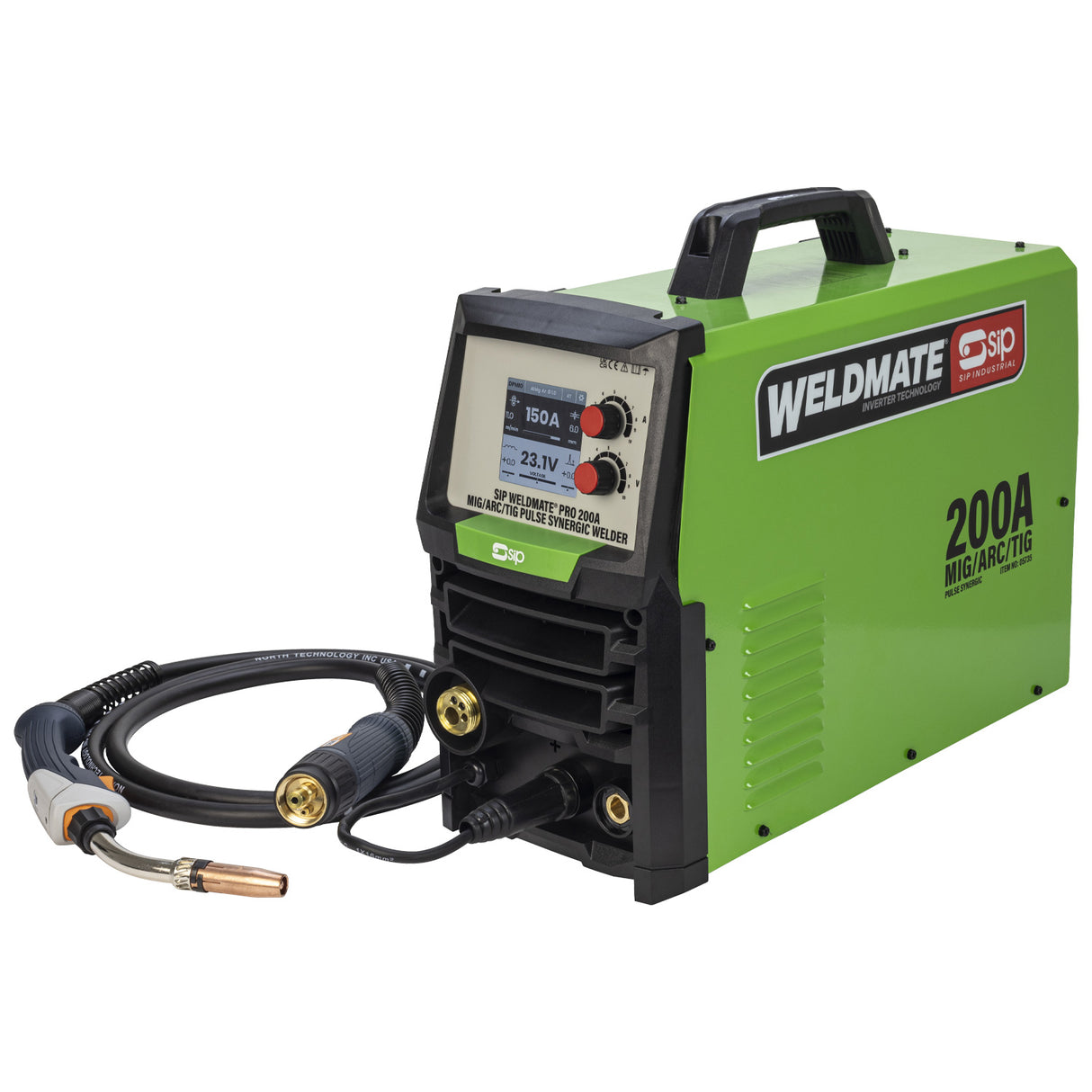

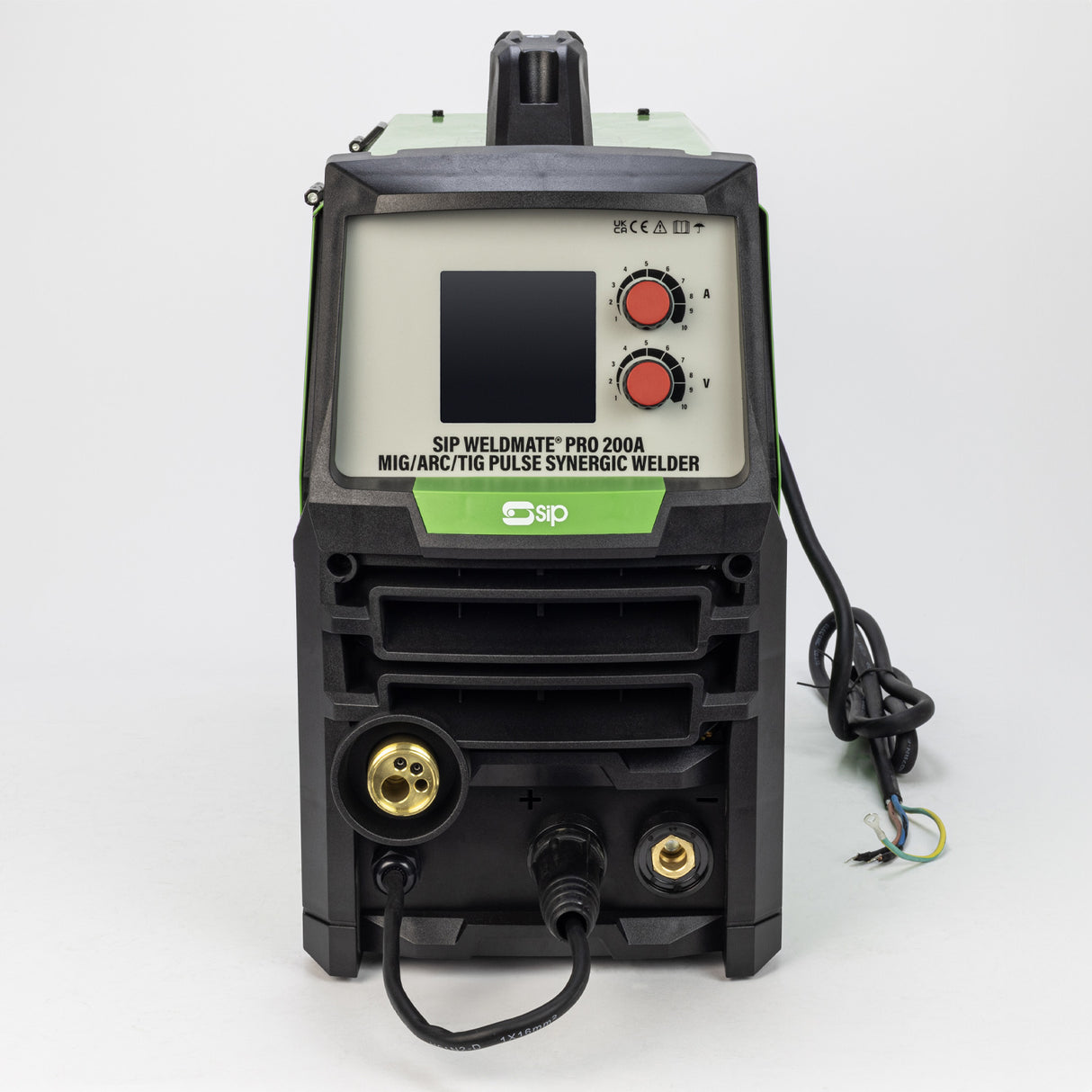

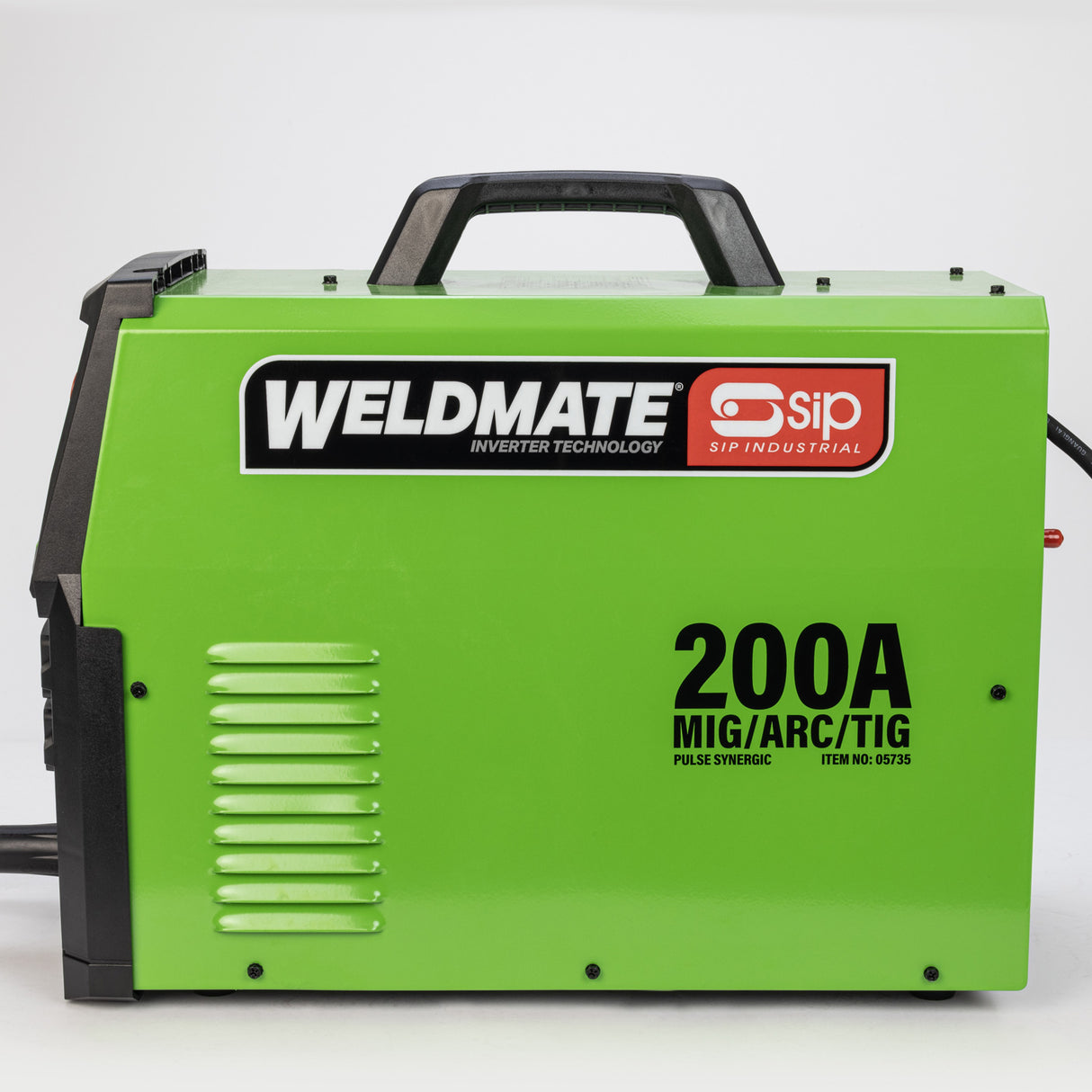

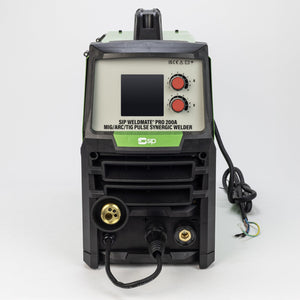

SIP WELDMATE® PRO 200A MIG/ARC/TIG Pulse Synergic Inverter Welder
SKU SIP-05735 Barcode 5012713057351
21 available from our warehouse. Despatch times vary.
Pay in 3 interest-free with shopPay or PayPal
- Expert UK product support
- Authorised distributor
- 30 day returns
Delivery & returns
Despatch times vary by item. Check the product-specific lead time shown on this page. Supplier-shipped and larger items may take longer.
Delivery options and transit times are shown at checkout. Transit time starts after despatch and excludes weekends and bank holidays unless the selected service states otherwise. Tracking is provided when available.
30 day returns on unused items in original packaging.
Description
Description
The SIP WELDMATE® PRO 200A MIG/ARC/TIG Pulse Synergic Inverter Welder is a multi-process inverter welder specifically designed for use in professional fabrication workshops.
Fully compliant with Reg EU 2019/1784 (Eco Design for Welding Equipment), this welder features a 4th generation inverter which is above 80% energy efficient. This means it uses less power at the same output as older inverters, helping to lower operating costs.
For a simplified welding process, Pure Synergic Control allows users to adjust welding voltage and wire feed speed autonomously, while MIG Pulse functionality allows advanced users to achieve higher quality MIG welding on aluminium and greater control on ferrous metals.
Key Features
- Multi-process MIG/ARC/TIG welder for greater flexibility
- Pure Synergic Control for more consistent and higher quality welds
- MIG Pulse functionality for setting parameters and arc characteristics
- Fully compliant with EU 2019/1784 (Eco Design for Welding Equipment)

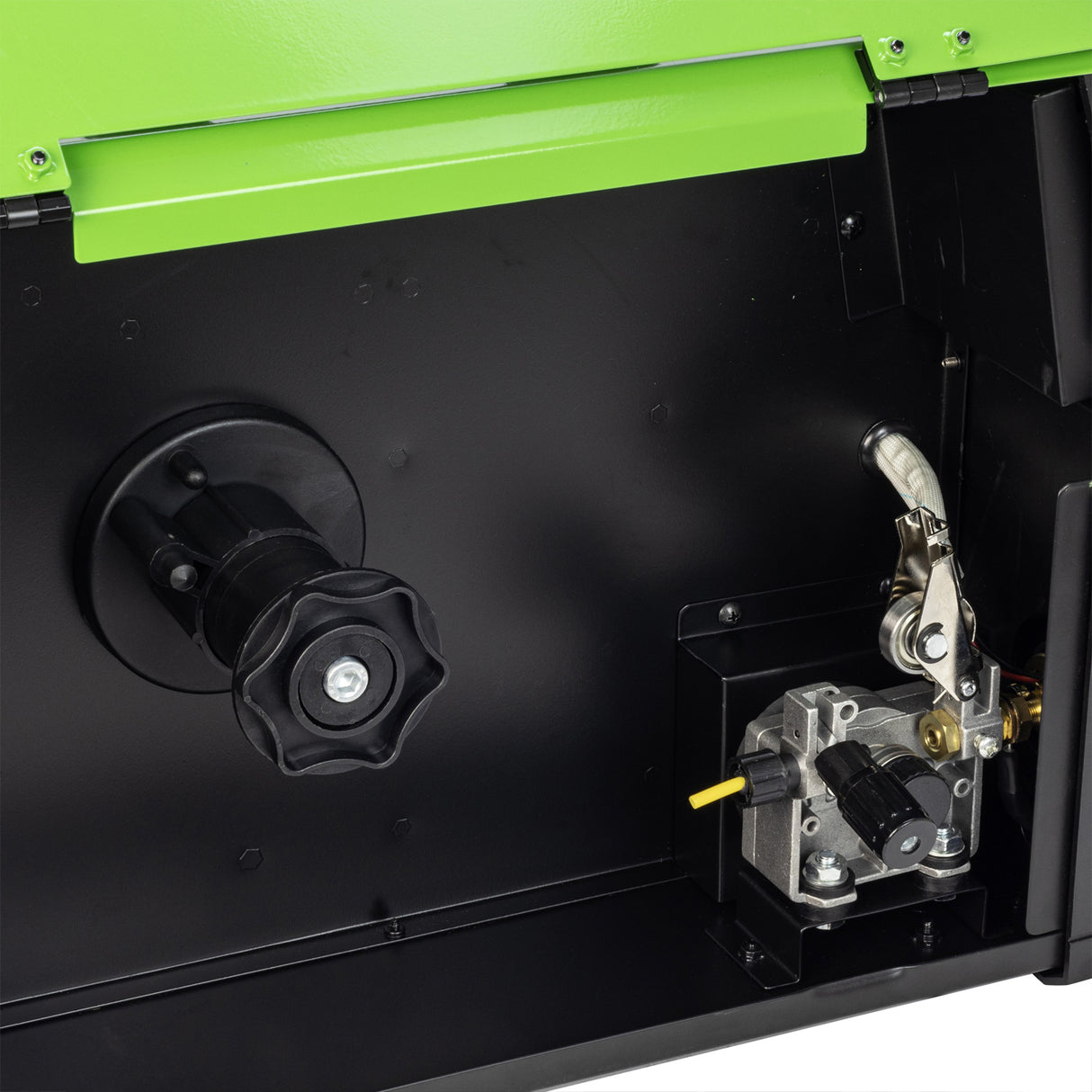

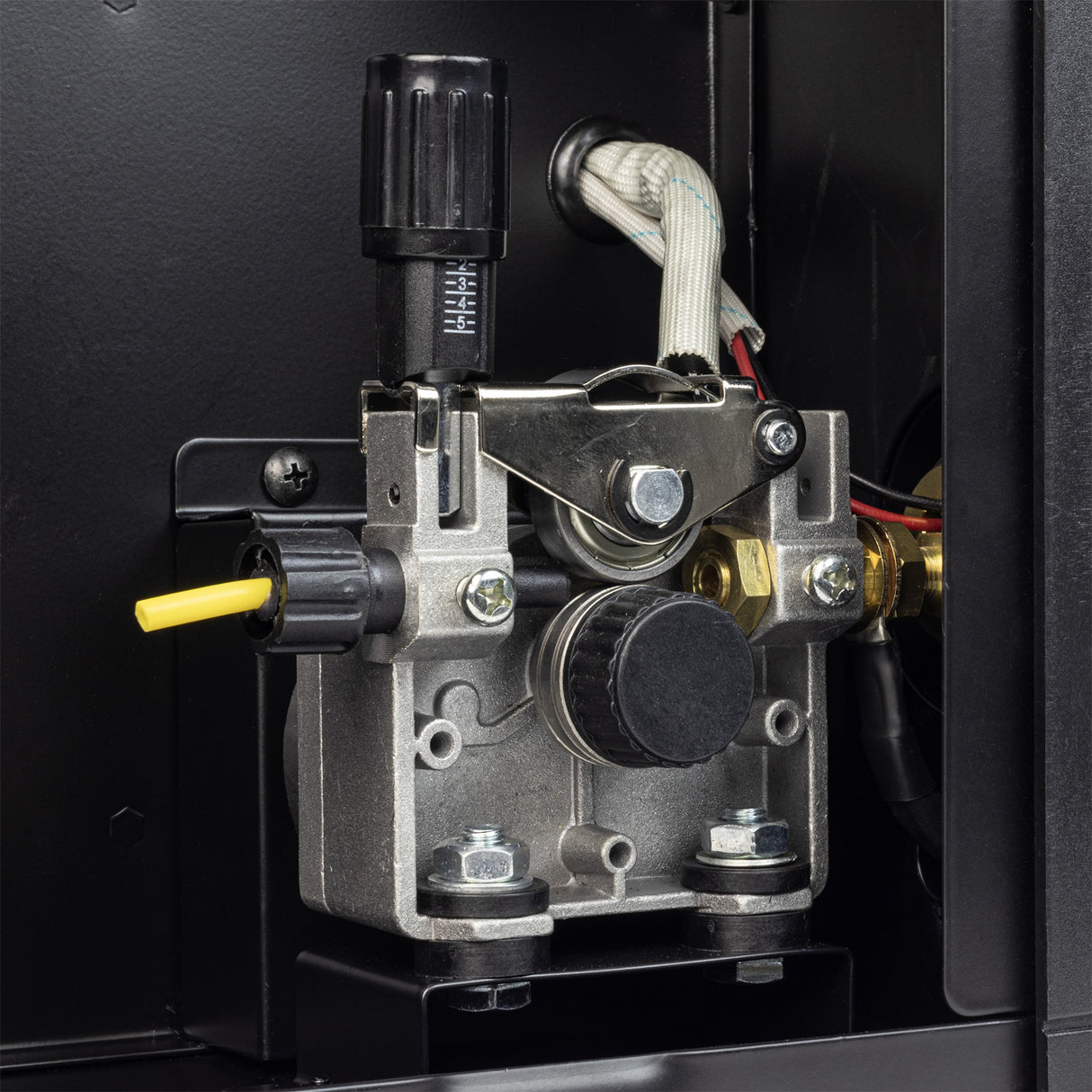

- Heavy-duty aluminium wire feeder for smooth consistent flow of wire

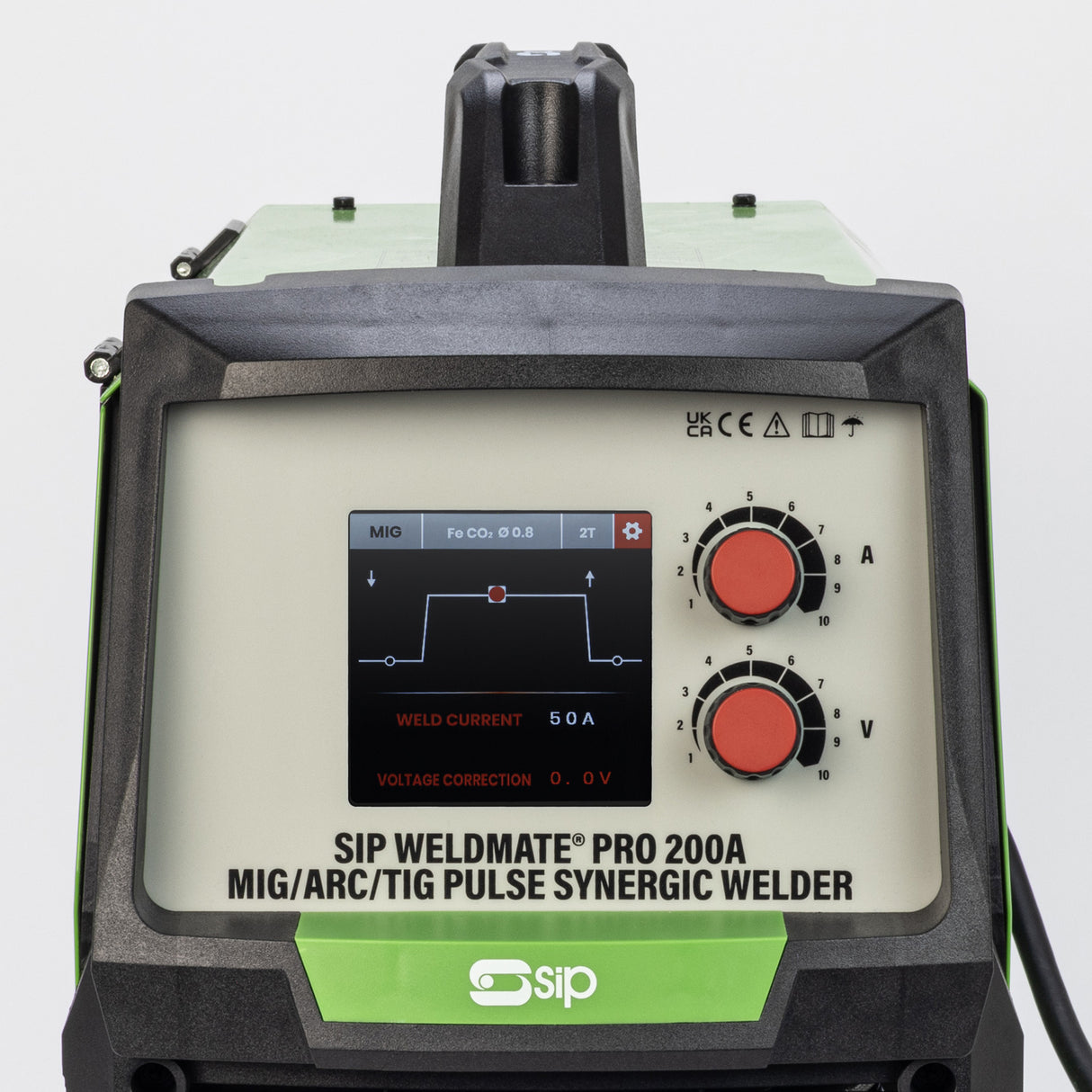

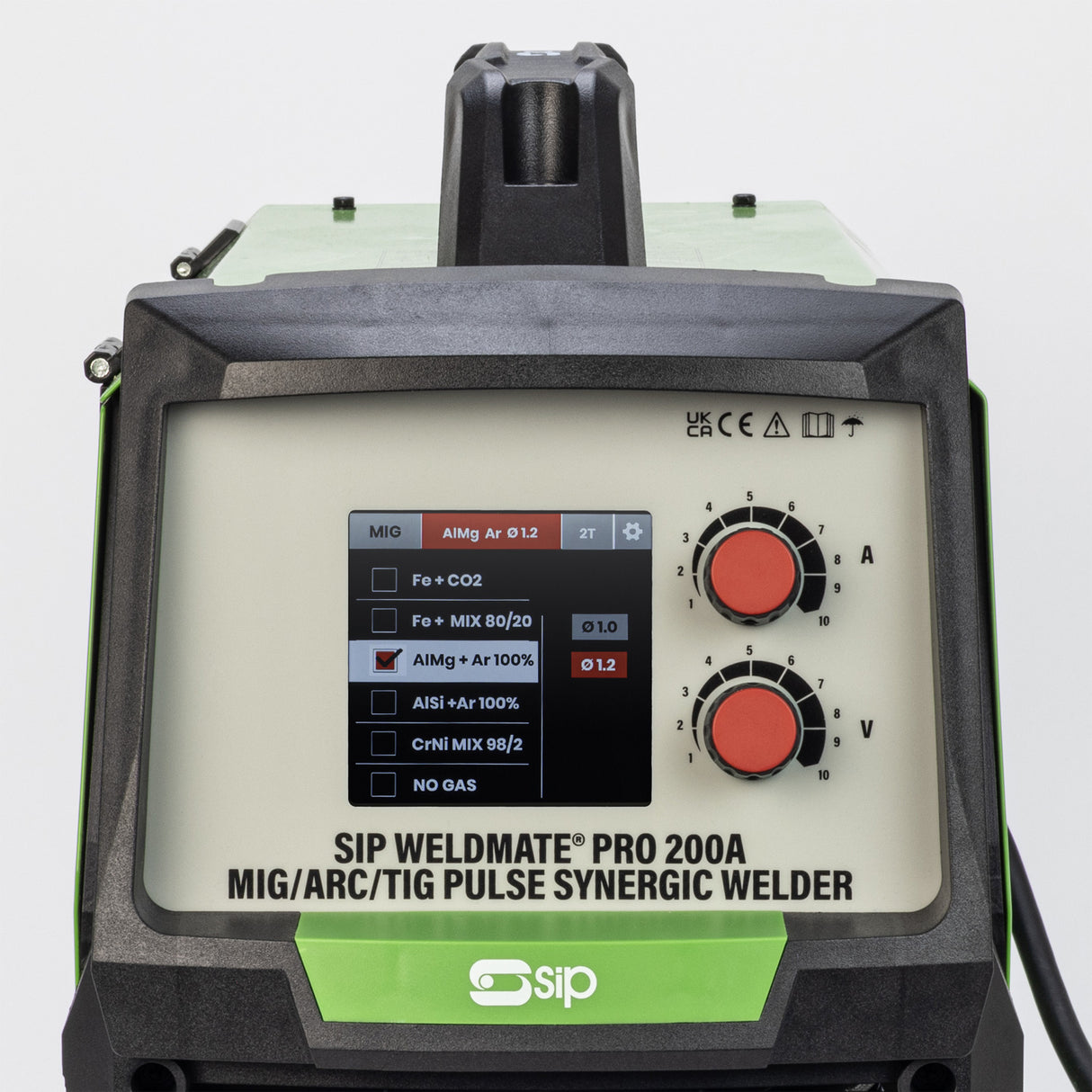

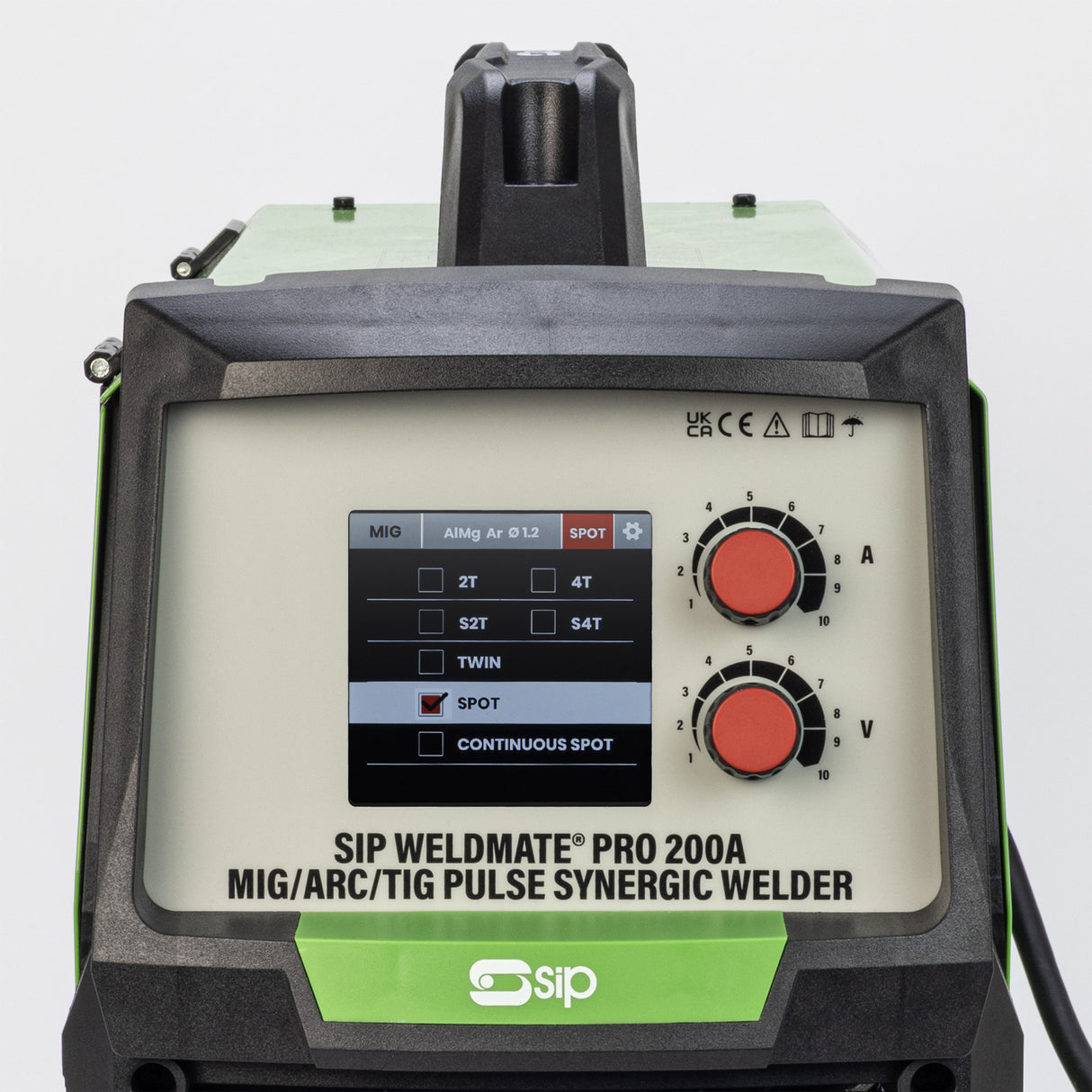

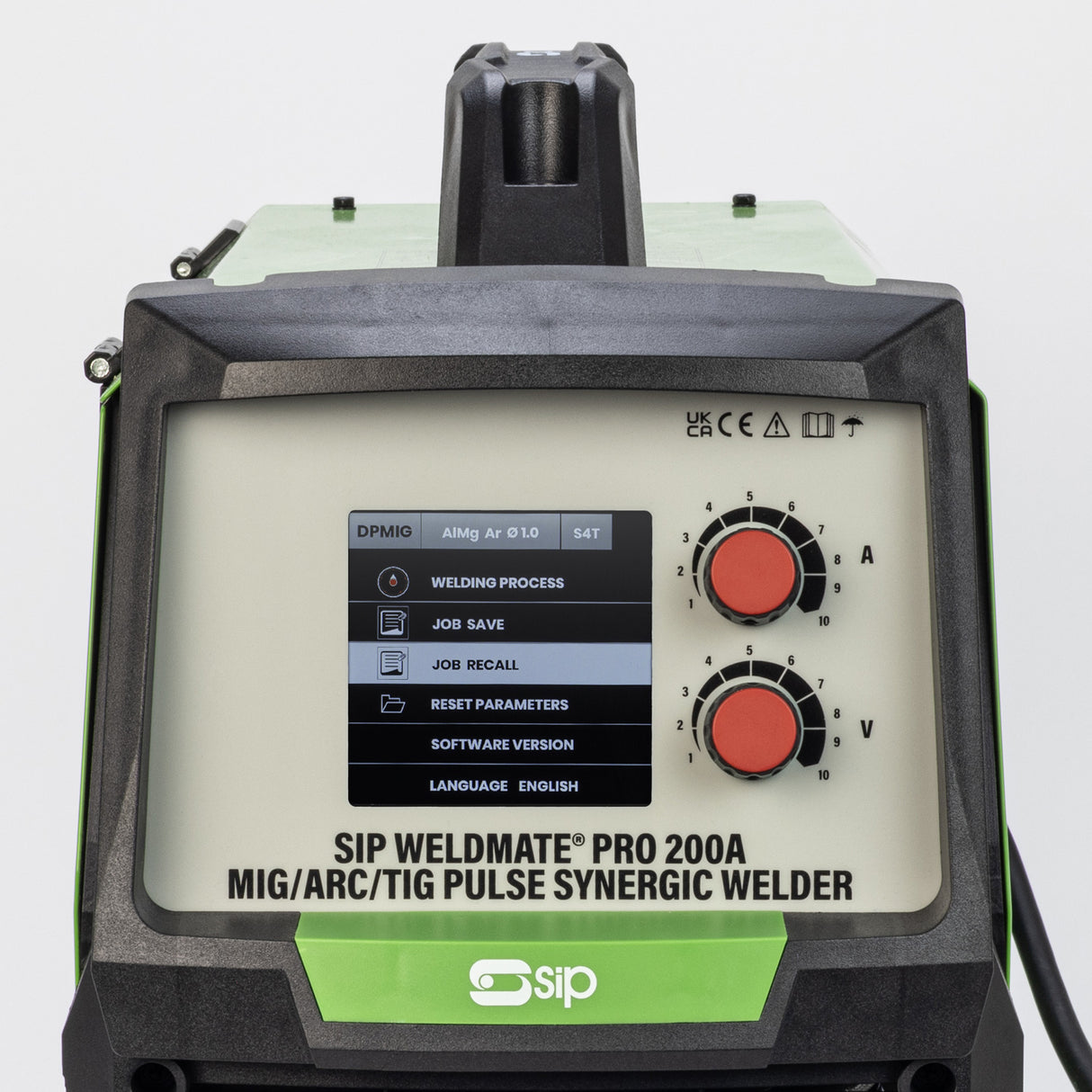

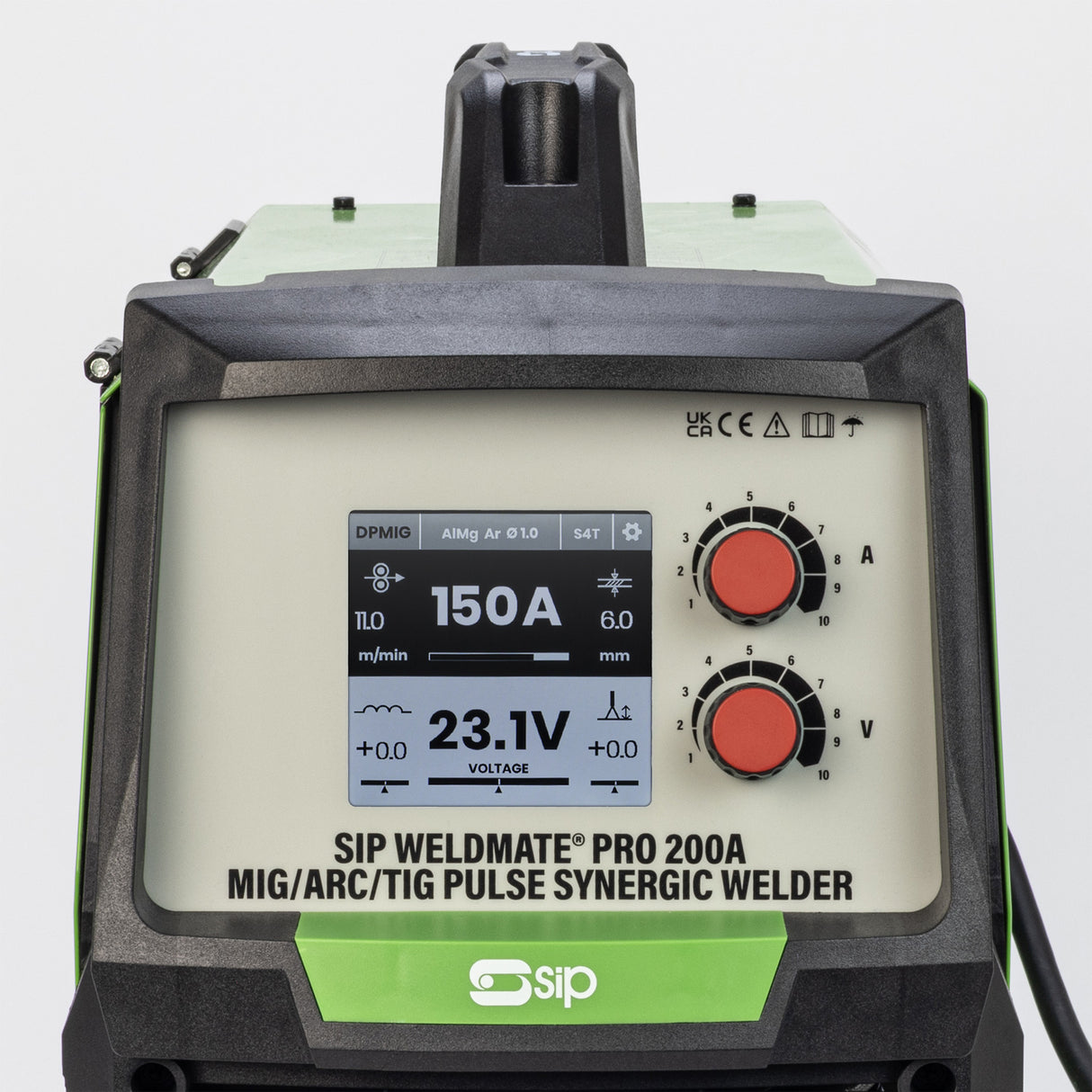

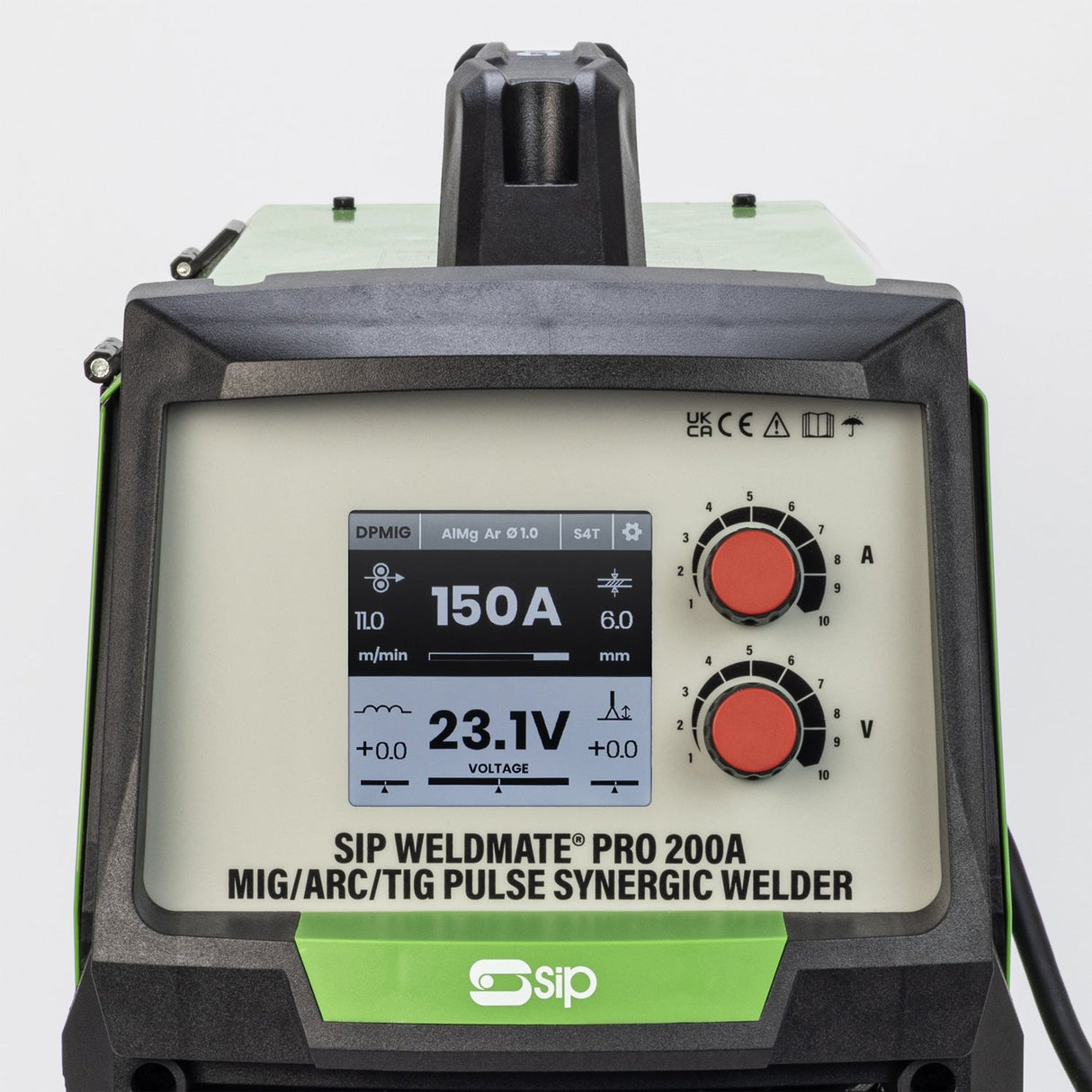

- LCD screen with infinitely variable controls to select functions
Applications & Uses
Ideal for use in professional fabrication workshops. Perfect for sheet metal applications. Suitable for MIG/ARC/TIG welding. Ideal for mild steels and welds *stainless steel and **aluminium. *Using stainless steel welding wire. **Using aluminium welding wire and pure Argon gas.
Technical Specification
| Input Supply | 230v (16A) |
|---|---|
| Output Voltage | 16.5v - 24v (MIG) / 15.5v - 22.5v (MIG Pulse) / 20.8v - 27.2v (ARC) / 10.8v - 17.2v (TIG) |
| Output Current | 20A - 200A (MIG) / 30A - 170A (MIG Pulse) / 20A - 180A (ARC) / 20A - 180A (TIG) |
| Duty Cycle @ 20°C | 200A @ 30% (MIG) / 170A @ 30% (MIG Pulse) / 180A @ 30% (ARC) / 180A @ 30% (TIG) |
| Wire Diameter | ⌀ 0.8mm - 1mm |
| Wire Spool Size | 5kg, 15kg |
| Welding Material Thickness | 0.8mm - 7mm (mild steel) / 2.5mm - 7mm (aluminium) |
| Protection / Insulation 21S / H | |
What's in the Box

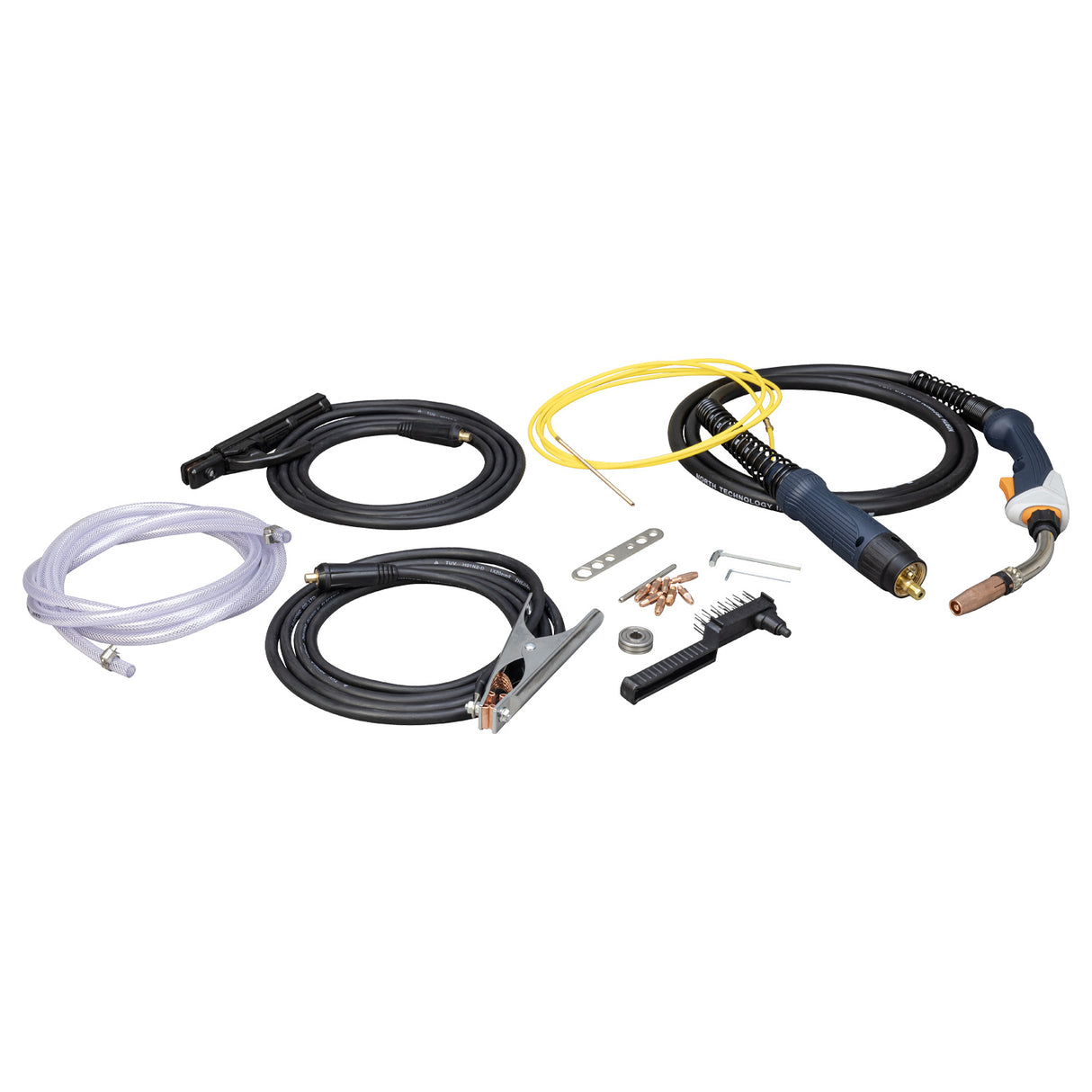

1x SIP WELDMATE® PRO 200A MIG/ARC/TIG Pulse Synergic Inverter Welder (230v/16A), 1x 3mtr Euro MIG torch with mild steel and aluminium wire liners, 1x 3mtr electrode lead, 1x 3mtr earth lead, 1x 3tr gas hose with clamps, 2x feed rollers, 8x contact tips, 1x torch spanner, 2x hex keys and 1x chipping hammer/brush. TIG torch sold separately (Item 08206A recommended).
Warranty: SIP 2-YEAR
