Special Offer - Non Fire Rated Metal Access Panel - Standard Lock - Beaded Frame
SKU BFS450
Out of stock. Contact us for availability.
Notify me when back in stock
- Expert UK product support
- Authorised distributor
- 30 day returns
Delivery & returns
Despatch times vary by item. Check the product-specific lead time shown on this page. Supplier-shipped and larger items may take longer.
Delivery options and transit times are shown at checkout. Transit time starts after despatch and excludes weekends and bank holidays unless the selected service states otherwise. Tracking is provided when available.
30 day returns on unused items in original packaging.
Description
Description

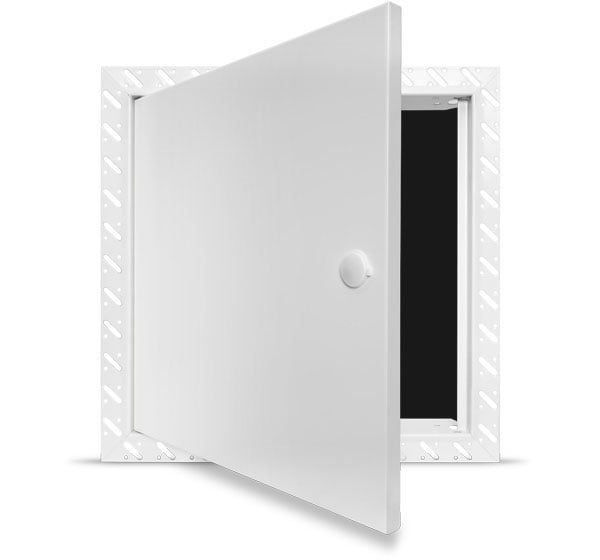

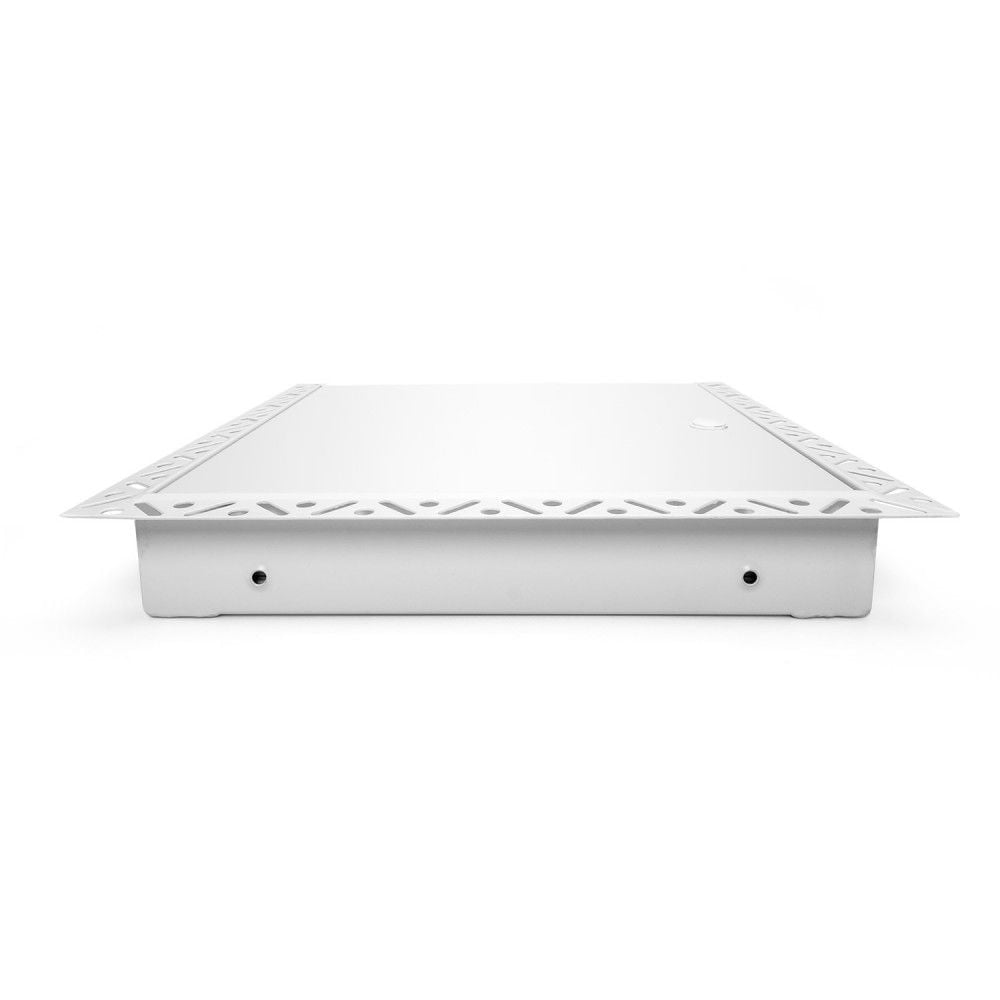

Non-Fire Rated Metal Access Panel – Beaded Frame, Standard Lock
The Non-Fire Rated Metal Access Panel from Trade Counter Direct is specifically engineered for use in dry lined ceiling and wall structures, offering a discreet and practical solution for accessing building services, concealed flues, ducts, and chimney systems. Designed with a beaded frame, this panel is typically installed at first fix prior to plaster-boarding and decoration, ensuring a clean and unobtrusive finish once completed.
Ideal for both wall and ceiling applications, this access panel meets the requirements of Part J Building Regulations for visual inspection of concealed flue and chimney systems, provided existing fire, thermal, and acoustic provisions are not compromised. Available in seven standard sizes, it is suitable for a wide range of projects, with custom sizes also available upon request from Trade Counter Direct.
Features
- Non-fire rated metal construction for use in dry lined walls and ceilings
- Beaded frame design for seamless integration and a clean finish
- Complies with Part J Building Regulations for access to concealed flues and chimneys
- Supplied with a security lock for added safety
- Powder coated to RAL 9010 (20% gloss) as standard
- Suitable for on-site decoration to match surroundings
- Quick and easy installation straight from the box
- Available in seven standard sizes with custom sizes on request
- 12 months guarantee for peace of mind
Specifications
| SKU | Non-Fire Rated Metal Access Panel – Beaded Frame, Standard Lock |
|---|---|
| Range/Series | Non-Fire Rated Metal Access Panels |
| Suitable Applications | Walls and ceilings (dry lined structures) |
| Standard Sizes (door opening) | 150 x 150 mm, 200 x 200 mm, 300 x 300 mm, 350 x 350 mm, 450 x 450 mm, 550 x 550 mm, 600 x 600 mm |
| Structural Opening | Add 10 mm to door opening size |
| Overall Depth | 25 mm |
| Finish | Powder coated RAL 9010, 20% gloss |
| Lock Type | Standard security lock |
| Warranty | 12 months |
| Custom Sizes | Available on request |
| Frame Type | Beaded (picture frame also available) |
| Regulatory Compliance | Suitable for Part J Building Regulations (subject to fire, thermal, and acoustic provisions) |
