Description
Description

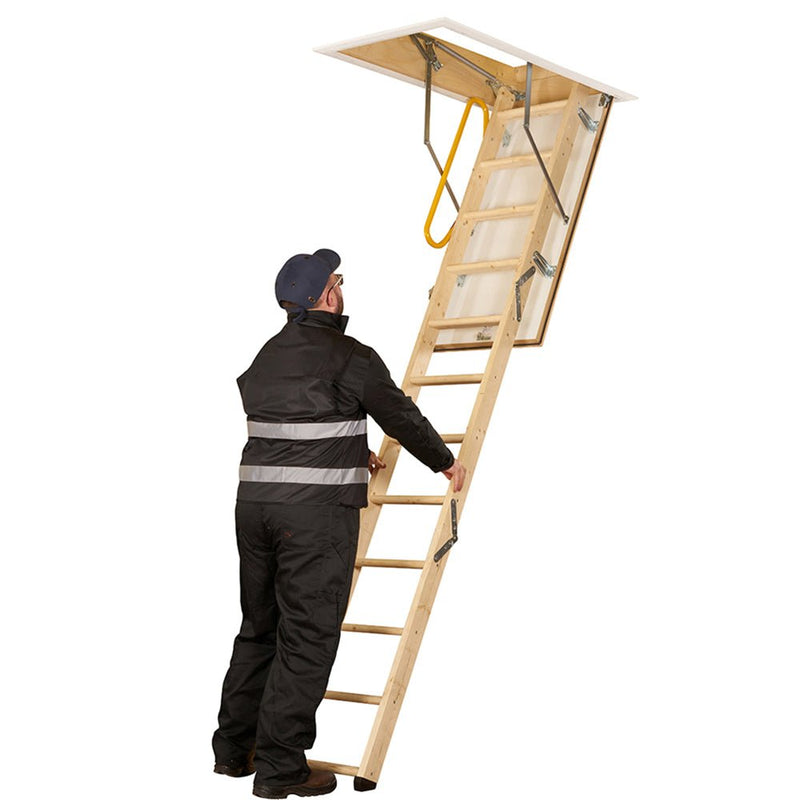

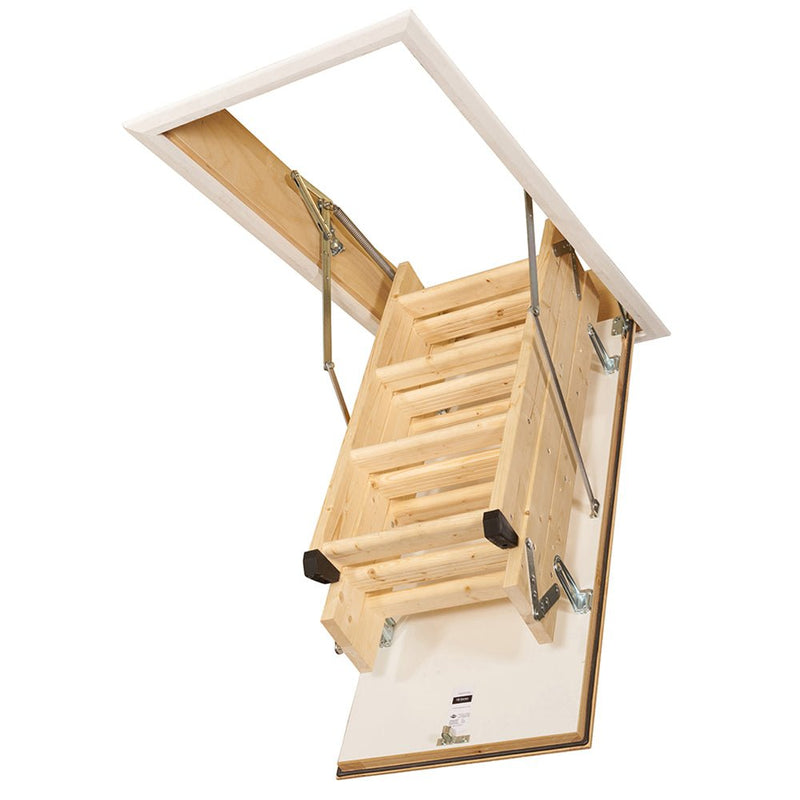

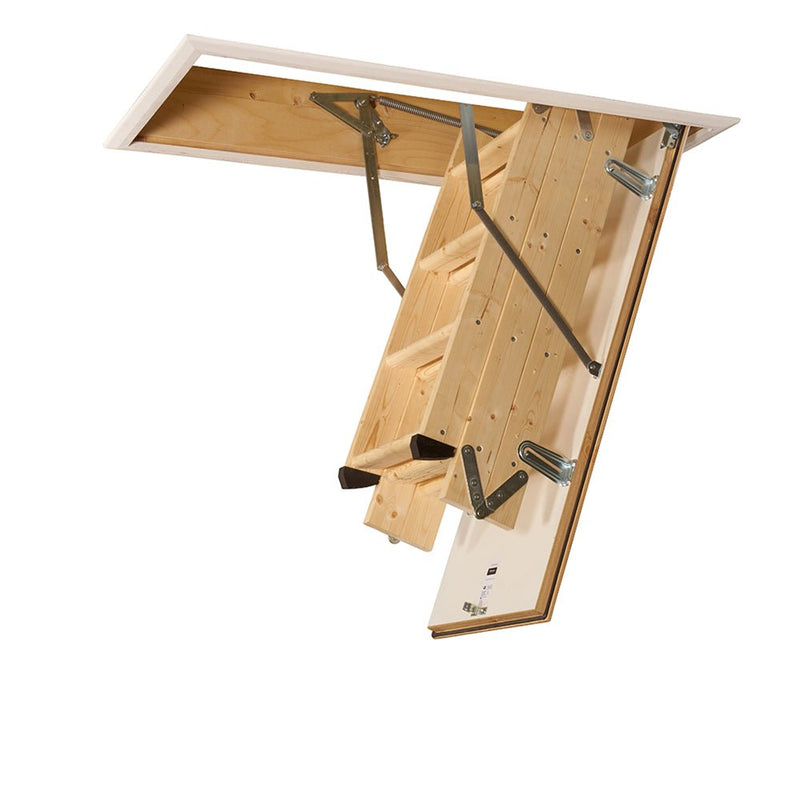

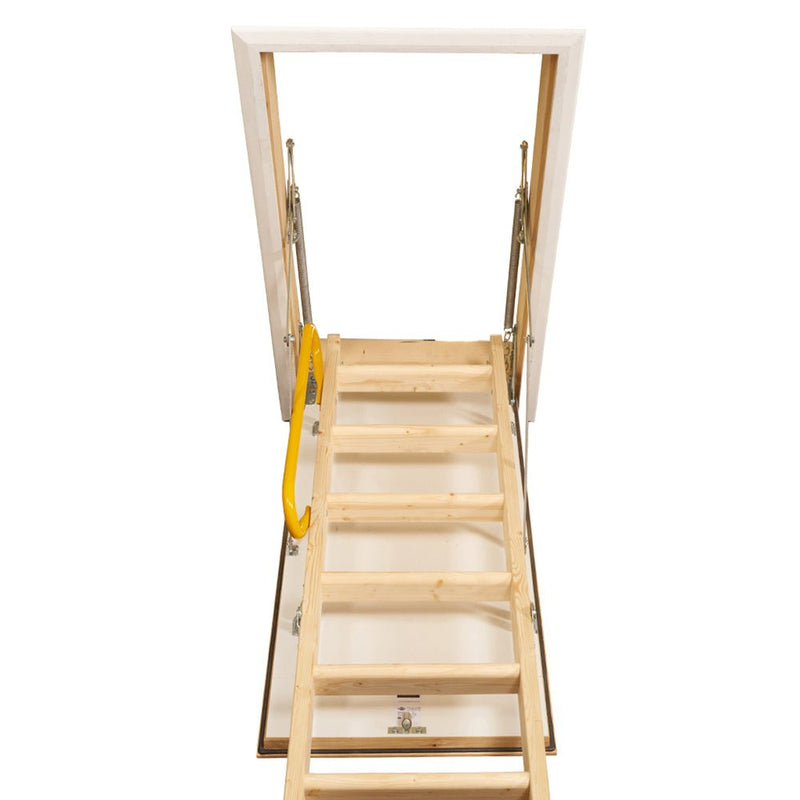

LuxFold Fire Rated Loft Ladder – 30 Minute Rated
The LuxFold Fire Rated Loft Ladder, available from Trade Counter Direct, is engineered for enhanced safety and energy efficiency in demanding environments. Built to the same rigorous standards as the standard LuxFold, this model is specifically designed to withstand fire for up to 30 minutes, making it ideal for properties with more than three floors or passive houses requiring a fire-rated loft access solution. The ladder arrives fully assembled, requiring only final installation adjustments, and features a continuous seal to effectively keep draughts out.
Manufactured from PEFC-certified, sustainably sourced timber and utilising 100% renewable energy, this loft ladder combines robust fire protection with excellent insulation performance. Its insulated trapdoor, secure locking system, and slip-resistant features ensure both safety and comfort for regular use.
Features
- Fire rated to 30 minutes, complying with EN 14975, EN 1368, and EN 1634 standards
- Tested U-Value of 0.67 W/m²K for superior insulation and reduced heat loss
- 60 mm deep insulated white trapdoor with metal locking key and double lock for enhanced security and draught exclusion
- 27 mm thick frame with continuous seal to prevent draughts
- Supplied fully assembled for straightforward installation
- Slip-resistant feet and integrated handrail for added safety
- No headroom or loft storage space required for operation
- Manufactured from PEFC sustainably sourced timber using 100% renewable energy
- Suitable for regular use in multi-storey or passive house properties
Specifications
| Material | Timber |
|---|---|
| Warranty | 1-year |
| Max Load | 150 kg |
| Safety Standard | EN 14975, EN 1368, EN 1634 |
| Fire Rating | 30 minutes (EL230/Ei230) |
| U-Value | 0.67 W/m²K |
| Trapdoor Thickness | 60 mm |
| Frame Thickness | 27 mm |
| Frame Height | 130 mm |
| Loft Opening Width | 600 mm |
| Loft Opening Length | 1200 mm |
| Loft Frame Width | 590 mm |
| Loft Frame Length | 1190 mm |
| Max Floor to Floor Height | 2750 mm |
| Max Floor to Ceiling Height | 2750 mm |
| Sections | 3 |
| Rung Count | 4 |
| Rung Width | 345 mm |
| Rung Depth | 80 mm |
| Rung Spacing | 235 mm |
| Rung Type | Flat |
| Recommended Usage | Regular |
| Country of Origin | Austria (AT) |
