Testo 327 Flue Gas Analyser Advanced Kit - 0564320381
SKU 0564320381 Barcode 4029547023194
Out of stock. Contact us for availability.
Notify me when back in stock
- Expert UK product support
- Authorised distributor
- 30 day returns
Delivery & returns
Despatch times vary by item. Check the product-specific lead time shown on this page. Supplier-shipped and larger items may take longer.
Delivery options and transit times are shown at checkout. Transit time starts after despatch and excludes weekends and bank holidays unless the selected service states otherwise. Tracking is provided when available.
30 day returns on unused items in original packaging.
Description
Description
Testo 327-1 Flue Gas Analyser Advanced Kit
The Testo 327-1 Flue Gas Analyser Advanced Kit, available from Trade Counter Direct, is designed for reliable and straightforward flue gas analysis in domestic boiler applications. This robust instrument measures oxygen (O2) and carbon monoxide (CO), and calculates essential parameters such as CO2 and combustion ratio. Its user-configurable, backlit display ensures clear readings in all lighting conditions, while intuitive menu navigation and ergonomic design make it ideal for regular use by heating engineers and service professionals.

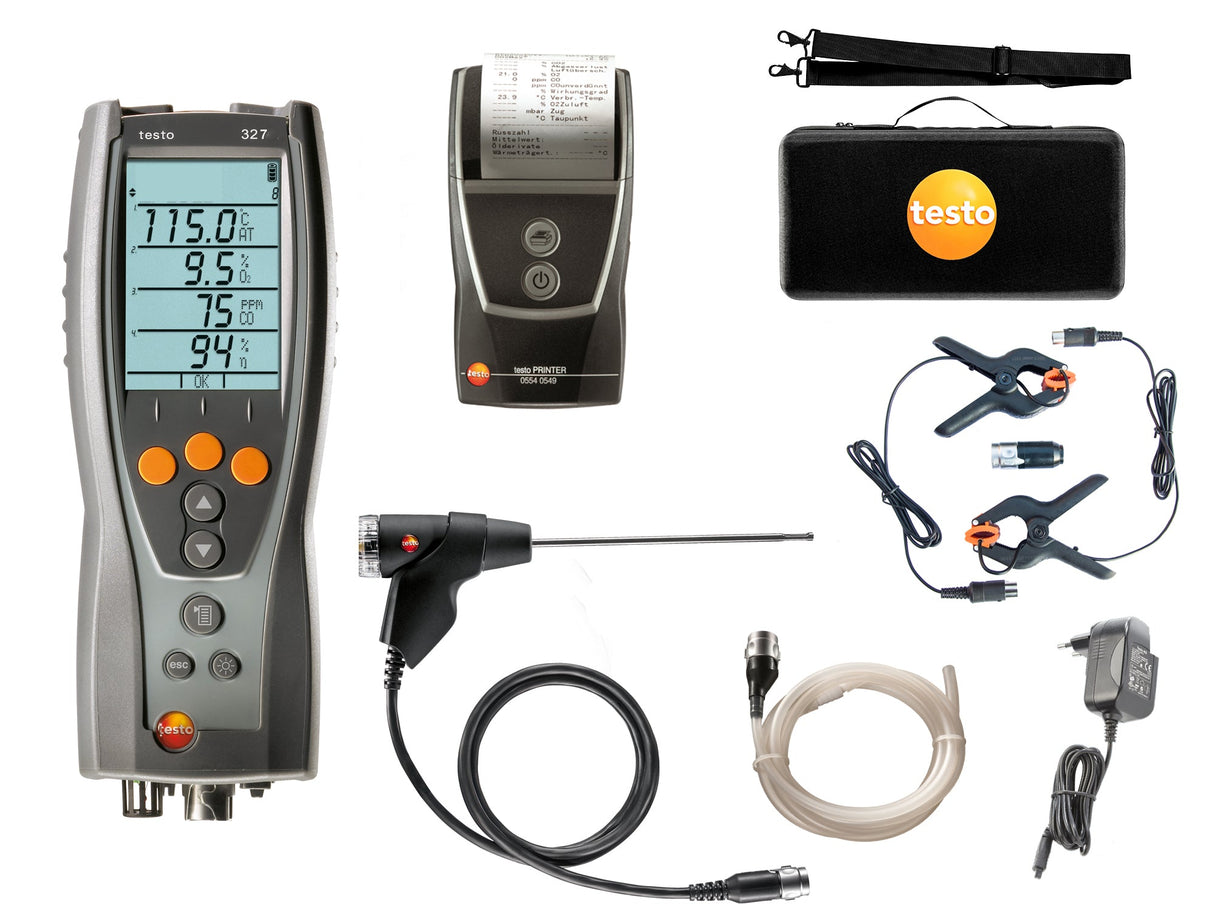

The advanced kit includes a comprehensive set of accessories, such as a differential temperature kit, pressure hose connection kit, Testo infrared printer, and a durable carry case, providing all the necessary tools for efficient and accurate on-site analysis.
Features
- Measures O2 and CO, with calculation of CO2, combustion ratio, efficiency, and flue gas loss
- 4,000 ppm CO sensor with automatic pump shut-off to prevent sensor saturation
- 7 user-selectable fuel types for versatile application
- User-configurable, backlit 4-line LCD display for optimal visibility
- Easy menu navigation and ergonomic housing for comfortable operation
- Rechargeable Li-ion battery for extended field use
- Includes adaptors and accessories for pressure measurement and differential temperature clamp probes
- Supplied with Testo infrared printer and soft carry case with shoulder strap
- Kit contents: analyser, flue gas probe, mains unit, differential hose kit, differential temperature kit, printer, and carry case
Specifications
| Range/Series | Testo 327-1 |
|---|---|
| Weight | Approx. 700 g (with probe) |
| Dimensions | 201 x 83 x 44 mm |
| Operating Temperature | -5 to +45 °C |
| Storage Temperature | -20 to +50 °C |
| Display Type | Backlit LCD (4-line) |
| Power Supply | Rechargeable Li-ion battery (1500 mAh), mains unit 5V/1A |
| Temperature Measurement (TC Type K) |
Range: -40.00 to +600.00 °C Accuracy: ±0.50 °C (0 to 600 °C) Resolution: 0.1 °C Reaction time: < 50 s |
| Flue Gas O2 Measurement |
Range: 0 to 21 Vol.% Accuracy: ±0.2 Vol.% Resolution: 0.1 Vol.% Reaction time t₉₀: 30 s |
| Flue Gas CO Measurement (without H2-compensation) |
Range: 0 to 4000 ppm Accuracy: ±20 ppm (0 to 400 ppm); ±5 % of mv (401 to 2000 ppm); ±10 % of mv (2001 to 4000 ppm) Resolution: 1 ppm Reaction time t₉₀: 60 s |
| Differential Pressure (Draught) |
Range: -40.0 to +40.0 hPa Accuracy: ±0.02 hPa (-0.50 to +0.60 hPa); ±0.03 hPa (+0.61 to +3.00 hPa); ±1.50 % of mv (3.01 to +40.0 hPa) |
| Flue Gas CO2 Calculation |
Range: 0 to CO2 max (display range) Accuracy: ±0.2 Vol.% Resolution: 0.1 Vol.% Reaction time t₉₀: < 40 s |
| Flue Gas Degree of Effectivity (Eta, calculated) |
Range: 0 to 120 % Resolution: 0.1 % |
| Flue Gas Loss (calculated) |
Range: 0 to 99.0 % Resolution: 0.1 % |
| Kit Contents | Testo 327-1 analyser, rechargeable battery and calibration protocol, flue gas probe (180 mm x 6 mm diameter), pressure hose connection kit, differential temperature kit (2 x pipe clamp probes), Testo infrared printer, soft carry case with shoulder strap, AC power supply |
