Virax Water Heater Lift 180kg Capacity - 263620

Virax Water Heater Lift 180kg Capacity - 263620

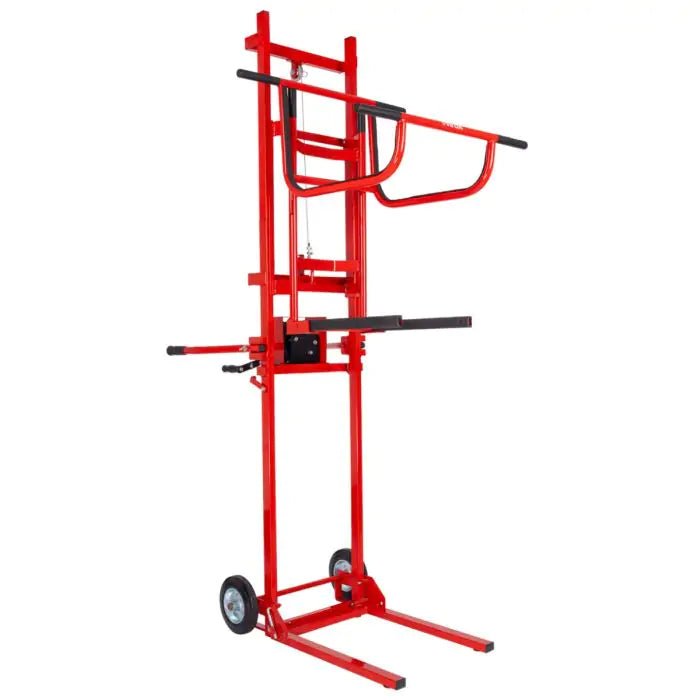

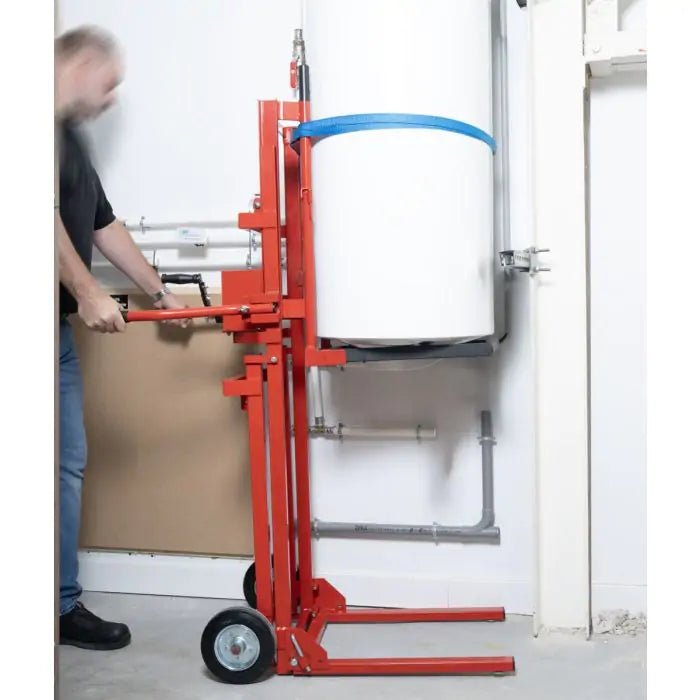

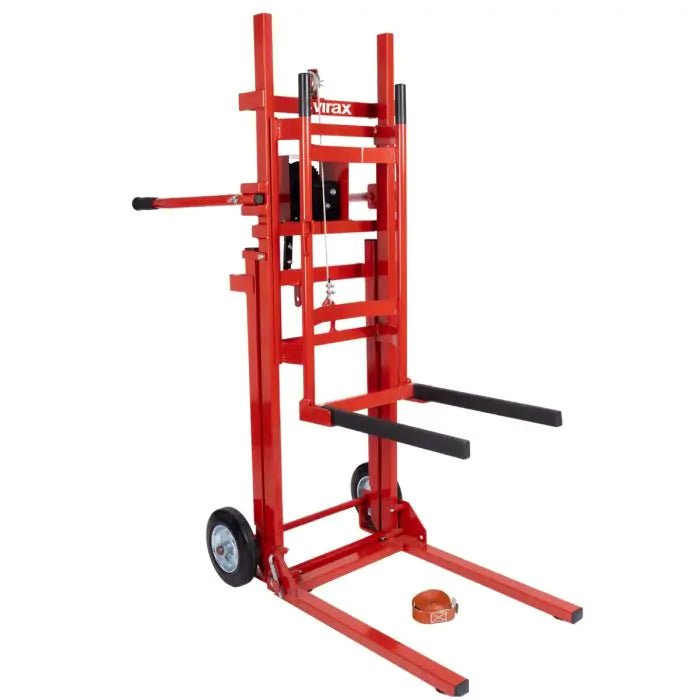

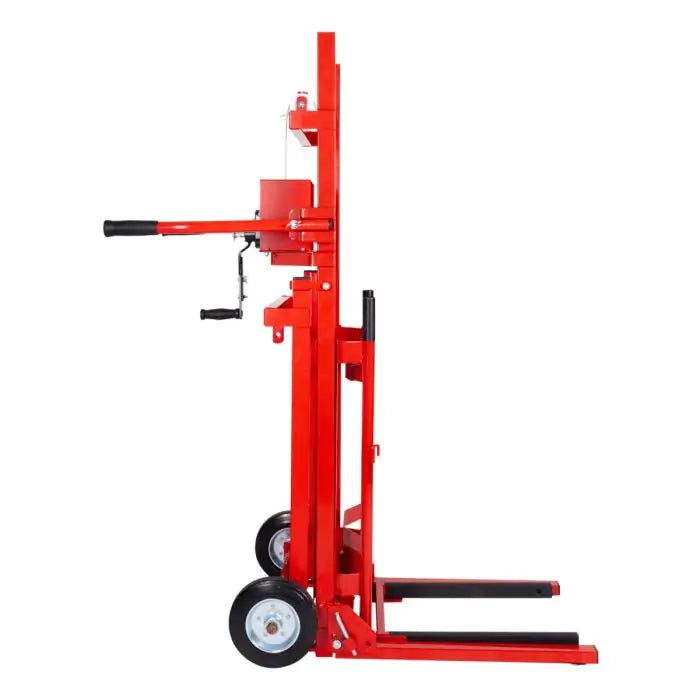

The Virax 263620 Water Heater Lift is a professional lifting and handling aid designed for installing, positioning and moving water heaters, cylinders and boilers safely on site. Built for plumbers, heating engineers and mechanical installers, it helps reduce manual handling strain when working with heavy equipment.

With a maximum load capacity of 180kg without the height extension and 150kg with the extension fitted, this water heater lift provides the strength, stability and control required for demanding installation work.

100% Foldable Water Heater Lift for Easier Transport

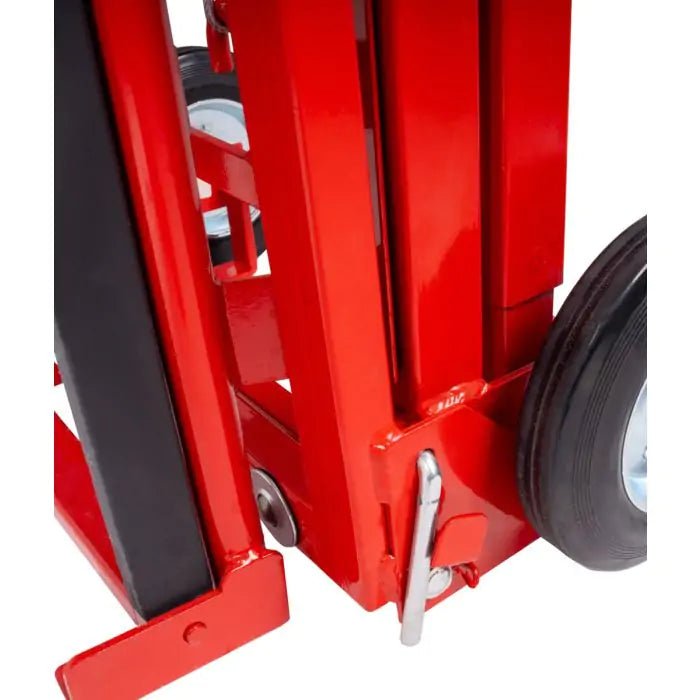

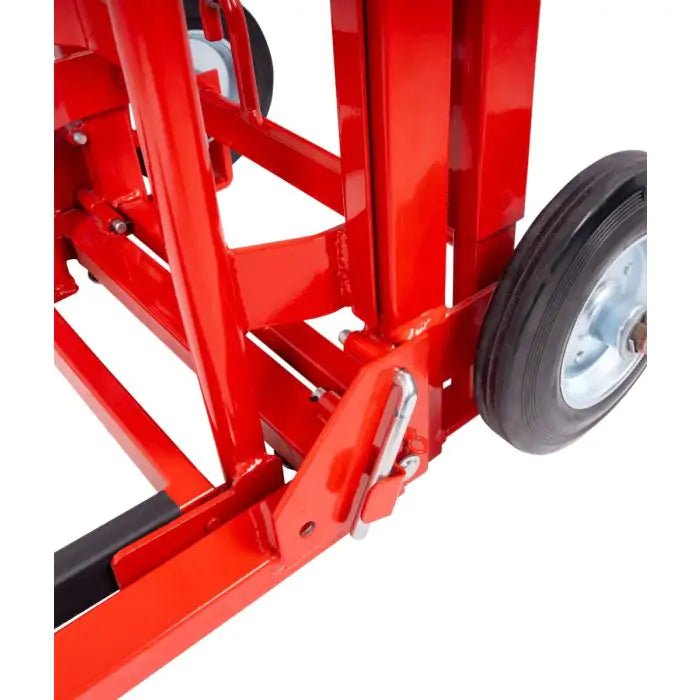

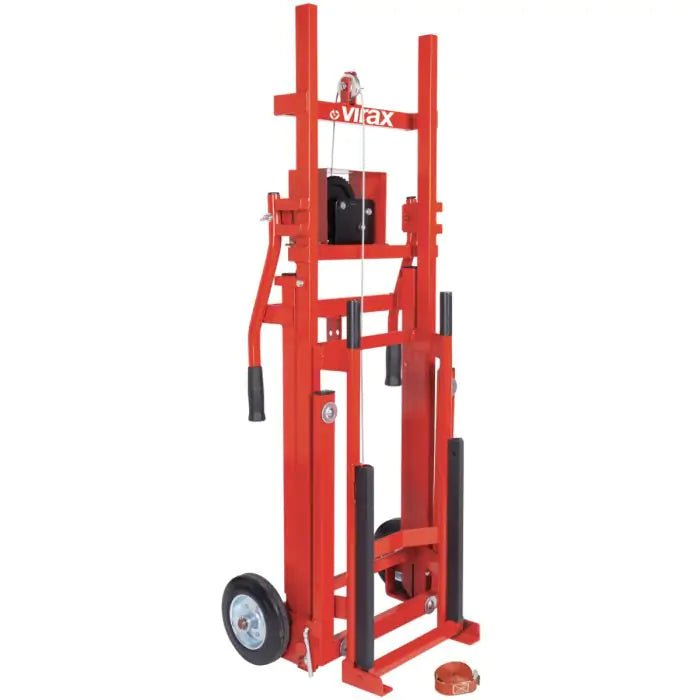

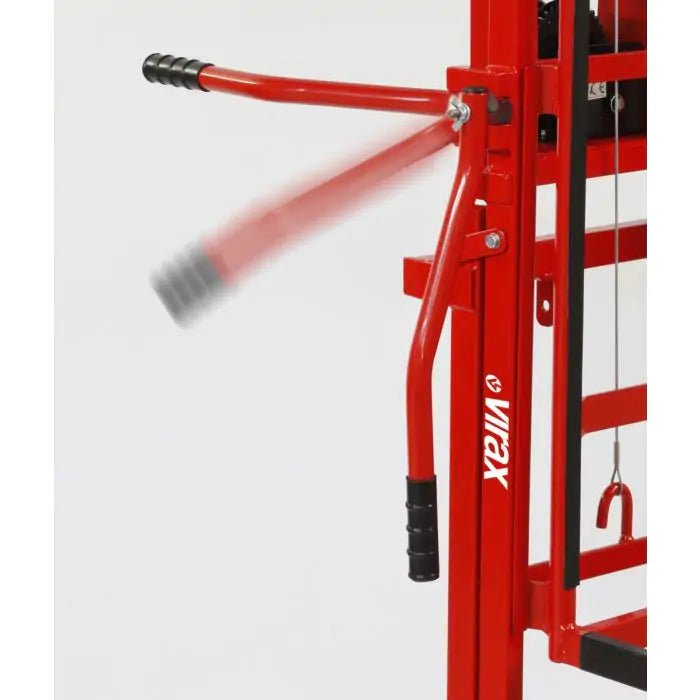

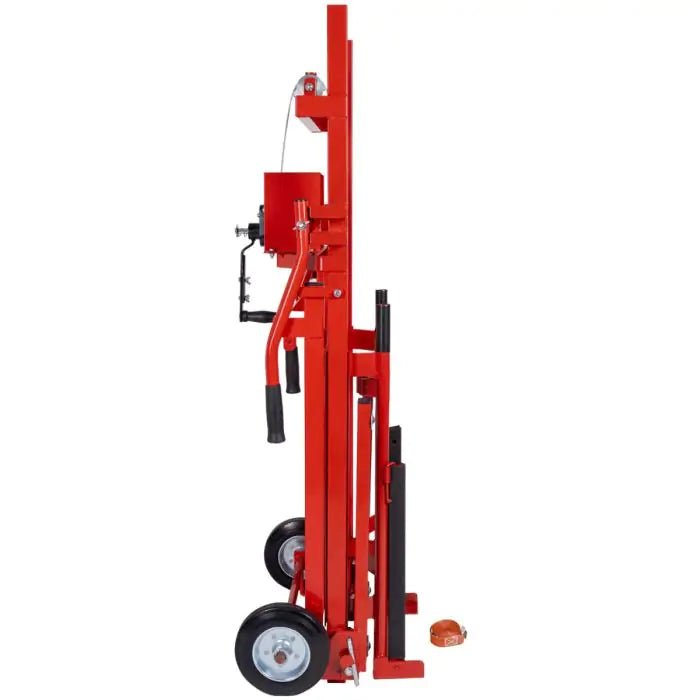

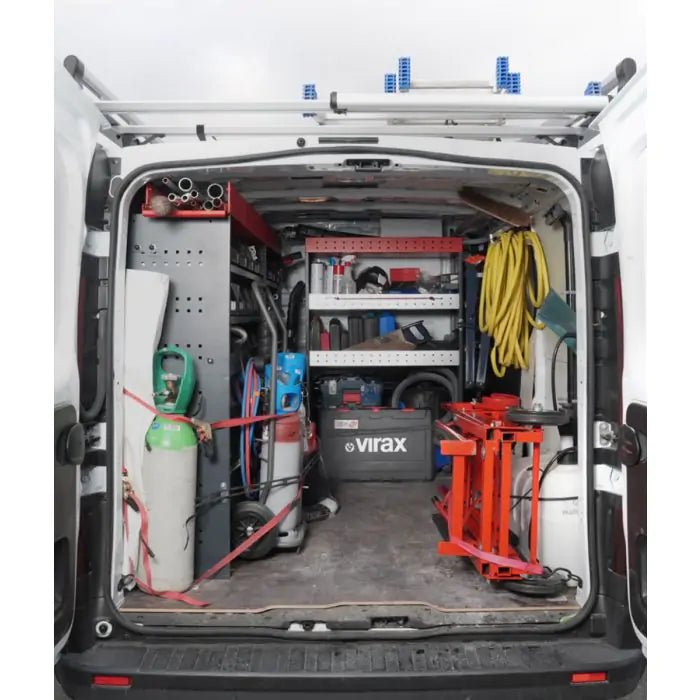

The Virax water heater lift is fully foldable to save space during storage and transport. The ground forks, lifting forks, winch handle and arm fold down easily, making the lift practical to carry in smaller vehicles and easier to store between jobs.

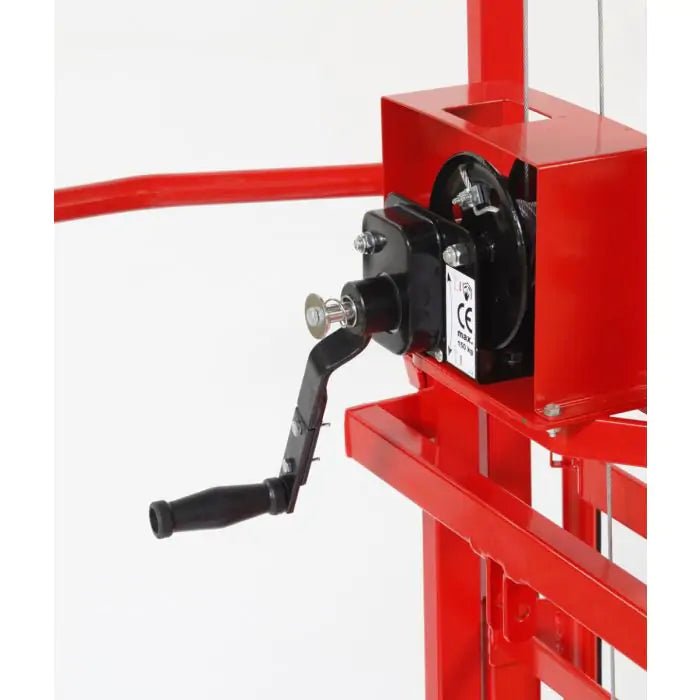

A self-braking winch helps improve safety and reduce effort during lifting operations, while the integrated extension allows use in higher installation positions without requiring tools for mounting.

Key Features

• Professional water heater lift for plumbers, heating engineers and installers
• Maximum load of 180kg without the height extension
• Maximum load of 150kg with the height extension fitted
• 100% foldable design for compact storage and easier transport
• Self-braking winch for safer lifting and reduced handling effort

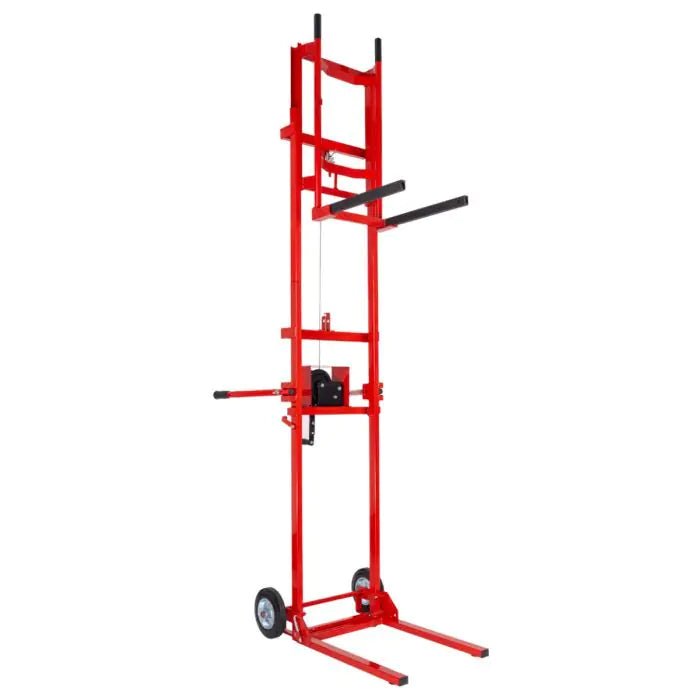

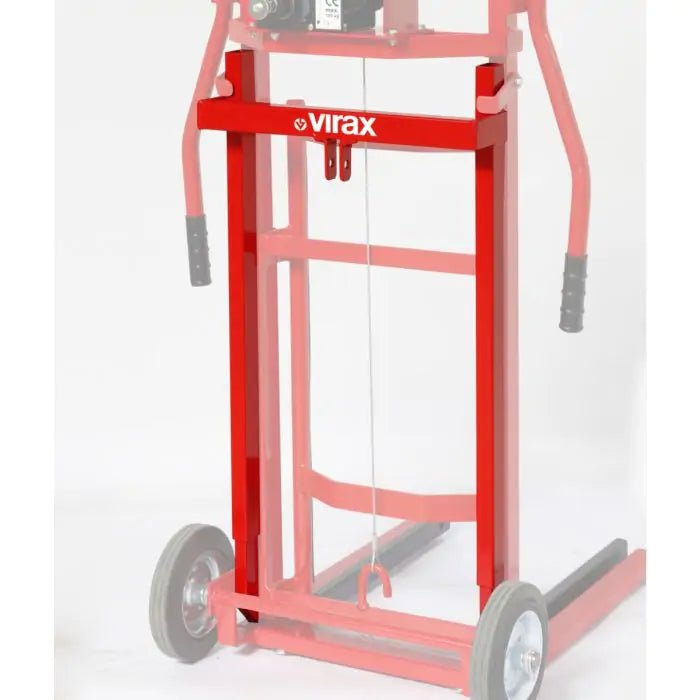

• Integrated extension for installing water heaters in high locations
• No tools required to fit the height extension
• Strong holding belt to secure the water heater during handling

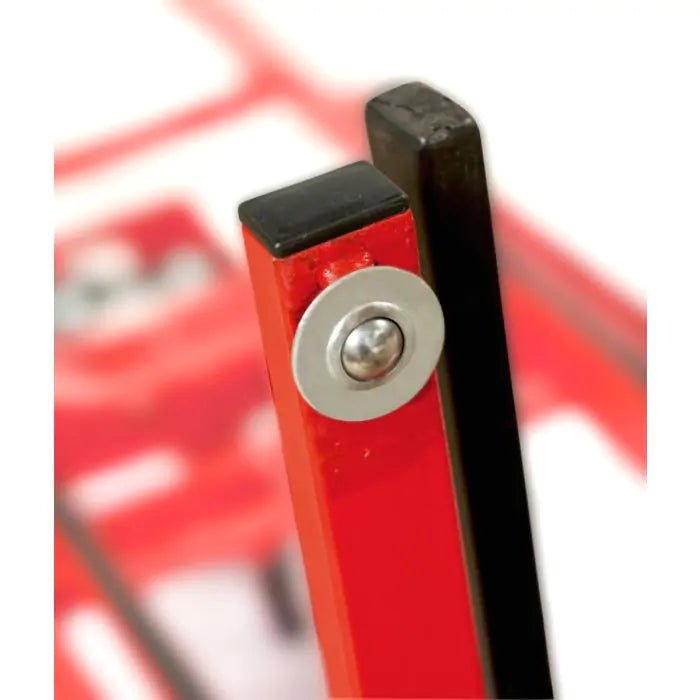

• Four balls under the forks for accurate positioning
• Protective rubber strips to help reduce marking and damage
• Mobile frame with wheels for controlled movement around the working area

Ideal Applications

• Water heater installation and replacement
• Cylinder and boiler handling
• High-level water heater positioning
• Domestic and commercial plumbing installations
• Heating system maintenance and refurbishment
• Reducing manual lifting during heavy appliance installation

Technical Specification

Brand	Virax
Product Code	263620
Product Type	Water heater lift
Maximum Load Without Height Extension	180kg
Maximum Load With Height Extension	150kg
Product Weight	44kg
Floor Dimensions	605 x 1000mm
Floor Dimensions with Arm and Handle Folded	605 x 740mm
Width with Arm Unfolded	650mm
Width with Arm Folded	695mm
Height Without Extension	1450mm
Height With Extension	2180mm
Height with Fork Raised to Maximum	2680mm
Support Fork Width	340mm
Support Fork Depth	475mm
Support Fork Maximum Height	1900mm

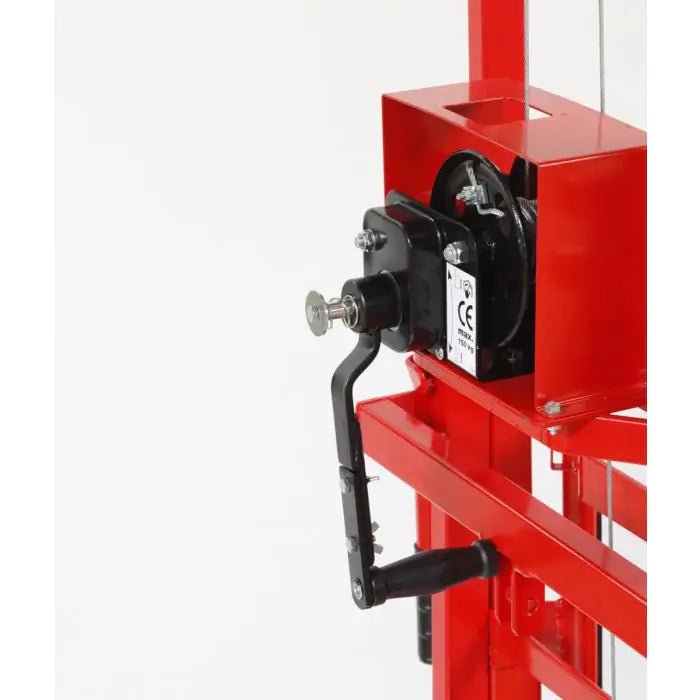

Winch Type	Auto-brake with handle
Cable	Steel, Ø4mm

Safety and Handling Features

• Self-braking winch helps control the load during lifting and lowering

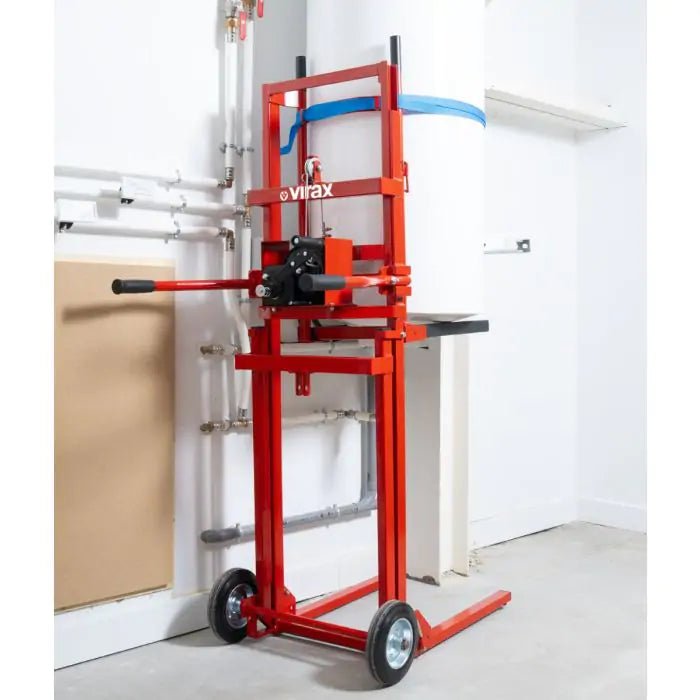

• Support belt helps secure the water heater before moving it away from the wall
• Lift should be moved under load only with the support fork in the low position
• Protective rubber strips help protect the appliance during handling
• Accurate fork positioning helps with controlled final placement

Compatible Optional Accessories

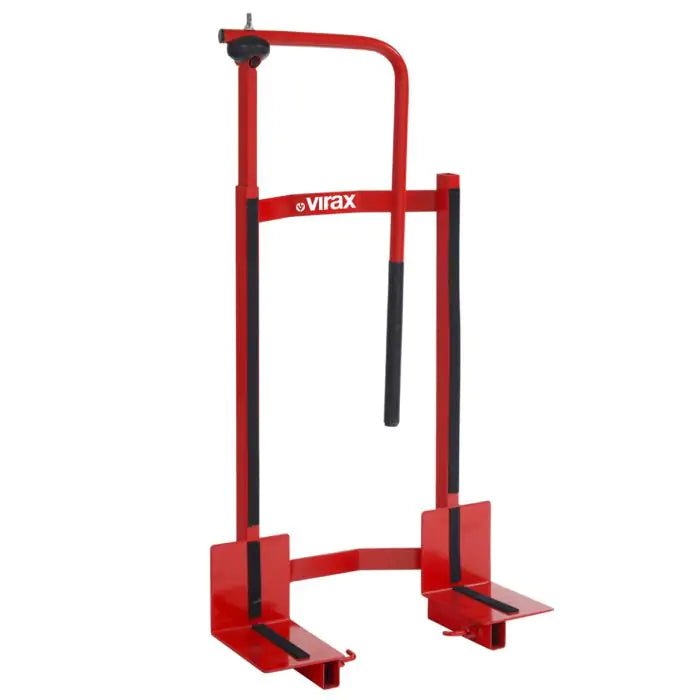

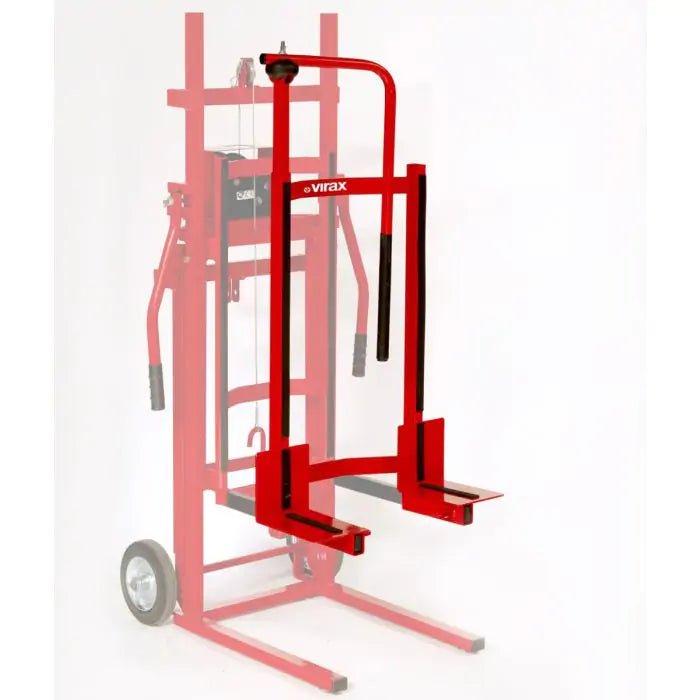

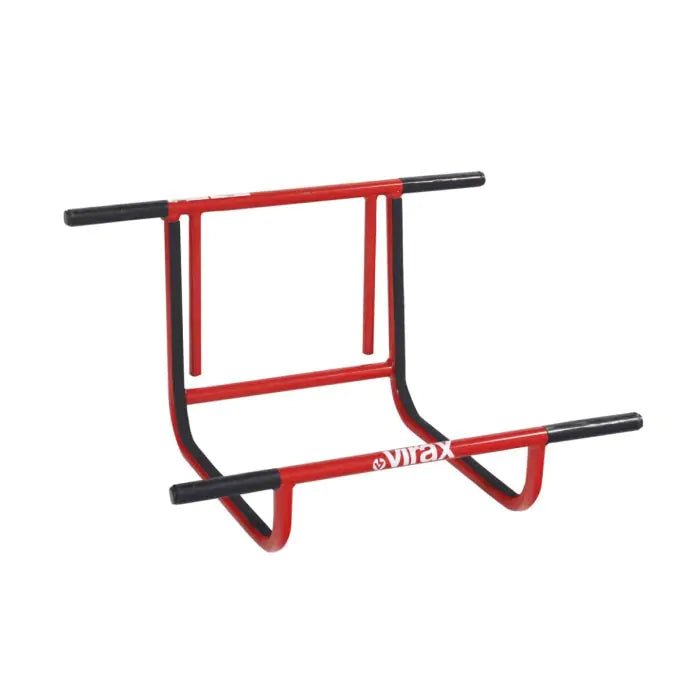

• Horizontal cradle - designed for installing horizontal water heaters, helping reduce the risk of imbalance and awkward handling
• Radiator adaptor - enables radiator installation using the water heater lift

Please note: the horizontal cradle and radiator adaptor are specific accessories designed for use with the Virax 263620 water heater lift.

Supplied With

• 1 x Virax Water Heater Lift
• Integrated height extension
• Support belt
• Self-braking winch and steel cable

Why Choose the Virax 263620 Water Heater Lift?

The Virax 263620 Water Heater Lift is built for professional installers who need a safe, strong and compact lifting solution for water heaters and cylinders. Its 180kg maximum load capacity, foldable frame, self-braking winch and integrated extension make it a practical choice for high-level installations, confined storage and regular site use.
