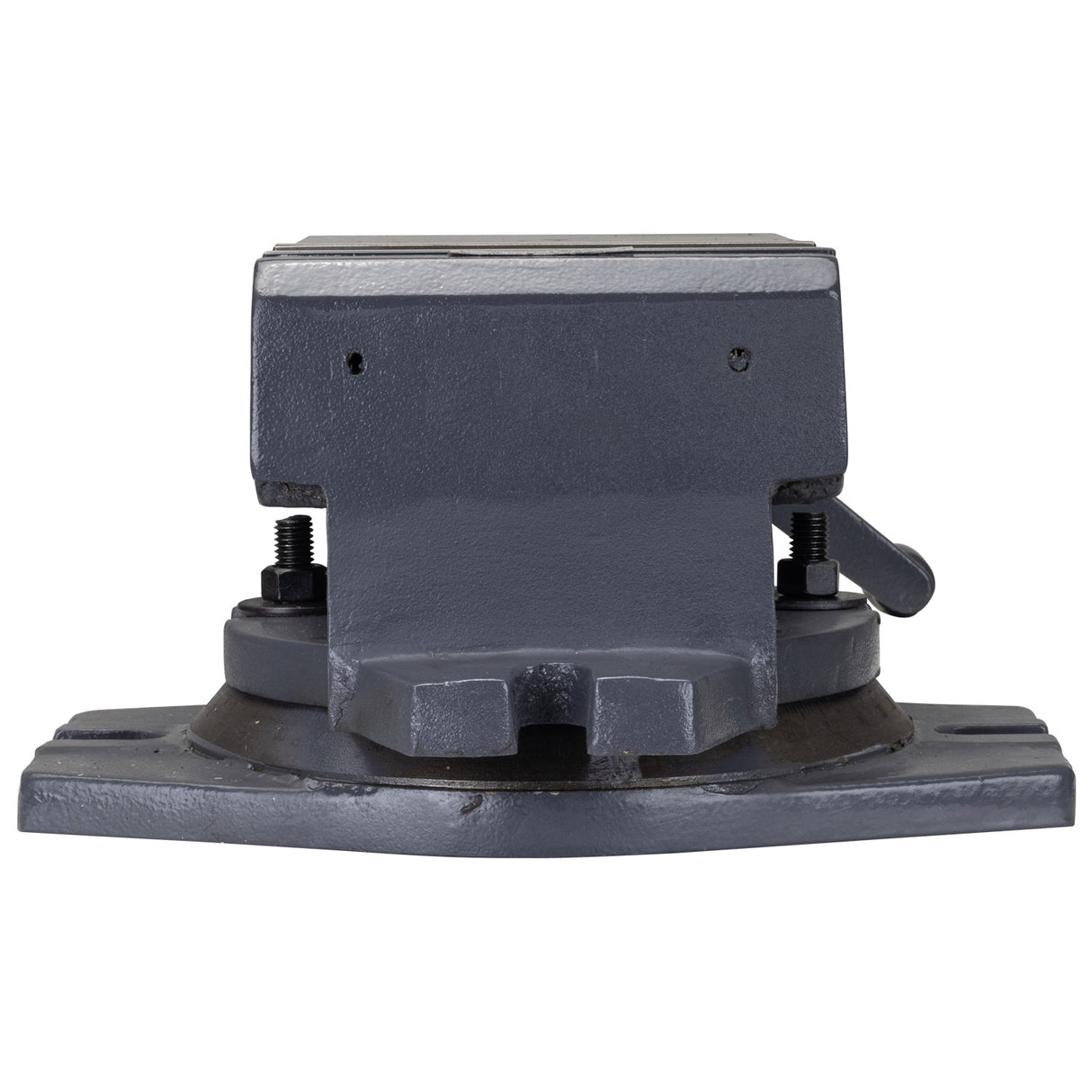

SIP 6" Swivel Machine Vice
SKU SIP-01729 Barcode 5012713010028
4 available from our warehouse. Despatch times vary.
Order soonPay in 3 interest-free with shopPay or PayPal
- Expert UK product support
- Authorised distributor
- 30 day returns
Delivery & returns
Despatch times vary by item. Check the product-specific lead time shown on this page. Supplier-shipped and larger items may take longer.
Delivery options and transit times are shown at checkout. Transit time starts after despatch and excludes weekends and bank holidays unless the selected service states otherwise. Tracking is provided when available.
30 day returns on unused items in original packaging.
Description
Description

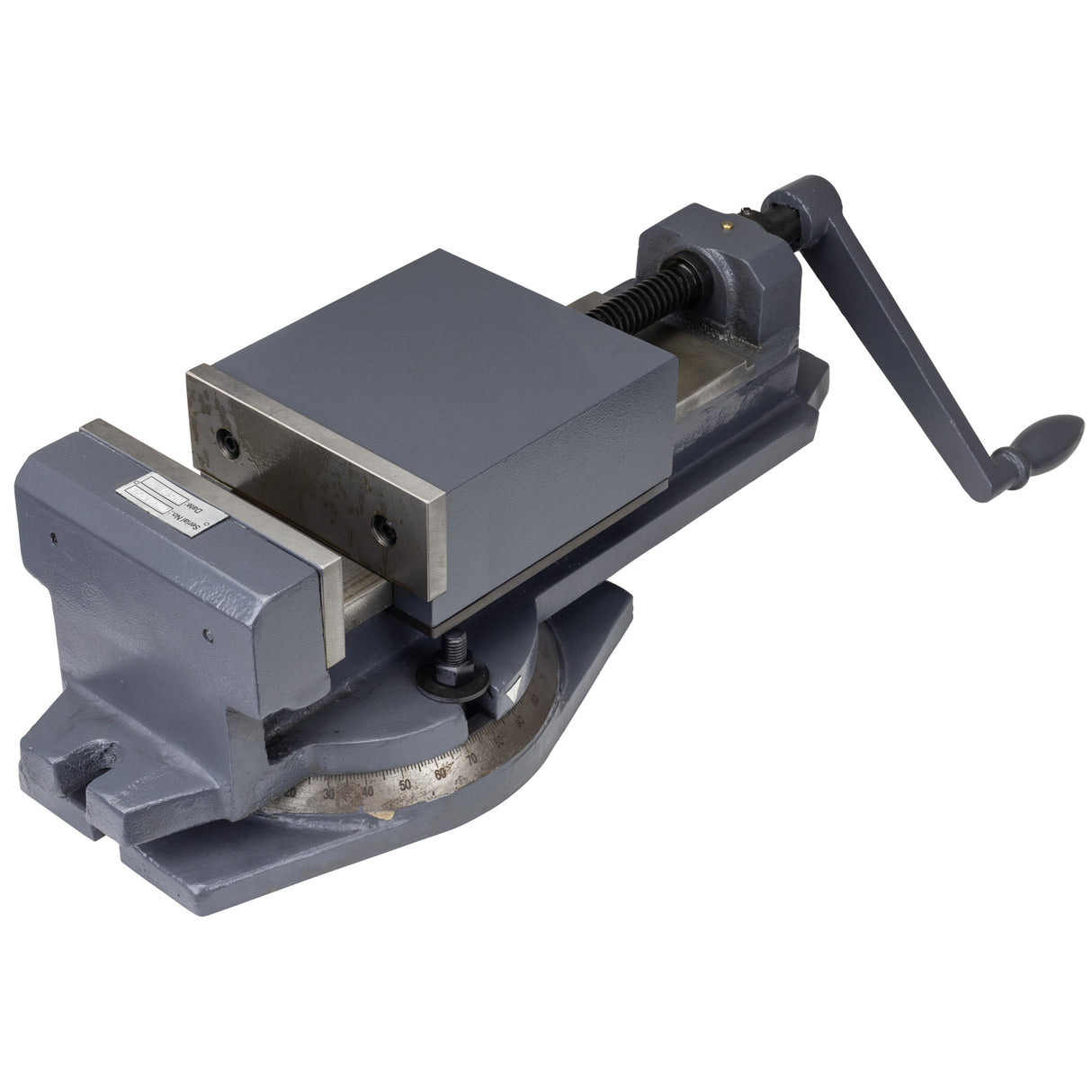

The SIP 6" Swivel Machine Vice enables simple horizontal 0° to 360° rotation, meaning workpieces do not need to be unclamped to be repositioned. This helps to reduce the set-up time required when machining, maintains drilling accuracy and improves tool access.
Offering maximum versatility in professional metalworking and fabrication, this vice is compatible with the SIP F25-GB 8-Speed (01719), SIP F32-ID Vari-Speed (01720) and SIP F40-IDA Vari-Speed (01721) Industrial Floor Pillar Drills.
Key Features

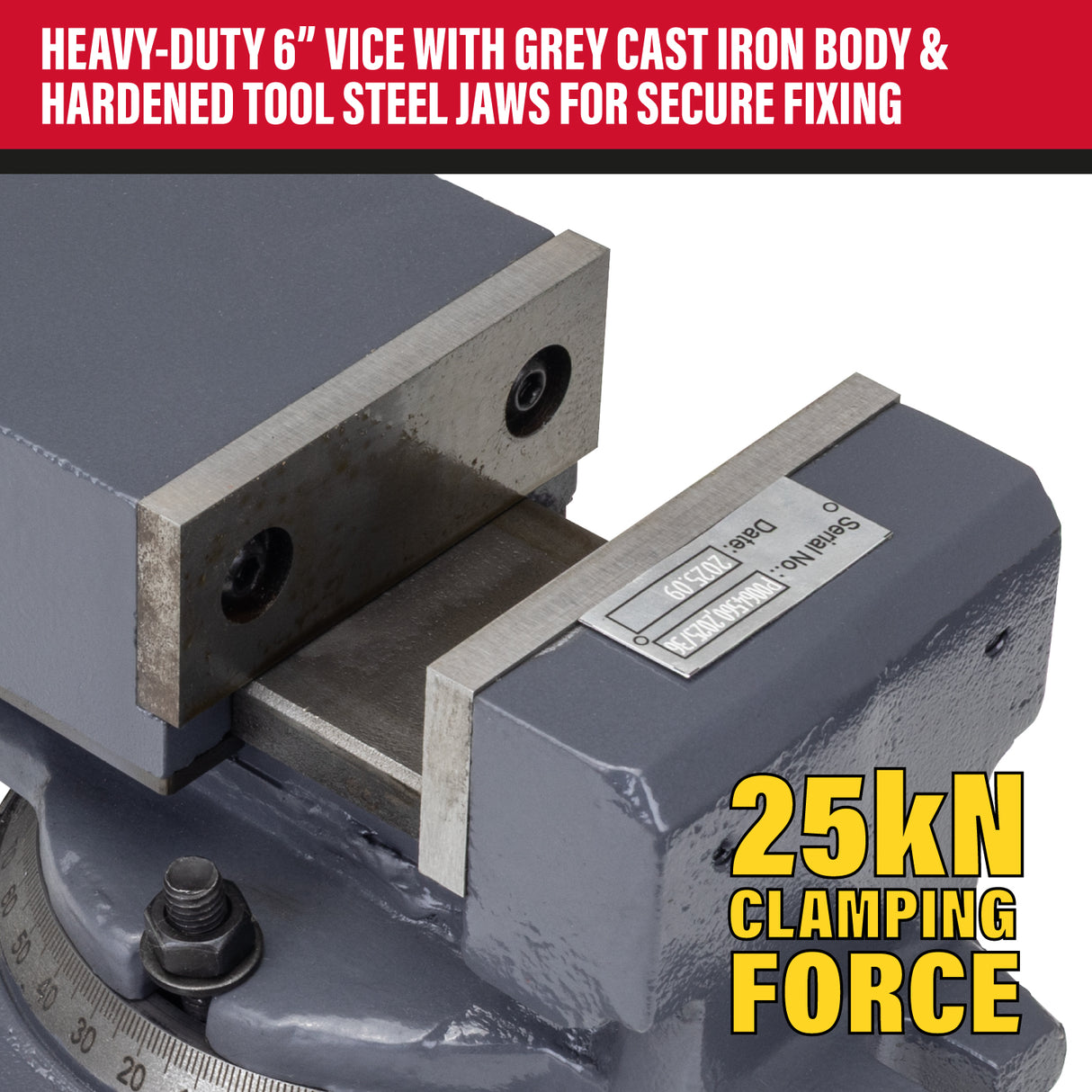

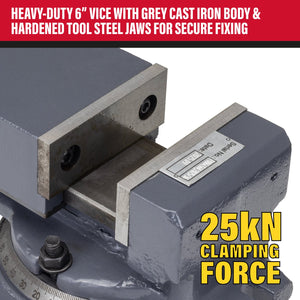

- Heavy-duty 6" machine vice with grey cast iron body and hardened tool steel jaws

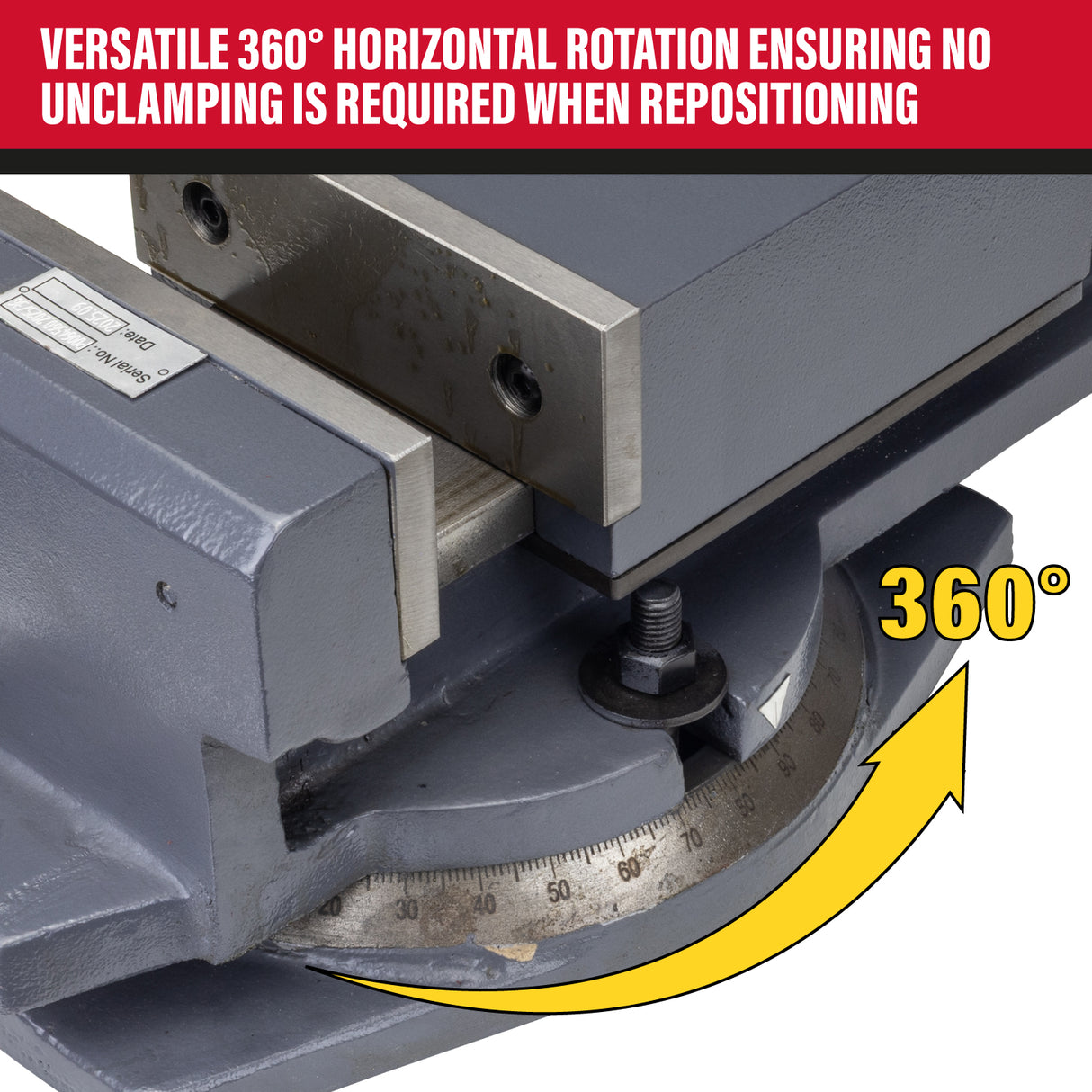

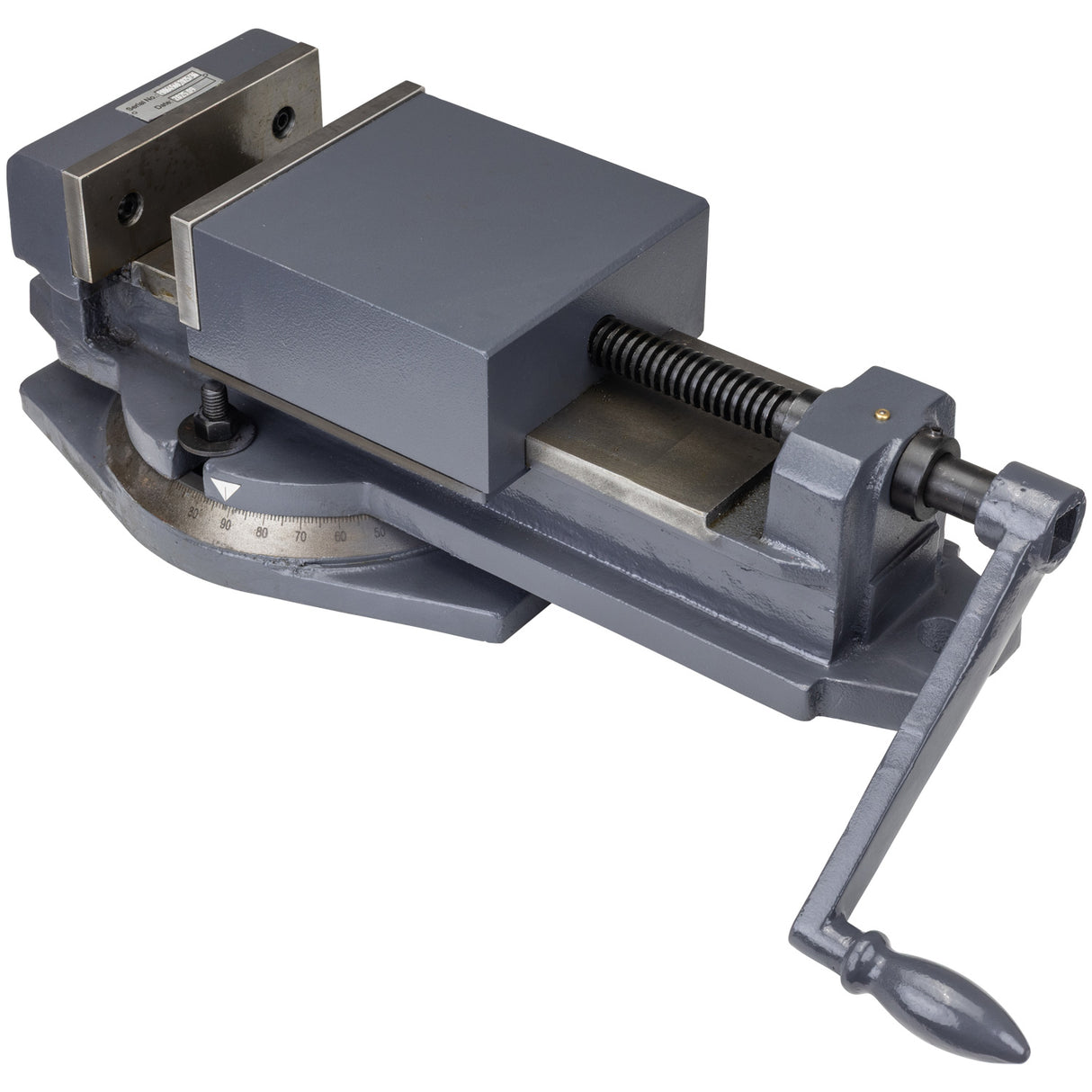

- Swivel base allows 0° to 360° rotation without unclamping the workpiece
- Adjustable design reduces set-up time, maintains accuracy and improves access
- Angle gauge for precise set-up for accuracy in complex and repetitive machining
- Compatible with complete SIP Industrial Floor Pillar Drills (01719, 01720, 01721)
- Perfect for use in professional metalwork and fabrication workshops
Applications & Uses
Ideal for professional metalwork and fabrication workshops. Ideal for drilling ferrous and non-ferrous metals including mild steel, aluminium, copper, brass, stainless steel, cast iron and wrought iron. Metal Fabrication: drilling holes in steel plates and box sections. General Engineering: creating precise holes for bolts, pins and shafts in various metal components. Production & Assembly: suitable for milling, grinding and light machining, slotting and face or end milling.

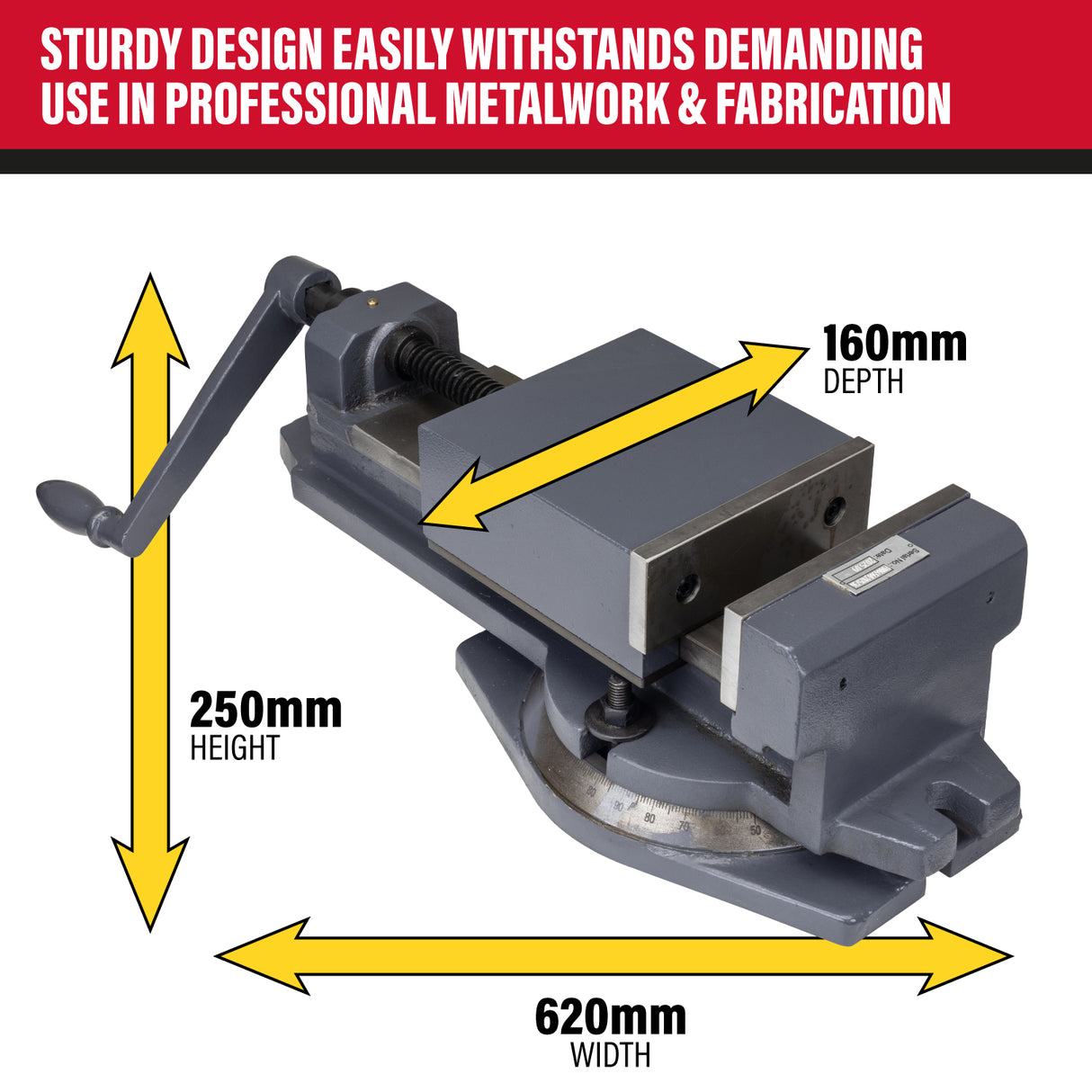

Technical Specification
| Jaw Width | 6" (152mm) |
|---|---|
| Jaw Opening | 6" (152mm) |
| Jaw Depth | 2" (51mm) |
| Clamping Force | 25kN |
| Vice Height | 6" (152mm) |
| Base Type | Swivel |
| Base Size | 11.5" (292mm) x 8.4" (214mm) |
| Composition | Grey cast iron (body), hardened tool steel (jaws) |
| Mounting Hole Size | 18mm |
| Accuracy / Parallelism | 0.05mm / 100mm |
What's in the Box
1x SIP 6" Swivel Machine Vice.
