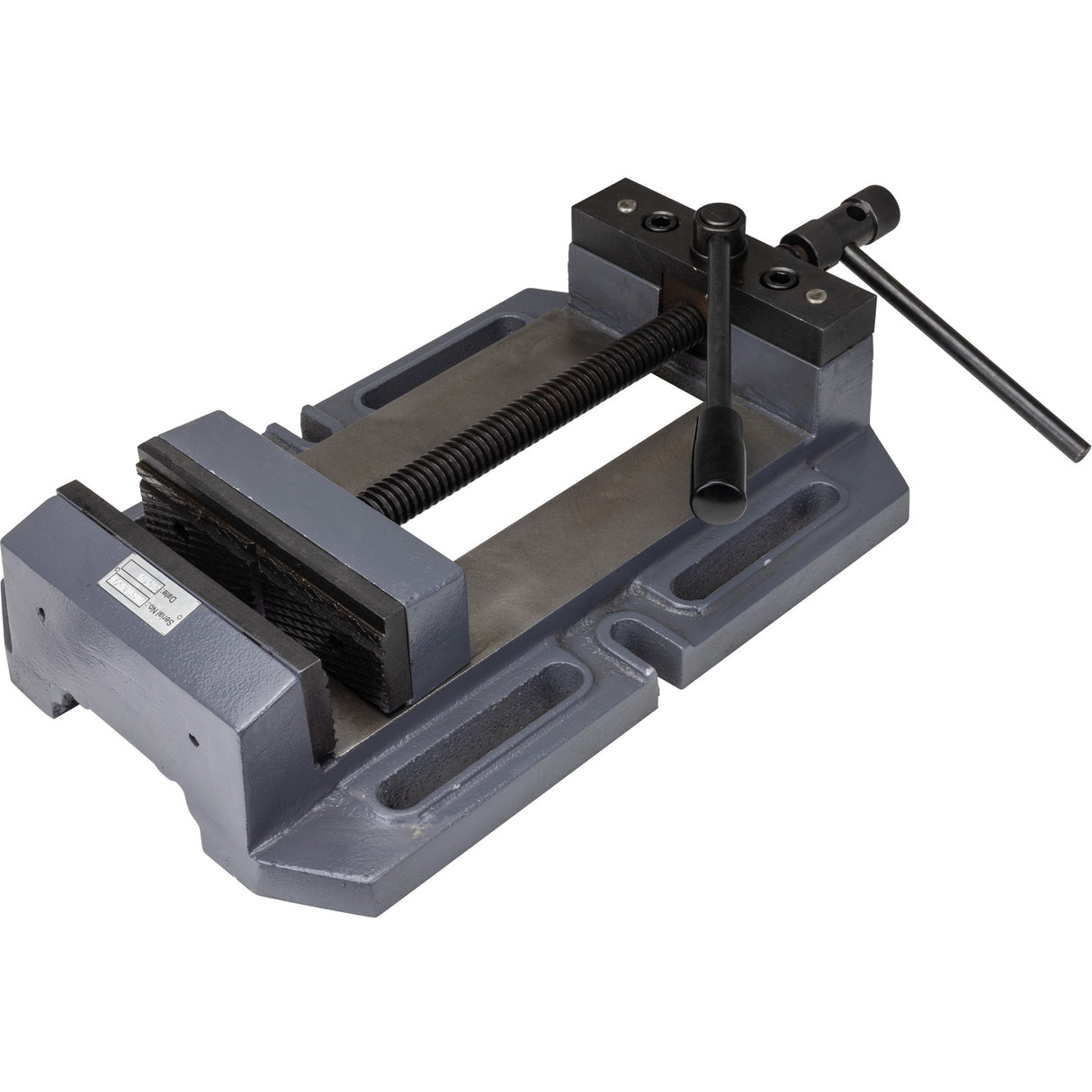

SIP 10" Quick Lock Machine Vice
SKU SIP-01731 Barcode 5012713010042
Out of stock. Contact us for availability.
Notify me when back in stock
- Expert UK product support
- Authorised distributor
- 30 day returns
Delivery & returns
Despatch times vary by item. Check the product-specific lead time shown on this page. Supplier-shipped and larger items may take longer.
Delivery options and transit times are shown at checkout. Transit time starts after despatch and excludes weekends and bank holidays unless the selected service states otherwise. Tracking is provided when available.
30 day returns on unused items in original packaging.
Description
Description

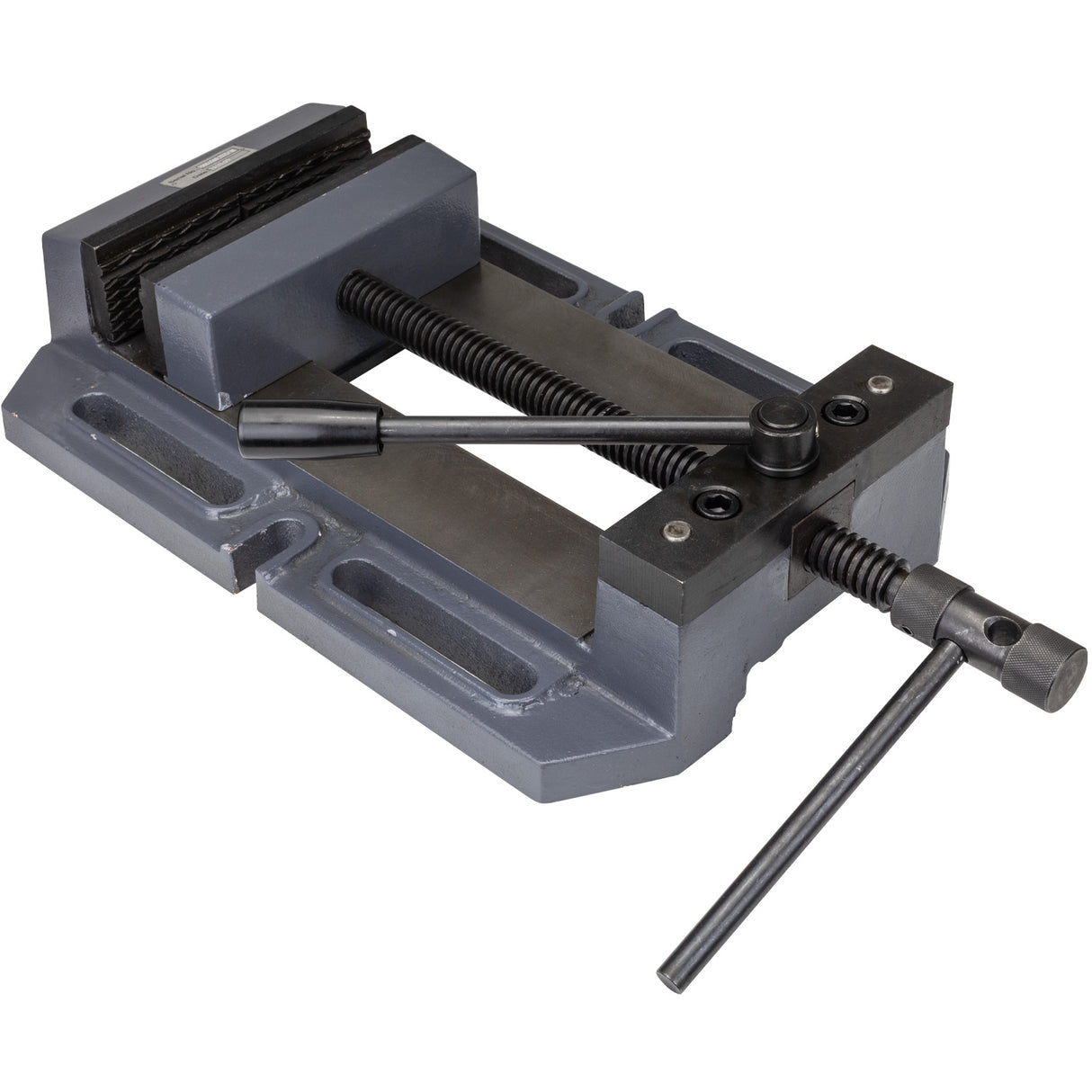

The SIP 10" Quick Lock Machine Vice enables workpieces to be secured quickly and efficiently when machining in professional metalwork and fabrication.
It easily slides into position against the workpiece to boost efficiency by reducing set-up time required when machining or during changeovers. The slotted base helps to maintain drilling accuracy and safety, and can be secured to the drill press table for added stability.
Compatible with the SIP F25-GB 8-Speed (01719), SIP F32-ID Vari-Speed (01720) and SIP F40-IDA Vari-Speed (01721) Industrial Floor Pillar Drills.
Key Features

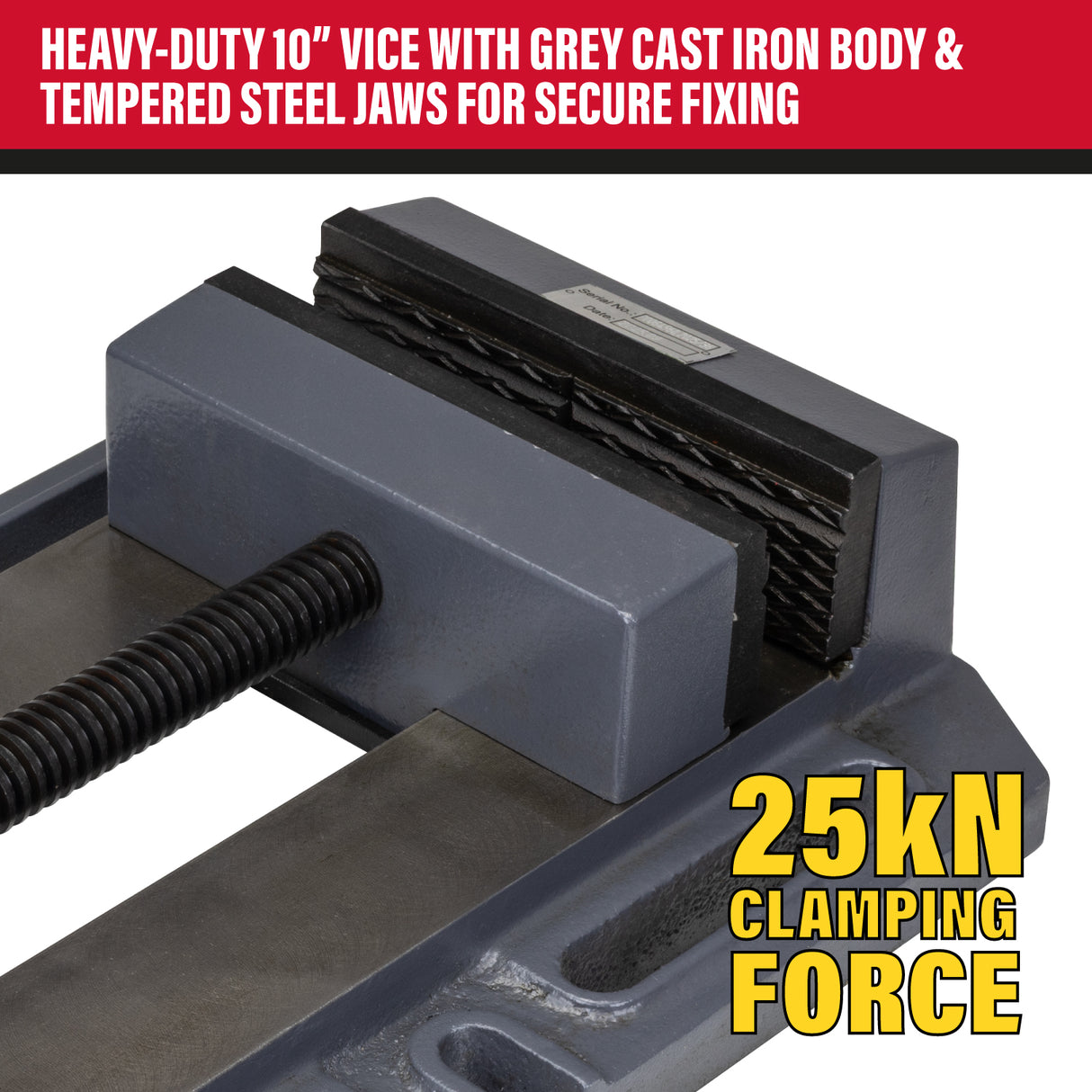

- Heavy-duty 10" machine vice with grey cast iron body and tempered steel jaws

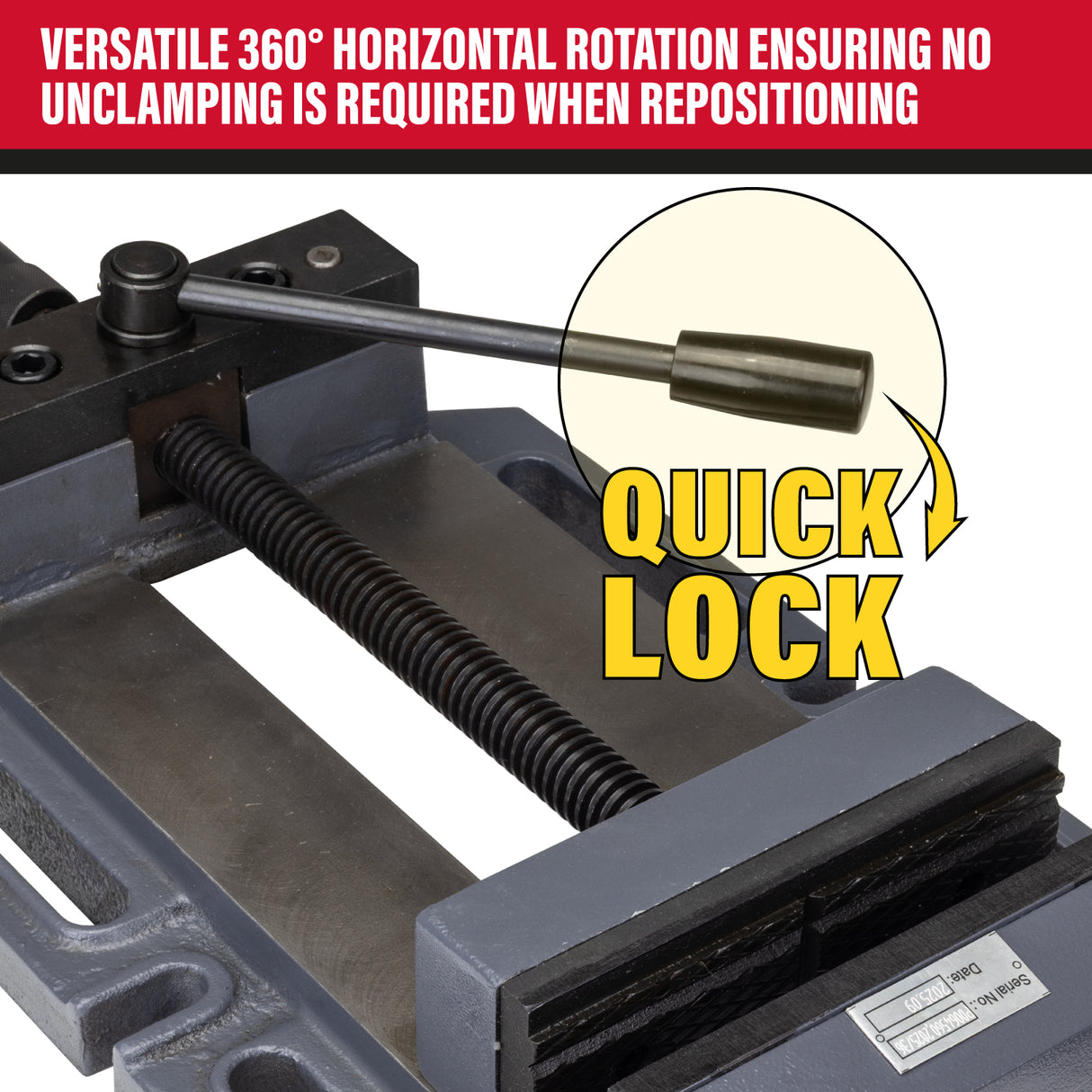

- Speedy Quick Lock clamping helps reduce set-up time and maintains accuracy
- Boosts efficiency for set-up and changeover in busy production environments
- Slotted base allows secure fixing to the drill press table for added stability
- Compatible with complete SIP Industrial Floor Pillar Drills (01719, 01720, 01721)
- Perfect for use in professional metalwork and fabrication workshops
Applications & Uses
Ideal for professional metalwork and fabrication workshops. Ideal for drilling ferrous and non-ferrous metals including mild steel, aluminium, copper, brass, stainless steel, cast iron and wrought iron. Metal Fabrication: drilling holes in steel plates and box sections. General Engineering: creating precise holes for bolts, pins and shafts in various metal components. Production & Assembly: small castings, brackets and flanges. Suitable for pillar drill drilling, milling, grinding and light to medium-duty work.
Technical Specification
| Jaw Width | 7" (180mm) |
|---|---|
| Jaw Opening | 10" (260mm) |
| Jaw Depth | 2.16" (55mm) |
| Clamping Force | 25kN |
| Vice Height | 3.89" (99mm) |
| Base Type | Fixed |

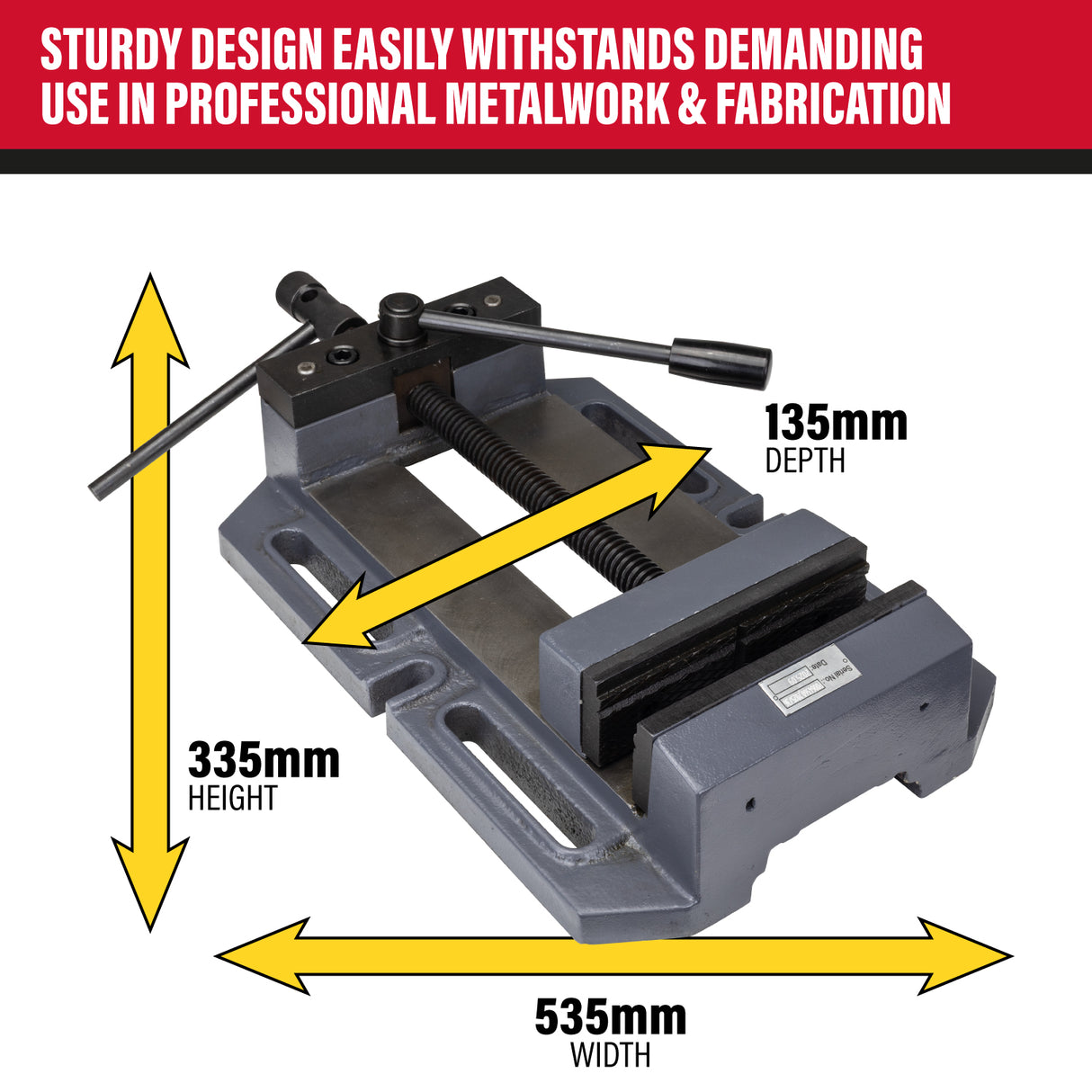

| Base Size | 21" (535mm) x 13.25" (335mm) |
| Composition | Grey cast iron (body), quenched/tempered structural steel (jaws) |
| Mounting Hole Size | 15mm |
| Accuracy / Parallelism | 0.05mm / 100mm |
What's in the Box
1x SIP 10" Quick Lock Machine Vice.
