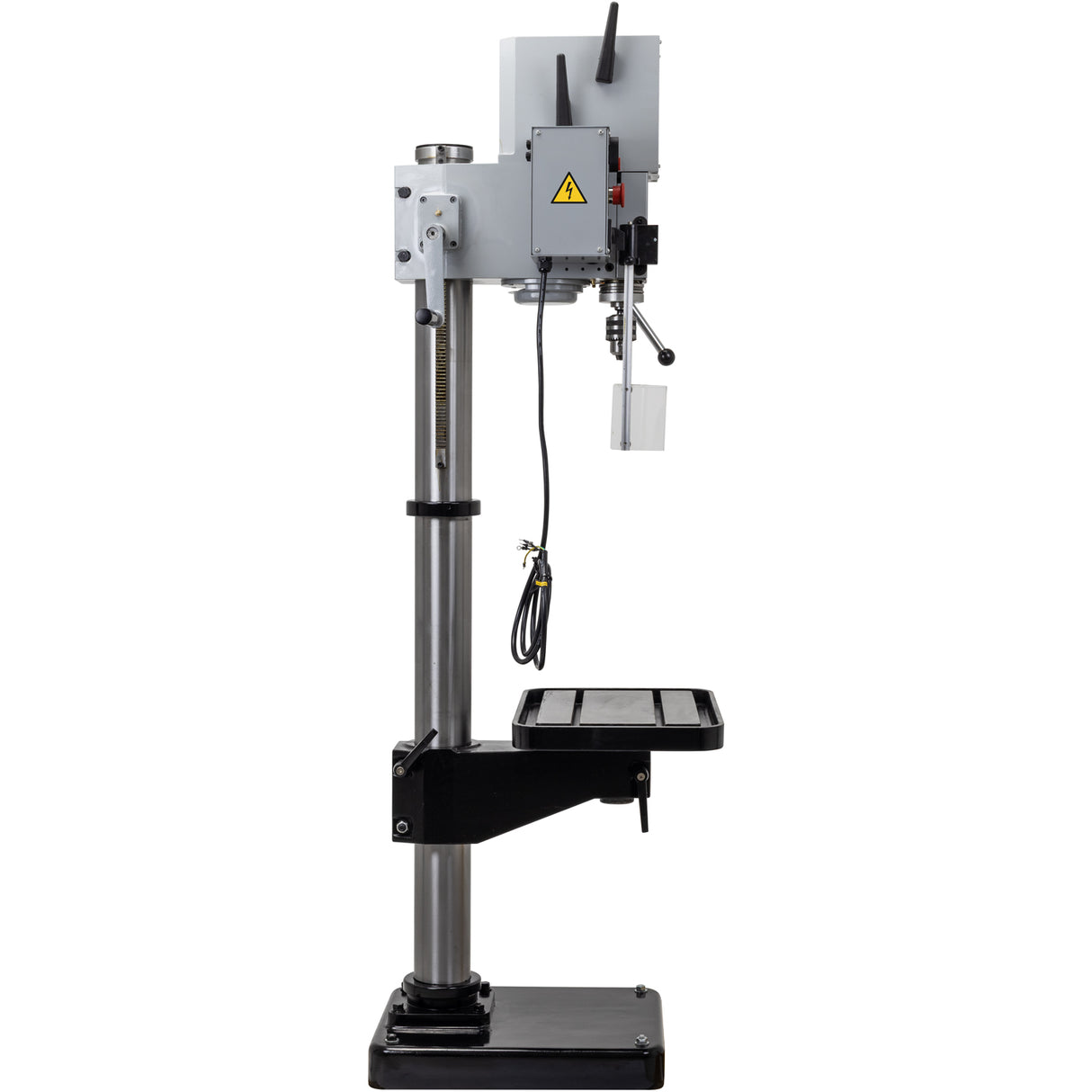

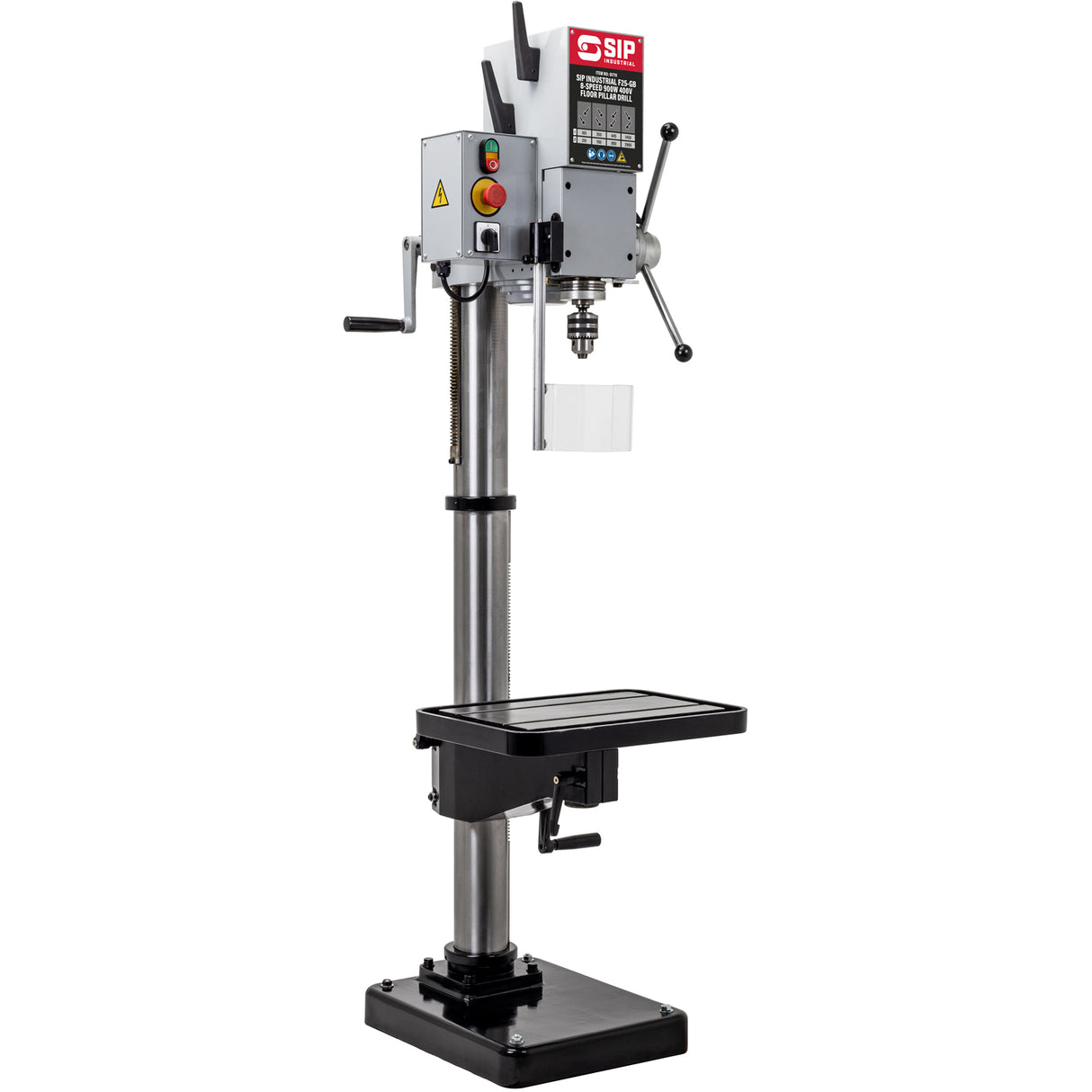

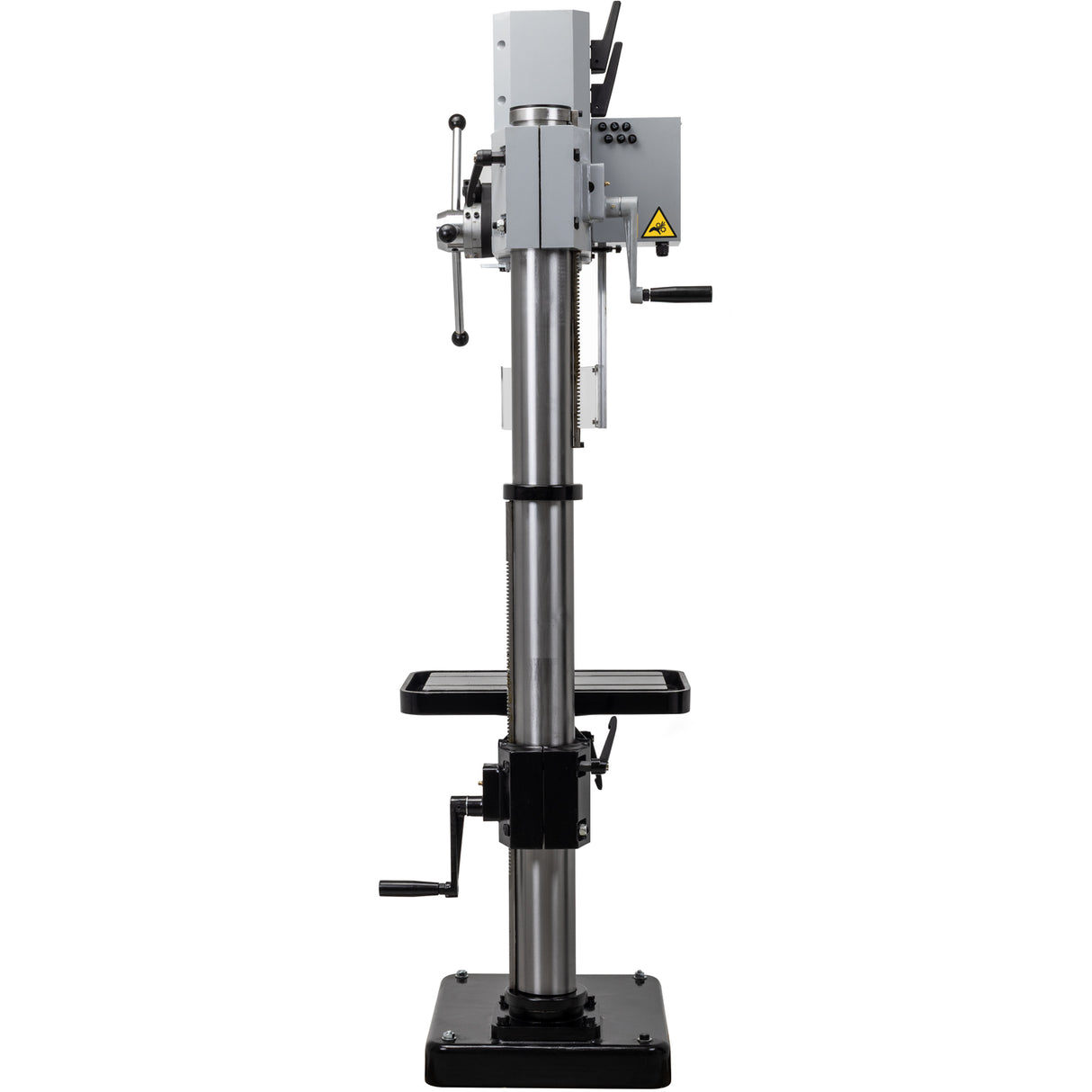

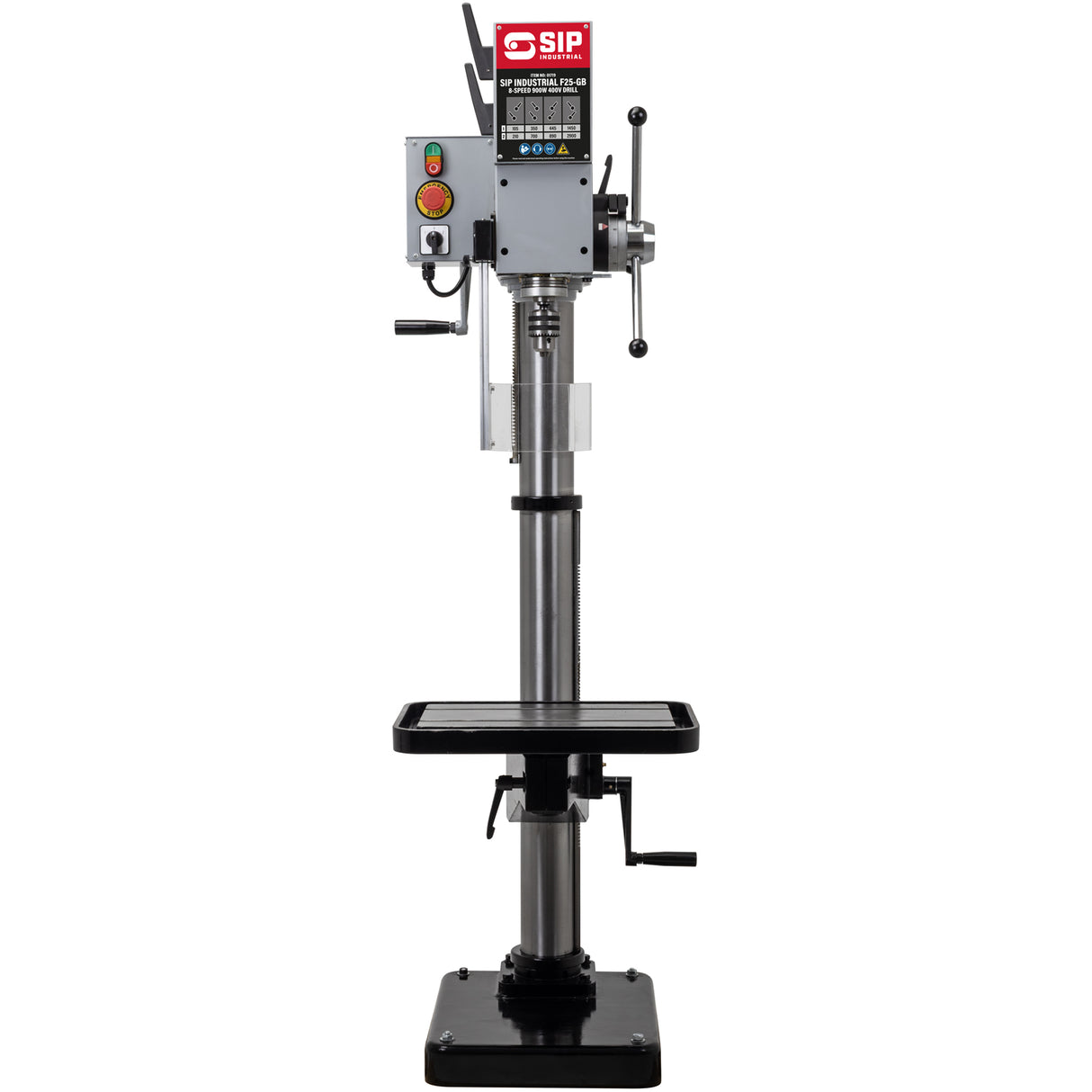

SIP Industrial F25-GB 8-Speed 900w 400v Floor Pillar Drill
SKU SIP-01719 Barcode 5012713009848
Out of stock. Contact us for availability.
Notify me when back in stock
- Expert UK product support
- Authorised distributor
- 30 day returns
Delivery & returns
Despatch times vary by item. Check the product-specific lead time shown on this page. Supplier-shipped and larger items may take longer.
Delivery options and transit times are shown at checkout. Transit time starts after despatch and excludes weekends and bank holidays unless the selected service states otherwise. Tracking is provided when available.
30 day returns on unused items in original packaging.
Description
Description

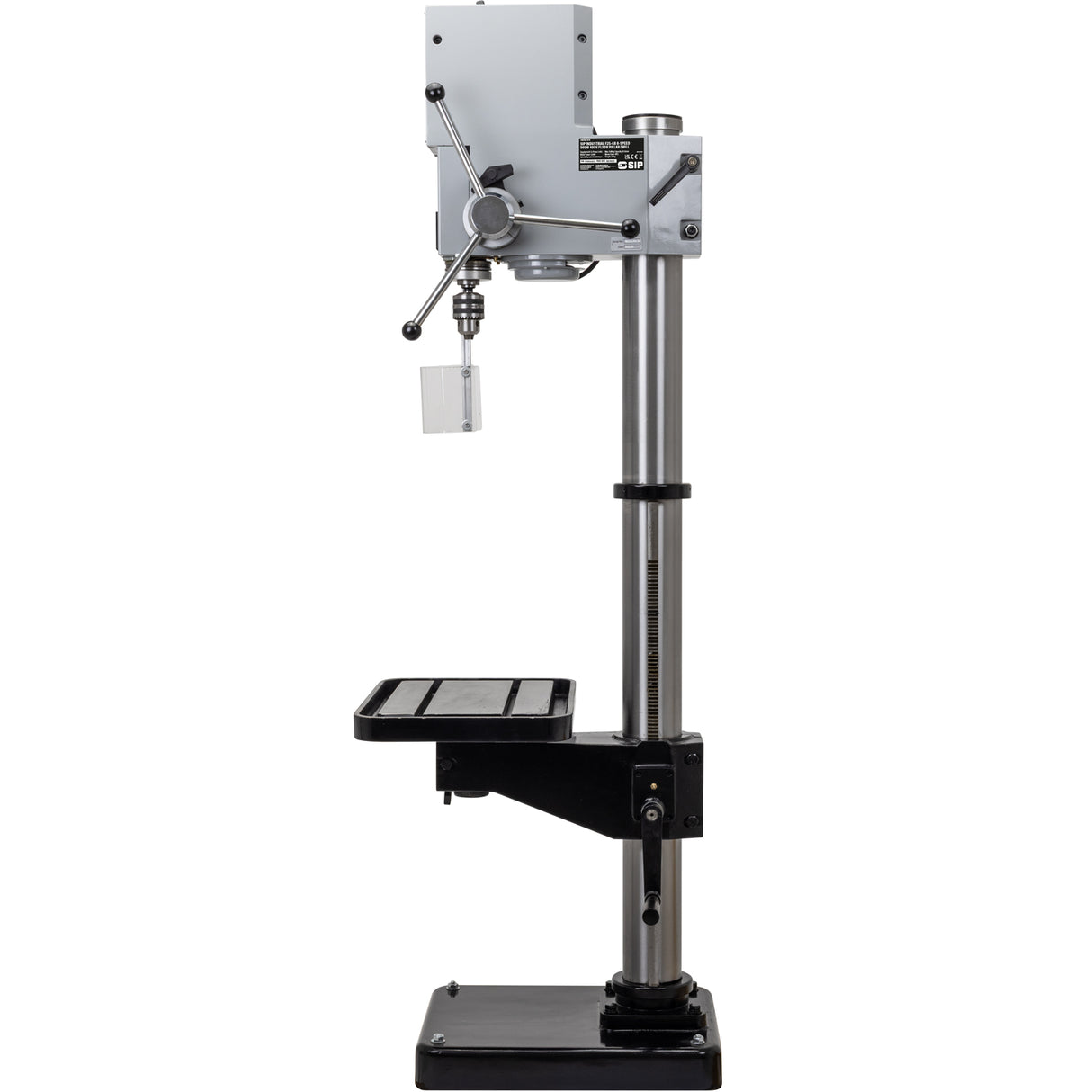

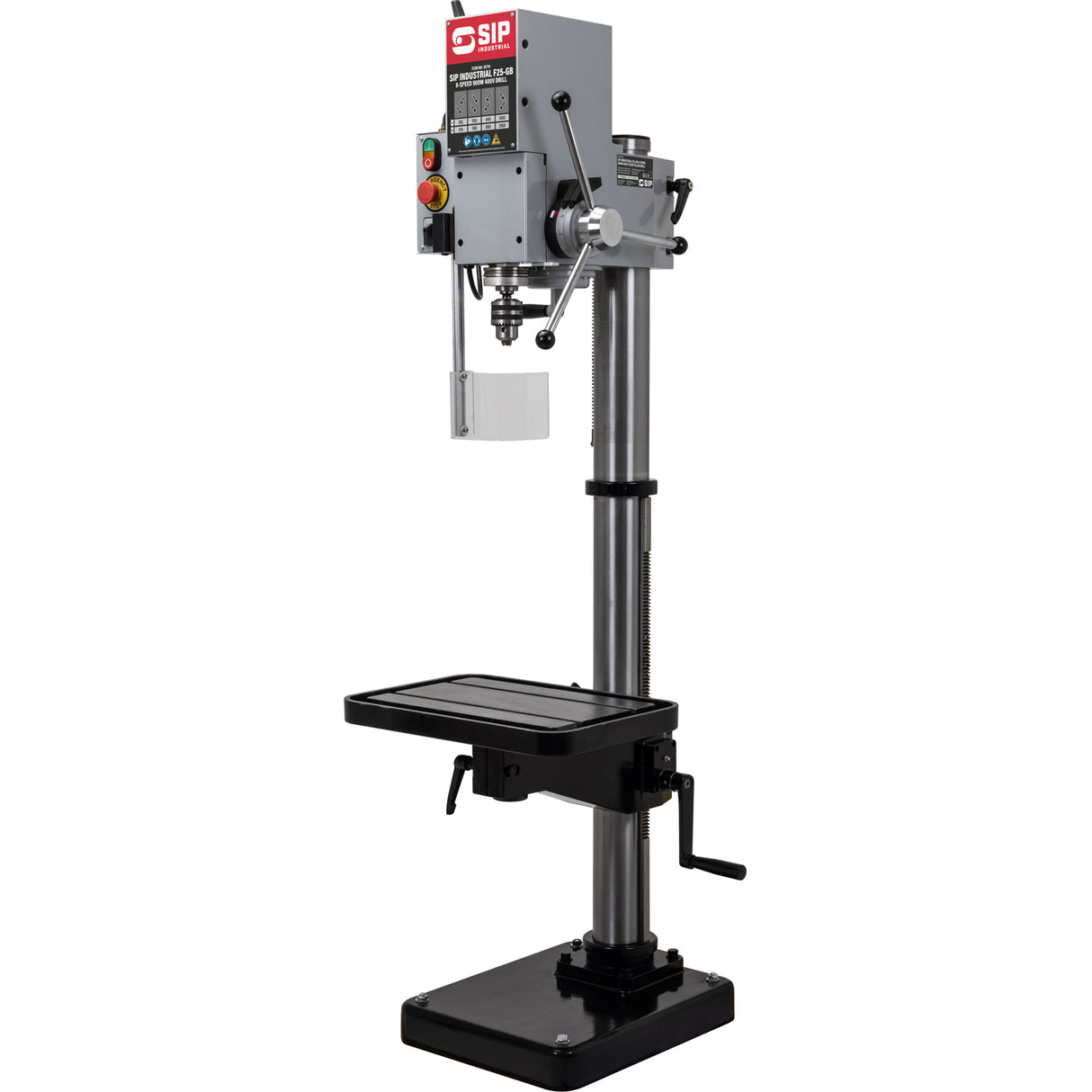

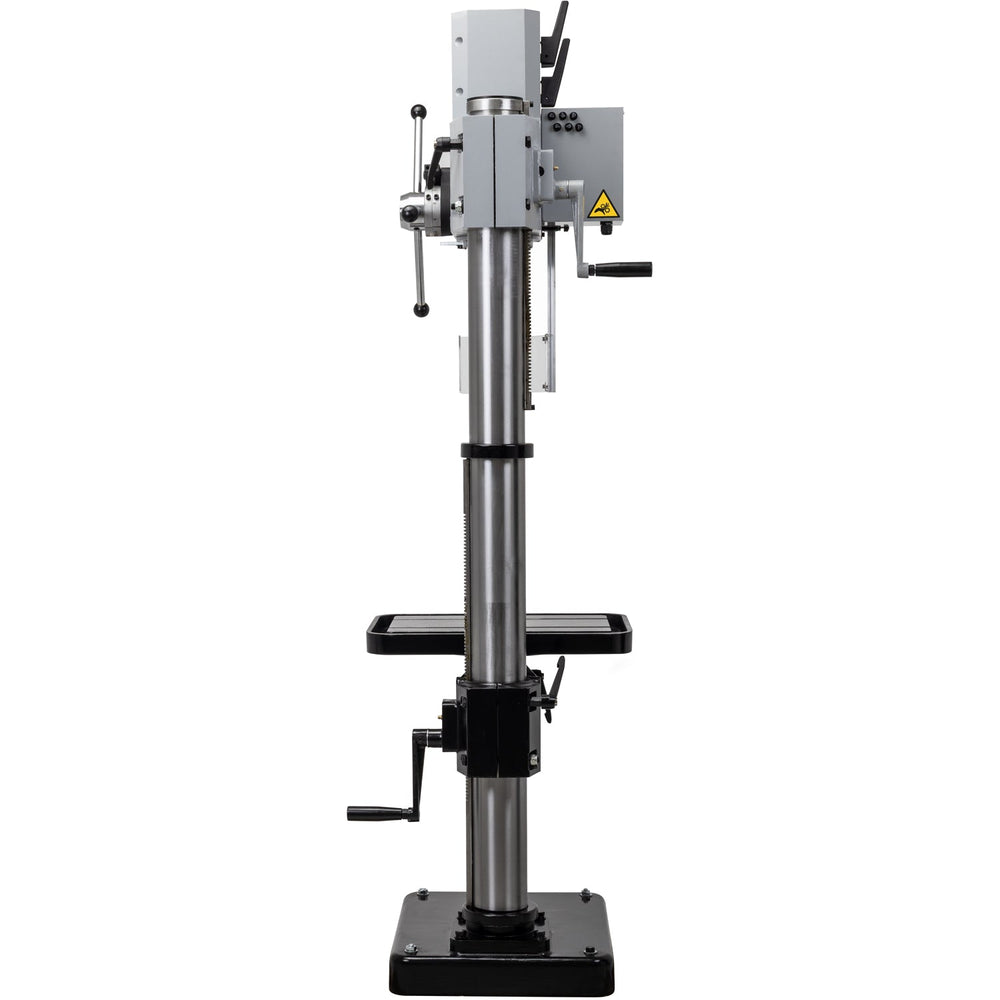

The SIP Industrial F25-GB 8-Speed 900w 400v Floor Pillar Drill is a heavy-duty pillar drill specifically designed for professional metalwork and fabrication workshops.
Featuring an 8-speed gear drive transmission, this drill delivers high torque output across a consistent 105rpm - 2900rpm spindle speed for powerful and precise drilling up to max. ⌀ 25mm. This allows the operator to set the exact spindle speed needed to drill the material.
A gear drive transmission eliminates belt slippage as no manual pulley speed adjustments are required, meaning quicker and easier speed changes for reduced downtime and increased productivity.
Key Features

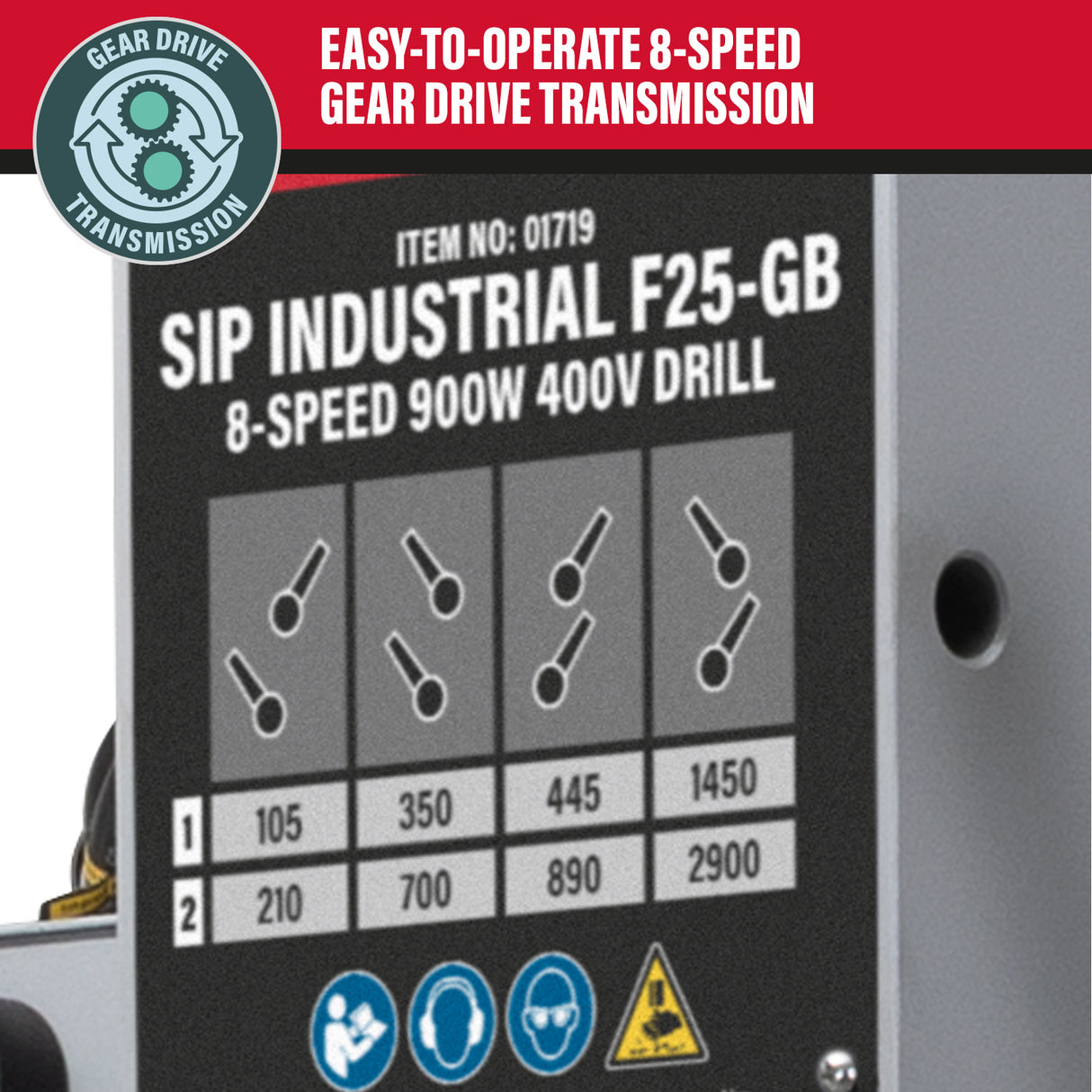

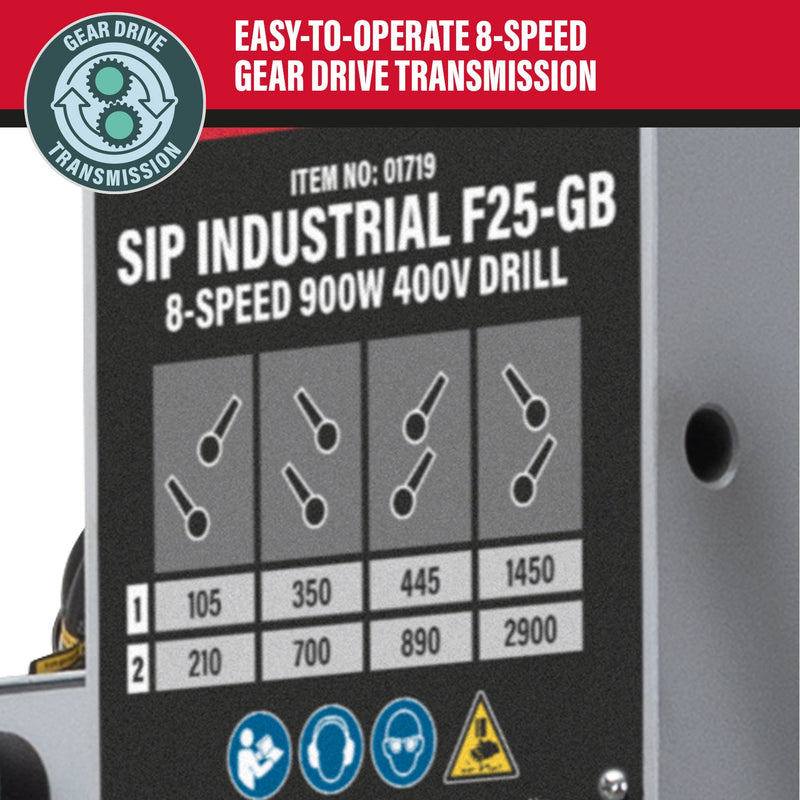

- 8-speed gear drive transmission with wide 105-2900rpm speed range

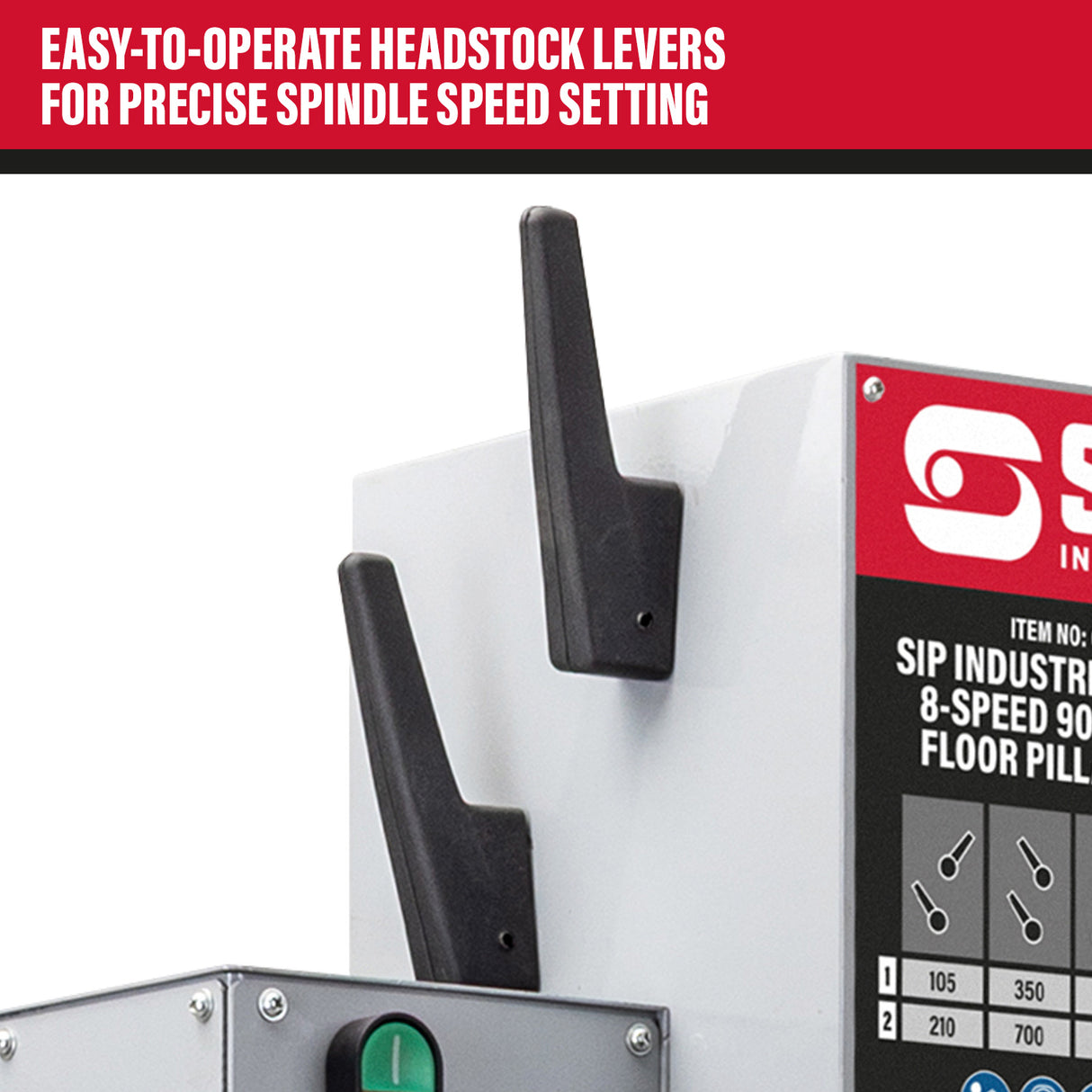

- Easy-to-operate headstock levers for precise spindle speed setting
- High torque output for consistent drilling power and max. ⌀ 25mm

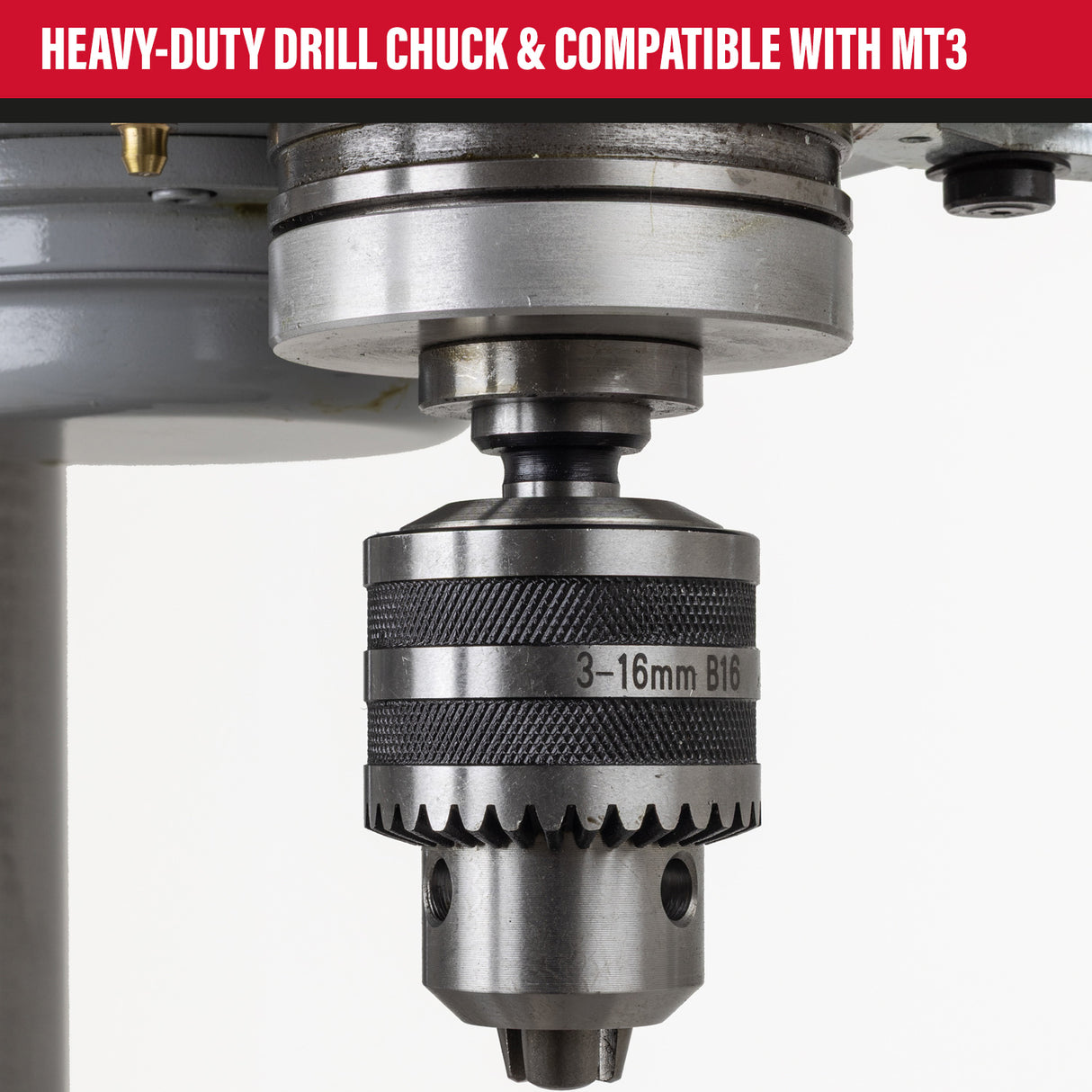

- Fitted with heavy-duty drill chuck and compatible with MT3 (Morse Taper 3)

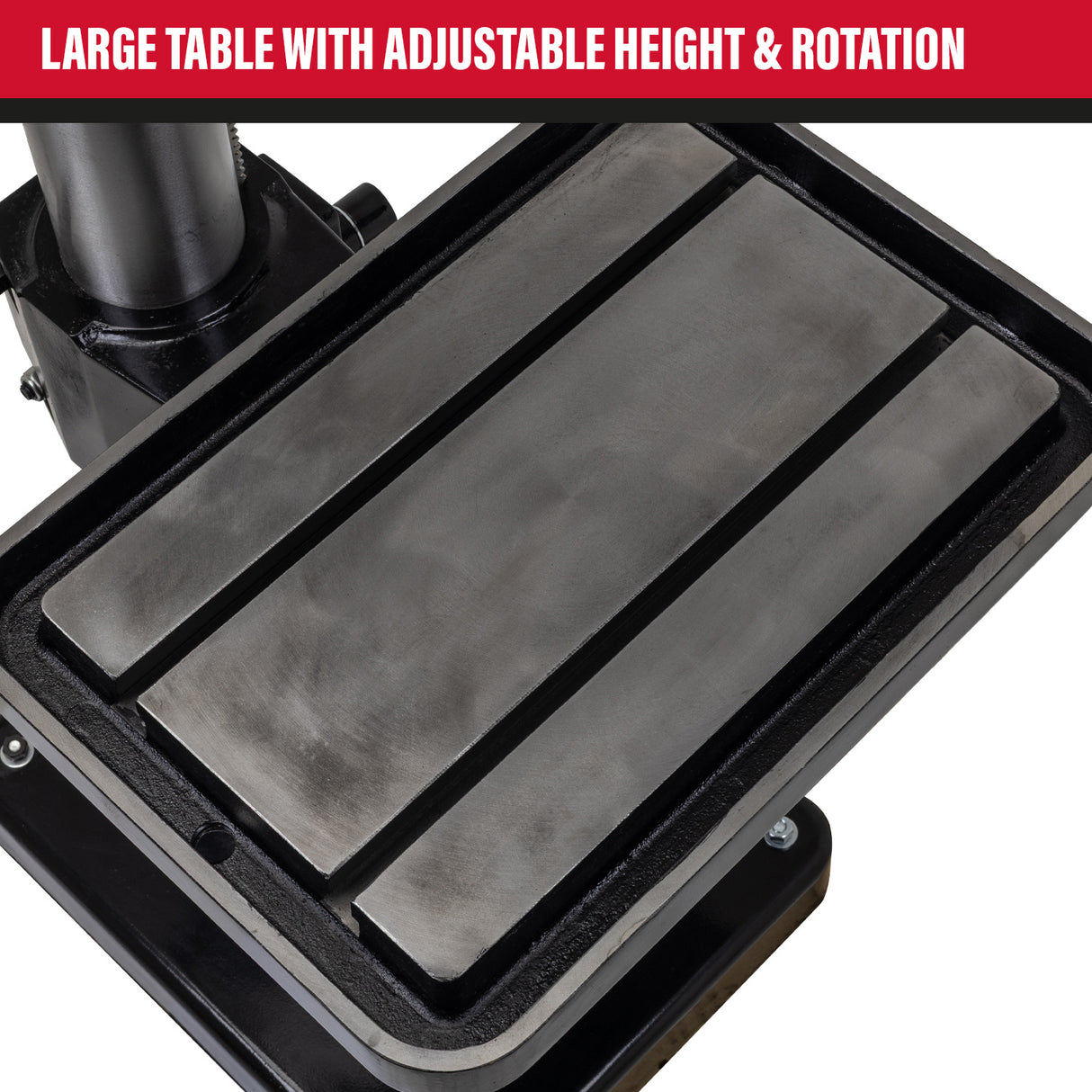

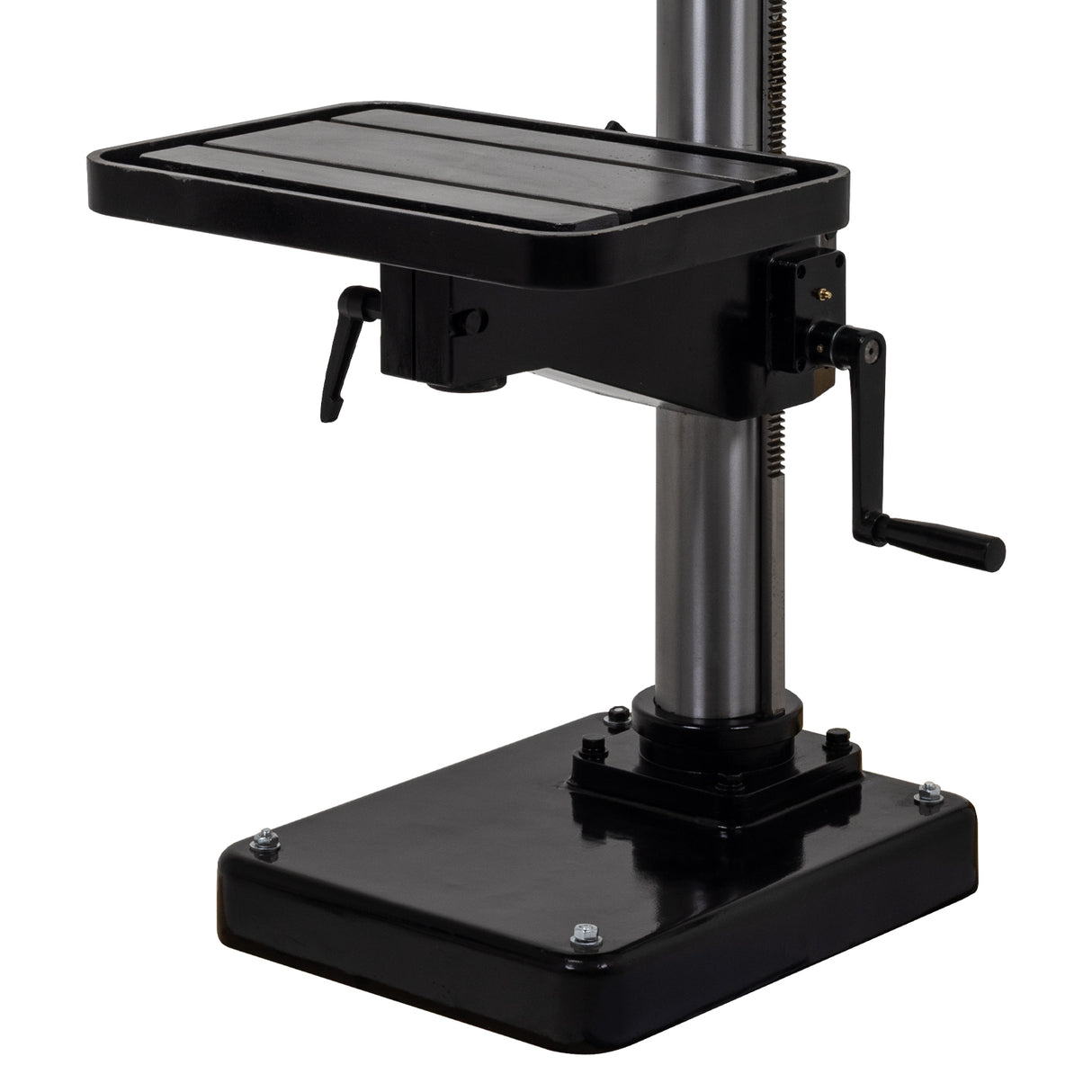

- Large drill table with adjustable height and rotation for greater versatility
- Heavy baseplate and central column to minimise vibration for stable drilling
Applications & Uses

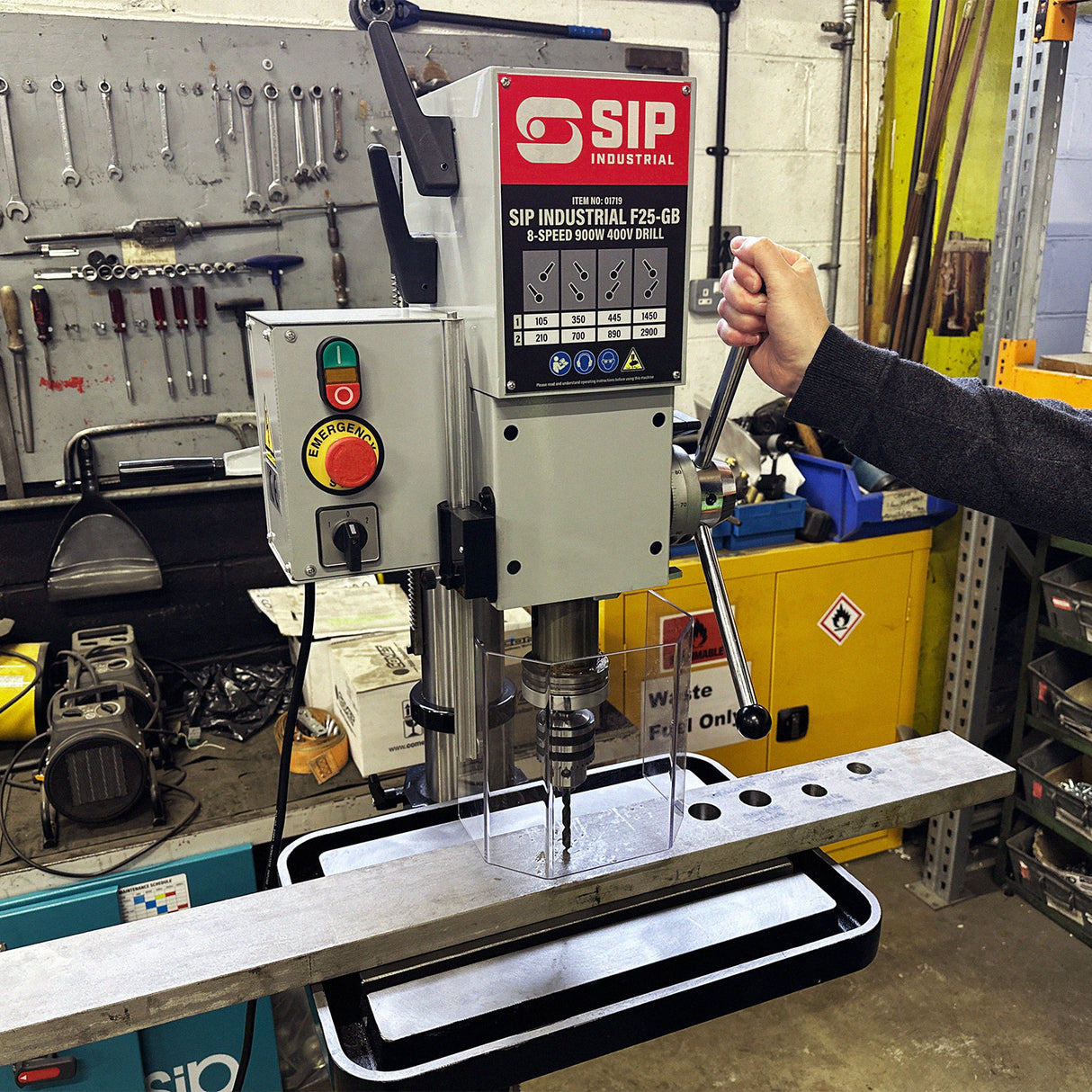

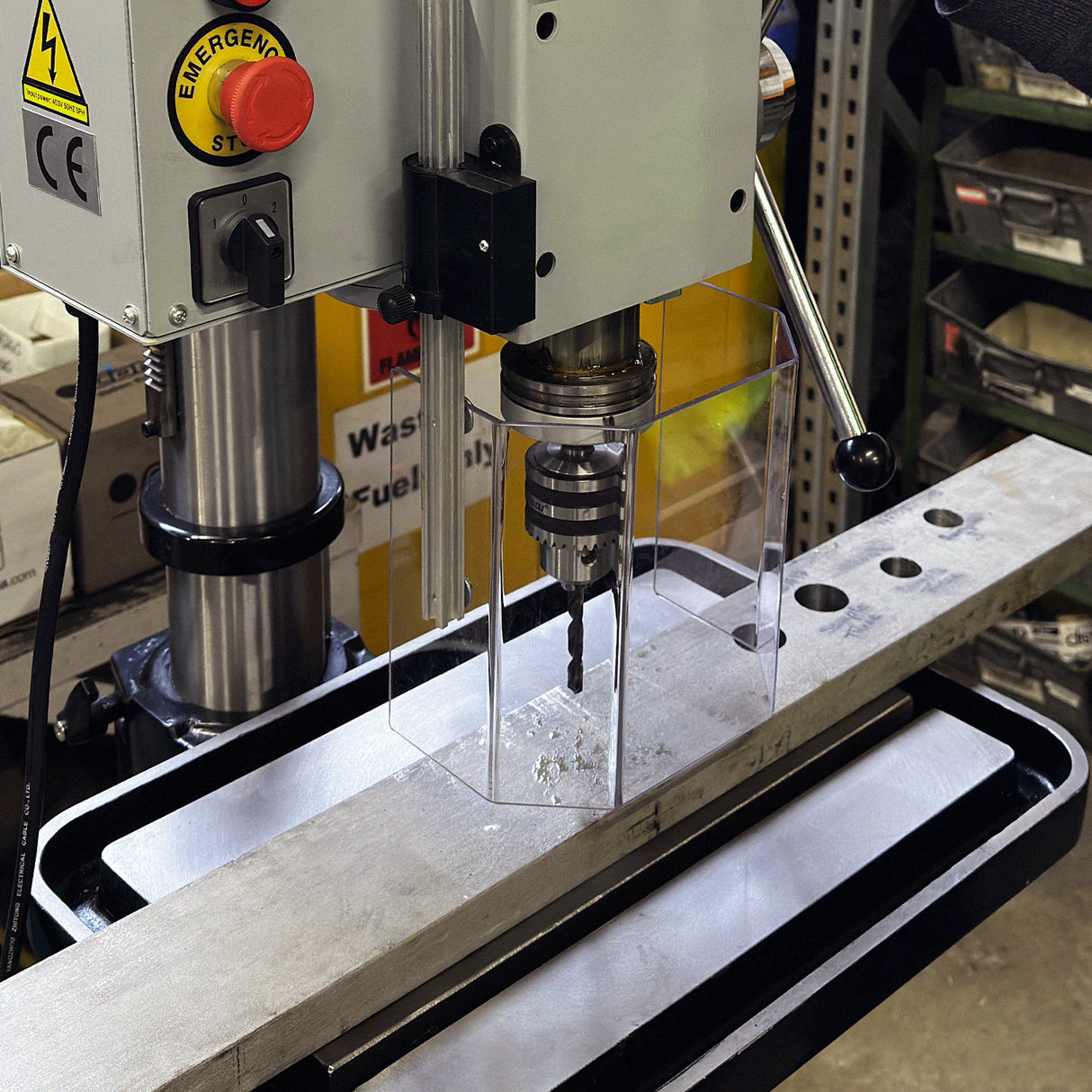

Designed for professional metalworking and fabrication workshops. Ideal for drilling ferrous and non-ferrous metals including mild steel, aluminium, copper, brass, stainless steel, cast iron and wrought iron. Metal Fabrication: drilling holes in steel plates and box sections. General Engineering: creating precise holes for bolts, pins and shafts in various metal components. Production & Assembly: panels for machinery, motor mounts or bearing housing, metal beams, gates, railings and enclosures.
Technical Specification
| Input Supply | 400v (16A) |
|---|---|
| Motor Power | 900w |
| No. of Speeds | 8 speeds |
| Speed Range | 105rpm - 2900rpm |
| Max. Drilling Capacity | 25mm |
| Spindle Taper | MT3 |
| Table Size | 450mm x 320mm |
| Base Size | 405mm x 390mm |
| Column Diameter ⌀ 100mm | |
| Swing | 608mm |
| Height | 1508mm |

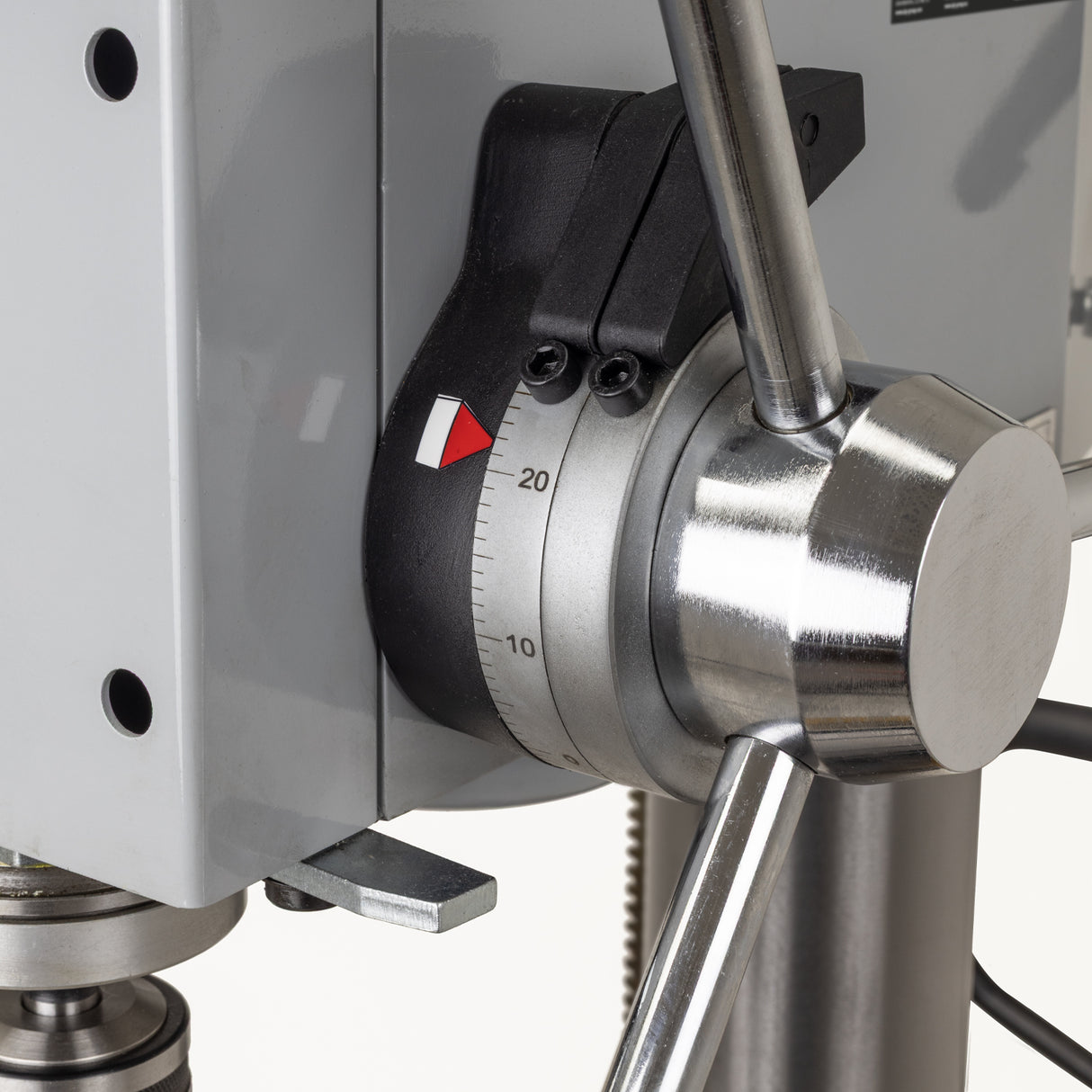

| Spindle Travel | 125mm |
| Collar Diameter | ⌀ 130mm |
| Max. Distance | 905mm (spindle to table) |
What's in the Box
1x SIP Industrial F25-GB 8-Speed 900w 400v Floor Pillar Drill (400v/16A), 1x drill chuck (compatible with Morse Taper 3), 1x drill drift, 1x chuck key, 1x Y-type socket wrench and 2x handles for headstock and table.
Warranty: SIP 2-YEAR
